d link switch
List of Latest d link switch Models
Brand : D-Link

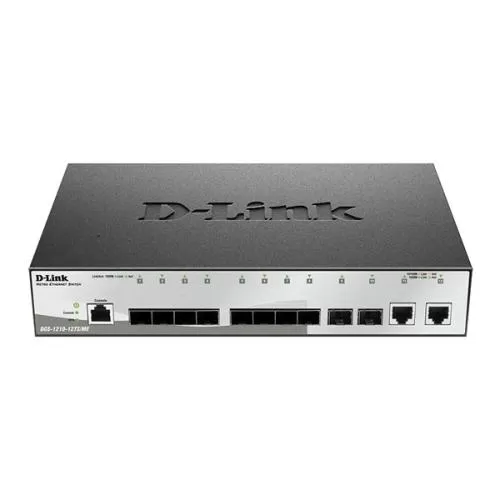

Model : DGS-1210-12TS
Color : Black
1000M SFP Interface : 24
10G SFP+ Interface : 4
Auto MDI/MDIX : Yes (copper ports)
Console Port : Yes
Switching Capacity : 128 Gbps
Max. Packet Forwarding Rate : 95.24 Mpps
Dimension : 440 x 210 x 44mm
Weight : 2.10 kg
Operation Temperature : -5 -50°C
Storage Temperature : -20-70°C
Operation Humidity : 0 ~ 95% RH
Storage Humidity : 0 ~ 95% RH
Operating Altitude : 2000m
Maximum Power Consumption : 53.4 W
Power Input : 100 - 240 VAC
CPU Speed : 400MHz
DRAM Size : 256MB
Flash Memory Size : 32MB
Packet Buffer Size : 448K bits
FAN : 2 DC Fan
Brand : D-Link
Model : DGS-1210-12TS
Color : Black
SFP ports : 10
10/100/1000BASE-T ports : 2
1000Base-T Interface : 2
1000M SFP Interface : 10
Console Port : Yes
Switch Capacity : 24 Gbps
Max. Packet Forwarding Rate : 17.86 Mpps
Store & Forwarding Forwading : Yes
Dimension : 280mm x 180mm x 44mm
Weight : 1.17 kg
Power Input : 100-240 VAC
CPU Speed : 400MHz
DRAM Size : 256MB
Flash Memory Size : 32MB
Packet Buffer Size : 1.5MB
FAN : Fanless
Operation Temperature : -5 - 50°C
Storage Temperature : -20-70°C
Operation Humidity : 0% - 95% RH
Storage Humidity : 0% ~ 95% RH
Operating Altitude : 1500 meters
Maximum Power Consumption : 13.6 W/100 V<br> 13.85 W/240 V
Standby Power Consumption : 7.28 W/100V / 7.49 W/240V
Maximum Heat Dissipation : 47.25 BTU/hr
MTBF : 405,083 hours
MAC Address Table Size : 16K
802.3x Flow Control : Yes

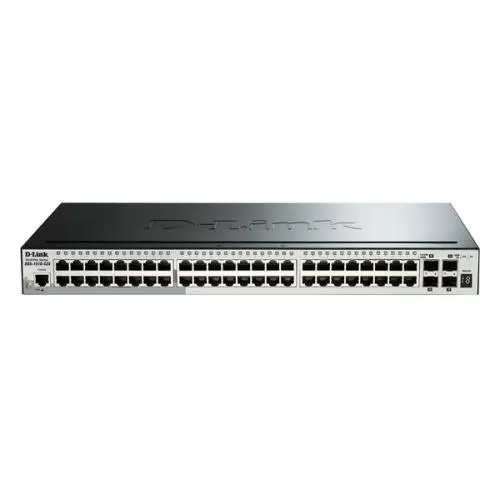

Brand : D-Link
Model : DGS-1510-52X
Color : Black
1000Base-T Interface : 48
10G SFP+ Interface : 4
Auto MDI/MDIX : Yes
Console Port : Yes
10/100/1000BASE-T ports : 48
10G SFP+ ports : 4
Switch Capacity : 176 Gbps
Max. Packet Forwarding Rate : 130.95 Mpps
Dimension : 440mm x 210mm x 44mm
Weight : 3.1Kg
Operation Temperature : -5 -50°C
Storage Temperature : -20-70°C
Operation Humidity : 0% ~ 95% RH
Storage Humidity : 0% ~ 95% RH
Maximum Power Consumption : 48 W
Standby Power Consumption : 30.4Watt/100V 30.3Watt/240V
Maximum Heat Dissipation : 163.68 BTU/hr
Power Input : 100 - 240 VAC
CPU Speed : 400MHz
DRAM Size : 256MB
Flash Memory Size : 32MB
Packet Buffer Size : 3MB
Brand : D-Link
Model : DGS-1250-28X
10/100/1000 BASE-T : 24
10G SFP + ports : 4
Switch Capacity : 128 Gbps
Max. Packet Forwarding Rate : 95.24 Mpps
Dimension : 440mm x 140 mm x 44mm
Maximum Heat Dissipation : 104.346 BTU/hr (100 V)100.936 BTU/hr (240 V)
Weight : 1.75 kg
Operation Temperature : -5 - 50°C
Storage Temperature : -20-70°C
Operation Humidity : 0% - 95% RH
Storage Humidity : 0% ~ 95% RH
Operating Altitude : 1500 meters
Maximum Power Consumption : 30.6 W/100 V29.6 W/240 V
1000Base-T Interface : 24
10G SFP+ Interface : 4
RJ-45 Management Port : No
MTBF : 743,482.45 hours
Power Input : 100-240 VAC
CPU Speed : 800MHz
DRAM Size : DDR3 2G
Flash Memory Size : 64MB
Packet Buffer Size : 12MBits
FAN : Yes
Brand : D-Link
Model : DGS-1210-10
Color : Grey
802.1Q VLAN Yes
802.1X : Yes
Port based 802.1X Authentication : Yes
802.3x Flow Control : Yes
10/100/1000BASE-T ports : 8
SFP ports : 2
CPU Speed : 500MHz
DRAM Size : DDR3 128MB
Dimension : 280mm x 126 mm x 44mm
Maximum Power Consumption : 6.31 W/100 V<br> 6.33 W/240 V
MTBF : 1,380,058 hours
Operating Altitude : 1500 meters
Operation Humidity : 0% - 95% RH
Operation Temperature : -5 - 50°C
Standby Power Consumption : 2.03 W/100V / 2.07 W/240V
Storage Humidity : 0% ~ 95% RH
Storage Temperature : -20-70°C
Weight : 0.98 kg
Simple Network Time Protocol (SNTP) : Yes
Flash Memory Size : 32MB
Packet Buffer Size : 4.1MBits
FAN : Fanless
Jumbo Frame : 10,000 Bytes
Switch Capacity : 20 Gbps
Max. Packet Forwarding Rate : 14.88 Mpps
Power Input : 100-240 VAC
Brand : D-Link

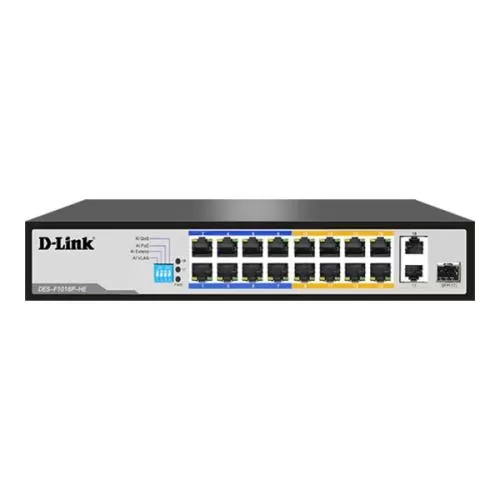

Model : DES-F1016P-HE
Network Interface : 16 10/100Mbps PoE RJ45 port?9-16 port can support ultra-long-distance transmission of 500 meters at 100Mbps (with a long-distance splitter)
Transmission Rate : 2 10/100/1000Mbps RJ45 port
Interface : 1 Gigabit SFP Combo port
Performance : MAC address : Support 8K MAC address, Forwarding Mode : Storage forwarding, Bandwidth : 7.2Gbps, Packet Filtering / Forwarding Rates : 5.36Mpps
LEDs Indicator : 18 Link/Act indicator light, 16 POE indicator light, 1 Power indicator light
POE : Total power budget : 150W, Single port : 30W max. (per PoE port)
Power : Input: 100-240V/50-60Hz
Lightning protection : 6KV
Physical specifications : Dimensions (LxWxH): 285mm×180mm×44mm
Environmental norms : Operating Temperature: 0°~50° C, Storage Temperature: -40°C~70°C, Operating Humidity: 5% to 90% RH non-condensing, Storage Humidity: 5% to 90% RH non-condensing
EMC : CE
Warranty : 1 Years Warranty

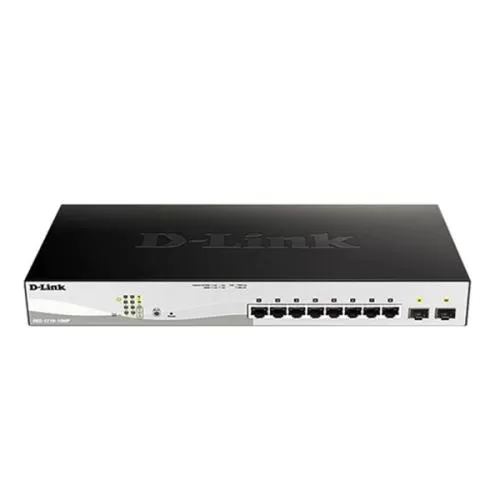

Brand : D-Link
Model : DGS-1210-10MP
1000Base-T PoE Interface : 8
1000M SFP Interface : 2
PoE Budget : 130W
MAC Address Table Size : 8K
802.3x Flow Control : Yes
Auto MDI/MDIX : Yes
10/100/1000BASE-T PoE ports : 8
SFP ports : 2
Switch Capacity : 20 Gbps
Max. Packet Forwarding Rate : 14.88 Mpps
Store & Forwarding Forwading : Yes
Dimension : 330mm x 180 mm x 44mm
Weight : 1.77 kg
Power Input : 100-240 VAC
CPU Speed : 500MHz
DRAM Size : DDR3 128MB
Flash Memory Size : 32MB
Operation Temperature : -5 - 50°C
Storage Temperature : -20-70°C
Operation Humidity : 0% - 95% RH
Storage Humidity : 0% ~ 95% RH
Operating Altitude : 1500 meters
Standby Power Consumption : 4.3 W/100V / 5.2 W/240V
Maximum Heat Dissipation : 519.51 BTU/hr (100 V) and 507.23 BTU/hr (240 V)
Warranty : 5 Years Warranty

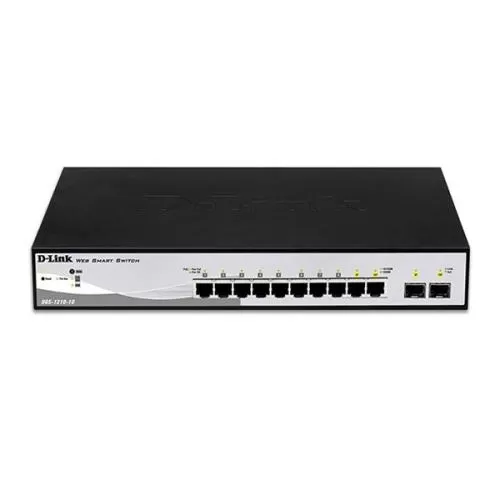

Brand : D-Link
Model : DGS-1210-10P
1000Base-T PoE Interface : 8
1000M SFP Interface : 2
Maximum PoE Budget : 65Watts
PoE Budget : 65 W
MAC Address Table Size : 8K
802.3x Flow Control : Yes
Auto MDI/MDIX : Yes
10/100/1000BASE-T PoE ports : 8
SFP ports : 2
Switch Capacity : 20 Gbps
Max. Packet Forwarding Rate : 14.88 Mpps
Store & Forwarding Forwading : Yes
Dimension : 280mm x 126 mm x 44mm
Weight : 0.95 kg
Power Input : 100-240 VAC
CPU Speed : 500MHz
DRAM Size : DDR3 128MB
Flash Memory Size : 32MB
Operation Temperature : -5 - 50°C
Storage Temperature : -20-70°C
Operation Humidity : 0% - 95% RH
Storage Humidity : 0% ~ 95% RH
Operating Altitude : 1500 meters
Standby Power Consumption : 2.5 W/100V / 2.5 W/240V
Maximum Heat Dissipation : 279.59 BTU/hr (100 V) and 275.04 BTU/hr (240 V)
Warranty : 5 Years Warranty

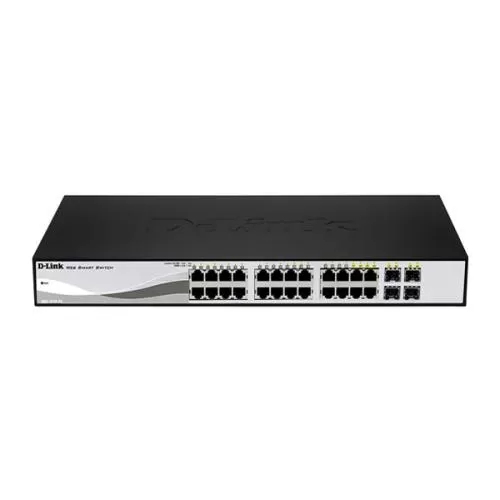

Brand : D-Link
Model : DGS-1210-28P
1000Base-T PoE Interface : 24
Maximum PoE Budget : 193W
PoE Budget : 193 W
802.3x Flow Control : Yes
Combo 1000Base-T/SFP : 4
Auto MDI/MDIX : Yes
10/100/1000BASE-T PoE ports : 24
Combo 10/100/1000BASE-T/SFP ports : 4
Switch Capacity : 56 Gbps
Max. Packet Forwarding Rate : 41.7 Mpps
Store & Forwarding Forwading : Yes
Dimension : 440mm x 250 mm x 44mm
Weight : 3.75 kg
Operation Temperature : -5 - 50°C
Storage Temperature : -20-70°C
Operation Humidity : 0% - 95% RH
Storage Humidity : 0% ~ 95% RH
Operating Altitude : 1500 meters
Maximum Power Consumption : PoE on <br>263.9 W/100 V<br> 247.4 W/240 V <br>PoE off<br> 30.6 W/100 V <br>28.1 W/240 V
Standby Power Consumption : 19.6 W/100V / 16.6 W/240V
ower Input : 100-240 VAC
CPU Speed : 500MHz
DRAM Size : DDR3 128MB
Flash Memory Size : 32MB
Warranty : 3 Years Warranty
Brand : D-Link

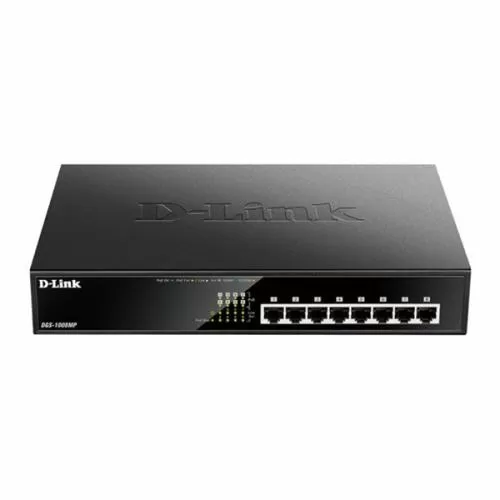

Model : DGS-1008MP
1000Base-T PoE Interface : 8
Maximum PoE Budget : 125W (Reserve 7 watts guardband to prevent from exceeding PoE power budget)
Maximum Power Consumption : PoE on: 140W PoE off: 6.98W
802.3x Flow Control : Yes
Auto MDI/MDIX : Yes
Switching Capacity : 16Gbps
Max. Packet Forwarding Rate : 11.90Mpps
Store & Forwarding Forwading : Yes
Dimension : 280x 180x 44 mm
Weight : 1.84 kgs
Operation Temperature : 0-40°C
Storage Temperature : -10-70°C
Storage Humidity : 0%-95% RH
Operation Humidity : 0%-95% RH
Operating Altitude : 2000 m
Standby Power Consumption : 3.27W
Warranty : 3 Years Warranty

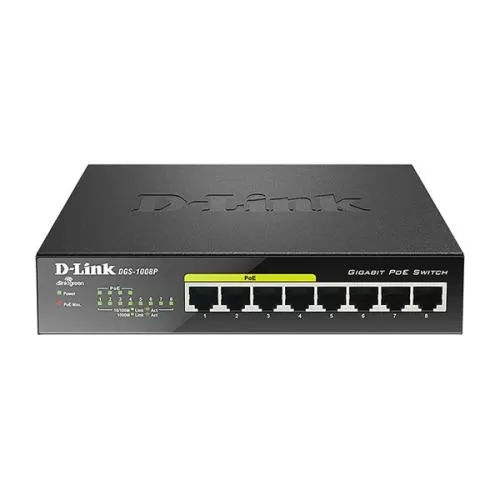

Brand : D-Link
Model : DGS-1008P
1000Base-T Interface : 8
1000Base-T PoE Interface : Yes
Maximum Power Consumption : 74.2 Watts
Maximum PoE Budget : 68.00W
Auto MDI/MDIX : Yes
802.3x Flow Control : Yes
Switching Capacity : 16 Gbps
Max. Packet Forwarding Rate : 11.90 Mpps
Store & Forwarding Forwading : Yes
Dimension : 190 x 120 x 38 mm (5.5” x 3.0” x 1.06”)
Weight : 0.761 kgs
Operation Temperature : 0 ~ 50 °C for device 0 ~ 40 °C for external power adaptor
Storage Temperature : - 40 ~ 70 °C
Operation Humidity : 0% ~ 95% RH
Storage Humidity : 0% ~ 90% RH
MAC Address Table Size : 4K
Warranty : 3 Years Warranty
- Brand : D-Link

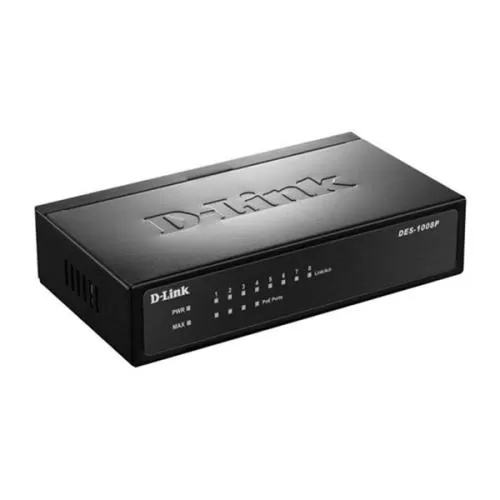

Model : DES-1008P
Switching Capacity : 1.6 Gbps
Max. Packet Forwarding Rate : 1.19 Mpps
Store & Forwarding Forwading : Yes
Dimension : 140 x77 x27mm
Weight : 0.41 kg
Operation Temperature : 0 ~ 40 °C
Storage Temperature : - 10 ~ 70 °C
Operation Humidity : 10% ~ 90% RH
Storage Humidity : 5% ~ 90% RH
Maximum PoE Budget : 58W
Jumbo Frame : 2048 Bytes
802.3x Flow Control : Yes
100Base-TX PoE Interface : 4
Auto MDI/MDIX : Yes
100Base-TX Interface : 4
Power Input : AC?100 ~ 240 V
Packet Buffer Size : 57K Bytes
FAN : Fanless
MAC Address Table Size : 2K
- Warranty : 3 Years Warranty

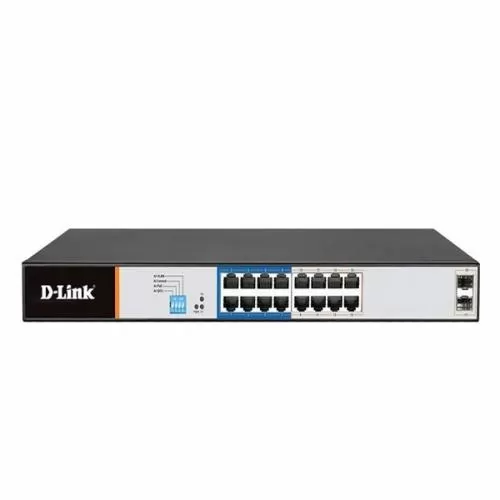

Brand : D-Link
Model : DGS-F1018P E
Size : Desktop (with Mounting Kit)
Network Interface : 16 10/100/1000 BASE-T ports, 2 SFP
Standards : Auto MDI/MDI-X adjustment on all ports
Media Interface Exchange : CE Class B, FCC Part 15?Class B, VCCI Class B, C-Tick
Lightning protection : 6KV
Switching Fabric : 36 Gbps
Transmission Method : Adopt Store-and-forward
Data Transfer Rates : Gigabit Ethernet -1000 Mbps, Ethernet -100 Mbps
Physical specifications : Dimensions (LxWxH): 440 x 180 x 44mm, Weight: 3kg
POE Power Budget : 150W (30 W max. per PoE port)
Total Power : 150W
Humidity : Operating: 0% to 95% RH non-condensing, Storage: 0% to 95% RH non-condensing
Warranty : 1 Years Warranty

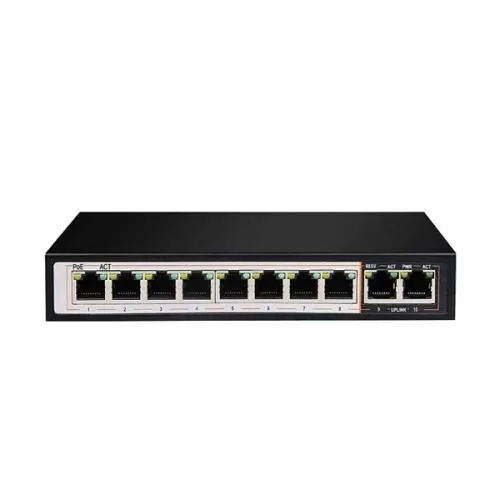

- Brand : D-Link
Model : DGS-F1010P E 8 Port
Network Interface : 8 10/100/1000Mbps PoE RJ45 port (port 1 ~port 8) , 2 10/100/1000Mbps uplink RJ45 port (port 9~port 10)
Transmission Rate : 10/100/1000Mbps Each port supports MDI / MDIX auto-flip and auto, Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port
Protocols and Standards : IEEE802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE802.3x Flow Control, IEEE 802.3af/at standard
Performance : Bandwidth: 20 Gbps (no block), Network delay (100 to 100M bps): maximum 20 ?s (using 64byte packet), Frame filtering and transmission rate, 10M: 14,800pps, 100M: 148,800pps, 1000M: 1488,00pps
LEDs Indicator : Power, LINK/ACT?POE
POE Pin : 1/2(+) 3/6(-)
Total Power : 120W
Lightning protection : 6KV
Physical specifications : Dimensions (LxWxH): 184 x 94 x 27mm, Weight: 1.05kg
Environmental norms : Operating Temperature: 0°~40°C Storage Temperature: -10°C~70°C, Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
EMC : CE Class B, FCC Part 15?Class B, VCCI Class B, C-Tick
Warranty : 1 Years Warranty
Brand : D-Link

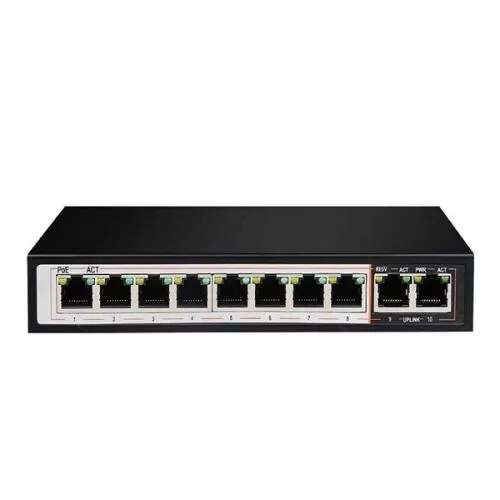

Model : DES-F1010P-E
Port Type : Fast Ethernet
Product Series : Long Reach PoE Switches
Number of Ports : 5 - 8
PoE Type Required : PoE|250m Long Reach PoE
Design : Metal|Fanless
Ethernet Speed : 10/100
LAN Ports : 10
PoE ports : 8 Ports
Housing : Metal
Power Supply : External
Fanless Design for Silent Operation : Yes
Compact Design for Home and Office Use : Yes
Quick, Simple Plug-and-Play Installation : Yes
Dimensions (Size) : 184 x 75 x 27 mm
Warranty : 1 Years Warranty
- Brand : D-Link

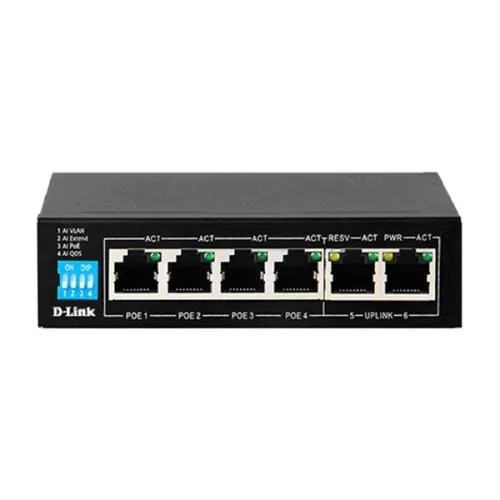

- Model : DES-F1006P-E
- Interfaces : 4 10/100 BASE-T ports,2 10/100 BASE-T Uplink ports
- Media Interface Exchange : Auto MDI/MDI-X adjustment on all ports
- Lighting Protection : 6KV
- Transmission Method : Adopt Store-and-forward
- Packet Filtering / Forwarding Rates : 10M port maximum 14800pps,100M port maximum 148800pps
- PoE Standards: IEEE 802.3af,IEEE 802.3at
- PoE-Capable Ports: Ports 1 to 4
- Power Budget:60 W (36 W max. per PoE port)
- Dimensions:125 x 75 x 27 mm
- Power:External power adapter: 60W
- Temperature:Operating: 0 to 40°C (32 to 104°F)
- Humidity:Operating: 0% to 95% RH non-condensing
- Warranty : 1 Year Warranty
- Brand Name:D-Link
- Series:SMARTPRO 28PORT GB SWITCH

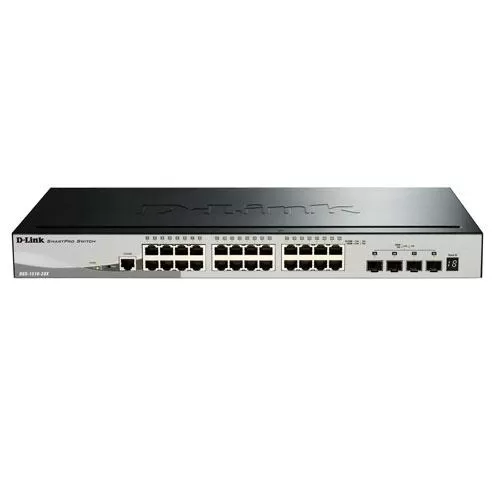

- Model number:DGS-1510-28X
- Hardware Platform:PC
- Weight:4.2 pounds
- Product Dimensions:8.3 x 17.3 x 1.7 inches
- Item Dimensions L x W x H:8.26 x 17.32 x 1.73 inches
- Color:Black
- Processor Count:1
- Voltage:240 volts
- Warranty : 5 Years Warranty
- Interfaces Size : 19 inch standard rackmount width
- Port : RJ 45 console port
- Network Cables : UTP Cat. 5, Cat. 5e (100 m max.)
- Switching Capacity : 56 Gbps
- RAM for CPU : 128 MB DDR3
- Packet Buffer : 1.5 MB
- Memory : 32 MB
- Power Input : AC Input: 100 to 240 V AC, 50/60 Hz
- Power Consumption : 22.45 Watts / 17.84 Watts (Standby)
- Dimensions : 440 mm x 140 mm x 44 mm
- Warranty : 5 Years Warranty
- Interfaces Size : 19 inch standard rackmount width
- Switching Capacity: 12.8Gbps
- Ports : 24 10/100 Base TX
- SDAM for CPU: 128 MB DDR2
- Packet Buffer Memory: 384KB
- Flash memory: 16MB
- Power Input : 100 to 240 V AC, 50/60 Hz
- Power Consumption : 15.5W
- Dimensions : 440 x 140 x 44mm
- Warranty : 5 Years Warranty
- Brand : D-Link
Model : DGS-1210-52
Color : Grey
1000Base-T Interface : 48
Combo 1000Base-T/SFP : 4
Auto MDI/MDIX : Yes
10/100/1000BASE-T ports : 48
Combo 10/100/1000BASE-T/SFP ports : 4
Switch Capacity : 104 Gbps
Max. Packet Forwarding Rate : 77.4 Mpps
Store & Forwarding Forwading : Yes
Dimension : 440mm x 210 mm x 44mm
Weight : 3.46 kg
Power Input : 100-240 VAC
CPU Speed : 700MHz
DRAM Size : 128MB
Flash Memory Size : 32MB
Packet Buffer Size : 12Mbits
FAN : Fanless
Operation Temperature : -5 - 50°C
Storage Temperature : -20-70°C
Operation Humidity : 0% - 95% RH
Storage Humidity : 0% ~ 95% RH
Operating Altitude : 1500 meters
- Maximum Power Consumption : 34.85 W/100 V and 34.2 W/240 V
Standby Power Consumption : 13.7 W/100V / 13.9 W/240V
- Maximum Heat Dissipation : 118.92 BTU/hr (100V) and 116.7 BTU/hr (240V)
- Processor:8032
- RAM:128 MB
- Wireless Type:802.11a
- Brand Name:D Link
- Model number:DGS 1210 28P
- Hardware Platform:PC
- Operating System:PC
- Weight:10 pounds
- Product Dimensions:17.3 x 9.8 x 1.7 inches
- Dimensions L x W x H:17.32 x 9.84 x 1.73 inches
- Processor Count:1
- Voltage:240 volts
- Warranty : 5 Years Warranty
- Brand:D Link
- Height:44 Millimeters
- Width:44 Centimeters
- Weight:1.56 Kg
- Product Dimensions:21 x 44 x 4.4 cm

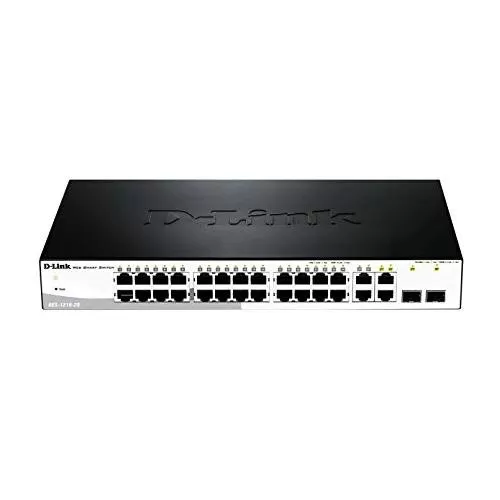

- Model number:DES-1210-28
- Wattage:17.06 Watts
- Warranty : 5 Years Warranty
- Switch Capacity : 56 Gbps
- 1000Base-T PoE Interface : 24
- Auto MDI/MDIX : Yes
- Dimension : 440mm x 250 mm x 44mm
- Weight : 3.94 kg
- CPU Speed : 500MHz
- Packet Buffer Size : 4.1MBits
- Power Input : 100 240 VAC
- PoE Budget : 370 W
- Warranty : 5 Years Warranty
- Switch Capacity : 56 Gbps
- 1000Base-T PoE Interface : 24
- Combo 10/100/1000BASE-T/SFP ports : 4
- Dimension : 440mm x 250 mm x 44mm
- Weight : 3.75 kg
- CPU Speed : 500MHz
- PoE Budget : 193 W
- Warranty : 5 Years Warranty
- 1000Base T PoE Interface : 24
- Combo 1000Base-T/SFP : 4
- Auto MDI/MDIX : Yes
- 10/100/1000BASE-T PoE ports : 24
- Combo 10/100/1000BASE T/SFP ports : 4
- Switch Capacity : 56 Gbps
- Max. Packet Forwarding Rate : 41.7 Mpps
- Weight : 3.75 kg
- Dimension : 440mm x 250 mm x 44mm
- Warranty : 5 Years Warranty
- Brand : D Link
- Model Number : DES F1009P E
- PoE ports : 8
- Uplink ports : 1
- Switching Capacity : 1.8 Gbps
- Forwarding rate: 10M : 14800pps,100M : 148,800pps
- Power Budget:120W
- Warranty : 1 Year Warranty
- Brand : D Link

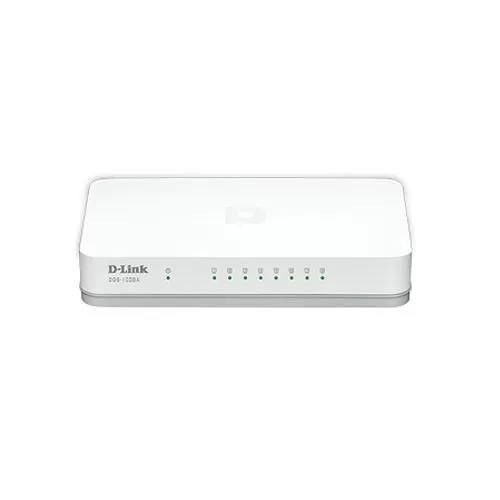

- Model : DGS 1008A
- Item Weight : 272 g
- Operating System : Windows
- Power : 5V/1A Power Adapter
- Included Components : 8 Port Gigabit Easy Desktop Switch(DGS-1008A), Quick Install Guide and Warrenty documents and Power Adapter
- Warranty : 3 Years Warranty
- Type : Unmanaged
- Number of ports : 24 10/100Mbps Fast Ethernet ports
- Main type of ports : 100BASE-TX Fast Ethernet
- Switching capacity : 4.8 Gbps
- Weight : 3.652lbs
- Warranty : 3 Years Warranty
