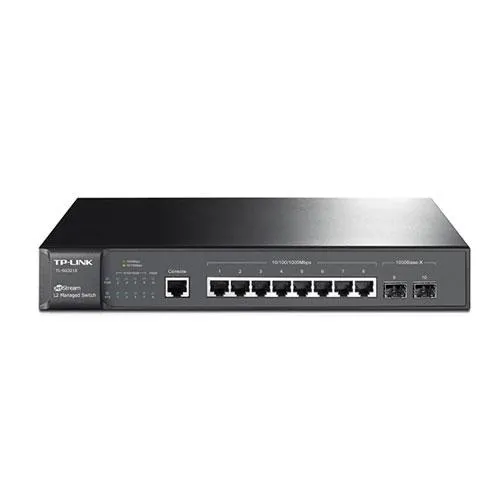

• Brand: TP Link
• Product: TL SG3210 JetStream 8 Port Gigabit Ethernet Switch
• Mounting: Rack Mountable / Desktop
• Interface: 8× 10/100/1000 Mbps RJ45 Ports; 2× Gigabit SFP Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
• Fan Quantity: Fanless
• Max. Power Consumption: 6.8 W
• Max. Heat Dissipation: 23.3 BTU/h
• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.89 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9 KB
• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions( W x D x H ): 11.6×7.1×1.7 in.(294×180×44 mm)

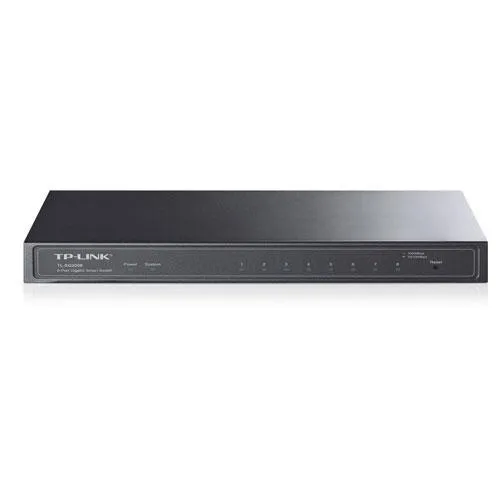

• Brand: Tp Link
• Product: TL SG2008 JetStream 8 Port Gigabit Network Switch
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• Interface: 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• Network Media 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Installation: Desktop/Wall-Mounting
• Power Supply: 12 VDC/1 A External Adapter or Obtain Power from PoE Source
• Power Consumption: 6.4 W (220 V/50 Hz)
• Bandwidth/Backplane: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9 KB
• Dimensions( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

• Brand: TP Link
• Mounting: Rack Mountable
• Product: TL SG1218MPE V3 16 Port Gigabit PoE Network Switch
• Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x; IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface: 16 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Gigabit SFP Ports
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-X MMF, SMF
• Fan Quantity: 2 Fans
• Physical Security Lock Yes
• Power Supply 100-240V AC, 50/60 Hz
• PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
• PoE+ Ports: 16 Ports
• Power Supply: 192W
• Max Power Consumption: 18.73 W (220/50Hz. no PD connected); 217.22 W (220/50Hz. with 192W PD connected)
• Max Heat Dissipation: 63.89 BTU/h (no PD connected); 741.15 BTU/h (with 192W PD connected)
• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9 KB
• Dimensions( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)

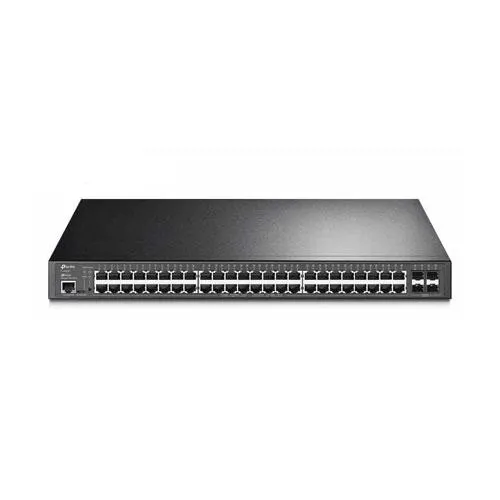

• Brand: TP Link
• Product: TP-Link TL-SG3452P JetStream 52-Port Gigabit L2 Plus Managed with 48-Port PoE Plus Switch
• Mounting: Rack Mountable
• Interface: 48× 10/100/1000 Mbps RJ45 Ports; 4× Gigabit SFP Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
• Fan Quantity: 3
• Power Supply: 100-240 V AC~50/60 Hz
• PoE+ Ports(RJ45) Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• Power Budget: 384 W
• PoE Ports (RJ45 Standard: 802.3at/af compliant
• PoE+ Ports: 48 Ports, up to 30 W per port
• PoE Power Budget: 384 W
• Max Power Consumption: 52.5 W (no PD connected)485.4 W (110 V/60 Hz) (with 384 W PD connected)
• Max Heat Dissipation: 179.1 BTU/hr (110 V/60 Hz) (no PD connected) 1656.2 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
• Switching Capacity: 104 Gbps
• Packet Forwarding Rate: 77.4 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Dimensions(W x D x H): 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)

• Brand: TP-Link
• Mounting: Rack Mountable
• Model No: TP-Link TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
• Interface: 24× 10/100/1000 Mbps RJ45 Ports; 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
• Fan Quantity: 2
• Power Supply: 100-240 V AC~50/60 Hz
• PoE+ Ports(RJ45)(Standard): 802.3at/af compliant
• PoE+ Ports(RJ45)(PoE+ Ports): 24 Ports, up to 30 W per port
• PoE+ Ports(RJ45) (Power Budget): 384 W
• Switching Capacity: 128 Gbps
• Packet Forwarding Rate: 95.23 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Dimensions ( W x D x H ): 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
• Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Software Controller
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features: Web based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3; SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log

• Brand: TP-Link
• Product: TP-Link TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
• Mounting: Rack Mountable
• Interface: 16× 10GE SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
• Fan Quantity: 1
• Power Supply: 100-240 V AC~50/60 Hz
• Max Power Consumption: 32.74 W (220 V / 50 Hz)
• Max Heat Dissipation: 111.71 BTU/hr (220 V / 50 Hz)
• Switching Capacity: 320 Gbps
• Packet Forwarding Rate: 238.08 Mpps
• MAC Address Table: 32 K
• Packet Buffer Memory: 24 Mbit
• Jumbo Frame: 9 KB
• Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Software Controller
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Dimensions ( W x D x H ): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
• Management Features: Web based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3; SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log

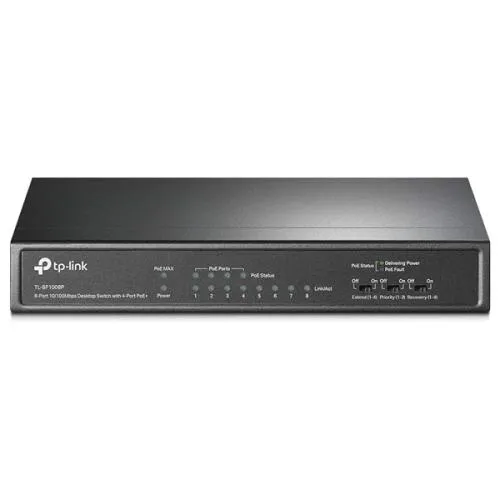

• Brand: Tp-Link
• Product No: TL SF1008P
• Interface: • 8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
• Mac Address Table: 2K
• Jumbo Frame: 2 KB
• Switching Capacity: 1.6 Gbps
• Packet Forwarding Rate: 1.1904 Mpps
• Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
• Max Power Consumption: 2.27 W (220 V/ 50 Hz. no PD connected)
• External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)

• Brand: Tp-Link
• Product No: TL SF1006P
• Interface: • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
• Mac Address Table: 2K
• Jumbo Frame: 2 KB
• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.8928 Mpps
• Dimensions ( W x D x H ): 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
• Max Power Consumption: • 1.9 W (220 V / 50 Hz, no PD connected) • 74 W (220 V / 50 Hz, with 67 W PD connected)
• Max Heat Dissipation: • 6.48 BTU/h(no PD connected)
• External Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)

• Brand: Tp-Link
• Product No: TL SF1005P
• Interface: 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX
• Mac Address Table: 2K
• Jumbo Frame: 2 KB
• Switching Capacity: 1 Gbps
• Dimensions ( W x D x H ): 3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
• Max Power Consumption: 3.44 W (220 V / 50 Hz, no PD connected)

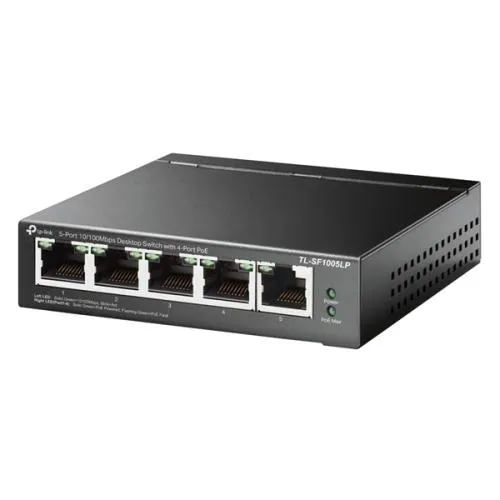

• Brand: Tp-Link
• Product No: TL SF1005LP
• Interface: 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX
• Mac Address Table: 2K
• Jumbo Frame: 2 KB
• Switching Capacity: 1 Gbps
• Dimensions ( W x D x H ): 3.9×3.9×1.0 in (100×98×25 mm)
• Max Power Consumption: 1.9 W (220 V / 50 Hz, no PD connected)

• Brand: Tp-Link
• Product No: TL SG1016PE
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 16× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 10 KB
• Mounting: Rack Mountable/ Desktop
• Dimensions ( W x D x H ): 11.6×7.1×1.7 in (294×180×44 mm)
• Max Power Consumption: 13.07 W (220 V/50 Hz with no PD connected) 173.88 W (220 V/50 Hz with 150 W PD connected)

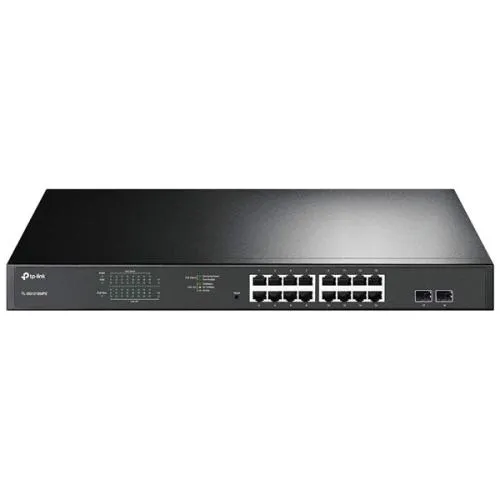

• Brand: Tp-Link
• Product No: TL SG1218MPE V4
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface: 16 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Gigabit SFP Ports
• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 26.78 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 10 KB
• Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Mounting: Rack Mountable
• Power Supply: 100–240V AC, 50/60 Hz

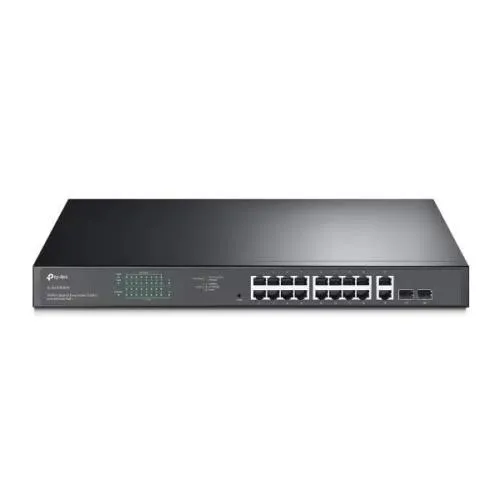

• Brand: Tp-Link
• Product No: TL SG1218MPE V2
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface: 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Combo Gigabit SFP Ports
• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 26.78 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 10 KB
• Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
• Mounting: Rack Mountable
• Power Supply: 100–240V AC, 50/60 Hz

• Brand: Tp-Link
• Product No: TL SG1218MPE V1
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface: 16 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Gigabit SFP Ports
• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 23.8 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9 KB
• Mounting: Rack Mountable
• Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
• Power Supply: 100-240V AC, 50/60 Hz

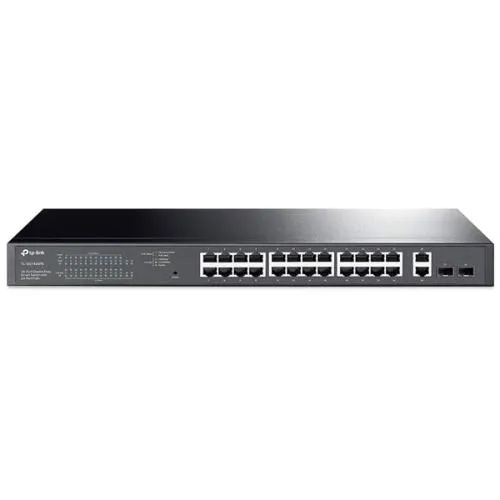

• Brand: Tp-Link
• Product No: TL SG1428PE
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
• Interface: 26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.7 Mbps
• MAC Address Table: 8K
• Packet Buffer Memory: 4.1 Mbit
• Jumbo Frame: 9 KB
• Dimensions ( W x D x H ): 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
• Mounting: Rack Mountable
• Power Supply: 100-240V AC, 50/60 Hz

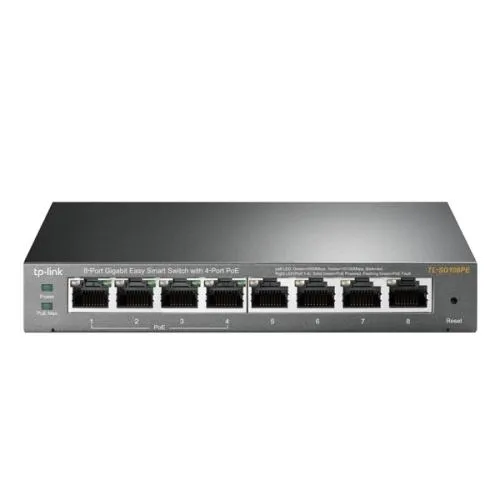

• Brand: Tp Link
• Product No: TL-SG108PE V5
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
• Interface: 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4 K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB
• Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
• Dimensions: 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

• Brand: TP Link
• Part No: TL-SG108PE
• Model No: TP Link TL SG108PE 8 Port Gigabit PoE Switch
• Mounting: N/A
• Fan Quantity: Fanless
• System Requirements: Microsoft Windows for running Utility
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4 K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB
• Interface: 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
• Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
• PoE Ports (RJ45): Standard: 802.3at/af compliant;
• PoE+ Ports: 1- Port 4
• PoE Power Budget: 55W
• Max Power Consumption:  V2: 292.0W (110V/60Hz) (with 240 W PD connected)
• Max Heat Dissipation:  V2: 996.35 BTU/hr (110 V/60 Hz) (with 240 W PD connected)
• Dimensions ( W x D x H ): 158 × 101 × 25 mm
• Package Contents: TL-SG108PE, Power Adapter, Installation Guide, Rubber Feet
• Certification: FCC, CE, RoHS

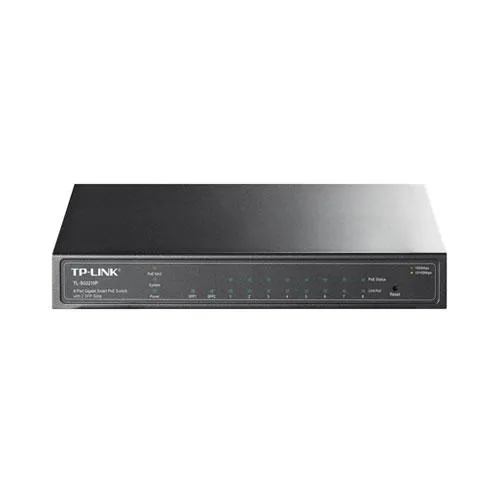

• Brand: TP Link
• Part No: TL-SG2210P
• Model No: TP Link TL SG2210P 8 Port Gigabit PoE Switch
• Mounting: Desktop / Wall-Mounting
• Fan Quantity: Fanless
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux
• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88Mpps
• MAC Address Table: 8k
• Packet Buffer Memory: 512KB
• Jumbo Frame: 9216 Bytes
• Interface: 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots
• Power Supply: 100~240VAC, 50/60Hz External Power Adapter(Output: 53.5VDC/1.31A)
• PoE Ports (RJ45): Standard: 802.3af/at compliant
• PoE+ Ports: 8 Ports
• PoE Power Budget:  58W
• Max Power Consumption:  V2: 292.0W (110V/60Hz) (with 240 W PD connected)
• Max Heat Dissipation:  V2: 996.35 BTU/hr (110 V/60 Hz) (with 240 W PD connected)
• Dimensions ( W x D x H ): 209 x 126 x 26mm)
• Package Contents: TL-SG2210P, Power Adapter, Installation Guide, Resource CD, Rubber Feet
• Certification: CE, FCC, RoHS

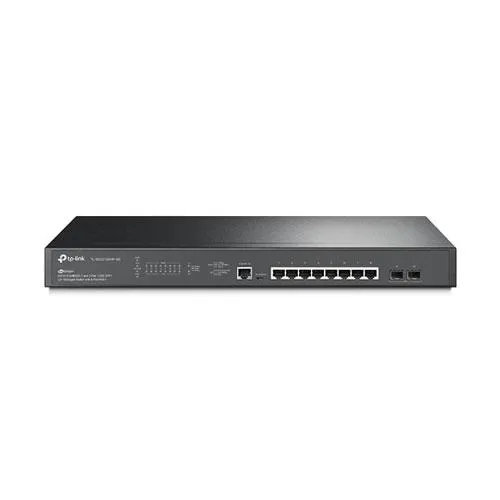

• Brand: TP Link
• Part No: TL SG3210XHP M2
• Model No: TP Link TL SG3210XHP M2 Jetstream 8 Port Switch
• Mounting: Rack Mountable
• Switching Capacity: 80 Gbps
• Fan Quantity: 2
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
• Packet Forwarding Rate: 59.52 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Interface: 8× 100/1000/2500 Mbps RJ45 Ports; 2× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
• Power Supply: 100-240 V AC~50/60 Hz
• PoE Ports (RJ45): Standard: 802.3at/af compliant;
• PoE+ Ports: 8 Ports
• PoE Power Budget: 240 W
• Max Power Consumption:  V2: 292.0W (110V/60Hz) (with 240 W PD connected)
• Max Heat Dissipation:  V2: 996.35 BTU/hr (110 V/60 Hz) (with 240 W PD connected)
• Dimensions ( W x D x H ): 440 × 180 × 44 mm
• Package Contents: TL-SG3210XHP-M2 Switch; Power Cord; Quick Installation Guide; Rackmount Kit; Rubber Feet
• Certification: CE, FCC, RoHS

• Brand: TP-Link

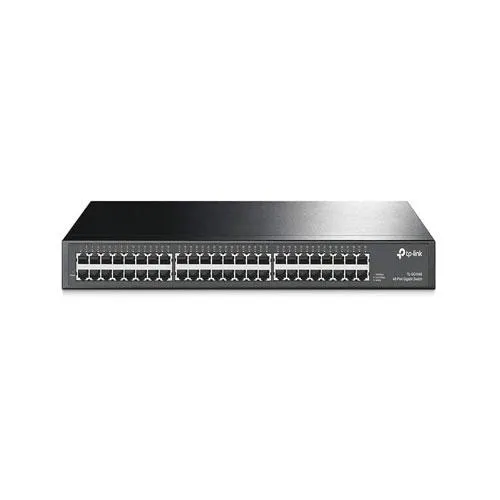

• Model No: TP Link TL SG1048 48 Ports UnManaged Switch
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface: 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions ( W x D x H ): 17.3 x 8.7 x 1.7 in.(440 x 220 x 44 mm)
• Mounting: 19? 1U Rack Mountable(Mounting bracket included)
• Max Power Consumption: 32.3W
• Max Heat Dissipation: 110.2BTU/h
• Switching Capacity: 96Gbps
• Packet Forwarding Rate: 71.4Mpps
• MAC Address Table: 16K
• Buffer Memory: 12Mb
• Jumbo Frame: 12KB
• Transfer Method: Store-and-Forward
• Green Technology: Yes
• Transfer Method: Store-and-Forward
• Warranty : 3 Years Warranty

• Brand: TP-Link
• Model No: TP Link TL SG3452X 48 Ports Managed Switch
• Interface:-

• 48× 10/100/1000 Mbps RJ45 Ports

• 4× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

• Fan Quantity: Fanless
• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions ( W x D x H ): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
• Mounting: Rack Mountable
• Max Power Consumption: 32.72 W (110V/60Hz)
• Max Heat Dissipation: 111.65 BTU/h (110 V/60 Hz)
• Switching Capacity: 176 Gbps
• Packet Forwarding Rate: 130.9 Mpps
• MAC Address Table: 16 K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Green Technology: Yes
• Transfer Method: Store-and-Forward
• Warranty : 3 Years Warranty

• Brand: TP-Link

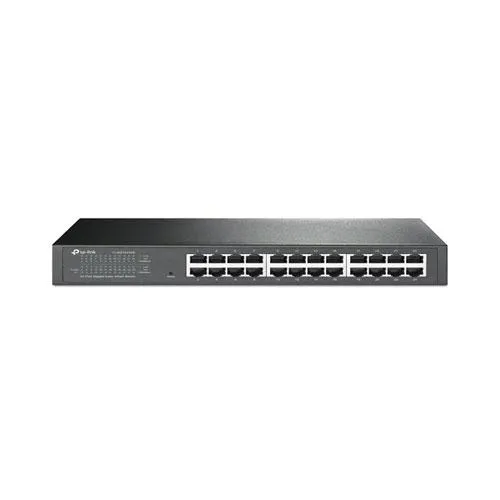

• Model No: TP Link TL SG1024 24 Ports UnManaged Switch
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
• Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions ( W x D x H ): 17.3 x 7.1 x 1.7 in.(440 x 180 x 44 mm)
• Mounting: 19" Rack Mountable
• Max Power Consumption: 13.6W
• Max Heat Dissipation: 46.4BTU/h
• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• MAC Address Table: 8K
• Jumbo Frame: 10KB
• QoS: 802.1p/DSCP QoS, Only for V11 and later version
• Green Technology: Yes
• Transfer Method: Store-and-Forward
• Warranty : 3 Years Warranty

• Brand: TP-Link

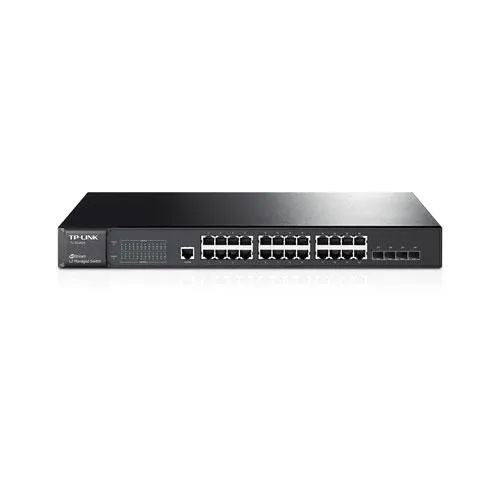

• Model No: TP Link TL-SG3424 24 Ports Managed Switch
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
• Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 4 Combo 100/1000Mbps SFP Slots, 1 Console Port
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 100BASE-FX: MMF,SMF
• 1000BASE-X: MMF, SMF
• Fan Quantity: Fanless
• Power Supply: 100~240VAC, 50/60Hz
• Power Consumption: Maximum: 23.3W (220V/50Hz)
• Dimensions ( W x D x H ): 17.32*8.7*1.73 in.(440*220*44 mm)
• Bandwidth/Backplane: 48Gbps
• Packet Forwarding Rate: 35.7Mpps
• MAC Address Table: 8k
• Jumbo Frame: 10240 Bytes
• Green Technology: Yes
• Transfer Method: Store-and-Forward
• Warranty : 3 Years Warranty

• Brand: TP-Link

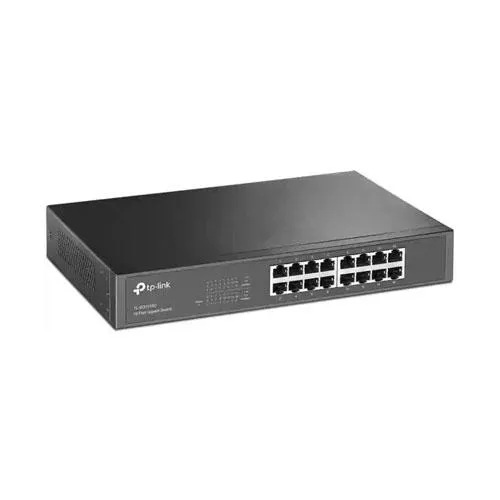

• Model No: TP Link TL SG1016D 16 Ports UnManaged Gigabit Switch
• Certifications: RoHS
• Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 90% Humidity
• Storage Conditions: -40 to 158°F / -40 to 70°C at 5 to 90% Humidity
• Cooling System: Passive
• Indicator Lights: Yes
• Rack Mountable: No
• Dimensions: 11.6 x 7.1 x 1.7" / 29.4 x 18 x 4.4 cm
• Package Weight: 4.1 lb
• Box Dimensions (LxWxH): 15.8 x 9.9 x 3.2 inch
• Green Technology: Yes
• Transfer Method: Store-and-Forward
• Warranty : 3 Years Warranty

• Brand: TP-Link

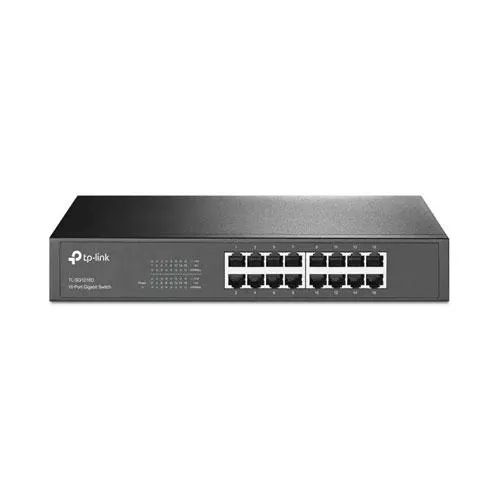

• Model No: TP Link TL SG1016D 16 Ports Managed Switch
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
• Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Power Consumption: Maximum: 9.26W (220V/50Hz)
• Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)
• Max Power Consumption: 9.95W(220V/50Hz)
• Max Heat Dissipation: 33.93BTU/h
• Switching Capacity: 32Gbps
• Packet Forwarding Rate: 23.8Mpps
• MAC Address Table: 8K
• Jumbo Frame: 10KB
• Green Technology: Yes
• Transfer Method: Store-and-Forward
• Warranty : 3 Years Warranty

• Brand: TP-Link

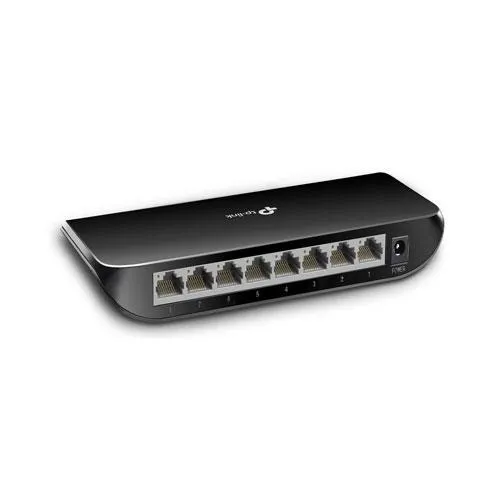

• Model No: TP Link TL SG1008D 8 Ports UnManaged Switch
• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
• Interface: 8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity: Fanless
• Physical Security Lock: No
• External Power Supply: External Power Adapter (Output: 9VDC/0.6A)
• Jumbo Frame: 15 KB
• Switching Capacity: 16 Gbps
• Dimensions ( W x D x H ): 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)
• Max Power Consumption: 4.63W(220V/50Hz)
• Max Heat Dissipation: 15.80BTU/h
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• Warranty : 3 Years Warranty

• Brand: TP-Link

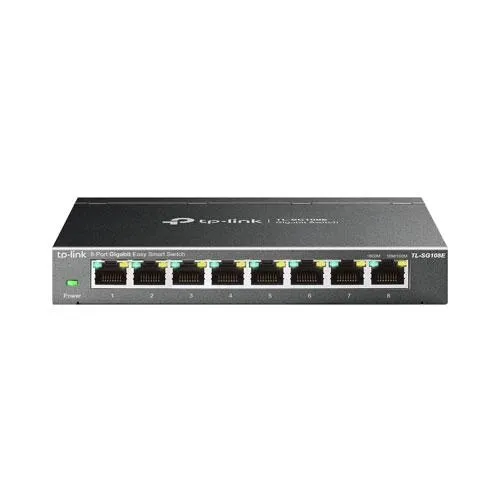

• Model No: TP Link TL SG108E 8 Ports Managed Switch
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface: 8 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity: Fanless
• Power Supply: External Power Adapter(Output: 5 VDC/ 0.6 A)
• Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
• Max Power Consumption: 3.68 W (220 V/ 50 Hz)
• Max Heat Dissipation: 12.55 BTU/h
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4 K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB
• Warranty : 3 Years Warranty
