hikvision camera

List of Latest hikvision camera Models

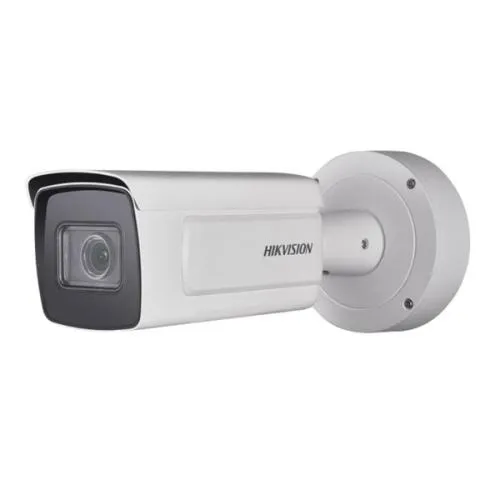

HIKVISION DS 2CD2066G2 IU 6MP FIXED BULLET CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2066G2 IU 6MP Fixed Bullet Camera
Image Sensor: 1/2.4 inch Progressive Scan CMOS
Resolution: 3200 × 1800 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type: Fixed
Aperture: F1.6
Lens Mount: M12
Video Bit Rate: 32 Kbps to 16 Mbps
Audio Type: Mono sound
Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.2 W
Dimension: 70 mm × 161.7 mm (2.8" × 6.4")
Weight: Approx. 490 g (1.1 lb.)

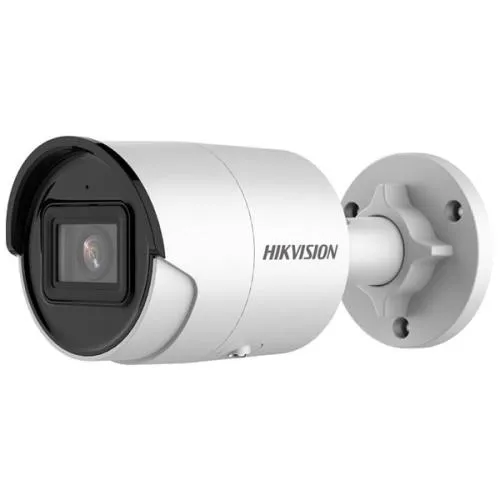

HIKVISION DS 2CD2046G2H IU 4MP FIXED BULLET NETWORK CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2046G2H IU 4MP Fixed Bullet Network Camera
Image Sensor: 1/3 inch Progressive Scan CMOS
Resolution: 2688 × 1520 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Iris Type: Fixed
Aperture: F1.0
Lens Mount: F1.0
Video Bit Rate: 32 Kbps to 8 Mbps
Audio Type: mono sound
Power: 12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
Weight: Approx. 525 g (1.2 lb.)

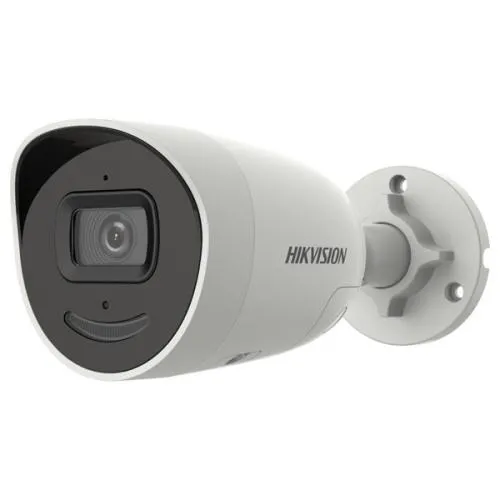

HIKVISION DS 2CD2046G2 IU SL 4MP BULLET NETWORK CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2046G2 IU SL 4MP Bullet Network Camera
Image Sensor: 1/3 inch Progressive Scan CMOS
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type: Fixed
Aperture: F1.4
Lens Mount: M12
Video Bit Rate: 32 Kbps to 8 Mbps
Audio Type: Mono sound
Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection ,PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
Dimension: 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5")
Weight: Approx. 590 g (1.3 lb.)

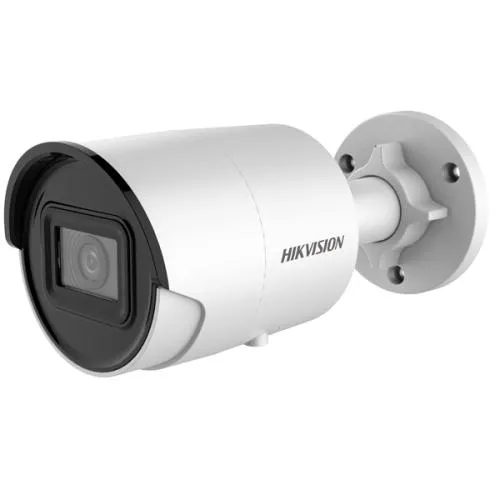

HIKVISION DS 2CD2046G2 IU 4MP BULLET NETWORK CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2046G2 IU 4MP Bullet Network Camera
Image Sensor: 1/3 inch Progressive Scan CMOS
Resolution: 2688 × 1520 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type: Fixed
Aperture: F1.4
Video Bit Rate: 32 Kbps to 8 Mbps
Audio Type: mono sound
Power: 12 VDC ± 25%, 0.5 A, max. 6.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.0 W
Dimension: 70 mm × 161.7 mm (2.8" × 6.4")
Weight: Approx. 485 g (1.1 lb.)

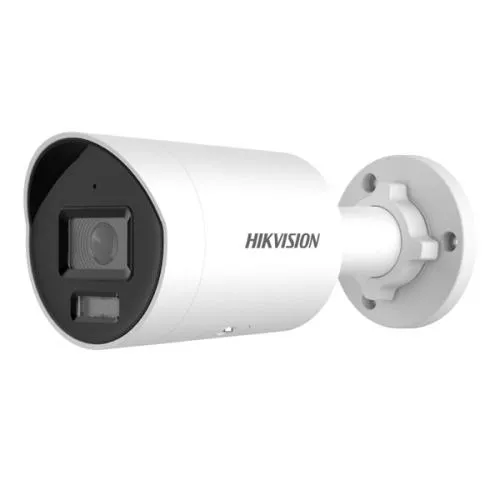

HIKVISION DS 2CD2026G2 IU SL 2MP FIXED BULLET NETWORK CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2026G2 IU SL 2MP Fixed Bullet Network Camera
Image Sensor: 1/2.8 inch Progressive Scan CMOS
Resolution: 1920 × 1080 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type: Fixed
Aperture: F1.4
Video Bit Rate: 32 Kbps to 8 Mbps
Audio Type: Mono Sound
Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
Weight: Approx. 510 g (1.1 lb.)

HIKVISION DS 2CD2026G2 IU 2MP MINI BULLET NETWORK CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2026G2 IU 2MP Mini Bullet Network Camera
Image Sensor: 1/2.8 inch Progressive Scan CMOS
Resolution: 1920 × 1080 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type: Fixed
Aperture: F1.4
Video Bit Rate: 32 Kbps to 8 Mbps
Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W
Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
Weight: 74.4 mm × 179.2 mm (Ø2.9" × 7.1")

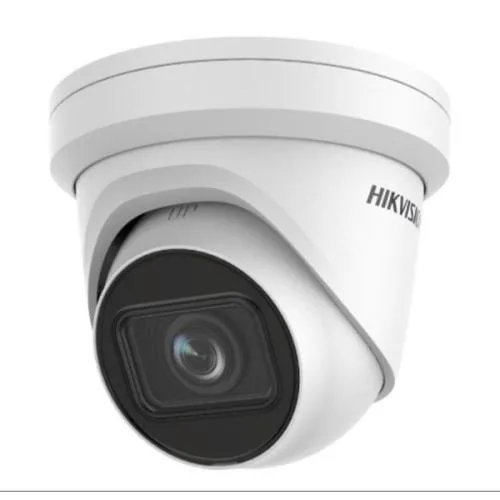

HIKVISION DS 2CD2H23G2 IZS 2MP DOME CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2H23G2 IZS 2MP Dome Camera
Image Sensor: 1/2.8 inch Progressive Scan CMOS
Resolution: 1920 × 1080 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
Iris Type: Fixed
Aperture: F1.6
Video Bit Rate: 32 Kbps to 8 Mbps
Power: 12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Dimension: 138.3 mm × 126 mm (5.5" × 5.0")
Weight: Approx. 830 g (1.8 lb.)

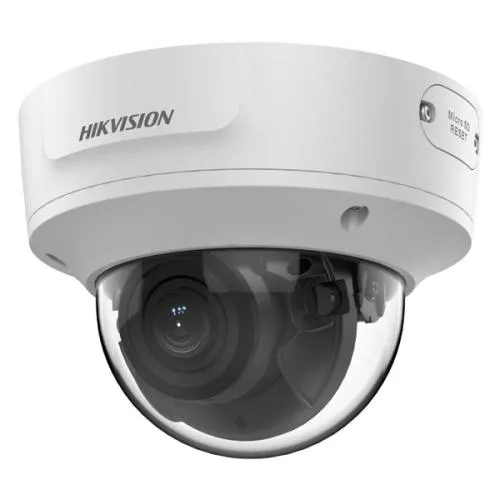

HIKVISION DS 2CD2783G2 IZS 8MP DOME CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2783G2 IZS 8MP Dome Camera
Image Sensor: 1/2.8 inch Progressive Scan CMOS
Resolution: 3840 × 2160 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: 1/3 s to 1/100,000 s
Iris Type: Fixed
Aperture: F1.6
Video Bit Rate: 32 Kbps to 16 Mbps
Audio Type: Mono sound
Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Dimension: 153.3 mm × 111.6 mm (6.0" × 4.4")
Weight: Approx. 855 g (1.9 lb.)

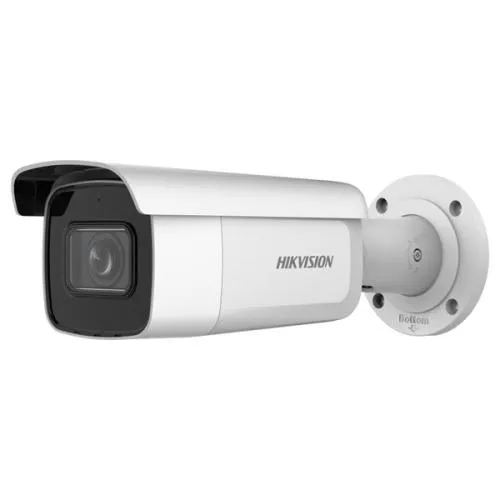

HIKVISION DS 2CD2683G2 IZS 8MP BULLET IP CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2683G2 IZS 8MP Bullet IP Camera
Image Sensor: 1/2.8 inch Progressive Scan CMOS
Resolution: 3840 × 2160 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
Iris Type: Fixed
Aperture: F1.6
Video Bit Rate: 32 Kbps to 16 Mbps
Audio Type: Mono sound
Power: 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
Dimension: 97.9 mm × 93 mm × 308.5 mm (3.9" × 3.7" × 12.1")
Weight: Approx. 1385 g (3.1 lb.)

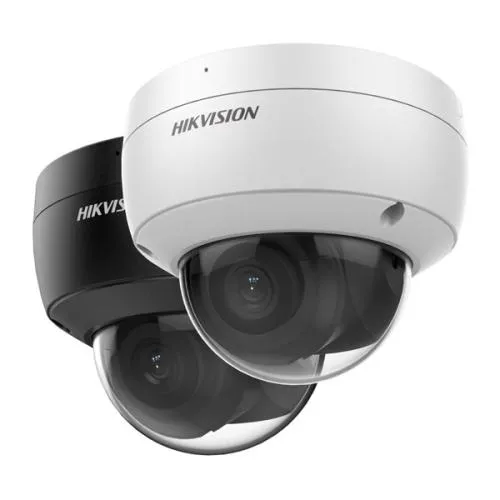

HIKVISION DS 2CD2166G2 ISU 6MP DOME NETWORK CAMERA

Brand: Hikvision
Model No: Hikvision DS 2CD2166G2 ISU 6MP Dome Network Camera
Image Sensor: 1/2.4 inch Progressive Scan CMOS
Resolution: 3200 × 1800 pixel
Shutter Time: 1/3 s to 1/100,000 s
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Iris Type: Fixed
Aperture: F1.6
Video Bit Rate: 32 Kbps to 16 Mbps
Audio Type: -U: Mono sound
Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Dimension: Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
Weight: Approx. 440 g (1.0 lb.)

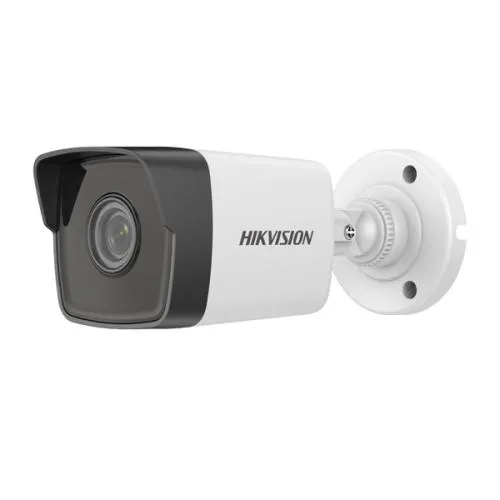

HIKVISION DS 2CD1023G0E I 2MP NETWORK BULLET CAMERA

Brand: Hikvision
Model No: Hikvision DS-2CD1023G0E-I 2MP Network Bullet Camera
Image Sensor: 2.7 Progressive Scan CMOS
Maximum Resolution: 1920 × 1080
Mininum Illumination: Color: 0.01 Lux (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100, 000 s
Day And Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Focal Length FOV: 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens Mount: M12
Iris Type: Fixed
Aperture: F2.0
Supplement Light Type: infrared radiation(IR)
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
Host: Up to 32 users. 3 levels: administrator, operator and user
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
Power: 12 VDC ± 25%, 0.4 A, max. 5 W, 5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Language: English
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Product Dimension: 177.6 mm × 66.2 mm × 67.8 mm
Product Weight: 270 g (0.6 lb)
