Latest qnap storage Models Hyderabad, Telangana
As trusted qnap storage dealers, we specialize in providing high-performance server solutions tailored to meet the diverse needs of businesses, data centers, and IT infrastructure providers. With a comprehensive range of servers from leading brands, we ensure our clients receive reliable, scalable, and cost-effective hardware that supports smooth operations and future growth. Our expertise, commitment to quality, and customer-focused approach make us a preferred partner for organizations looking to enhance their IT capabilities with dependable server solutions.
Pricelist of Best qnap storage Models
- CPU: Intel Xeon E 2124 quad core 3.3 GHz processor (burst up to 4.3 GHz)
- CPU Architecture: 64 bit x86
- Floating Point Unit: yes
- Encryption Engine: (AES-NI)
- System Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 12 x 3.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5-inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame: Yes
- PCIe Slot: 4
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x8 (CPU)
- Slot 3: PCIe Gen 3 x4 (CPU)
- Slot 4: PCIe Gen 3 x4 (CPU)
- Slot 4: is preinstalled with a 10GbE network adapter
- USB 3.2: Gen 2 (10Gbps) Port 2 x Type C USB 3.2 Gen 2 5V/3A 10Gbps
- 4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1 12 Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 88.3 × 482 × 562 mm
- Weight (Net): 11.75 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 300W(x2) 100-240V
- Power Consumption: Operating Mode Typical 105.12 W With drives fully populated
- Fan System fan: 2 x 60mm 12VDC
- Sound Level: 40.6 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700

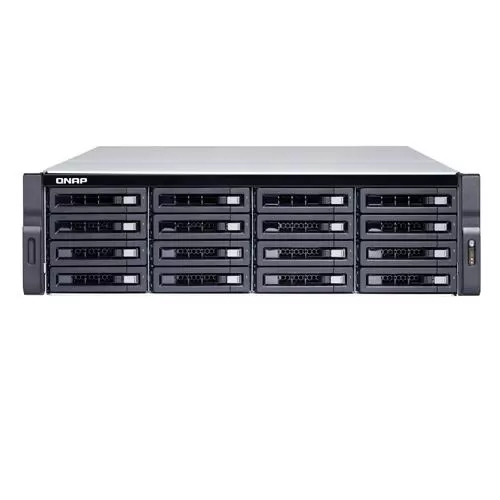

- CPU: Intel Xeon E 2124 quad core 3.3 GHz processor (burst up to 4.3 GHz)
- CPU Architecture: 64 bit x86
- Floating Point Unit: yes
- Encryption Engine: (AES-NI)
- System Memory: 16 GB UDIMM DDR4 ECC (2 x 8GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 16 x 3.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5-inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: yes
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame: yes
- PCIe Slot: 4
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x8 (CPU)
- Slot 3: PCIe Gen 3 x4 (CPU)
- Slot 4: PCIe Gen 3 x4 (CPU) / Slot 4 is preinstalled with a 10GbE network adapter
- USB: 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
- Form Factor: 3U Rackmount
- LED Indicators: HDD 1-16 Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 130 × 481 × 573.5 mm
- Weight (Net): 13.76 kg
- Weight (Gross): 21.79 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 500W(x2) 100-240V
- Power Consumption: Operating Mode Typical 130.43 W With drives fully populated
- Fan System fan: 4 x 92mm, 12VDC
- Sound Level: 53 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700

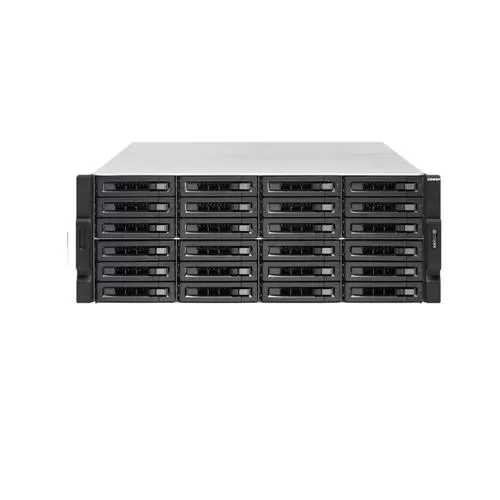

- CPU: Intel Xeon E 2136 6 core 3.3 GHz processor (burst up to 4.5 GHz)
- CPU Architecture: 64 bit x86
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 16 GB UDIMM DDR4 ECC (2 x 8GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 24 x 3.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5-inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame
- PCIe Slot: 5
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x4 (CPU)
- Slot 3: PCIe Gen 2 x4 (PCH)
- Slot 4: PCIe Gen 3 x8 (CPU)
- Slot 5: PCIe Gen 2 x4 (PCH)
- Slot 5 is preinstalled with a 10GbE network adapter
- USB: 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
- 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
- Form Factor: 4U Rackmount
- LED Indicators: HDD 1-24 Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 176.15 × 481.04 × 672.02 mm
- Weight (Net): 20.67 kg
- Weight (Gross): 28.56 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 800W(x2) 100-240V
- Power Consumption: Operating Mode Typical 168.97 W With drives fully populated
- Fan System fan: 4 x 92mm 12VDC
- Sound Level: 28.7 db(A)
- System Warning: Buzzer
- Max. Number of Concurrent Connections (CIFS): 700

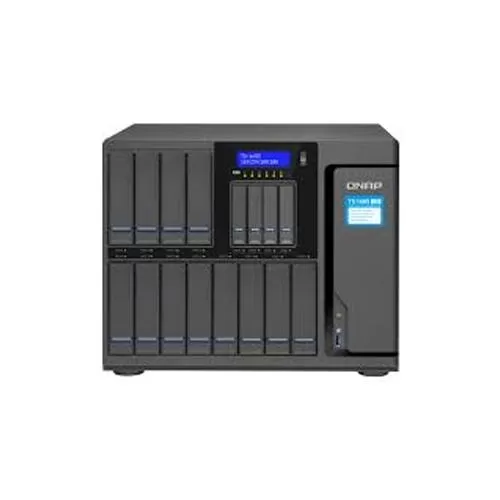

- CPU: Intel Xeon D 1521 quad core 2.4 GHz processor Max turbo to 2.7 GHz
- CPU Architecture: 64 bit x86
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 8GB UDIMM DDR4 (1 x 8GB)
- Maximum Memory UDIMM: 64 GB (4 x 16 GB)
- RDIMM: 128GB (4 x 32 GB)
- Memory Slot: 4 x Long DIMM DDR4
- IMPORTANT: You can only use one type of dual in line memory module (DIMM) at a time Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 12 x 3.5 inch + 4 x 2.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: 6 x M.2 22110/2280/2260/2242 SATA 6Gb/s slot
- The M.2 SSD is not included as standard
- M.2 SSD operations can easily generate excessive heat,It is recommended to install a heatsink (from QNAP or a third party provider) on the M.2 SSD
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GBASE T
- Jumbo Frame
- PCIe Slot: 3
- Slot 1: PCIe Gen 3 x8
- Slot 2: PCIe Gen 2 x4
- Slot 3: PCIe Gen 3 x8
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- Only one of the above audio output ports can work at a time If a speaker is connected the sound will output through the speaker
- Form Factor: Tower
- LED Indicators: System status 2.5 SSD M.2 SSD 3.5 HDD
- LCD Display/ Button
- Buttons Power Reset USB Auto Copy
- Dimensions (HxWxD): 303.84 × 369.89 × 319.8 mm
- Weight (Net): 13.39 kg
- Weight (Gross): 15.96 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Input: 100-240V~ 3-1.5A 60-50Hz; Output: 250W
- Power Consumption: HDD Sleep Mode 61.36 W
- Power Consumption: Operating Mode Typical 127 W
- Fan System fan: 3 x 92mm 12VDC
- CPU fan: 2 x 90mm
- Sound Level: 22.5 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 1500

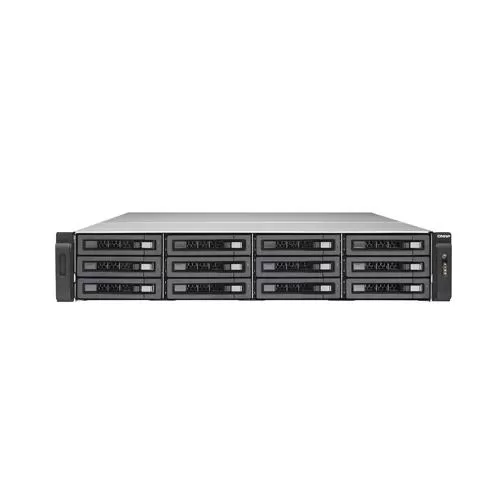

- CPU: Intel Xeon D 1521 quad core 2.4 GHz processor Max turbo to 2.7 GHz
- CPU Architecture: 64 bit x86
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 8 GB RDIMM DDR4 ECC (1 x 8GB)
- Maximum Memory UDIMM: 64 GB (4 x 16 GB)
- RDIMM: 128GB (4 x 32 GB)
- Memory Slot: 4 x Long DIMM DDR4
- 32 GB (above) RAM is required for QES operating system
- You can only use one type of dual in-line memory module (DIMM) at a time Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
- Flash Memory: 4GB (DOM for dual OS)
- Drive Bay: Front: 12 x 3.5 inch
- Rear: 6 x 2.5 inch
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SAS/SATA hard disk drives
- 2.5 inch SAS/SATA hard disk drives
- 2.5 inch SAS/SATA solid state drives
- 2.5 inch bays
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 4
- Slot 1: PCIe Gen 3 x8
- Slot 2: PCIe Gen 2 x4
- Slot 3: PCIe Gen 3 x4
- Slot 4: PCIe Gen 3 x4 or PCIe Gen 3 x8
- Slot 4 provides the width of PCIe Gen 3 x8 when slot 3 is not in use Slot 4 then provides the width of PCIe Gen 3 x4 only when an expansion board is installed in slot 3
- USB 3.2 Gen 1 port: 2
- Form Factor: 2U Rackmount
- LED Indicators: HDD Status 10 GbE LAN storage expansion port status
- Buttons Power Reset
- Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
- Weight (Net): 15.34 kg
- Weight (Gross): 21.25 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Redundant/ Hot Swap ATX Power Supply Input: 47-63 Hz
- 100-127V~/ 8A
- 200-240V/ 4A
- Output: 450W
- Power Consumption: Operating Mode Typical 229.53 W
- Fan: 4 x 60mm
- Sound Level: 58.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS) QTS: 1500
- QES: 1500
- CPU: Intel Xeon D 1521 quad core 2.4 GHz processor Max turbo to 2.7 GHz
- CPU Architecture: 64 bit x86
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 8 GB RDIMM DDR4 ECC (1 x 8GB)
- Maximum Memory UDIMM: 64 GB (4 x 16 GB)
- RDIMM: 128GB (4 x 32 GB)
- Memory Slot: 4 x Long DIMM DDR4
- 32 GB (above) RAM is required for QES operating system
- You can only use one type of dual in-line memory module (DIMM) at a time Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
- Flash Memory: 4GB (DOM for dual OS)
- Drive Bay: Front: 12 x 3.5 inch
- Rear: 6 x 2.5 inch
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SAS/SATA hard disk drives
- 2.5 inch SAS/SATA hard disk drives
- 2.5 inch SAS/SATA solid state drives
- 2.5 inch bays
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 4
- Slot 1: PCIe Gen 3 x8
- Slot 2: PCIe Gen 2 x4
- Slot 3: PCIe Gen 3 x4
- Slot 4: PCIe Gen 3 x4 or PCIe Gen 3 x8
- Slot 4 provides the width of PCIe Gen 3 x8 when slot 3 is not in use Slot 4 then provides the width of PCIe Gen 3 x4 only when an expansion board is installed in slot 3
- USB 3.2 Gen 1 port: 2
- Form Factor: 2U Rackmount
- LED Indicators: HDD Status 10 GbE LAN storage expansion port status
- Buttons Power Reset
- Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
- Weight (Net): 15.34 kg
- Weight (Gross): 21.25 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Redundant/ Hot Swap ATX Power Supply,Input: 47-63 Hz
- 100-127V~/ 8A
- 200-240V/ 4A
- Output: 450W
- Power Consumption: Operating Mode Typical 229.53 W
- Fan: 4 x 60mm
- Sound Level: 58.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS) QTS: 1500
- QES: 1500
- CPU: Intel Xeon D 1602 dual core 2.50 GHz processor (burst up to 3.2 GHz)
- CPU Architecture: 64 bit x86
- System Memory: 4 GB UDIMM DDR4 ECC (1 x 4GB)
- Maximum Memory: 128 GB (4 x 32 GB)
- Memory Slot: 4 x Long-DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: Front: 12 x 3.5 inch SATA 6Gb/s 3Gb/s
- Rear: 6 x 2.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays:
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Pre installed with a 10GbE PCIe adapter
- PCIe Slot: 4
- Slot 1: PCIe Gen 3 x4
- Slot 2: PCIe Gen 3 x8 or x4
- Slot 3: PCIe Gen 3 x4
- Slot 4: PCIe Gen 3 x8 or x4
- Slot 4 is preinstalled with a 10GbE network adapter
- Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use and provides the width of PCIe Gen 3 x4 when Slot 1 is in use
- Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use and provides the width of PCIe Gen 3 x4 when Slot 3 is in use
- USB 3.2 Gen 1 port 2
- Form Factor: Rackmount
- LED Indicators: HDD SSD Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
- Weight (Net): 12.73 kg
- Weight (Gross): 18.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 550W(x2) 100-240V
- Power Consumption: Operating Mode Typical 117.92 W
- Fan System: 3 x 60mm, 12VDC
- Sound Level: 56.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500

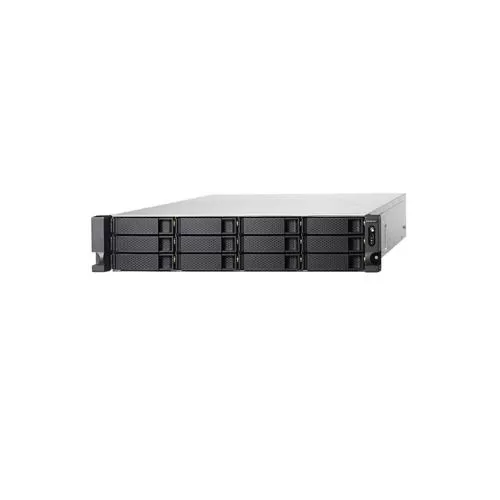

- CPU: Intel Xeon D 1622 quad core 2.60 GHz processor (burst up to 3.2 GHz)
- CPU Architecture: 64 bit x86
- System Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB)
- Maximum Memory: 128 GB (4 x 32 GB)
- Memory Slot: 4 x Long DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: Front: 12 x 3.5-inch SATA 6Gb/s 3Gb/s
- Rear: 6 x 2.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays:
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Pre installed with a 10GbE PCIe adapter
- PCIe Slot: 4
- Slot 1: PCIe Gen 3 x4
- Slot 2: PCIe Gen 3 x8 or x4
- Slot 3: PCIe Gen 3 x4
- Slot 4: PCIe Gen 3 x8 or x4
- Slot 4 is preinstalled with a 10GbE network adapter
- Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 1 is in use
- Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 3 is in use
- USB 3.2 Gen 1 port
- Form Factor: Rackmount
- LED Indicators: HDD SSD Status LAN storage expansion port status Buttons Power Reset
- Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
- Weight (Net): 12.73 kg
- Weight (Gross): 18.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 550W(x2) 100-240V
- Power Consumption: Operating Mode Typical 117.92 W
- Fan System fan: 3 x 60mm 12VDC
- Sound Level: 56.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500

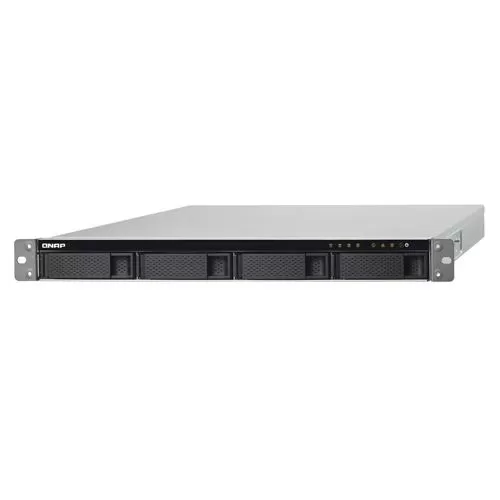

- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB UDIMM DDR4 (1 x 2 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x Long-DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- Form Factor: 1U Rackmount
- LED Indicators: HDD 1 4 Status LAN Storage expansion
- Buttons Power Reset
- Dimensions (HxWxD): 44 × 439 × 499 mm
- Weight (Net): 8.06 kg
- Weight (Gross): 11.06 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W (x2) PSU 100 - 240V
- Power Consumption: HDD Sleep Mode 35.12 W
- Power Consumption: Operating Mode Typical 48.75 W
- With drives fully populated
- Fan: 2 x 40mm, 12VDC
- Sound Level: 38.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700

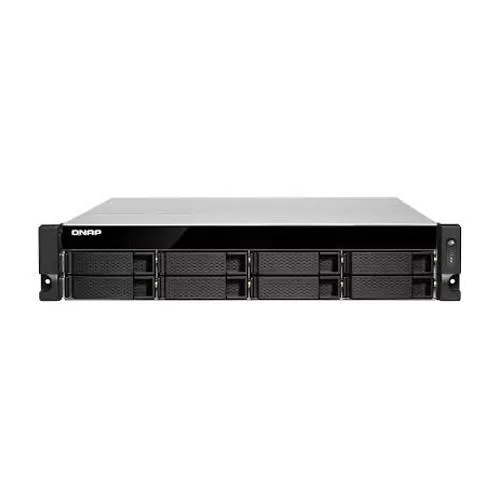

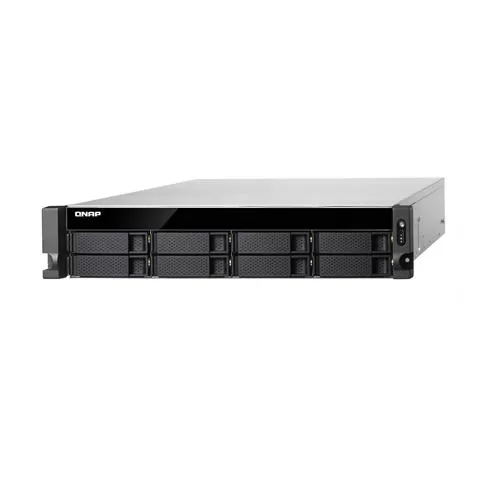

- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x Long DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 8 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-8 Status LAN Storage expansion
- Buttons Power Reset
- Dimensions (HxWxD): 89 × 482 × 534 mm
- Weight (Net): 10.94 kg
- Weight (Gross): 16.87 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W (x2) PSU 100 - 240V
- Power Consumption: HDD Sleep Mode 38.1 W
- Power Consumption: Operating Mode Typical 60.74 W
- With drives fully populated
- Fan: 2 x 70mm, 12VDC
- Sound Level: 31.1 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700

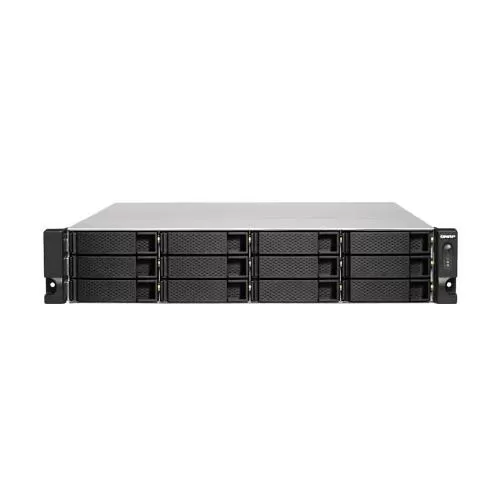

- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x Long DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 12 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-12 Status LAN Storage expansion
- Buttons Power Reset
- Dimensions (HxWxD): 89 × 482 × 534 mm
- Weight (Net): 11.34 kg
- Weight (Gross): 17.27 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W (x2) PSU 100 - 240V
- Power Consumption: HDD Sleep Mode 42.61 W
- Power Consumption: Operating Mode Typical 77.09 W
- With drives fully populated
- Fan: 2 x 70mm, 12VDC
- Sound Level: 31.7 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 700

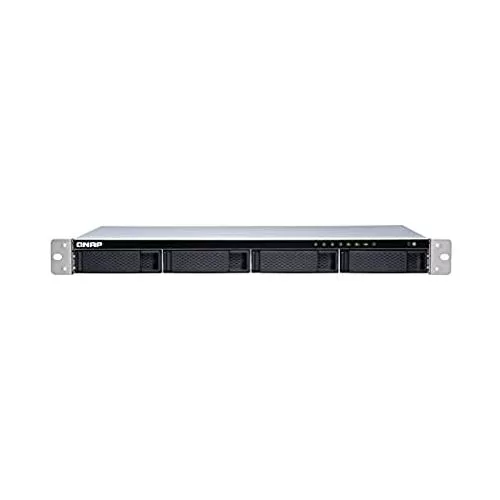

- CPU: AnnapurnaLabs Alpine AL 314 32 bit ARM Cortex A15 quad core 1.7GHz processor
- CPU Architecture: 32 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB SODIMM DDR3 (1 x 2 GB)
- Maximum Memory: 8 GB (1 x 8 GB)
- Memory Slot: 1 x SO-DIMM DDR3
- Flash Memory: 512MB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
- USB 3.2 Gen 1 port: 4
- Form Factor: 1U Rackmount
- LED Indicators: HDD 1-4, Status, USB, LAN1 3
- Buttons Power, Reset
- Dimensions (HxWxD): 44 × 439 × 291 mm
- Weight (Net): 4.15 kg
- Weight (Gross): 5.78 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Open-frame 100W Input: 100V-240V ~ / 3.5A 50Hz-60Hz
- Power Consumption: HDD Sleep Mode 12.42 W
- Power Consumption: Operating Mode Typical 30.99 W
- With drives fully populated
- Fan System fan: 3 x 40mm 12VDC
- Sound Level: 20.3 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 700

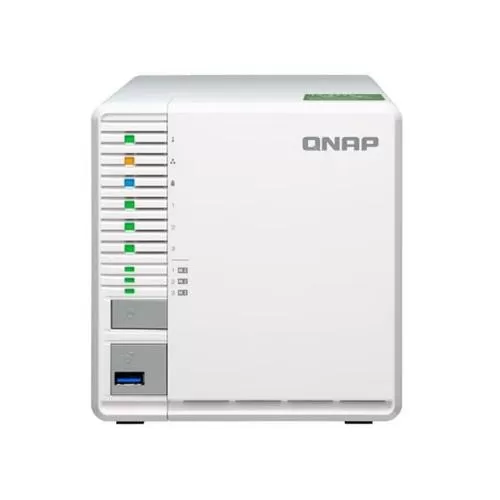

- CPU: AnnapurnaLabs Alpine AL 324 64 bit ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB SODIMM DDR4 (1 x 2GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 3 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
- Hot swappable: Yes
- M.2 SSD Slot: 3 x M.2 2280 SATA 6Gb/s slots
- M.2 SSD is sold separately
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line-out jack simultaneously

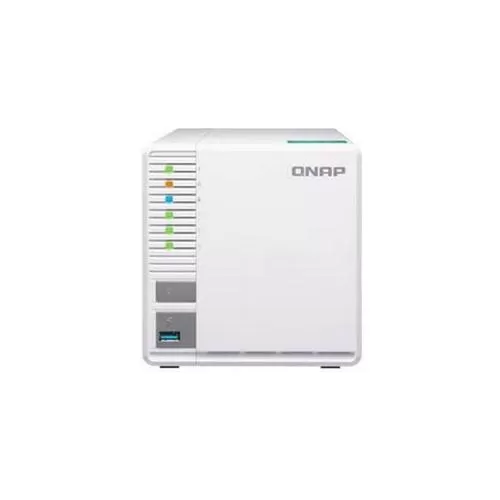

- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~3 M.2 SSD1~3
- Buttons Power Reset USB Copy
- Dimensions (HxWxD): 142 × 150 × 260.1 mm
- Weight (Net): 1.64 kg
- Weight (Gross): 2.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100 - 240V
- Power Consumption: HDD Sleep Mode 18.56 W
- Power Consumption: Operating Mode Typical 26.22 W
- With drives fully populated
- Fan: 1 x 90mm, 12VDC
- Sound Level: 17.5 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot
- Max. Number of Concurrent Connections (CIFS): 700

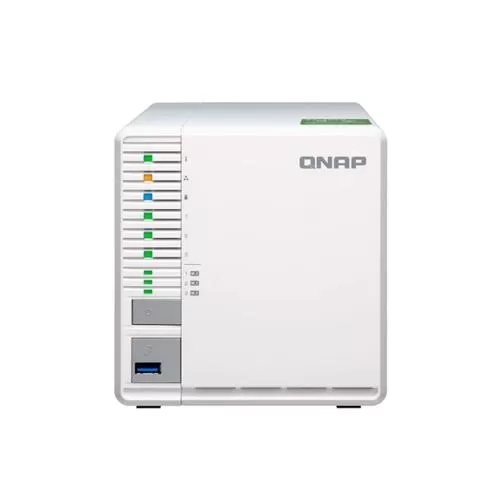

- CPU: AnnapurnaLabs Alpine AL 324 64 bit ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 4 GB SODIMM DDR4 (1 x 4GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO-DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 3 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
- Hot swappable
- M.2 SSD Slot: 3 x M.2 2280 SATA 6Gb/s slots
- M.2 SSD is sold separately
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line-out jack simultaneously.
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~3 M.2 SSD1~3
- Buttons Power Reset USB Copy
- Dimensions (HxWxD): 142 × 150 × 260.1 mm
- Weight (Net): 1.64 kg
- Weight (Gross): 2.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100 - 240V
- Power Consumption: HDD Sleep Mode 18.56 W
- Power Consumption: Operating Mode Typical 26.22 W
- With drives fully populated
- Fan: 1 x 90mm 12VDC
- Sound Level: 17.5 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 700
- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB SODIMM DDR4(1 x 2 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO-DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)

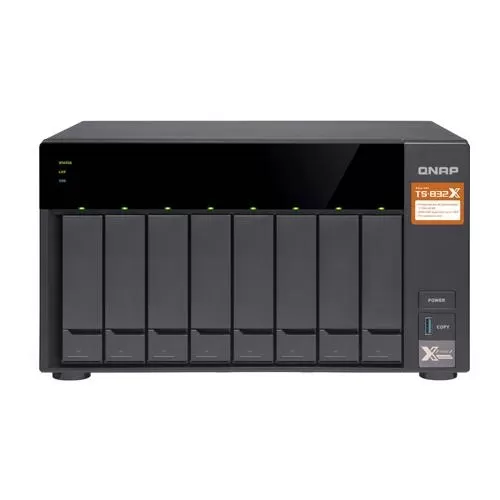

- Drive Bay: 8 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- PCIe Slot: 2
- Slot 1: PCIe Gen 2 x1
- Slot 2: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line out jack simultaneously
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~8
- Buttons Power Reset USB Copy
- Dimensions (HxWxD): 188.2 × 329.3 × 279.6 mm
- Weight (Net): 6.38 kg
- Weight (Gross): 8.61 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W 100-240V AC 50/60Hz 3.5A
- Power Consumption: HDD Sleep Mode 24.53 W
- Power Consumption: Operating Mode Typical 49.43 W
- With drives fully populated
- Fan System fan: 2 x 120mm 12VDC
- CPU fan: 1 x 60mm
- Sound Level: 20.7 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 1500
- CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit
- Encryption Engine
- System Memory: 2 GB SODIMM DDR4 (1x 2 GB)
- Maximum Memory: 16 GB (1 x 16 GB)
- Memory Slot: 1 x SO DIMM DDR4
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 5x 3.5 inch+ 4 x 2.5 inch SATA 6Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays
- 2.5 inch solid state drives
- Hot swappable
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
- USB 3.2 Gen 1 port: 3
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line out jack simultaneously
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~5 SSD1-4
- Buttons Power Reset USB Copy
- Dimensions (HxWxD): 182.7 × 224.7 × 223.6 mm
- Weight (Net): 3.53 kg
- Weight (Gross): 5.06 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External 120 W AC 100 to 240 V
- Power Consumption: HDD Sleep Mode 21.66 W
- Power Consumption: Operating Mode Typical 42.15 W
- With drives fully populated
- Fan: 1 x 140mm 12VDC
- Sound Level: 18.7 db(A)
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 1500
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 4 GB SO DIMM DDR3L (1 x 4 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list please visit
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- IR Sensor: (RM IR004 RM IR002 & MCE)
- HDMI Output: 2 HDMI 1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- You cannot use the speakers and the line out jack simultaneously
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- Buttons Power USB copy Reset
- Dimensions (HxWxD): 168 × 170 × 226 mm
- Weight (Net): 2.37 kg
- Weight (Gross): 3.71 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100-240V
- Power Consumption: HDD Sleep Mode 15 W
- Power Consumption: Operating Mode Typical 30.04 W
- Fan: 1 x 120mm 12VDC
- Sound Level: 18.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max. Number of Concurrent Connections (CIFS): 800
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 2 GB SO DIMM DDR3L (1 x 2 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- IR Sensor: (RM IR004 RM IR002 & MCE)
- HDMI Output: 2
- HDMI 1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- Buttons Power USB copy Reset
- Dimensions (HxWxD): 168 × 170 × 226 mm
- Weight (Net): 2.37 kg
- Weight (Gross): 3.71 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100-240V
- Power Consumption: HDD Sleep Mode 15 W
- Power Consumption: Operating Mode Typical 30.04 W
- Fan: 1 x 120mm 12VDC
- Sound Level: 18.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 800
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 2 GB SO DIMM DDR3L (1 x 2 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- IR Sensor: (RM IR004 RM IR002 & MCE)
- HDMI Output: 2, HDMI 1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- Buttons Power USB copy Reset
- Dimensions (HxWxD): 168 × 170 × 226 mm
- Weight (Net): 2.37 kg
- Weight (Gross): 3.71 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100-240V
- Power Consumption: HDD Sleep Mode 15 W
- Power Consumption: Operating Mode Typical 30.04 W
- Fan: 1 x 120mm 12VDC
- Sound Level: 18.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 800
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 4 GB SO DIMM DDR3L (2 x 2 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4 GB (Dual boot OS protection)
- Drive Bay: 6 x 3.5 inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- USB QuickAccess: 1 x USB 3.2 Gen 1 Type C
- SDXC Card Reader: 1
- IR Sensor: (RM IR004 RM IR002, & MCE)
- HDMI Output: 2 HDMI v1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built-in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-6 SD card USB QuickAccess
- LCD Display/ Button OLED with capacitive touch buttons
- Buttons Power USB copy Reset Capacitive touch buttons (select enter)
- Dimensions (HxWxD): 168 × 235 × 226 mm
- Weight (Net): 3.02 kg
- Weight (Gross): 4.63 kg
- Operating temperature: 0 ~ 40?C (32?F ~ 104?F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External Power Adapter 120W 100-240V
- Power Consumption: HDD Sleep Mode 20.62 W
- Power Consumption: Operating Mode Typical 40.33 W
- Fan: 2 x 90mm
- Sound Level: 19.6 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max. Number of Concurrent Connections (CIFS): 800
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding
- System Memory: 8 GB SO DIMM DDR3L (2 x 4 GB)
- Maximum Memory: 8 GB (2 x 4 GB)
- Memory Slot: 2 x SO DIMM DDR3L
- For dual DIMM configuration you must use a pair of identical DDR3L modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5-inch SATA 6Gb/s 3Gb/s
- The system is shipped without HDD
- For the HDD compatibility list
- Drive Compatibility: 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- The following are not hot swappable: M.2 SSDs SSD cache drives SSDs using PCIe expansion slots
- M.2 SSD Slot: 2 x M.2 2280 SATA 6Gb/s SSD slots (pre-installed QM2 PCIe card)
- The M.2 SSD is not included as standard
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- 10 Gigabit Ethernet Port: 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
- Pre installed QM2 PCIe card
- Jumbo Frame
- Thunderbolt Port: 2 (Thunderbolt 3)
- PCIe Slot: 1 x PCIe Gen 2 (x2) pre installed with a QM2 expansion card (QM2 2S10G1TB) that includes a 10GbE 10GBASE T port and two M.2 SATA SSD slots
- The M.2 SATA SSD slots on this QM2 card only support M.2 2280 SATA 6Gb/s SSD please check the compatibilities before purchase
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 5
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter (need to replace the pre-installed QM2 card)
- IR Sensor: (RM-IR004 RM-IR002 & MCE)
- HDMI Output: 2 HDMI 1.4b (up to 3840 x 2160 30Hz)
- Audio Input: 2 x 3.5mm dynamic microphone input jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- You cannot use the speakers and the line out jack simultaneously
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- LCD Display/ Button Monochrome OLED display with capacitive sensing Enter and Select buttons
- Buttons Power USB copy Reset Capacitive touch buttons (select, enter)
- Dimensions (HxWxD): 168 × 170 × 226 mm
- Weight (Net): 2.51 kg
- Weight (Gross): 4.05 kg
- Operating temperature: 0 ~ 40?C (32?F ~ 104?F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 120W adapter 100-240V
- Power Consumption: Operating Mode, Typical 38.101 W
- Fan System: 1 x 120mm
- Sound Level: 16.1 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max Number of Concurrent Connections (CIFS): 800
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 4GB DDR3L (2 x 2 GB)
- Maximum Memory: 8 GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR3L
- When installing two memory modules please ensure that they are the same size and ideally use the same type of RAM for both memory slots
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support Drive bays 1 to 2
- Gigabit Ethernet Port (RJ45): 4
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- HDMI Output: 1 HDMI 1.4b
- Form Factor: 1U Rackmount
- LED Indicators: HDD 1-4 Status LAN Expansion Power
- Buttons Power Reset
- Dimensions (HxWxD): 44 × 439 × 499 mm
- Weight (Net): 9.27 kg
- Weight (Gross): 11.3 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: ATX 250W (x2) Input: 100V-240V ~ / 5A-2.5A 50Hz-60Hz
- Power Consumption: HDD Sleep Mode 35.4 W
- Power Consumption: Operating Mode Typical 47.61 W
- With drives fully populated
- Fan: 2 x 40mm 12VDC
- Sound Level: 36.9 db(A)
- System Warning: Buzzer
- Max. Number of Concurrent Connections (CIFS): 1500
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit
- Encryption Engine: (AES-NI)
- System Memory: 4GB DDR3L (2 x 2 GB)
- Maximum Memory: 8 GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR3L
- When installing two memory modules please ensure that they are the same size and ideally use the same type of RAM for both memory slots
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 8 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support Drive bays 1 to 2
- Gigabit Ethernet Port (RJ45): 4
- Jumbo Frame
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- HDMI Output: 1 HDMI 1.4b
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-8 Status LAN Expansion Power
- Buttons Power, Reset
- Dimensions (HxWxD): 89 × 482 × 534 mm
- Weight (Net): 11.25 kg
- Weight (Gross): 14.88 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: ATX 250W (x2) Input: 100V-240V ~ / 5A-2.5A 50Hz-60Hz
- Power Consumption: HDD Sleep Mode 40.5 W
- Power Consumption: Operating Mode Typical 63.3 W
- With drives fully populated
- Fan: 2 x 70mm 12VDC
- Sound Level: 31.6 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500
- CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 500
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- System Memory: 4 GB SODIMM DDR3L (2 x 2 GB)
- Maximum Memory: 8 GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR3L
- When installing two memory modules please ensure that they are the same size and ideally use the same type of RAM for both memory slots
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 12 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- M.2 SSD Slot: Optional via a PCIe adapter
- SSD Cache Acceleration Support: Drive bays 1 to 2
- Gigabit Ethernet Port (RJ45): 4
- Jumbo Frame: Yes
- PCIe Slot: 1
- Slot 1: PCIe Gen 2 x2
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 3.2 Gen 1 port: 4
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- HDMI Output: 1, HDMI 1.4b
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-12 Status LAN Expansion Power
- Buttons: Power, Reset
- Dimensions (HxWxD): 89 × 482 × 534 mm
- Weight (Net): 11.64 kg
- Weight (Gross): 15.27 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: ATX 250W (x2) Input: 100V-240V ~ / 5A-2.5A 50Hz-60Hz
- Power Consumption: HDD Sleep Mode 42.7 W
- Power Consumption: Operating Mode Typical 75.9W With drives fully populated
- Fan: 2 x 70mm, 12VDC
- Sound Level: 33.2 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500
- CPU: AMD R Series RX 421ND quad core 2.1 GHz processor (Turbo Core to 3.4 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Optional via a PCIe adapter
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding : Optional via a PCIe adapter
- System Memory: 8GB SO DIMM DDR4 (2 x 4 GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x SO DIMM DDR4
- For dual or quad-DIMM configurations you must use a pair of identical DDR4 modules
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 4 x 3.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 4
- Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Optional via a PCIe adapter
- Jumbo Frame: Yes
- PCIe Slot: 2
- Slot 1: PCIe Gen 3 x4
- Slot 2: PCIe Gen 3 x4
- USB 3.2 Gen 1 port: 4
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
- IR Sensor: (QNAP RM-IR004)
- HDMI Output: Optional via a PCIe adapter
- Audio Input: 2 x 3.5 mm dynamic microphone jacks
- Audio Output: 1 x built in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: Status/Power USB, LAN, Drive 1-4 M.2 SSD 1-2
- Buttons: Power, Reset, USB Auto Copy
- Dimensions (HxWxD): 188.2 × 199.3 × 279.6 mm
- Weight (Net): 4.9 kg
- Weight (Gross): 6.05 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W 100-240V AC 50-60Hz 3.5A
- Power Consumption: HDD Sleep Mode : 33.24W
- Power Consumption: Operating Mode Typical 56.23W With 4 x 2TB HDDs installed
- System fan: 1 x 120mm
- CPU fan: 1 x 60mm
- Sound Level: 21.7 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 1200
- CPU: Intel Core i3 8100 4 core 3.6 GHz Processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel UHD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 4GB UDIMM DDR4 (1x4GB)
- Maximum Memory: 64 GB (4 x 16 GB)
- Memory Slot: 4 x Long DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 8 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame: Yes
- PCIe Slot: 4
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x8 (CPU)
- Slot 3: PCIe Gen 3 x4 (CPU)
- Slot 4: PCIe Gen 3 x4 (CPU)
- Slot 4 is preinstalled with a 10GbE network adapter
- USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
- 4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
- HDMI Output: 1 HDMI 2.0 (up to 3840 x 2160 60Hz)
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-8 Status LAN storage expansion port status
- Buttons: Power, Reset
- Dimensions (HxWxD): 88.3 × 482 × 562 mm
- Weight (Net): 11.89 kg
- Weight (Gross): 15.49 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 300W(x2) 100-240V
- Power Consumption: Operating Mode Typical 90.02W With WD10EFRX drives fully populated
- Fan System fan: 2 x 60mm 12VDC
- Sound Level: 52.1 db(A)
- System Warning: Buzzer
- Max. Number of Concurrent Connections (CIFS): 700
- CPU: Intel Core i3 8100 4 core 3.6 GHz Processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel UHD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 4GB UDIMM DDR4 (1 x 4GB)
- Maximum Memory: 64GB (4 x 16 GB)
- Memory Slot: 4xLong DIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 12 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
- Jumbo Frame: Yes
- PCIe Slot: 4
- Slot 1: PCIe Gen 2 x4 (PCH)
- Slot 2: PCIe Gen 3 x8 (CPU)
- Slot 3: PCIe Gen 3 x4 (CPU)
- Slot 4: PCIe Gen 3 x4 (CPU)
- Slot 4 is preinstalled with a 10GbE network adapter
- USB 3.2 Gen 2 (10Gbps) Port: 2 x Type C USB 3.2 Gen 2 5V/3A 10Gbps
- 4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
- HDMI Output: 1 HDMI 2.0 (up to 3840 x 2160 60Hz)
- Form Factor: 2U Rackmount
- LED Indicators: HDD 1-12 Status LAN storage expansion port status
- Buttons: Power, Reset
- Dimensions (HxWxD) : 88.3 × 482 × 562 mm
- Weight (Net): 12.25 kg
- Weight (Gross): 15.85 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 300W(x2) 100-240V
- Power Consumption: Operating Mode Typical 105.37W With WD10EFRX drives fully populated
- Fan System fan: 2 x 60mm 12VDC
- Sound Level: 52.7 db(A)
- System Warning : Buzzer
- Max. Number of Concurrent Connections (CIFS): 700
- CPU: Intel Core i3 7100 dual core 3.9 GHz processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 8GB UDIMM DDR4 (2 x 4GB)
- Maximum Memory: 64GB (4 x 16GB)
- Memory Slot: 4 x DDR4 Long-DIMM
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 4 x 3.5 inch + 2 x 2.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility:
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: SSD slot 1 2
- Gigabit Ethernet Port (RJ45): 4
- Jumbo Frame: Yes
- PCIe Slot: 2
- Slot 1: PCIe Gen 3 x16
- Slot 2: PCIe Gen 3 x4
- USB 3.2 Gen 1 port: 5
- HDMI Output: 3
- Audio Input: 2 x 6.3mm dynamic microphone input jacks
- Audio Output: 2 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- Only one of the above audio output ports can work at a time If a speaker is connected the sound will output through the speaker
- Form Factor: Tower
- LED Indicators: System status 2.5 SSD M.2 SSD 3.5 HDD
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 231.9 × 224.9 × 319.8 mm
- Weight (Net): 7.7 kg
- Weight (Gross): 9.21 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Input: 100-240V~ 3-1.5A 60-50Hz; Output: 250W
- Power Consumption: HDD Sleep Mode 29.15 W
- Power Consumption: Operating Mode Typical 46.65 W
- System fan: 1 x 80mm
- CPU fan: 1 x 90mm
- Sound Level: 20.1 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS): 1500
- CPU: Intel Core i3 7100 dual core 3.9 GHz processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 8GB UDIMM DDR4 (2 x 4GB)
- Maximum Memory: 64GB (4 x 16GB)
- Memory Slot: 4 x DDR4 Long DIMM
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 6 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays:
- 2.5 inch SATA solid state drives
- Hot-swappable: Yes
- M.2 SSD Slot 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s slots
- The M.2 SSD is not included as standard
- M.2 SSD operations can easily generate excessive heat It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD
- SSD Cache Acceleration Support: SSD slot 1 2
- Gigabit Ethernet Port (RJ45): 4
- For a list of compatible network adapters please visit the Compatibility List
- For instructions on how to install network adapters please refer to Chapter 6 of the QNAP NAS Hardware Manual
- Jumbo Frame: Yes
- PCIe Slot: 2
- Slot 1: PCIe Gen 3 x16
- Slot 2: PCIe Gen 3 x4
- USB 3.2 Gen 1 port: 5
- HDMI Output: 3
- Audio Input: 2 x 6.3mm dynamic microphone input jacks
- Audio Output: 2 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- Only one of the above audio output ports can work at a time If a speaker is connected the sound will output through the speaker
- Form Factor: Tower
- LED Indicators: System status, 2.5 SSD M.2 SSD 3.5 HDD
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 231.9 × 292.8 × 319.8 mm
- Weight (Net): 8.85 kg
- Weight (Gross): 10.73 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit : TVS-882-i3-8G / TVS-882-i5-16: Input: 100-240V~ 3-1.5A 60-50Hz; Output: 250W
- TVS-882-i5-16G-45W: Input: 100-240V~ 8-4A 60-50Hz; Output: 450W
- Power Consumption: HDD Sleep Mode 32.09 W
- Power Consumption: Operating Mode Typical 58.63W
- Fan System fan: 2 x 80mm
- CPU fan: 1 x 90mm
- Sound Level: 21.8 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 1500
- CPU: Intel Core i3 7100 dual core 3.9 GHz processor
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 8GB UDIMM DDR4 (2 x 4GB)
- Maximum Memory: 64GB (4 x 16GB)
- Memory Slot: 4 x DDR4 Long DIMM
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 8 x 3.5 inch + 4 x 2.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility:
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays:
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- M.2 SSD Slot: 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s slots
- The M.2 SSD is not included as standard
- M.2 SSD operations can easily generate excessive heat It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD
- SSD Cache Acceleration Support: SSD slot 1 2 3 4
- Gigabit Ethernet Port (RJ45): 4
- For a list of compatible network adapters please visit the Compatibility List
- For instructions on how to install network adapters please refer to Chapter 6 of the QNAP NAS Hardware Manual
- Jumbo Frame: Yes
- PCIe Slot: 3
- Slot 1: PCIe Gen 3 x16
- Slot 2: PCIe Gen 3 x4
- Slot 3: PCIe Gen 3 x4
- USB 3.2 Gen 1 port: 5
- HDMI Output: 3
- Audio Input: 2 x 6.3mm dynamic microphone input jacks
- Audio Output: 2 x built in speaker 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
- Only one of the above audio output ports can work at a time If a speaker is connected the sound will output through the speaker
- Form Factor: Tower
- LED Indicators: System status 2.5 SSD M.2 SSD 3.5 HDD
- Buttons Power Reset USB Auto Copy
- Dimensions (HxWxD): 234.6 × 369.9 × 319.8 mm
- Weight (Net): 11.34 kg
- Weight (Gross): 13.65 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Input: 100-240V~ 3-1.5A 60-50Hz; Output 250W
- Power Consumption: HDD Sleep Mode 35.39 W
- Power Consumption: Operating Mode Typical 65.87 W
- Fan System fan: 3 x 80mm
- CPU fan: 1 x 90mm
- Sound Level: 21 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 1500
- CPU: Intel Core i7 7700 quad core 3.6 GHz processor Max turbo to 4.2 GHz
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 630
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding : Yes
- System Memory: 32GB UDIMM DDR4 (4 x 8GB)
- Maximum Memory: 64GB (4 x 16 GB)
- Memory Slot: 4 x Long DIMM DDR4
- Flash Memory: 512MB (DOM for dual OS)
- Drive Bay: 9 x 3.5 inch + 6 x 2.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- 2.5 inch bays
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: SSD slot 1 2 3 4
- Gigabit Ethernet Port (RJ45): 4
- 10 Gigabit Ethernet Port: 2 x 10GbE SFP+
- Jumbo Frame: Yes
- Thunderbolt Port: 4 (Thunderbolt 3)
- PCIe Slot: 3
- Slot 1: PCIe Gen 3 x4
- Slot 2: PCIe Gen 3 x8
- Slot 3: PCIe Gen 3 x4
- Three PCle slots are occupied by two Thunderbolt 3 card and a 10GbE adapter
- USB 2.0 port: 4
- USB 3.2 Gen1 port: 4
- HDMI Output: 1 HDMI 1.4b
- Form Factor: 2U Rackmount
- LED Indicators: HDD, Status 10 GbE LAN storage expansion port status
- Buttons: Power Reset
- Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
- Weight (Net): 14.18 kg
- Weight (Gross): 21.41 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: Redundant/ Hot Swap ATX Power Supply
- Input: 50-60 Hz
- 100-127V~/ 5,5A
- 200-240V/ 3A
- Output: 450W
- Power Consumption: HDD Sleep Mode 10.833W
- Power Consumption: Operating Mode Typical 242.77W
- Fan: 4 x 60mm smart cooling fan
- Sound Level: 53.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 1500
- CPU: Realtek RTD1295 quad core 1.4GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 1 GB DDR4, not expandable
- Maximum Memory: 1 GB DDR4 not expandable
- Flash Memory: 4 GB (Dual boot OS protection)
- Drive Bay: 1 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- Gigabit Ethernet Port (RJ45): 1
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 1
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~2
- Buttons: Power Reset USB Copy
- Dimensions (HxWxD): 187.7 × 60 × 125 mm
- Weight (Net): 0.56 kg
- Weight (Gross): 1.21 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External 36 W AC 100 to 240 V
- Power Consumption: HDD Sleep Mode 3.09 W
- Power Consumption: Operating Mode Typical 7.12 W With drives fully populated
- Fan: 1 x 7612 cooling blower for system
- Sound Level: 15.8 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 128
- CPU: Realtek RTD1295 quad core 1.4GHz processor
- CPU Architecture: 64 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 1GB DDR4 not expandable
- Maximum Memory: 1GB DDR4 not expandable
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 2 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- Gigabit Ethernet Port (RJ45): 1
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 1
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~2
- Buttons: Power Reset USB Copy
- Dimensions (HxWxD): 187.7 × 90 × 125 mm
- Weight (Net): 0.69 kg
- Weight (Gross): 1.54 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External 65 W AC 100 to 240 V
- Power Consumption: HDD Sleep Mode 5.3W
- Power Consumption: Operating Mode Typical 12.09 W With drives fully populated
- Fan: 1 x 7612 cooling blower for system
- Sound Level: 17.8 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 128
- CPU: Realtek RTD 1296 ARM Cortex A53 quad core 1.4 GHz processor
- Note: The TS 328 reserves some RAM for use as shared graphics
- CPU Architecture: 64 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- Hardware accelerated Transcoding: up to 1080P
- System Memory: 2GB DDR4 RAM not expandable
- Maximum Memory: 2GB DDR4 RAM not expandable
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 3 x 3.5 inch SATA 6Gb/s 3Gb/s
- bundled one 2.5 tray base for installing 2.5 HDD/SSD; additional purchase can be made from QNAP shop
- Drive Compatibility
- 3.5 inch bays:
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
- Hot swappable: Yes
- Gigabit Ethernet Port (RJ45): 2
- Note: You can set the MTU of LAN 1 up to 1500 while the MTU of LAN 2 can be set up to 9000
- Jumbo Frame: Yes
- USB 2.0 port: 1
- USB 3.2 Gen 1 port: 2
- Audio Output: 1 x built-in speaker 1 x 3.5mm line out jack (for amplifiers or speakers)
- You cannot use the speakers and the line-out jack simultaneously
- Form Factor: Tower
- LED Indicators: System Status LAN USB HDD1~3
- Buttons: Power Reset USB Copy
- Dimensions (HxWxD): 142 × 150 × 260.1 mm
- Weight (Net): 1.64 kg
- Weight (Gross): 2.69 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: External 65 W AC 100 to 240 V
- Power Consumption: HDD Sleep Mode 7.24 W
- Power Consumption: Operating Mode Typical 18.35W With drives fully populated
- Fan: 1 x 90mm 12VDC
- Sound Level: 16.5 db(A)
- Other Interfaces: Kensington security slot
- System Warning: Voice prompts or Buzzer
- Kensington Security Slot: Yes
- Max. Number of Concurrent Connections (CIFS): 128
- CPU: AnnapurnaLabs an Amazon company Alpine AL 212 2 core 1.7GHz
- CPU Architecture: 32 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 1GB DDR3
- Maximum Memory: 1GB DDR3
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 2 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility: 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 2
- Jumbo Frame
- USB 3.2 Gen 1 port: 3
- Form Factor: Tower
- LED Indicators: Power Status LAN USB HDD1-2
- Buttons Power Reset USB Auto Copy
- Dimensions (HxWxD): 161 × 102 × 219 mm
- Weight (Net): 1.35 kg
- Weight (Gross): 2.39 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 60W/65W Adapter 100-240V
- Power Consumption: HDD Sleep Mode 8.46 W
- Power Consumption: Operating Mode Typical 15.6 W
- With drives fully populated
- Fan: 1 x 7 cm smart fan (12V DC)
- Sound Level: 19.2 db(A)
- System Warning: Buzzer
- Kensington Security Slot
- Max. Number of Concurrent Connections (CIFS): 400
- CPU: AnnapurnaLabs, an Amazon company Alpine AL 212 2 core 1.7GHz
- CPU Architecture: 32 bit ARM
- Floating Point Unit: Yes
- Encryption Engine: Yes
- System Memory: 1GB DDR3
- Maximum Memory: 1GB DDR3
- Flash Memory: 512 MB (Dual boot OS protection)
- Drive Bay: 4x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch bays
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 2
- Jumbo Frame: Yes
- USB 3.2 Gen 1 port: 3
- Form Factor: Tower
- LED Indicators: Power Status LAN USB HDD1-4
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 161 × 160 × 219 mm
- Weight (Net): 3kg
- Weight (Gross): 4.3kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W Adapter 100-240V
- Power Consumption: HDD Sleep Mode 11.65 W
- Power Consumption: Operating Mode Typical 26.7 W With drives fully populated
- Fan: 1 x 120mm, 12VDC
- Sound Level: 19.5 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 400
- CPU: Intel Celeron J1900 quad core 2.0 GHz processor (burst up to 2.42 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics
- Floating Point Unit: Yes
- Hardware-accelerated Transcoding: Yes
- System Memory: 2GB SO DIMM DDR3L (1 x 2GB)
- Maximum Memory: 8GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR3L
- Flash Memory: 512MB (Dual boot OS protection)
- Drive Bay: 2 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility :
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot-swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 2
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 2
- IR Sensor: (RM-IR002 & MCE)
- HDMI Output: 1 (up to 1080p)
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-2
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 168.5 × 102 × 225 mm
- Weight (Net):1.28 kg
- Weight (Gross): 2.32 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 60W adapter 100-240V
- Power Consumption: HDD Sleep Mode 10.56 W
- Power Consumption: Operating Mode Typical 18.09 W
- Fan: 1 x 70mm 12VDC
- Sound Level: 15.4 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 800
- CPU: Intel Celeron J1900 quad core 2.0 GHz processor (burst up to 2.42 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics
- Floating Point Unit: Yes
- Hardware accelerated Transcoding: up to 1080P
- System Memory: 2 GB SO DIMM DDR3L (1 x 2 GB)
- Maximum Memory: 8 GB (2 x 4GB)
- Memory Slot: 2 x SO-DIMM DDR3L (For dual DIMM configurations, you must use a pair of identical DDR3L modules.)
- Flash Memory: 512MB (Dual boot OS protection)
- Drive Bay: 4 x 3.5 inch SATA 6Gb/s 3Gb/s (The system is shipped without HDD)
- Drive Compatibility
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable: Yes
- SSD Cache Acceleration Support: Yes
- Gigabit Ethernet Port (RJ45): 2
- Jumbo Frame: Yes
- USB 2.0 port: 2
- USB 3.2 Gen 1 port: 2
- IR Sensor: (RM-IR002 & MCE)
- HDMI Output: 1 (up to 1080p)
- Form Factor: Tower
- LED Indicators: Power/Status LAN USB HDD1-4
- Buttons: Power Reset USB Auto Copy
- Dimensions (HxWxD): 177 × 180 × 235 mm
- Weight (Net): 3kg
- Weight (Gross): 4.3 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
- Power Supply Unit: 90W adapter 100-240V
- Power Consumption: HDD Sleep Mode : 15.78 W
- Power Consumption: Operating Mode, Typical 33.88 W
- Fan: 1 x 120mm, 12VDC
- Sound Level: 16.9 db(A)
- System Warning: Buzzer
- Max Number of Concurrent Connections (CIFS): 800
- CPU: Intel Celeron J4005 dual core 2.0 GHz processor (burst up to 2.7 GHz)
- CPU Architecture: 64 bit x86
- Graphic Processors: Intel HD Graphics 600
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware accelerated Transcoding: Yes
- System Memory: 4GB SO DIMM DDR4 (1 x 4 GB)
- Maximum Memory: 8GB (2 x 4GB)
- Memory Slot: 2 x SO DIMM DDR4
- For dual DIMM configuration you must use a pair of identical DDR4 modules
- Flash Memory: 4GB (Dual boot OS protection)
- Drive Bay: 2 x 3.5 inch SATA 6Gb/s 3Gb/s
- Drive Compatibility
- 3.5 inch SATA hard disk drives
- 2.5 inch SATA hard disk drives
- 2.5 inch SATA solid state drives
- Hot swappable
- M.2 SSD Slot: Optional via a QM2 PCIe adapter
- SSD Cache Acceleration Support
- Gigabit Ethernet Port (RJ45): 1 (Expandable with an optional PCIe adapter)
- 5 Gigabit Ethernet Port: Expandable with an optional PCIe adapter
- 10 Gigabit Ethernet Port: Expandable with an optional PCIe adapter
- Jumbo Frame: Yes
- PCIe Slot: 1(Slot 1: PCIe Gen 2 x4)
- PCIe bandwidth limitations will restrict the NAS 10GbE performance
- USB 2.0 port: 3
- USB 3.2 Gen 1 port: 2
- USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe expansion card
- IR Sensor: (Optional QNAP RM IR004 remote control)
- HDMI Output: 1 HDMI 2.0
- Form Factor: Tower
- LED Indicators: Power/Status, LAN USB HDD1 2
- Buttons: Power USB copy Reset
- Dimensions (HxWxD): 168 × 105 × 226 mm
- Weight (Net): 1.48 kg
- Weight (Gross): 2.58 kg
- Operating temperature: 0 - 40 °C (32°F - 104°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: External Power Adapter 65W 100 240V
- Power Consumption: HDD Sleep Mode: 8.08 W
- Power Consumption: Operating Mode Typical 15.25 W
- Fan: 1 x 70mm
- Sound Level : 16.7 db(A)
- System Warning: Buzzer
- Kensington Security Slot: Yes
- Max Number of Concurrent Connections (CIFS): 800
Your Go-To Source for High-Performance IT Equipment
As leading qnap storage dealers in the IT hardware industry, we are committed to delivering reliable, high-performance server solutions that cater to the dynamic needs of modern businesses. Our extensive portfolio includes a wide range of servers—rack servers, tower servers, blade servers, and customized enterprise-grade systems—from globally recognized brands such as Dell, HP, Lenovo, Cisco, and more. Whether you are a small business looking for an entry-level server or a large enterprise seeking powerful, scalable data center infrastructure, we provide tailored solutions that align with your technical requirements and budget.
Our services go beyond just sales—we offer expert consultation to help clients choose the right server configurations based on workload, performance goals, and scalability. Each product we supply is rigorously tested for quality assurance and comes with warranty options and after-sales support, ensuring peace of mind and long-term performance. With a team of knowledgeable professionals, competitive pricing, and a customer-centric approach, we have established ourselves as a trusted partner for businesses, IT integrators, system administrators, and government organizations.
Whether you're upgrading your existing infrastructure, setting up a new data center, or integrating servers into a hybrid IT environment, our goal is to deliver dependable hardware solutions that empower your operations and drive digital transformation.
Most Searchable Keywords
qnap storage price in hyderabad, qnap storage cost hyderabad, buy qnap storage in hyderabad, qnap storage pricelist hyderabad, qnap storage dealers hyderabad, qnap storage suppliers hyderabad, qnap storage in hyderabad, qnap storage shop hyderabad, qnap storage quotes hyderabad, qnap storage distributors hyderabad, affordable qnap storage hyderabad, qnap storage installation hyderabad, qnap storage maintenance hyderabad, top most qnap storage in hyderabad, qnap storage offers hyderabad, qnap storage configurations hyderabad, qnap storage pricing hyderabad, qnap storage comparison hyderabad, qnap storage features hyderabad, qnap storage hyderabad, qnap storage reviews hyderabad, qnap storage availability hyderabad, cheap qnap storage hyderabad, qnap storage IT solutions hyderabad, qnap storage hardware hyderabad, best qnap storage dealers hyderabad, qnap storage networking hyderabad, qnap storage enterprises hyderabad, qnap storage purchase consultation hyderabad, qnap storage deals in hyderabad, qnap storage dealers in hyderabad, qnap storage suppliers price hyderabad, buy qnap storage hyderabad, qnap storage purchased in hyderabad, qnap storage dealer price hyderabad, qnap storage authorized dealers hyderabad, qnap storage resellers hyderabad, qnap storage India, qnap storage distributors hyderabad, qnap storage prices hyderabad, qnap storage shop hyderabad, qnap storage stores in hyderabad, discount qnap storage hyderabad, qnap storage pricing range hyderabad, affordable qnap storage price hyderabad, qnap storage consultants hyderabad, qnap storage sale hyderabad, New qnap storage hyderabad, qnap storage offers hyderabad, qnap storage vendors hyderabad, purchase qnap storage in hyderabad, qnap storage installations hyderabad, best qnap storage in hyderabad, qnap storage shops, qnap storage maintenance in hyderabad, local qnap storage dealers hyderabad, hyderabad authorized qnap storage, qnap storage products hyderabad, qnap storage distributors in hyderabad, best qnap storage pricelist hyderabad, qnap storage distributor hyderabad, Dell serverqnap storage suppliers at hyderabad, hyderabad qnap storage retailer, qnap storage wholesale hyderabad, qnap storage deals in hyderabad, qnap storage reseller hyderabad, best qnap storage distributor in hyderabad, qnap storage supplier hyderabad, cheap qnap storage in hyderabad, qnap storage shop hyderabad, qnap storage for business hyderabad, most trusted qnap storage in hyderabad, qnap storage sales hyderabad, qnap storage parts hyderabad, qnap storage IT solution in hyderabad, business qnap storage supplier hyderabad, qnap storage installation hyderabad, enterprise provider hyderabad, qnap storage hardware distributor hyderabad, hyderabad qnap storage partners, qnap storage store near me hyderabad, authorized qnap storage distributor hyderabad, qnap storage experts hyderabad, top qnap storage distributors near hyderabad, qnap storage sales near me hyderabad, qnap storage equipment hyderabad, qnap storage infrastructure in hyderabad, qnap storage stores near by hyderabad, qnap storage, qnap storage price, top qnap storage in hyderabad, qnap storage dealer in hyderabad, latest qnap storage price hyderabad, top qnap storage dealers hyderabad, qnap storage good price in hyderabad
