qnap smb storage

List of Latest qnap smb storage Models

  • Brand: Qnap
  • Form Factor: 1U Short Depth Rackmount
  • CPU: AnnapurnaLabs Alpine AL314 32-bit ARM Cortex-A15 4-core 1.7GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 8 GB SODIMM DDR3 (1 x 8 GB)
  • Maximum Memory: 8 GB (1 x 8 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 43.3 × 430 × 291 mm
  • Weight (Net): 5 kg
  • Weight (Gross): 5.9 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 400

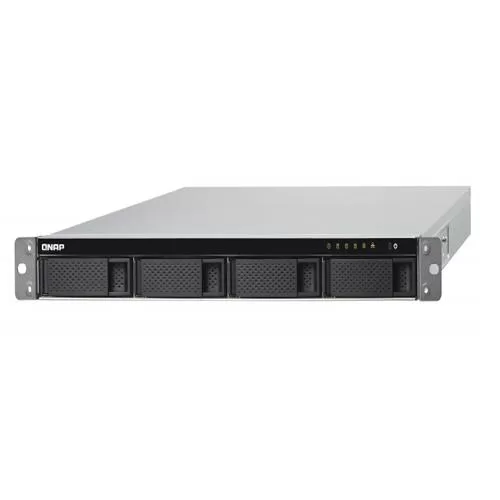

  • Brand: Qnap
  • Form Factor: 1U Rackmount
  • CPU: AnnapurnaLabs Alpine AL324 ARM Cortex-A57 4-core 1.7GHz processor
  • CPU Architecture: 64-bit ARM
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 2 GB UDIMM DDR4 (1 x 2 GB)
  • Maximum Memory: 16 GB (1 x 16 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 44 × 439 × 499 mm
  • Weight (Net): 8.06 kg
  • Weight (Gross): 11.06 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 700

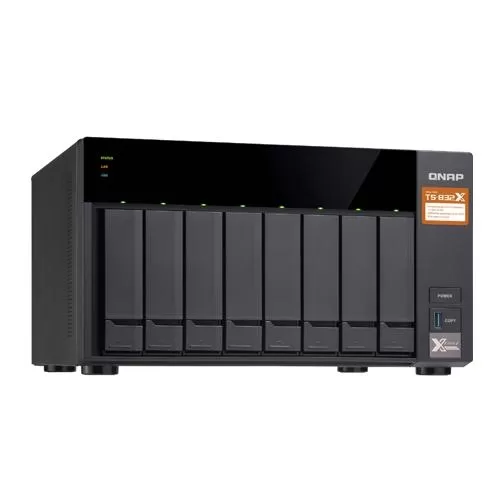

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AnnapurnaLabs Alpine AL324 ARM Cortex-A57 4-core 1.7GHz processor
  • CPU Architecture: 64-bit ARM
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 8 GB SODIMM DDR4(1 x 8 GB)
  • Maximum Memory: 16 GB (1 x 16 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility:  3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Copy
  • Dimensions (HxWxD): 188.2 × 329.3 × 279.6 mm
  • Weight (Net): 6.38 kg
  • Weight (Gross): 8.61 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 700

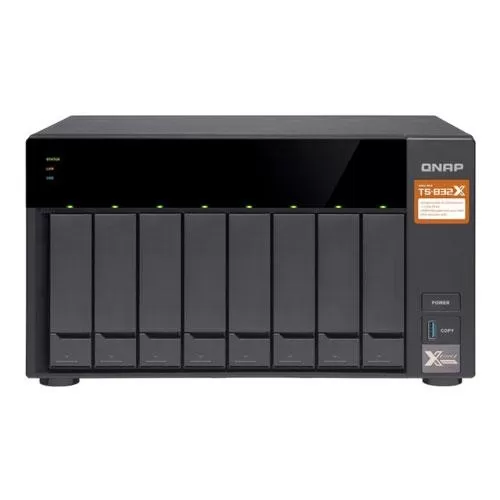

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AnnapurnaLabs Alpine AL324 ARM Cortex-A57 4-core 1.7GHz processor
  • CPU Architecture: 64-bit ARM
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 2 GB SODIMM DDR4(1 x 2 GB)
  • Maximum Memory: 16 GB (1 x 16 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility:  3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Copy
  • Dimensions (HxWxD): 188.2 × 329.3 × 279.6 mm
  • Weight (Net): 6.38 kg
  • Weight (Gross): 8.61 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 700

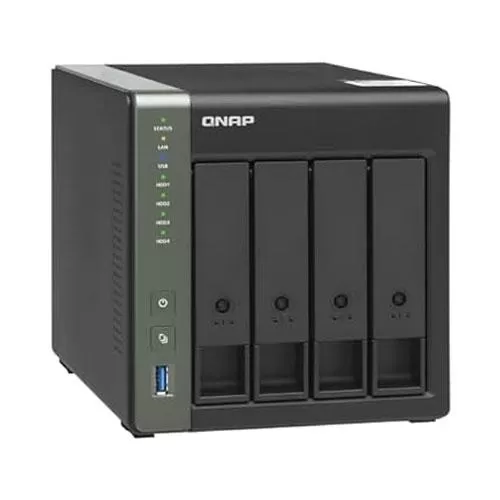

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AnnapurnaLabs Alpine AL324 ARM Cortex-A57 4-core 1.7GHz processor
  • CPU Architecture: 64-bit ARM
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 4 GB SODIMM DDR4(1 x 4 GB)
  • Maximum Memory: 16 GB (1 x 16 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Copy
  • Dimensions (HxWxD): 180.2 × 329.3 × 280.8 mm
  • Weight (Net): 7.05 kg
  • Weight (Gross): 8 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 700
  • Brand: Qnap
  • Form Factor: 1U Short Depth Rackmount
  • CPU: Marvell OCTEON TX2 CN9130 / CN9131 ARMv8 Cortex-A72 4-core 2.2GHz processor
  • CPU Architecture: 64-bit ARM
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 4 GB SODIMM DDR4 (1 x 4GB)
  • Maximum Memory: 32 GB (1 x 32 GB)
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 43.3 × 430 × 292.12 mm
  • Weight (Net): 4.91 kg
  • Weight (Gross): 5.82 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AnnapurnaLabs, an Amazon company Alpine AL314, 4-core, 1.7GHz
  • CPU Architecture: 32-bit ARM
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 4 GB SODIMM DDR3 (1 x 4 GB)
  • Maximum Memory: 8 GB (1 x 8 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 4x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD):165 × 160.2 × 220.5 mm
  • Weight (Net): 3.19 kg
  • Weight (Gross): 3.47 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 400

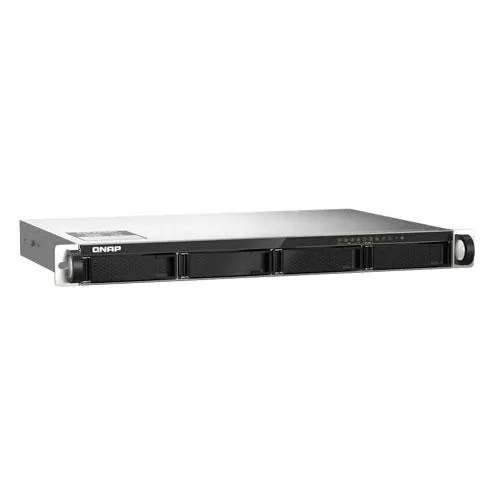

  • Brand: Qnap
  • Form Factor: 1U Rackmount
  • CPU: AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 4-core 1.7GHz processor
  • CPU Architecture: 64-bit ARM
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 2 GB UDIMM DDR4 (1 x 2 GB)
  • Maximum Memory: 16 GB (1 x 16 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5" SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 43.3 × 430 × 479 mm
  • Weight (Net): 9.08 kg
  • Weight (Gross): 11.03 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 700

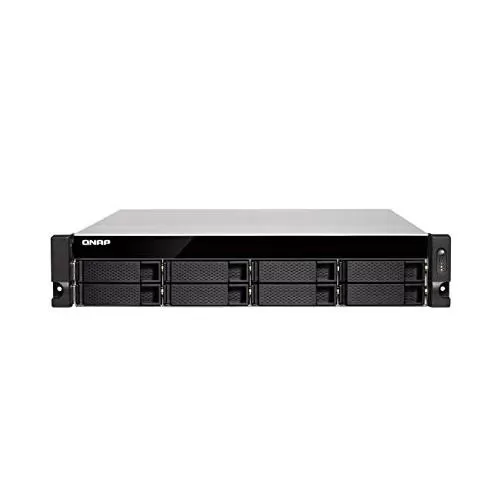

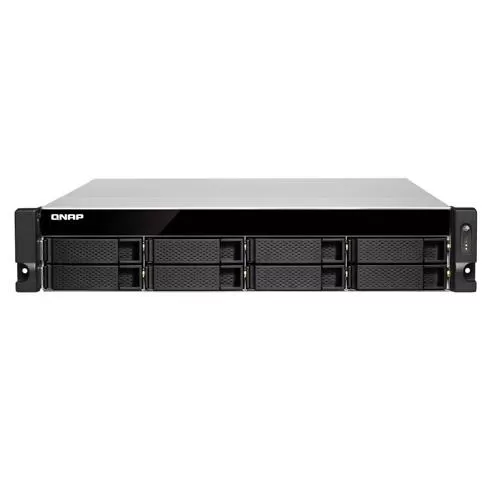

  • Brand: Qnap
  • Form Factor: 2U Rackmount
  • CPU: AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 4-core 1.7GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
  • Maximum Memory: 16 GB (1 x 16 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 511 mm
  • Weight (Net): 12.47 kg
  • Weight (Gross): 14.61 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 700

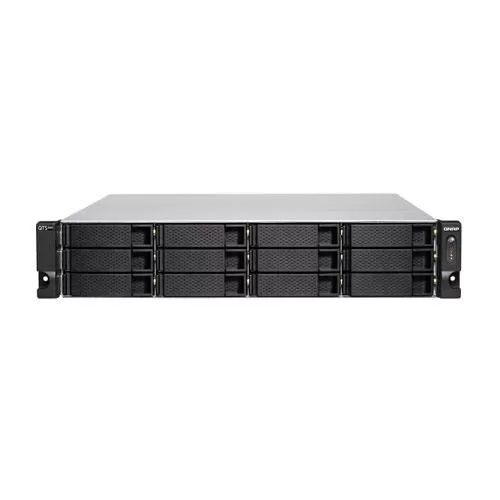

  • Brand: Qnap
  • Form Factor: 2U Rackmount
  • CPU: AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 4-core 1.7GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
  • Maximum Memory: 16 GB (1 x 16 GB)
  • Flash Memory: 512 MB (Dual boot OS protection)
  • Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 511 mm
  • Weight (Net): 12.94 kg
  • Weight (Gross): 14.94 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory:700

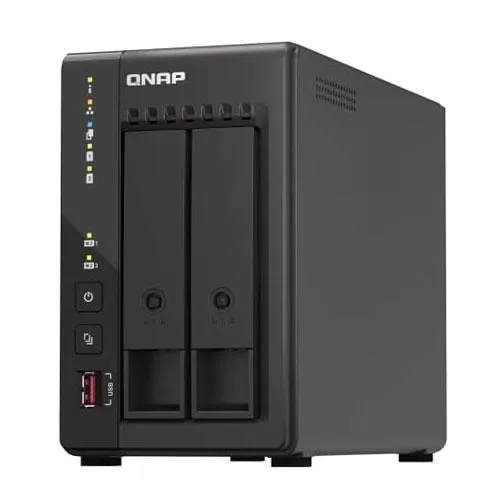

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory:8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 2 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 165 × 102 × 220.6 mm
  • Weight (Net): 2.57 kg
  • Weight (Gross): 2.57 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 165 × 160.2 × 220.5 mm
  • Weight (Net): 3.5 kg
  • Weight (Gross): 3.5 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory:1500

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron J3455 4-core 1.5 GHz processor (burst up to 2.3 GHz)
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel HD Graphics 500
  • System Memory: 4 GB SODIMM DDR3L (2 x 2 GB)
  • Maximum Memory: 8 GB (2 x 4 GB)
  • Flash Memory: 4 GB (Dual boot OS protection)
  • Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, USB copy, Reset, Capacitive touch buttons (select, enter)
  • Dimensions (HxWxD): 168 × 235 × 226 mm
  • Weight (Net): 3.02 kg
  • Weight (Gross): 4.63 kg
  • System Warning:  Buzzer
  • Standard Warranty: 2 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
  • Brand: Qnap
  • Form Factor: 2U Rackmount
  • CPU: Intel Celeron J3455 4-core 1.5 GHz processor (burst up to 2.3 GHz)
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel HD Graphics 500
  • System Memory: 4GB DDR3L (2 x 2 GB)
  • Maximum Memory: 8 GB (2 x 4GB)
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 89 × 482 × 534 mm
  • Weight (Net): 11.25 kg
  • Weight (Gross): 14.88 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
  • Brand: Qnap
  • Form Factor: 2U Short Depth Rackmount
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD):88.6 × 432 × 297.4 mm
  • Weight (Net): 9.21 kg
  • Weight (Gross): 10.71 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory:1500
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 4 GB SODIMM DDR4 (2 x 2 GB)
  • Maximum Memory: 16 GB (2 x 8GB)
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 188.2 × 329.3 × 279.6 mm
  • Weight (Net): 6.56 kg
  • Weight (Gross): 8.34 kg
  • System Warning:  Buzzer
  • Standard Warranty: 2 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1200
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, USB copy, Reset
  • Dimensions (HxWxD): 165 × 170 × 226.5 mm
  • Weight (Net): 2.26 kg
  • Weight (Gross): 3.59 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 6 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, USB copy, Reset
  • Dimensions (HxWxD): 165 × 235 × 226.5 mm
  • Weight (Net): 2.94 kg
  • Weight (Gross): 5.1 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Optional via a PCIe adapter
  • System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 180.2 × 199.3 × 279.6 mm
  • Weight (Net): 5.54 kg
  • Weight (Gross): 6.15 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Optional via a PCIe adapter
  • System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 180.2 × 329.3 × 279.6 mm
  • Weight (Net): 7.4 kg
  • Weight (Gross): 8.3 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 32 GB SODIMM DDR4 (2 x 16 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 5 x 3.5-inch + 4 x 2.5-inch
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Copy
  • Dimensions (HxWxD): 176.5 × 224.6 × 224.1 mm
  • Weight (Net): 4.34 kg
  • Weight (Gross): 5.08 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

  • Brand: Qnap
  • Form Factor: 1U Rackmount
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 43.3 × 430 × 479 mm
  • Weight (Net): 9.34 kg
  • Weight (Gross): 11.3 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

  • Brand: Qnap
  • Form Factor: 2U Rackmount
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 370.7 mm
  • Weight (Net): 10.64 kg
  • Weight (Gross): 14.01 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

  • Brand: Qnap
  • Form Factor: 2U Short Depth Rackmount
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 4 GB SODIMM DDR4 (1 x 4 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 297.4 mm
  • Weight (Net): 9.2 kg
  • Weight (Gross): 10.7 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000
  • Brand: Qnap
  • Form Factor: 2U Rackmount
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 8 GB UDIMM DDR4 (1 x 8 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 370.7 mm
  • Weight (Net): 11.13 kg
  • Weight (Gross): 14.62 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

  • Brand: Qnap
  • Form Factor: 3U Rackmount
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 16 GB UDIMM DDR4 (1 x 16 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 131.3 × 432 × 370.9 mm
  • Weight (Net): 13.53 kg
  • Weight (Gross): 17.15 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Atom x6425E 4-core/4-thread processor, burst up to 3.0 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB on board (non-expandable)
  • Maximum Memory: 8 GB on board (non-expandable)
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 62 × 180 × 244 mm
  • Weight (Net): 3.1 kg
  • Weight (Gross): 3.1 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 165 × 160.2 × 220.5 mm
  • Weight (Net): 3.5 kg
  • Weight (Gross): 3.5 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Pentium Gold G7400 2-core/4-thread 3.7 GHz Processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3 / QuTS hero h5.1.3
  • Graphic Processors: Intel UHD Graphics 710
  • System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
  • Maximum Memory: 64 GB ( 2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Copy
  • Dimensions (HxWxD): 180.2 × 199.3 × 279.6 mm
  • Weight (Net): 6.1 kg
  • Weight (Gross): 7.25 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 700
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Core i5 12400 6-core/12-thread Processor, burst up to 4.4 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics 730
  • System Memory: 32 GB SODIMM DDR4 (2 x 16 GB)
  • Maximum Memory: 64 GB ( 2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Copy
  • Dimensions (HxWxD): 188.2 × 329.3 × 280.8 mm
  • Weight (Net): 7.3 kg
  • Weight (Gross): 8.95 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 3500

  • Brand: Qnap
  • Form Factor: 2U Short Depth Rackmount
  • CPU: Intel Atom C5125 8-core processor, 2.8GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QuTS hero h5.1.3 / QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 8 GB non-ECC SODIMM DDR4 (1 x 8 GB)
  • Maximum Memory: 64 GB ( 2 x 32 GB)
  • Flash Memory:  5GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 297.4 mm
  • Weight (Net): 9.47 kg
  • Weight (Gross): 10.94 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2500

Overview:
The high-performance quad-core short depth TS-431XeU includes a 10GbE SFP+ port to fully support 10GbE high-speed networks at a budget price with maximized ROI. The short depth design is perfectly suitable for installing the TS-431XeU in a compact rack, or places with a lot of cabling. The TS-431XeU provides versatile all-in-one functionality and unique features including VJBOD (Virtual JBOD) - an economical way to utilize unused NAS storage space for expanding the storage capacity of other QNAP NAS - and Container Station - that allows users to rapidly develop and deploy Internet of Things (IoT) apps. The TS-431XeU is a cost-effective storage solution designed for growing businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
  • The short depth design is suitable for installing in smaller racks or space-constrained locations
  • 10GbE readiness, SSD caching, and encryption acceleration engine
  • VJBOD allows using the TS-431XeU to expand the storage capacity of other QNAP NAS
  • Containerized virtualization and IoT app development with Container Station
  • Build a private cloud to centrally organize & manage files and backup tasks
  • Secure access with VPN Server & VPN Client
  • Qsirch, the full text search engine, helps quickly locate files on the NAS
  • Expand the total storage capacity up to 24 drives by connecting up to 2 QNAP expansion enclosure (UX-1200U-RP or UX-800U-RP)
One PCI Express slot gives you expandability and flexibility
The TS-432XU-RP provides one PCI Express (PCIe) 2.0 ×2 slot (×4 length) for expanding NAS functionality, such as installing additional 10GBASE-T ports and M.2 SSDs (both SATA and PCIe NVMe*). QNAP offers a complete array of expansion cards for you to take advantage of the TS-432XU-RP's PCIe expandability, including QM2 expansion cards and single/dual port NICs.

Snapshots and Hybrid Backup Sync secure your data
A well-rounded disaster recovery plan requires multiple layers of protection and backups to deliver peace of mind. The TS-432XU-RP supports snapshots to manually/automatically record the content of files and changes to them at the block level, allowing them to be quickly reverted in the event of corruption or accidental deletion. For added data security, the Hybrid Backup Sync app can help back up, restore and sync files to/from local external devices, remote NAS and public cloud services.

Windows and Mac backups help keep data security in the workplace
The TS-432XU-RP can handle file backup tasks from Windows® PC and Mac. By using QNAP's NetBak Replicator backup utility, with a few simple clicks, you're all set. For macOS users, Time Machine can be set up to save to the TS-432XU-RP. Combined with snapshots and Hybrid Backup Sync, the TS-432XU-RP provides the solid foundations of a disaster recovery plan.
Overview:
The TS-832XU-RP is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP's QM2 expansion cards. The TS-832XU-RP can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more. The TS-832XU-RP is also equipped with a redundant power supply to ensure uninterrupted services.

Snapshots and Hybrid Backup Sync secure your data
A well-rounded disaster recovery plan requires multiple layers of protection and backups to deliver peace of mind. The TS-832XU-RP supports snapshots to manually/automatically record the content of files and changes to them at the block level, allowing them to be quickly reverted in the event of corruption or accidental deletion. For added data security, the Hybrid Backup Sync app can help back up, restore and sync files to/from local external devices, remote NAS and public cloud services.

QTS & App Center open endless possibilities
QTS, the QNAP NAS operating system, provides numerous functionality additions and improvements, such as the revamped Qtier, RAID 50/60 support, Qboost, OCR Converter, and much more. More apps are available from the QTS App Center, such as Domotz, QVPN Service, and more. You can easily take advantage of apps from QNAP and trusted third parties to expand NAS functionality and possibilities.
OVERVIEW

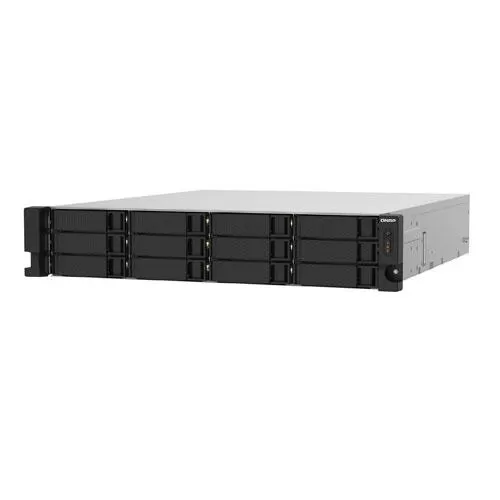

The TS-1232XU-RP is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP's QM2 expansion cards. The TS-1232XU-RP can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more. The TS-1232XU-RP is also equipped with a redundant power supply to ensure uninterrupted services.

A solid storage for everyday needs
The TS-1232XU-RP is equipped with a AL-324 quad-core 1.7 GHz platform-on-chip (PoC), from the Alpine V2 AL3 product family powered by Annapurna Labs, an Amazon company. The included 4 GB RAM can be upgraded to a maximum of 16 GB for futureproofing its capabilities. With 10GbE connectivity and PCIe expansion, the TS-1232XU-RP can provide performance of up to 2060 / 689 MB/s (unencrypted) and 1196 / 390 MB/s (with hardware-accelerated AES-256 volume encryption) to significantly boost business operations.

One PCI Express slot gives you expandability and flexibility
The TS-1232XU-RP provides one PCI Express (PCIe) 2.0 ×2 slot (×4 length) for expanding NAS functionality, such as installing additional 10GBASE-T ports and M.2 SSDs (both SATA and PCIe NVMe*). QNAP offers a complete array of expansion cards for you to take advantage of the TS-1232XU-RP's PCIe expandability, including QM2 expansion cards and single/dual port NICs.

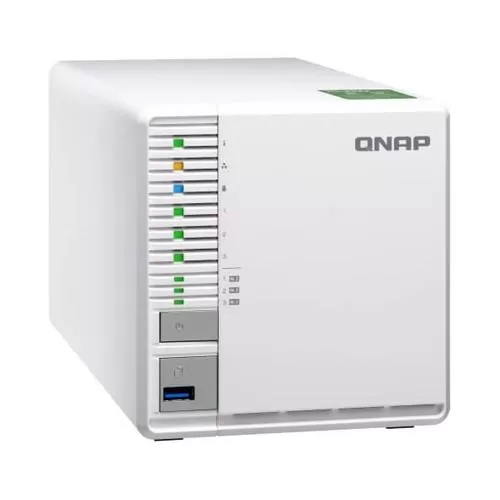

Quad core CPU and 10GbE SFP+ port
The TS 332X is equipped with an AnnapurnaLabs, an Amazon company Alpine AL-324 quad-core 1.7 GHz Cortex-A57 processor (64-bit) with 2GB DDR4 RAM (upgradable to 16GB) and provides three SATA 6Gb/s drive bays. When processing AES 256-bit full NAS volume encryption, the TS-332X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. Alongside a pair of Gigabit LAN ports, the TS-332X features a 10GbE SFP+ port to fully support 10GbE high-speed networks, delivering a major speed increase for large-data applications, fast data transfer, backup & restoration, and containerized applications.

30% of QNAP users choose RAID 5 arrays for their NAS to provide higher data protection, better system performance and optimized storage utilization. The 3-bay TS-332X not only allows you to build a RAID 5 array on your NAS with the fewest disks, but also features a 10GbE SFP+ port and three M.2 SATA 6Gb/s SSD slots to enable higher performance for tackling performance-demanding operations. Featuring a minimalist design, the affordable 10GbE-ready TS-332X can easily fit your commercial space.
SSD caching and auto tiering enable optimized storage efficiency
The TS 832X supports SSD caching to improve the workflow of random IOPS demanding applications. Qtier Technology empowers the TS-832X with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. The new Qtier 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Snapshots a modern way to protect data
Essential for NAS data protection, snapshots help protect your data by fully recording the NAS system state and the metadata. You can use the Storage & Snapshots Manager or File Station to easily manage snapshots and quickly restore the system to its normal state if an error occurs. QNAP snapshots are block-based and only record the changed data. Not only does this save storage space but also reduces the time required to back up and restore data.

Host container applications
Container Station integrates LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub to easily import/export container apps and manage access controls, enjoying the benefit of easy installation, transferability and high-efficiency as well as rapidly deploying application services across several platforms including the cloud, servers, and PCs.
General Features

Slim Size, Big Capacity

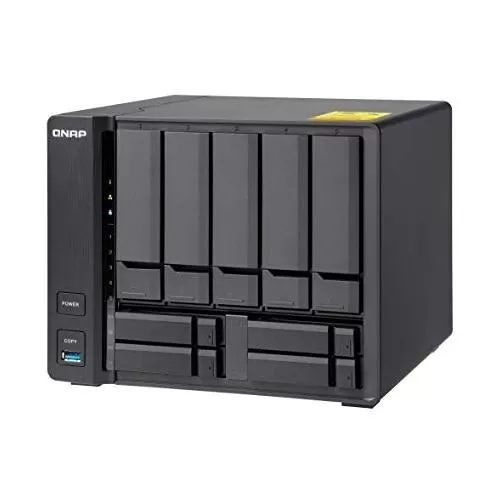

You may be surprised with the size of the TS-932X, which is a 9-bay NAS with a similar appearance as a regular 4-bay/6-bay NAS. The TS-932X strikes a balance between storage capacity and performance, making it a perfect companion for small and medium organizations and small offices. Design details also include succinct LED indicators, a brushed-metal aluminum control panel, and a drive bay layout that efficiently streamlines the physical footprint of the NAS.

1.7 GHz Quad-Core CPU and Dual 10GbE SFP+ Ports
The TS-932X is equipped with a Annapurna Labs, an Amazon company 1.7 GHz Alpine AL-324 Cortex-A57 Quad-Core processor with 8GB of DDR4 RAM (upgradable to 16GB) and supports SATA III 6 Gb/s. When processing AES 256-bit full NAS volume encryption, the TS-932X also provides fast encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-932X comes with a pair of 10GbE SFP+ ports to fully support 10GbE high-speed networks, delivering a speed increase for virtualization tasks, fast backup & restoration, and large data applications.

SSD Caching and Auto Tiering Enable Optimized Storage Efficiency
The TS-932X provides four 2.5" bays for SSD caching to improve the workflow of random IOPS demanding applications. Qtier Technology empowers the TS-932X with automatic tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
General Features
Dual-Core Processor Delivers High Performance
Equipped with an Intel Celeron J3455 quad-core 1.5 GHz processor, 4 GB DDR3L RAM, dual Gigabit LAN ports, and SATA 6Gb/s, the TS-653B is a high-performance NAS for home and workgroups, providing performance of up to 225 MB/s read & write speeds. The TS-653B's enhanced hardware-based encryption and decryption engine provides transfer speeds of up to 225 MB/s with AES 256-bit full NAS volume encryption, boosting system performance & security while helping to ensure the safety of sensitive personal data stored in the NAS.

QTS - Simple and Efficient
The intuitive user interface of QTS operating system makes your NAS experience smarter and smoother. Its modern flat design streamlines loading times, while the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.

PCIe Expansion
Supporting PCIe expansion, the TS-653B provides flexibility in extending NAS functionality and potential applications. You can install a QNAP QM2 PCIe card to provide the TS-653B with M.2 SSD and 10GbE connectivity, or use the TS-653B as a wireless access point by installing a compatible wireless network card, or boost the USB connectivity of the TS-653B by installing a USB 3.1 10Gbps card.

The QM2 expansion card allows users to easily set up SSD caching or to enable Qtier auto-tiering technology to optimize NAS performance. 10GbE-compatible cards can also future-proof the TS-653B for use with 10GbE networks. Equipped with a dedicated cooling module, the QM2 can maintain its high performance even when tasked with the highest workloads. Select models with 10GbE connectivity are backward-compatible with 5GbE, 2.5GbE, 1GbE, and 100MbE networks.
Extend NAS functionality with PCIe expansion
The TS-853BU-RP has a PCIe expansion slot, providing flexibility in extending NAS functionality and potential applications. Install a QNAP QM2 card to provide M.2 SSD caching/10GbE connectivity, or use the TS-853BU-RP as a wireless access point by installing a compatible wireless network card, or boost the USB connectivity of the TS-853BU-RP by installing a USB 3.1 10Gbps card.

QM2 expansion card rede?nes NAS function
QNAP's QM2 is a PCIe expansion card that features dual M.2 SSD slots and 10GbE connectivity* (individual cards may vary in functionality). This allows users to easily set up SSD caching or to enable Qtier auto-tiering technology to optimize NAS performance. 10GbE-compatible models can also future proof the TS-853BU-RP for use with 10GbE networks. Equipped with a dedicated cooling module, the QM2 can maintain its high performance even when tasked with the highest workloads.

SSD cache acceleration
The TS-853BU-RP supports SSD caching. Users can install an SSD in drive bay 1 and bay 2 to boost IOPS performance of storage volumes. It is perfect for improving the overall workflow of IOPS-demanding applications and allows the best of both cost and performance by combining SSDs with HDDs. Coupled with Qtier auto-tiering technology (which now supports “On Demand Allocation Priority”), users can customize storage allocation to best suit their system environment and application demands.
overview:
The TS-1253BU-RP is a 2U rackmount NAS that easily fits into a standard 19-inch rack, providing an ideal storage solution in the server room for small and medium businesses. The TS-1253BU-RP comes with a PCIe slot for boosting potential applications: the QNAP QM2 expansion card can be installed to add an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-1253BU-RP as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage. The TS-1253BU-RP also provides a wide range of value-added features: 4K video playback and real-time transcoding; deployment of virtual environments through Virtualization Station and Container Station; centralized management of remote Windows, Linux and IPMI-compatible devices with QRM+; and web automation services with IFTTT Agent.
  • PCIe slot supports installing a QNAP QM2 dual-port M.2 SSD/10GbE card, a compatible wireless adapter, or a USB 3.1 10Gbps card.
  • Supports dual-channel 4K H.264/H.265* hardware decoding and on-the-fly or offline transcoding
  • Qfiling automates file organization and Qsirch provides full-text search for easier file management
  • QRM+ enables centralized management of remote Windows®, Linux® and IPMI-compatible devices.
  • A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station
  • Scalable storage space with VJBOD and UX-1200U-RP/UX-800U-RP expansion enclosure
overview:
The TS 473 is powered by a high-performance and energy-efficient AMD R-Series CPU and provides two PCIe slots for greater functionality. You can install a QNAP QM2 expansion card to add M.2 SSD caching/10GbE connectivity; a compatible wireless card to use the TS-473 as a wireless access point; and an entry-level graphics card to boost system performance for 4K video performance. The TS-473 allows you to flexibly deploy a wide range of applications with a more affordable budget.

Greater NAS potential with two PCIe slots
The TS-473 features two PCIe (Gen3 x4) slots, allowing for installing single/dual-port 10GbE NICs to accelerate applications that demand higher bandwidth such as virtualization, media workflows, and backup/restoration tasks for an ever-growing amount of data; or a USB 3.1 Gen2 (10Gb/s) expansion card for transferring large media files to and from USB storage. You can also install QM2 cards, wireless network cards or an entry-level graphics card to extend NAS functionality.
General Features
Hybrid Structure for Enabling SSD and Tiered Storage
SSD prices continue to fall, but creating a full-SSD storage solution is still out of reach for most users, especially if they require high-capacity storage. The TVS-951X provides the ability to use a hybrid storage structure that leverages the benefits of both hard drives and SSDs to provide high storage capacity and high performance. You can flexibly allocate applications to SSDs, set up a SSD cache, or use Qtier technology to automatically tier your frequently-accessed files to the SSD for the high access speeds. Users can take advantage of these features to fully optimize the storage utilization of the TVS-951X.

1.8 GHz Intel Celeron 3865U Dual-Core Processor
Powered by a 7th-generation Kaby Lake, 14 nm 1.8 GHz Intel Celeron 3865U Dual-Core processor, with 2GB of DDR4 dual-channel memory (up to 32GB) and SATA III 6 Gb/s HDD and SSD drive bays, the TVS-951X delivers high-performance read/write speeds and maintains high speeds even with AES-NI encryption is enabled.

High-Speed 10GbE Network Connectivity
The TVS-951X features a built-in 10GBASE-T network port to provide 10GbE high-speed network connectivity. You can use the TVS-951X with QNAP's 10GbE unmanaged switch (sold separately) to upgrade your network infrastructure to benefit from faster transfer speeds and to improve bandwidth-demanding applications. Both the TVS-951X and QNAP's 10GbE unmanaged switches support NBASE-T (10G/5G/2.5G/1G/100M) five-speed network technology, so you don't have to replace the existing Cat 5e, 6, and 6a cables in your current network infrastructure.

Real-Time 4K Video Transcoding
Featuring integrated Intel HD Graphics 610, the TVS-951X supports dual-channel 4K H.264/H.265 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be played on multiple devices. You can also watch high-quality 4K media files on a HDTV using the HDMI 1.4b output at resolutions up to 4096 x 2304 @ 24 Hz, or use it with Plex Media Server to stream media files to mobiles devices and media streaming devices, including DLNA, Roku, Apple TV, Amazon Fire TV, and Chromecast. The QNAP RM-IR004 remote control (sold separately) can be configured using QButton to customize the actions of individual buttons, providing a more convenient NAS experience.

Please note that the TVS-951X's hardware provides H.264/H.265 hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
High reliability design ensuring business continuity
The business-ready TS-873U-RP is designed to provide 24/7 operations and services. The support for comprehensive RAID configurations and hot-swapping allow for replacing hard drives without service interruption. QNAP's advanced RAID recovery technology also helps if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered by reinserting the wrongly-removed hard drives so the data can still be accessible. The TS-873U-RP delivers high reliability and efficiency with quad LAN support for multiple port-trunking modes including fail-over support. The TS-873U-RP also features a hot-swappable redundant power supply to ensure maximum system uptime.

Storage for comprehensive virtualization applications
The TS-873U-RP is a comprehensive iSCSI/IP-SAN storage solution, and supports VMware, Citrix, Microsoft Hyper-V and Windows Server 2012 R2, benefiting flexible deployment and management in virtualization environments. The TS-873U-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

Integrated virtualization and container solutions
Virtualization Station allows you to host virtual machines (VM) on the TS-873U-RP and access them via a web browser or Virtual Network Computing (VNC), while Container Station integrates LXC and Docker lightweight virtualization technologies for operating multiple isolated Linux systems on TS-873U-RP as well as downloading apps from the built-in Docker Hub Registry. Container Station also supports the QIoT Containers platform that helps quickly structure your IoT environment and deployment on your private IoT cloud. No longer constrained by physical network performance, the Network & Virtual Switch greatly increases data transfer between VMs, containers and NAS through the internal interface.
The Powerful TS-x73U Series
Powered by a high-performance AMD R-Series quad-core processor with up to 64GB DDR4 RAM, the TS-x73U series features dual 10GbE SFP+ ports and provides two M.2 SATA 6Gb/s SSD slots that allows the greatest flexibility in tiered storage configuration and enables cache acceleration. This powerful hardware can also double the encrypted file transfer performance with AES-NI encryption acceleration. The TS-x73U series is designed for small and medium-sized businesses looking for private cloud, cross-platform file sharing and collaboration, efficient backup/restoration, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks with maximized ROI.

Extra Data Security with RAID
QNAP supports RAID redundancy so that your data will still be intact in the event of a drive failure. Implementing RAID is easily done during the NAS initialization.

Robust Security Features
QNAP helps keep your data secure with advanced security features such as, AES-256 bit encryption, two-step verification options, IP and protocol access control, snapshot support, and more.

Impressive 10GbE Ports to Facilitate Large Data Transfers
10GbE is capable of delivering lightning-fast throughput for businesses that demand higher bandwidth for virtualization and fast backup & restoration for an ever-growing amount of data.
AMD R Series RX 421ND quad core CPU with AES NI encryption acceleration
The TS-1673U-RP is equipped with the AMD R-Series RX-421ND quad-core 2.1 GHz CPU (Turbo Core up to 3.4 GHz), dual channel 8GB/16GB/64GB DDR4 RAM (upgradable to 64GB), four 1GbE ports, and a pre-installed dual-port 10GbE network card. With a dual 10GbE configuration, the TS-1673U-RP is capable of delivering up to 1531 MB/s throughput for lightning-fast multi-tasking with low power consumption, while the accelerated encryption engine with AES-NI enables unmatched encryption performance in its class (up to 1305 MB/s with AES 256-bit full NAS volume encryption) to boost system performance, security, and ensuring the confidentiality of sensitive business data stored in the NAS.

Built in 10GbE connectivity
The TS-1673U-RP supports 10GbE high-speed networks with an included dual-port 10GbE SFP+ PCIe network adapter, supporting lightning-fast data throughput for businesses that demand higher bandwidth for virtualization and fast backup and restoration for an ever-growing amount of data. It also boosts the productivity of media workflows by enabling on-the-fly high-resolution video editing without needing to transfer videos between the TS-1673U-RP and workstations.

High reliability design ensuring business continuity
The business-ready TS-1673U-RP is designed to provide 24/7 operations and services. The support for comprehensive RAID configurations and hot-swapping allow for replacing hard drives without service interruption. QNAP's advanced RAID recovery technology also helps if any healthy drives are accidentally removed from a degraded RAID volume. The system can be recovered by reinserting the wrongly-removed hard drives so the data can still be accessible. The TS-1673U-RP delivers high reliability and efficiency with quad LAN support for multiple port-trunking modes including fail-over support. The TS-1673U-RP also features a hot-swappable redundant power supply to ensure maximum system uptime.
overview:
The TVS-682 features advanced hardware by adopting 7th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-682 also supports smooth 4K @30Hz video transfer, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-682 presents an ideal choice for a complete business-ready storage solution.
  • Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
  • Qtier technology and SSD cache enable 24/7 optimized storage efficiency
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • Transcodes 4K H.264 videos on-the-fly or offline*
  • Triple HDMI output for smooth 4K video playback
  • Scalable design with economical QNAP storage expansion enclosures
overview:
The TVS-882 features advanced hardware by adopting 7th Generation Intel 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-882 also supports smooth 4K @30Hz video transfer, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-882 presents an ideal choice for a complete business-ready storage solution.
  • Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
  • Qtier technology and SSD cache enable 24/7 optimized storage efficiency
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • Transcodes 4K H.264 videos on-the-fly or offline
  • Triple HDMI output for smooth 4K video playback
  • Scalable design with economical QNAP storage expansion enclosures
  • Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the  TVS-882’s storage capacity
  • Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization

Application-based Partitioning
Every application requires different performance. For example, Surveillance Station requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-882 supports three different types of storage media: M.2, SSD and SATA hard drives, and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application.
overview:
The TVS-1282 features advanced hardware by adopting 6th Generation Intel 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-1282 also supports smooth 4K @30Hz video transfer, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-1282 presents an ideal choice for a complete business-ready storage solution.
  • Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
  • Qtier technology and SSD cache enable 24/7 optimized storage efficiency
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • Triple HDMI output for smooth 4K video playback
  • Scalable design with economical QNAP storage expansion enclosures
  • Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-1282’s storage capacity
  • Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization
