silverstone accessories

List of Latest silverstone accessories Models

SILVERSTONE ECU07 1 USB C 20GBPS

Model No: SST-ECU07
Power requirement: PCI Express bus power
Form factor: Low profile PCI Express Gen 3 x4 (32GT/s)
USB Ports: Internal USB 3.2 Gen 2x2 Type C Key A connector USB 3.2 controller ASMedia ASM3242
Transmitting Speed: USB 3.2 Gen 2x2 (20Gbps) USB 3.2 Gen 2x1 (10Gbps) USB 3.2 Gen 1 (5Gbps) USB 2.0 (480Mbps) USB 1.1 (12Mbps)
Operating system: support Windows 8/10 Windows Server 2016-2019 Mac10.X Linux OS in box xHCI driver natively support UASP no additional driver required
Power Management: Support USB 3.2 and USB 2.0 link power management
Extra: UASP and Multiple INs function
Current protection: Support over current detection
Operation Temperature: Operating temperature range 0 85 ºC
Storage temperature range: 20 +70 ºC
Humidity range: 5 95% RH
Net weight: 47g
Dimension: 123mm(W) x 21mm(H) x 105mm(D) 4.84 (W) x 0.83 (H) x 4.13 (D)

SILVERSTONE ECU06 PCI EXPRESS GEN3 4 LANES EXPANSION CARD

Model No: SST-ECU06
Power requirement: PCI Express bus power
Form factor: Low profile PCI Express Gen 3 x4 (32GT/s)
USB Ports: USB 3.2 Gen 2x2 Type C port USB 3.2 controller ASMedia ASM3242
Transmitting Speed: USB 3.2 Gen 2x2 (20Gbps) USB 3.2 Gen 2x1 (10Gbps) USB 3.2 Gen 1 (5Gbps) USB 2.0 (480Mbps) USB 1.1 (12Mbps)
Operating system: support Windows 8/10 Windows Server 2016-2019 Mac10.X Linux OS in-box xHCI driver natively support UASP no additional driver required
Power Management: Support USB 3.2 and USB 2.0 link power management
ExtraL: UASP and Multiple INs function
Current protection: Support over current detection
Operation Temperature: 0 85 ºC
Storage temperature range: 20 +70 ºC
Humidity range: 5 95% RH
Net weight: 47g
Dimension: 123mm (W) x 21mm (H) x 105mm (D)4.84 (W) x 0.83 (H) x 4.13 (D)

ECU05 SILVERSTONE 5 PORTS USB

Model No: SST-ECU05
Power requirement: 5V via SATA 15-pin power connector
Form factor: Low profile PCI E 2.0 x2 (10Gbps)
USB 3.0 controller: VIA Lab VL812
USB Ports: USB 3.1 Type C x 1 DFP with Rp 10KO and up to 5V 3A USB 3.0 Type A x 1 USB 3.0 Type A with charging downstream port x 1 up to 5V 1.5A Internal 19pin connector x 1 for up to two USB 3.0 ports
USB 3.1 controller: ASMedia ASM1142
Transmitting Speed: USB 3.1 Gen 2.0 (10Gbps) USB 3.1 Gen 1.0 USB 3.0 (5Gbps) USB 2.0 (480Mbps) USB 1.1 (12Mbps)
Power Management: Support USB 3.1 USB 3.0 and USB 2.0 link power management
Current protection: Support over current detection and protection
Operating system support: Windows 7 (32bit/64bit) 8/8.1/10 (32bit/64bit) Ubuntu Linux Mac OS

SILVERSTONE SST ECU04 E USB 2 INTERNAL

Model No: SST-ECU04-E
Power requirement: 5V via SATA 15pin power connector
Form factor: Low profile PCI-E 2.0 x2 (10Gbps)
USB Ports: Internal 19pin connector for dual USB 3.1 ports
USB 3.1 controller: ASMedia ASM1142
ReDriver ASIC: Pericom PI3EQX1002B
Transmitting Speed: USB 3.1 (10Gbps) USB 3.0 (5Gbps) USB 2.0 (480Mbps) USB 1.1 (12Mbps)
Power Management: Support USB 3.1 and USB 2.0 link power management
Current protection: Support over current detection and protection
Operating system support: Windows 7 (32bit/64bit) 8/8.1/10 (32bit/64bit) Ubuntu Linux Mac OS
Extra: UASP function

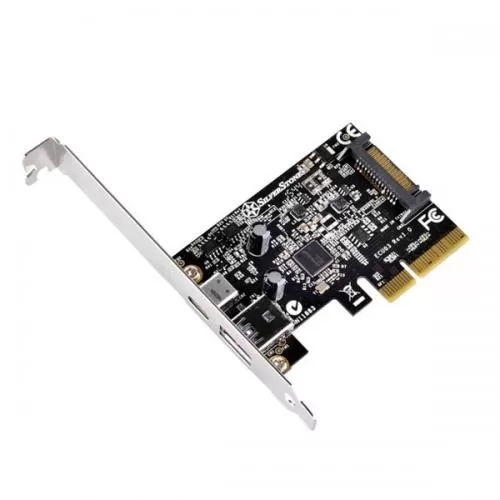

SILVERSTONE SST ECU03 USB CONTROLLER

Model No: SST-ECU03
Power requirement: 5V via SATA 15-pin power connector
Form factor: Low profile PCI E 2.0 x2 (10Gbps)
USB Ports: USB 3.1 Type A x 1 USB 3.1 Type C x 1 DFP with Rp 10K? and up to 5V 3AUSB 3.1 controller ASMedia ASM1142
Transmitting Speed: USB 3.1 Gen2 (10Gbps) USB 3.1 Gen1/USB 3.0 (5Gbps) USB 2.0 (480Mbps) USB 1.1 (12Mbps)
Operating system support: Windows 7 (32bit/64bit) 8/8.1/10(32bit/64bit Ubuntu Linux Mac OS
Power Management: Support USB 3.1 and USB 2.0 link power management
Current protection: Support over current detection and protection

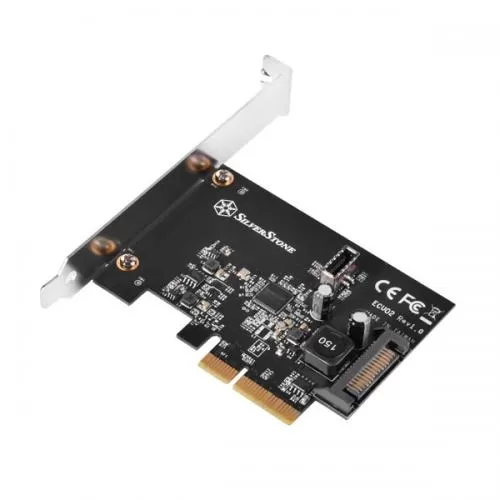

SILVERSTONE SST ECU02 E SUPERSPEED 2 INTERNAL USB EXPANSION CARD

Model No: SST-ECU02-E
Power requirement: 5V via SATA 15pin power connector
Form factor: Low profile PCIe 3.0 x2 (16GTs)
USB Ports: Internal 20 pin Key A connector for USB 3.2 Gen2 Type C port USB 3.1 controller ASMEDIA ASM3142
Operation Temperature: 0 70 ºC
Storage temperature range: 20+70 ºC
Humidity range: 5 95% RH
Transmitting Speed: USB 3.2 Gen2 (10Gbps) USB 3.1 Gen 1 USB 3.0 (5Gbps) USB 2.0 (480Mbps) USB 1.1 (12Mbps)
Operating system support: Windows 7/8 8.1 10(32bit, 64bit) or future release version Ubuntu Linux Mac OS
Power Management: Support USB 3.2 and USB 2.0 link power management
Current protection: Support over current detection and protection
Net weight: 47g
Dimension: 123mm (W) x 21mm (H) x 105mm (D)4.84 (W) x 0.83 (H) x 4.13 (D)
Extra: UASP and Multiple INs function

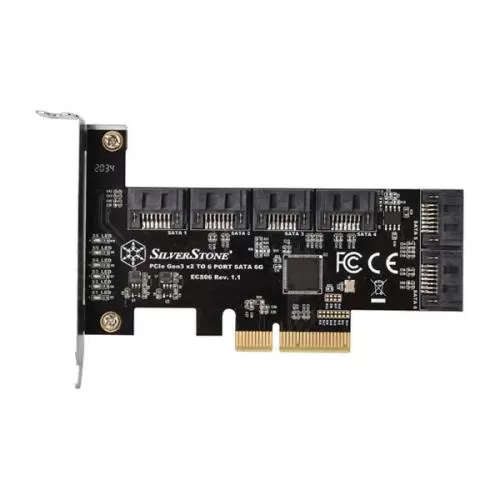

SILVERSTONE ECS06 6 PORT SATA GEN3

Model No: SST-ECS06
Form factor: Low profile PCI Express Gen 3 x2
Drive Support: SATA hard drive
SATA Ports: 6 ports
SATA port bandwidth: Up to 6Gbps (SATA Gen1 SATA Gen2 SATA Gen3)
Controller: ASMedia ASM1166
PCI-E bandwidth: Up to 16GTs
Net weight: 30g
Dimension: 112.2mm (W) x 21mm (H) x 61.4mm (D) 4.42 (W) x 0.83 (H) x 2.42 (D)

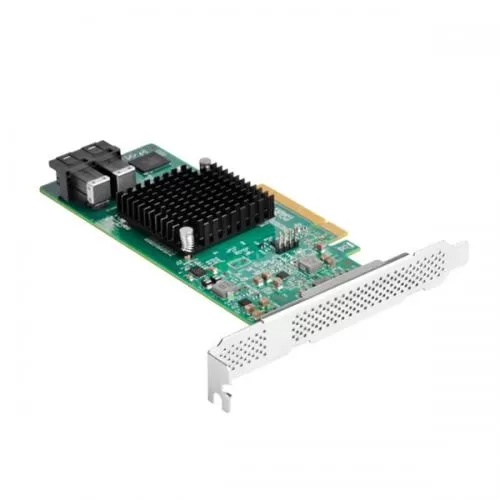

SILVERSTONE EXPANSION CARD MODEL SST-ECS05

Model No: SST-ECS05
Brand: Silverstone
Type: PCI Express 3.0 x 8 throughput 64 Gbps
Internal Ports: 2 x Mini SAS HD SFF 8643
Standard: SAS up to 12Gbs SATA up to 6Gbs (up to 1024 SAS SATA devices)
Data Transfer Rate: up to 12Gbs
Controller: LSISAS3008 RAID on chip
RAID function: 0 1 1E 10
PCI Card Type: 3.3V Add in Card
Operating Voltage: +12V + - 8% 3.3V + - 9%
Brackets: Full height and low profile bracket
Weight: 91g Height: 9 Length: 1 Width: 6
Dimensions: 0.91 x 4.72 x 6.06

SILVERSTONE SST CPF02 FAN SPLITTER CABLE

Model No: SST-CPF02
Brand: ?SilverStone Technology
Color: Black
Type: Splitter Cable
Material: Brass
Compatibility: 3 pin 4 pin Fans
Connectors: One to three PWM fan splitter
Length: 300mm (100mm 100mm 100mm)
Cable Length: 11.81 in (3.93 3.93 3.93 )
Connector: A 1x TX4 female
Connector: B 3x TX3 TX4 male
Connector Number: 4
Terminal Gender: Female to Male
Features: Beautiful all black sleeved cable Supports 3 PWM fans from a single motherboard PWM header Compatible with 4pin PMW fan connector and 3pin fan connector

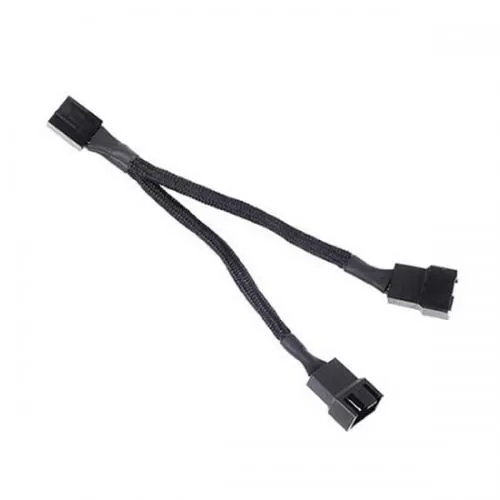

SILVERSTONE CPF01 SLEEVED PWM FAN CABLE BLACK

Model No: CPF01
Brand: SilverStone Technology
Type: Fan Power Cables
Color: Black
Connector Type: 2x PWM Fan Male Connector 1x 4Pin PWM Fan Female Connector
Length: 3.94
Cable Length: 3.94
Features: Beautiful all black sleeved cable SupoortS 2 PWM fans a single motherboard PWM header
Weight: 0.01 ounces
Dimensions LxWxH: 6 x 1 x 0.2 inches
Warranty: 1 year

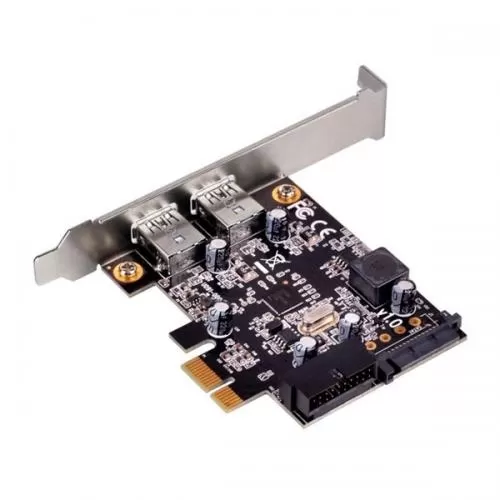

SILVERSTONE ECU04-E IS A PCI E GEN EXPANSION CARD

Model No: SST-EC04-E
Power requirement: 5Vdc via peripheral 15pin SATA power connector
Operating System Support: Windows XP Vista 7 (32-bit / 64-bit) 8 (32-bit / 64-bit)
Form factor: Low profile single lane (X1) PCI Express 2.0
USB 3.0 controller: NEC uPD720201
USB Ports: Two external ports and one internal dual port
USB power output: 5Vdc
Transmitting Speed: USB 3.0 (5Gbps) USB 2.0 (480Mbps) USB 1.1 (12Mbps)
Signal Reception Angle: USB 3.0 (5Gbit/s) USB 2.0 (480Mbit/s) USB 1.1 (12Mbit/s)
OS Support: Microsoft Windows 10/8.1/8/7/Vista (32-bit 64-bit) or future release versions
Port Interface: USB 3.0 (Max. 5Gbit/s) backwards compatible with USB 2.0

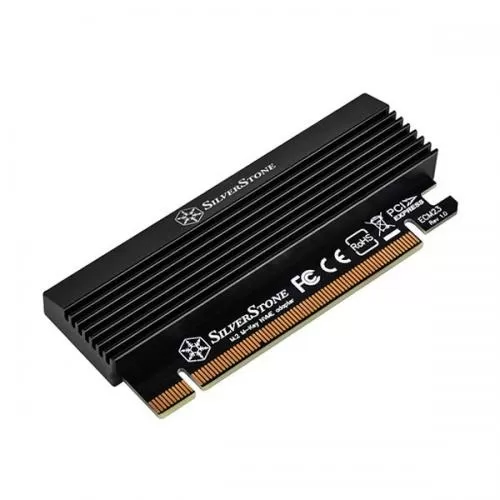

SILVERSTONE SST ECM23 M 2 PCIE AHCI NVME ADAPTER CARD

Model No: SST-ECM23
LED indicator: PCIe M.2 SSD Read Write LED: Blue blinking
Interface: PCI Express x 4 via full size x 16 pinout
SSD Interface: M.2 (NGFF)
Module Key: PCIe x 4 NVMe-based M key
Operating system support: Microsoft Windows 7 (32bit/64bit) 8/8.1/10 (32bit/64bit) or future release version Mac OS 10.2.8 or above
Support Length of M.2 SSD: 30mm 42mm 60mm 80mm
Net Weight and dimension: Heatsink with PCB:105mm (W) x 11mm (H) x 44mm (D) 52g
Heatsink with PCB: 4.13 (W) x 0.43 (H) x 1.73 (D) 52g
Thermal conductivity: 1.5W m.k
Operating temperature: 40 °C 220 °C
Thermal pad thickness: 0.5 1.5mm
Net Weight and dimension: Charcoal Pad: 70 mm (W) x 0.5 mm (H) x 20mm (D) 1.95g
Blue Pad: 70 mm (W) x 1 mm (H) x 20mm (D) 3.6g
Gray Pad: 70 mm (W) x 1.5 mm (H) x 20mm (D) 5.5g
Charcoal Pad: 2.76 (W) x 0.02 (H) x 0.79 (D) 1.95g
Blue Pad?2.76 (W) x 0.04 (H) x 0.79 (D) 3.6g
Gray Pad: 2.76 (W) x 0.06 (H) x 0.79 (D) 5.5g
Warranty: 1 Year

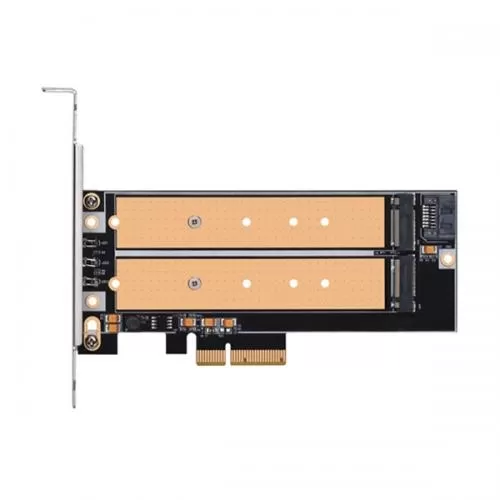

SILVERSTONE SST ECM22 PCI E CARD

Model No: SST-ECM22
Interface: PCI Express x4 SATA 6 Gbps
SSD Interface: M.2 (NGFF)
Module Key: SATA based B key PCIe x4 NVMe based M keyS
Number of Drives: 2 Drives
LED indicator: Power LED: Red SATA M.2 SSD Read Write LED: Orange PCIe M.2 SSD Read Write LED: Blue
Dimension: 121mm (W) x 11mm (H) x 157.3mm (D)4.76 (W) x 0.43 (H) x 6.19 (D) 4.76 (W) x 0.43 (H) x 6.19 (D)
Support Length of M.2 SSD: 30mm 42mm 60mm 80mm 110mm
Thermal Pad Operating temperature: 20 °C 180 °C
Thermal pad thickness: 1.0mm 1.5mm
Thermal conductivity: 1.5W m.k
Net Weight and dimension: Gray Pad 1 : 60mm(W) X 1mm(H) X 20mm(D) 2.8g Gray Pad 2 : 60mm(W) X 1.5mm(H) X 20mm(D) 3.7g
Warranty: 1 Year

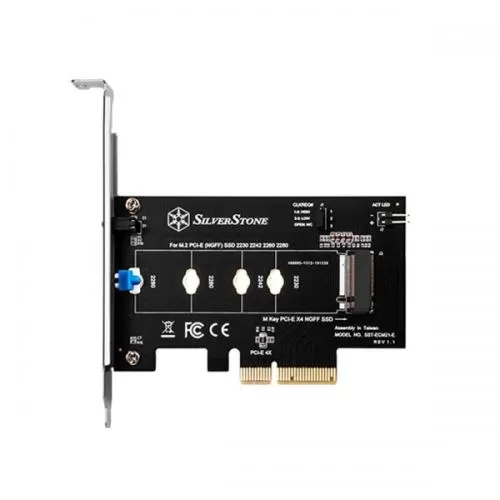

SILVERSTONE ECM21-E SSD PCIE 4 ADAPTER CARD

Model No: SST-ECM21-E
Interface: PCI Express x4
SSD Interface: M.2 (NGFF)
Module Key: PCI-E x4-based M key
LED indicator: Power ON: Green Read Write Red
Net weight: 57g
Dimension: 120mm (W) x 23mm (H) x 104mm (D) 4.72 (W) x 0.91 (H) x 4.09(D)
Support Length of M.2 SSD: 30mm 42mm 60mm 80mm
Manufacturer: Silverstone
Features: Screwless design for M.2 SSD Aluminum heat sink with ARGB lighting
Warranty: 1 Year
