dell modular infrastructure

List of Latest dell modular infrastructure Models

  • Features
  • Customize at the workload level
  • Tailor infrastructure to the job with compact blocks of server, storage and networking that neatly combine in the PowerEdge FX2 2U rack chassis.Optimize for your workloads with the ultimate dense scale-out infrastructure. Easily and rapidly scale the resources your organization requires with the modular FX architecture. At the foundation, the FX2 chassis combines the density and efficiencies of blades with the simplicity and cost advantages of rack-based systems. Build the configuration of compute, storage and networking that meets your unique needs.
  • Perfect for performance environments:
  • Large data centers
  • Virtualization
  • Software-defined storage
  • Clustered database
  • Big data analytics
  • Anything as a service (XaaS)
  • Private cloud
  • Brand : Dell

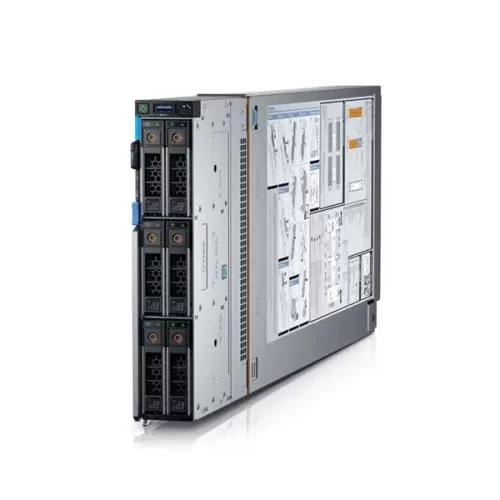

  • Model : PowerEdge MX740c Compute Sled
  • Form Factor : 7U Chassis single-width compute sled
  • Chassis : MX7000
  • Processor : Up to two 2nd Generation Intel Xeon(R) Scalable processors with up to 28 cores per processor TDP: 70-205W
  • Memory : 24 DIMM slots in total supports DDR4 RDIMMs LRDIMMs; up to 2933 MT/s speed 1.5TB maximum (RDIMM) 3TB maximum (LRDIMM)
  • Operating System : Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
  • Chipset : Intel C628 Chipset with optional Intel QuickAssist Technology
  • Front Bay : Up to 6 x 2.5 inch SAS/SATA (HDD/SSD) or NVMe PCIe SSD
  • Internal Controllers : PERC HBA330 H730P H745P HBA330 mini-mezz
  • Internal Boot : Choice HWRAID 2 x M.2 SSDs or Internal Dual SD Module (IDSDM)
  • Mobility : OpenManage Mobile
  • Power Supplies : Up to 6 x 3000W PSU and grid redundancy support (MX7000 chassis) 5 rear- and 4 front-accessible hot-swap fans with full redundancy (MX7000 chassis)
  • Network Options : Up to 2 pair redundant general-purpose switch or pass-through module bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) Up to 25GbE 32Gbps Fibre Channel 12Gbps SAS
  • Front Ports : 1 x USB 3.0
  • Rear Ports : 1xUSB 2.0 management port to iDRAC 1xUSB 3.0 + USB 2.0 for IDSDM
  • Internal Ports : 1 x USB 3.0
  • PCIe : 2 x PCIe 3.0 x16 mezzanine slots (Fabric A and B) 1 x PCIe 3.0 x16 mini-mezzanine slot (Fabric C)
  • Video Card : Integrated VGA controller in iDRAC VGA over LAN
  • Fans : MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans
  • Height : 42.14mm (1.65 inches)
  • Width : 250.20mm (9.85 inches)
  • Depth : 620.35mm (24.42 inches) (handle closed)
  • Weight : 9.5kg (20.94lbs.)
  • Brand : Dell
  • Model : PowerEdge MX840c Compute Sled
  • Form Factor : 7U Chassis double-width compute sled
  • Chassis : MX7000
  • Processor : Up to four 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor
  • Memory : 48 DIMM slots in total supports DDR4 RDIMMs LRDIMMs up to 2933 MT/s speeds 3TB maximum (RDIMM) 6TB maximum (LRDIMM)
  • Operating System : Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
  • Chipset : Intel C628 Chipset with optional Intel QuickAssist Technology
  • Front Bay : Up to 8 x 2.5 SAS/SATA (HD/SDD) or NVMe PCIe SSD
  • Internal Controllers : PERC HBA330 H730P H745P HBA330 mini-mezz
  • Internal Boot : Boot Optimized Storage Subsystem (BOSS): Choice HWRAID 2 x M.2 SSDs or Internal Dual SD Module (IDSDM)
  • Mobility : OpenManage Mobile
  • Power Supplies : Up to 6 x 3000W PSU and grid redundancy support (MX7000 chassis) 5 rear- and 4 front-accessible hot-swap fans (MX7000 chassis)
  • Network Options : Up to 2 pair redundant general-purpose switch or pass-through module bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) Up to 25GbE 32Gbps Fibre Channel 12Gbps SAS
  • Front Ports : 1 x USB 3.0
  • Rear Ports : 1xUSB 2.0 management port for iDRAC 1xUSB 3.0 + USB 2.0 for IDSDM
  • Internal Ports : 1 x USB 3.0
  • PCIe : 4 x PCIe 3.0 x16 mezzanine slots (Fabric A and B) 2 x PCIe 3.0 x16 mini-mezzanine slot (Fabric C)
  • Video Card : Integrated VGA controller in iDRAC VGA over LAN
  • Fans : MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
  • Height : 85.5mm (3.374 inches)
  • Width : 250.2mm (9.85 inches)
  • Depth : 618mm (24.33 inches) (handle closed)
  • Weight : 17.0kg (37.47lbs.)
  • Brand : Dell

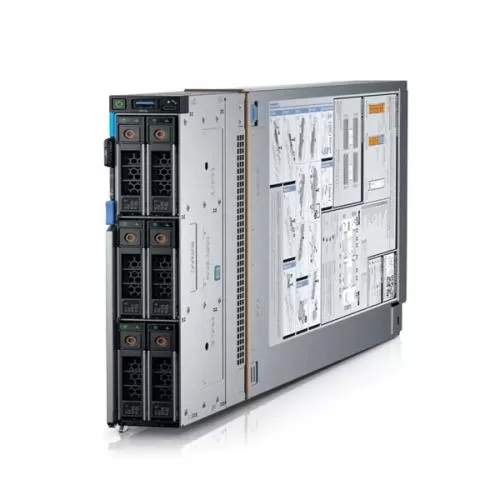

  • Model : PowerEdge MX750c Compute Sled
  • Form Factor : Up to 8 independent hot-swappable 1U single-width compute sled in a MX7000 chassis
  • Chassis : MX7000
  • Processor : Up to two 3rd Generation Intel Xeon Scalable processors with up to 40 cores per processor
  • Memory : 32 DDR4 DIMM slots supports RDIMM max 2 TB or LRDIMM max 4 TB speeds up to 3200 MT/s
  • Operating System : Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi/vSAN
  • Chipset : Intel C620 series chipset with optional Intel QuickAssist Technology
  • Front Bay : Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 7.6 TB per drive Up to 6 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 7.6 TB per drive
  • Internal Controllers : PERC H755 MX PERC H745P MX HBA350i MX
  • External Controllers : PERC H745P MX HBA330 MMZ
  • Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
  • Mobility : OpenManage Mobile
  • Power Supplies : MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
  • Network Options : MX7000 chassis Fabric options: up to 2 pairs redundant general-purpose switch or pass-through modular bays (Fabrics A and B) redundant pair of storage specific switch bays (Fabric C) Up to 25 Gb CNA/NIC per port for Mezz A/B 32 Gb Fibre Channel 12 Gbps SAS for Mezz C
  • Front Ports : 1 x iDRAC Direct port (Micro-AB USB) 1 x USB 3.0
  • Rear Ports : 1xUSB 2.0 management port to iDRAC 1xUSB 3.0 + USB 2.0 for IDSDM
  • Internal Ports : 1 x USB 3.0
  • PCIe : One x16 PCIe Gen4 slot for Mezz A – connected to processor 1 One x16 PCIe Gen4 slot for Mezz B – connected to processor 2 One x16 PCIe Gen4 slot for Mini Mezz card – connected to processor 2 One x16 PCIe Gen4 slot for PERC – connected to processor 1 Two x8 PCIe Gen4 connectors for NVMe drive – connected to processor 1 One x8 PCIe Gen4 connectors for NVMe drive – connected to processor 2 Two x4 PCIe Gen3 slot for BOSS M.2 HW RAID card – connected to Platform Controller Hub (PCH)
  • Fans : MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
  • Height : 42.15 mm (1.65 inches)
  • Width : 250.2 mm (9.85 inches)
  • Depth : 594.99 mm (23.42 inches)
  • Weight : 8.3 kg (18.29 lb)
  • Dense highly flexible storage sled:
  • Scale dynamically with direct-attached storage designed to address evolving workloads within the PowerEdge MX architecture.
  • Features
  • Consolidate compute, storage and networking in one trusted platform:
  • Dell EMC PowerEdge MX offers a scalable and flexible architecture so you can adapt to changing requirements. Tailor your ideal storage to compute configuration ratio within the MX7000 chassis with the Dell EMC PowerEdge MX5016s SAS storage sled.
  • The MX5016s supports up to 16 SSDs and HDDs that can be mapped across one or more PowerEdge MX compute sleds. This granular drive-level assignment lets you address diverse workloads without wasting any space. Ideal workloads:
  • Software defined storage like vSAN
  • Databases such as SQL and ERP
  • Dense virtualization workloads
  • Brand : Dell

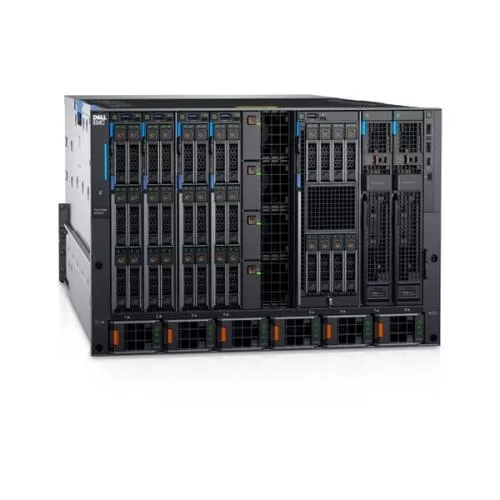

  • Model : PowerEdge MX7000 Modular Chassis
  • Form Factor : 7U modular enclosure with 8 full width slots for combination of compute and storage sleds
  • Processors : Up to 6 3000W PSU and grid redundancy support
  • Front Ports : 2 USB 2.0 Type A or KVM control (keyboard and mouse only) 1 USB 2.0 Type Micro-AB direct management port 1 Mini Display Port connector for video Front buttons/indicators: Power button System status LED Health icon Ambient temperature icon IOM icon Fan icon Stack/group icon, ID button
  • Fans : 5 rear and 4 front-accessible hot-swap fans
  • Dimensions (LxWxD) : 816.8mm (32.16 inches) x 482mm (18.98 inches) x 307.4mm (12.10 inches)
  • Power Supplies : Up to 6 x 3000W PSU and grid redundancy support
  • GPU Core Expansion Module: The optional Amulet Hotkey CoreModule delivers 16x NVIDIA T4 GPUs in a fully populated MX7000 Modular Chassis. See the Amulet Hotkey website for more information on the module.
  • Network Options : Fabric options: Up to 2 pairs of redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) Up to 25GbE 32Gbps Fibre Channel 12Gbps SAS
  • Integrations : Microsoft System Center VMware vCenter BMC Truesight (available from BMC) Red Hat Ansible
  • Connections : Nagios Core & Nagios XI Oracle Enterprise Manager Microfocus Operations Manager (OM) Micro Focus Operations Manager i (OMi) IBM Tivoli Netcool/OMNIbus
  • Embedded management : MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular) running on up to 2 redundant MX9002m management modules Unified control: single management point for server storage and networking Intelligent automation: Operational template methodology and comprehensive RESTful API Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module option
  • On compute sled : As every other PowerEdge server the integrated Dell Remote Access Controller (iDRAC)9 with Lifecycle Controller (LC)
Next generation modular switches:
Maximize the demanding connectivity needs of today’s data center workloads while also lowering overall costs and network management complexity.

Highest performance connectivity:
  • Optimum connectivity to servers and storage platforms in the chassis for demanding workloads
  • High-performance 25GbE and 32G FC connectivity within the chassis
  • High throughput and low latency performance throughout the chassis
  • Multi-rate 100GbE uplinks to data center leaf/spine fabric
  • Brand : Dell
  • Form Factor : Up to 4 independent hot-swappable, 2-socket C6525 sleds in a 2U C6400 chassis

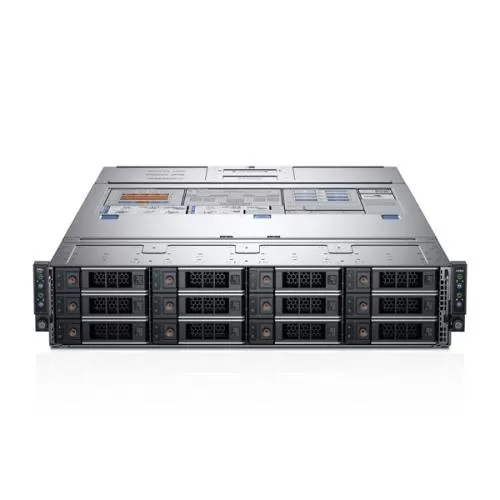

  • Model : PowerEdge C6525 Server
  • Processor : Up to two 3rd Gen AMD EPYC Processors per node configurations with up to 64 cores per processor and up to 280W (cTDP)
  • Memory : Up to 16 x DDR4 RDIMM 2TB Max LRDIMM 2TB Max Bandwidth up to 3200 MT/S
  • Operating System : Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi/vSAN CentOS Windows Preinstallation Environment (WinPE) 64-bit drivers
  • Drive bays : 2.5” Direct Backplane configuration with up to 6 SAS/SATA drives per node up to 24 per chassis 2.5” NVMe Backplane configuration with up to 2 NVMe drives and 4 SAS/SATA drives per node Up to 24 drives total per chassis 3.5” Direct Backplane configuration with up to 3 SAS/SATA drives per node up to 12 per chassis Internal: uSD card | M.2 SATA BOSS 1.0
  • Internal Controllers : PERC H745 HBA345 S150 H345
  • Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs uSD card
  • Mobility : OpenManage Mobile
  • Embedded NIC : Single port 1GbE LOM
  • Networking Options (NDC) : 1x OCP 3.0
  • GPU options : 1x Single-Wide GPU
  • Availability : Hot plug redundant Hard drives Fans PSUs
  • Power Supplies : Dual Hot-plug redundant 1600W and 2400W AC Power Supply Dual Hot-plug redundant 2000W AC/DC Mixmode Power
  • Supply, Cooling options : Air Cooling Direct Liquid Cooling (DLC)
  • Network Options : Single port 1GbE LOM
  • Rear Ports : 1 x iDRAC Direct micro-USB port 1 x Mini-display port 1 x iDRAC or NIC port 1 x USB 3.0 port
  • PCIe : 2 x PCIe x16 Gen4 Risers 1 x OCP 3.0 x16 Gen4 1 x PCIe x8 Gen3 M.2 Riser
  • Height : 86.8mm (3.4 inches)
  • Width : 448.0mm (17.6 inches)
  • Depth : 790.0mm (31.1 inches)
  • Weight : 45.53kg (100.3lbs) 3.5” direct backplane chassis 41.5kg (91.4lbs) 2.5” direct/NVMe backplane chassis 35.15kg (77.4lbs) no backplane chassis
  • Brand : Dell

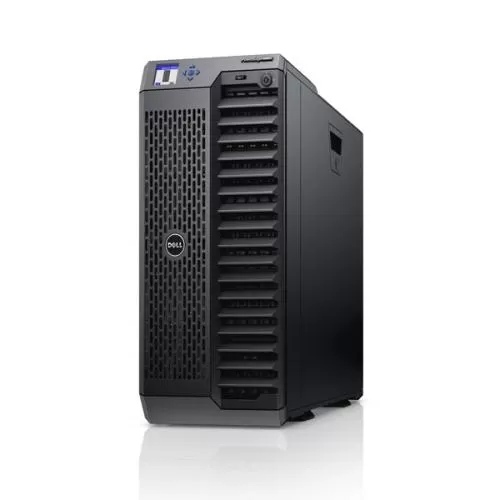

  • Model : PowerEdge VRTX Chassis
  • Form Factor : Tower or 5U rack enclosure
  • Tower configuration : 48.4cm (19.1) H with system feet x 31.0cm (12.2) W with system feet opened x 73.0cm (28.7) D
  • Weight (empty) = 31.7kg (69.7lb)
  • Weight (maximum) = 74.8kg (164.9lb)
  • Rack configuration : 21.9cm (8.6) H x 48.2cm (19.0) W x 73.0cm (28.7) D
  • Weight (empty) = 24.7kg (54.5lb)
  • Weight (maximum) = 68.7kg (151.5lb)
  • Server node options : PowerEdge M520 M620 M630 M820 and M830 server nodes
  • Drive bays and hard drives : Up to 12 x 3.5” NLSAS SAS or SAS SSD hot-plug drives or up to 25 x 2.5” NLSAS SAS or SAS SSD hot-plug drives Optional FIPS 140-2 certified self-encrypting drives (SED) up to 25 x 2.5 NLSAS SAS or SAS SSD
  • Power supplies : Redundant power supply units support 2+2 (AC redundancy) and 3+1 (power supply redundancy) modes US/Canada: 110/220V (typical) EU/China: 220-240V Japan: 100V/220V Other: Up to 240V
  • Cooling : PowerEdge VRTX comes standard with 6 hot-pluggable redundant fan modules and 4 blower modules based on Dell Energy Smart Technologies. The fans and blowers deliver low-power consumption but also use next-generation fan technologies to ensure the lowest possible amount of fresh air is consumed to cool the enclosure.
  • RAID controller : Single shared PERC8 with optional second redundant shared PERC8 available
  • Integrated networking – ethernet : Internal 1GbE 8-port pass-through module Internal 1GbE 24-port switch Internal 10GbE switch
  • I/O slots : 8 flexible PCIe slots: 3 full-height/full-length slots (150W) with double-wide card support (225W) 5 low-profile/half-length slots (25W)
  • Rack Support : ReadyRails II sliding rails for 4-post racks with square round or threaded holes
  • Brand : Dell

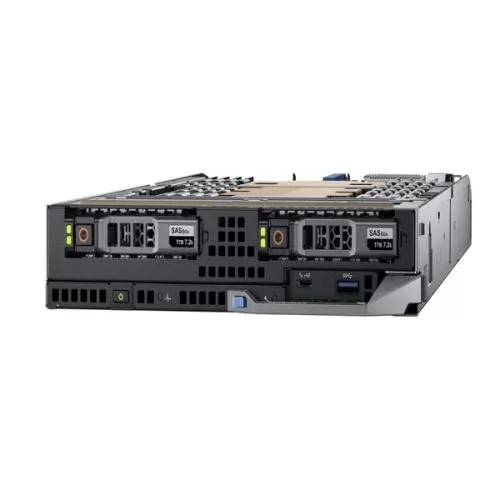

  • Model : PowerEdge FC640 Server Sled
  • Form Factor : 1U half-width Modular Compute Sled up to 4 FC640 per FX2 chassis

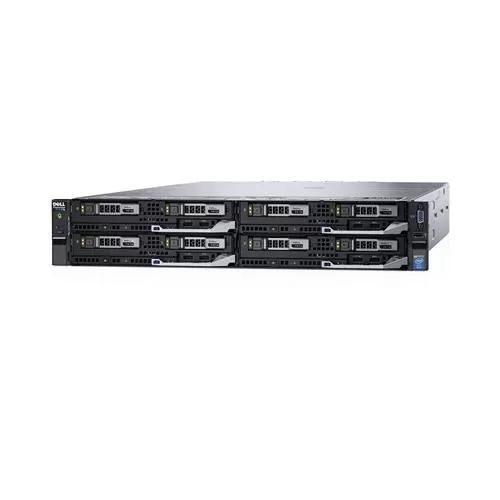

  • Chassis : FX2
  • Processor : Up to two 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor
  • Memory : 16 DDR4 DIMM slots supports RDIMM / LRDIMM / AEP up to 2933MT/s speeds 2TB max mem ECC Registered DDR4
  • Operating System : Canonical Ubuntu LTS Citrix Hypervisor Microsoft Windows Server LTSC with Hyper-V Oracle Linux Red Hat Enterprise Linux SUSE Linux Enterprise Server[SK1] VMware vSphere
  • Front Bay : Up to 2 x 2.5” SAS/SATA/NVMe (HDD/SSD) max 12.8TB
  • Internal Controllers : PERC H330 H730p HBA330
  • Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB 480GB Internal Dual SD Module ESXi (only OS supported)
  • Mobility : OpenManage Mobile
  • Connections : Nagios Core and Nagios XI MicroFocus
  • I/O mezzanine cards : Access to 1 x PCIe 3.0 (x8) expansion slots
  • Power Supplies : (FX2 chassis) 1600W Platinum 2000W Platinum 2400W Platinum 1+1 redundant redundancy alerting only (RAO) & 2+0 non-redundant configurations Up to 8 hot plugs fans with full redundancy
  • Network Options : 2 x 10GbE + 4 x 10GbE 4 x 1GbE
  • PCIe : See PowerEdge FX2 chassis specification
  • Video Card : 1 x VGA controller integrated with iDRAC
  • Height : 211.0mm (8.3)
  • Width : 40.3mm (1.6)
  • Depth : 535.8mm (21.1)
  • Weight : 5.8kg (12.79lbs.)
  • Description

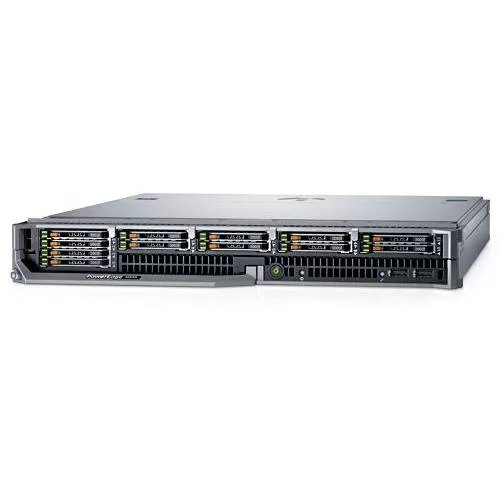

    • Dell M830 server front top of system
    • Dell's PowerEdge M830 is a full-height blade server that supports up to 48 DIMMS of DDR4 memory when powered by a maximum of four Xeon processors. It's designed for compute-intensive workloads, highly virtualized environments, and mission-critical database applications.
  • Performance
  • Using Intel's Xeon E5-4600 v4 processors, the M830 server supports 83% more processing cores than the previous generation M820. Xeon E5-4600 v3 processors are also supported but offer less cores than the v4 processors. Administrators can start out with just two processors or load all CPU sockets with a maximum of four processors.
  • Memory
  • In a four processor configuration the M830 blade server will support 48 DIMMs, total, of DDR4 memory offering a 28% gain in performance over DDR3 memory modules. Each processor on the M830 blade supports 12 memory modules. With just two processors, this server will support 24 DIMMs and easily scale to support more memory by adding additional processors. A maximum of 3TB of memory is available with four processors running 64GB memory modules running at transfer speeds of up to 2400MT/s. Of course transfer speeds are dependent on the choice of CPU and memory configuration.
  • Storage
  • Data-intensive workloads are no match for the Dell M830. Storage options include 12 x 1.8-inch SSDs or up 4 x 2.5-inch HDDs, and an option supporting 2 x 2.5-inch SSD or HDD with 2 x 2.5-inch PCIe SSDs. Supported drive types include SAS and SATA SSDs and HDDs. HD storage is handled by the integrated S130 software RAID controller or your choice of optional PERC RAID controllers featuring the full range of RAID options. An optional internal Dual SD Module offers redundant hypervisor supporting a mirrored configuration with two cards or it can be used with a single card without redundancy.
  • Expansion
  • PowerEdge M830 server 4 bay front elevation
  • The server blade is housed in either the Dell M1000 enclosure or the VRTX shared infrastructure platform. Cooling, networking, and power are handled at the enclosure level. The system features 2 x PCIe 3.0 slots for expansion cards. With I/O intensive workloads, the system can support up to 24 10GbE ports connected to three redundant low-latency fabrics. Integrated video is provided by a Matrox G200 supported on the iDRAC8 module, sharing 12MB application memory.
  • High-performance modular compute with industry-leading density
    • High-performance computing (HPC)
    • Anything as a service (Xaas)
    • Virtualization
    • Private cloud

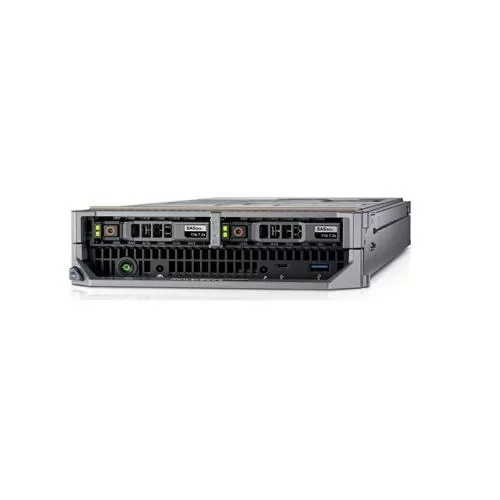

    • Scale compute resources with Intel Xeon Scalable processor that delivers a 27% increase in cores and a 50% increase in bandwidth over the previous generation.
    • Gain exceptional flexibility with a universal backplane and a choice of 2 x M.2 (BOSS) or dual SD cards.
    • Maximize storage with 16 DDR4 DIMM slots and support up to 1024GB maximum memory.
  • Effectively meet dynamic business needs with the PowerEdge M640. This modular blade server is designed to scale out and enable increased performance – all inside a PowerEdge M1000e chassis. Get up to 16 Intel® Xeon® Scalable processor dual-socket compute nodes in a single chassis. The M640 is an outstanding match for data center workloads that benefit from high density and power efficiency, and for multi-server and clustered architectures.
  • Optimized for:
  • Speed IT transformation with the PowerEdge portfolio
  • Take the next step to modernize your data center with this modular compute platform. The PowerEdge M640 is a modular blade server built on a scalable business architecture that offers you choice and flexibility to meet performance demands easily.
  • Enterprise power with everyday simplicity
  • Dell Storage PS Series software helps you store and manage your data more efficiently and cost-effectively. PS Series array, host and management software are included in your storage array purchase — virtually all the tools your organization needs for a complete solution. PS Series software virtualizes and simplifies your environment to help protect business-critical data, optimize storage performance and streamline operations. Additionally, the latest SC and PS Series software releases offer common management and cross-platform replication capabilities between SC and PS Series storage arrays, allowing you to take advantage of new functionality while leveraging existing investments.
  • Simplified management and data protection deliver lasting value
  • Dell Storage PS Series Array Software, including PS Series Firmware, Group Manager and the Manual Transfer Utility, delivers advanced Storage Area Network (SAN) functions that automatically virtualize and optimize storage resources while providing advanced data protection and SAN management. Integrated across the entire family of PS Series arrays, the PS Series Firmware is a SAN operating system based on a unique peer storage architecture that automatically adjusts system resources. In addition, Dell Storage Update Manager simplifies the firmware upgrade process.
  • Data center automation with integration and monitoring tools
  • This family of host-based software provides tight integration between the PS Series array and the host. Dell Storage PS Series Host Integration Tools (HIT) for Microsoft, VMware and Linux environments offer comprehensive data protection and reliable performance.
  • Dell Storage PS Series SAN Headquarters (SAN HQ) is a centralized monitoring and reporting tool that gathers and provides in-depth performance and capacity information and provides alerts across multiple groups of PS Series arrays. SAN HQ with SupportAssist further streamlines management and improves productivity with automatic case creation and case tracking.
  • Brand : Dell
  • Form Factor : Up to 4 independent hot-swappable, 2-socket C6420 sleds in a 2U C6400 chassis

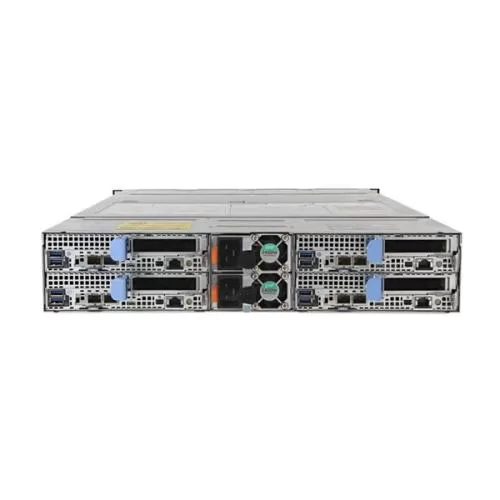

  • Model : PowerEdge C6420 Server
  • Processor : Up to two Intel Xeon Scalable processors including integrated Omni-Path fabric processors with up to 28 cores per processor and up to 205W processors.
  • Memory : 8 DIMM slots per socket with max of 1024GB with options for 16GB/32GB/64GB RDIMMS @ 2933MT/s 8GB RDIMMs @2666MT/s and 128 LRDIMMs @2666MT/s
  • Operating System : Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
  • Chipset : Intel C620 Chipset SATA controller
  • Front Bay : Up to 24 x 2.5" Direct Backplane configuration with up to 6 SAS/SATA drives per node Up to 24 x 2.5" Expander Backplane configuration with up to 12 SAS/SATA drives per node and two nodes per chassis Up to 24 x 2.5" NVMe Backplane configuration with up to 6 drives per node out of which two drives can be NVMe drive Up to 12 x 3.5" Direct Backplane configuration with up to 3 SAS/SATA drives per node
  • Internal Controllers : PERC H330 H730p HBA330
  • Internal Boot : Boot Optimized Storage Subsystem (BOSS) HW RAID 2 x M.2 SSDs 240GB or 480GB
  • Mobility : OpenManage Mobile
  • Power Supplies : 1600W AC Platinum 2000W AC Platinum 2400W AC Platinum Hot plug power supplies with full redundancy and non-redundancy option Cooling options: Air Cooling Direct Liquid Cooling (DLC)
  • Network Options : 1 x 1Gb Ethernet 1 x 10Gb Ethernet 1 x 25Gb Ethernet 1 x 40Gb Ethernet 1 x 100Gb Ethernet
  • Rear Ports : 1 x Dedicated iDRAC micro-USB port 2 x USB 3.0
  • Integrations : OpenManage integrations: Microsoft System Center VMware vCenter BMC Software (available from BMC)
  • Connections : Nagios Core and Nagios XI Oracle Enterprise Manager HPE Operations Manager i (OMi)
  • PCIe : 1 x 16 PCIe Gen3 riser 1 x 8 PCIe Gen3 Mezzanine 1 x 16 PCIe Gen3 OCP Mezzanine 1 x 16 PCIe Gen3 riser 1 x Display port on the rear of the sled
  • Video Card : 1 x VGA
  • Height : 86.80mm (3.4 inches)
  • Width : 448.00mm (17.6 inches)
  • Depth : 790.00mm (31.1 inches)
  • Weight : 43.60kg (96.2lbs.) 3.5” direct backplane chassis 41.50kg (91.4lbs) 2.5” direct/expander/NVMe backplane chassis 34.56xkg (76.2lbs) no backplane chassis Dimensions do not include bezel
  • Storage for a converged blade solution.
  • Consolidate storage, blade servers and networking into a scalable, virtualized data center with the Dell EqualLogic PS-M4110 Blade Array.
  • Converge your data center
  • Compute, network and store in a single PowerEdge M1000e blade chassis and help reduce your data center real estate, cable configurations and power/cooling requirements.
  • Find Out More
  • Integrate enterprise-class storage with your blades
  • Gain highly flexible storage for your blade environment with a double-wide, half-height blade array that can be installed in any slot in the PowerEdge M1000e chassis.
  • Find Out More
  • Expand your storage with ease
  • Save time scaling storage capacity and performance simultaneously and non-disruptively with EqualLogic’s outstanding peer-scaling architecture.
  • Find Out More
    • Help simplify management and mitigate risk
  • Depend on centralized monitoring and reporting as well as powerful data protection with the enhanced all-inclusive software features of the EqualLogic PS-M4110 Blade Array.
Next-generation modular switches
Maximize the demanding connectivity needs of today’s data center workloads while also lowering overall costs and network management complexity.

SmartFabric Services
  • Robust yet simple fabric automation that goes beyond the ordinary:
  • Plug and Play fabric deployment with simplified I/O Aggregation providing a single pane of glass view
  • Physical topology validation and compliance checking
  • Automated per-VLAN Quality of Service assignment based on traffic types
  • Self-healing fabric detects misconfigurations and link failure conditions and adjusts where possible

Scalable fabric architecture
  • Multi-chassis scalable fabric architecture that can grow with your specific needs:
  • Fabric expansion capability using 25GbE connectivity across multiple chassis
  • Single networking domain across the fabric providing a single pane of glass view
  • SmartFabric Services provides a robust fabric-level automation framework

The power of open choice
  • An array of hardware platforms, operating systems and management services:
  • Choice of unique Open Networking modular switches
  • Choice of Dell EMC OS10 or select 3rd party OS’s
  • Choice of leveraging standards-based open automation tools
  • Brand : Dell

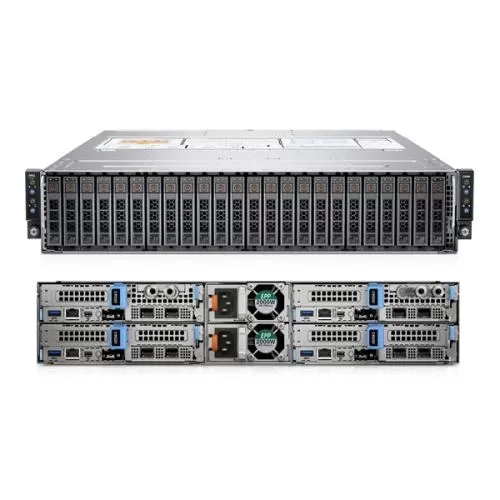

  • Form Factor : Up to 4 independent hot-swappable, 2-socket C6520 sleds in a 2U C6400 chassis
  • Model : PowerEdge C6520 Server
  • Processor : Up to two 3rd Generation Intel Xeon Scalable processors per node with up to 40 cores per processor Direct Contact Liquid Cooling (DCLC) option: Yes
  • Memory : 16 DDR4 DIMM slots supports RDIMM of 1 TB max or LRDIMM of 2 TB max speeds up to 3200 MT/s Supports registered ECC DDR4 DIMMs only
  • Operating System : Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi/vSAN CentOS Windows Preinstallation Environment (WinPE) 64-bit drivers
  • Chipset : Intel C620 series chipset
  • Front Bay : Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) drives max 92.16 TB Up to 24 x 2.5-inch SAS/SATA (HDD/SSD)/NVMe drives max 368.64 TB
  • Internal Controllers : PERC H745 HBA345 S150 H345
  • Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs uSD card
  • Mobility : OpenManage Mobile
  • Accelerators : Low-profile (Half-height) 75 W GPU
  • Fans : Non-Hot plug fans
  • Power Supplies : Dual hot-plug redundant 100 - 240 V AC Platinum (2600 W 2400 W 2000 W 1600 W) Power supply units
  • Network Options : 1 x 1 GbE LOM riser 1 x OCP 3.0
  • Rear Ports : 1 x iDRAC Direct port (Micro-AB USB) 1 x Mini-DisplayPort 1 x iDRAC or NIC or RJ45 port 1 x USB 3.0
  • PCIe : 2 x PCIe x16 Gen4 Risers with support for SNAP I/O modules (Low-profile Half-height and Half-length) 1 x OCP 3.0 x16 Gen4 (for network controller) 1 x PCIe x8 Gen4 M.2 Riser (for M.2 Boot Device)
  • Video Card : 1 x VGA
  • Height : 40.1 mm (1.58 inches)
  • Width : 174.4 mm (6.86 inches)
  • Depth : 570.34 mm (22.45 inches)
  • Weight : Max 45.6 kg (100.53 lbs.) for 12 x 3.5-inch drive
  • Brand : Dell

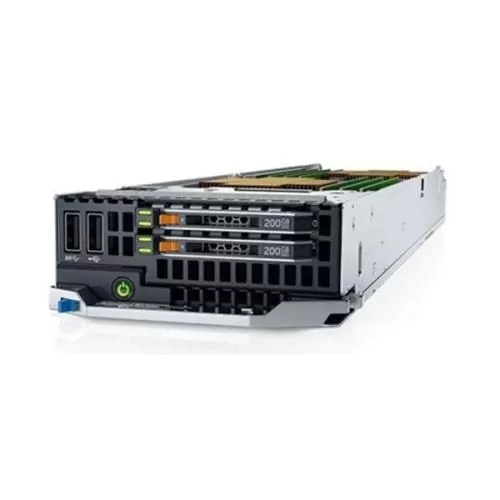

  • Model : PowerEdge FC430 Server Sled
  • Form Factor : 1U quarter-width Modular Compute Sled up to 8 FC430 per FX2 chassis
  • Chassis : FX2
  • Processor : Up to two Intel Xeon processor E5-2600 v4 product family processor with up to 18 cores per processor
  • Memory : Up to 256GB (8 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2400MT/s
  • Operating System : Canonical Ubuntu LTS Citrix Hypervisor Microsoft Windows Server LTSC with Hyper-V Oracle Linux Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSphere
  • Front Bay : Up to 2 x 1.8” uSATA (HDD/SSD) 1.6TB max capacity
  • Internal Controllers : PERC H330 H730 H730p HBA330
  • Mobility : OpenManage Mobile
  • I/O mezzanine cards : Access to 1 x PCIe 3.0 (x8) expansion slots
  • Power Supplies : (FX2 Chassis) 1600W Platinum 2000W Platinum 2400W Platinum 1+1 redundant redundancy alerting only (RAO) & 2+0 non-redundant configurations Up to 8 hot plugs fans with full redundancy
  • Network Options : Dual-port 10GbE LOM
  • PCIe : See PowerEdge FX2 chassis specification
  • Video Card : 1 x VGA controller integrated with iDRAC
  • Height : 102.7mm (4.0)
  • Width : 40.3mm (1.6)
  • Depth : 535.8mm (21.1)
  • Weight : 3.0kg (6.61lbs)
  • Brand : Dell

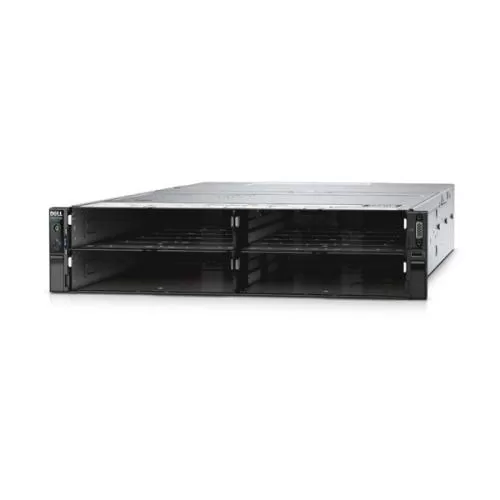

  • Model : PowerEdge FX2 Chassis
  • Form Factor : 2U chassis in height
  • Power Supplies : Hot-plug PSUs: Platinum rated – 2400W or 2000W or 1600WAC in 1+1 redundant redundancy alerting only 2+0 non-redundant configurations.
  • Server Sled Options :-
  • PowerEdge FC830: 4-socket full-width 1U server sled up to 2 FC830 per FX2 chassis
  • PowerEdge FC640: 2-socket half-width 1U server sled up to 4 FC640 per FX2 chassis
  • PowerEdge FD332 storage block: Half-width: up to 3 FD332 per FX2 chassis for support of up to 16 x SFF 2.5" storage devices up to 48 SFF devices in an FX2 chassis
  • PowerEdge FC430: 2-socket quarter-with 1U server sled up to 8 FC430 per FX2 chassis
  • Cooling : 8 hot-swappable fans provide cooling to the I/O components in the system
  • I/O slots : FX2s configuration: Up to 8 x PCIe 3.0 I/O expansion slots (low profile/half-length)
  • Height: 8.68 cm (3.41 in)
  • Width: 43.35 cm (17.06 in) without rack ears 48.19 cm (18.97 in) with rack ears
  • Depth: 85.16 cm (33.52 in)
