lenovo thinksystem dm series

List of Latest lenovo thinksystem dm series Models

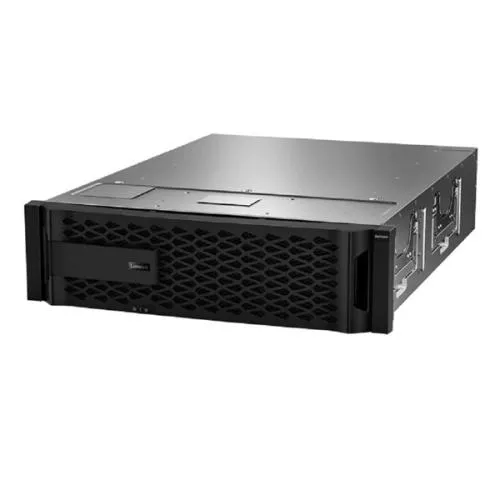

LENOVO THINKSYSTEM DM7100H HYBRID FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DM7100H Hybrid Flash Array Storage
Controller Form Factor: 4U
Maximum Drives(NAS Scale-out: 12 Arrays): 8640 HDD/SSD
Maximum Raw Capacity(NAS Scale-out: 12 Arrays):88PB
Maximum onboard Flash Cache Based on NVMe Technology(NAS Scale-out: 12 Arrays):48TB
Maximum Flash Pool(NAS Scale-out: 12 Arrays):288TB
Maximum Memory(NAS Scale-out: 12 Arrays):3072GB
Maximum Drives(SAN Scale-out: 6 Arrays):4320 HDD/SSD
Maximum Raw Capacity(SAN Scale-out: 6 Arrays):44PB
Maximum Onboard Flash Cache Based on NVMe Technology(SAN Scale-out: 6 Arrays):24TB
Maximum Flash Pool(SAN Scale-out: 6 Arrays):144TB
Maximum Memory(SAN Scale-out: 6 Arrays):1536GB
Cluster Interconnect(SAN Scale-out: 6 Arrays):2x 100GbE
Per High Availability Pair Specifications: Active-Active Dual Controller
Maximum Drives (HDD/SSD): 720
Maximum Raw Capacity: 7.3PB
Maximum Onboard Flash Cache Based on NVMe Technology: 4TB
Maximum Flash Pool:24TB
ECC Memory: 256GB
NVRAM: 32GB
PCIe Expansion Slots: 10
FC Target Ports (32Gb autoranging, maximum): 32
FC Target Ports (16Gb autoranging, maximum): 8
25GbE Ports: 24
10GbE Ports (maximum): 32
10GbE BASE-T Ports (1GbE autoranging) (maximum): 16
100GbE ports (40GbE autoranging): 16
12Gb / 6Gb SAS Ports (maximum): 32
Operating Systems version: 9.7 and later
Shelves and Media: DM240S, DM120S, DM600S
Protocols Supported: FC, iSCSI, NFS, pNFS, CIFS/SMB
Host Operating Systems Supported: Microsoft Windows, Linux, VMware, ESXi

LENOVO THINKSYSTEM DM3010H HYBRID FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DM3010H Hybrid Flash Array Storage
Controller Form Factor: 4U
Maximum Drives(NAS Scale-out: 12 Arrays): 8640 HDD/SSD
Maximum Raw Capacity(NAS Scale-out: 12 Arrays):88PB
Maximum onboard Flash Cache Based on NVMe Technology(NAS Scale-out: 12 Arrays):48TB
Maximum Flash Pool(NAS Scale-out: 12 Arrays):288TB
Maximum Memory(NAS Scale-out: 12 Arrays):3072GB
Maximum Drives(SAN Scale-out: 6 Arrays):4320 HDD/SSD
Maximum Raw Capacity(SAN Scale-out: 6 Arrays):44PB
Maximum Onboard Flash Cache Based on NVMe Technology(SAN Scale-out: 6 Arrays):24TB
Maximum Flash Pool(SAN Scale-out: 6 Arrays):144TB
Maximum Memory(SAN Scale-out: 6 Arrays):1536GB
Cluster Interconnect(SAN Scale-out: 6 Arrays):2x 100GbE
Per High Availability Pair Specifications: Active-Active Dual Controller
Maximum Drives :720 HDD/SSD
Maximum Raw Capacity:7.3PB
Maximum Onboard Flash Cache Based on NVMe Technology: 4TB
Maximum Flash Pool: 24TB
ECC Memory: 256GB
NVRAM: 32GB
PCIe Expansion Slots: 10
FC Target Ports (32Gb autoranging, maximum): 32
FC Target Ports (16Gb autoranging, maximum): 8
25GbE Ports: 24
10GbE Ports (maximum):32
10GbE BASE-T Ports (1GbE autoranging) (maximum): 16
100GbE ports (40GbE autoranging): 16
12Gb / 6Gb SAS Ports (maximum): 32
Operating Systems version: 9.7 and later
Shelves and Media: DM240S, DM120S, DM600S
Protocols Supported: FC, iSCSI, NFS, pNFS, CIFS/SMB
Host Operating Systems Supported: Microsoft Windows, Linux, VMware, ESXi

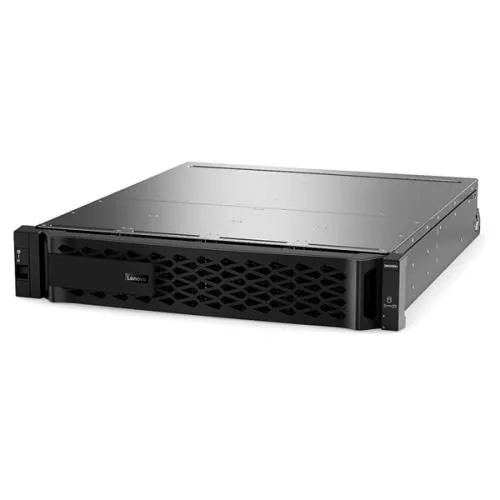

LENOVO THINKSYSTEM DM5000H HYBRID FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DM5000H Hybrid Flash Array Storage
Controller Form Factor: 2U / 24 drives
Maximum Drives (NAS Scale-out: 12 Arrays): 1728 HDD/SSD
Maximum Raw Capacity (NAS Scale-out: 12 Arrays): 15PB
Maximum Raw Capacity(NAS Scale-out: 12 Arrays): 24TB
Maximum Flash Pool(NAS Scale-out: 12 Arrays):288TB
Maximum Memory(NAS Scale-out: 12 Arrays): 768GB
Maximum Drives(SAN Scale-out: 6 Arrays): 864 HDD/SSD
Maximum Raw Capacity(SAN Scale-out: 6 Arrays): 7.5PB
Maximum Onboard Flash Cache NVMe Technology (SAN Scale-out: 6 Arrays): 12TB
Maximum Flash Pool(SAN Scale-out: 6 Arrays):144TB
Maximum Memory(SAN Scale-out: 6 Arrays):384GB
Maximum Memory(SAN Scale-out: 6 Arrays):4x 10GbE
Per High Availability Pair Specifications: Active-Active Dual Controller
Maximum Drives (HDD/SSD): 144
Maximum Raw Capacity: 1.2PB
Maximum Onboard Flash Cache Based on NVMe Technology: 2TB
Maximum Flash Pool: 24TB
ECC Memory: 64GB
NVRAM: 8GB
Onboard I/O: UTA 2 (8Gb/16Gb FC, 1GbE/10GbE, or FCVI ports MetroCluster Only): 8
10GbE Ports (maximum): 8
10GbE BASE-T Ports (1GbE autoranging) (maximum): 8
12Gb / 6Gb SAS Ports (maximum): 4
Operating System version : 9.4 and later
Shelves and Media: DM240S, DM120S, DM600S
Protocols Supported: FC, iSCSI, NFS, pNFS, CIFS/SMB
Host Operating Systems Supported: Microsoft Windows, Linux, VMware, ESXi

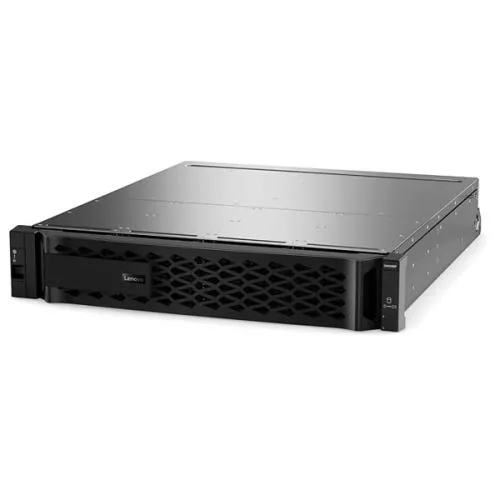

LENOVO THINKSYSTEM DM5000F ALL FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DM5000F All Flash Array Storage
Controller Form Factor: 2U chassis with two High Availability controllers and 24 SSD slots
Maximum SSDs (NAS Scale-out 12 High Availability pairs): 1728
Maximum Raw Capacity All Flash(NAS Scale-out 12 High Availability pairs): 24.1PB / 21.5PiB
Effective Capacity (based on 3:1): 72.3PB / 64.2PiB
Maximum Memory: 768GB
Maximum SSDs (SAN Scale-out 6 High Availability pairs): 864
Maximum Raw Capacity (SAN Scale-out 6 High Availability pairs): 13.2PB / 11.7PiB
Effective Capacity: 39.6PB / 35.17PiB
Maximum Memory: 384GB
Cluster Interconnect: 4x 10GbE
Per High Availability Array Specifications: Active-Active Controller
Maximum SSDs: 144
Maximum Raw Capacity All-Flash: 2.2PB / 1.9PiB
Effective Capacity: 6.6PB / 5.8PiB
Memory: 64GB
NVRAM: 8GB
FC Target Ports (16Gb autoranging, maximum): 8
10GbE Ports (maximum) : 8
10GbE BASE-T Ports (1GbE autoranging) (maximum): 8
12Gb / 6Gb SAS Ports (maximum): 4
Cluster Interconnect: 4x 10GbE
Storage Networking Supported DM5000F: FC, iSCSI, NFS, pNFS, SMB, S3
Software Version: 9.4 or later
Shelves and Media: DM240S
Host Operating SystemSupported: Microsoft Windows, Linux, VMware ESXi

LENOVO THINKSYSTEM DM7100F ALL FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DM7100F All Flash Array Storage
Controller Form Factor: 4U chassis with two High Availability controllers
Maximum SSDs (NAS Scale-out 12 High Availability pairs): 5760 (576 NVMe + 5184 SAS)
Maximum Raw Capacity All Flash(NAS Scale-out 12 High Availability pairs): 88PB* / 78.15PiB*
Effective Capacity (based on 3:1):264PB / 234.45PiB
Maximum Memory: 3072GB
Maximum SSDs(SAN Scale-out 6 High Availability pairs): 2880 (288 NVMe + 2592 SAS)
Maximum Raw Capacity(SAN Scale-out 6 High Availability pairs): 44PB / 39.08PiB
Effective Capacity: 132PB / 117.24PiB
Maximum Memory: 1536GB
Cluster Interconnect: 2x 100GbE
Per High Availability Array Specifications: Active-Active Controller
Maximum SSDs: 480 (48 NVMe + 432 SAS)
Maximum Raw Capacity: All-Flash: 7.37PB / 6.55PiB
Effective Capacity: 22.11PB / 19.65PiB
Memory: 256GB
NVRAM: 32GB
PCIe Expansion Slots (maximum): 10 Slots
FC Target Ports (32Gb autoranging, maximum): 24 Ports
FC Target Ports (16Gb autoranging, maximum): 8 Ports
25GbE Ports: 20 Ports
10GbE Ports (maximum): 32 Ports
100GbE ports (40GbE autoranging): 12 Ports
10GbE BASE-T Ports (1GbE autoranging) (maximum): 16 Ports
12Gb / 6Gb SAS Ports (maximum): 24 Ports
Cluster Interconnect: 2x 100GbE
Storage Networking Supported: FC, iSCSI, NFS, pNFS, SMB, NVMe/FC, S3
Software Version:9.7 or later
Shelves and Media: DM240N, DM240S
Host Operating System Supported: Microsoft Windows, Linux, VMware ESXi

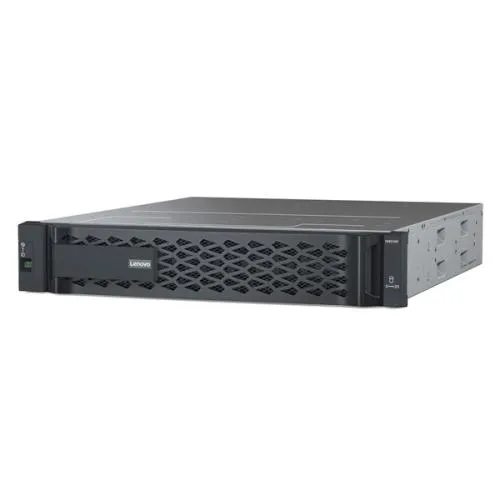

LENOVO THINKSYSTEM DM5100F ALL FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DM5100F All Flash Array Storage
Controller Form Factor: 2U chassis with two High Availability controllers and 24 NVMe SSD slots
Maximum SSDs(NAS Scale-out 12 High Availability pairs): 576 NVMe
Maximum Raw Capacity All Flash (NAS Scale-out- 12 High Availability pairs): 8.84PB / 7.85PiB
Effective Capacity (based on 3:1): 26.43PB / 23.47PiB
Maximum Memory: 1536GB
Maximum SSDs: 288 NVMe
Maximum Raw Capacity(SAN Scale-out 6 High Availability pairs): 4.42PB / 3.92PiB
Effective Capacity (SAN Scale-out 6 High Availability pairs): 17PB / 15.1PiB
Maximum Memory: 768GB
Cluster Interconnect :4 x 25GbE
Per High Availability Array Specifications: Active-Active Controller
Maximum SSDs: 48 NVMe
Maximum Raw Capacity: All-Flash : 737.28TB / 670.29TiB
Effective Capacity: 2.11PB / 1.87PiB
Memory: 128GB
NVRAM: 16GB
PCIe Expansion Slots (maximum): 4 Slots
FC Target Ports (32Gb autoranging, maximum): 16 Ports
25GbE Ports: 16 Ports
100GbE ports (40GbE autoranging) : 4 Ports
10GbE BASE-T Ports (1GbE autoranging) (maximum) : 4 Ports
Cluster Interconnect: 4x 25GbE
Storage Networking Supported DM5100F: FC, iSCSI, NFS, pNFS, SMB, NVMe/FC, S3
Software Version: 9.8 or later
Shelves and Media : DM240N
Host Operating System Supported : Microsoft Windows, Linux, VMware ESXi

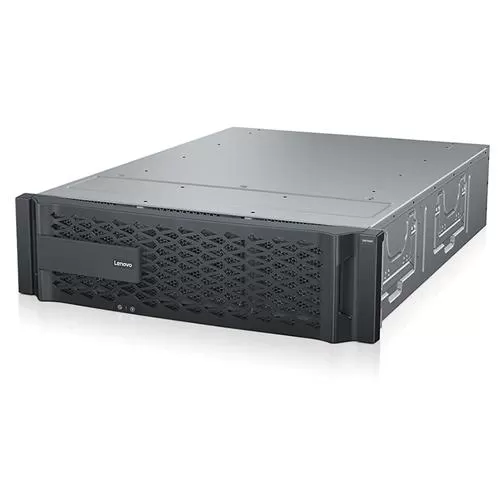

LENOVO THINKSYSTEM DM SERIES HYBRID FLASH

Hybrid Flash - fast, flexible, reliable and secure

Unified storage
NVMe onboard the system offering outstanding performance
Up to 5:1 data reduction capabilities

Highlights
Scale out to 57PB of unified storage

Accelerate unified workloads with hybrid flash

Seamlessly connect to the cloud

Offers "six 9s" of availability

Scale and adapt to meet changing needs

Scaling up is easy with DM Series hybrid storage. Simply add more storage, flash acceleration, and upgrade the controllers. To scale out, grow from a base of two nodes to a 12-array cluster containing up to 28PB (SAN) or 57PB (NAS) of capacity. You can cluster with DM Series all-flash models for flexible growth as your business demands.

Adding and replacing storage systems and components is nondisruptive. This enables you to perform updates while running your usual workloads, without having to worry about maintenance windows.

LENOVO THINKSYSTEM DM SERIES ALL FLASH ARRAY

Modernize your datacenter and accelerate business:

Achieve 5:1 data reduction without sacrificing performance
Eliminate planned downtime and disruptions
Consolidate your infrastructure by scaling up to 57PB of unified storage
Optimize for hybrid cloud – easily implement a service-oriented IT architecture

Highlights

Offers 5:1 overall data reduction
Deploy key workloads like SQL Server, VMware and SAP HANA in less than 10 minutes (1 screen)
Experience 11x lower power consumption when using all flash (vs HDD arrays)
Synchronous replication — switch primary site instantly
Unified architecture reduces hardware requirements by as much as 50%

The challenge

Businesses must continually improve the speed and responsiveness of key business operations if they are to reduce time to market and increase customer satisfaction. One key ingredient of this effort is all-flash storage, which greatly accelerates critical workloads.

However, as all-flash becomes prevalent throughout the data center, it soon becomes apparent that enterprise-grade data management capabilities are critical in a shared environment. To deliver the ultimate solution, all-flash storage needs to offer robust data management, integrated data protection, and seamless scalability.

Accelerate your data

These all-flash arrays offer a range of connectivity including 40Gb Ethernet (GbE), 32Gb Fibre Channel, and NVMe over Fibre Channel, minimizing latency and maximizing performance.

In fact, DM Series systems are so fast they eliminate the bandwidth bottlenecks inherent in other systems that are caused by flash storage exceeding the speed of the network. By leveraging NVMe over Fibre Channel, you can reduce your storage latency by up to 50%.
