Latest security Models Hyderabad, Telangana
We are leading CCTV and security system dealers committed to providing reliable, cutting-edge surveillance solutions for homes, offices, and commercial establishments. Our wide range of products includes HD and IP cameras, DVRs, NVRs, video door phones, and complete security systems from top brands like Hikvision, Dahua, CP Plus, and more. With expert consultation, professional installation services, and responsive after-sales support, we ensure your safety and peace of mind with tailored solutions that meet your specific security requirements.
Pricelist of Best security Models
- Brand: Secureye

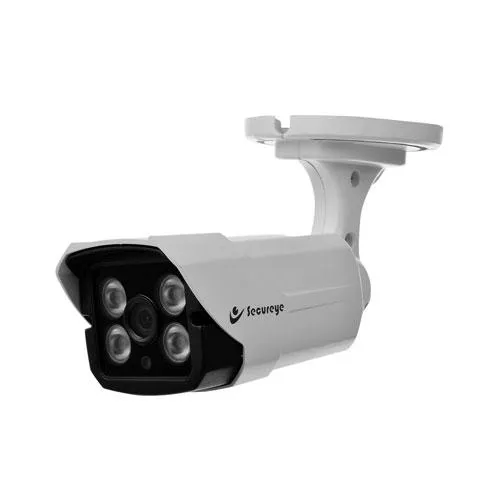

- Part No: SP C2QN 15W
- Product: SP C2QN 15W 2MP 50M IR IP Bullet CCTV Camera
- Image Sensor: 1/2.8 CMOS
- Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
- Shutter Time: 1s-1/100000s
- Day&Night: IR-cut ?lter with auto switch (ICR)
- WDR: DWDR
- S/N: >39dB
- Angle Adjustment: 0-360o; 0-80o; 0-360o
- Lens Type: Fixed
- Focal Length: 4mm
- Lens Mount: M12
- Aperture Range: F1.6, Fixed
- Field of View: 87.7o(H); 45o(V); 98.6o(D)
- DORI DistanceDetect: 55.1m
- DORI DistanceObserve: 21.8m
- DORI DistanceRecognize: 11.0m
- DORI DistanceIdentify: 5.5m
- DORI DistanceIlluminator: IR LEDs: 2
- DORI DistanceIR Distance: 30m
- DORI Distance Wavelength: 850nm
- DORI Distance White LEDs: 2
- DORI Distance Whitelight Distance: 15m
- Compression Standard: Video Compression S+265/H.265/H.264B/H.264M/H.264H
- Video Bit Rate: 32k-6Mbps
- Audio Compression: G.711A/G.711U/ADPCM_D
- Audio Sampling Rate: 8kHz/32kHz/48kHz
- Image Max. Resolution: 1920×1080@30fps
- Main StreamPAL: 25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC: 30fps(1920×1080,1280×720, 640×480, 704×480)
- Sub Stream PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240)
- White Balance: Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/ Incandescent lamp/Locked white balance
- ROI: 8 regions
- OSD: regions;16*16/32*32/48*48
- Privacy Mask: 4 regions
- Defog: Yes
- Alarm Trigger: Motion Detection;Mask Alarm:IP Address Con?ict
- Linkage Method: Trigger Warmlight;Trigger Capture
- Video Analytics: Tripwire;Perimeter
- Network Protocols: HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP;QoS;IPv4;SSH;Unicast;RTSP;FTP
- System Compatibility: P2P(Mutually exclusive with Pro?le G); Onvif Pro?le S/T;CGI;MIL STONE
- Remote Connection: <2
- PC CMS Software: Secureye Smart Client
- Mobile APP: Phoenix Pro
- Web: IE10+:Firefox52+;Edge89+;Safari11+;Chrome57+
- Communication Interface: 1RJ45 10M/ 100M self adaptive Ethernet port
- Power Supply: DC12V+25%, MAX 6.5W; POE 802.3af, MAX 7W
- Protection: Surge Protection 2000V; Lightning Proof 6000V
- Boundary Dimensions: 117(L)117(W)96(H)mm
- Package Dimensions: 140(L)140(W)120(H)mm
- Gross Weight: 0.35Kg
- Net Weight: 0.25Kg
- Brand: Secureye

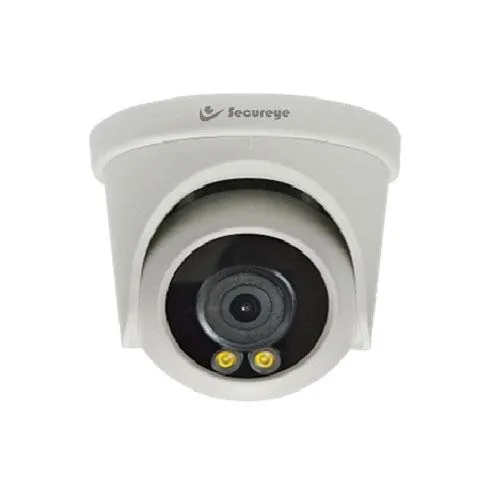

- Part No: SP-C2XN-13W
- Product: 2MP IP, Dome Camera, 30M IR, White Light, PoE, Audio, 2.8mm, SP-C2XN-I3W, Color Master Series
- Image Sensor: 1/2.8 CMOS
- Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
- Shutter Time: 1s-1/100000s
- Day&Night: IR-cut ?lter with auto switch (ICR)
- WDR: DWDR
- S/N: >39dB
- Angle Adjustment: 0-340o; 0-75o; 0-360o
- Lens Type: Fixed
- Focal Length: 2.8mm
- Lens Mount: M12
- Aperture Range: F1.6, Fixed
- Field of View: 104.9o(H); 56.6o(V); 119.2o(D)
- DORI DistanceDetect: 38.6m
- DORI DistanceObserve: 15.3m
- DORI DistanceRecognize: 7.7m
- DORI DistanceIdentify: 3.8m
- DORI DistanceIlluminator: IR LEDs: 2
- DORI DistanceIR Distance: 30m
- DORI Distance Wavelength: 850nm
- DORI Distance White LEDs: 2
- DORI Distance Whitelight Distance: 15m
- Compression Standard: Video Compression S+265/H.265/H.264B/H.264M/H.264H
- Video Bit Rate: 32k-6Mbps
- Audio Compression: G.711A/G.711U/ADPCM_D
- Audio Sampling Rate: 8kHz/32kHz/48kHz
- Image Max. Resolution: 1920×1080@30fps
- Main StreamPAL: 25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC: 30fps(1920×1080,1280×720, 640×480, 704×480)
- Sub Stream PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240)
- White Balance: Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/ Incandescent lamp/Locked white balance
- ROI: 8 regions
- OSD: regions;16*16/32*32/48*48
- Privacy Mask: 4 regions
- Defog: Yes
- Alarm Trigger: Motion Detection;Mask Alarm:IP Address Con?ict
- Linkage Method: Trigger Warmlight;Trigger Capture
- Video Analytics: Tripwire;Perimeter
- Network Protocols: HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP;QoS;IPv4;SSH;Unicast;RTSP;FTP
- System Compatibility: P2P(Mutually exclusive with Pro?le G); Onvif Pro?le S/T;CGI;MIL STONE
- Remote Connection: <2
- PC CMS Software: Secureye Smart Client
- Mobile APP: Phoenix Pro
- Web: IE10+:Firefox52+;Edge89+;Safari11+;Chrome57+
- Communication Interface: 1RJ45 10M/ 100M self adaptive Ethernet port
- Power Supply: DC12V+25%, MAX 6.5W; POE 802.3af, MAX 7W
- Protection: Surge Protection 2000V; Lightning Proof 6000V
- Boundary Dimensions: 117(L)117(W)96(H)mm
- Package Dimensions: 140(L)140(W)120(H)mm
- Gross Weight: 0.35Kg
- Net Weight: 0.25Kg
- Brand: Dahua
- Product: IPC HFW2541E S 5MP IR Fixed Focal Bullet WizSense Network Camera
- Image Sensor: 1/2.7 5 Mega Pixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 128MB /512MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s
- Minimum Illumination: 0.005 lux@F2.0 (Color, 30 IRE); 0.0005 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio :More than 56dB
- IR Distance: Distance up to 30m(98.4ft)
- IR On/Off Control: Auto/ Manual
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0/F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
- Network Port: RJ-45 (10/100 Base-T)
- SDK and API: Yes
- Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
- Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
- Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
- User/Host: 20 (Total bandwidth: 64 M)
- Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS
- Web Viewer: IE, Chrome, Firefox
- Management Software: Smart PSS; DSS; DMSS
- Smart Phone: IOS, Android
- Dimensions: 192.7 mm × 70.5 mm × 66.4 mm(7.59 × 2.78 × 2.61)
- Weight: 780 g (1.72 lb)
- Brand: Dahua
- Product: IPC-HFW1230S1P-A-S4 2MP Entry IR Fixed Focal Bullet Network Camera
- Image Sensor: 1/2.8 2 Mega Pixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 64MB/16MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s
- Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE);0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio: More than 56dB
- IR Distance: Distance up to 30m(98ft)
- IR On/Off Control: Auto/ Manual
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0/F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
- Interoperability: ONVIF (Profile S); CGI; P2P; Genetec
- Streaming Method: Unicast / Multicast
- User/Host: 6 (Total bandwidth: 36 M)
- Edge Storage: FTP
- Web Viewer: IE, Chrome, Firefox
- Management Software: Smart PSS; DSS; DMSS
- Smart Phone: IOS, Android
- Dimensions: 162.6 mm × 70 mm× 70 mm (6.4 × 2.8 × 2.8)
- Weight: 0.34 kg (0.7 lb)
- Brand: Dauha
- Product: IPC HDW1230T1PA S4 2MP Entry IR Fixed Focal Eyeball Network Camera
- Image Sensor: 1/2.8 2Megapixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 64MB/16MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s
- Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio :More than 56dB
- IR Distance: Distance up to 30m(98.4ft)
- IR On/Off Control: Auto/ Manual
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0/F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~78° ;Rotation:0° ~360°
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
- Interoperability: ONVIF (Profile S); CGI; P2P; Genetec
- Streaming Method: Unicast / Multicast
- User/Host: 6 (Total bandwidth: 36 M)
- Edge Storage: FTP
- Web Viewer: IE, Chrome, Firefox
- Management Software: Smart PSS; DSS; DMSS
- Smart Phone: IOS, Android
- Dimensions: 85.5 mm × 109 mm (3.4 × 4.3)
- Weight: 0.24Kg(0.5lb)
- Brand: Dahua
- Product: NVR5464-EI 64CH 4HDD 1.5U Network Video Recorder
- Access Channel: 64 Channels
- Network Bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
- Resolution: 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
- Decoding Capability: AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel
- Video Output: 1 HDMI, 1 VGA Simultaneous? HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous? HDMI: 1920× 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display: Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
- Audio Input: 1-channel RCA
- Audio Output: 2-channel RCA
- Alarm Input: 16 channels
- Alarm Output: 6 channels (1-channel 12 V 1 A output?
- Disk Interface: 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
- eSATA: 1
- RS-232: 1
- RS-485: 1 (half-duplex serial communication)
- USB: 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
- HDMI: 2
- VGA: 2
- Network Port: 2 (10/100/1000 Mbps Ethernet port, RJ-45)
- Dimensions: 440.0 mm × 415.1 mm x 70.0 mm
- weight: 6.11 kg (13.47 lb)
- Brand: Dahua
- Product: NVR4432-EI 32CH 1.5U 4HDDs WizSense Network Video Recorder
- Access Channel: 32 Channels
- Network Bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing; AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
- Resolution: 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
- Decoding Capability: AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps
- Video Output: 1 HDMI, 1 VGA Simultaneous? HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous? HDMI: 1920× 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024.
- Multi-screen Display: Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Video recording, snapshot, log, preset, tour
- HDD: 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
- USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- HDMI: 1
- VGA: 1
- Network: 1 × RJ-45 (10 or 100 Mbps)
- RCA Input: 1
- RCA Output: 1
- Dimensions: 260 mm × 225 mm × 47.6 mm
- weight: 1.38 kg (3.04 lb)
- Brand: Dahua
- Product: NVR4216-4KS3 16CH 1U 2HDDs Lite Network Video Recorder
- Access Channel: 16 channels
- Network Bandwidth: AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
- Resolution: 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
- Decoding Capability: AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps.
- Video Output: 1 HDMI, 1 VGA Simultaneous? HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous? HDMI: 1920× 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024
- Multi-screen Display: Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Video recording, snapshot, log, preset, tour
- HDD: 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
- USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- HDMI: 1
- VGA: 1
- Network: 1 × RJ-45 (10 or 100 Mbps)
- RCA Input: 1
- RCA Output: 1
- Dimensions: 260 mm × 225 mm × 47.6 mm
- weight: 1.38 kg (3.04 lb)
- Brand: Dahua
- Product: DHI NVR1108HS S3 H 8 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder
- Access Channel: 8 channels
- Network Bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
- Resolution: 8MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; CIF
- Decoding Capability: 1–ch@8MP (30 fps) or 1–ch@5MP (30 fps) or; 2–ch@4MP (30 fps) or 2–ch@3MP (30 fps) or; 4–ch@1080p (30 fps)
- Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080p
- Multi-screen Display: 1/4/8/9
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Video recording, snapshot, log, preset, tour
- HDD: 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
- USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- HDMI: 1
- VGA: 1
- Network: 1 × RJ-45 (10 or 100 Mbps)
- RCA Input: 1
- RCA Output: 1
- Dimensions: 260 mm × 225 mm × 47.6 mm
- weight: 1.38 kg (3.04 lb)
- Brand: Dahua
- Product: DH-XVR4B16H-I 16 Channel Penta-brid 5M-N/1080P Compact 1U 1HDD WizSense Digital Video Recorder
- Analog Camera Input: 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
- HDCVI Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
- AHD Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
- TVI Camera: 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps
- CVBS Camera: PAL/NTSC
- IP Camera Input: 16+8 channels, each channel up to 6MP
- Audio In/Out: 1/1, RCA
- Two-way Talk: Reuse audio in/out, RCA
- Interface: 1 RJ-45 Port (100M)
- Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access: 128 users
- Smart Phone: iPhone, iPad, Android
- Interoperability: ONVIF 16.12, CGI Conformant
- Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Playback: 1/4/9/16
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode: USB Device/Network
- Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback
- Internal HDD: 1 SATA Port, up to 6TB capacity
- eSATA: N/A
- Dimension: Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (W × D × H) (10.24 × 9.11 × 1.87)
- Net Weight: 0.57kg (1.25lb)
- Brand: Dahua
- Product: DH-XVR4B08H-I 8 Channel Penta-brid 5MN/1080p Cooper 1U 1HDD WizSense Digital Video Recorder
- Analog Camera Input: 8 channels, BNC
- HDCVI Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
- AHD Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
- TVI Camera: 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps
- CVBS Camera: PAL/NTSC
- IP Camera Input: 8+4 channel, each channel up to 6MP
- Audio In/Out: 1/1, RCA
- Two-way Talk: Reuse audio in/out, RCA
- Interface: 1 RJ-45 Port (100M)
- Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access: 128 users
- Smart Phone: iPhone, iPad, Android
- Interoperability: ONVIF 16.12, CGI Conformant
- Playback: 1/4/9
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode: USB Device/Network
- Internal HDD: 1 SATA Port, up to 6TB capacity
- eSATA: N/A
- Dimensions: Cooper 1U, 198 × 202.9 × 41.5 mm (7.81 × 7.99 × 1.63)
- Net Weight: 0.57kg (1.25lb)
- Brand: Dahua
- Product: DH-XVR4B04-V2 4 Channel Penta brid 1080N/720p Cooper 1U 1HDD Digital Video Recorder
- Analog Camera Input: 4 channels, BNC
- HDCVI Camera: 1080p@ 25/30 fps, 720p@ 25/30/50/60 fps
- AHD Camera: 1080P@25/30, 720P@25/30fps
- TVI Camera: 1080P@25/30, 720P@25/30fps
- CVBS Camera: PAL/NTSC
- IP Camera Input: 4CH: 4+1, each channel up to 2MP
- Audio In/Out: 1/1, RCA
- Two-way Talk: Reuse audio in/out, RCA
- Interface: 1 RJ-45 Port (100M)
- Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access: 128 users
- Smart Phone: iPhone, iPad, Android
- Interoperability: ONVIF 16.12, CGI Conformant
- Playback: 4CH: 1/4
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode: USB Device/Network
- Internal HDD: 1 SATA Port, up to 6TB capacity
- eSATA: N/A
- Dimensions: Cooper 1U, 197mm×192mm×41mm (7.8×7.6×1.6)
- Net Weight: 0.54kg (1.19lb)
- Brand: Dahua
- Product: HAC-B1A51-U-IL-A 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera
- Image Sensor: 1/2.8 5 Mega Pixel CMOS
- Max. Resolution: 2880 (H) × 1620 (V)
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s;; NTSC: 1/30 s–1/100,000 s
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio: >65 dB
- Illumination Distance: IR: 30 m (98.43 ft); Warm light: 20 m (65.62 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 2 (Warm light);2 (IR light)
- Angle Adjustment Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
- Resolution: 5M (2880 × 1620);; 4M (2560 × 1440);; 1080p (1920 × 1080);; 960H (960 × 576/960 × 480)
- Day/Night: Auto(ICR)/Color/B/W
- BLC: BLC; HLC; DWDR;
- WDR: DWDR
- White Balance: Auto;Area white balance
- Gain Control: Auto
- Noise Reduction: 2D NR
- Illumination Mode: Smart IR&WL; WL Mode; IR Mode
- Mirror: Yes
- Privacy Masking: Off/On (8 areas, rectangle)
- Dimensions: 146.1 mm × 70.0 mm × 69.8 mm (5.75 × 2.76 × 2.75)
- Weight: 0.23 kg (0.51 lb)
- Brand: Dahua
- Product: HAC-T1A51-U-IL-A 5MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
- Image Sensor: 1/2.8 5 Mega Pixel CMOS
- Max. Resolution: 2880 (H) × 1620 (V)
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s;; NTSC: 1/30 s–1/100,000 s
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio: >65 dB
- Illumination Distance: IR: 25 m (82.02 ft);; Warm Light: 20 m (65.62 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 2 (Warm light);2 (IR light)
- Angle Adjustment Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
- Resolution: 5M (2880 × 1620);; 4M (2560 × 1440);; 1080p (1920 × 1080);; 960H (960 × 576/960 × 480)
- Day/Night: Auto(ICR)/Color/B/W
- BLC: BLC; HLC; DWDR;
- WDR: DWDR
- White Balance: Auto;Area white balance
- Gain Control: Auto
- Noise Reduction: 2D NR
- Illumination Mode: Smart IR&WL; WL Mode; IR Mode
- Mirror: Yes
- Privacy Masking: Off/On (8 areas, rectangle)
- Product Dimensions: 85.0 mm × 77.1 mm (3.35 × 3.04)
- Weight: 0.12 kg (0.26 lb)
- Brand: Dahua
- Product: DH-HAC-B1A21-U-A 2MP IR HDCVI Fixed-focal Bullet Camera
- Image Sensor: 1/2.8 2 Mega Pixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 128MB /512MB
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio :More than 65dB
- Illumination Distance: 30 m (98.43 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 1 (IR light)
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0
- Resolution: 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night: Auto(ICR)/Color/B/W
- BLC: BLC; DWDR
- WDR: DWDR
- White Balance: Auto
- Gain Control: Auto
- Noise Reduction: 2D NR
- Illumination Mode: Smart IR
- Product Dimensions: 146.1mm × 70.0 mm × 69.8mm (5.75 × 2.76 × 2.75)
- Weight: 0.23 kg (0.51 lb)
- Brand: Dahua
- Product: DH-HAC-T1A21-U-A 2MP IR HDCVI Fixed-focal Eyeball Camera
- Image Sensor: 1/2.8 2 Megapixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 128MB /512MB
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio :More than 65dB
- Illumination Distance: 25 m (82.02 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 1 (IR light)
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0/F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0
- Resolution: 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night: Auto(ICR)/Color/B/W
- BLC: BLC; DWDR
- WDR: DWDR
- White Balance: Auto
- Gain Control: Auto
- Noise Reduction: 2D NR
- Illumination Mode: Smart IR
- Product Dimensions: 85.0 mm × 77.1 mm (3.35 × 3.04)
- Weight: 0.12 kg (0.26 lb)
- Brand: Secureye
- Product: S SSD PTZ5 Defender Duo 4G/5G Smart Dual Lens Linkage Outdoor PT Camera
- Dual vision: 2MP+2MP, enjoy HD image quality
- Power Consumption: ?15W
- Power Supply: DC12V
- Fill Light Distance: IR 20 ~ 30M, Spotlight 15 ~ 20M
- Min. Illumination: Color: 0.1Lux, B/W: 0.01 Lux
- LED: IR+ White Light Multi-LED (6pcs for PT Dome, 4pcs for Bullet)
- RJ45 Port: 10-100M
- NI Protocol: Support
- Vertical View: Max. 150°
- Horizontal View: Max. 350°
- 4G Band: FDD-LTE: B1/B3/B5/B8; TDD-LTE: B34/B38/B39/B40/B41
- Audio Function: 2-way Audio
- Audio Compression: AAC, G711
- Storage: Support TF Card Storage (Up to 256G)
- DNR: 3D DNR
- Video Compression: H.264/H.265, Support 2 Streams
- Resolution: Mainstream: 1920*2160, Substream: 800×896
- Lens: 4mm Fixed Lens / 8mm Rotational Lens
- Sensor: 1/2.9 CMOS Sensor
- Pixel: 2MP+2MP
- Brand: Secureye
- Product: S-PTZ2-W – Lensguard WiFi PT Camera with Auto Human Tracking & 3MP HD
- Resolution: 3MP
- Sensor: 1/3 CMOS Sensor
- Shutter: Shutter Adaptation
- Lens: 4mm
- Rotation Angle: Pan: 0°~260° 20°/S; Tilt: 90° 10°/S
- Day-Night Mode: Infrared Filter
- DNR: 3D Digital Noise Reduction
- Dynamic Range:Digital WDR
- IR Distance: IR 20-30m, Spotlight 15-20m (Depends on Environment)
- Video Compression: H.265/H.264 HD/SD, Rate Adaptation
- Audio Coding Format: AAC/G711A
- Resolution: Main Stream: 2304 *1296, Sub Stream: 640×360
- Frame Rate: Max 15fps, Frame Rate Self-adaption
- Image reversal : Support Horizontal and Vertical Reversal
- Privacy Masking: Support MAX 4 Zone
- Back Light Compensation: Support
- 4G Standard: DC 12V1A
- 4G Frequency Band: LTE-FDD:B1/B3/B5/B8;LTE-TDD:B34/B38/B39/B40/B41; WCDMA:B1/B5/B8
- Ethernet: 1*RJ 45 Port 10/100 (Auto Adept)
- Intelligent Alarm: LTE-TDD/LTE-FDD/TD-SCDMA/WCDM
- Alarm Notification: Motion Detection
- Interface: Push Alarm Notification
- Cloud Storage: Micro SD Card (Max 256G)
- Onvif: Support
- Weather Proof: Support LAN Only
- Working Temperature: IP66
- Power Adapter: -200C ~ 500C, Working Humidity:<95%(no condensation)
- Brand: Ezviz
- Model No: CS-H9c-R100-8G55WKFL
- Product: CS-H9c-R100-8G55WKFL Dual 2K Lens Pan Tilt WiFi Camera
- Image Sensor: 1/2.7 Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens: Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal: 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal: 62°, Horizontal 55°, Vertical 28°
- PT Angle: Pan: 350°, Tilt: 80°
- Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
- Lens Mount: M12
- Day & Night: IR-cut filter with auto-switching
- DNR: 3D DNR
- WDR: Digital WDR
- Black & White Night: 30m / 98ft
- Max Resolution: 2880 × 1620
- Frame Rate: Max:15fps; Self-Adaptive during network transmission
- Video Compression: H.265 / H.264
- H.265 Type: Main Profile
- Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
- Audio Bit Rate: Self-Adaptive
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz - 2.4835 GHz
- Channel Bandwidth: Supports 20MHz
- Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
- Wi-Fi Pairing: AP paring
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
- Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
- Security: WPA-PSK/WPA2-PSK
- Local Storage: Supports microSD Card (Up to 512 GB)
- Cloud Storage: Supports EZVIZ CloudPlay storage
- Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
- Supports: Auto Tracking
- Supports: Customized Alert Area
- Supports: Two-way Talk
- Supports: Preset Locations
- General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
- IP Grade: Weatherproof Design
- Dimensions: 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
- Weight: 668 g
- Brand: Ezviz
- Model No: CS-H9c-R100-8H33WKFL
- Product: CS H9c R100-8H33WKFL Dual 2K Lens Pan Tilt WiFi Camera
- Image Sensor: 1/2.7 Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens: Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal: 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal: 62°, Horizontal 55°, Vertical 28°
- PT Angle: Pan: 350°, Tilt: 80°
- Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
- Lens Mount: M12
- Day & Night: IR-cut filter with auto-switching
- DNR: 3D DNR
- WDR: Digital WDR
- Black & White Night: 30m / 98ft
- Max Resolution: 2304 × 1296
- Frame Rate: Max:15fps; Self-Adaptive during network transmission
- Video Compression: H.265 / H.264
- H.265 Type: Main Profile
- Video Bit Rate: Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
- Audio Bit Rate: Self-Adaptive
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz - 2.4835 GHz
- Channel Bandwidth: Supports 20MHz
- Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
- Wi-Fi Pairing: AP paring
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
- Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
- Security: WPA-PSK/WPA2-PSK
- Local Storage: Supports microSD Card (Up to 512 GB)
- Cloud Storage: Supports EZVIZ CloudPlay storage
- Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
- Supports: Auto Tracking
- Supports: Customized Alert Area
- Supports: Two-way Talk
- Supports: Preset Locations
- General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
- IP Grade: Weatherproof Design
- Dimensions: 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
- Weight: Net Weight: 668 g
- Brand: Ezviz
- Model No: CS HB8
- Product: CS HB8 Battery Powered Pan and Tilt WiFi 4 Mega pixel Camera
- Image Sensor: 1/3 4 Megapixel Progressive Scan CMOS Sensor
- Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)
- Shutter Speed: Self-adaptive shutter
- Lens: 4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical)
- PT Angle: Pan: 340°, Tilt: 65°
- Day & Night: IR-Cut filter with auto-switching
- DNR: 3D DNR
- Night Vision: Up to 49 ft / 15 m
- Max. Resolution: 2560 × 1440
- Frame Rate: 15fps. Self-Adaptive during Network Transmission
- Video Compression: H.265 / H.264
- Video Bit Rate: Quad HD; HD; Standard. Adaptive Bit Rate.
- Audio Bit Rate: Self-Adaptive
- Max. Bitrate: 2 Mbps
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz - 2.4835 GHz
- Channel Bandwidth: Supports 20 MHz
- Security: 64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
- Wi-Fi Pairing: AP pairing
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
- Minimum Network Requirement: 4Mbps
- Battery Capacity: 10400 mAh
- Power Supply: DC 5V / 2A
- Local Storage: Build-In 32GB eMMC Storage
- Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)
- IP Grade: Weatherproof Design
- Detection: Smart Human Motion Detection
- Supports: Two-way Talk
- General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark
- Product Dimensions: 183 × 116 × 166 mm
- Weight: 803g(28.32 oz)
- Brand: Cp Plus
- Product: CP URC TC51PL3C L 5MP 30Mtr Dual Light Bullet Camera
- Image Sensor: 1/2.7 5MP PS CMOS Image Sensor (0.9407 centimetres)
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Max. Resolution: 2880 (H) × 1620 (V)
- Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30-1/100000s
- White Balance Auto, Area white balance
- Gain Control (AGC): Auto
- DORI Distance 3.6 mm: Detect: 76.0 Mtr., Observe-30.4 Mtr., Recognize: 15.2 Mtr., Identify: 7.6 Mtr. 2.8 mm: Detect: 66.0 Mtr., Observe: 26.4 Mtr., Recognize: 13.2 Mtr., Identify: 6.6 Mtr. 6 mm: Detect: 120.0 Mtr. , Observe: 48.0 Mtr. , Recognize: 24.0 Mtr
- Identify : 12.0 Mtr.
- Lens Type: Fixed-focal
- Max. Aperture: F2.0
- Lens Mount: M12
- Close Focus Distance 3.6mm: 1.3Mtr., 2.8mm: 1.0Mtr., 6mm: 2.8Mtr.
- Lens: 3.6mm, 6mm(2.8mm optional)
- Back Light Compensation: BLC/HLC/DWDR
- Angle Adjustment Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
- Angle of view 2.8 mm: H: 106°, V: 56°, D: 125° 3.6 mm: H: 92°, V: 48°, D: 109° 6 mm: H: 54°, V: 29°, D: 62°
- S/N Ratio: >65 dB
- Resolution: 5M (2880 × 1620), 4M (2560 × 1440), 2MP (1920 × 1080), 960H (960 × 576/960 × 480)
- Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Video Streaming CVI: PAL: 5M25 fps, 4M@25 fps, 2M@25 fps, NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: PAL: 960H, NTSC: 960H
- Noise Reduction: 2D NR
- Privacy Mask: Off/On (8 areas, rectangle)
- Day/Night: Auto(ICR)/Color/B/W
- Mirror Function: Support
- IR: IR Range of 30 Mtr.,
- IR Control: Auto, Manual
- Warm Light Range: Warm Light Range of 20 Mtr.
- IR Mode: Smart IR&WL, WL Mode, IR Mode
- Dual LED Number: 2 (Warm light) + 2 (IR light)
- Iris Control: Fixed
- Anti-corrosion Level: Basic Protection
- Audio: Built-in Mic
- Weatherproof Standard: IP67
- Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity: <95% (RH), non-condensing
- Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity: <95% (RH), non-condensing
- Power Source: 12VDC ±30%
- Power Consumption: Max 4.0 W (12V DC, WLED on)
- Casing: Plastic
- Dimension: 146.1mm × 70.0mm × 69.8mm
- Weight: 0.17kg.
- Brand: Cp Plus
- Product: CP USC DC51PL3C 5MP 30Mtr IR Dome CCTV Camera
- Image Sensor: 1/2.7 5MP PS CMOS Image Sensor (0.9407 cm)
- Minimum Illumination: 0.02 Lux/F2.0, 30 IRE, 0 Lux IR on
- Max. Resolution: 2880 (H) × 1620 (V)
- Shutter Speed PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s
- Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- White Balance: Auto, manual
- Lens Mount: M12
- Gain Control (AGC): Auto
- Max. Aperture: F2.0
- Lens: 3.6mm Fixed Lens (2.8mm Optional)
- Close Focus Distance: 3.6 mm: 1.2 m, 2.8 mm: 0.8 m
- DORI Distance Lens 3.6mm: 80.0m (Detect), 32.0m (Observe), 16.0m (Recognize), 8.0m (Identify) Lens 2.8mm: 56.0m (Detect), 22.4m (Observe), 11.2m (Recognize), 5.6m (Identify)
- Lens Type: Fixed
- Angle of View 3.6 mm: 104° × 88° × 46°, 2.8 mm: 125° × 106° × 56°
- Back Light Compensation: BLC, HLC, DWDR
- Resolution: 5M (2880×1620), 4M (2560×1440), 2M (1920×1080), 960H (960 × 576/960 × 480)
- Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Frame Rate CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps , NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: 960H
- Noise Reduction: 2D DNR
- Iris Control: Fixed
- Audio: Built-in Mic
- Privacy Mask: Off/On (8 areas, rectangle)
- Audio Interface: Audio Interface
- Day/Night: Auto (ICR)/ Manual
- Mirror Function: Support
- IR Control: Auto, Manual
- IR: IR Range of 30 Mtr
- Smart IR: Support
- Operating Humidity: <95% (RH), non-condensing
- Operating Temperature: –40°C to +55°C (–40°F to +131°F)
- Power Source: 12 VDC ± 30%
- Power Consumption: Max. 2.7W (12 VDC, IR on)
- Dimension: 85.4mm × 68.8mm
- Casing: Plastic
- Weight: 0.09 kg
- Brand: Cp Plus
- Product: CP USC DC51PL2C 5MP 20Mtr IR Dome CCTV Camera
- Image Sensor: 1/2.7 5MP PS CMOS (0.9407cm)
- Minimum Illumination: 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
- Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- White Balance: Auto / Manual
- Gain Control (AGC): Auto / Manual
- ICR: Auto (ICR)/Manual
- Max. Aperture: F2.0
- Lens: 3.6mm (2.8mm optional)
- Max Aperture: F2.0
- Iris: Fixed
- Lens Type: Fixed lens/ Fixed Iris
- Close Focus Distance 2.8 mm: 0.8 m ; 3.6 mm: 1.2 m
- Mount Type: M12
- S/N Ratio: More than 65dB
- Privacy Mask: Off / On (8 area, rectangle)
- Audio: Built-in Mic
- DORI Distance 2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify)
- Back Light Compensation BLC / HLC / DWDR
- Video Streaming CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H
- Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Angle of View 3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)
- IR: IR Range of 20 Mtr., Smart IR
- OSD: Multi-language
- Casing: Plastic
- Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F) / Less than 95% RH
- Power Source: 12V DC ±30%
- Power Consumption: Max 2.7W (12V DC, IR on)
- Weatherproof Standard: N/A
- Dimension: 85.4 mm × 68.8 mm
- Weight: 0.09Kg.
- Brand: CP Plus
- Product: CP-UVR-3201K2-I3 32 Ch. 5M-N Digital Video Recorder
- Video Inputs: Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Video Compression: AI Instastream/ Instastream/ H.265 dual-stream video compression
- Incoming Bandwidth: Max 32 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth
- Perimeter Protection: Up to 4 channels video stream (analog channel) Perimeter Protection.
- SMD Plus: Up to 16 channels video stream (analog channel) SMD Plus
- Human Face Recognition: Up to 2 channels video stream (analog channel) human face recognition
- USB Ports: Support 2 SATA HDDs up to 16TB Each, 2 USB Ports
- Video Outputs: 1 HDMI / 1 VGA / 1 TV simultaneous video output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- General Alarm: Motion detection, video loss, tampering
- Bit Rate: 32 Kbps–6144 Kbps Per Channel
- Smart Phone: iPhone, iPad, Android Phone
- Face Recognition Database Capacity: Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries ions and state can be added to each face image
- Anomaly Alarm: No disk, storage error, low space, offline, IP conflict, MAC conflict
- Face Recognition Performance of AI by DVR : 2 Channels
- Hard Disk: 2 SATA ports, up to 16TB Each, the maximum HDD capacity varies with environment temperature
- Recording Mode: General, motion detection; intelligent; alarm; POS
- Disk Group: Yes
- Backup Mode: USB Device/Network
- Network Mode: Single-address mode
- Playback: Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
- Recording Playback: 1/4/9/16
- Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
- Interface Ports: 1 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485
- Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; ONVIF 21.06; CGI
- Power Supply: 12 VDC, 5 A
- Power Consumption: Lower than 17 W (without HDD)
- Working Temp: -10°C to +55°C (+14°F to +131°F), 0–90% RH
- Dimension(W × D × H):375.0 mm × 289.4 mm × 53.0 mm
- Weight: 1.98kg
- Brand: CP Plus
- Product: CPUVR0801F1HC 8Ch 1080P Cosmic HD Digital Video Recorder
- Video Inputs: Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
- IP Camera: Support upto 6MP IP Camera
- Video Compression: H.265Plus/H.265 dual-stream video compression
- Incoming Bandwidth: Max 48Mbps Incoming Bandwidth
- Realtime Recording: All channel 1080P Non-Realtime Recording
- USB Ports: Support 1 SATA HDD up to 6TB, 2 USB Ports(2.0)
- Video Output: HDMI / VGA Simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Smart Phone: iPhone, iPad, Android Phone
- Hard Disk: 1 SATA port, up to 6TB
- Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Recording Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Backup Mode: USB Device/Network
- Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Max User Account: 128 users
- Record Interval: 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Ethernet: RJ-45 port (100M)
- Interface Ports: 1 HDMI, 1 VGA, 2 USB2.0
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant
- Power Supply: DC12V/1.5A
- Power Consumption: <10W(without HDD)
- Working Temp: -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
- Dimension(W × D × H) : 197mm x 192mm x 41mm
- Weight: 0.54kg (without HDD)
- Brand: CP Plus
- Prdouct: CP-UVR-0401F1-IC 4Ch. 5M-N Digital Video Recorder
- Video Inputs: Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Incoming Bandwidth: Max 6 channels IP camera inputs, each channel up to 8MP; Max 36Mbps Incoming Bandwidth
- AI Coding: Supports Full-channel AI-Coding
- Perimeter Protection: Up to 2 channels video stream (analog channel) Perimeter Protection.
- Video Compression: Instastream/H.265+ dual-stream video compression
- SMD Plus: Up to 4 channels video stream (analog channel) SMD Plus.
- USB Ports: Support 1 SATA HDD up to 6TB, 2 USB Ports
- Human Face Recognition: Up to 2 channels video stream (analog channel) human face recognition.
- Video output: 1 HDMI / 1 VGA simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Recording Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Backup Mode: USB Device/Network
- Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Max User Account: 128 users
- Record Interval: 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Ethernet: 1 RJ-45 port (1000Mbps)
- Interface Ports: 2 USB Ports (USB 2.0)
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant
- Power Supply: DC 12V/2A
- Power Consumption: <4W (without HDD)
- Working Temp: -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH
- Dimension(W × D × H): 198 mm × 203.0 mm × 41.5 mm
- Weight: 0.55kg (without HDD)
- Brand: CP Plus
- Product:CP-UNR-4K564R8-FI 64Ch AI Network Video Recorder
- Processor: Industrial-grade processor
- IP Camera Input: 64 Channel
- Operating System: Embedded LINUX
- User Interface: Web, Local GUI
- Face Recognition Performance of AI by Camera (Number of Channels): 16 channels
- SMD Plus by NVR 8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: All Channels (32 targets/s)
- Metadata Performance of AI by Camera (Number of Channels): 8 channels
- Human Attributes: Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella
- Motor Vehicle Attributes: License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle Interior, Vehicle registration location
- Non-motor Vehicle Attributes: Vehicle model, Vehicle color, Number of persons, Helmet
- ANPR by Camera (Number of Channels): All Channels (8 Targets/s)
- License Plate Database Capacity: 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist
- Abnormality Alarm: Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal behaviour of fan, cyber security exception
- Intelligent Alarm: Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map
- General Alarm: Motion detection, local alarm, alarm box, camera external alarm, network alarm, scene changing, PIR alarm, thermal
- Alarm Linkage: Record, snapshot (panoramic), local alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, email
- Audio Input: 1-channel RCA
- Audio Output: 2-channel RCA
- Audio Compression: G.711a, G.711u, PCM, G726, AAC
- Disk Group: Support
- Alarm Input: 16 Channel
- Alarm Output: 8 Channels (1-channel 12 V 1 A output)
- Hard Disk: 8 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature
- Multi-channel Playback: Up to 16 channels
- Record Mode: General, Motion detection, Intelligent, Alarm, POS
- Backup Method: USB device and network
- Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection)
- Smart Phone: iPhone, iPad, Android Phone
- RAID: RAID 0/1/5/6/10
- Interface Ports: 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 1 eSATA Port, 1 RS232, 2 RS485 (1 port for halfduplex serial communication, 1 port for full-duplex serial communicat
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, Multicast, InstaOn, Auto Registration, iSCSI, ONVIF 22.06 (Profile T, Profile S, Profile G), CGI, SDK
- Network Mode: Multi-address mode, load balance, fault tolerance and other network port binding modes
- Ethernet: 2 (10/100/1000 Mbps Ethernet port, RJ-45)
- Browser: Chrome, IE, Safari, Edge, Firefox
- Power Supply: 100–240 VAC, 50-60 Hz
- Power Consumption: Total output of NVR is ? 13 W (without HDD)
- Operating Temperature: -10 °C to +55 °C
- Operating Humidity: 10%–93% (RH), non-condensing
- Storage Temperature: -20 °C to +60 °C
- Dimensions(W × L × H):439.9 mm × 457.9 mm x 89.0 mm
- Weight: 6.40 kg
- Brand: CP Plus
- Product: CP-UNR-4K4324-I 32Ch 4K Network Video Recorder
- Processor: Industrial-grade embedded processor
- Operating System: Embedded LINUX
- IP Camera Input: 32 channel
- User Interface: Web; local GUI
- Alarm Input: 16 Channel
- Alarm Output: 6 Channel
- Camera Blank: Supports
- Motion Detection: Supports
- Video Loss: Supports
- Alarm Linkage: Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
- AI by Camera: Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
- General Alarm: Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
- AI by Device: Face detection; face recognition; perimeter protection; SMD Plus
- Smart Phone: iPhone, iPad, Android Phone
- Anomaly Alarm: Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
- Face 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
- Hard Disk: 4 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature
- Recording Mode : Manual; schedule (general; MD; alarm; MD & alarm; intelligent)
- Backup Mode: USB device
- Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
- Ethernet: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
- Interface Ports: 1 front USB 2.0 port, 1 rear USB 3.0 port , 1 RS485, 1 RS232
- Protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search; InstaOn; auto register; ONVIF (profile T/S/G); CGI; SDK
- Power Supply: Single, 100 V–240 V AC, 50 Hz–60 Hz
- Power Consumption: Total output of NVR is ? 8 W (without HDD)
- Working Temp: -10 °C to +55 °C (+10 °F to +131 °F)
- Working Humidity: 10%–93%
- Storage Temperature: 0 °C to +40 °C (32 °F to 104 °F)
- Storage Humidity: 30%–85%
- Operating Altitude: 3000 m
- Dimension(W × L × H): 440.0 mm × 415.6 mm x 76.0 mm
- Weight: 4.25 kg
- Brand: CP Plus
- Product: CP-UNR-4K4322-V4 32 Ch 4K Network Video Recorder
- Processor: Industrial-grade processor
- Operating System: Embedded LINUX
- IP Camera Input: 32 channel
- User Interface: Web, Local GUI
- AI by NVR: SMD Plus
- Perimeter Performance of AI by Camera: 6 Channels
- Video Output: 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Video OutputHeterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard
- Abnormality Alarm: Camera disconnection, Storage error, Disk full, IP conflict, MAC conflict, Login locked, Cybersecurity exceptio
- SMD Plus by Camera: 6 Channels
- SMD Plus by NVR 2 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Face Recognition AI by NVR: 6 Channels
- Face Detection AI by Camera: 6 Channels
- Resolution: 5 MP, 4 MP, 3 MP, 2MP, 960p, 720p, D1, CIF, QCIF
- Video Compression: Instastream; H.265, H.264+, H.264
- Network Bandwidth: AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
- Alarm Input: 4 Channels
- Smart Phone: iPhone, iPad, Android Phone
- Disk Group: Support
- Video Display Split: AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16
- Audio Input: 1 Channel RCA
- Audio Output: 1 Channel RCA
- Audio Compression: G.711a, G.711u, PCM,
- Hard Disk: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperatur
- Browser: Chrome, IE, Safari, Edge, Firefox
- Multi-channel Playback: Up to 16 Channels
- Playback: Instant playback, General playback, Event playback, Tag playback, Smart playback
- Backup Mode: USB device and Network
- Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA
- Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
- Protocols: HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Registration, ONVIF 22.12(Profile T, Profile S, Profile G), CGI, SDK
- Power Supply: 12 VDC, 2 A
- Power Consumption: Total output of NVR is <10 W(without HDD)
- Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F)
- Storage Temperature: –10 °C to +55 °C (14 °F to +131 °F)
- Operating Humidity: 10%–93% (RH), non-condensing
- Dimensions(W × L × H): 375.0 mm × 282.9 mm × 53.0 mm
- Weight: 1.49 kg
- Brand: CP Plus
- Product: CP-UNR-4K2162-V3 16 Ch Network Video Recorder
- Processor: Industrial-grade processor
- Operating System: Embedded LINUX
- Channel: 16
- User Interface: Web, Local GUI
- Video Output: 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Video Compression: H.265, H.264, MJPEG
- Encode Strategy: Instastream
- Decoding Capability AI disabled: 1-channel 12 MP@30 fps, 1-channel 8 MP@30 fps, 2-channel 5 MP@30 fps, 3-channel 4 MP@30 fps, 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps
- Video Resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2MP, 960p, 1MP, D1
- Video Display Split Main screen: 1/4/8/9/16/25 Sub screen: 1/4/8/9/16
- SMD Plus by NVR: 4 channels
- SMD Plus by Camera: Perimeter protection, SMD Plus
- Network Bandwidth AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing
- Smart Phone: iPhone, iPad, Android Phone
- Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, InstaOn cloud, Auto Registration, ONVIF 21.12(Profile T, Profile S, Profile G)
- Browser: Chrome, IE9 and later, Firefox, Edge
- Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
- Intelligent Alarm: Perimeter protection, SMD Plus
- Alarm Linkage: Recording, snapshot, buzzer, log, preset, email, tour
- Alarm Input: NA (2 channels are optional)
- Alarm Output: NA (2 channels are optional, one of them is 1-channel 12 V 1 A output)
- Audio Input: 1-channel RCA
- Audio Output: 2-channel RCA
- Audio Compression: G.711a, G.711u, PCM, G726, AA
- Hard Disk: 2 SATA ports. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature
- Multi-channel Playback: Up to 16 channels
- Record Mode: General, motion detection, intelligent, alarm
- Backup Method: USB device and network
- Power Supply: 12 VDC, 2 A
- Power Consumption: ? 10 W (without HDD)
- Operating Temperature: Temperature -10 °C to +55 °C (14 °F to +131 °F)
- Operating Humidity: 10%–93% (RH)
- Storage Temperature: -20 °C to +60 °C (–4 °F to +140 °F)
- Dimensions(W × L × H):375.0mm × 282.9mm × 53.0mm
- Weight: 1490 g (without HDD)
- Brand: CP Plus
- Product: CP-UNR-108F1 8Ch Network Video Recorder
- Processor: Industrial-grade embedded processor
- Operating System: Embedded LINUX
- User Interface: Web/operating in local GUI
- Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
- Video Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
- Video Recording: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
- Video Display Split: 1/4/8/9
- Bandwidth Incoming: 80 Mbps
- Channel: 8
- Motion Detection: Supports
- Video Loss: Supports
- Smart Phone: iPhone, iPad, Android Phone
- Hard Disk: 1 SATA 2.0, up to 8TB Each
- Recording Mode: Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording
- Backup Mode: USB Device
- Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
- Ethernet: 1 RJ-45 port (10/100Mbps)
- Interface Ports: 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 )
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK
- Power Supply: DC12V, 1.5A
- Power Consumption: <10W (Without HDD)
- Working Temp: -10°C to 45°C (+34°F to +113°F)
- Dimension(W × L × H): 260 mm×225 mm×47.6 mm
- Weight: 0.81kg (without HDD)
- Brand: CP Plus
- Product: CPUNR104F1 4Ch Network Video Recorder
- Processor: Industrial-grade embedded processor
- Operating System: Embedded LINUX
- User Interface: Web/operating in local GUI
- Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
- Video Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
- Video Recording: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
- Video Display Split: 1/4
- Bandwidth Incoming: 80 Mbps
- Channel: 4
- Motion Detection: Supports
- Video Loss: Supports
- Smart Phone: iPhone, iPad, Android Phone
- Hard Disk: 1 SATA 2.0, up to 8TB Each
- Recording Mode: Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording
- Backup Mode: USB Device
- Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
- Ethernet: 1 RJ-45 port (10/100Mbps)
- Interface Ports: 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 )
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK
- Power Supply: DC12V, 1.5A
- Power Consumption: <10W (Without HDD)
- Working Temp: -10°C to 45°C (+34°F to +113°F)
- Dimension(W × L × H): 260 mm×225 mm×47.6 mm
- Weight: 0.81kg (without HDD)
- Brand: CP Plus
- Model No: CP URC TC24PL2C V3 2MP IR Bullet Camera
- Image Sensor: 1/2.7 inch 2MP CMOS Image Sensor (0.9407 cm)
- Minimum Illumination: 0.04Lux/F2.0, 30IRE, 0Lux IR on
- Shutter Speed: PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- Lens: 3.6mm (2.8mm optional)
- S/N Ratio: More than 65dB
- Lens Type: Fixed lens/ Fixed Iris
- Mount Type: Board-in
- Max Aperture: F2.0
- Angle of View: 2.8mm; D:120° H:100° V:53° ; 3.6mm: D:99° H:83° V:44
- Close Focus Distance: 3.6mm– 0.8m ; 2.8mm– 0.6m
- DORI Distance: 2.8mm: D:46.9m; O:18.8m; R:9.4m; I:4.7m 3.6mm: D:53.7m; O:21.5m; R:10.7m; I:5.4m
- Back Light Compensation: BLC/HLC/DWDR
- White Balance: Auto/ Manual
- Video Streaming: 2.4MP@25/30fps, 25/30/50/60fps@720P
- Video Output: 1-channel BNC high definition video output/ CVBS video output (Can switch)
- ICR: Auto (ICR)/Manual
- Audio: Built-in Mic
- IR: IR Range of 20 Mtr., Smart IR
- IR Control: Auto/ Manual
- OSD Menu: Multi-language
- Casing: Plastic
- Operating Temperature: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Storage Temperature: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Weatherproof Standard: IP67
- Power Source: 12V DC ±30%
- Power Consumption: Max 2.7W (12V DC, IR on)
- Dimension: 70mm x 70mm x 149mm (2.76
- Weight: 0.14Kg
- Brand: CP Plus
- Product: CP URC DC24PL2C V3 2MP IR Dome Camera
- Image Sensor: 1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm)
- Minimum Illumination: 0.04Lux/F2.0, 30IRE, 0Lux IR on
- Shutter Speed: PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- Lens: 3.6mm (2.8mm optional)
- S/N Ratio: More than 65dB
- Lens Type: Fixed lens/ Fixed Iris
- Mount Type: Board-in
- Max Aperture: F2.0
- Angle of View: 2.8mm; D:120° H:100° V:53° 3.6mm: D:99° H:83° V:44
- Close Focus Distance: 3.6mm– 0.8m ; 2.8mm– 0.6m
- DORI Distance: 2.8mm: D:46.9m; O:18.8m; R:9.4m; I:4.7m 3.6mm: D:53.7m; O:21.5m; R:10.7m; I:5.4
- Back Light Compensation: BLC/HLC/DWDR
- White Balance: Auto/ Manual
- Video Streaming: 2.4MP@25/30fps, 25/30/50/60fps@720P
- Video Output: 1-channel BNC high definition video output/ CVBS video output (Can switch)
- ICR: Auto (ICR)/Manual
- Audio: Built-in Mic
- IR: IR Range of 20 Mtr., Smart IR
- IR Control: Auto/ Manual
- OSD Menu: Multi-language
- Casing: Plastic
- Operating Temperature: 40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Storage Temperature: 40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Power Source: 12V DC ±30%
- Power Consumption: Max 2.3W (12V DC, IR on)
- Dimension: 85mm x 85mm x 69mm (3.35
- Weight: 0.09Kg
- Brand: CP Plus
- Product: CPUNC TA41L3CDLQ 4MP 30Mtr Dual Light Bullet Camera
- Image Sensor: 1/2.9 4MP PS CMOS Image Sensor (0.8758 centimeters)
- Effective Pixels: 2688 (H) × 1520 (V)
- Minimum Illumination: 0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
- Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM: 128 MB
- ROM: 128 MB
- DORI Distance: Lens 3.6 mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify)
- Gain Control (AGC): Auto/ Manual
- Lens Type: Fixed-focal
- Max. Aperture: F1.6
- Lens Mount: M12
- Close Focus Distance: 1.7 m
- Lens: 3.6mm fixed Lens
- IR Number: 1 (Multi-core (IR + warm) light)
- IR: IR Range of 30 Mtr.
- Warm Light: Warm Light Range of 30 Mtr.
- Smart Illumination: Support
- IR Control:Auto, Manual
- S/N Ratio: Greater 56 dB
- Angle of view 3.6 mm: H: 78°, V: 40°, D: 93°
- Back Light Compensation BLC/ HLC/ WDR(120dB)
- Resolution: 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240)
- Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream)
- Noise Reduction: 3D NR
- Motion Detection: OFF/ON (4 areas, rectangular)
- Video Format: PAL/NTSC
- Stream Capability: Triple stream
- Frame Rate: Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720P( 1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub
- Dimensions: 162.6 mm × 70 mm× 70 mm
- Casing: Metal + Plastic
- Weight: 220g
- Brand: CP Plus
- Product: CPUNC DA41L3CDLQ 4MP 30Mtr Dual Light Dome Camera
- Image Sensor: 1/2.9
- Effective Pixels: 2688 (H) × 1520 (V)
- Minimum Illumination: 0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM: 128 MB
- ROM: 128 MB
- DORI Distance: Lens 3.6mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify)
- Gain Control (AGC): Auto/Manual
- Lens Type: Fixed-focal
- Max. Aperture: F1.6
- Day/Night: Auto(ICR)/Color/B/W
- Lens Mount: M12
- Close Focus Distance 3.6 mm: 1.7 m
- Lens: 3.6mm fixed Lens
- S/N Ratio: Greater 56dB
- Dimensions: 85.5 mm × 109 mm
- Weight: 250 g
- Brand: CP Plus
- Product: CPUNC TA21L3CQ 2MP 30Mtr Network IR Bullet Camera
- Image Sensor: 1/2.8
- Effective Pixels: 1920 (H) × 1080 (V)
- Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
- Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM: 128 MB
- ROM: 128 MB
- DORI Distance: Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify)
- Gain Control (AGC): Auto/Manual
- Lens Type: Fixed-focal
- Max. Aperture: F2.0
- Lens Mount: M12
- Close Focus Distance: 0.9 m
- Lens: 3.6mm fixed Lens
- Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
- IR Number: 1 IR LED
- IR Control: Auto, Manual
- Smart IR: Support
- Angle of View 3.6 mm: H: 86°, V: 47°, D: 103°
- Back Light Compensation: BLC/ HLC/ DWDR
- Day/Night: Auto(ICR)/Color/B/W
- Iris Control: Fixed
- Resolution: 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
- Noise Reduction: 3D NR
- stream Capability: Triple stream
- Frame Rate: Main stream: 2MP (1920 × 1080)@1-25/30fps, 1.3MP, 720P@1-25/30fps Sub stream 1: 720p( 1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream
- Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Browser IE, Chrome, Firefox
- Weatherproof Standard IP6
- Dimension: 162.6 mm × 70 mm × 70 mm
- Weight: 220g
- Brand: CP Plus
- Product: CPUNCDA21L3CQ 2MP Network IR 30Mtr Dome Camera
- Image Sensor: 1/2.8 2MP PS CMOS Image Sensor (0.9071 centimeters)
- Effective Pixels: 1920 (H) × 1080 (V)
- Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM: 128 MB
- ROM: 128 MB
- DORI Distance Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify) Lens 2.8mm: 45.5 m (Detect), 18.2 m (Observe), 9.1 m (Recognize), 4.6 m (Identify)
- Gain Control (AGC): Auto/Manual
- Lens Type: Fixed-focal
- Max. Aperture: F2.0
- Lens Mount: M12
- Close Focus Distance: 3.6 mm: 0.9 m, 2.8 mm: 0.6 m
- Lens: 3.6mm (2.8mm optional)
- Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
- IR Number: 1 IR LED
- IR: IR Range of 30 Mtr.
- Smart IR: Support
- Day/Night: Auto(ICR)/Color/B/W
- S/N Ratio: Greater56dB
- Angle of view 3.6 mm: H: 86°, V: 47°, D: 103° 2.8 mm: H: 101°, V: 54°, D: 119°
- Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
- SDK and API: Support
- Iris Control: Fixed
- Ethernet: RJ-45 (10/100 Base-T)
- Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception
- Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
- Mirror Function: Support
- IR Control: Auto, Manual
- Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
- Certificates: ISO9001, CE, FCC and RoHS, BIS
- Power Source: 12 VDC/PoE (802.3af)
- Power Consumption Basic: 1.3 W (12 VDC), 1.6 W (PoE) Max. (H.265 + intelligence on + WDR+ IR intensity): 3.3 W (12 VDC), 4.2 W (PoE)
- User/Host: 6 (Total bandwidth: 36 M)
- Weatherproof Standard: IP67
- Browser: IE, Chrome, Firefox
- Weight: 250g
- Brand: DAHUA
- Model no: XVR5108HS-I3
- Product: Dahua XVR5108HSI3 8 Channel 5MP Semi HD digital video recorder (DVR)
- Main Processor: Industrial-grade processor
- Operating System: Embedded Linux
- Operating Interface: Web; Local GUI
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Audio Compression:G.711a; G.711u; PCM
- Face Attributes: 6 attributes
- Face Detection AI by Recorder: 2 channels (up to 8 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 10,000 images.
- Face Recognition AI by Recorder (Number of Channels): 2 channels
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Dual-stream: Yes
- Video Bit Rate:32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 1 HDMI, 1 VGA
- HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
- VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Audio Input: 1-channel RCA 8-channel BNC (Coaxial Audio)
- Audio Output:1-channel RCA
- Two-way Talk: Yes (share the same audio input with the first channel)
- Disk Interface: 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port); 1X HDMI; 1x VGA
- Network Port: 1 X (10/100 Mbps Ethernet port, RJ-45)
- Power Supply: 12 VDC, 2A
- Power Consumption Less than 7 W(without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions: 260.0 mm × 237.8 mm × 47.6 mm
- Weight: 0.97 kg (2.14 lb)
- Brand: Dahua
- Part Number: DH-HAC-T1A21P
- Model No: Dahua DH-HAC-T1A21P 2mp Indoor HDCVI IR Eyeball Dome Camera
- Mount Type : Board in
- Image Sensor : 1/2.7 CMOS
- Effective Pixels : 1920(H)×1080(V), 2MP
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25-1/100000s; NTSC: 1/30-1/100000s
- Minimum Illumination : 0.04Lux/F1.85, 30IRE, 0Lux IR on
- S/N Ratio : More than 65dB
- IR Distance : Up to 20m (66feet)
- IR On/Off Control : Auto / Manual
- Lens Type : Fixed lens / Fixed iris
- Focal Length : 3.6mm (2.8mm, 6mm Optional)
- Max Aperture : F1.85
- Angle of View : H: 93° (103°, 54.7°)
- Resolution : 1080P (1920×1080)
- Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
- Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
- Day/Night : Auto (ICR) / Manual
- OSD Menu : Multi-language
- BLC Mode : BLC / HLC / DWDR
- WDR : DWDR
- Gain Control : AGC
- Noise Reduction : 2D
- White Balance : Auto / Manual
- Smart IR : Auto / Manual
- Power Supply : 12V DC ±30%
- Power Consumption : Max. 2.3W (12V DC, IR on)
- Dimensions : 85mm×85mm×69mm
- Weight : 0.09kg (0.20lb)
- Brand: Hikvision
- Part Number: DS-2CD1043G0-I
- Model No: Hikvision DS-2CD1043G0-I 4MP Fixed Bullet Network Camera
- Camera Type: IP Bullet Camera
- Technology: Efficient H.265+ compression technology
- Wide Dynamic Range (WDR):120 dB
- Camera Lens: 4mm
- EXIR 2.0: Advanced infrared technology with long IR range
- Image Sensor: 1/2.8Ã Progressive Scan CMOS
- Lens Type: Fixed focal length, 2.8 and 4 mm optional
- Image Sensor: 1/3 progressive scan CMOS
- Day & Night: IR cut filter
- Day/Night Switch: Auto, Schedule, Day, Night
- Viewing Angle: 83degree (Horizontal)
- Video format: H.264, MJEPG
- Resolution: 1920 x 1080
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS,DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6,Bonjour
- Dimensions: 147.5 x 78.2 x 92.9mm
- Brand: Hikvision
- Part Number: DS-7632NXI-K2
- Model No: Pro DS-7632NXI-K2 32ch IP Network CCTV Camera
- IP Video Input: 32-ch
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 160 Mbps
- HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA independent output
- Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two Way Audio: 1-ch, RCA (Linear, 1 K?)
- Decoding Format: H.265/H.265+/H.264+/H.264
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Stream Type: Video,Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
- Remote Connection: 128
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- SATA: 2 SATA interfaces
- Capacity: Up to 10 TB capacity for each HDD
- USB Interface(Front Panel): 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Power Supply: 12 VDC, 1.5 A
- Consumption: ? 10 W (without HDD)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 320 × 240 × 48 mm
- Weight: Less 1 kg (without HDD, 2.2 lb.)
- Brand: Hikvision
- Part Number: DS-7616NX1-K1
- Model No: Pro DS7616NXIK1 16Ch 4K NVR IP Network CCTV Camera
- IP Video Input: 16-ch
- Incoming Bandwidth: 160 Mbps
- Outgoing Bandwidth: 80 Mbps
- HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA independent output
- Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding Format: H.265/H.265+/H.264+/H.264
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
- Remote Connection: 128
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- SATA: 1 SATA interface
- Capacity: Up to 10 TB capacity for each HDD
- USB Interface(Front Panel): 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Power Supply: 12 VDC, 1.5 A
- Consumption: ? 10 W (without HDD)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 320 × 240 × 48 mm
- Weight: Less 1 kg (without HDD, 2.2 lb.)
- Brand: Hikvision
- Part No: DS-2CD3047G2E-LUF
- Model No: DS2CD3047G2ELUF 4MP ColorVu Fixed Bullet Network Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: 24/7 color imaging
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Product Dimension: 76.6 × 164.4 mm
- Product Weight (Approx): 420 g (0.9 lb.)
- Brand: Dahua
- Model No: Dahua IPC HDBW5231E ZE HDMI 2MP Dome Network Camera
- Image Sensor: 1/2.8 inch 2Megapixel progressive scan CMOS
- Resolution: 1920(H)x1080(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Aperture: F1.6
- Lens Mount: Board-in
- Angle of view: H: 101° ~ 31°, V: 54° ~ 17°
- Power: DC12V, AC24V, PoE(802.3at)(Class 4)
- Dimension: 159.1mm*117.9mm
- Weight: 0.95Kg (2.09lb)
- Brand: Dahua
- Model No: Dahua DH IPC HFW5442EP S 4MP Pro AI Bullet Network Camera
- Image Sensor: 1/1.8 inch CMOS
- Resolution: 2688 (H) × 1520 (V)
- RAM: 512 MB
- ROM: 128 MB
- Shutter Time: Auto/Manual 1/3 s–1/100,000 s
- Lens Type: Fixed-focal
- Aperture: F1.6
- Lens Mount: Board-in
- Angle of view: H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°
- Power: 12 VDC/PoE (802.3af) (class 0)
- Dimension: 182.3 mm × 70.0 mm × 70.0 mm (7.18” × 2.76” × 2.76”)
- Weight: 470 g (1.04 lb)
- Brand: Dahua
- Model No: Dahua IPC HDW4831EM ASE Eyeball Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3(4)~1/100000s
- Lens Type: Fixed
- Aperture: F2.5 (F2.2)
- Lens Mount: Board-in
- Angle of view: H:112° (88°), V:69° (48°)
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 106mm×93.7mm (4.17”×3.69”)
- Weight: 0.47Kg (1.04lb)
- Brand: Dahua
- Model No: Dahua IPC HDBW4831E ASE 8MP Mini Dome Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3(4)~1/100000s
- Lens Type: Fixed
- Aperture: F2.5 (F2.2)
- Lens Mount: Board-in
- Angle of view: H:112° (88°), V:69° (48°)
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 109.9mm×81mm (4.33”×3.19”)
- Weight: 0.41kg (0.91lb)
- Brand: Dahua
- Model No: Dahua IPC HFW4831E SE 8MP Mini Bullet Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3(4)~1/100000s
- Lens Type: Fixed
- Aperture: F1.6 (F1.6)
- Lens Mount: Board-in
- Angle of view: H:112° (88°), V:69° (48°)
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 180mm×70mm×70mm (7.09”×2.76”×2.76”)
- Weight: 0.41kg (0.91lb)
- Brand: Dahua
- Model No: Dahua IPC HDW5831R ZE 8MP Eyeball Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(DC)
- Aperture: F1.8
- Lens Mount: Board-in
- Angle of view: H:110°~40° , V:58°~23°
- Power: DC12V, PoE(802.3af)(Class 0)
- Dimension: 122mm×104mm( 4.8”×4.09”)
- Weight: 0.6Kg (1.32lb)
- Brand: Dahua
- Model No: Dahua IPC HDBW5831R ZE IR Dome Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(DC)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:110°~40° , V:58°~23°
- Power: DC12V, PoE(802.3af)(Class 0)
- Dimension: 122mm×88.9mm (4.8”×3.5”)
- Weight: 0.5kg (1.1lb)
- Brand: Dahua
- Model No: Dahua IPC HDBW5831E ZE 8MP Dome Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(DC)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:110°~40° , V:58°~23°
- Power: DC12V, AC24V, PoE+(802.3at)(Class 4)
- Dimension: 159.1mm×117.9mm (6.26”×4.64”)
- Weight: 0.95kg (2.09lb)
- Brand: Dahua
- Model No: Dahua IPC HDBW5831E Z5E 8MP Dome Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(HALL)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:38°~14° , V:22°~8°
- Power: DC12V, AC24V, PoE+(802.3at)(Class 4)
- Dimension: 159.1mm×117.9mm (6.26”×4.64”)
- Weight: 0.95kg (2.09lb)
- Brand: Dahua
- Model No: Dahua IPC HFW5831E Z5E 8MP Bullet Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(HALL)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:38°~14° , V:22°~8°
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)
- Weight: 1.11Kg (2.44lb)
- Brand: Dahua
- Model No: Dahua IPC HFW4831T ASE Mini Bullet Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Fixed
- Aperture: F1.6 (F1.6)
- Lens Mount: Board-in
- Angle of view: H:112° (88°), V:69° (48°)
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 244.1mm×79mm×75.9mm (9.61”×3.11”×2.99”)
- Weight: 0.815kg (1.80lb)
- Brand: Dahua
- Model No: Dahua IPC HFW5831E ZE IR Bullet Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(DC)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:110°~40°, V:58°~23°
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)
- Weight: 1.11Kg (2.44lb)
- Brand: CP Plus
- Model No: CP Plus CP UNC TC81ZL6 VMDS 8MP Network Bullet Camera
- Image Sensor: 1/2.8” 8MP PS CMOS Image Sensor (7.112cm)
- Resolution: 3840 (H) × 2160 (V)
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Aperture: F1.5
- Angle of view: Horizontal: 113°–31° Vertical: 58°–17° Diagonal:138°–36°
- Power: Basic power consumption: 3.0W (12V DC); 3.5W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 9.2W (12V DC); 10.7W (PoE)
- Operating Temperature: -30°C to +60°C (-22°F to +140°F)
- Dimension: 244.1 mm × 79.0 mm × 75.9 mm (L × W × H)
- Weight: 820 g
- Brand: CP Plus
- Model No: CP Plus CP UNC VC81ZL4 VMDS 8MP WDR IR Network Dome Camera
- Image Sensor: 1/2.8” 8Megapixel progressive CMOS (0.9071 centimeters)
- Resolution: 3840 (H) × 2160 (V)
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Aperture: F1.5
- Lens Mount: ?14
- Angle of view: Horizontal: 113°–31° Vertical: 58°–17° Diagonal: 138°–36°
- Power: Basic: Basic power consumption: 2.7W (12V DC); 3.3W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 6.8W (12V DC); 8.2W (PoE)
- Operating Temperature: -30°C to +60°C (–22°F to +140°F)/Less than 95% RH
- Dimension: 88.9 mm × ?122 mm
- Weight: 492g
- Brand: CP Plus
- Model No: CP Plus CP UNC TG81ZL12 VMD 8MP AI Network Bullet Camera
- Image Sensor: 1/1.8” 8Megapixel Progressive CMOS (1.411 cm)
- Resolution: 3840 (H) × 2160 (V)
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Aperture: F1.6
- Angle of view: Horizontal: 40° (W)–15° (T) ; Vertical: 23° (W)–9° (T) ; Diagonal: 45° (W)–17° (T)
- Power: 3.7W (12V DC); 5.7W(24V AC); 5.5W (PoE) Heat power consumption: 3.3W (12V DC);5.5W(24V AC); 5.5W (PoE)
- Operating Temperature: -40°C to +60°C (-40°F to +140°F), /Less than 95% RH
- Storage Temperature: -40°C to +65°C (-40°F to +149°F)
- Dimension: -40°C to +65°C (-40°F to +149°F)
- Weight: 1600g
- Brand: CP Plus
- Model No: CP Plus CP UNC TE81ZL6P VMDS 8MP AI WDR Network Bullet Camera
- Image Sensor: 1/1.8” 8MP Progressive scan CMOS (1.411 cm)
- Resolution: 3840 × 2160
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Angle of view: Horizontal: 112.1°–47.5° Vertical: 58.0°–26.6° Diagonal: 137.5°–54.6°
- Power: Basic: 5.5W (12 VDC); 6.0 W (24 VAC); 6.2 W (PoE) Max. (H.265 + 3 streams + Intelligence + IR on + heating): 15.9 W (12 VDC); 18.1 W (24 VAC); 18.7 W (PoE) Heating: 3.3 W ( 12 VDC); 4.4 W (24 VAC); 3.9 W (PoE)
- Operating Temperature: -40 °C to +60 °C (-40 °F to +140 °F)/Less than 95% RH
- Storage Temperature: 40 °C to +60 °C (-40 °F to +140 °F)
- Dimension: 340.1 mm × 138.3 mm × 134.0 mm (L × W × H)
- Weight: 1.6 kg
- Brand: CP Plus
- Model No: CP Plus CP UNC VB81ZL4C VMDS 8MP Network Dome Camera
- Image Sensor: 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimetres)
- Resolution: 3840 (H) × 2160 (V)
- RAM: 256 MB
- Shutter Time: Auto/Manual 1/3 s–1/100000 s
- Lens Type: Motorized lens
- Iris Type: Fixed
- Aperture: F1.5
- Lens Mount: M14
- Angle of view: H: 113°–31°, V: 58°–18°, D: 138°–36
- Power: Basic: 2.7 W (12 VDC), 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC), 7.3 W (PoE)
- Operating Temperature: –30°C to +60°C (–22°F to +140°F)
- Operating Humidity: ?95%(RH), non-condensing
- Storage Temperature: –40°C to +60°C (–40°F to +140°F)
- Dimension: 93.4 mm × 122 mm
- Weight: 0.51 kg
- Brand: CP Plus
- Model No: CP Plus CP UNC TC81ZL6C VMDS V2 8MP Network Bullet Camera
- Image Sensor: 1/2.8” 8MP PS CMOS Image Sensor (0.9071 centimeter)
- Resolution: 3840 (H) × 2160 (V)
- RAM: 1 GB
- Shutter Time: Auto/Manual 1/3 s–1/100000 s
- Lens Type: Motorized Lens
- Aperture: F1.5
- Lens Mount: M14
- Angle of view: Horizontal: 109°–30°, Vertical: 56° –17°, Diagonal: 131° –35°
- Power: Basic: 4 W (12 VDC), 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC), 10.5 W (PoE)
- Operating Temperature: –30 °C to +60 °C
- Operating Humidity: ?95%(RH), non-condensing
- Storage Temperature: –30°C to +60°C
- Dimension: 244.1mm × 79.0mm × 75.9mm
- Weight: 0.820 g
- Brand: CP Plus
- Model No: CP Plus CP UNC VE81ZL4T VMDS 8MP WDR IR Network Dome Camera
- Image Sensor: 1/1.8
- Resolution: 3840 (H) × 2160 (V)
- RAM: 4 GB
- Shutter Time: Auto/Manual 1/3 s–1/100000 s
- Lens Type: Motorized
- Aperture: F1.8
- Lens Mount: M14
- Angle of view: H: 113°–47°, V: 60°–26°, D: 133°–53°
- Power: Basic: Basic: 4.1 W (12 VDC), 4.9 W (24 VAC), 5.9 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10.0 W (12 VDC), 11.7 W (24 VAC), 12.2 W (PoE)
- Dimension: 159.1mm × 118.1mm
- Weight: 0.91kg
- Brand: CP Plus
- Model No: CP Plus CP UNC TB81ZL6C VMDS V2 8MP Bullet Camera
- Image Sensor: 1/2.7
- Resolution: 3840 (H) × 2160 (V)
- RAM: 256 MB
- Shutter Time: Auto/Manual 1/3 s–1/100000 s
- Lens Type: Motorized vari-focal
- Iris Type: Fixed
- Aperture: F1.5
- Lens Mount: M14
- Angle of view: H: 113°–31°, V: 58°–18°, D: 138°–36°
- Power: Basic: 2.7 W (12 VDC), 3.6 W (PoE), Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 8.4 W (12 VDC); 9.7 W (PoE)
- Dimension: 238.5 mm × 90.7 mm × 90.7
- Weight: 0.77kg
- Brand: Hikvision
- Model No: Hikvision DS 2CD2066G2 IU 6MP Fixed Bullet Camera
- Image Sensor: 1/2.4 inch Progressive Scan CMOS
- Resolution: 3200 × 1800 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.6
- Lens Mount: M12
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Type: Mono sound
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.2 W
- Dimension: 70 mm × 161.7 mm (2.8" × 6.4")
- Weight: Approx. 490 g (1.1 lb.)
- Brand: Hikvision
- Model No: Hikvision DS 2CD2046G2H IU 4MP Fixed Bullet Network Camera
- Image Sensor: 1/3 inch Progressive Scan CMOS
- Resolution: 2688 × 1520 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Iris Type: Fixed
- Aperture: F1.0
- Lens Mount: F1.0
- Video Bit Rate: 32 Kbps to 8 Mbps
- Audio Type: mono sound
- Power: 12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
- Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
- Weight: Approx. 525 g (1.2 lb.)
- Brand: Hikvision
- Model No: Hikvision DS 2CD2046G2 IU SL 4MP Bullet Network Camera
- Image Sensor: 1/3 inch Progressive Scan CMOS
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.4
- Lens Mount: M12
- Video Bit Rate: 32 Kbps to 8 Mbps
- Audio Type: Mono sound
- Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection ,PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
- Dimension: 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5")
- Weight: Approx. 590 g (1.3 lb.)
- Brand: CP Plus
- Model No: CP Plus CP UNC VC81ZL4C VMDS V2 8MP Network Dome Camera
- Image Sensor: 1/2.8
- Resolution: 3840 (H) × 2160 (V)
- RAM: 1 GB
- Shutter Time: Auto/Manual 1/3 s–1/100,000 s
- Lens Type: Motorized Lens
- Iris Type: Fixed
- Aperture: F1.5
- Lens Mount: M14
- Angle of view: Horizontal: 109°–30°, Vertical: 56° –17°, Diagonal: 131° –35°
- Power: Basic: 4 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC), 10.5 W (Po
- Dimension: 94 mm × 122 mm
- Weight: 0.713 g
- Brand: Hikvision
- Model No: Hikvision DS 2CD2046G2 IU 4MP Bullet Network Camera
- Image Sensor: 1/3 inch Progressive Scan CMOS
- Resolution: 2688 × 1520 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.4
- Video Bit Rate: 32 Kbps to 8 Mbps
- Audio Type: mono sound
- Power: 12 VDC ± 25%, 0.5 A, max. 6.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.0 W
- Dimension: 70 mm × 161.7 mm (2.8" × 6.4")
- Weight: Approx. 485 g (1.1 lb.)
- Brand: Hikvision
- Model No: Hikvision DS 2CD2026G2 IU SL 2MP Fixed Bullet Network Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 1920 × 1080 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.4
- Video Bit Rate: 32 Kbps to 8 Mbps
- Audio Type: Mono Sound
- Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
- Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
- Weight: Approx. 510 g (1.1 lb.)
- Brand: Hikvision
- Model No: Hikvision DS 2CD2026G2 IU 2MP Mini Bullet Network Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 1920 × 1080 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.4
- Video Bit Rate: 32 Kbps to 8 Mbps
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W
- Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
- Weight: 74.4 mm × 179.2 mm (Ø2.9" × 7.1")
- Brand: Hikvision
- Model No: Hikvision DS 2CD2H23G2 IZS 2MP Dome Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 1920 × 1080 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
- Iris Type: Fixed
- Aperture: F1.6
- Video Bit Rate: 32 Kbps to 8 Mbps
- Power: 12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Dimension: 138.3 mm × 126 mm (5.5" × 5.0")
- Weight: Approx. 830 g (1.8 lb.)
- Brand: Hikvision
- Model No: Hikvision DS 2CD2783G2 IZS 8MP Dome Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 3840 × 2160 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: 1/3 s to 1/100,000 s
- Iris Type: Fixed
- Aperture: F1.6
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Type: Mono sound
- Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Dimension: 153.3 mm × 111.6 mm (6.0" × 4.4")
- Weight: Approx. 855 g (1.9 lb.)
- Brand: Hikvision
- Model No: Hikvision DS 2CD2683G2 IZS 8MP Bullet IP Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 3840 × 2160 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
- Iris Type: Fixed
- Aperture: F1.6
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Type: Mono sound
- Power: 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
- Dimension: 97.9 mm × 93 mm × 308.5 mm (3.9" × 3.7" × 12.1")
- Weight: Approx. 1385 g (3.1 lb.)
- Brand: Hikvision
- Model No: Hikvision DS 2CD2166G2 ISU 6MP Dome Network Camera
- Image Sensor: 1/2.4 inch Progressive Scan CMOS
- Resolution: 3200 × 1800 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Iris Type: Fixed
- Aperture: F1.6
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Type: -U: Mono sound
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Dimension: Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
- Weight: Approx. 440 g (1.0 lb.)
- Brand: Hikvision
- Model No: Hikvision DS-2CD1023G0E-I 2MP Network Bullet Camera
- Image Sensor: 2.7 Progressive Scan CMOS
- Maximum Resolution: 1920 × 1080
- Mininum Illumination: Color: 0.01 Lux (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100, 000 s
- Day And Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
- Focal Length FOV: 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F2.0
- Supplement Light Type: infrared radiation(IR)
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface, ISAPI
- Host: Up to 32 users. 3 levels: administrator, operator and user
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
- Power: 12 VDC ± 25%, 0.4 A, max. 5 W, 5.5 mm coaxial power plug
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Language: English
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Product Dimension: 177.6 mm × 66.2 mm × 67.8 mm
- Product Weight: 270 g (0.6 lb)
Your Go-To Source for High-Performance IT Equipment
As leading security dealers in the IT hardware industry, we are committed to delivering reliable, high-performance server solutions that cater to the dynamic needs of modern businesses. Our extensive portfolio includes a wide range of servers—rack servers, tower servers, blade servers, and customized enterprise-grade systems—from globally recognized brands such as Dell, HP, Lenovo, Cisco, and more. Whether you are a small business looking for an entry-level server or a large enterprise seeking powerful, scalable data center infrastructure, we provide tailored solutions that align with your technical requirements and budget.
Our services go beyond just sales—we offer expert consultation to help clients choose the right server configurations based on workload, performance goals, and scalability. Each product we supply is rigorously tested for quality assurance and comes with warranty options and after-sales support, ensuring peace of mind and long-term performance. With a team of knowledgeable professionals, competitive pricing, and a customer-centric approach, we have established ourselves as a trusted partner for businesses, IT integrators, system administrators, and government organizations.
Whether you're upgrading your existing infrastructure, setting up a new data center, or integrating servers into a hybrid IT environment, our goal is to deliver dependable hardware solutions that empower your operations and drive digital transformation.
Most Searchable Keywords
security price in hyderabad, security cost hyderabad, buy security in hyderabad, security pricelist hyderabad, security dealers hyderabad, security suppliers hyderabad, security in hyderabad, security shop hyderabad, security quotes hyderabad, security distributors hyderabad, affordable security hyderabad, security installation hyderabad, security maintenance hyderabad, top most security in hyderabad, security offers hyderabad, security configurations hyderabad, security pricing hyderabad, security comparison hyderabad, security features hyderabad, security hyderabad, security reviews hyderabad, security availability hyderabad, cheap security hyderabad, security IT solutions hyderabad, security hardware hyderabad, best security dealers hyderabad, security networking hyderabad, security enterprises hyderabad, security purchase consultation hyderabad, security deals in hyderabad, security dealers in hyderabad, security suppliers price hyderabad, buy security hyderabad, security purchased in hyderabad, security dealer price hyderabad, security authorized dealers hyderabad, security resellers hyderabad, security India, security distributors hyderabad, security prices hyderabad, security shop hyderabad, security stores in hyderabad, discount security hyderabad, security pricing range hyderabad, affordable security price hyderabad, security consultants hyderabad, security sale hyderabad, New security hyderabad, security offers hyderabad, security vendors hyderabad, purchase security in hyderabad, security installations hyderabad, best security in hyderabad, security shops, security maintenance in hyderabad, local security dealers hyderabad, hyderabad authorized security, security products hyderabad, security distributors in hyderabad, best security pricelist hyderabad, security distributor hyderabad, Dell serversecurity suppliers at hyderabad, hyderabad security retailer, security wholesale hyderabad, security deals in hyderabad, security reseller hyderabad, best security distributor in hyderabad, security supplier hyderabad, cheap security in hyderabad, security shop hyderabad, security for business hyderabad, most trusted security in hyderabad, security sales hyderabad, security parts hyderabad, security IT solution in hyderabad, business security supplier hyderabad, security installation hyderabad, enterprise provider hyderabad, security hardware distributor hyderabad, hyderabad security partners, security store near me hyderabad, authorized security distributor hyderabad, security experts hyderabad, top security distributors near hyderabad, security sales near me hyderabad, security equipment hyderabad, security infrastructure in hyderabad, security stores near by hyderabad, security, security price, top security in hyderabad, security dealer in hyderabad, latest security price hyderabad, top security dealers hyderabad, security good price in hyderabad
