netgear switch
List of Latest netgear switch Models
Brand: Netgear

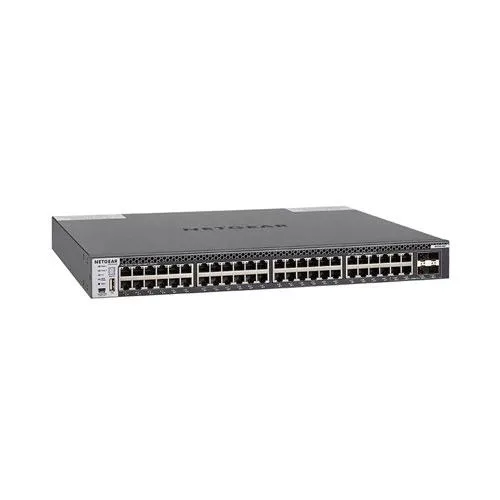

Model No: Netgear XS748T 48 Port Gigabit Smart Managed Switch
10-Gigabit copper ports : 44 10GBASE-T copper
SFP ports : 4 SFP+ 1000/10GBASE-X fiber ports (shared)
Buffer size : 3 MB
MAC address database size : 16K
VLAN (supported) : 512
Number of LAGs & number of members : 24 LAGS with max 8 members in each LAG (LACP)
Number of priority queues : 8
Access Control Lists (ACLs) : 164 shared for MAC, IP and IPv6 ACLs
IPv4 Static routes : 64
IPV6 Static routes : 64
Power supply : Internal 100-240VAC 50-60Hz
Max power consumption (Watts) : 262.8 W
VLAN routing : Yes
Dynamic VLAN assignment : Yes
MLD Snooping : Yes
Static route : Yes (32)
Host ARP table : 512 ARP
EEE : Yes
DoS Prevention : Yes
Internal/External : External DC 54V 1.25A
Max consumption (Watts) : 15.1W
FAN : 4
Acoustic Noise Level @25C (dBA) : 47.8 dBA
Operating Temperature : 0° to 50°C (32° to 122°F)
MTBF (@ 25° C) : 483,808 hours
Electromagnetic compliance (A or B) : Class A
Warranty : 3 Years Warranty
Brand: Netgear

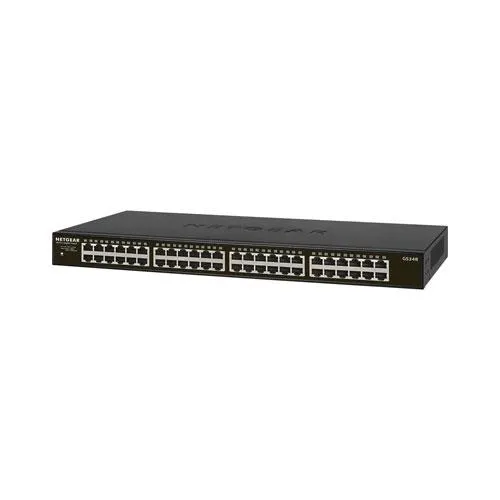

Model No: Netgear GS348 48 Port Gigabit Unmanaged Switch
Product Number: GS348
Model Description: 48-Port Gigabit Ethernet Switch
Number of Ports: 48
Connector Type: Metal
Switch Housing: Metal
LEDs: Power, Speed, Link/Activity
Short cable power saving: Yes
Energy-Efficient: Ethernet
Support (IEEE 802.3az): Yes
Jumbo Frame Support: 9,720 bytes
MAC Table Size: 16K
Packet buffer size: 1.5MB
Power: Internal (AC 110-240V, 50-60Hz, 1.0A max)
Max Power Consumption (Watts): 23W
Acoustic Noise Level @ 25°C (dBA): 0 dBA (Fanless)
Operating Temperature: 0° to 50°C (32° to 122°F)
MTBF (@ 25° C): 0° to 50°C (32° to 122°F)
Electromagnetic compliance(A or B): Class A
Form Factor: Desktop, wall-mountable, or rack-mountable
Dimensions: 44 x 20.4 x 4.33 cm
Weight: 3.15 kg (6.94 lb)
Warranty : 3 Years Warranty
Brand: Netgear

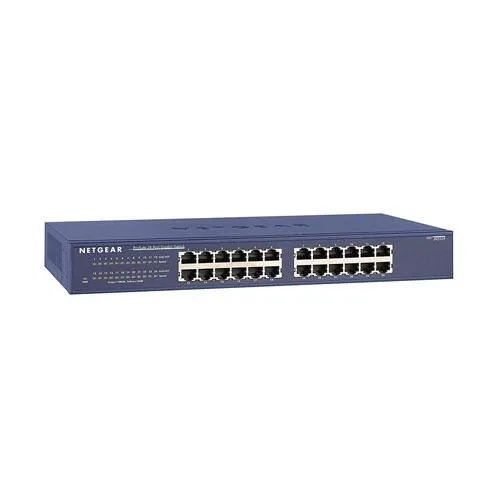

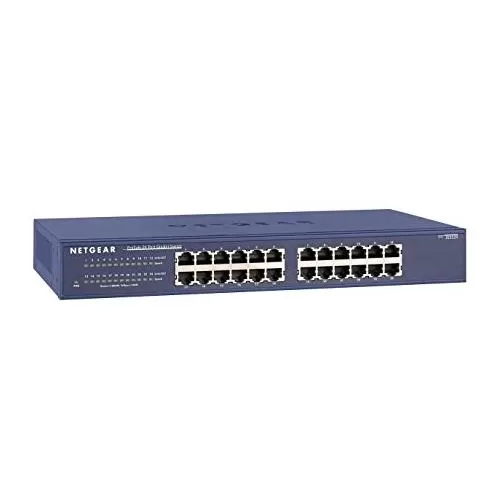

Model No: Netgear JGS524 24-Port Gigabit Unmanaged Switch
Product Number: JGS524
Model Description: 24-Port Gigabit Ethernet Switch
Speed: 10/100/1000Mbps Gigibit Ethernet
Number of Ports: 24
PoE Ports / Max Power Per Port: N/A
PoE Max Power Supplied(All Ports): N/A
Loop Detection: N/A
Short Cable Power Saving: Yes
Energy Efficient Ethernet Support (IEEE 802.3az): Yes
Jumbo Frame Support: 9KB
LEDs: Power, Speed, Link/Activity
Queue WRR Ratio: 1:2:4:8
MAC Table Size: 8K
Packet Buffer Size: 256KB
IEEE 802.1p QoS: Yes
Max Power Consumption (Watts): 17.9W
Operating Temperature: 0 to 50° C
MTBF: 238,872 hours
Warranty : 3 Years Warranty
Brand: Netgear

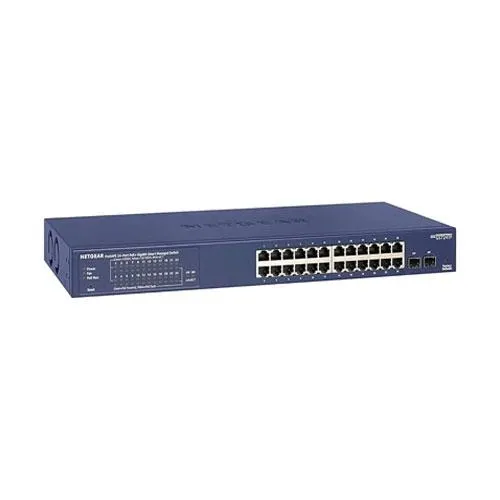

Model No: Netgear GS724TP 300EUS 24 Port Gigabit PoE Switch
Twenty-four (24) 1000BASE-T PoE+ Copper ports.
Two (2) 1000BASE-X Dedicated Fibre SFP ports.
Total PoE budget of 190W.
Advanced VLAN support for better network segmentation.
Advanced QoS (Quality of Service) for traffic prioritisation.
Remote/Cloud Management capabilities.
NETGEAR Insight-ready — just activate it on the Insight platform.
IGMP Snooping and Querier for multicast optimisation.
Rate limiting and priority queuing for better bandwidth allocation.
Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
Solid performance with 52Gbps nonblocking architecture.
L2/L3/L4 access control lists (ACLs) for granular network access control.
Advanced per port PoE controls for remote power management of PoE connected devices.
Easy-to-use web browser-based management GUI makes setup and management simple.
Dual firmware images improve reliability and uptime to your network.
Standards-based technology ensures interoperability with any standards-based devices in the existing network.
Warranty : 3 Years Warranty
Brand: Netgear

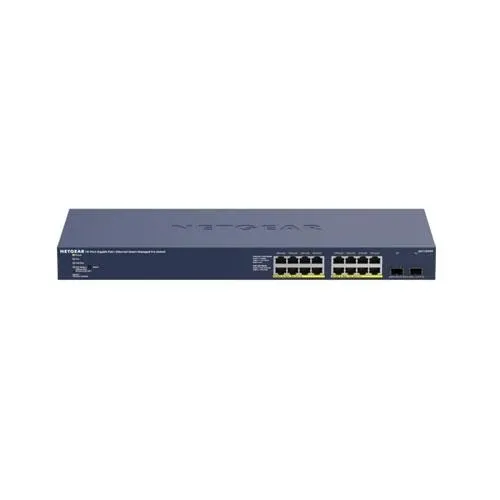

Model No: Netgear GS716TP 16 Port Gigabit Managed Switch
Product Number: GS716TP-100EUS
Gigabit Copper ports: 16
SFP Fiber ports: 2 dedicated
PoE ports (802.3af): 16
PoE+ ports (802.3at): 16
Form factor: Desktop, rack-mount
Total PoE power budget: 180W
Max noise 25?, 77 ?: 27.3 dB
Feature set: Smart L2 (no routing)
Energy Efficient Ethernet (EEE) support: Yes
Dimensions : (W x D x H) 44 x 20.4 x 4.3 cm
Weight : 3.00 kg (6.61 lb)
Max Power Consumption: 67.5W
Operating Temperature: 0 ~ 40°
Warranty : 3 Years Warranty
Brand: Netgear
Model No: Netgear GS108LP 8 Port Gigabit UnManaged Switch
Product Number: GS108LP
Speed: 10/100/1000Mbps Gigabit Ethernet
Number of Ports: 8
PoE Ports: 8 PoE+ ports, up to 30W per port
Total PoE Budget: 60W
Loop Detection: N/A
Short Cable Power Saving: Yes
Energy-Efficient Ethernet Support (IEEE 802.3az): Yes
Jumbo Frame Support: Yes
Queue WRR Ration: 1:3:5:7:8:10:12:15
MAC Table Size: 4K
Packet Buffer Size: 192KB
IEEE 802.1p QoS: Yes
Dimensions: 23.6 x 10.2 x 2.7 cm
Weight: 0.6 kg
Max Power Consumption: 67.5W
Operating Temperature: 0 ~ 40°
Warranty : 3 Years Warranty

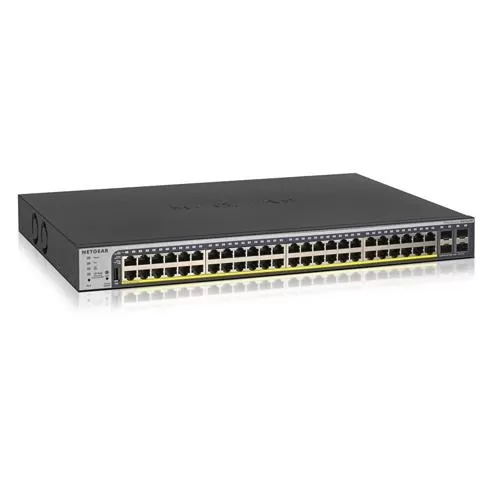

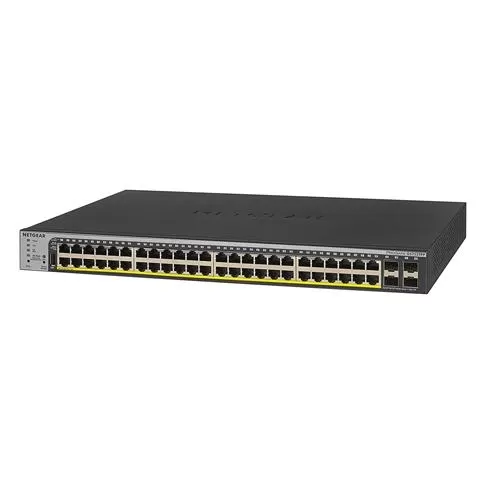

Product Name : 48-Portpro Switch with 4 SFP Ports
Manufacturer Part Number : GS752TPP-100NAS
Product Model : GS752TPP
Product Type : Ethernet Switch
Total Number of Network Ports : 48
Uplink Port : Yes
Modular : Yes
Stack Port : No
Port / Expansion Slot Details : 48 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot
Number of Total Expansion Slots : 4
Shared SFP Slot : No
Number of SFP Slots : 4
Media Type Supported : Twisted Pair
Layer Supported : 2
Power Source : Power Supply
Redundant Power Supply Supported : No
Manageable : Yes
Form Factor : Rack mountable
Height : 1.7"
Width : 17.3"
Depth : 12.4"
Warranty : Limited Warranty Lifetime
- Brand: Netgear

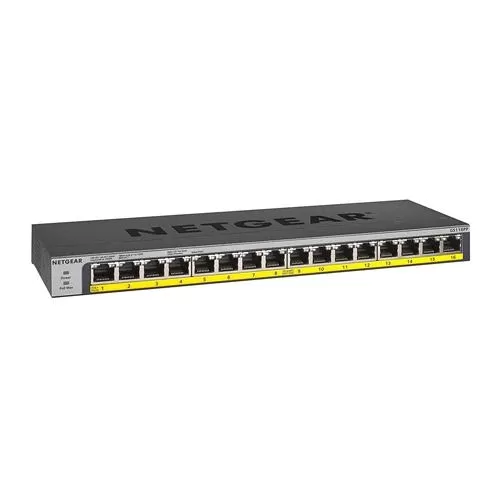

Model No: Netgear GS116PP 16 Port Gigabit UnManaged Switch
Model Description : GS116PP 16-port PoE+ Gigabit Ethernet Unmanaged switch with 183W total power budget
Speed : 10/100/1000Mbps Gigabit Ethernet
Number of Ports : 16
PoE Budget : 183W
PoE Ports / Max power outlet : 16 PoE+ ports, up to 30W per port
Energy Efficient Ethernet support : Yes
Jumbo frame support : Yes
MAC table size : 4K
Packet buffer size : 1MB
PoE Auto balance : Yes
Max Power Consumption: 67.5W
Operating Temperature: 0 ~ 40°
Warranty : 3 Years Warranty
Brand : Netgear
Series : Netgear
Item Height : 27 Millimeters
Item Width : 10.2 Centimeters
Item Weight : 880 g
Product Dimensions : 28.6 x 10.2 x 2.7 cm

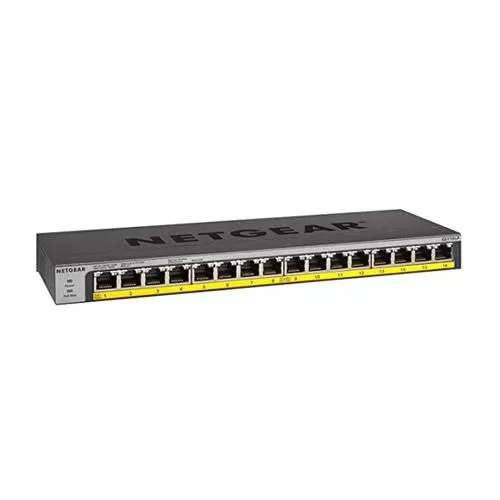

Item model number : GS116LP 100INS
Included Components : NETGEAR Gigabit Ethernet PoE+ Unmanaged Switch Power adapter (localized to the country of sale) Wall installation kit & Rack-mount kit Quick install guide
Brand : NETGEAR
Compatibility : PC
Country Kits : Americas, Europe
Manufacturer : NETGEAR
Model : M4300-48X
Packaged Quantity : 1
Product Line : NETGEAR
Connector Type : RJ-45
Qty : 48
Type : 10GBase-T
Connector Type : SFP+
Qty : 4
Type : 10GBase-X
Connector Type : Type A
Type : USB
Qty : 1
Type : Management (Gigabit LAN)
Type : Console (mini-USB)
Type : Serial (RS-232)

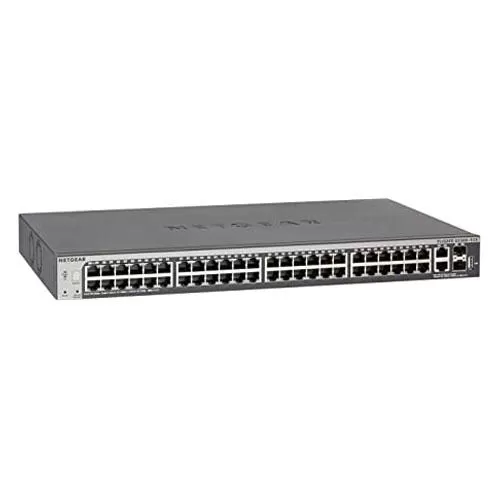

Brand Name : NETGEAR
Series : XSM4348S-100NES
Item model number : XSM4348S-100NES
Item Weight : 14.82 pounds
Product Dimensions : 22.4 x 3.5 x 17.2 inches
Item Dimensions L x W x H : 22.36 x 3.54 x 17.24 inches
Processor Count : 1
Flash Memory Size : 256
Brand Name : NETGEAR
Series : XSM4324S 100NES
Item model number : XSM4324S-100NES
Item Weight : 11.45 pounds
Product Dimensions : 22.4 x 3.5 x 13.7 inches
Item Dimensions L x W x H : 22.44 x 3.54 x 13.74 inches
Processor Count : 1
Flash Memory Size : 256

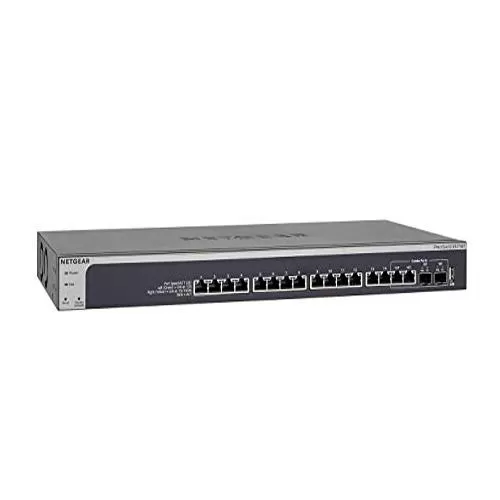

Brand Name : NETGEAR
Series : XSM4316S 100NES
Item model number : XSM4316S 100NES
Item Weight : 7.32 pounds
Product Dimensions : 22.4 x 3.5 x 13.7 inches
Item Dimensions L x W x H : 22.44 x 3.54 x 13.74 inches
Processor Count : 1
Flash Memory Size : 256

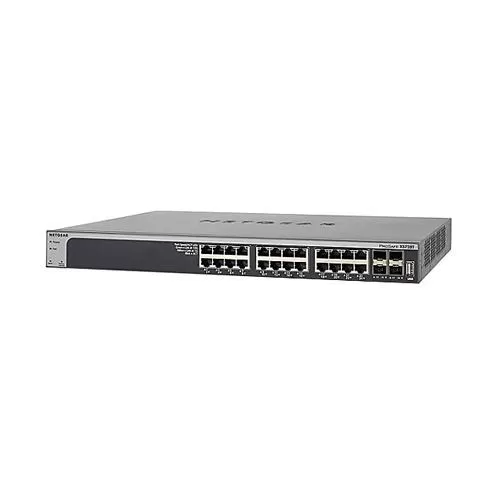

Brand : Netgear
Item Height : 43 Millimeters
Item Width : 31 Centimeters
Item Weight : 5.04 Kg
Product Dimensions : 44 x 31 x 4.3 cm
Item model number : XS728T-100NES
Processor Count : 1
RAM Size : 512 MB
Wireless Type : 802.11ab
Wattage : 1
Included Components : Gigabit Ethernet Smart Managed Pro Switch

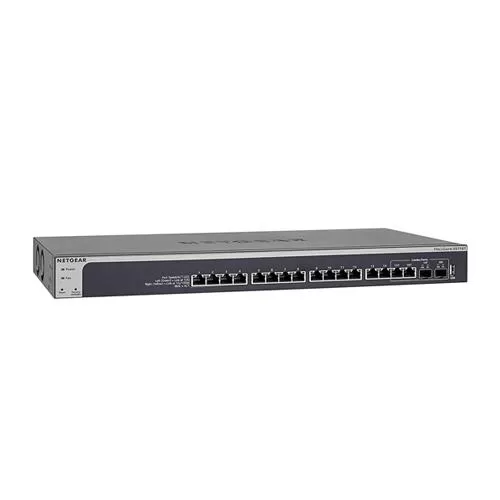

Brand : Netgear
Colour : black
Item Height : 43 Millimeters
Item Width : 43.9 Centimeters
Item Weight : 2.98 Kg
Product Dimensions : 20.3 x 43.9 x 4.3 cm
Item model number : XS716T-100NES
Processor Count : 1
RAM Size : 8 GB
Computer Memory Type : SDRAM
Wireless Type : 802.11ab
Included Components Netgear : XS716T Switch, Hardware kit, User Manual, Power adapter
Brand : Netgear
Item Height : 43 Millimeters
Item Width : 43.9 Centimeters
Item Weight : 2.61 Kg
Product Dimensions : 20.3 x 43.9 x 4.3 cm

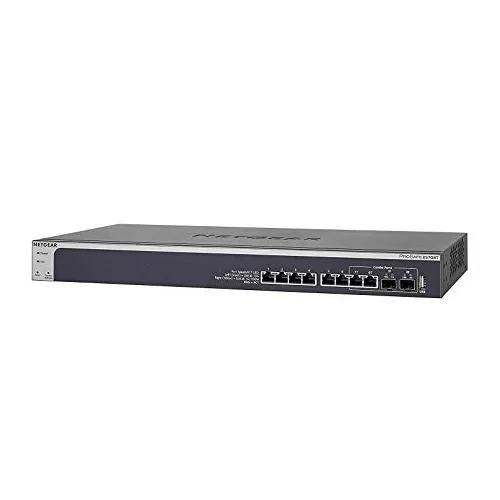

Item model number : XS708T-100NES
Processor Count : 1
RAM Size : 512 MB
Wireless Type : 802.11ab
Wattage : 1
Hardware Platform : no_operating_system
Included Components : Gigabit Ethernet Smart Managed Pro Switch

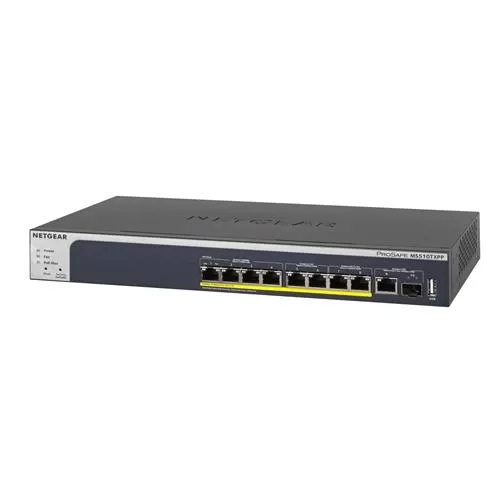

Brand Name : NETGEAR
Item model number : MS510TXPP-100NAS
Operating System : N/A
Item Weight : 4.24 pounds
Product Dimensions : 6.7 x 12.9 x 1.7 inches
Item Dimensions L x W x H : 6.66 x 12.92 x 1.69 inches
Brand Name : NETGEAR
Item model number : MS510TXPP-100NAS
Operating System : N/A
Item Weight : 4.24 pounds
Product Dimensions : 6.7 x 12.9 x 1.7 inches
Item Dimensions L x W x H : 6.66 x 12.92 x 1.69 inches

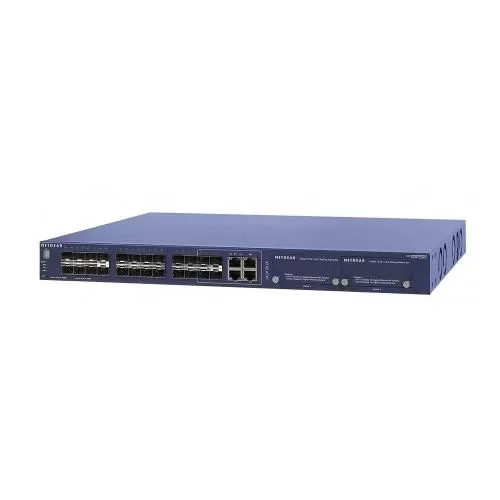

Product Name : M5300-28GF3 Managed Switch (24-Port, SFP, L3)
Manufacturer Part Number : GSM7328FS-200NES
Product Line : ProSafe
Product Series : M5300
Product Model : M5300-28GF3
Product Type : Layer 3 Switch
Number of Total Expansion Slots : 26
Expansion Slot Type : SFP
Shared SFP Slot : Yes
Number of SFP Slots : 24
Number of SFP+ Slots : 2
Brand Name : NETGEAR
Series : NETGEAR

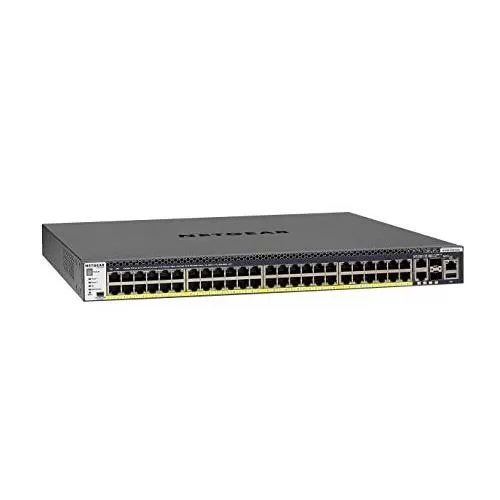

Item model number : GSM4352PB-100NES
Item Weight : 20 pounds
Product Dimensions : 22.1 x 21.4 x 5.8 inches
Item Dimensions L x W x H : 22.05 x 21.38 x 5.75 inches
Processor Count : 1
Flash Memory Size : 256
Brand : Netgear
Item Height : 14.6 Centimeters
Item Width : 54.3 Centimeters
Item Weight : 8.81 Kg
Product Dimensions : 56 x 54.3 x 14.6 cm
Item model number : GSM4352PA-100NES
Processor Count : 1
RAM Size : 1024 MB
Brand Name : NETGEAR
Series : NETGEAR
Item model number : GSM4328PB-100NES
Item Weight : 15.88 pounds
Product Dimensions : 22.4 x 16.9 x 3.8 inches
Item Dimensions L x W x H : 22.44 x 16.93 x 3.82 inches
Processor Count : 1
Product Name : M4300-52G Managed Switch
Manufacturer Part Number : GSM4352S-100NES
Product Line : ProSafe
Product Series : M4300
Product Model : M4300-52G (GSM4352S)
Product Type : Layer 3 Switch

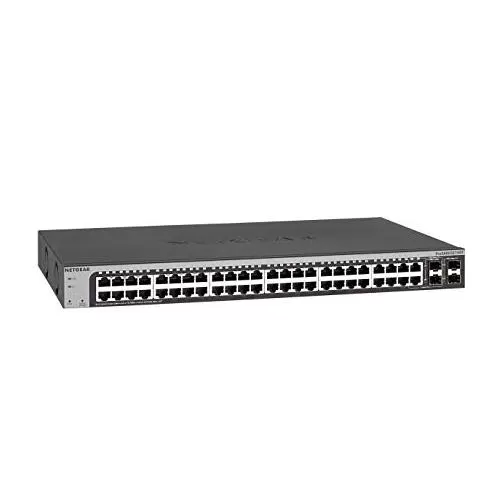

Brand : Netgear
Item Height : 34.9 Centimeters
Item Width : 9 Centimeters
Screen Size : 17 Inches
Item Weight : 3.46 Kg
Product Dimensions : 57 x 9 x 34.9 cm
Item model number : GS748T-500NAS
Wattage : 66 Watts
Operating System : Windows
Included Components Smart Managed Pro Switch

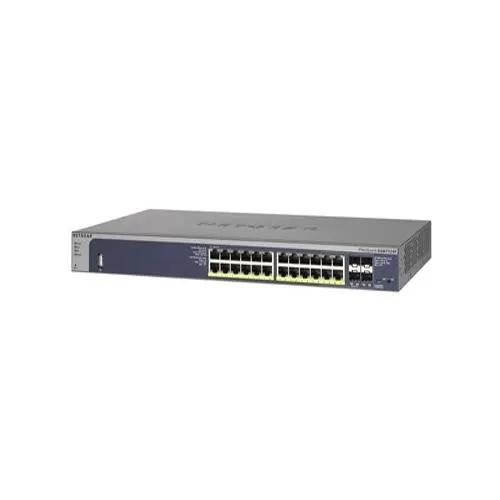

Brand Name : NETGEAR

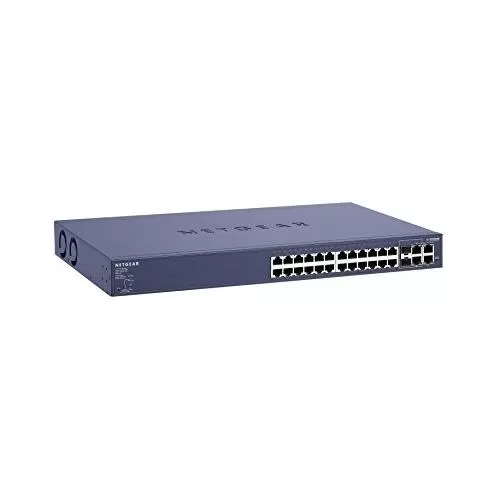

Item model number : GSM7224P 100NES
Operating System : N/A
Item Weight : 12.74 pounds
Product Dimensions : 22.4 x 13.7 x 3.5 inches
Item Dimensions L x W x H : 22.44 x 13.74 x 3.54 inches
Processor Count : 1
Flash Memory Size : 32
Product Dimensions : 18 x 11 x 2 inches
Item Weight : 21 pounds
Shipping Weight : 21 pounds
Department : Network Switches
Manufacturer : Netgear
ASIN : B00655C9SU

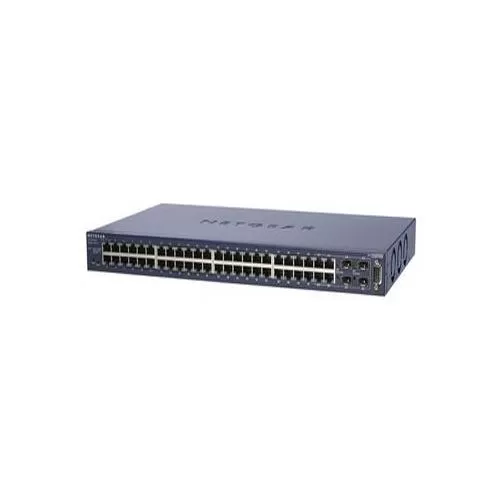

Item model number : GSM7248 200NAS
Brand Name : NETGEAR
Item model number : GS748T-500NAS
Operating System : Windows
Item Weight : 7.63 pounds
Product Dimensions : 22.4 x 3.5 x 13.7 inches
Item Dimensions L x W x H : 22.44 x 3.54 x 13.74 inches
Brand : Netgear
Item Height : 34.9 Centimeters
Item Width : 9 Centimeters
Screen Size : 15.6 Inches
Item Weight : 748 g
Product Dimensions : 57 x 9 x 34.9 cm
Item model number : GS752TX-100NES
Processor Count : 1
RAM Size : 512 MB
Computer Memory Type : DDR3L-1600 SDRAM
Wireless Type : 802.11a, 802.11b
Number of USB : 2.0 Ports 1
Voltage : 240 Volts
Wattage : 44.12 Watts
Hardware Platform : not_machine_specific
Operating System : PC

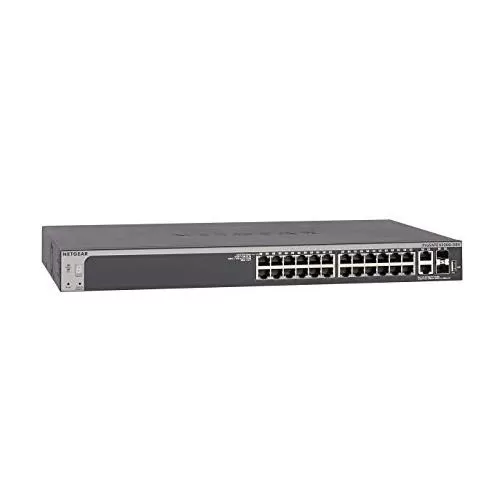

Included Components : Smart Managed Pro Stackable Switch
Brand : Netgear
Item Height : 34.9 Centimeters
Item Width : 9 Centimeters
Screen Size : 17 Inches
Item Weight : 3.46 Kg
Product Dimensions : 57 x 9 x 34.9 cm
Item model number : GS748T-500NAS
Wattage : 66 Watts
Operating System : Windows
Included Components : Ethernet Smart Managed Pro Switch
Brand : Netgear
Item Height : 10.7 Centimeters
Item Width : 31.5 Centimeters
Item Weight : 3.57 Kg
Product Dimensions : 52.2 x 31.5 x 10.7 cm

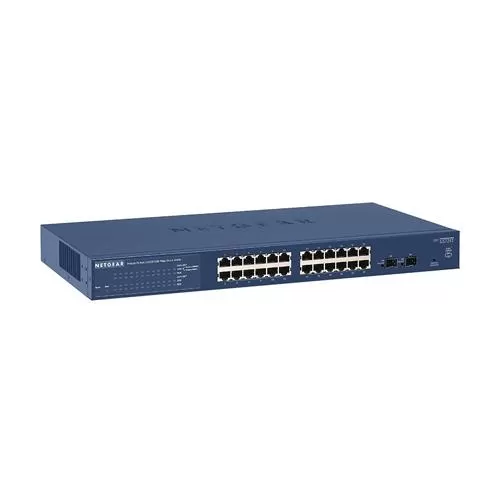

Item model number : GS724T-400NAS
Wireless Type : 802.11ab
Wattage 17.4 Watts
Operating System N/A
Included Components : Gigabit Smart Managed Pro Switch
Brand : Netgear
Colour : black
Item Height : 9.7 Centimeters
Item Width : 43 Centimeters
Item Weight : 5.1 Kg
Product Dimensions : 57 x 43 x 9.7 cm
Item model number : GS752TP-100NAS
Wattage : 384 Watts
Included Components : Ethernet Smart Managed Pro Switch
Brand : Netgear
Colour : Grey
Item Height : 9.3 Centimeters
Item Width : 31.7 Centimeters
Item Weight : 5.18 Kg
Product Dimensions : 57 x 31.7 x 9.3 cm

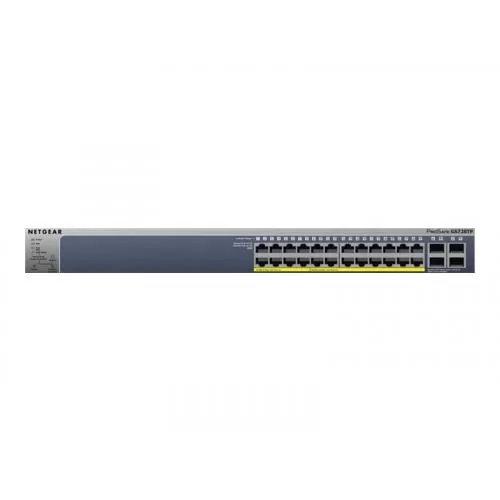

Item model number : GS728TPP-100NAS
Wireless Type : 802.11ab
Wattage : 384 Watts
Operating System N/A
Included Components : Gigabit Ethernet Smart Managed Pro Switch
Brand : Netgear
Colour : GS728TP
Item Height : 9.3 Centimeters
Item Width : 31.7 Centimeters
Item Weight : 4.52 Kg
Product Dimensions : 57 x 31.7 x 9.3 cm
Item model number : GS728TP 100NAS
Wattage : 192 Watts
Operating System : Windows
Included Components : Gigabit Ethernet Smart Managed Pro Switch
Brand : Netgear
Item Height : 9.5 Centimeters
Item Width : 22 Centimeters
Item Weight : 1.36 Kg
Product Dimensions : 51.8 x 22 x 9.5 cm

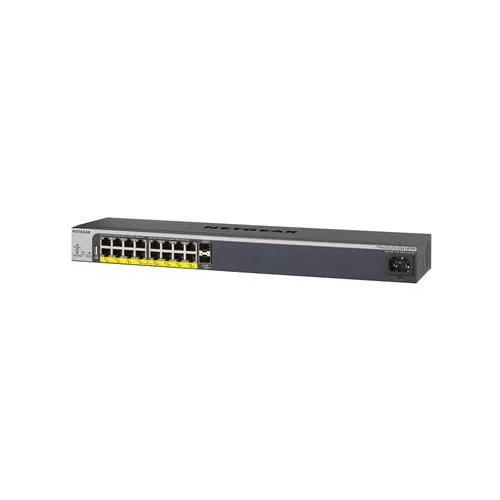

Item model number : GS418TPP-100NAS
Wattage : 240 Watts
Operating System : N/A
Included Components : Ethernet Smart Managed Pro Switch
Brand : Netgear
Colour : Black
Item Height : 7.9 Centimeters
Item Width : 22.9 Centimeters
Item Weight : 454 g
Product Dimensions : 45.6 x 22.9 x 7.9 cm
Item model number : GS510TPP-100NAS
Included Components : Ethernet Smart Managed Pro Switch
Brand : Netgear
Item Height : 7.9 Centimeters
Item Width : 22.9 Centimeters
Item Weight : 2.56 Kg
Product Dimensions : 45.6 x 22.9 x 7.9 cm

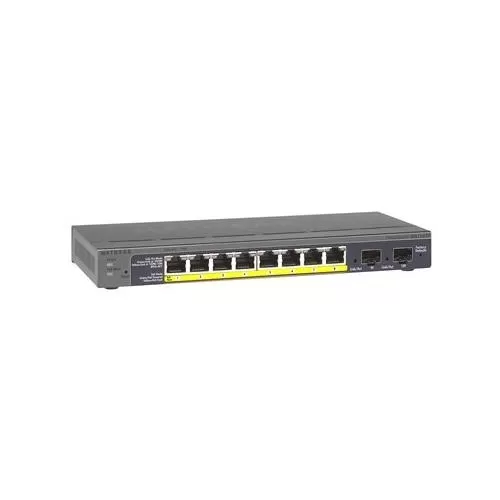

Item model number : GS510TLP 100NAS
Wattage : 75 Watts
Included Components : Smart Managed Pro Switch
Brand : Netgear
Item Height : 8.1 Centimeters
Item Width : 23.1 Centimeters
Item Weight : 2.3 Kg
Product Dimensions : 45.9 x 23.1 x 8.1 cm
Item model number : GS510TP-100INS
Wireless Type : 802.11ab
Wattage : 147 Watts
Included Components : Smart Managed Pro Switch
Brand : Netgear
Item Height : 27 Millimeters
Item Width : 23.6 Centimeters
Item Weight : 699 g
Product Dimensions : 10.2 x 23.6 x 2.7 cm

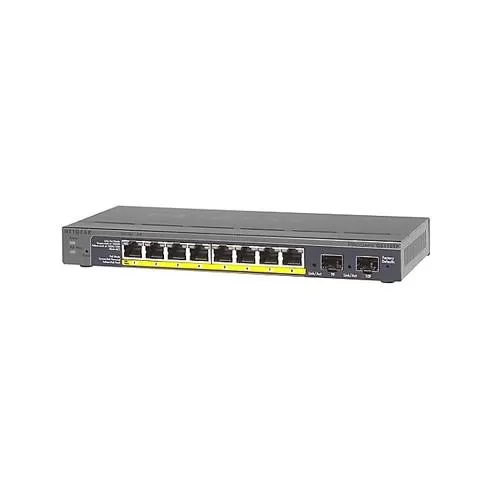

Item model number : GS110TP
Computer Memory Type : DRAM
Wattage : 59.3 Watts

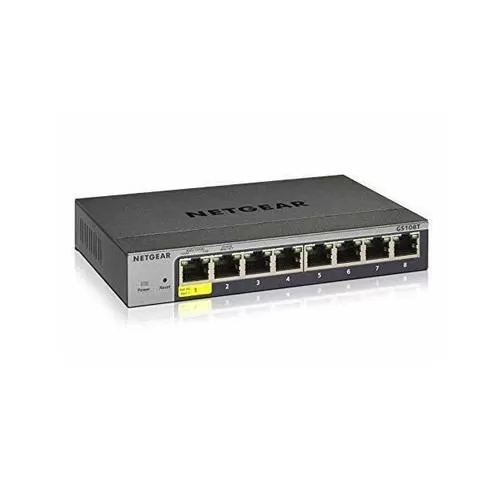

Brand : Netgear
Model : GS108T 200NAS
Model Year : 2011
Item Weight : 558 g
Product Dimensions : 26.2 x 23 x 6.6 cm
Item model number : GS108T-200NAS
Included Components : Gigabit Smart Managed Plus Switch
Colour Screen : No
Wattage : 12.8 Watts
Batteries Included : No
Batteries Required : No
Data Transfer Rate : 1000 megabits_per_second
Wireless Type : 802.11b, 802.11g, 802.11n
Number of Ports : 8
Connector Type : DC-in jack
Contains Liquid Contents : No
Includes Rechargable Battery : No
Includes Remote : No
Brand : Netgear
Item Height : 8 Centimeters
Item Width : 23.1 Centimeters
Item Weight : 2.63 Kg
Product Dimensions : 45.9 x 23.1 x 8 cm

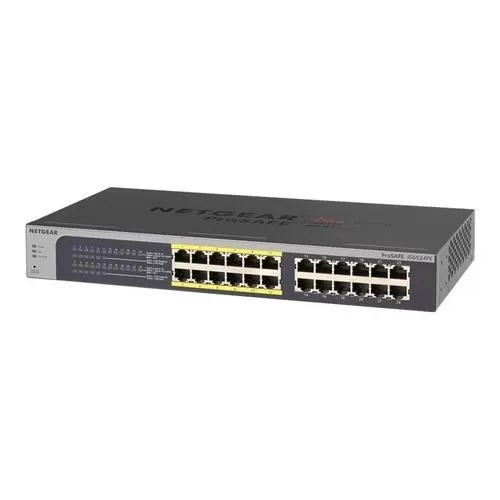

Item model number : JGS524PE 100NAS
Processor Count : 1
Wireless Type : 802.11a
Wattage : 100 Watts
Operating System : PC
Included Components : Gigabit Rackmount Smart Managed Plus Switch
- Brand : Netgear
Colour : Gray
Item Height : 10.1 Centimeters
Item Width : 12.6 Centimeters
Item Weight : 830 g
Product Dimensions : 18.2 x 12.6 x 10.1 cm

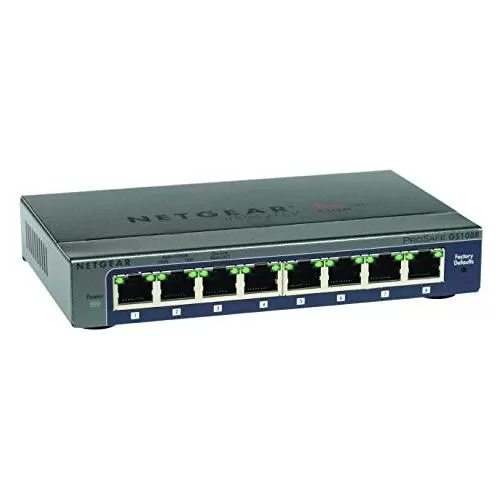

Item model number : GS108E-100NAS
Voltage : 12 Volts
Operating System : PC
Included Components : Gigabit Smart Managed Plus Switch
Brand : Netgear
Colour : Gray
Item Height : 10.1 Centimeters
Item Width : 12.6 Centimeters
Item Weight : 830 g
Product Dimensions : 18.2 x 12.6 x 10.1 cm
Item model number : GS108E 100NAS
Voltage : 12 Volts
Operating System : PC
Included Components : Gigabit Smart Managed Plus Switch
Brand : Netgear
Item Height : 7.8 Centimeters
Item Width : 28.3 Centimeters
Item Weight : 2.14 Kg
Product Dimensions : 34.6 x 28.3 x 7.8 cm
Item model number : GS324-100NAS
Wireless Type : 802.11a, 802.11b
Included Components : Gigabit Ethernet Unmanaged Switch
Brand : Netgear

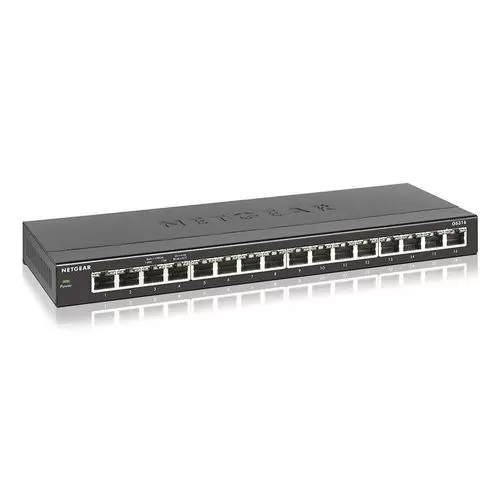

Model : GS316-100NAS
Model Year : 2017
Item Weight : 839 g
Product Dimensions : 10.2 x 28.7 x 2.5 cm
Batteries : 1 Lithium ion batteries required.
Item model number : GS316 100NAS
Included Components : Gigabit Ethernet Unmanaged Switch
Voltage : 12 Volts
Batteries Included : No
Batteries Required : No
Data Transfer Rate : 1000 megabits per second
Wireless Type : 802.11a, 802.11b
Number of Ports : 16
Connector Type : Ethernet
Contains Liquid Contents : No

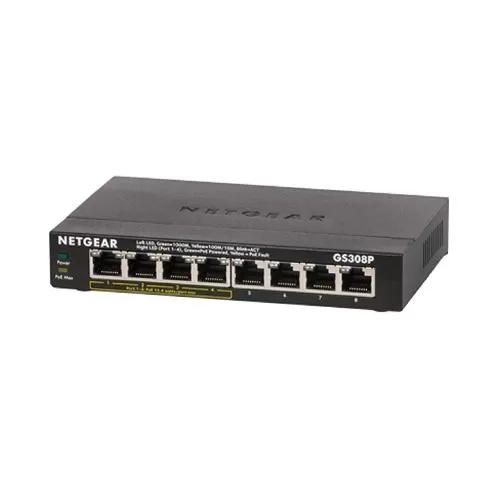

Product Name : 8 Port Gigabit Ethernet Switch with 4 Port PoE
Manufacturer Part Number : GS308P 100NAS
Product Series : 300
Product Model : GS308P
Product Type : Ethernet Switch
Media Type Supported : Twisted Pair
Ethernet Technology : Gigabit Ethernet
Network Technology : 10/100/1000Base TX
Form Factor Desktop
Height : 1.1"
Width : 6.2"
Depth : 4"
Total Number of Network Ports : 8
Uplink Port : No
Modular : No
Stack Port : No
Port Expansion Slot Details : 8 x Gigabit Ethernet Network
- Weight : 0.6 kg
- Mac Table Size : 4K
- Number of Ports : 8
- PoE ports : 8 PoE+ ports, up to 30W per port
- Total PoE Budget : 123W
- Queue WRR Ratio : 1248
- Packet buffer size : 192KB
- Dimensions : 236 x 101 x 26 mm
- Operating Temperature : 0 to 50 degree C
- MTBF : 1,044,500
- FCC Class : B
- Minimum Order Quantity : 5 Piece
- Brand : Netgear
- Item Height : 7.3 Centimeters
- Item Width : 21.5 Centimeters
- Item Weight : 454 g
- Product Dimensions : 26.9 x 21.5 x 7.3 cm
- Item model number : GS305P-100NAS
- Wattage : 55.5 Watts
- Included Components : Gigabit Ethernet Unmanaged Switch
- Compatibility : IEEE 802.3i 10BASE-T
- Network Ports : 16 auto speed-sensing 10/100 Mbps RJ-45 ports
- Performance Specifications : Forwarding modes: Store-and-forward
- LEDs : System: Power, PoE Maximum Power
- Power Supply : Total Power Consumption: 72W maximum
- Physical Specifications : Dimensions (w x d x h): 11.3 x 4.1 x 1.1 in. (287 x 103 x 27 mm)
- Environmental Specifications : Operating temperature: 32? to 104°F (0? to 40° C)
- Electromagnetic Emissions : CE mark, commercial
- Electromagnetic Immunity : EN 55024
- Safety : CE mark, commercial
- System Requirements : UTP Category 5 or better cables
- Warranty : Switch: NETGEAR Lifetime Warranty
- Package Contents : ProSafe 16 port 10 100 Switch with Power over Ethernet (FS116P)
- Brand : Netgear

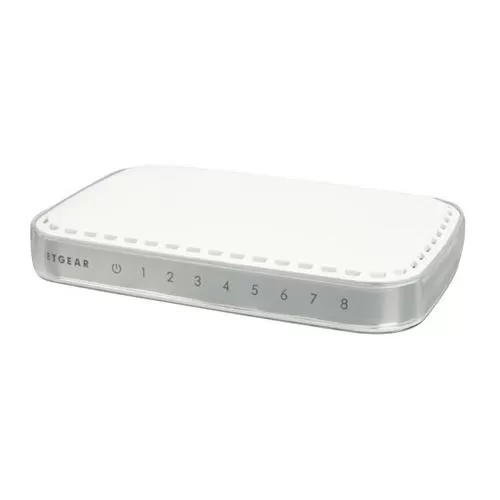

- Model : GS608GR
- Item Weight : 308 g
- Product Dimensions : 11.7 x 17.7 x 3.1 cm
- Item model number : GS608GR
- Included Components : 8 Port Switch, Power adapter, Installation guide
- Colour Screen : No
- Wattage : 10 Watts
- Batteries Included : No
- Batteries Required : No
- Data Transfer Rate : 1 gigabits_per_second
- Number of Ports : 8
- Communication : Interface Wireless N
- Connector Type : Ethernet (RJ45)
- Includes Rechargable Battery : No
- Programmable Buttons : No
