hikvision switch

List of Latest hikvision switch Models

Brand: Hikvision

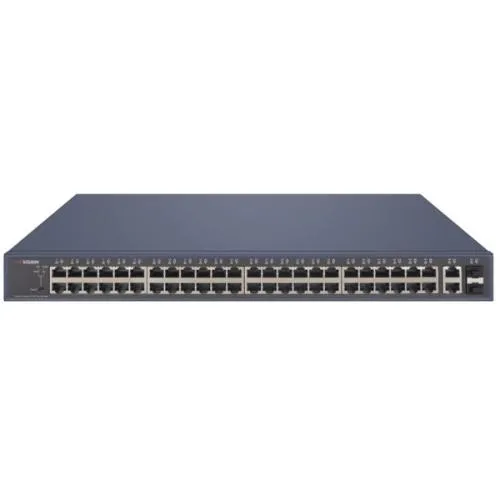

Model No: DS 3E1552P SI
Ports: 48 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC Address Table: 16 K
Switching Capacity: 104 Gbps
Packet Forwarding Rate: 77.38 Mpps
Internal Cache: 12 Mbits
Shell: Metal material
Net Weight: 4.35 kg (9.59 lb)
Dimensions (W × H × D): 440.00 mm × 44.00 mm × 323.80 mm (17.32 inch × 1.73 inch × 12.71 inch)
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Power Supply: 0 °C to 45 °C (0 °F to 113 °F)

Brand: Hikvision

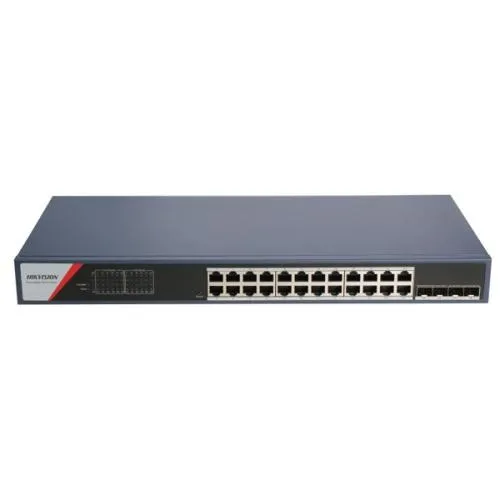

Model No: DS 3E1528P SI 24P4F
Ports: 24 × Gigabit PoE port,4 × Gigabit fiber optical port
MAC Address Table: 8 K
Switching Capacity: 56 Gbps
Packet Forwarding Rate: 41.66 Mpps
Internal Cache: 4.1 Mbits
Shell: Metal material
Net Weight: 2.8 kg (6.17 lb)
Dimensions (W × H × D): 440 mm × 44 mm × 220.8 mm (17.32 inch× 1.73 inch× 8.69 inch)
Operating Temperature: 0°C to 45°C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 100-240 V,50/60 Hz,6.3 A Max

Brand: Hikvision

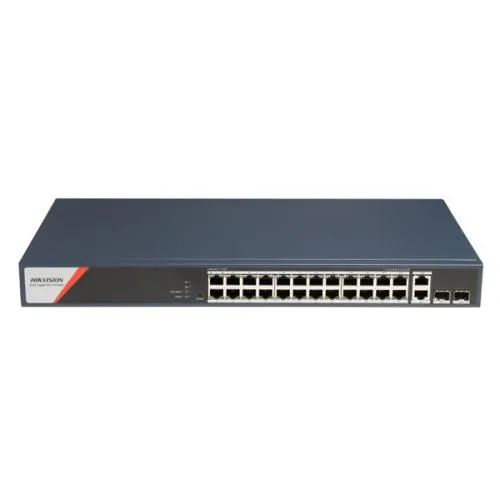

Model No: DS 3E1528HP SI 24P2T2F
Ports: 24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC Address Table: 8 K
Switching Capacity: Whole-Device Performance: 56 Gbps
Packet Forwarding Rate: Whole-Device Performance: 41.66 Mpps
Internal Cache: 4.1 Mbits
Shell: Metal material
Net Weight: 2.975 kg (6.56 lb)
Dimensions (W × H × D): 440 mm × 44 mm × 220.8 mm (17.32 inch × 1.73 inch × 8.69 inch)
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 100-240V~ 50/60Hz 6.3 A

Brand: Hikvision

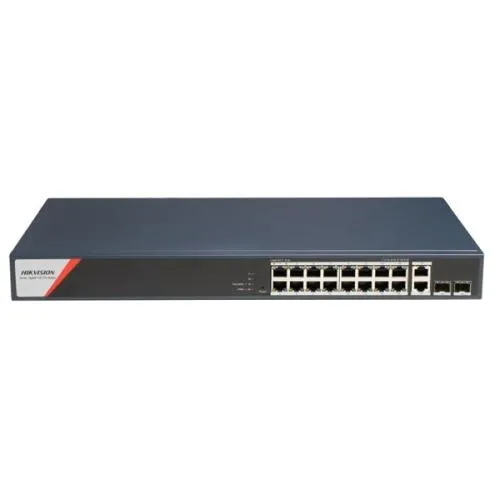

Model No: DS 3E1520HP SI 16P2T2F
Ports: 16 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC Address Table: 8 K
Switching Capacity: Whole-Device Performance: 56 Gbps
Packet Forwarding Rate: Whole-Device Performance: 29.76 Mpps
Internal Cache: 4.1 Mbits
Shell: Metal material
Net Weight: 2.735 kg (6.03 lb)
Dimensions (W × H × D): 440 mm × 44 mm × 220.8 mm (17.32 inch × 1.73 inch × 8.69 inch)
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 100-240V~ 50/60Hz 4 A

Brand: Hikvision

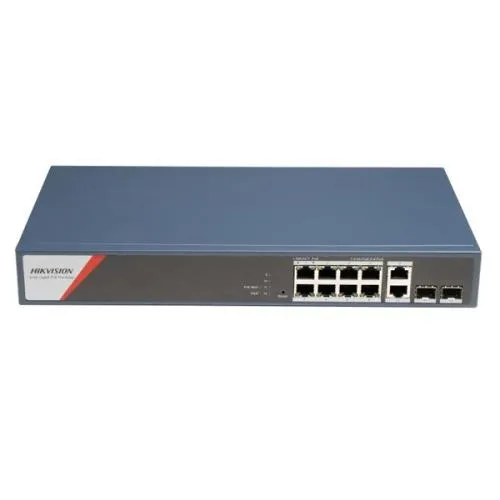

Model No: DS 3E1512HP SI 8P2T2F
Ports: 8 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC Address Table: 8 K
Switching Capacity: Whole-Device Performance: 24 Gbps
Packet Forwarding Rate: Whole-Device Performance: 17.86 Mpps
Internal Cache: 4.1 Mbits
Shell: Metal material
Net Weight: 2.7 kg (5.9 lb)
Dimensions (W × H × D): 335 mm × 44.5 mm × 175.8 mm (13.19 inch × 1.75 inch × 6.92 inch)
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 100-240V~ 50/60Hz 2.5A

Brand: Hikvision

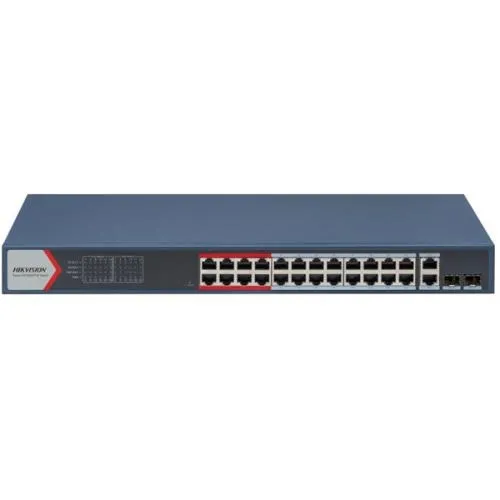

Model No: DS 3E1326P EI
Ports: 24 × 10/100 Mbps PoE port,2 × Gigabit combo
MAC Address Table: 16 K
Switching Capacity: Whole-Device Performance: 14.8 Gbps
Packet Forwarding Rate: Whole-Device Performance: 11.01 Mpps
Internal Cache: 4 Mbits
Shell: Metal material
Net Weight: 2.83 kg (6.24 lb)
Dimensions (W × H × D): 440.00 mm × 44.00 mm × 220.80 mm (17.32 inch × 1.73 inch × 8.69 inch)
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 100-240 VAC, 50/60 Hz, Max. 6.3 A

Brand: Hikvision
Model No: DS 3E1318P EI
Ports: 16 × 10/100 Mbps PoE port,2 × Gigabit combo
MAC Address Table: 16 K
Switching Capacity: Whole-Device Performance: 9.2 Gbps
Packet Forwarding Rate: Whole-Device Performance: 6.84 Mpps
Internal Cache: 4 Mbits
Shell: Metal material
Net Weight: 2.59 kg (5.71 lb)
Dimensions (W × H × D): 440.00 mm × 44.00 mm × 220.80 mm (17.32 inch × 1.73 inch × 8.69 inch)
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 100-240 VAC, 50/60 Hz, Max. 4 A

Brand: Hikvision

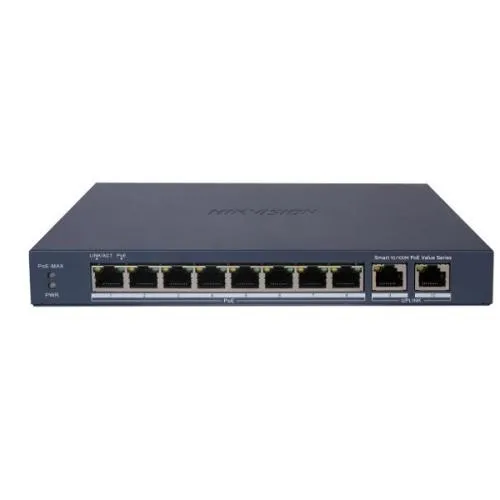

Model No: DS 3E1310P EI B
Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
MAC Address Table: 4 K
Switching Capacity: Whole-Device Performance: 9.6 Gbps
Packet Forwarding Rate: Whole-Device Performance: 7.14 Mpps
Internal Cache: 2 Mbits
Shell: 2 Mbits
Net Weight: 2 Mbits
Dimensions (W × H × D): 217.6 mm × 27.6 mm × 108.5 mm (8.57 inch × 1.09 inch × 4.27 inch)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: DC54 V,2.22 A

Brand: Hikvision

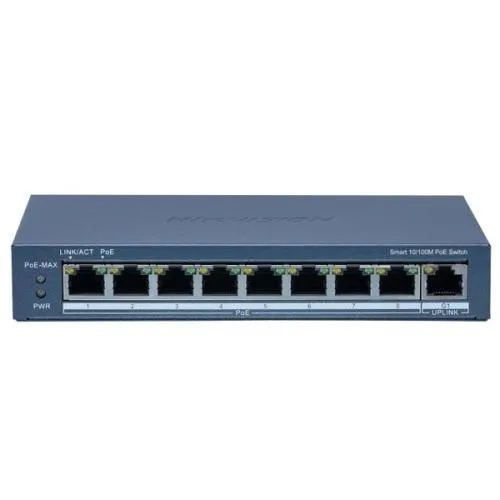

Model No: DS 3E1309P EI B
Ports: 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
MAC Address Table: 8 K
Switching Capacity: Whole-Device Performance: 5.6 Gbps
Packet Forwarding Rate: Whole-Device Performance: 4.17 Mpps
Internal Cache: 4 Mbits
Shell: Metal material, fan-free design
Net Weight: 0.35 kg (0.77 lb)
Dimensions (W × H × D): 170.00 mm × 27.60 mm × 93.10 mm (6.69 inch × 1.09 inch × 3.67 inch)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 54VDC?2.22A

Brand: Hikvision

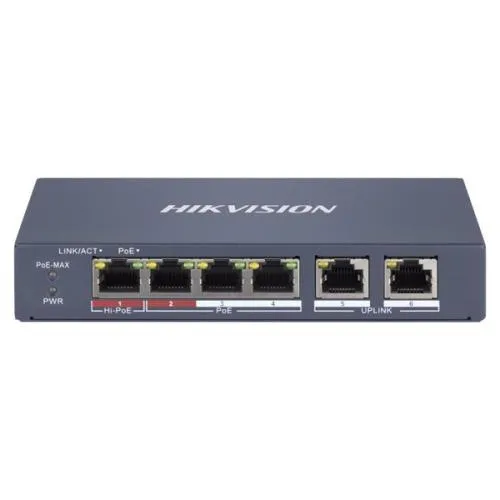

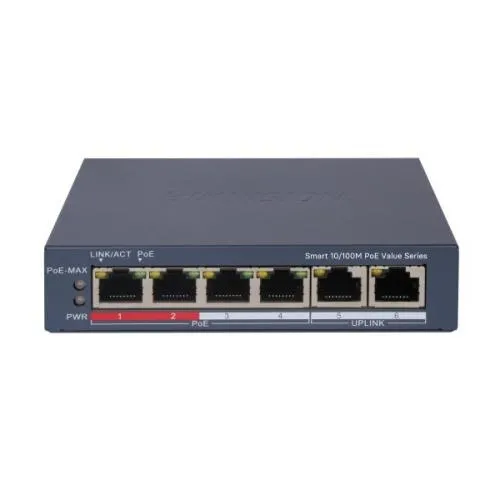

Model No: DS 3E1106HP EI
Ports: 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table: 2 K
Switching Capacity: 1.2 Gbps
Packet Forwarding Rate: 0.90 Mpps
Internal Cache: 768 Kbits
Shell: Metal material, IP40
Net Weight: 0.245 kg (0.54 lb)
Dimensions (W × H × D): 145.0 mm × 25.6 mm × 68.45 mm (5.7 inch × 1.0 inch × 2.69 inch)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 48 VDC, 1.35 A

Brand: Hikvision

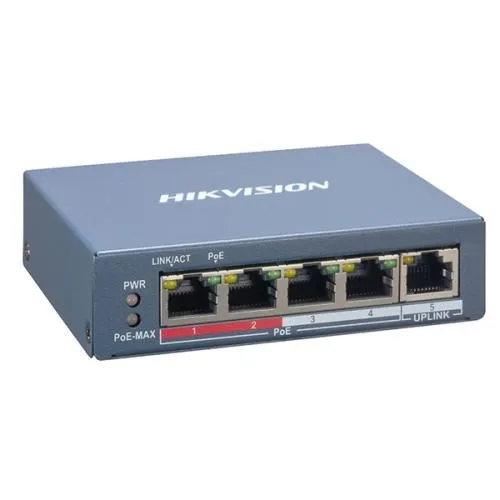

Model No: DS 3E1105P EI V2
Ports: 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
MAC Address Table: 2 K
Switching Capacity: 1 Gbps
Packet Forwarding Rate: 0.74 Mpps
Internal Cache: 768 Kbits
Shell: Metal material
Net Weight: 0.26 kg (0.573 lb)
Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77 inch × 1.09 inch × 3.27 inch)
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply: 54VDC, 1.2A

Brand: Hikvision

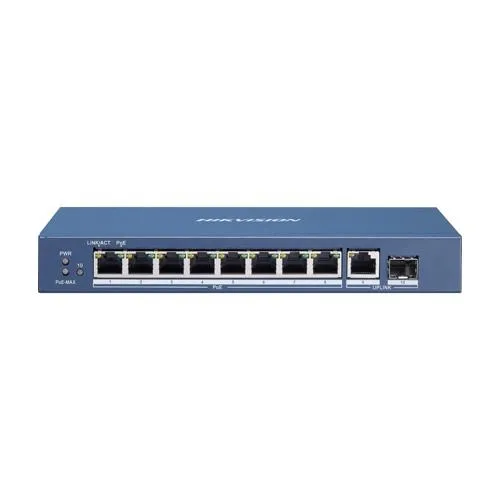

Part Number: DS-3E0510P-E/M
Model No: Hikvision DS3E0510PEM 8 Port Gigabit Unmanaged Switch
Shell: Metal Material
Ports: 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
MAC Address Table: 4 K
Switching Capacity: 20 Gbps
Packet Forwarding Rate: 14.88 Mpps
Internal Cache: 1.5 Mbits
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 48 VDC, 1.35 A
Max. Power Consumption: 65 W
Power Consumption in Idle: 7 W
Net Weight: 0.635 kg (1.40 lb)
Dimensions (W × H × D): 217.6 × 27.8 × 108.55 mm
