lenovo thinksystem ds series

List of Latest lenovo thinksystem ds series Models

Best value SAN for smaller workloads
  • Optimized for growth with nondisruptive upgrades
  • Rapid Deplyment Wizard offers simple setup and management via intuitive GUI
  • Flexible configs optimize SSD speed & HDD cost
  • Simpler supply chain, operations & support

Features
Highlights
  • In-chassis upgrades with no data migration required, for industry-leading TCO
  • Rapid Tiering provides near-all-flash performance at a significantly lower price and moves hot data every five seconds
  • Powered by a Rapid Data Placement Engine and designed for 99.999 percent availability, for “always on” data access
  • Simple storage management for fast setup and easy administration
  • Supports sequential and random workloads for greater flexibility
  • NEBS-compliant and ruggedized components maximize uptime
  • Supercapacitor backup provides longer duration and less servicing than battery, for greater uptime

Uncompromising value

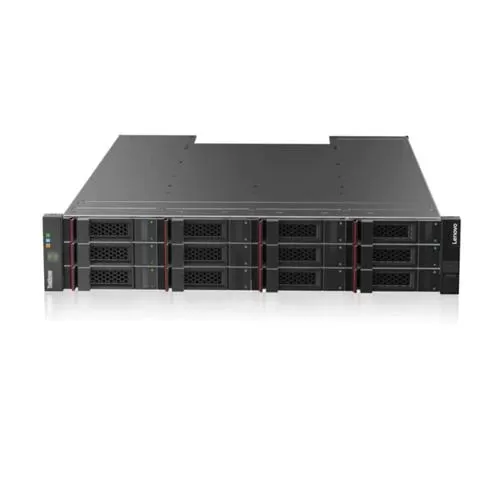

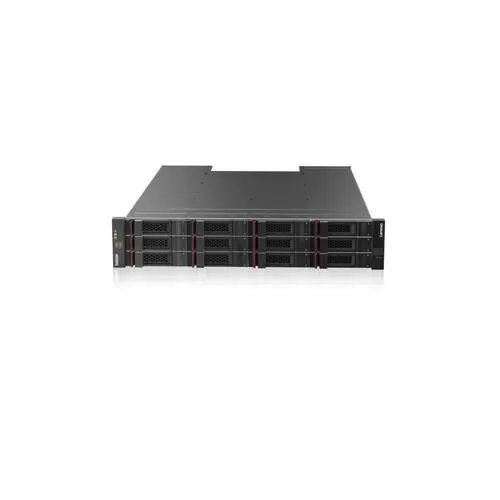

The ThinkSystem DS2200 is perfect for deployment in companies that need advanced features at an affordable price. It’s ideal for workloads such as Web, file, and print serving; small databases, and other similar-sized workloads. The DS2200 is equipped with Rapid Tiering, high availability, thin provisioning, Rapid RAID Rebuild and other enterprise-class features. This provides your business with a solid foundation to grow, while delivering the best price for performance in its class.

Implement with confidence
  • Designed with small-to-medium businesses and remote/branch offices in mind, the Lenovo ThinkSystem DS2200 SAN array offers enterprise-class features at entry-level pricing, along with 99.999 percent availability and is powered by a Rapid Data Placement Engine to accomplish this.
  • The easy-to-use management interface makes complex administrative storage tasks simple, including setup with the Rapid Deployment Wizard, in less than 15 minutes. The same interface is used across the DS Series family, allowing for flexible IT administration.
  • The ThinkSystem DS2200 offers connectivity choices and impressive storage capacities. Choose between 12Gb SAS, 8/16Gb Fibre Channel (FC), or 1/10Gb iSCSI to integrate into your existing network. The DS2200 can hold up to 12x 3.5-inch or 24x 2.5-inch HDDs and SSDs internally, and supports up to 96 drives total (using three expansion units). The DS2200 also supports mixing LFF and SFF enclosures in the same array, providing the flexibility you need.
Outstanding price/performance for an entry SAN
  • Rapid Tiering and flash cache
  • Optimized for performance and value
  • Nondisruptive upgrades and expansion
  • Simple setup and management for IT generalists
  • Mix SSDs for ultimate workload flexibility

Features
Highlights
  • Easily upgradable without the need to migrate data, for industry-leading TCO
  • Rapid Tiering with flash cache delivers flash performance with hybrid economy
  • Powered by a Rapid Data Placement Engine which provides enterprise-class performance and 99.999 percent availability
  • Rapid Deployment provides fast setup and easy administration for simple storage management
  • Supports sequential and random workloads for greater flexibility
  • Battery-free cache protection requires less servicing than batteries and provides greater uptime

Implement with confidence
  • The Lenovo ThinkSystem DS4200 SAN array is performance optimized for primary storage, remote/branch offices, backup and archive, and media streaming. The DS4200 comes equipped with an easy-to-use management interface GUI.
  • Setup is complete is less than five minutes, with Rapid Deployment and EZ Start eliminating costly and complex deployment while freeing up IT resources for other business tasks. The same interface is used across the DS Series family, allowing for flexible IT administration.
  • To achieve success, businesses require data availability at all times. Business insights, customer information, and decision making are all key components to business success. If data isn't available, it's difficult to make money. The DS4200 is designed for 99.999 percent availability, eliminating unexpected downtime that is costly to any business.

Implement with flexibility
  • With extreme flexibility and impressive performance and capacity, the DS4200 helps tame your storage monster. The DS4200 supports up to 276 total drives using three D3284 expansion units or up to 240 drives (using nine D1212/D1224 expansion units).
  • As your business grows, consider upgrading to the DS6200 for higher performance. No data migration, reestablishing LUNs, or changing licenses is needed with this upgrade.
  • For ultimate flexibility, the DS Series supports replication between its new 12Gb platform and first-generation S Series systems. This enables you to move your high-performance workloads to the faster DS Series and redeploy the older models as data lakes or replication targets.
Designed for performance and availability, optimized for cost
  • Designed for high availability
  • Redundant hot-swap components
  • Automatic failover & multipath support
  • High IOPS, low latency
  • Lower than competing AFA solutions

Fast, Flexible, Reliable, Secure

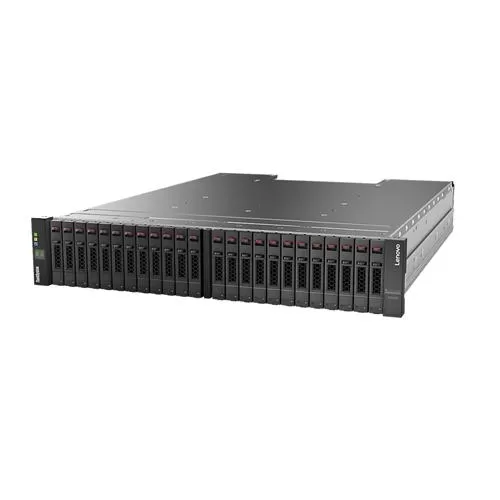

Designed for I/O intensive workloads such as SAP HANA, video surveillance, and media streaming, the Lenovo ThinkSystem DS6200 SAN array offers breakthrough performance and scale at best-in-class pricing, allowing businesses to use date to gain business insight faster.

The easy-to-use management interface makes complex administrative storage tasks simple. Setup is complete in less than five minutes, with Rapid Deployment and EZ Start eliminating costly and complex deployment while freeing up IT resources for other business tasks. This same interface is used across the DS Series family allowing for flexible IT administration.

Uncompromising performance
The ThinkSystem DS6200 delivers higher IOPS and low latency through the Rapid Data Placement Engine, at a fraction of the cost of competing All Flash solutions. Designed for speed within a cost-optimized architecture, the DS6200 delivers superior cost/GB without compromising performance.

It’s equipped with storage tiering, high availability, thin provisioning, and other enterprise-class features. This provides your business with a solid foundation to grow, while delivering the best price for performance in its class.

You no longer need to decide between faster access to information and lowering the cost of your IT infrastructure. The ThinkSystem DS6200 allows you to save money while maintaining operational excellence.
  • SFF FC/iSCSI Dual Controller Unit Model
  • Hot-Plug
  • 2 x RAID Type
  • 8 GB Buffer Size
  • 4 Host Channels
  • Rack Mountable
  • Fibre Channel  iSCSI
  • Rack Mounting Kit
  • 2M Height
  • Black Color Category
  • 24 Supported Devices
  • Serial Attached SCSI 3
  • RAID 0  RAID 1  RAID 10  RAID 5  RAID 6
  • Serial Attached SCSI 3 Interface Type
  • 580 Watt Power Provided
  • AC 120/230 V Nominal Voltage
  • 50/60 Hz Frequency Required
  • 36 pin 4x Mini SAS HD (SFF-8644), RJ-45  SFP/SFP+, mini-USB Type B Connector Type
  • Ethernet 10Gb (iSCSI) / 16Gb Fibre Channel  SAS 12Gb/s  management  serial Interface
  • 16Gb Fibre Channel  8Gb Fibre Channel  iSCSI (1 GbE), iSCSI (10 GbE)
  • 3 Years Onsite Warranty
  • Product Details:
  • SFF FC/iSCSI Dual Controller Unit Model
  • Hot-Plug
  • 2 x RAID Type
  • 8 GB Buffer Size
  • 4 Host Channels
  • Rack Mountable
  • Fibre Channel  iSCSI
  • Rack Mounting Kit
  • 2M Height
  • Black Color Category
  • 24 Supported Devices
  • Serial Attached SCSI 3
  • RAID 0  RAID 1  RAID 10  RAID 5  RAID 6
  • Serial Attached SCSI 3 Interface Type
  • 580 Watt Power Provided
  • AC 120/230 V Nominal Voltage
  • 50/60 Hz Frequency Required
  • 36 pin 4x Mini SAS HD (SFF-8644), RJ-45  SFP/SFP+, mini-USB Type B Connector Type
  • Ethernet 10Gb (iSCSI) / 16Gb Fibre Channel  SAS 12Gb/s  management  serial Interface
  • 16Gb Fibre Channel  8Gb Fibre Channel  iSCSI (1 GbE), iSCSI (10 GbE)
  • 3 Years Onsite Warranty
  • 24 Supported Devices
  • 1 x USB Cable
  • BSMI CNS 13438 Class A  ICES-003  EN55024  CCC  RoHS  EN 60950-1  FCC Part 15 A  GB 17625.1  GB 9254 Class A  VCCI Class A  EAC  NMB-3 Class
  • A  GB 4943.1  RCM  MSIP  NOM-019  UL/CSA60950-1  CNS 14336-1  EN 55032 Class A
  • Rack Mounting Kit

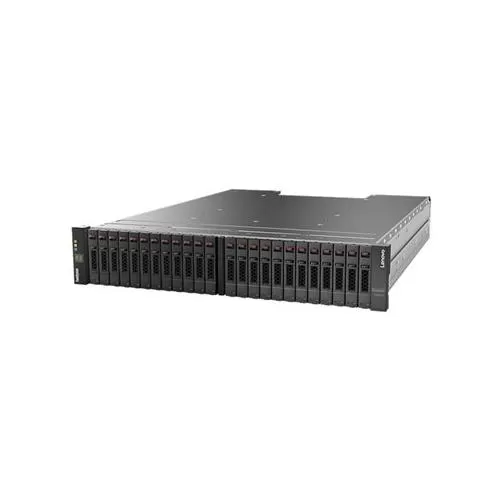

  • Storage Enclosure Device Type
  • 24 (total) / 24 (free) x hot-swap - 2.5" SFF Expansion Bays
  • 6 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)
  • 2 x internal power supply - hot-plug Power Device
  • AC 120/230 V - 50/60 Hz Voltage Required
  • 580 Watt Power Provided
  • 3 Years Onsite Warranty
  • 3.5" LFF Form Factor
  • 8.9 cm LFF Form Factor (metric)
  • 1XUSB Cable
  • 36 pin 4x Mini SAS HD (SFF-8644) Connector Type
  • Rack Mounting Kit
  • Storage Enclosure Device Type
  • 24 (total) / 24 (free) x hot-swap - 3.5" LFF Expansion Bays
  • Serial Attached SCSI 3
  • 12 Supported Devices / Modules Qty
  • 2 x internal power supply - hot-plug Power Device
  • AC 120/230 V - 50/60 Hz Voltage Required
  • 580 Watt Power Provided
  • 3 Years Onsite Warranty
