middle range storage

List of Latest middle range storage Models

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 165 × 160.2 × 220.5 mm
  • Weight (Net): 3.5 kg
  • Weight (Gross): 3.5 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory:1500

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron J3455 4-core 1.5 GHz processor (burst up to 2.3 GHz)
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel HD Graphics 500
  • System Memory: 4 GB SODIMM DDR3L (2 x 2 GB)
  • Maximum Memory: 8 GB (2 x 4 GB)
  • Flash Memory: 4 GB (Dual boot OS protection)
  • Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, USB copy, Reset, Capacitive touch buttons (select, enter)
  • Dimensions (HxWxD): 168 × 235 × 226 mm
  • Weight (Net): 3.02 kg
  • Weight (Gross): 4.63 kg
  • System Warning:  Buzzer
  • Standard Warranty: 2 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

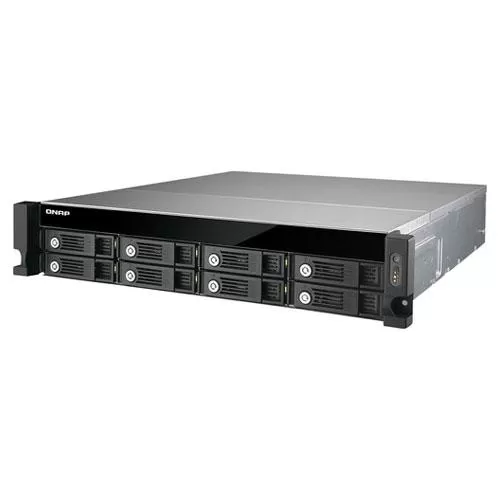

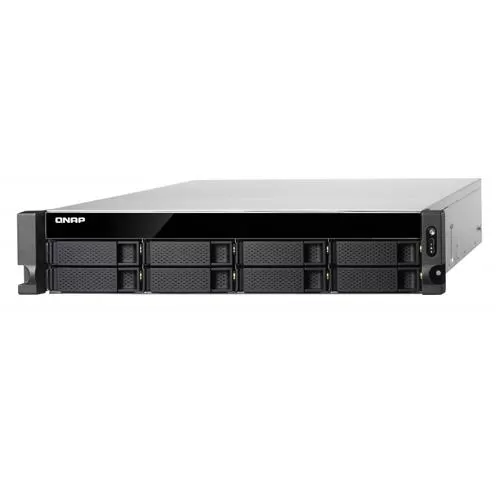

  • Brand: Qnap
  • Form Factor: 2U Rackmount
  • CPU: Intel Celeron J3455 4-core 1.5 GHz processor (burst up to 2.3 GHz)
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel HD Graphics 500
  • System Memory: 4GB DDR3L (2 x 2 GB)
  • Maximum Memory: 8 GB (2 x 4GB)
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 89 × 482 × 534 mm
  • Weight (Net): 11.25 kg
  • Weight (Gross): 14.88 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
  • Brand: Qnap
  • Form Factor: 2U Short Depth Rackmount
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD):88.6 × 432 × 297.4 mm
  • Weight (Net): 9.21 kg
  • Weight (Gross): 10.71 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory:1500

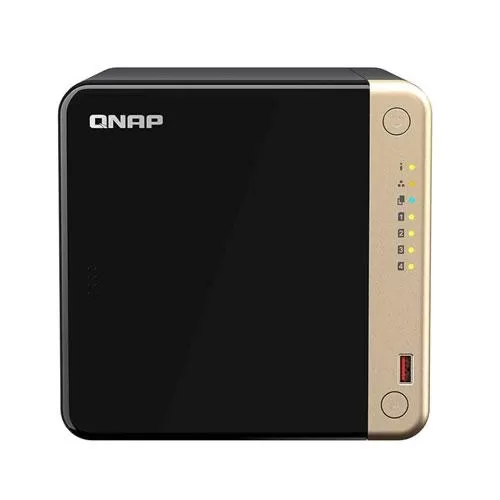

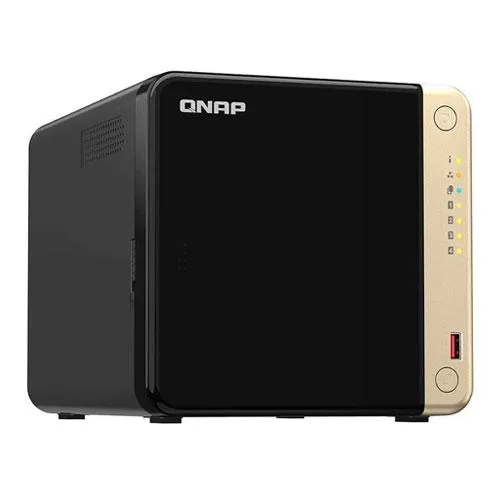

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 4 GB SODIMM DDR4 (2 x 2 GB)
  • Maximum Memory: 16 GB (2 x 8GB)
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 188.2 × 329.3 × 279.6 mm
  • Weight (Net): 6.56 kg
  • Weight (Gross): 8.34 kg
  • System Warning:  Buzzer
  • Standard Warranty: 2 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1200
  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, USB copy, Reset
  • Dimensions (HxWxD): 165 × 170 × 226.5 mm
  • Weight (Net): 2.26 kg
  • Weight (Gross): 3.59 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

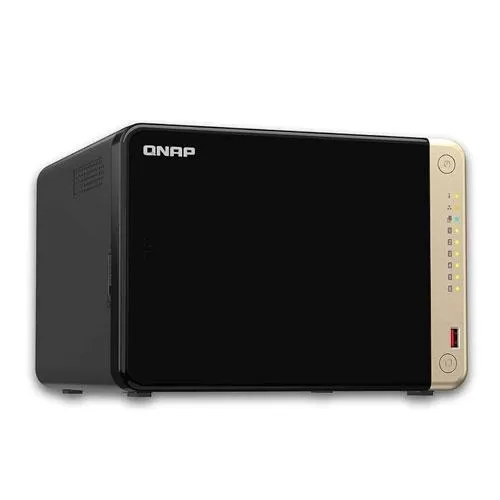

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 6 x 3.5-inch SATA 6Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, USB copy, Reset
  • Dimensions (HxWxD): 165 × 235 × 226.5 mm
  • Weight (Net): 2.94 kg
  • Weight (Gross): 5.1 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

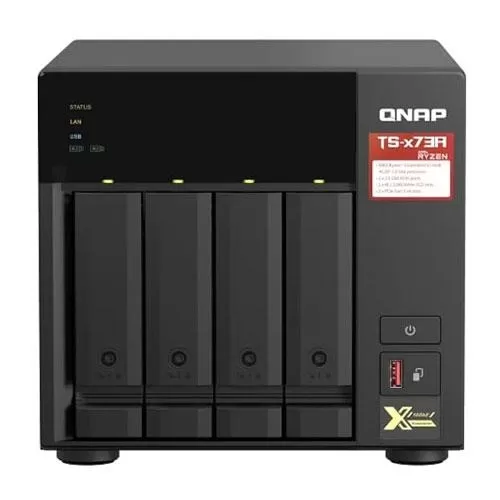

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Optional via a PCIe adapter
  • System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 180.2 × 199.3 × 279.6 mm
  • Weight (Net): 5.54 kg
  • Weight (Gross): 6.15 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Optional via a PCIe adapter
  • System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Auto Copy
  • Dimensions (HxWxD): 180.2 × 329.3 × 279.6 mm
  • Weight (Net): 7.4 kg
  • Weight (Gross): 8.3 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

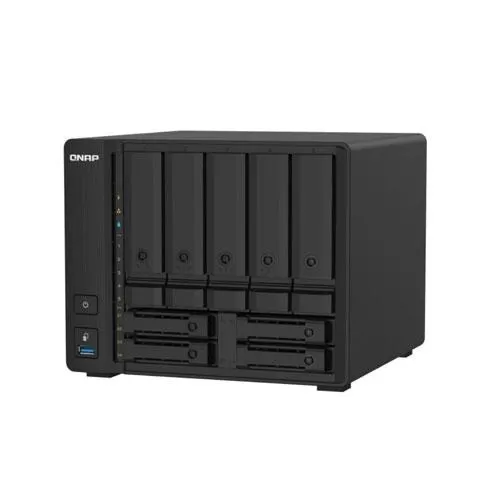

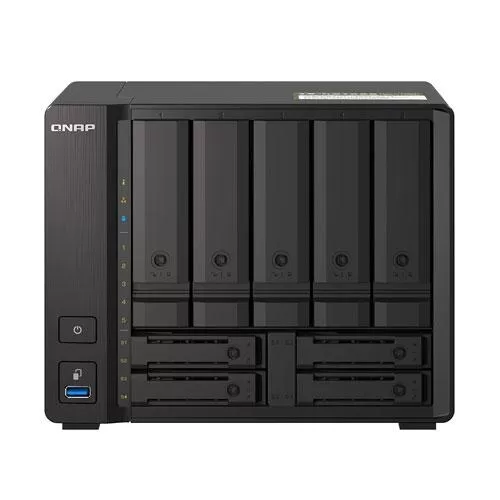

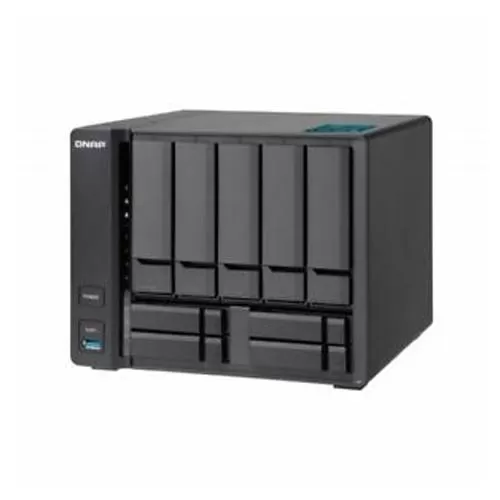

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 32 GB SODIMM DDR4 (2 x 16 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 5 x 3.5-inch + 4 x 2.5-inch
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset, USB Copy
  • Dimensions (HxWxD): 176.5 × 224.6 × 224.1 mm
  • Weight (Net): 4.34 kg
  • Weight (Gross): 5.08 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

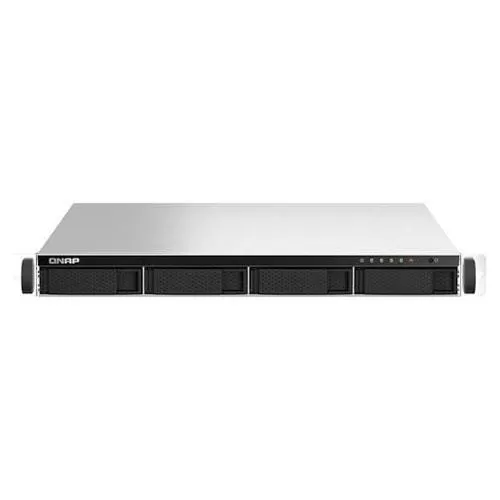

  • Brand: Qnap
  • Form Factor: 1U Rackmount
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 43.3 × 430 × 479 mm
  • Weight (Net): 9.34 kg
  • Weight (Gross): 11.3 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

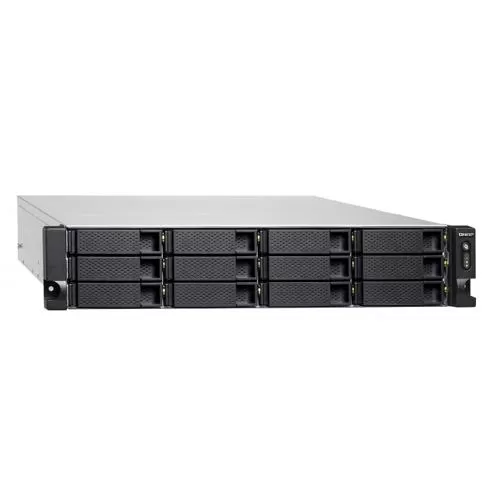

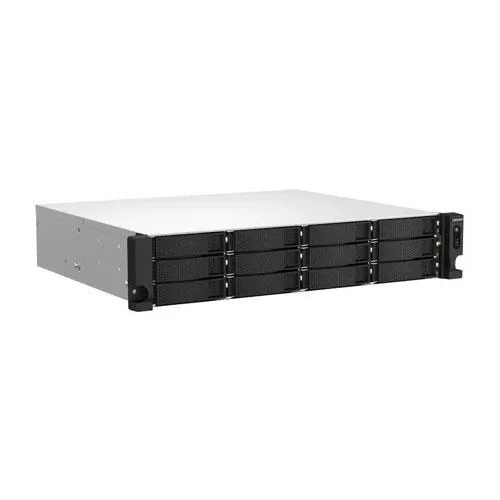

  • Brand: Qnap
  • Form Factor: 2U Rackmount
  • CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB RAM
  • Maximum Memory: 8 GB RAM
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 370.7 mm
  • Weight (Net): 10.64 kg
  • Weight (Gross): 14.01 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

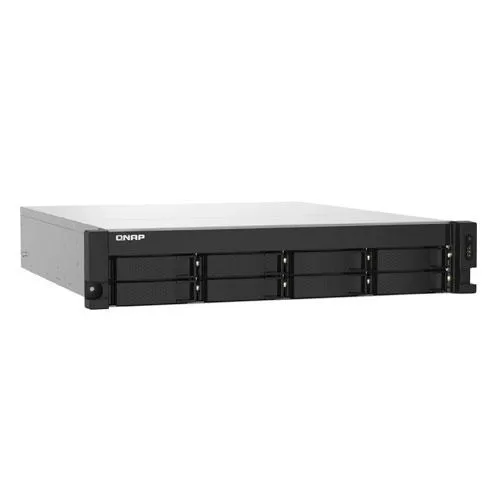

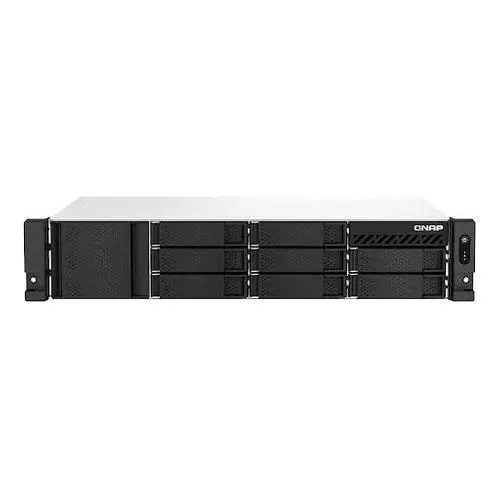

  • Brand: Qnap
  • Form Factor: 2U Short Depth Rackmount
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 4 GB SODIMM DDR4 (1 x 4 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 297.4 mm
  • Weight (Net): 9.2 kg
  • Weight (Gross): 10.7 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

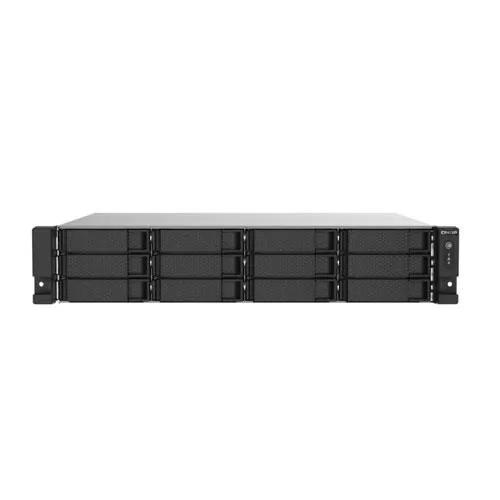

  • Brand: Qnap
  • Form Factor: 2U Rackmount
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 8 GB UDIMM DDR4 (1 x 8 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 88.6 × 432 × 370.7 mm
  • Weight (Net): 11.13 kg
  • Weight (Gross): 14.62 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

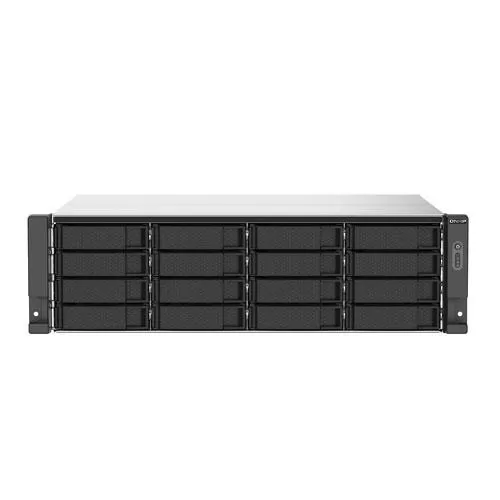

  • Brand: Qnap
  • Form Factor: 3U Rackmount
  • CPU: AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: None
  • System Memory: 16 GB UDIMM DDR4 (1 x 16 GB)
  • Maximum Memory: 64 GB (2 x 32 GB)
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 3.5-inch SATA hard disk drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 131.3 × 432 × 370.9 mm
  • Weight (Net): 13.53 kg
  • Weight (Gross): 17.15 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2000

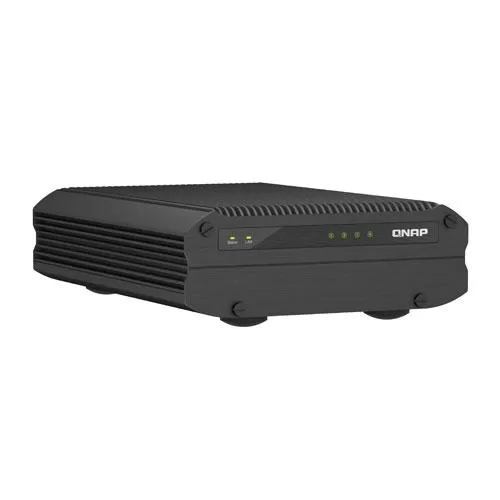

  • Brand: Qnap
  • Form Factor: Tower
  • CPU: Intel Atom x6425E 4-core/4-thread processor, burst up to 3.0 GHz
  • CPU Architecture: 64-bit x86
  • Operating System: QTS 5.1.3
  • Graphic Processors: Intel UHD Graphics
  • System Memory: 8 GB on board (non-expandable)
  • Maximum Memory: 8 GB on board (non-expandable)
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility: 2.5-inch SATA solid state drives
  • Hot-swappable: Yes
  • Buttons: Power, Reset
  • Dimensions (HxWxD): 62 × 180 × 244 mm
  • Weight (Net): 3.1 kg
  • Weight (Gross): 3.1 kg
  • System Warning:  Buzzer
  • Standard Warranty: 3 Years
  • Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500

Dual Core Processor

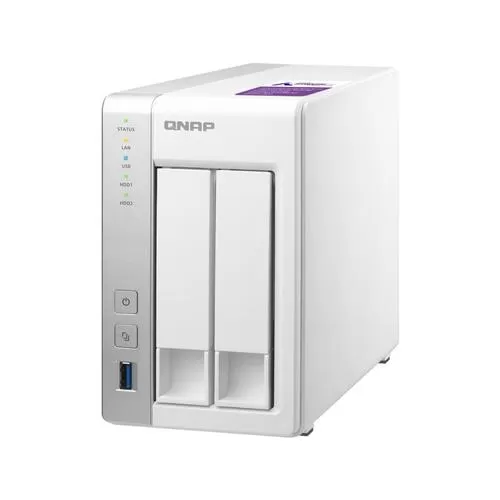

Equipped with an Alpine AL-212 dual-core 1.7 GHz Cortex-A15 processor and 1GB of DDR3 RAM, the TS-231P is a high-performance NAS for home, workgroups, and SOHO users, providing performance of up to 224 MB/s read speeds and 176 MB/s write speeds. The TS-231P's enhanced hardware-based encryption and decryption engine provides read speeds of over 179 MB/s with AES 256-bit full NAS volume encryption, boosting system performance & security while helping to ensure the safety of sensitive personal data stored in the NAS. When used with a compatible 802.11ac or dual-band 2.4 GHz/5 GHz 802.11n USB Wi-Fi adapter, the TS-231P becomes a media center with high speeds for transferring a large amount of files and streaming bandwidth-intensive multimedia.

QTS
Thanks to the intuitive user interface of QTS, your NAS experience is smarter and smoother. Its modern flat design streamlines loading times, and the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.

Dual LAN Support
The TS-231P supports multiple port-trunking modes, enabling administrators to set up link aggregation to increase total data transmission potential. Failover and dual IP are also supported to ensure continuous system operations. Supported port-trunking modes include: Balance-rr (Round-Robin), Active Backup, Balance XOR, Broadcast, IEEE 802.3ad, Balance-tlb (Adaptive Transmit Load Balancing), and Balance-alb (Adaptive Load Balancing).

Backup Solutions to Secure Data
The TS-231P is a comprehensive centralized backup center for multiple files. The front panel USB port features a one-touch-copy function for you to instantly back up data on USB drives to the TS-231P or alternatively to back up data from the TS-231P to USB drives. You can use QNAP NetBak Replicator to back up files on Windows (including Outlook email archiving) to the TS-231P, or use Time Machine for Mac data backup. A wide range of third-party backup software (such as Acronis True Image and Symantec Backup Exec) are also supported to facilitate system backup and restoration.

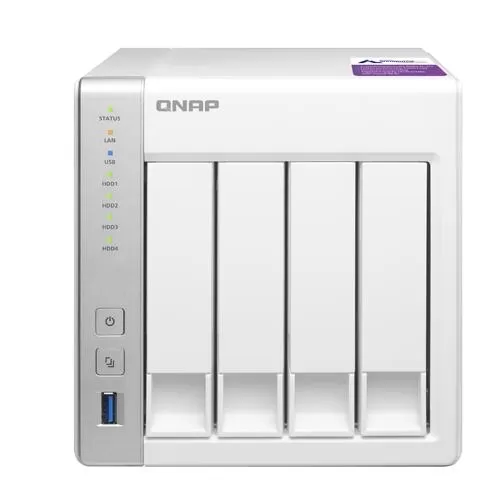

OVERVIEW:
The TS 431P is a powerful yet easy-to-use network storage center for backup, synchronization, remote access, and home entertainment with many feature-rich apps available, including Notes Station (create digital notes on a secure private cloud and share with colleagues and friends), QmailAgent (centralize email account management and back up emails), and Qcontactz (centrally store and manage contact information). All these apps (and more) are available at no extra cost. The dual-core TS-431P features three USB 3.0 ports and dual LAN ports, delivering outstanding multitasking performance to enhance your productivity & digital life and offering an ideal storage and backup center as a secure private cloud.
  • Centralizes file storage, sharing and backup with excellent performance
  • Full NAS encryption using volume-based technology and hardware acceleration
  • Supports QmailAgent as a mailroom center and Qcontactz for centralizing contact information
  • Synchronize files between the TS-431P, computers, laptops, and mobile devices
  • Stream your multimedia library via DLNA, AirPlay & Chromecast
  • Build a surveillance center to safeguard your home and office
Dual core processor delivers high performance
Equipped with an AnnapurnaLabs, an Amazon company Alpine AL-212 dual-core 1.7 GHz Cortex-A15 processor and 1GB DDR3 RAM, the TS-431P is a high-performance NAS for home, workgroups and SOHO users providing outstanding performance of up to 223 MB/s read & 172 MB/s write throughput. The TS-431P's enhanced hardware-based encryption and decryption engine provides transfer speeds of over 190 MB/s with AES 256-bit full NAS volume encryption, boosting system performance & security while ensuring the safety of sensitive personal data stored in the NAS. When used with a compatible 802.11ac or dual-band 2.4GHz/5GHz 802.11n USB Wi-Fi adapter, the TS-431P becomes an ideal media center with remarkably high speeds for transferring a large amount of files and streaming bandwidth-intensive multimedia.
Overview:

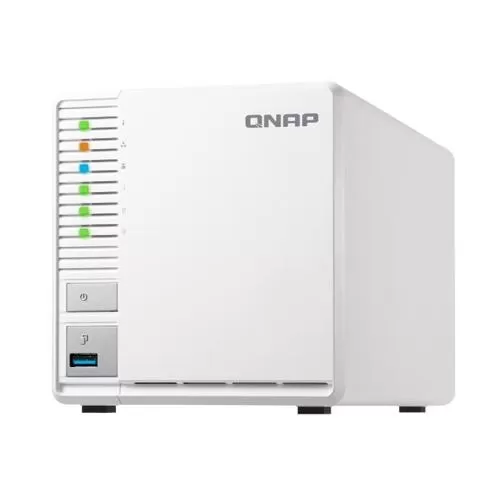

30% of QNAP users choose to build RAID 5 array for their NAS for higher data protection, better system performance and more available storage space. The TS-328 is QNAP’s first 3-bay NAS, allowing you to build a RAID 5 array on your NAS with the fewest disks. Powered by a Realtek quad-core RTD1296 processor, the TS-328 features a minimalist design that easily fits into your home or commercial space. With a variety of multimedia applications, transcoding capabilities and cross-device file backup and synchronization, the TS-328 provides a highly cost-effective solution for storage, backup, file management, and sharing.

Central management for multimedia files
You may have lots of photos or videos spread across devices, which can be hard to manage and back up. With the TS-328, you can centrally backup and manage all your files and easily share them with others. With the new version of File Station (QTS 4.3.4), you can directly access the photos and videos on your mobile device by connecting it to the TS-328 via USB. You can even use the Qphoto mobile app to take photos or record videos and directly upload them to the TS-328 for greater protection to save the storage space on the mobile device.

Protect data with snapshots
Snapshots help protect your data by fully recording the NAS system state and the metadata. If an error occurs, you can use snapshots to quickly restore the system to its normal state. QNAP snapshots are block-based and only record the changed data. Not only does this save storage space but also reduces the time required to back up and restore data.
Overview

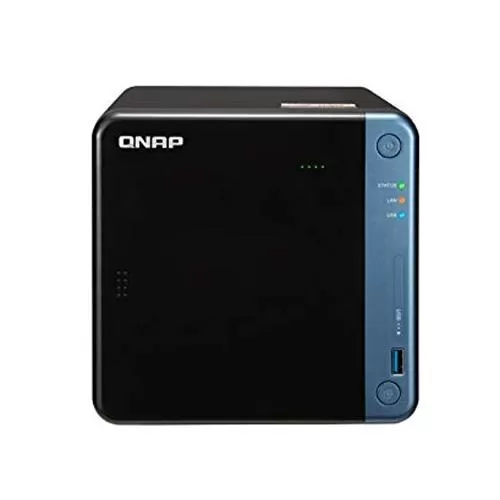

Built for office and home environments, the TS-453Be 4-Bay NAS Enclosure from QNAP features a simply physical design with a PCIe 2.0 x2 slot that can be fitted with a QNAP QM2 expansion card for M.2 SSD caching/10GbE connectivity and support for Qtier auto-tiering technology, or a compatible wireless card to turn this NAS into a wireless access point. It also supports dual-channel 4K H.264/H.265 processing to provide a smooth media viewing experience on connected devices. In addition, a wide range of productivity tools are available for use on the TS-453Be to improve work efficiency for media creators or creative professionals, while also enriching their multimedia experience.

Network connectivity is achieved using two Gigabit Ethernet ports. When both ports are used simultaneously, read speeds and write speeds can reach 225 MB/s. Encrypted transfers also deliver read and write speeds of up to 225 MB/s, and when equipped with a 10GbE card, sequential throughputs with dual ports can drive read speeds up to 659 MB/s and write speeds up to 648 MB/s.

This 4-bay enclosure natively supports 3.5" SATA III hard drives, and 2.5" hard drives and SSDs are also supported using included 2.5" drive flat head screws. Using the five 5 Gb/s USB 3.0 Type-A ports, this QNAP NAS can be connected to other devices, including a UX-800P or UX-500P expansion enclosure, allowing you to easily transfer large media files and expand NAS storage. Additionally, the TS-453Be is validated with AES-NI and FIPS 140-2 AES 256-bit encryption, helping to prevent sensitive business data from unauthorized access and breaches.

QNAP has also engineered this NAS to also support RAID 0, 1, 5, 6, and 10, each which offers data redundancy, performance, or a combination of both. For those who do not require a RAID, JBOD and single disk modes are also available. Included is a 90W AC adapter that runs using 100-240 VAC, a power cord, twelve flat head screws for 2.5" drives, and two Ethernet cables. Protection is provided by a limited 2 year warranty.
General Features
Dual-Core Processor Delivers High Performance

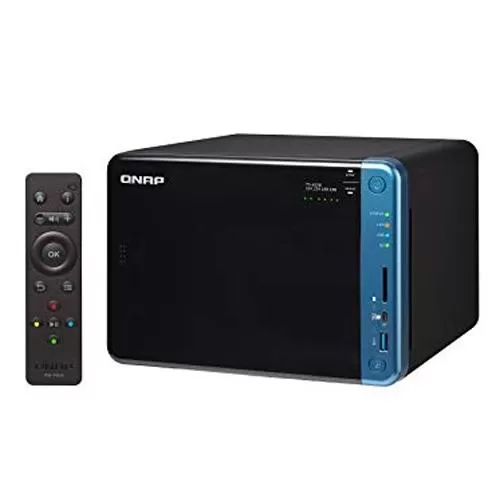

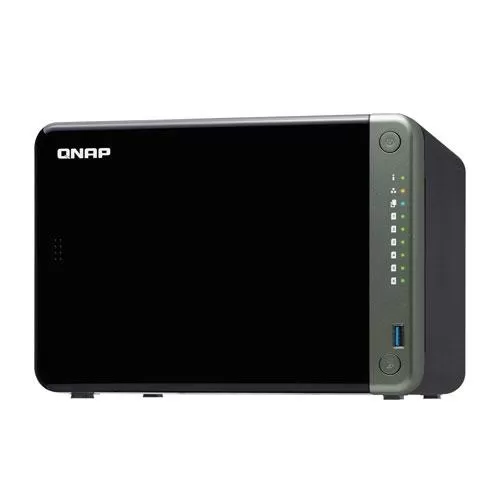

Equipped with an Intel Celeron J3455 quad-core 1.5 GHz processor, 4 GB DDR3L RAM, dual Gigabit LAN ports, and SATA 6Gb/s, the TS-653B is a high-performance NAS for home and workgroups, providing performance of up to 225 MB/s read & write speeds. The TS-653B's enhanced hardware-based encryption and decryption engine provides transfer speeds of up to 225 MB/s with AES 256-bit full NAS volume encryption, boosting system performance & security while helping to ensure the safety of sensitive personal data stored in the NAS.

QTS - Simple and Efficient
The intuitive user interface of QTS operating system makes your NAS experience smarter and smoother. Its modern flat design streamlines loading times, while the intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.

PCIe Expansion
Supporting PCIe expansion, the TS-653B provides flexibility in extending NAS functionality and potential applications. You can install a QNAP QM2 PCIe card to provide the TS-653B with M.2 SSD and 10GbE connectivity, or use the TS-653B as a wireless access point by installing a compatible wireless network card, or boost the USB connectivity of the TS-653B by installing a USB 3.1 10Gbps card.

The QM2 expansion card allows users to easily set up SSD caching or to enable Qtier auto-tiering technology to optimize NAS performance. 10GbE-compatible cards can also future-proof the TS-653B for use with 10GbE networks. Equipped with a dedicated cooling module, the QM2 can maintain its high performance even when tasked with the highest workloads. Select models with 10GbE connectivity are backward-compatible with 5GbE, 2.5GbE, 1GbE, and 100MbE networks.
overview:

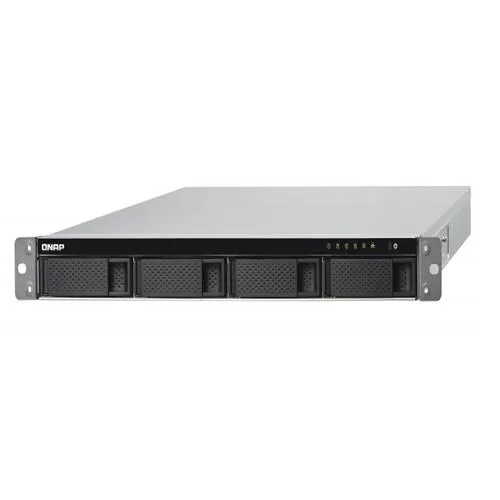

The TS-453BU-RP is a 1U rackmount NAS that easily fits into a standard 19-inch rack, providing an ideal storage solution in the server room for small and medium businesses. The TS-453BU-RP comes with a PCIe slot for boosting potential applications: the QNAP QM2 expansion card can be installed to add an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-453BU-RP as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage. The TS-453BU-RP also provides a wide range of value-added features: 4K video playback and real-time transcoding; deployment of virtual environments through Virtualization Station and Container Station; centralized management of remote Windows®, Linux® and IPMI-compatible devices with QRM+; and web automation services with IFTTT Agent.
  • PCIe slot supports installing a QNAP QM2 dual-port M.2 SSD/10GbE card, a compatible wireless adapter, or a USB 3.1 10Gbps card.
  • Supports dual-channel 4K H.264/H.265* hardware decoding and on-the-fly or offline transcoding
  • Qfiling automates file organization and Qsirch provides full-text search for easier file management
  • QRM+ enables centralized management of remote Windows®, Linux® and IPMI-compatible devices.
  • A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station
  • Scalable storage space with VJBOD and UX-1200U-RP/UX-800U-RP expansion enclosures
Extend NAS functionality with PCIe expansion
The TS-853BU-RP has a PCIe expansion slot, providing flexibility in extending NAS functionality and potential applications. Install a QNAP QM2 card to provide M.2 SSD caching/10GbE connectivity, or use the TS-853BU-RP as a wireless access point by installing a compatible wireless network card, or boost the USB connectivity of the TS-853BU-RP by installing a USB 3.1 10Gbps card.

QM2 expansion card rede?nes NAS function
QNAP's QM2 is a PCIe expansion card that features dual M.2 SSD slots and 10GbE connectivity* (individual cards may vary in functionality). This allows users to easily set up SSD caching or to enable Qtier auto-tiering technology to optimize NAS performance. 10GbE-compatible models can also future proof the TS-853BU-RP for use with 10GbE networks. Equipped with a dedicated cooling module, the QM2 can maintain its high performance even when tasked with the highest workloads.

SSD cache acceleration
The TS-853BU-RP supports SSD caching. Users can install an SSD in drive bay 1 and bay 2 to boost IOPS performance of storage volumes. It is perfect for improving the overall workflow of IOPS-demanding applications and allows the best of both cost and performance by combining SSDs with HDDs. Coupled with Qtier auto-tiering technology (which now supports “On Demand Allocation Priority”), users can customize storage allocation to best suit their system environment and application demands.
overview:
The TS-1253BU-RP is a 2U rackmount NAS that easily fits into a standard 19-inch rack, providing an ideal storage solution in the server room for small and medium businesses. The TS-1253BU-RP comes with a PCIe slot for boosting potential applications: the QNAP QM2 expansion card can be installed to add an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-1253BU-RP as a wireless access point, and a USB 3.1 10Gbps card can be added for easier backup to/from multiple external storage. The TS-1253BU-RP also provides a wide range of value-added features: 4K video playback and real-time transcoding; deployment of virtual environments through Virtualization Station and Container Station; centralized management of remote Windows, Linux and IPMI-compatible devices with QRM+; and web automation services with IFTTT Agent.
  • PCIe slot supports installing a QNAP QM2 dual-port M.2 SSD/10GbE card, a compatible wireless adapter, or a USB 3.1 10Gbps card.
  • Supports dual-channel 4K H.264/H.265* hardware decoding and on-the-fly or offline transcoding
  • Qfiling automates file organization and Qsirch provides full-text search for easier file management
  • QRM+ enables centralized management of remote Windows®, Linux® and IPMI-compatible devices.
  • A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station
  • Scalable storage space with VJBOD and UX-1200U-RP/UX-800U-RP expansion enclosure
overview:

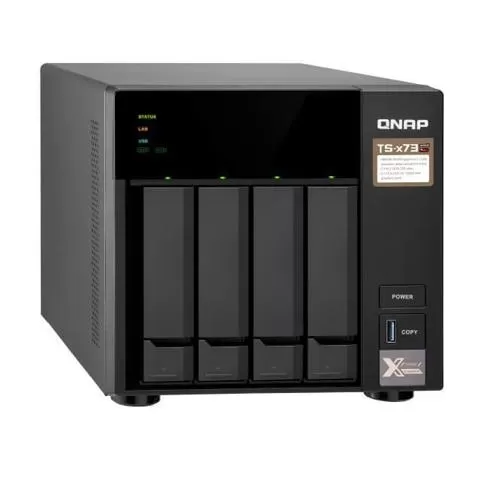

The TS 473 is powered by a high-performance and energy-efficient AMD R-Series CPU and provides two PCIe slots for greater functionality. You can install a QNAP QM2 expansion card to add M.2 SSD caching/10GbE connectivity; a compatible wireless card to use the TS-473 as a wireless access point; and an entry-level graphics card to boost system performance for 4K video performance. The TS-473 allows you to flexibly deploy a wide range of applications with a more affordable budget.

Greater NAS potential with two PCIe slots
The TS-473 features two PCIe (Gen3 x4) slots, allowing for installing single/dual-port 10GbE NICs to accelerate applications that demand higher bandwidth such as virtualization, media workflows, and backup/restoration tasks for an ever-growing amount of data; or a USB 3.1 Gen2 (10Gb/s) expansion card for transferring large media files to and from USB storage. You can also install QM2 cards, wireless network cards or an entry-level graphics card to extend NAS functionality.
General Features
Hybrid Structure for Enabling SSD and Tiered Storage
SSD prices continue to fall, but creating a full-SSD storage solution is still out of reach for most users, especially if they require high-capacity storage. The TVS-951X provides the ability to use a hybrid storage structure that leverages the benefits of both hard drives and SSDs to provide high storage capacity and high performance. You can flexibly allocate applications to SSDs, set up a SSD cache, or use Qtier technology to automatically tier your frequently-accessed files to the SSD for the high access speeds. Users can take advantage of these features to fully optimize the storage utilization of the TVS-951X.

1.8 GHz Intel Celeron 3865U Dual-Core Processor
Powered by a 7th-generation Kaby Lake, 14 nm 1.8 GHz Intel Celeron 3865U Dual-Core processor, with 2GB of DDR4 dual-channel memory (up to 32GB) and SATA III 6 Gb/s HDD and SSD drive bays, the TVS-951X delivers high-performance read/write speeds and maintains high speeds even with AES-NI encryption is enabled.

High-Speed 10GbE Network Connectivity
The TVS-951X features a built-in 10GBASE-T network port to provide 10GbE high-speed network connectivity. You can use the TVS-951X with QNAP's 10GbE unmanaged switch (sold separately) to upgrade your network infrastructure to benefit from faster transfer speeds and to improve bandwidth-demanding applications. Both the TVS-951X and QNAP's 10GbE unmanaged switches support NBASE-T (10G/5G/2.5G/1G/100M) five-speed network technology, so you don't have to replace the existing Cat 5e, 6, and 6a cables in your current network infrastructure.

Real-Time 4K Video Transcoding
Featuring integrated Intel HD Graphics 610, the TVS-951X supports dual-channel 4K H.264/H.265 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be played on multiple devices. You can also watch high-quality 4K media files on a HDTV using the HDMI 1.4b output at resolutions up to 4096 x 2304 @ 24 Hz, or use it with Plex Media Server to stream media files to mobiles devices and media streaming devices, including DLNA, Roku, Apple TV, Amazon Fire TV, and Chromecast. The QNAP RM-IR004 remote control (sold separately) can be configured using QButton to customize the actions of individual buttons, providing a more convenient NAS experience.

Please note that the TVS-951X's hardware provides H.264/H.265 hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
