Latest zebronics motherboard Models Hyderabad, Telangana

As trusted zebronics motherboard dealers, we specialize in providing high-performance server solutions tailored to meet the diverse needs of businesses, data centers, and IT infrastructure providers. With a comprehensive range of servers from leading brands, we ensure our clients receive reliable, scalable, and cost-effective hardware that supports smooth operations and future growth. Our expertise, commitment to quality, and customer-focused approach make us a preferred partner for organizations looking to enhance their IT capabilities with dependable server solutions.

Pricelist of Best zebronics motherboard Models

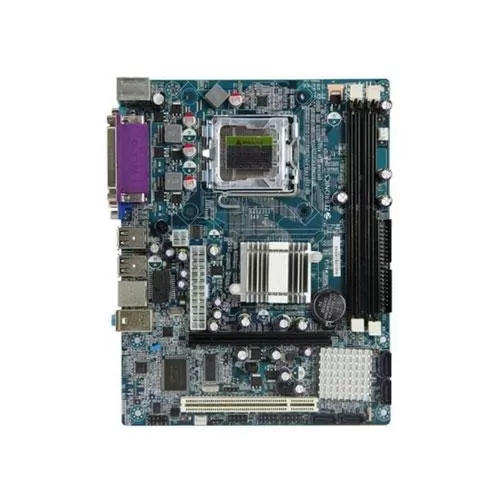

ZEBRONICS ZEB 945 MOTHERBOARD

Product Description:

Supported CPU: Intel Core 2 Duo/ Pentium D/ Celeron D/ Celeron series Processor

Chipset: North Bridge-Intel 945G/GC/GZChipset South Bridge-IntelICH7Chipset

Memory supported: DDR2 400/533/667/800 MHz SDRAM (4GB Max) 2 x DIMM Slots

BIOS: AMI BIOS

I/O Interface: 1 x PS/2 keyboard port, 1 x PS/2 mouse port,1 x VGA Port, 1 x COM port, 4 x USB 2.0 ports, RJ45 LAN port, 1 x 3-in-1 audio jacks

Onboard interface: 1 x Front panel connector,1 x Front audio connector, 1 x Speaker Connector ,2 x USB 2.0 Connectors, 4 x SATA Ports,1 x IDE slot,1 x CPU fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x SYS Fan Connector, 1 x clear CMOS header

Integrated LAN: Supports Realtek 8105E 10/100 Mbps Ethernet LAN

Expansion slot: 1 PCI Express x16 slot, 1 PCI Slot

Form factor: Micro-ATX

Package contents

945 Motherboard

SATA Cable

I/O Backboard

IDE Cable

Driver disc

Warranty: 1 Year

ZEBRONICS ZEB N68 COMBO MOTHERBOARD

Nvidia MCP61P chipset
Support AM2,AM2+ and AM3 socket, 940 series processor
533/667/800MHZ FSB bus frequency
Support 1xDDR2 or 1xDDR3 Memory
4xUSB 2.0
1XPCI Express X8, 1 PCI slot, 2 SATA, 1 IDE
10/100 LAN
6 channel sound output
VGA port, COM port
Warranty: 1 Year

ZEBRONICS ZEB H61 SOCKET 1155 MOTHERBOARD

Product Description:

Processor support: Supports Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155

Chipset: Intel® H61Chipset

Memory support: 2 DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory

LAN: Supports Realtek 8105E/8111E 100/1000 Mbps

Audio: Realtek 662 3xAudio Jacks for 6 channel High definition audio

Back panel: 1 PS/2 mouse/keyboard port, 1 VGA port, 1HDMI port, 4 USB 2.0 ports, 1 LAN port, 3 audio jacks

On-Board connectors: 1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin), 4 x USB 2.0 ports, 4 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header

Slots: 1 PCI Express x16 slot, 1 PCI Express x1 slot

Package Contents

Motherboard - 1no

Back plate - 1no

SATA cable - 2nos

User manual - 1no

Driver CD - 1no

Warranty: 1 Year

ZEBRONICS ZEB B75 LGA 1155 SOCKET MOTHERBOARD

Product Description:

Supported CPU: Intel i7/i5/i3 series processors

Chipset: Intel B75 chipset

Memory supported: 2 DDR3 Dual channel RAM slots memory, up to 8GB, supports DDR3 1066/1333/ 1600MHz memory

BIOS: EFII Bios

I/O interface: 1 x HDMI Port, 1 x VGA Port, 4 x USB 2.0 Port, 2 x USB 3.0 Port 1 x RJ45 Port, 1 x 3-in-1 Audio

Onboard interface: 1 x 24 pin ATX power connector, 1 x 4 Pin ATX 12V power connector, 2 x SATA 2.0 Gb/s connectors, 2 x SATA 3.0 Gb/s connectors, 1 x USB 2.0 Header, 1 x USB 3.0 Header, 1 x Front audio connector, 1 x Front panel connector, 1 x Speaker connector, 2 x Fan connectors

Integrated LAN: 10/100 Mbps LAN

Expansion slot: 1 x PCI Express x16 slot, 1 x PCI Express x1 slot

Form factor: Micro-ATX

Package contents

ZEB-B75 Motherboard

SATA cable

I/O backboard

Driver disc

Warranty: 1 Year

ZEBRONICS ZEB G31 LGA 775 SOCKET MOTHERBOARD

CPU:

LGA775 for Intel® Core™ 2 Extreme, Core™ 2 Quad, Core™ 2 Duo, Pentium® Dual Core, Pentium® D, Pentium® 4,

Celeron® (Conroe-L) and next generation 45nm Yorkfield & Wolfdale Processors.

Compatible with all 1333/1066/800/533 MHz FSB CPUs

Supports Hyper-Threading Technology

Chipset: Intel® Q33 + ICH7

Super I/O: Winbond W83627DHG chip

Memory:

Dual Channel DDR2 memory technology

2 x DDR2 DIMM slots

Supports DDR2 800/667 non-ECC, un-buffered memory

Max. capacity of system memory 4GB

BIOS: Supports "Plug and Play"

Advanced power management

Graphics: Intel® Graphics Media Accelerator 3100

Pixel Shader 2.0, DirectX 9.0

Audio: Realtek ALC883

5.1 Channel

LAN: Realtek® RT8105S Ethernet Controller (10/100Mbit)

Expansion Slots: 1 x PCI Express x16 slot 2 x 2.2 PCI slots

Connector: 1 x 24-pin ATX power connector 1 x 4-pin ATX 12V power connector 1 x floppy connector

1 x IDE connector (for 2 PATA devices) 4 x SATA 3Gb/s connectors 1 x CPU fan connector 1 x system fan connector 1 x front panel connector 1 x front audio connector

1 x USB 2.0 header for additional 2 USB 2.0 ports (by cables)

Rear Panel I/O: 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Serial Port 1 x Parallel Port 1 x VGA Port 4 x Ready-to-Use USB 2.0 Ports 1 x RJ-45 LAN Port

HD Audio Jack: Line in / Front Speaker / Microphone

Support CD: Drivers

Accessories

Quick Installation Guide, I/O Shield

1 x ATA 100 Cable

1 x SATA Data Cable

Warranty: 1 Year

ZEBRONIC ZEB Z31 SOCKET 775 MOTHERBOARD

Product Description:

Processor: Supports Pentium 4-500 Series / 600 Series / Extreme Edition Series Pentium E Series / Pentium D - 800 / 900 Series Celeron E Series / Celeron D / Celeron 400 Series

Chipset: Intel® 82 G965 / 946 GZ / ICH7 Chipsets

Memory support: 2 DDR2 dual-channel slots, Support DDR2 800 / 667 / 533 MHz memory

LAN: Supports Realtek 8105E10 / 100 Mbps

Audio: Realtek ALC662 Channel

Back panel: 1 x PS/2 mouse / keyboard port, 1 VGA, 1 x COM port, 4 x USB 2.0 ports, 1 x RJ45 port, 3 audio jacks

On-Board connectors: 1 x Front panel connector, 1 x speaker connector, 1 x Front audio connector, 2 x USB 2.0 Connector 4 x SATA Ports 1 x 4 pin CPU fan connector,

1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x clear CMOS header

Slots: 1 PCI Express x16 slot, 1 PCI Express x1 slot

Warranty: 1 Year

ZEBRONICS G41 D3 MOTHERBOARD

Product Description:

Supported CPU: Intel Core 2 Quad/ Core 2 Duo/ Pentium Series/ Celeron Series Processor North Bridge - Intel G41

Chipset: South Bridge - Intel ICH7 Chipset

Memory supported: 2 DDR3 dual-channel RAM slots, Memory up to 8GB ( Double Bank RAM) Supports DDR3 800/1066MHz memory, 2 x DIMM Slots

BIOS: AMI BIOS

I/O Interface: 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 xVGA Port, 1 xCOM port, 4 x USB 2.0 ports, RJ45 LAN port, 1 x 3-in-1 audio jacks

Onboard interface: 1 x Front panel connector,1 x Front audio connector, 2 x USB 2.0 Connector, 4 x SATA Ports, 1 x 1 IDE slot,1 x 4 pin CPU fan connector,

1 x 24-pin ATX power connector, 1 x SYS Fan Connector, 1 x 4-pin ATX 12V power connector, 1 x clear CMOS header

Integrated LAN: Supports RTL8105E 10/100 Mbps Ethernet LAN

Expansion slot: 1 PCI Express x16 slot, 1 PCI Slot

Form factor: Mirco-ATX

Package contents

G41-D3 Motherboard

I/O Backboard

SATA Cable

IDE Cable

Driver disc

Warranty: 1 Year

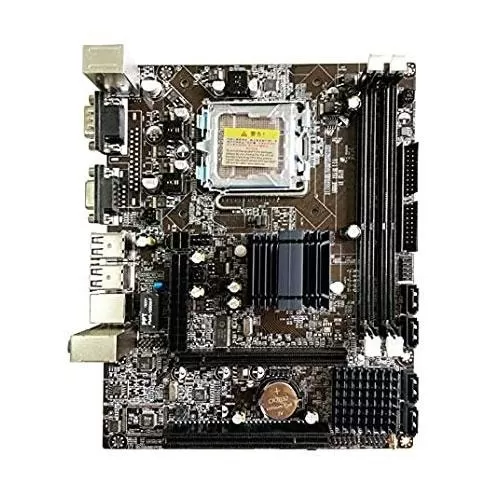

ZEBRONICS ZEB G41 D2 MOTHERBOARD

Product Description:

Supported CPU: Socket 775 Intel Core 2 Quad/ Core 2 Duo/ Pentium Series/ Celeron Series Processor North Bridge - Intel G41

Chipset: South Bridge - Intel 82801GB

Memory supported: 2 DDR2 dual-channel RAM slots, Memory up to 4GB, Supports DDR2 800/667MHz memory, 2 x DIMM Slots

BIOS: AMI BIOS

I/O Interface: 1 x PS/2 keyboard, 1x PS/2 mouse port, 1 x VGA Port, 4 x USB 2.0 ports, RJ45 LAN port, 1 x 3-in-1 audio jacks

Onboard interface: 1 x Front panel connector, 1 x Front audio connector, 1 x COM Connector, 2 x USB 2.0 Connectors, 4 x SATA Ports, 1 x IDE slot, 1 x 4 pin CPU fan connector, 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x clear CMOS header

Integrated LAN: Supports RTL8106E 10/100 Mbps Ethernet LAN

Expansion slot: 1 x PCI Express x16 slot

Form factor: Micro-ATX

Package contents

G41-D2 Motherboard

I/O Backplate

SATA Cable

Driver disc

Warranty: 1 Year

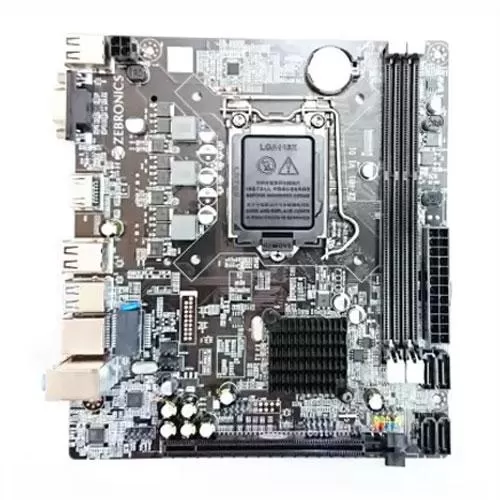

ZEBRONIC ZEB H81 SOCKET 1150 MOTHERBOARD

Product Description:

Processor support: Intel Core® i7/i5/i3/processors in LGA 1150

Chipset :Intel® H81 Chipset

Memory support: 2xDDR3 dual-channel slots, DDR3 1066/1333/1600MHz

LAN: Realtek 8105E 100/1000 Mbps

Audio: Realtek 662 3xAudio Jacks for 6 channel HD Audio

Back panel: 1xUSB mouse/keyboard port, 1xVGA, 1xHDMI, 2xUSB 3.0 ports, 2xUSB 2.0 ports, 1xLAN port, 3xaudio jacks

On-Board connectors: 1xFront panel connector, 1xSpeaker connector, 1xFront panel audio connector, 1xUSB 2.0 connector, 4xSATA ports, 1x4-pin CPU fan connector, 1xSYS fan connector, 1x24-pin ATX power connector, 1x4-pin ATX 12V power connector, 1xClear CMOS header

Slots: 1 PCI Express x16 slot

Warranty: 1 Year

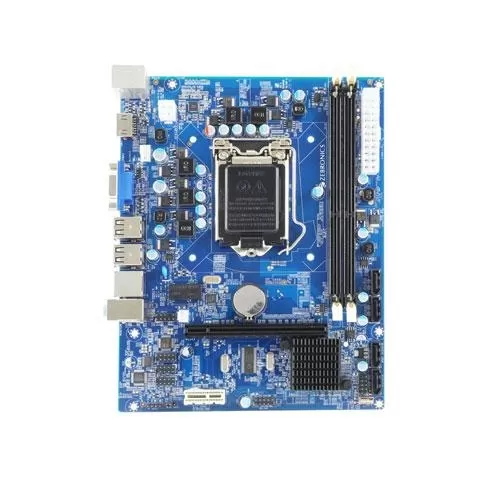

ZEBRONIC ZEB Z55 SOCKET 1156 MOTHERBOARD

Product Description:

CPU: Intel Core i7-800/i5-700/i5-600/i3-500 series processors in LGA 1156

Chipset: Intel BD82HM55 PCH

Memory support: 2x240-pin DDR3 SD RAM slots Memory up to 8GB

supports dual-channel DDR3 1066/1333/ 1600MHz memory

BIOS: EFII BIOS

I/O interface: 1xPS/2 keyboard port 1xPS/2 mouse port 1xVGA 1xHDMI 4xUSB 2.0, compatible with USB 1.1 1xRJ45 1x3-in-1 audio port (Line In/Line Out/Mic In)

Onboard interface: 1x24-pin ATX power connector 1x4-pin ATX 12V power connector 2xUSB connectors, support 4xUSB 2.0 1xFront panel audio connector 1xFront panel connector 1xClear CMOS header 1xCOM connector 1xBEEP connector 4xserial ATA connection ports

Integrated LAN: with 10/100Mbps LAN

Expansion slot: 1xPCI express x16 slot 1xPCI express x1

Warranty: 1 Year

ZEBRONIC ZEB H55 SOCKET 1156 MOTHERBOARD

Product Description:

Supported CPU: Intel Core i7-800/i5-700/i5-600/i3-500 series processors in LGA 1156

Chipset: Intel 55 Chipset

Memory supported: "2x240-pin DDR3 SD RAM slots memory up to 8GB supports dual- channel DDR3 1066/1333/ 1600MHz memory"

BIOS: EFII BIOS

I/O interface: 1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, Compatible with USB 1.1, 1 x Rj45 Port, 1 x 3-in-1 Audio (Line In/Line Out/Mic In)

Onboard interface: 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 2 x USB Connectors, Supports 4 x USB 2.0, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors 3 x Serial ATA Connections Ports

Integrated LAN: With 10/100Mbps LAN

Expansion slot: 1 x PCI express x16 Slot. 1 x MSATA Port

Form factor: Micro-ATX

Package contents

H55 Motherboard

SATA cables

Driver disc

Warranty: 1 Year

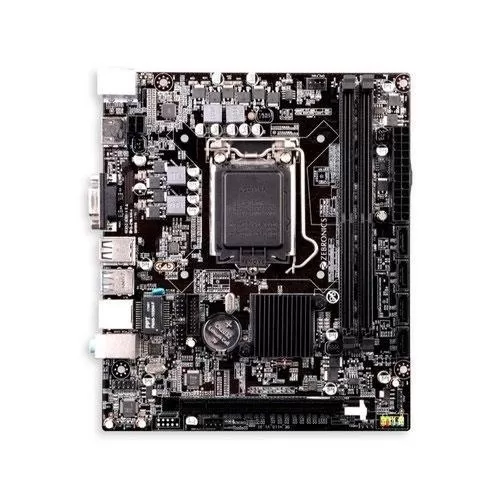

ZEBRONICS ZEB H110 MOTHERBOARD

Product Description:

Processor support: Supports 6th / 7th generation i3/i5/i7/Pentium/Celeron processor in LGA1151

Chipset: Intel H110 chipset

Memory support: 2 DDR4 dual-channel slots, supports DDR4 2133MHz memory

LAN: Supports Realtek 8105E/8111E 10/100Mbps

Audio: Realtek 662, 3 x Audio Jacks for 6 channel High Definition Audio

Back panel:

1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x HDMI port,

1 x VGA port, 2 x USB 2.0 ports, 2 x USB 3.0 ports, 1 x RJ45 port,

1 x 3-in Audio port (Lin In/ Lin Out/ MIC In)

On-Board connectors:

1 x 24-pin ATX power connector, 1 x 4-pin ATX power connector,

4 x SATA 3.0 ports, 1 x speaker connector, 1 x front panel audio connector,

2 x USB 2.0 connectors, 1 x USB 3.0 connector, 1 x F_AUDIO connector,

1 x 4-pin CPU fan connector, 1 x SYS fan connector

Slots: 1 PCI Express x 16 slot

Warranty: 1 Year
