dahua camera
List of Latest dahua camera Models
Brand: Dahua

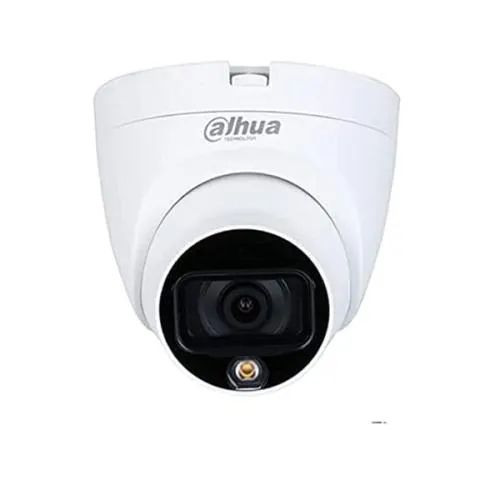

Part Number: DH-HAC-T1A21P
Model No: Dahua DH-HAC-T1A21P 2mp Indoor HDCVI IR Eyeball Dome Camera
Mount Type : Board in
Image Sensor : 1/2.7 CMOS
Effective Pixels : 1920(H)×1080(V), 2MP
Scanning System : Progressive
Electronic Shutter Speed : PAL: 1/25-1/100000s; NTSC: 1/30-1/100000s
Minimum Illumination : 0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio : More than 65dB
IR Distance : Up to 20m (66feet)
IR On/Off Control : Auto / Manual
Lens Type : Fixed lens / Fixed iris
Focal Length : 3.6mm (2.8mm, 6mm Optional)
Max Aperture : F1.85
Angle of View : H: 93° (103°, 54.7°)
Resolution : 1080P (1920×1080)
Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night : Auto (ICR) / Manual
OSD Menu : Multi-language
BLC Mode : BLC / HLC / DWDR
WDR : DWDR
Gain Control : AGC
Noise Reduction : 2D
White Balance : Auto / Manual
Smart IR : Auto / Manual
Power Supply : 12V DC ±30%
Power Consumption : Max. 2.3W (12V DC, IR on)
Dimensions : 85mm×85mm×69mm
Weight : 0.09kg (0.20lb)
Brand: Dahua

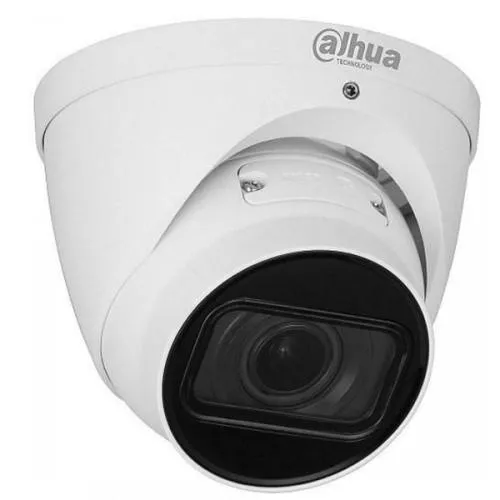

Model No: Dahua IPC HDBW5231E ZE HDMI 2MP Dome Network Camera
Image Sensor: 1/2.8 inch 2Megapixel progressive scan CMOS
Resolution: 1920(H)x1080(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3~1/100000s
Lens Type: Motorized
Aperture: F1.6
Lens Mount: Board-in
Angle of view: H: 101° ~ 31°, V: 54° ~ 17°
Power: DC12V, AC24V, PoE(802.3at)(Class 4)
Dimension: 159.1mm*117.9mm
Weight: 0.95Kg (2.09lb)
Brand: Dahua

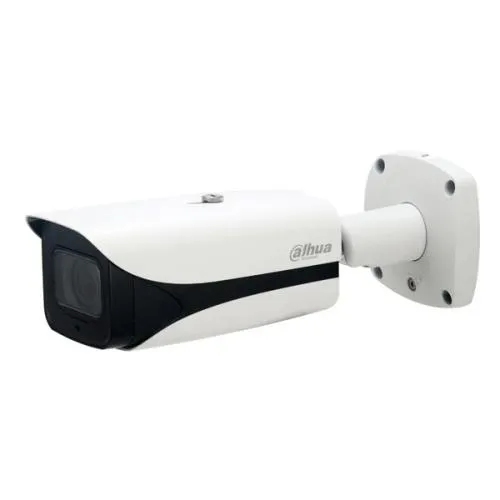

Model No: Dahua DH IPC HFW5442EP S 4MP Pro AI Bullet Network Camera
Image Sensor: 1/1.8 inch CMOS
Resolution: 2688 (H) × 1520 (V)
RAM: 512 MB
ROM: 128 MB
Shutter Time: Auto/Manual 1/3 s–1/100,000 s
Lens Type: Fixed-focal
Aperture: F1.6
Lens Mount: Board-in
Angle of view: H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°
Power: 12 VDC/PoE (802.3af) (class 0)
Dimension: 182.3 mm × 70.0 mm × 70.0 mm (7.18” × 2.76” × 2.76”)
Weight: 470 g (1.04 lb)
Brand: Dahua

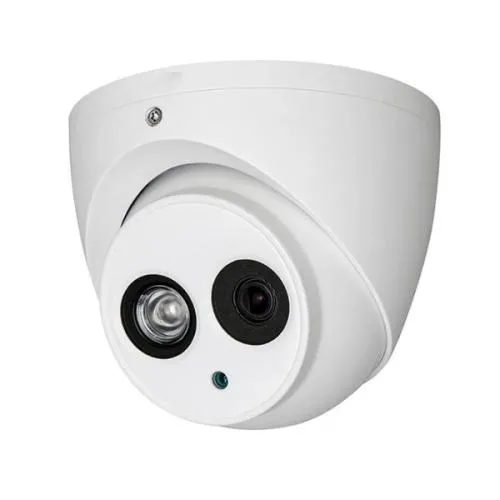

Model No: Dahua IPC HDW4831EM ASE Eyeball Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3(4)~1/100000s
Lens Type: Fixed
Aperture: F2.5 (F2.2)
Lens Mount: Board-in
Angle of view: H:112° (88°), V:69° (48°)
Power: DC12V, PoE (802.3af)(Class 0)
Dimension: 106mm×93.7mm (4.17”×3.69”)
Weight: 0.47Kg (1.04lb)
Brand: Dahua

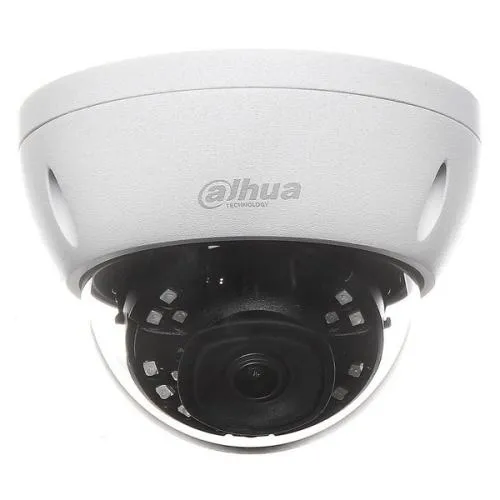

Model No: Dahua IPC HDBW4831E ASE 8MP Mini Dome Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3(4)~1/100000s
Lens Type: Fixed
Aperture: F2.5 (F2.2)
Lens Mount: Board-in
Angle of view: H:112° (88°), V:69° (48°)
Power: DC12V, PoE (802.3af)(Class 0)
Dimension: 109.9mm×81mm (4.33”×3.19”)
Weight: 0.41kg (0.91lb)
Brand: Dahua

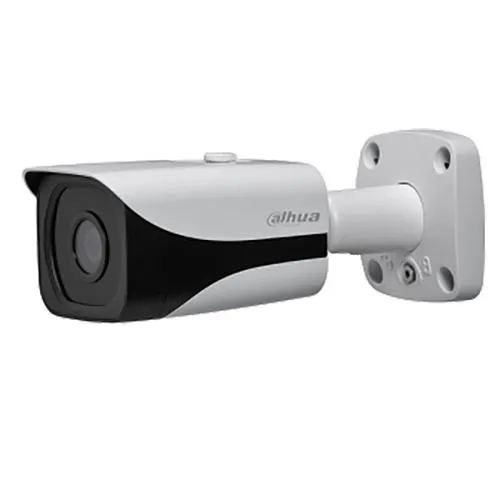

Model No: Dahua IPC HFW4831E SE 8MP Mini Bullet Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3(4)~1/100000s
Lens Type: Fixed
Aperture: F1.6 (F1.6)
Lens Mount: Board-in
Angle of view: H:112° (88°), V:69° (48°)
Power: DC12V, PoE (802.3af)(Class 0)
Dimension: 180mm×70mm×70mm (7.09”×2.76”×2.76”)
Weight: 0.41kg (0.91lb)
Brand: Dahua

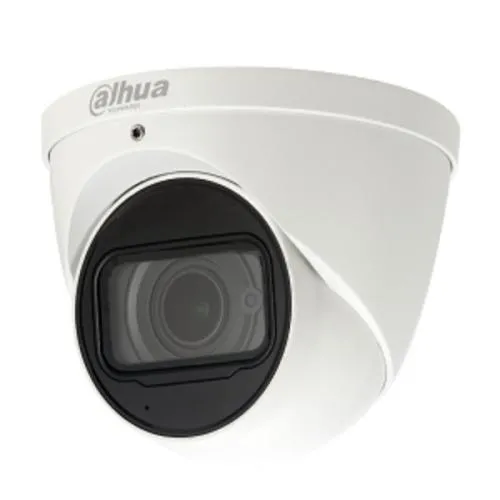

Model No: Dahua IPC HDW5831R ZE 8MP Eyeball Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3~1/100000s
Lens Type: Motorized/ Auto Iris(DC)
Aperture: F1.8
Lens Mount: Board-in
Angle of view: H:110°~40° , V:58°~23°
Power: DC12V, PoE(802.3af)(Class 0)
Dimension: 122mm×104mm( 4.8”×4.09”)
Weight: 0.6Kg (1.32lb)
Brand: Dahua

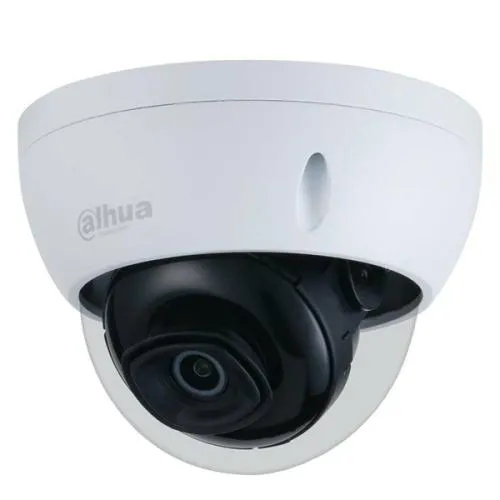

Model No: Dahua IPC HDBW5831R ZE IR Dome Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3~1/100000s
Lens Type: Motorized/ Auto Iris(DC)
Aperture: F1.4
Lens Mount: Board-in
Angle of view: H:110°~40° , V:58°~23°
Power: DC12V, PoE(802.3af)(Class 0)
Dimension: 122mm×88.9mm (4.8”×3.5”)
Weight: 0.5kg (1.1lb)
Brand: Dahua
Model No: Dahua IPC HDBW5831E ZE 8MP Dome Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3~1/100000s
Lens Type: Motorized/ Auto Iris(DC)
Aperture: F1.4
Lens Mount: Board-in
Angle of view: H:110°~40° , V:58°~23°
Power: DC12V, AC24V, PoE+(802.3at)(Class 4)
Dimension: 159.1mm×117.9mm (6.26”×4.64”)
Weight: 0.95kg (2.09lb)
Brand: Dahua

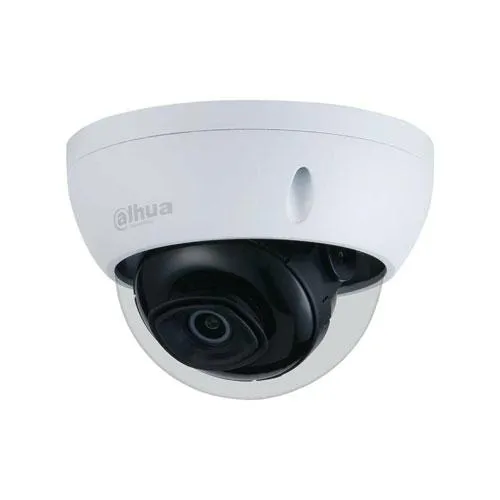

Model No: Dahua IPC HDBW5831E Z5E 8MP Dome Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3~1/100000s
Lens Type: Motorized/ Auto Iris(HALL)
Aperture: F1.4
Lens Mount: Board-in
Angle of view: H:38°~14° , V:22°~8°
Power: DC12V, AC24V, PoE+(802.3at)(Class 4)
Dimension: 159.1mm×117.9mm (6.26”×4.64”)
Weight: 0.95kg (2.09lb)
Brand: Dahua

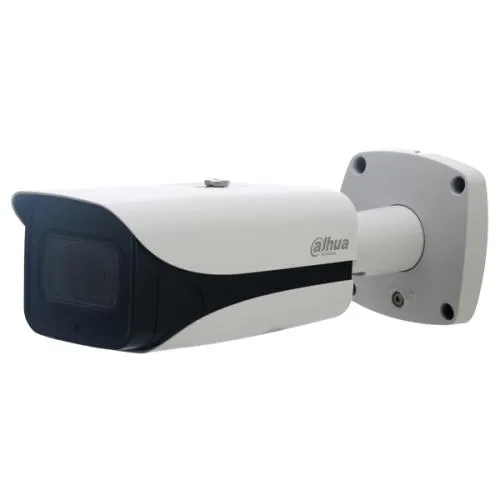

Model No: Dahua IPC HFW5831E Z5E 8MP Bullet Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3~1/100000s
Lens Type: Motorized/ Auto Iris(HALL)
Aperture: F1.4
Lens Mount: Board-in
Angle of view: H:38°~14° , V:22°~8°
Power: DC12V, PoE (802.3af)(Class 0)
Dimension: 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)
Weight: 1.11Kg (2.44lb)
Brand: Dahua

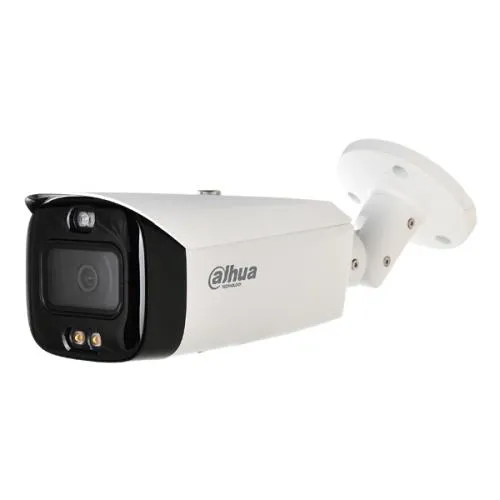

Model No: Dahua IPC HFW4831T ASE Mini Bullet Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3~1/100000s
Lens Type: Fixed
Aperture: F1.6 (F1.6)
Lens Mount: Board-in
Angle of view: H:112° (88°), V:69° (48°)
Power: DC12V, PoE (802.3af)(Class 0)
Dimension: 244.1mm×79mm×75.9mm (9.61”×3.11”×2.99”)
Weight: 0.815kg (1.80lb)
Brand: Dahua

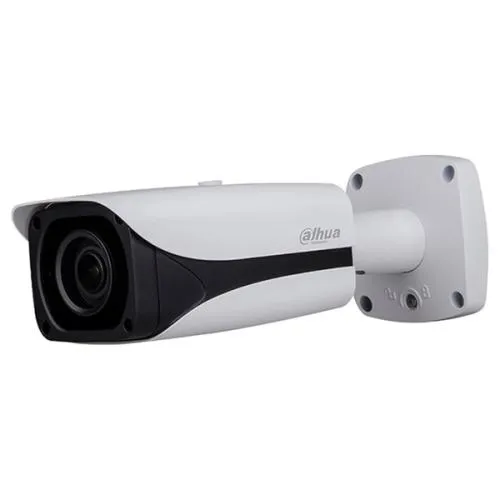

Model No: Dahua IPC HFW5831E ZE IR Bullet Network Camera
Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
Resolution: 3840(H)x2160(V)
RAM: 512MB
ROM: 32MB
Shutter Time: Auto/Manual, 1/3~1/100000s
Lens Type: Motorized/ Auto Iris(DC)
Aperture: F1.4
Lens Mount: Board-in
Angle of view: H:110°~40°, V:58°~23°
Power: DC12V, PoE (802.3af)(Class 0)
Dimension: 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)
Weight: 1.11Kg (2.44lb)
