Pricelist of Best storage Models

QNAP TS H1677AXU RP 16 BAY NAS ENCLOSURE

Brand: Qnap
Model No: Qnap TS h1677AXU RP 16 Bay NAS Storage
CPU: AMD Ryzen 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
CPU Architecture: 64-bit x86
Graphic Processors: AMD Radeon™ Graphics
Floating Point Unit: Yes
Encryption Engine: (AES-NI)
Hardware-accelerated Transcoding: Yes
System Memory: 32 GB UDIMM DDR5 (1x 32 GB)
Maximum Memory: 192 GB (4 x 48 GB)
Memory Slot: 4 x UDIMM DDR5, Support optional ECC memory
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: (Not supported M.2 SSD)
M.2 Slot: 2 x M.2 2280 PCIe Gen 5 x2 slots
SSD Cache Acceleration Support: Yes
GPU pass-through: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port: 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL): Yes
Jumbo Frame: Yes
PCIe Slot: 3 Slot 1: Gen 4 x 4, Slot 2: Gen 4 x 8 or Gen 4 x 4*, Slot 3: Gen 4 x 4
USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor: 3U Rackmount
LED Indicators: Power Status, HDD 1-16, M.2 SSD 1-2, Status, LAN, storage expansion port status
Buttons: Power, Reset
Dimensions (HxWxD): 131.3 × 482.2 × 550.8 mm
Weight (Net): 15.64 kg
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 550W(x2), 100-240V
Power Consumption: Disk Standby Mode: 99.99 W
Power Consumption: Operating Mode, Typical: 349.96 W
Fan: System fan: 3 x 60mm, 12VDC
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 5000
Warranty: 5 Years Warranty

QNAP TS 216G NETWORK ATTACHED STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-216G Network Attached Storage
CPU: ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture: 64-bit ARM
Graphic Processors: Mali-G52
Floating Point Unit: Yes
Encryption Engine: Yes
Hardware-accelerated Transcoding: Yes
Neural Processing Unit (NPU): Yes
System Memory: 4 GB on board (non-expandable)
Maximum Memory: 4 GB on board (non-expandable)
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 2x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Gigabit Ethernet Port (RJ45): 1
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 1 (2.5G/1G/100M)
Wake on LAN (WOL): Yes
Jumbo Frame: Yes
USB 2.0 port: 2
USB 3.2 Gen 1 port: 1
LED Indicators: System Status, LAN, USB, HDD1~2
Buttons: Power, Reset, USB Copy
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Minimum 48W adapter (12VDC), 100-240VAC
Power Consumption: Disk Standby Mode: 4.973 W
Power Consumption: Operating Mode, Typical: 13.907 W
Fan: 1 x 70mm, 12VDC
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 200
Dimensions (HxWxD): 165 × 102 × 220.6 mm
Weight (Net): 1.45 kg
Warranty: 2 Years Onsite Warranty

QNAP TS 632X 4G NETWORK ATTACHED STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-632X-4G Network Attached Storage
CPU: AnnapurnaLabs, an Amazon company Alpine AL524, 4-core, 2.0GHz, 4
CPU Architecture: 64-bit ARM
Floating Point Unit: Yes
Encryption Engine: Yes
System Memory: 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x SODIMM DDR4, Support ECC memory
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2(2.5G/1G/100M)
10 Gigabit Ethernet Port: 2 x 10GbE SFP+
Wake on LAN (WOL): Yes
Jumbo Frame: Yes
PCIe Slot: 1, Slot 1: PCIe Gen 3 x4
USB 3.2 Gen 1 port: 2
LED Indicators: Power, Status, LAN, USB, HDD1-6
Buttons: Power, Reset, USB Auto Copy
Operating Temperature: 0-40 °C (32°F - 104°F)
Storage Temperature: -20-70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 120W, adapter (12VDC), 100-240VAC
Fan: 2 x 90mm, 12VDC
Dimensions (HxWxD): 226.5 × 235 × 165 mm
Weight (Net): 2.5 kg
Warranty: 2 Years Onsite Warranty

QNAP TS 855X 8G NETWORK ATTACHED STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-855X-8G Network Attached Storage
CPU: Intel Atom C5125 8-core processor, 2.8GHz
CPU Architecture: 64-bit x86
Floating Point Unit: Yes
Encryption Engine: Yes(AES-NI)
System Memory: 8 GB non-ECC UDIMM DDR4 (1 x 8 GB)
Maximum Memory: 128 GB (4 x 32 GB)
Memory Slot: 4 x U-DIMM DDR4, Support ECC memory
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 6 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch bays: 2.5-inch SATA solid state drives
Hot-swappable: Yes
M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x4 slots
SSD Cache Acceleration Support: Yes
SR-IOV: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port: 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet Port: Optional via PCIe expansion card
Wake on LAN (WOL): Yes Only the 2.5GbE port
Jumbo Frame: Yes
PCIe Slot: 2 Slot 1: PCIe Gen 3 x4, Slot 2: PCIe Gen 3 x4 (Card dimensions for PCIe slot 1?260 x 111.15 x 18.76 mm / 10.25 x 4.38 x 0.74 inches, Card dimensions for PCIe slot 2?150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches)
USB 2.0 port: 1
USB 3.2 Gen 1 port: 3
LED Indicators: Power/Status, LAN, USB, HDD1-6, SSD 1-2, M.2 SSD 1-2
Buttons: Power, Reset, USB Auto Copy
Operating Temperature: 0 - 40°C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 250W PSU, 100~240V
Power Consumption: Operating Mode, Typical: 86.96 W
Fan: System fan: 2 x 80mm, 12VDC, CPU fan: 1 x 90mm, 12VDC
Other Interfaces: Kensington security slot
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2500
Dimensions (HxWxD): 225 × 292.9 × 319.8 mm
Weight (Net): 10.04 kg
Warranty: 3 Years Onsite Warranty

QNAP TVS H874T I7 32G NETWORK ATTACHED STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TVS-h874T-i7-32G Network Attached Storage
CPU: Intel Core i7 12-core (8P+4E) /20-thread Processor
CPU Architecture: 64-bit x86
Graphic Processors: Intel® UHD Graphics 770
Floating Point Unit: Yes
Encryption Engine: Yes (AES-NI)
Hardware-accelerated Transcoding: Yes
System Memory: 32 GB SODIMM DDR4 (2 x 16 GB)
Maximum Memory: 64 GB ( 2 x 32 GB)
Memory Slot: 2 x SODIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays:, 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: (Not supported M.2 SSD)
M.2 Slot: 2 x M.2 2280 PCIe Gen 4 x4 slots
SSD Cache Acceleration Support: Yes
GPU pass-through: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via PCIe expansion card
10 Gigabit Ethernet Port: Optional via PCIe expansion card
Wake on LAN (WOL): Yes
Jumbo Frame: Yes
Thunderbolt Port: 2 (Thunderbolt 4)
PCIe Slot: 2, Slot 1: PCIe Gen 4 x16, Slot 2: PCIe Gen 4 x4
USB 3.2 Gen 2 (10Gbps) Port: 1 x Type-C USB 3.2 Gen 2 10Gbps, 2 x Type-A USB 3.2 Gen 2 10Gbps
HDMI Output: 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
LED Indicators: HDD 1-8, Status, LAN, USB port, M.2 port
LCD Display/ Button: Yes
Buttons: Power, Reset, USB Copy
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 350W (PWR-PSU-350W-DT01), 100-240V
Power Consumption: Disk Standby Mode: 62.668 W
Power Consumption: Operating Mode, Typical: 104.35 W
Fan: System fan: 2 x 120mm, 12VDC, CPU fan: 1 x 60mm, 12VDC
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 3500
Dimensions (HxWxD): 180.2 × 329.3 × 279.6 mm
Weight (Net): 7.34 kg
Warranty: 3 Years Onsite Warranty

QNAP TBS H574TX I5 16G THUNDERBOLT 4 NASBOOK

Brand: Qnap
Model No: Qnap TBS-h574TX-i5-16G Thunderbolt 4 NASbook
CPU: Intel Core i5-1340PE 12C(4P+8E)/16T up to 4.50GHz
CPU Architecture: 64-bit x86
Graphic Processors: Intel Iris Xe Graphics eligible
Floating Point Unit: Yes
Encryption Engine: Yes
Hardware-accelerated Transcoding: Yes
System Memory: 16 GB on board (non-expandable)
Maximum Memory: 16 GB on board (non-expandable)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 5 x E1.S up to 15mm (5x PCIe Gen3 x2), Pre-install adapter to support M.2 2280 for each slots
Drive Compatibility: E1.S or M.2 2280 PCIe NVMe
Hot-swappable: Yes
M.2 Slot: 5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)
SSD Cache Acceleration Support: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 1
10 Gigabit Ethernet Port: 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL): Yes
Jumbo Frame: Yes
Thunderbolt Port: 2 (Thunderbolt 4)
USB 2.0 port: 1
USB 3.2 Gen 2 (10Gbps) Port: 2
HDMI Output: 1, HDMI 1.4b
Form Factor: Set-top design
LED Indicators: Status, USB copy, SSD 1-5
Buttons: Status, USB copy, Reset
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 120W Adapter (19VDC output, 100-240VAC input)
Power Consumption: Operating Mode, Typical: 46 W
Fan: System fan: 2 x 40mm, CPU fan: 1 x 75mm
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
Dimensions (HxWxD): 60 × 215 × 199 mm
Weight (Net): 2.24 kg
Warranty: 3 Years Onsite Warranty

LENOVO THINKSYSTEM D4390 DIRECT ATTACHED STORAGE

Brand: Lenovo
Form Factor: 4U
Product: ThinkSystem D4390 Direct Attached Storage
Dual Expansion Modules: Dual 12/24Gb SAS standard, with active/active failover
Supported Drives(90x hot-swap SAS HDD/SSD drives): Up to 24TB 7,200rpm NL-SAS HDDs, Up to 800GB SSDs (2.5 drive in 3.5 tray)
Storage Capacity (per enclosure): Up to 2.1PB – 7,200rpm NL SAS HDDs; Up to 9.6TB – SAS SSDs
Expandability (via Daisy-Chain) : Up to 2x D4390 enclosures per HBA
Host Controllers Supported: ThinkSystem RAID 940-8e PCIe 12Gb Adapter; ThinkSystem 440-16e SAS/SATA PCIe Gen4 12Gb HBA; ThinkSystem 440-8e PCIe 12Gb SAS/SATA HBA
RAID Support: RAID-0, 1, 10, 5, 50, 6, 60 (Host controller-dependent)
Power Supplies and Fans: 4x 1200W 80 Plus Titanium (2+2/3+1) hot-swap/redundant power supplies; 5 hot-swap/redundant fans
Back Panel Connectors: Each expansion module (x2) has 4x 24Gbps Mini-SAS HD (SFF-8644) ports
Hot-Swap Components: HDDs, SSDs, ESMs, PSUs, 5V DC-DC modules, fans
Dimensions (H x W x D): 175.3 x 446 x 1080mm
Weight: Min. 45kg (95lbs)|Max. 118kg (260lbs)
Warranty: 3 year Limited Warranty, 9x5 Next Business Day Onsite (upgradeable)

LENOVO THINKSYSTEM DE6400F 2U ALL FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DE6400F All Flash Array Storage
Form Factor: Base system: 2U/24
Maximum Raw Capacity: 367TB
Maximum Drives: 24 NVMe SSDs
Maximum Expansion: Up to 4 DE240S expansions (24 NVMe in Controller Enclosure + 96 SAS SSD)
IOPS: 670,000 IOPS
Sustained Throughput: Up to 20GBps
System Memory: 32GB RAM
Optional I/O Ports (per system):4x 100Gb NVMe/IB, NVMe/RoCe, SRP/IB and iSER/IB; 8x 32Gb FC (supports FC SCSI and NVMe/FC); 8x 25Gb iSCSI; 1x optional SAS expansion card slot
Software Features:Snapshot, Drive Encryption
System Maximums Max hosts: 512
Max partitions: 256
Volumes: 1,024
Maximum DDP volume size: 2PiB
Maximum RAID volume size: 30 drives
Snapshot copies: 1,024

LENOVO THINKSYSTEM DE6600F ALL FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DE6600F All Flash Array Storage
Form Factor: Base system: 2U/24
Expansion: No expansion shelves
Maximum Raw Capacity: 367TB
Maximum Drives: 24 NVMe SSDs
Maximum Expansion: Up to 4 DE240S expansions (24 NVMe in Controller Enclosure + 96 SAS SSD)
IOPS: 2,000,000 IOPS
Sustained Throughput: Up to 44GBps
System Memory: 32GB or 128GB
Optional I/O Ports (per system): 4x 200Gb NVMe/IB, NVMe/RoCe, SRP/IB and iSER/IB; 8x 100Gb IB HIC – supports NVMe/IB, NVMe/RoCe, SRP/IB and iSER/IB; 16x 32Gb FC – supports FC SCSI and NVMe/FC; 16x 25Gb iSCSI
Software Features: Snapshots, Drive Encryption
System Maximums Max hosts: 1024
Max partitions: 512
Volumes: 2,048
Maximum DDP volume size: 2PiB
Maximum RAID volume size: 30 drives
Snapshot copies: 2,048

LENOVO THINKSYSTEM DE600S 4U60 LFF EXPANSION ENCLOSURE STORAGE

Brand: Lenovo
Product: ThinkSystem DE600S 4U60 LFF Expansion Enclosure Storage
Form Factor: 4U, 60 LFF drive bays (4U60)
Max Raw Capacity (Per Enclosure): Up to 1.08 PB
Maximum Drives (Per Enclosure): Up to 60 HDDs / SSDs
Maximum Expansion:DE4000H: Up to 3 DE600S 4U60 LFF expansion units; DE6000H: Up to 7 DE600S 4U60 LFF expansion units
I/O Expansion Modules: 2
I/O Expansion Ports (Per Enclosure): 8 x 12Gb SAS
Capacity Optimized: 3.5-inch and 2.5-inch SSDs and HDDs featuring 12 Gb SAS connectivity
Expansion Units. ThinkSystem DE Series LFF and SFF expansion units.

LENOVO THINKSYSTEM DE6400H HYBRID FLASH ARRAY

Brand: Lenovo
Product: ThinkSystem DE6400H Hybrid Flash Array Storage
Form Factor: 2U24
Max Raw Capacity: 4.7PB (240 x 18TB NL-SAS) plus 367TB (24 x 15.3TB SSDs)
Maximum Drives: Supports up to a maximum of 120x SSDs (SAS and NVMe) or 240 NL-SAS HDDs
Maximum Expansion: Up to four 2U12, 2U24, or 4U60 SAS drive shelves
System Memory: 16GB
Optional I/O Port (Per System): 4x 100Gb NVMe/IB, NVMe/RoCe, SRP/IB and iSER/IB; 8x 32Gb FC (supports FC SCSI and NVMe/FC); 8x 25Gb iSCSI; 1x optional SAS expansion card slot
Software Feature: Snapshots, drive encryption
System Maximums: Max hosts: 512
Max partitions: 256
Volumes: 1,02
Maximum DDP volume size: 2PiB
Maximum RAID volume size: 30 drives
Snapshot copies: 1,024

LENOVO THINKSYSTEM DE6600H HYBRID FLASH ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DE6600H Hybrid Flash Array Storage
Form Factor: 2U24
Max Raw Capacity: 4.7PB (240 x 18TB NL-SAS) plus 367TB (24 x 15.3TB SSDs)
Maximum Drives: Supports up to a maximum of 120x SSDs (SAS and NVMe) or 240 NL-SAS HDDs
Maximum Expansion: Up to seven 2U12, 2U24, or 4U60 SAS drive shelves
System Memory: 32GB or 128GB
Optional I/O Port (Per System): 8x 100Gb NVMe/IB, NVMe/RoCe; 8x 100Gb iSER/IB, SRP/IB; 16x 32Gb NVMe/FC; 16x 32Gb SCSI FC; 16x 25Gb iSCSI
Software Feature: Snapshots, drive encryption
System Maximums: Max hosts: 1024
Max partitions: 512
Volumes: 2,048
Maximum DDP volume size: 2PiB
Maximum RAID volume size: 30 drives
Snapshot copies: 2,048

LENOVO THINKSYSTEM DG5000 ALL FLASH QLC ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DG5000 All Flash QLC Array Storage
Controller Form Factor: 2U with 24 SSD slots
NAS Scale-out Maximum: 12 High Availability pairs
Maximum SSDs: 576
Maximum Raw Capacity: 17.6PB
SAN Scale-out Maximum: 6 High Availability pairs
Maximum SSDs: 288
Maximum Raw Capacity: 8.8PB
PCIe Expansion slots: 4
FC target ports (16Gb autoranging): 16
100GbE ports (40GbE autoranging): 4
Storage Networking Supported: NVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS/SMB, S3
Operating Systems Version: 9.12.1 and newer
Shelves and Media: DG240N (2U, 24 drives, NVMe QLC SSDs)
Power Consumption (Median): 491W
Host Operating Systems Supported: Windows Server 2019, Windows Server 2022, RedHat, SuSE, VMware, Citrix Hypervisor (CentOS, Ubuntu)
High Availability: Dual active/active controllers; Nondisruptive maintenance, upgrade, and scale-out clustering; Multi-site resilience for continuous data access
Storage Efficiency: Inline data compression, deduplication, and compaction; Space-efficient LUN, file, and volume cloning; Automatic data tiering
Data Management:Intuitive onboard GUI, REST APIs, and automation integration; AI-informed predictive analytics and corrective action ;Easy provisioning and data management from market-leading host operating systems, hypervisors, and application software
Scalable NAS: Large-scale single namespace management with local and remote caching;
Data Protection: Application-consistent Snapshot copies and restore; Integrated remote backup/disaster recovery; Synchronous zero-data-loss replication; Tamper-proof Snapshot copies
Security and Complianc: Autonomous ransomware protection; Multi-factor admin access; Secure multitenant shared storage;In-flight and data-at-rest encryption; Regulatory-compliant data retention; Multi-admin verification before executing sensitive commands
Cloud Integration: Seamlessly tier, back up, replicate, and cache data to private and public clouds; Move data between major public cloud services

LENOVO THINKSYSTEM DG7000 ALL FLASH QLC ARRAY STORAGE

Brand: Lenovo
Product: ThinkSystem DG7000 All Flash QLC Array Storage
Controller Form Factor: 4U
NAS Scale out Maximum: 12 High Availability pairs test
Maximum SSDs: 1,152
Maximum Raw Capacity: 35.2PB
SAN Scale out Maximum: 6 High Availability pairs
Maximum SSDs: 576
Maximum Raw Capacity: 17.6PB
PCIe Expansion slots: 10
FC target ports (32Gb autoranging): 32
FC target ports (16Gb autoranging): 40
100GbE ports (40GbE autoranging): 16
25GbE ports: 16
10GbE ports: 32
10Gbase-T (1GbE autoranging): 16
Storage Networking Supported: NVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS/SMB, S3
Operating Systems Version: 9.12.1 and newer
Shelves and Media: DG240N (2U, 24 drives, NVMe QLC SSDs)
Power Consumption (Median): 1204W (with DG240N)
Host Operating Systems Supported: Windows Server 2019, Windows Server 2022, RedHat, SuSE, VMware, Citrix Hypervisor (CentOS, Ubuntu)
High Availability: Dual active/active controllers; Nondisruptive maintenance, upgrade, and scale-out clustering; Multi-site resilience for continuous data access
Storage Efficiency: Inline data compression, deduplication, and compaction; Space-efficient LUN, file, and volume cloning; Automatic data tiering
Data Management:Intuitive onboard GUI, REST APIs, and automation integration; AI-informed predictive analytics and corrective action ;Easy provisioning and data management from market-leading host operating systems, hypervisors, and application software
Scalable NAS: Large-scale single namespace management with local and remote caching;
Data Protection: Application-consistent Snapshot copies and restore; Integrated remote backup/disaster recovery; Synchronous zero-data-loss replication; Tamper-proof Snapshot copies
Security and Complianc: Autonomous ransomware protection; Multi-factor admin access; Secure multitenant shared storage;In-flight and data-at-rest encryption; Regulatory-compliant data retention; Multi-admin verification before executing sensitive commands
Cloud Integration: Seamlessly tier, back up, replicate, and cache data to private and public clouds; Move data between major public cloud services

LENOVO TS3200 TAPE LIBRARY STORAGE

Brand: Lenovo
Form factor: 4U rack mount or stand-alone
Model No: Lenovo TS3100 Tape Library Storage
Drive technology: LTO Ultrium 7, LTO Ultrium 6, and LTO Ultrium 5 Full-High (FH) and Half-High (HH) drives
Drive interface: Ultrium 7, Ultrium 6, and Ultrium 5 FH and HH drives (per one drive): 2x 6 Gb SAS x1 ports (Mini-SAS SFF-8088), 1x 8 Gb FC port (SFP SW optics, LC connector)
Number of drives: Up to 2 FH drives, or up to 4 HH drives, or a combination of 1 FH drive and up to 2 HH drives
Number of cartridge slots: 48
Cartridge capacity: LTO7: 6 TB native; up to 15 TB compressed (with 2.5:1 compression ratio), LTO6: 2.5 TB native; up to 6.25 TB compressed (with 2.5:1 compression ratio), LTO5: 1.5 TB native; up to 3.0 TB compressed (with 2:1 compression ratio)
Total backup capacity: LTO7: Up to 288 TB native; up to 720 TB compressed (with 2.5:1 compression), LTO6: Up to 120 TB native; up to 300 TB compressed (with 2.5:1 compression), LTO5: Up to 72 TB native; up to 144 TB compressed (with 2:1 compression)
Data transfer rate: LTO7: Up to 1.2 GB/s native; up to 3 GB/s compressed (with 2.5:1 compression), LTO6: Up to 640 MB/s native; up to 1.6 GB/s compressed (with 2.5:1 compression), LTO5: Up to 560 MB/s native; up to 1.12 GB/s compressed (with 2:1 compression)
Security features: Secure Socket Layer (SSL), user level security, LTO encryption (optional)
Management interfaces: Operator panel, 1x 10/100 Mb Ethernet port (UTP, RJ-45) for remote management: Web-based GUI; SNMP and email notifications
Cooling: Fixed internal fans
Power supplies: Up to two redundant non-hot-swap 250 W AC power supplies with IEC 320-C14 power connector (the second power supply is optional)
Hot-swap parts: SAS and Fibre Channel drive sleds
Dimensions: Width: Rack mount 448 mm (17.6 in.), standalone 448 mm (17.6 in.), Depth: Rack mount 740 mm (29.1 in.), standalone 810 mm (31.9 in.), Height: Rack mount 175 mm (6.9 in.), standalone 185 mm (7.3 in.)
Weight: 21.3 kg (47 lb) without rack mount kit
Warranty: 3 years hardware warranty

LENOVO TS3100 TAPE LIBRARY STORAGE

Brand: Lenovo
Form factor: 2U rack mount or stand-alone
Model No: Lenovo TS3100 Tape Library Storage
Drive technology: LTO Ultrium 7, LTO Ultrium 6, and LTO Ultrium 5 Full-High (FH) and Half-High (HH) drives
Drive interface: Ultrium 7, Ultrium 6, and Ultrium 5 FH and HH drives (per one drive): 2x 6 Gb SAS x1 ports (Mini-SAS SFF-8088), 1x 8 Gb FC port (SFP SW optics, LC connector)
Number of drives: Up to 1 FH drive, or up to 2 HH drives
Number of cartridge slots: 24
Cartridge capacity: LTO7: 6 TB native; up to 15 TB compressed (with 2.5:1 compression ratio), LTO6: 2.5 TB native; up to 6.25 TB compressed (with 2.5:1 compression ratio), LTO5: 1.5 TB native; up to 3.0 TB compressed (with 2:1 compression ratio)
Total backup capacity: LTO7: Up to 144 TB native; up to 360 TB compressed (with 2.5:1 compression), LTO6: Up to 60 TB native; up to 150 TB compressed (with 2.5:1 compression), LTO5: Up to 36 TB native; up to 72 TB compressed (with 2:1 compression)
Data transfer rate: Per TS3100 with 2 drives: LTO7: Up to 600 MB/s native; up to 1.5 GB/s compressed (with 2.5:1 compression), LTO6: Up to 320 MB/s native; up to 800 MB/s compressed (with 2.5:1 compression), LTO5: Up to 280 MB/s native; up to 560 MB/s compressed (with 2:1 compression)
Security features: Secure Socket Layer (SSL), user level security, LTO encryption (optional)
Management interfaces: Operator panel, 1x 10/100 Mb Ethernet port (UTP, RJ-45) for remote management: Web-based GUI; SNMP and email notifications
Cooling: Fixed internal fans
Power supplies: One fixed 250 W AC fixed power supply with IEC 320-C14 power connector
Hot-swap parts: SAS and Fibre Channel drive sleds
Dimensions: Width: Rack mount 448 mm (17.6 in.), standalone 448 mm (17.6 in.), Depth: Rack mount 740 mm (29.1 in.), standalone 810 mm (31.9 in.), Height: Rack mount 87 mm (3.4 in.), standalone 98 mm (3.8 in.)
Weight: 15 kg (33 lb) without rack mount kit
Warranty: 3 years hardware warranty

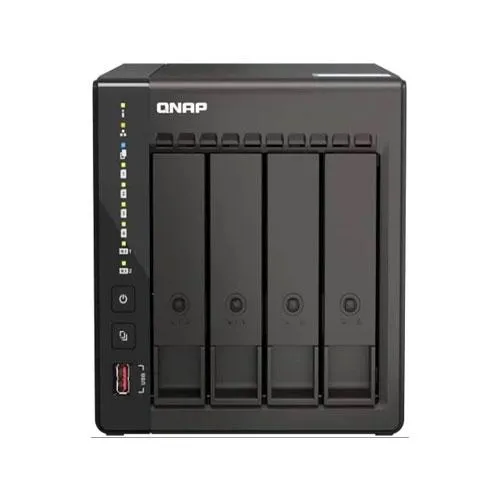

QNAP TS 453E NAS STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-453E NAS Storage
CPU: Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
CPU Architecture: 64-bit x86
Graphic Processors: Intel UHD Graphics
System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory: 16 GB (2 x 8GB)
Memory Solt: 2 x SODIMM DDR4
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 4 x 3.5-inch SATA 6Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x2
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
Gigabit Ethernet Port (RJ45): 1
USB 2.0 port: 2
USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-A
HDMI Output: 2 x HDMI 1.4b ( up to 3840 x 2160 @ 30Hz )
LED Indicators: System Status, LAN, USB, HDD1~2
Buttons: Power, Reset, USB Copy
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode: 28.974 W
Power Consumption: Operating Mode, Typical: 35.79 W
Fan: 1 x 120mm, 12VDC
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
Dimensions (HxWxD): 165 × 160.2 × 220.5 mm
Weight: 3.5 kg
Warranty: 3 years hardware warranty

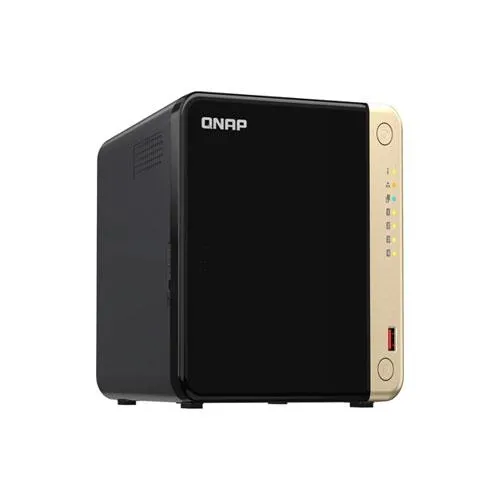

QNAP TS 464 NAS STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-464 NAS Storage
CPU: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture: 64-bit x86
Graphic Processors: Intel UHD Graphics
System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory: 16 GB (2 x 8GB)
Memory Slot: 2 x SODIMM DDR4
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 4x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Gigabit Ethernet Port (RJ45): 1
M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x1
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via PCIe expansion card
10 Gigabit Ethernet Port: Optional via PCIe expansion card
PCIe Slot: 1, Slot 1: PCIe Gen 3 x2
USB 2.0 port: 2
USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-A
HDMI Output: 1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)
LED Indicators: Power/Status, LAN, USB, HDD1-4
Buttons: Power, USB copy, Reset
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode: 21.618 W
Power Consumption: Operating Mode, Typical: 40.536 W
Fan: 1 x 120mm, 12VDC
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
Dimensions (HxWxD): 165 × 170 × 226.5 mm
Weight: 3.59 kg
Warranty: 3 years hardware warranty

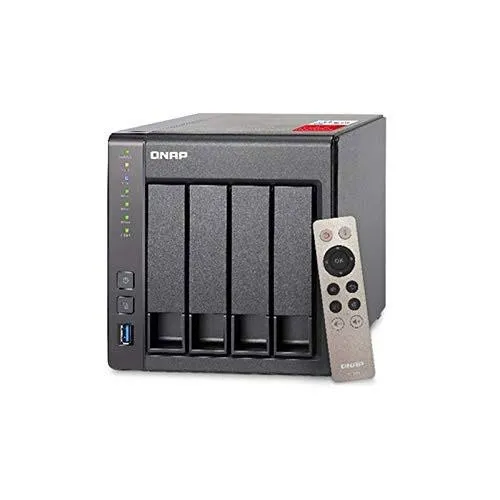

QNAP TS 451 NAS STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-451 NAS Storage
CPU: Intel Celeron 2.41GHz dual-core processor (burst up to 2.58GHz)
DRAM:- TS-451-4G: 4GB DDR3L RAM (2GB x 2), TS-451: 1GB DDR3L RAM, Total memory slots: 2 (expandable up to 8GB)
Flash Memory: 512MB DOM
Hard Disk Drive: 4 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
Hard Disk Tray: 4 x Hot-swappable tray
LAN Port: 2 x Gigabit RJ-45 Ethernet port
LED Indicators: Status, LAN, USB, HDD 1-4
USB: 2 x USB 3.2 Gen 1 port (Front: 1, Rear: 1), 2 x USB 2.0 port (Rear: 2), Support USB printer, pen drive, and USB UPS etc.
HDMI: 1
Buttons: Power/Status, USB One-Touch-Backup, reset
Alarm Buzzer: System warning
IR Receiver:MCE-compatible
Power Consumption (W): HDD standby: 15.85W, S3 sleep: 0.55W, In operation: 31.07W(with 4 x 1TB HDD installed)
Sound Level: Sound pressure (LpAm): 16.9 dB(A)
Temperature: 0-40?C
Humidity: 5~95% RH non-condensing, wet bulb: 27?C
Power Supply: External Power Adapter, 90W, 100-240V
Secure Design: Kensington security slot for theft prevention
Fan: 1 x quiet cooling fan (12 cm, 12V DC)
Dimensions: 169(H) x 160(W) x 219(D) mm
Weight: 4.3 kg (9.48 lbs)
Warranty: 3 years hardware warranty

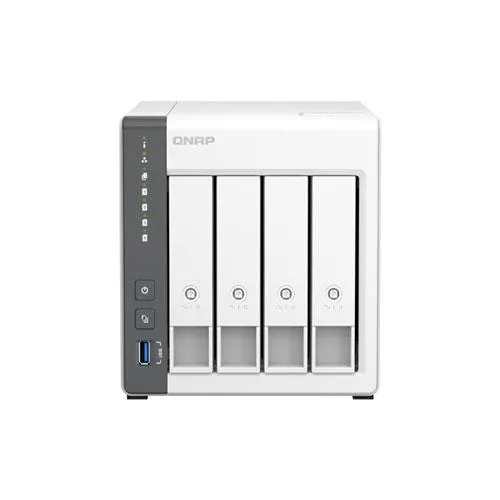

QNAP TS 433 NAS STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-433 NAS Storage
CPU: ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture: 64-bit ARM
Graphic Processors: Mali-G52
System Memory: 4 GB on board (non-expandable)
Maximum Memory: 4 GB on board (non-expandable)
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 4x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Gigabit Ethernet Port (RJ45): 1
USB 2.0 port: 2
USB 3.2 Gen 1 port: 1
LED Indicators: System Status, LAN, USB, HDD1~2
Buttons: Power, Reset, USB Copy
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Minimum 65W adapter (12VDC), 100-240VAC
Power Consumption: HDD Sleep Mode: 8.45 W
Power Consumption: Operating Mode, Typical: 22.54 W
Fan: 1 x 120mm, 12VDC
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 200
Dimensions (HxWxD): 165 × 160.2 × 220.5 mm
Weight: 3.39 kg
Warranty: 2 years hardware warranty

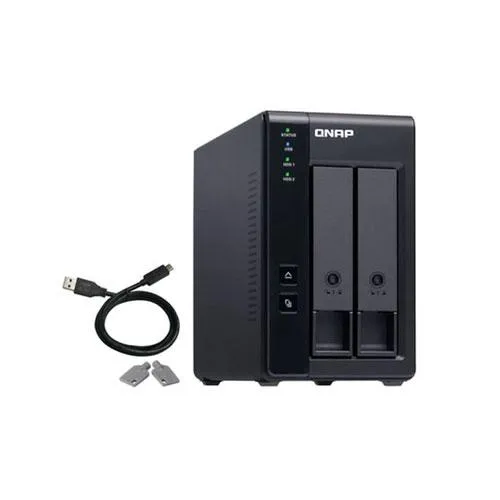

QNAP TR 002 NAS STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TR-002 NAS Storage
JBOD Connection Interface: USB
Main chip: Micro processor with hardware RAID
Drive Bay: 2 x 3.5-inch
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives, 2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives, 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
Hot-swappable: Yes
USB 3.2 Gen 2 (10Gbps) Port: 1 x Type-C USB 3.2 Gen 2 10Gbps
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Minimum 36W adapter (12VDC), 100-240VAC
Power Consumption: HDD Sleep Mode: 2.98 W
Power Consumption: Operating Mode, Typical: 10.15 W
Fan: 1 x 70mm, 12VDC
System Warning: Buzzer
Dimensions (HxWxD): 168.5 × 102 × 219 mm
Weight: 2.25 kg
Warranty: 2 years hardware warranty

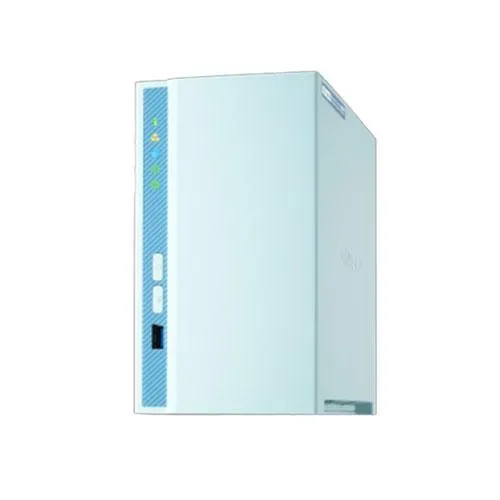

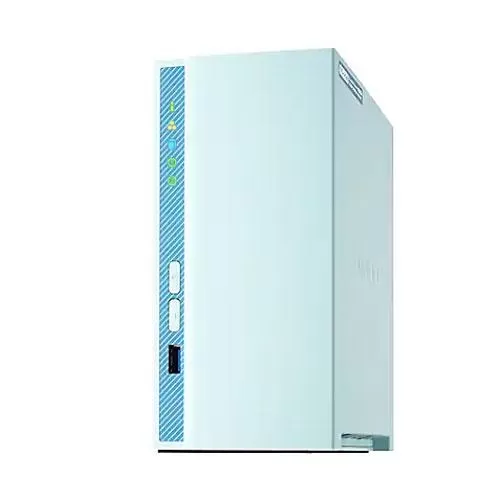

QNAP TS 230 NAS STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-230 NAS Storage
CPU: Realtek RTD1296 4-core 1.4GHz processor
CPU Architecture: 64-bit ARM
Graphic Processors: Mali-G52
System Memory: 2 GB DDR4, not expandable
Maximum Memory: 2 GB DDR4, not expandable
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Gigabit Ethernet Port (RJ45): 1
USB 2.0 port: 2
USB 3.2 Gen 1 port: 1
LED Indicators: System Status, LAN, USB, HDD1~2
Buttons: Power, Reset, USB Copy
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 65W Adapter, AC 100-240V
Power Consumption: HDD Sleep Mode: 4.48 W
Power Consumption: Operating Mode, Typical: 12.277 W
Fan: 1 x 80mm, 12VDC
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 200
Dimensions (HxWxD): 188.64 × 90.18 × 156.26 mm
Weight: 2.01 kg
Warranty: 2 years hardware warranty

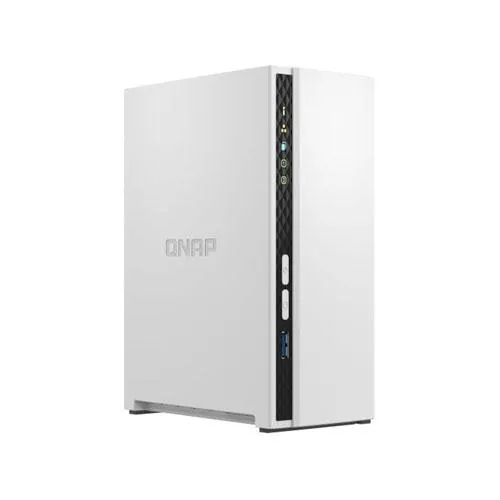

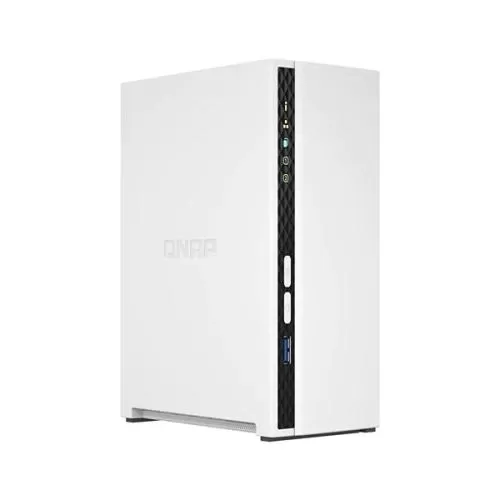

QNAP TS 233 NAS STORAGE

Brand: Qnap
Form Factor: Tower
Model No: Qnap TS-233 NAS Storage
CPU: ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture: 64-bit ARM
Graphic Processors: Mali-G52
System Memory: 2 GB on board (non-expandable)
Maximum Memory: 2 GB on board (non-expandable)
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Gigabit Ethernet Port (RJ45): 1
USB 2.0 port: 2
USB 3.2 Gen 1 port: 1
LED Indicators: System Status, LAN, USB, HDD1~2
Buttons: Power, Reset, USB Copy
Operating Temperature: 0 - 40 °C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Minimum 48W adapter (12VDC), 100-240VAC
Power Consumption: HDD Sleep Mode: 3.43 W
Power Consumption: Operating Mode, Typical: 10.81 W
Fan: 1 x 80mm, 12VDC
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 200
Dimensions (HxWxD): 186 × 91.7 × 157.6 mm
Weight: 1.89 kg
Warranty: 2 years hardware warranty

STARDOM ITANK I310B31 PLUS SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: i310-B31+
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps ),Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A) Power Delivery. DP 1.1a Mini DisplayPort x 1
Compatible Drive: 3.5/2.5 SATA III HDD/SSD ( up to 6 Gbps )
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 131 mm; Width : 50 mm ;Depth : 224 mm
Package Accessories: i310-B31+ x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: AC Power Adapter
Package Accessories: Power Cable
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM ITANK I310B31 SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: i310-B31
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 1 x 3.5/2.5 SATA III HDD/SSD
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 131 mm; Width : 50 mm ;Depth : 224 mm
Package Accessories: i310-B31 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1(with E-Mark)
Package Accessories: AC Power Adapter
Package Accessories: Power Cable
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM ITANK I310BA31 SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: i310-BA31
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 1 x 3.5/2.5 SATA III HDD/SSD
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 131 mm; Width : 50 mm ;Depth : 224 mm
Package Accessories: i310-BA31 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: AC Power Adapter
Package Accessories: Power Cable
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM ITANK I310B31A SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: i310B31A
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 1 x 3.5/2.5 SATA III HDD/SSD
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 131 mm; Width : 50 mm ;Depth : 224 mm
Package Accessories: i310-B31A x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: AC Power Adapter
Package Accessories: Power Cable
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM GT1670B31 SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GT1670-B31
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 3.5/2.5 SATA III HDD/SSD ( up to 6 Gbps )
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 131 mm; Width : 50 mm ;Depth : 224 mm
Package Accessories: GT1670-B31 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: AC Power Adapter
Package Accessories: Power Cable
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM GT1670B31A SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GT1670-B31A
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 3.5/2.5 SATA III HDD/SSD ( up to 6 Gbps )
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 26.95mm, Width : 90 mm Depth : 154.6 mm
Package Accessories: GT1670-B31A x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: AC Power Adapter
Package Accessories: Power Cable
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM GT1670BA31 SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GT1670-BA31
Interfaces: 3.5/2.5 SATA III HDD/SSD ( up to 6 Gbps )
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 26.95mm Width : 90 mm Depth : 154.6 mm
Package Accessories: GT1670-BA31 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: AC Power Adapter
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM ITANK MT1B31BP SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: MT1-B31BP (Red/Black)
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 1 x 2.5 SATA III HDD/SSD ( up to 6 Gbps ) (9.5mm)
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 26.95mm Width : 90 mm Depth : 154.6 mm
Package Accessories: MT1-B31BP x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM ITANK MT1-BA31BP SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: MT1-BA31BP (Red/Black)
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 1 x 2.5 SATA III HDD/SSD ( up to 6 Gbps ) (9.5mm)
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 26.95mm Width : 90 mm Depth : 154.6 mm
Package Accessories: MT1-BA31BP x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM ITANK ZT1B31BP SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZT1-B31BP (Red/Black/Sliver)
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 1 x M.2 SATA SSD (2242/2260/2280)
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 26.95mm Width : 90 mm Depth : 154.6 mm
Package Accessories: ZT1-BA31BP x 1
Package Accessories: USB4 (Type-C to Type-C) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM ITANK ZT1BA31BP SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZT1-BA31BP (Red/Black/Sliver)
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 1 x M.2 SATA SSD (2242/2260/2280)
Certification: CE/FCC
Storage System Mode: JBOD - Independent Mode
Operating System Support: Windows 7 or above, OS X 10.10 or above, Linux, Android
Dimension: Height : 26.95mm Width : 90 mm Depth : 154.6 mm
Package Accessories: ZT1-BA31BP x 1
Package Accessories: USB4 (Type-C to Type-C) Cable x 1
Package Accessories: USB3 (Type-C to Type-A) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM UBOXB4BP SINGLEBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No:UBOX-B4BP
Interfaces:1 x USB4 (up to 40Gbps) USB-C
Compatible Drives:1 x M / B + M key M.2 PCIe NVMe SSD (2260/2280)
Storage System Mode: JBOD - Independent Mode
Operating System: Windows 7 or above, macOS 10.x or above, Linux OS
Dimension: 69.85(W)x 15(H) x 108.08(L) mm
Package Accessories: UBOX-B4BP x 1
Package Accessories: USB4 (Type-C to Type-C) Cable x 1
Package Accessories: USB3 (Type-C to Type-A) Cable x 1

STARDOM SOHORAID SR2B31 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR2-B31 (Silver) / SR2-B31-B (Black)
Interfaces: USB 3.2 Gen 2 ( up to 6 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 2 x 2.5/3.5 SATA III ( 6.0 Gbits) HDD/SSD
Storage System Mode: RAID 1 / RAID 0
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 6 cm Low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205mm
Package Accessories: SR2-B31 x 1 (with removable drive tray enclosed x 2)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID SR2B31A DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR2-B31A (Silver) / SR2-B31A-B (Black)
Interfaces: USB 3.2 Gen 2 ( up to 6 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 2 x 2.5/3.5 SATA III ( 6.0 Gbits) HDD/SSD
Storage System Mode: RAID 1 / RAID 0
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 6 cm Low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205mm
Package Accessories: SR2-BA31 x 1 (with removable drive tray enclosed x 2)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID SR2BA31 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR2-BA31 (Silver) / SR2-BA31-B (Black)
Interfaces: USB 3.2 Gen 2 ( up to 6 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 2 x 2.5/3.5 SATA III ( 6.0 Gbits) HDD/SSD
Storage System Mode: RAID 1 / RAID 0
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 6 cm Low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205mm
Package Accessories: SR2-BA31 x 1 (with removable drive tray enclosed x 2)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID ST2B31 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ST2-B31 (Silver) / ST2-B31-B (Black)
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 2 x 3.5/2.5 SATA III HDD/SSD
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 4 cm Low noise fan
Dimensions(H X W X D): 120mm X 64mm X 222 mm
Package Accessories: ST2-B31 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1(USB-IF Certified)
Package Accessories: AC to DC Power Adapter x 1
Package Accessories: Power Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

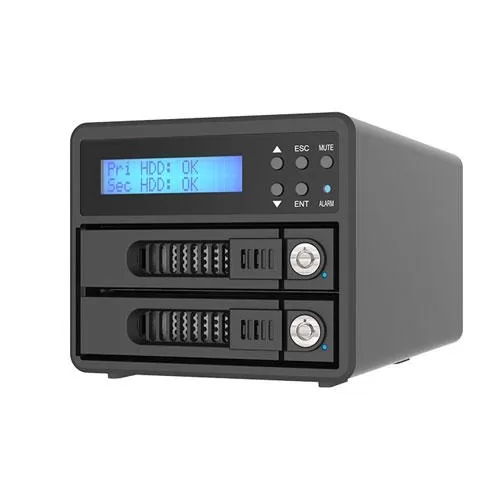

STARDOM SOHORAID ST2BA31 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ST2-BA31 (Silver) / ST2-BA31-B (Black)
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 2 x 3.5/2.5 SATA III HDD/SSD
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 4 cm Low noise fan
Dimensions(H X W X D): 120mm X 64mm X 222 mm
Package Accessories: ST2-B31A x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: AC to DC Power Adapter x 1
Package Accessories: Power Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

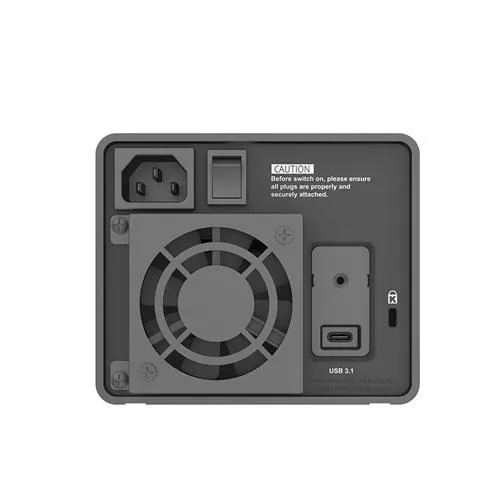

STARDOM SOHORAID ST2B31A DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ST2-B31A (Silver) / ST2-B31A-B (Black)
Interfaces: USB 3.2 Gen 2 ( up to 10 Gbps )
Compatible Drive: 2 x 3.5/2.5 SATA III HDD/SSD
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 4 cm Low noise fan
Dimensions(H X W X D): 120mm X 64mm X 222 mm
Package Accessories: ST2-B31A x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: AC to DC Power Adapter x 1
Package Accessories: Power Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM GR3680BA31 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GR3680-BA31
Interfaces: USB 3.2 Gen 2 ( up to 6 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 2 x 2.5/3.5 SATA III ( 6.0 Gbits) HDD/SSD
Storage System Mode: RAID 1 / RAID 0
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 6 cm Low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: GR3680-BA31 x 1 (with removable drive tray enclosed x 2)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

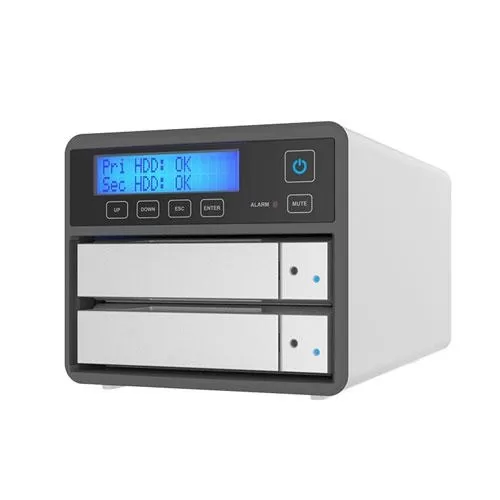

STARDOM GR3680B31A DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GR3680-B31A
Interfaces: USB 3.2 Gen 2 ( up to 6 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 2 x 2.5/3.5 SATA III ( 6.0 Gbits) HDD/SSD
Storage System Mode: RAID 1 / RAID 0
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 6 cm Low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: GR3680-B31A x 1 (with removable drive tray enclosed x 2)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM GR3680B31 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GR3680-B31
Interfaces: USB 3.2 Gen 2 ( up to 6 Gbps ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 2 x 2.5/3.5 SATA III ( 6.0 Gbits) HDD/SSD
Storage System Mode: RAID 1 / RAID 0
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 6 cm Low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: GR3680-B31 x 1 (with removable drive tray enclosed x 2)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

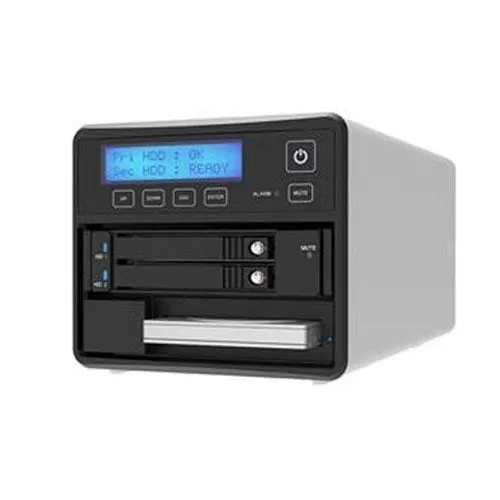

STARDOM SOHORAID MR2B31 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: MR2-B31
Interfaces: USB 3.2 Gen 2 Type-C ( up to 10 Gbps )
Compatible Drive: 2 x 2.5 SATA III HDD/SSD ( up to 6 Gbps ) (9.5mm)
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: MR2-B31 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: AC Power Adapter , Power Cable ,Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID MR2B31BP DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: MR2-B31BP
Interfaces: USB 3.2 Gen 2 Type-C ( up to 10 Gbps )
Compatible Drive: 2 x 2.5 SATA III HDD/SSD ( up to 6 Gbps ) (9.5mm)
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: MR2-B31BP x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID MR2BA31BP DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: MR2-BA31BP
Interfaces: USB 3.2 Gen 2 Type-C ( up to 10 Gbps )
Compatible Drive: 2 x 2.5 SATA III HDD/SSD ( up to 6 Gbps ) (9.5mm)
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: MR2-BA31BP x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID ZR2B31BP DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR2-B31BP
Interfaces: USB 3.2 Gen 2 Type-C ( up to 10 Gbps )
Compatible Drive: 2 x M.2 SATA SSD (2242/2260/2280)
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: ZR2-B31BP x 1 (with removable 2 x M.2 SATA Converter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID ZR2B31 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR2-B31
Interfaces: USB 3.2 Gen 2 Type-C ( up to 10 Gbps )
Compatible Drive: 2 x M.2 SATA SSD (2242/2260/2280)
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: ZR2-B31 x 1 (with removable 2 x M.2 SATA Converter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID ZR2BA31BP DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR2-BA31BP
Interfaces: USB 3.2 Gen 2 Type-C ( up to 10 Gbps )
Compatible Drive: 2 x M.2 SATA SSD (2242/2260/2280)
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: ZR2-B31BP x 1 (with removable 2 x M.2 SATA Converter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHOTANK U2FB32 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: U2F-B32
Interfaces: USB 3.2 Gen 2x1 Type-C ( 10 Gbp ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 2 x CFexpress Type B CFexpress Adapter support SFF-8639 connector
Storage System Mode: JBOD - Independent Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: U2F-B32 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHOTANK US2B32 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: US2-B32
Interfaces: USB 3.2 Gen 2x2 Type-C ( 20 Gbp ) Compatible with all USB 3.2 Gen 1,2/USB 2.0 specifications
Compatible Drive: 2 x M.2 NVMe SSDs Support SFF-8639 connector
Storage System Mode: JBOD - Independent Mode
OS Support: Windows 7 or above, OS X 10.10 or above
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: US2-B32 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM MOBILE RACK SERIES IR2774C DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: UR2-B32
Interfaces: SATA III (6 Gbps) & USB 3.2 Gen 1 Type-C (5 Gbps)
Compatible Drive: 2 × 2.5 SATA III 6.0Gb/s HDD/SSD (9.5mm)
Storage System Mode: RAID 1/0/JBOD/SPAN(BIG)
OS Support: Windows, Linux, Mac
Operating temperature: 32° to 104° F (0° to 40° C)
Storage System temperature: -4° to 116° F (-20° to 47° C)
Dimensions(H X W X D): 102mm X 26mm X 147mm
Package Accessories: Quick Installation Guide, Accessory Kit

STARDOM UR2B32 DUALBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: UR2-B32
Interfaces: USB 3.2 Gen 2x2 Type-C ( up to 20 Gbps )
Compatible Drive: 2 x M.2 NVMe SSD (2242/2260/2280)
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above, Linux
Cooling System: 3 cm Low noise fan
Dimensions(H X W X D): 41mm X 97mm X 165.3mm
Package Accessories: UR2-B32 x 1 (with removable 2 x UBOX mini)
Package Accessories: USB 3.2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 (Type-C to Type-A) Cable x 1
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide

STARDOM SOHORAID ST4U6B MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ST4-U6-B
Interfaces: 12 Gbps SFF-8644 miniSAS Port
Compatible Drive: 4 x 3.5 / 2.5 SAS( up to 12 Gbps) /SATA HDD/SSD ( up to 6 Gbps )
Storage System Mode: JBOD
OS Support: Windows, Mac ,Linux
Cooling System: 8cm Low noise fan x 1
Dimensions(H X W X D): 166mm X 124 mm X 265 mm
Package Accessories: ST4-U6 x 1 ( with removable drive tray enclosed x 4 )
Package Accessories: SFF-8644 miniSAS cable x1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHOTANK ST8U6B MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ST8-U6-B
Interfaces: 12 Gbps SFF-8644 miniSAS Port *2
Compatible Drive: 8 x 3.5 / 2.5 SAS( up to 12 Gbps) /SATA HDD/SSD ( up to 6 Gbps )
Storage System Mode: JBOD
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 8cm Low noise fan x 2
Dimensions(H X W X D): 296mm X 140 mm X 282 mm
Package Accessories: ST8-U6 x 1 ( with removable drive tray enclosed x 8 )
Package Accessories: SFF-8644 miniSAS cable x2
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR4BA31 PLUS MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR4-BA31+
Interfaces: USB 3.2 Type-C x1 ( up to 3Gbps ),Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A) Power Delivery. DP 1.1a DisplayPort x1 Touch button function
Compatible Drive: 4 x 3.5/2.5 SATA III HDD/SSD ( up to 6 Gbps )
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: SR4-BA31+ x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR4B31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR4-B31
Interfaces: USB 3.2 Type-C x1 ( up to 3Gbps ),Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A) Power Delivery. DP 1.1a DisplayPort x1 Touch button function
Compatible Drive: 4 x 3.5/2.5 SATA III HDD/SSD ( up to 6 Gbps )
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 8cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: SR4-B31 x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR4B31A MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR4-B31A
Interfaces: USB 3.2 Type-C x1 ( up to 3Gbps ),Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A) Power Delivery. DP 1.1a DisplayPort x1 Touch button function
Compatible Drive: 4 x 3.5/2.5 SATA III HDD/SSD ( up to 6 Gbps )
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 8cm low noise fan
Dimensions(H X W X D): 166mm X 124mm X 210 mm
Package Accessories: SR4-B31A x 1
Package Accessories: USB 3.2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SAFETANK GR5640BA31 PLUS MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GR5640-BA31+
Interfaces: USB 3.2 Type-C x1, Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A) Power Delivery.DP 1.1a DisplayPort x1
Compatible Drive: 4 x 3.5/2.5 SATA III HDD/SSD
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 8cm low noise fan
Dimensions(H X W X D): 166mm X 124mm X 210 mm
Package Accessories: GR5640-BA31+ x 1
Package Accessories: USB 3.2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SAFETANK GR5640B31A MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GR5640-B31A
Interfaces: USB 3.2 Type-C x1, Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A) Power Delivery.DP 1.1a DisplayPort x1
Compatible Drive: 4 x 3.5/2.5 SATA III HDD/SSD
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 8cm low noise fan
Dimensions(H X W X D): 166mm X 124mm X 210 mm
Package Accessories: GR5640-B31A x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SAFETANK GR5640B31 PLUS MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GR5640-B31+
Interfaces: USB 3.2 Type-C x1, Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A) Power Delivery.DP 1.1a DisplayPort x1
Compatible Drive: 4 x 3.5/2.5 SATA III HDD/SSD
Storage System Mode: JBOD - Independent Mode; RAID 0 - Speed Mode; RAID 5 - Safe Mode
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 8cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: GR5640-B31+ x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR3MSB31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR3MS-B31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x 2.5 SATA HDD/SSD Tray >> For 2 x 2.5 SATA HDD/SSD ; 2.5 drive tray adapter >> For 1 x 2.5 SATA HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: SR3MS-B31 x 1 (with removable 2 x 2.5 SATA HDD/SSD Tray + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR3MSB31A MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR3MS-B31A
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: Support 3 x 2.5 SATA HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: SR3MS-B31A x 1 (with removable 2 x 2.5 SATA HDD/SSD Tray + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR3MSBA31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR3MS-BA31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: Support 3 x 2.5 SATA HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: SR3MS-BA31 x 1 (with removable 2 x M.2 SATA Converter + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHOTANK ST4B31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ST4-B31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 4 x 3.5/2.5 SATA III HDD/SSD
Storage System Mode: JBOD
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 8cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: ZR3MS-B31 x 1 (with removable 2 x M.2 SATA Converter + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR3MSBB31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR3MSB-B31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x 2.5 HDD/SSD Tray >> For 2 x 2.5 HDD/SSD ; 2.5/3.5 HDD/SSD Tray >> For 1 x 2.5/3.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: SR3MSB-B31 x 1 (with removable 2 x 2.5 HDD/SSD Tray + 1 x 2.5/3.5 HDD/SSD Tray)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR3MSBB31A MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR3MSB-B31A
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x 2.5 HDD/SSD Tray >> For 2 x 2.5 HDD/SSD ; 2.5/3.5 HDD/SSD Tray >> For 1 x 2.5/3.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: SR3MSB-B31A x 1 (with removable 2 x M.2 SATA Converter + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID SR3MSBBA31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: SR3MSB-BA31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x 2.5 HDD/SSD Tray >> For 2 x 2.5 HDD/SSD ; 2.5/3.5 HDD/SSD Tray >> For 1 x 2.5/3.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: SR3MSB-BA31 x 1 (with removable 2 x M.2 SATA Converter + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID ZR3MSB31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR3MS-B31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x M.2 SATA Converter >> For 2 x M.2 SATA SSD (2242/2260/2280) ; 2.5 drive tray adapter >> For 1 x 2.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: ZR3MS-B31 x 1 (with removable 2 x M.2 SATA Converter + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID ZR3MSBA31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR3MS-BA31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x M.2 SATA Converter >> For 2 x M.2 SATA SSD (2242/2260/2280) ; 2.5 drive tray adapter >> For 1 x 2.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: ZR3MS-BA31 x 1 (with removable 2 x M.2 SATA Converter + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID ZR3MSB31A MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR3MS-B31A
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x M.2 SATA Converter >> For 2 x M.2 SATA SSD (2242/2260/2280) ; 2.5 drive tray adapter >> For 1 x 2.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: ZR3MS-B31A x 1 (with removable 2 x M.2 SATA Converter + 1 x 2.5 Drive Tray Adapter)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID ZR3MSBBA31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR3MSBBA31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x M.2 SATA Converter >> For 2 x M.2 SATA SSD ; 2.5/3.5 HDD/SSD Tray >> For 1 x 2.5/3.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: ZR3MSB-BA31 x 1 (with removable 2 M.2 SATA Converter Tray + 1 x 2.5/3.5 HDD/SSD Tray)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-C) Cable x 1
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID ZR3MSBB31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR3MSBB31
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x M.2 SATA Converter >> For 2 x M.2 SATA SSD ; 2.5/3.5 HDD/SSD Tray >> For 1 x 2.5/3.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: ZR3MSB-B31 x 1 (with removable 2 M.2 SATA Converter Tray + 1 x 2.5/3.5 HDD/SSD Tray)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHORAID ZR3MSBB31A MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ZR3MSB-B31A
Interfaces: USB 3.2 Type-C (up to 6Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 2 x M.2 SATA Converter >> For 2 x M.2 SATA SSD; 2.5/3.5 HDD/SSD Tray >> For 1 x 2.5/3.5 HDD/SSD
Storage System Mode: RAID 1 / RAID 0 / Backup on demand GUI software only supports Windows system.
OS Support: Windows 7 or above, OS X 10.10 or above, Linux OS
Cooling System: 6cm low noise fan
Dimensions(H X W X D): 122mm X 102mm X 205 mm
Package Accessories: ZR3MSB-B31A x 1 (with removable 2 M.2 SATA Converter Tray + 1 x 2.5/3.5 HDD/SSD Tray)
Package Accessories: USB 3.2 Gen 2 (Type-C to Type-A) Cable x 1
Package Accessories: Power Cord
Package Accessories: Accessory Kit
Package Accessories: Quick Installation Guide x1

STARDOM SOHOTANK ST4FB32 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: ST4FB32
Interfaces: USB 3.2 Type-C (up to 10Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 spec
Compatible Drive: 3×2.5/3.5 SATA III HDDs/SSDs
Storage System Mode: JBOD
OS Support: Windows 7 or above, OS X 10.10 or above, Linux
Cooling System: 8cm low noise fan
Dimensions(H X W X D): 124mm X 166mm X 210 mm
Package Accessories: ST4FB32 x 1 (with removable 3 x 3.5"-2.5" HDD/SSD Tray + 1 x CFexpress Type B Tray)
Package Accessories: USB 3.2 Type-C to Type-C Cable
Package Accessories: Power cord
Package Accessories: Quick installation guide
Package Accessories: Accessory kit

STARDOM RAIDON GT5640B31 MULTIBAYS STORAGE SYSTEM

Brand: STARDOM Storage System
Model No: GT5640B31
Interfaces: USB 3.2 Type-C (up to 10Gbps), compatible with all USB 3.2 Gen 1, 2 / USB 2.0 specs
Compatible Drive: 4×3.5/2.5 SATA III HDDs/SSDs
Storage System Mode: JBOD
OS Support: Windows 7 or above, OS X 10.10 or above, Linux
Cooling System: 8cm low noise fan
Dimensions(H X W X D): 166mm X 124mm X 210 mm
Package Accessories: GT5640-B31 x 1 (with removable 4×2.5?-3.5? HDD/SSD tray)
Package Accessories: USB 3.2 Type-C to Type-C Cable
Package Accessories: Power cord
Package Accessories: Quick installation guide
Package Accessories: Accessory kit

QNAP TVS H1688X W1250 32G NAS STORAGE

Brand: Qnap
Form Factor: Tower
CPU: Intel Xeon W-1250 6-core/12-thread processor, up to 4.7 GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: Intel UHD Graphics P630
System Memory: 32GB ECC UDIMM DDR4 (2 x 16 GB)
Maximum Memory: 128 GB (4 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives; 2.5-inch bays: 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset, USB Auto Copy
Dimensions (HxWxD): 294.3 × 369.89 × 319.8 mm
Weight (Net): 14.49 kg
Weight (Gross): 15.89 kg
System Warning: Buzzer
Standard Warranty: 3 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP TS H1887XU RP E2336 32G NAS STORAGE

Brand: Qnap
Form Factor: 2U Rackmount
CPU: Intel Xeon E-2336 6C 12T 2.9GHz, up to 4.8GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: Optional via a PCIe adapter
System Memory: 32 GB ECC DDR4 (1 x 32 GB)
Maximum Memory: 128GB (4 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 18 (12 x 3.5-inch SATA + 6 x 2.5-inch SATA)
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Dimensions (HxWxD): 88.6 × 432 × 511.2 mm
Weight (Net): 14.87 kg
Weight (Gross): 19 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 11000

QNAP TS H1887XU RP E2334 16G NAS STORAGE

Brand: Qnap
Form Factor: 2U Rackmount
CPU: Intel Xeon E-2334 4C 8T 3.4GHz, up to 4.8GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: Optional via a PCIe adapter
System Memory: 16 GB ECC DDR4 (1 x 16 GB)
Maximum Memory: 128GB (4 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 18 (12 x 3.5-inch SATA + 6 x 2.5-inch SATA)
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 88.6 × 432 × 511.2 mm
Weight (Net): 14.87 kg
Weight (Gross): 19 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory:11000

QNAP TS H2287XU RP E2378 64G NAS STORAGE

Brand: Qnap
Form Factor: 3U Rackmount
CPU: Intel Xeon E-2378 8C 16T 2.6GHz, up to 4.8GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: Optional via a PCIe adapter
System Memory: 64 GB ECC DDR4 (2 x 32 GB)
Maximum Memory: 128GB (4 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 22 (16 x 3.5-inch SATA + 6 x 2.5-inch SATA)
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 131.3 × 432 × 511.5 mm
Weight (Net): 17.47 kg
Weight (Gross): 21.84 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 11000

QNAP TS H2287XU RP E2336 32G NAS STORAGE

Brand: Qnap
Form Factor: 3U Rackmount
CPU: Intel Xeon E-2336 6C 12T 2.9GHz, up to 4.8GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: Optional via a PCIe adapter
System Memory: 32 GB ECC DDR4 (1 x 32 GB)
Maximum Memory: 128GB (4 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 22 (16 x 3.5-inch SATA + 6 x 2.5-inch SATA)
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 131.3 × 432 × 511.5 mm
Weight (Net): 17.47 kg
Weight (Gross): 21.84 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 11000

QNAP TS H3087XU RP E2378 64G NAS STORAGE

Brand: Qnap
Form Factor: 4U Rackmount
CPU: Intel Xeon E-2378 8C 16T 2.6GHz, up to 4.8GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: Optional via a PCIe adapter
System Memory: 64 GB ECC DDR4 (2 x 32 GB)
Maximum Memory: 128GB (4 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 30 (24 x 3.5-inch SATA + 6 x 2.5-inch SATA)
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 176.2 × 441.6 × 630.2 mm
Weight (Net): 23.79 kg
Weight (Gross): 29.13 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 11000

QNAP TS H3077AFU R5 32G NAS STORAGE

Brand: Qnap
Form Factor: 2U Rackmount
CPU: AMD Ryzen 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: None
System Memory: 32 GB UDIMM DDR5 (1x 32 GB)
Maximum Memory: 128 GB (4 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 30 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
Weight (Net): 12.73 kg
Weight (Gross): 18.69 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP TS H3077AFU R7 64G NAS STORAGE

Brand: Qnap
Form Factor: 2U Rackmount
CPU: AMD Ryzen 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: None
System Memory: 64 GB UDIMM DDR5 (2x 32 GB)
Maximum Memory: 128 GB (4 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 30 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
Weight (Net): 12.73 kg
Weight (Gross): 18.69 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 5000

QNAP TS H1090FU 7232P 64G NAS STORAGE

Brand: Qnap
Form Factor: Rackmount
CPU: AMD EPYC 7232P/7252 8-core/16-thread processor, up to 3.2 GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: None
System Memory: 64 GB RDIMM DDR4 ECC (8 x 8 GB)
Maximum Memory: 1 TB+ (12 x 128 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
Drive Compatibility: 2.5-inch U.2 NVMe Gen 4 x4 solid state drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 44 × 430 × 582 mm
Weight (Net): 11.6 kg
Weight (Gross): 13.4 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP TS H1090FU 7302P 256G NAS STORAGE

Brand: Qnap
Form Factor: Rackmount
CPU: AMD EPYC 7302P 16-core/32-thread processor, up to 3.3 GHz
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: None
System Memory: 256 GB RDIMM DDR4 ECC (8 x 32 GB)
Maximum Memory: 1 TB+ (12 x 128 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
Drive Compatibility: 2.5-inch U.2 NVMe Gen 4 x4 solid state drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 44 × 430 × 582 mm
Weight (Net): 11.6 kg
Weight (Gross): 13.4 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP ES1686DC 2123IT 64G NAS STORAGE

Brand: Qnap
Form Factor: 3U Rackmount
CPU: Intel Xeon D-2123IT 4-core 2.20 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: None
System Memory: 32 GB RDIMM DDR4 ECC (4x 8 GB) per controller
Maximum Memory: 512 GB (8 x 64GB)
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 16 x 3.5-inch
Drive Compatibility: 3.5-inch bays: 3.5-inch SAS/SATA hard disk drives ,2.5-inch SAS/SATA hard disk drives, 2.5-inch SAS/SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 132 × 446.2 × 587.75 mm
Weight (Net): 30.22 kg
Weight (Gross): 34.92 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP ES1686DC 2142IT 96G NAS STORAGE

Brand: Qnap
Form Factor: 3U Rackmount
CPU: Intel Xeon D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: None
System Memory: 48 GB RDIMM DDR4 ECC (4 x 4 GB+4 x 8GB) per controller
Maximum Memory: 512 GB (8 x 64GB)
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 16 x 3.5-inch
Drive Compatibility: 3.5-inch bays: 3.5-inch SAS/SATA hard disk drives ,2.5-inch SAS/SATA hard disk drives, 2.5-inch SAS/SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 132 × 446.2 × 587.75 mm
Weight (Net): 30.22 kg
Weight (Gross): 34.92 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP ES1686DC 2142IT 128G NAS STORAGE

Brand: Qnap
Form Factor: 3U Rackmount
CPU: Intel Xeon D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3
Graphic Processors: None
System Memory: 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
Maximum Memory: 512 GB (8 x 64GB)
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 16 x 3.5-inch
Drive Compatibility: 3.5-inch bays: 3.5-inch SAS/SATA hard disk drives, 2.5-inch SAS/SATA hard disk drives, 2.5-inch SAS/SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset
Dimensions (HxWxD): 132 × 446.2 × 587.75 mm
Weight (Net): 30.22 kg
Weight (Gross): 34.92 kg
System Warning: Buzzer
Standard Warranty: 5 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP TVS 872XT I5 16G NAS STORAGE

Brand: Qnap
Form Factor: Tower
CPU: Intel Core i5 Processor
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3 / QuTS hero h5.1.3
Graphic Processors: Intel UHD Graphics 630
System Memory: 16 GB SODIMM DDR4 (2 x 8 GB)
Maximum Memory: 64 GB ( 2 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset, USB Copy
Dimensions (HxWxD): 180.2 × 329.3 × 279.6 mm
Weight (Net): 9.14 kg
Weight (Gross): 9.14 kg
System Warning: Buzzer
Standard Warranty: 2 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 3500

QNAP TVS 872XT I7 16G LEGACY NAS STORAGE

Brand: Qnap
Form Factor: Tower
CPU: Intel Core i7 Processor
CPU Architecture: 64-bit x86
Operating System: QTS 5.1.3 / QuTS hero h5.1.3
Graphic Processors: Intel UHD Graphics 630
System Memory: 16 GB SODIMM DDR4 (2 x 8 GB)
Maximum Memory: 64 GB ( 2 x 32 GB)
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Buttons: Power, Reset, USB Copy
Dimensions (HxWxD): 180.2 × 329.3 × 279.6 mm
Weight (Net): 9.14 kg
Weight (Gross): 9.14 kg
System Warning: Buzzer
Standard Warranty: 2 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 3500

QNAP TVS 872XT I3 8G NAS STORAGE

Brand: Qnap

Form Factor: Tower

CPU: Intel Core i3 Processor

CPU Architecture: 64-bit x86

Operating System: QTS 5.1.3 / QuTS hero h5.1.3

Graphic Processors: Intel UHD Graphics 630

System Memory: 8 GB SODIMM DDR4 (1 x 8 GB)

Maximum Memory: 64 GB ( 2 x 32 GB)

Flash Memory: 5GB (Dual boot OS protection)

Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives

Hot-swappable: Yes

Buttons: Power, Reset, USB Copy

Dimensions (HxWxD): 180.2 × 329.3 × 279.6 mm

Weight (Net): 9.14 kg

Weight (Gross): 9.14 kg

System Warning: Buzzer

Standard Warranty: 2 Years

Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 3500

QNAP TS H886 D1602 8GB NAS STORAGE

Brand: Qnap
Form Factor: Tower
CPU: Intel Xeon D-1602 2-core/4-thread processor, up to 3.2 GHz
CPU Architecture: 64-bit x86
System Memory: 8GB UDIMM DDR4 ECC (2x4GB)
Maximum Memory: 128GB (4x32GB)
Memory Slot: 4 x UDIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch bays: 2.5-inch SATA solid state drives
Hot-swappable: Yes
M.2 Slot: 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 4 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via an adapter
25 Gigabit Ethernet Port: Optional via an adapter
Buttons: Power, Reset, USB Auto Copy
Dimensions (HxWxD): 231.9 × 292.9 × 319.8 mm
Weight (Net): 8.5 kg
Weight (Gross): 10.11 kg
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP TS H886 D1622 16GB NAS STORAGE

Brand: Qnap
Form Factor: Tower
CPU: Intel Xeon D-1622 4-core/8-thread processor, up to 3.2 GHz
CPU Architecture: 64-bit x86
System Memory: 16 GB UDIMM DDR4 ECC (2 x 8 GB)
Maximum Memory: 128 GB (4 x 32 GB)
Memory Slot: 4 x UDIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch bays: 2.5-inch SATA solid state drives
Hot-swappable: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 4 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via an adapter
25 Gigabit Ethernet Port: Optional via an adapter
Buttons: Power, Reset, USB Auto Copy
Dimensions (HxWxD): 231.9 × 292.9 × 319.8 mm
Weight (Net): 8.5 kg
Weight (Gross): 10.11 kg
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP TS H1886XU RP R2 D1622 32GB NAS STORAGE

Brand: Qnap
Form Factor: Rackmount
CPU: Intel Xeon D-1622 4-core processor, burst up to 3.2 GHz
CPU Architecture: 64-bit x86
System Memory: 32 GB UDIMM DDR4 ECC (2 x 16GB)
Maximum Memory: 128 GB (4 x 32 GB)
Memory Slot: 4 x UDIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s, Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch bays: 2.5-inch SATA solid state drives
Hot-swappable: Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M): 4 (2.5G/1G/100M)
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
Buttons: Power, Reset
Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
Weight (Net): 12.73 kg
Weight (Gross): 18.69 kg
System Warning: Buzzer
Standard Warranty: 3 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 10000

QNAP TS 873 8GB NAS STORAGE

Brand: Qnap

Form Factor: Tower

CPU: AMD R-Series RX-421ND 4-core 2.1 GHz processor (Turbo Core to 3.4 GHz)

CPU Architecture: 64-bit x86

System Memory: 8 GB SODIMM DDR4 (2 x 4 GB)

Maximum Memory: 64 GB (4 x 16 GB)

Memory Slot: 4 x SODIMM DDR4

Flash Memory: 512 MB (Dual boot OS protection)

Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives

Hot-swappable: Yes

M.2 Slot: 2 x M.2 2280/2260 SATA 6Gb/s slots

Gigabit Ethernet Port (RJ45): 4

10 Gigabit Ethernet Port: Optional via a PCIe adapter

Buttons: Power, Reset, USB Auto Copy

Dimensions (HxWxD): 188.2 × 329.3 × 279.6 mm

Weight (Net): 6.56 kg

Weight (Gross): 8.34 kg

System Warning: Buzzer

Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1200

QNAP TS 130 1GB NAS STORAGE

Brand: Qnap
Form Factor: Tower
CPU: Realtek RTD1295 4-core 1.4GHz processor
CPU Architecture: 64-bit ARM
System Memory: 1 GB DDR4, not expandable
Maximum Memory: 1 GB DDR4, not expandable
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 1 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Gigabit Ethernet Port (RJ45): 1
Buttons: Power, Reset
Dimensions (HxWxD): 187.5 × 66.1 × 157.6 mm
Weight (Net): 0.61 kg
Weight (Gross): 1.22 kg
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 128

QNAP TS 233 2GB NAS STORAGE

Brand: Qnap
Form Factor: Tower
CPU: ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture: 64-bit ARM
System Memory: 2 GB on board (non-expandable)
Maximum Memory: 2 GB on board (non-expandable)
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
Hot-swappable: Yes
Gigabit Ethernet Port (RJ45): 1
Buttons: Power, Reset, USB Copy
Dimensions (HxWxD): 188.64 × 90.18 × 156.26 mm
Weight (Net): 1.11 kg
Weight (Gross): 1.95 kg
System Warning: Buzzer
Standard Warranty: 2 Years
Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 200

IBM SYSTEM DS3300 STORAGE

Form factor: 2 U rack-mount
Internal storage: Up to 3.6 TB
Raid: RAID 0, 1, 3, 5, and 10 support
Power supply: 540-watts

IBM SYSTEM DS4000 STORAGE

Power Supply: 450 watt
Networking Type: MAN, LAN, WAN
Color: Black
Raid: RAID 0, 1, 3, 5, and 10 support
Internal storage: Up to 64 TB

QNAP TS 1886XU RP D1622 8GB NAS STORAGE

Brand: Qnap
processor: Intel Xeon D-1622 quad-core 2.60 GHz processor (burst up to 3.2 GHz) processor
CPU Architecture: 64-bit x86
Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB) Memory
Form Factor: Rack Mount
Port: 2 x 10GbE SFP+ SmartNIC port
Drive Bay: Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s, Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 88.3 × 482 × 549.7 mm
Power Supply: 550W(x2), 100-240V
Warranty: 3 years Standard Warranty

QNAP TDS 16489U R2 64GB NAS STORAGE

Brand: Qnap
processor: E5-2620 v4 8-core 2.1 GHz x2 processor
CPU Architecture: 64-bit x86
Memory: 64GB RDIMM DDR4 (8 x 8GB) Memory
Form Factor: 3U Rack Mount
Port: 4 x 10GbE SFP+ port
Drive Bay: Front: 16 x 3.5-inch, Rear: 4 x 2.5-inch
Dimensions: 130.8 × 444 × 744 mm
Warranty: 5 years Standard Warranty

QNAP TS 1683XU RP E2124 16GB NAS STORAGE

Brand: Qnap
processor: Intel Xeon E-2124 quad-core 3.3 GHz processor (burst up to 4.3 GHz) processor
CPU Architecture: 64-bit x86
Memory: 16 GB UDIMM DDR4 ECC (2 x 8GB) Memory
Form Factor: 3U Rackmount
Port: 2 x 10GbE SFP+ SmartNIC port
Drive Bay: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 130 × 481 × 573.5 mm
Power Supply: 500W(x2), 100-240V
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 1673U RP 16GB NAS STORAGE

Brand: Qnap
processor: AMD R-Series RX-421ND quad-core 2.1 GHz processor (turbo core to 3.4 GHz) processor
CPU Architecture: 64-bit x86
Memory: 16 GB UDIMM DDR4 (2 x 8 GB) Memory
Form Factor: 3U Rackmount
Port: 2 x 10GbE SFP+ port
M.2 SSD Slot: 2 x M.2 2280 SATA 6Gb/s slots
Drive Bay: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 132 × 482 × 536 mm
Power Supply: 500W (x2), 100-240V AC, 50-60Hz, 7-3.5A
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 1283XU RP E2124 8GB NAS STORAGE

Brand: Qnap
processor: Intel Xeon E-2124 quad-core 3.3 GHz processor (burst up to 4.3 GHz) processor
CPU Architecture: 64-bit x86
Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB) Memory
Form Factor: 2U Rackmount
Port: 2 x 10GbE SFP+ SmartNIC port
Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 88.3 × 482 × 562 mm
Power Supply: 300W(x2), 100-240V
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 853DU RP 4GB NAS STORAGE

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (1 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: 2U Rackmount
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 88.7 × 482.2 × 423.8 mm
Power Supply: 300W (x2), 100-240V
HDMI Output: 1, HDMI 1.4b
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 453DU RP 4GB NAS STORAGE

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (1 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: 1U Rackmount
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 43.3 × 482.6 × 508.7 mm
Power Supply: 250W (x2), 100-240V
HDMI Output: 1, HDMI 1.4b
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 453BU RP 4GB NAS STORAGE

Brand: Qnap
processor: Intel Celeron J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4GB DDR3L (2 x 2 GB) Memory
Graphic Card: Intel HD Graphics 500
Form Factor: 1U Rackmount
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 44 × 439 × 499 mm
Power Supply: ATX 250W (x2), Input: 100V-240V ~ / 5A-2.5A, 50Hz-60Hz
HDMI Output: 1, HDMI 1.4b (up to 3840 x 2160 30Hz)
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 431XEU 2GB NAS STORAGE

Brand: Qnap
processor: AnnapurnaLabs Alpine AL314 32-bit ARM Cortex-A15 quad-core 1.7GHz processor
CPU Architecture: 32-bit ARM
Memory: 2 GB SODIMM DDR3 (1 x 2 GB) Memory
Form Factor: 1U Rackmount
Port: 1 x 10GbE SFP+
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 44 × 439 × 291 mm
Power Supply: Open-frame 100W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 873 4GB NAS STORAGE

Brand: Qnap
processor: AMD R-Series RX-421ND quad-core 2.1 GHz processor (Turbo Core to 3.4 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (2 x 2 GB) Memory
Form Factor: Tower
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/scale
M.2 SSD Slot: 2 x M.2 2280/2260 SATA 6Gb/s slots
Dimensions: 188.2 × 329.3 × 279.6 mm
Power Supply: 250W, 100-240V AC, 50-60Hz, 3.5A
Warranty: 2 years Standard Warranty ( scale to 5 yrs )

QNAP TS 832PX 4GB NAS STORAGE

Brand: Qnap
processor: AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor
CPU Architecture: 64-bit ARM
Memory: 4 GB SODIMM DDR4(1 x 4 GB) Memory
Form Factor: Tower
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 188.2 × 329.3 × 280.8 mm
Power Supply: 250W, 100-240V AC, 50/60Hz, 3.5A
Warranty: 2 years Standard Warranty (scale to 5 yrs)

QNAP TS 653D 8GB NAS STORAGE

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 8 GB SO-DIMM DDR4 (2 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: Tower
Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 168 × 235 × 226 mm
Power Supply: 120W adapter, 100-240V
HDMI Output: 1, HDMI 2.0 (up to 4096 x 2160 60Hz)
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 653D 4GB NAS STORAGE

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (1 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: Tower
Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 168 × 235 × 226 mm
Power Supply: 120W adapter, 100-240V
HDMI Output: 1, HDMI 2.0 (up to 4096 x 2160 60Hz)
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TVS 872XT I5 16GB NAS STORAGE

Brand: Qnap
processor: Intel Core i5-8400T 6-core 1.7 GHz Processor, Max turbo to 3.3 GHz processor
CPU Architecture: 64-bit x86
Memory: 16 GB SODIMM DDR4 (2 x 8 GB) Memory
Graphic Card: Intel UHD Graphics 630
Form Factor: Tower
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 188.2 × 329.3 × 279.6 mm
Thunderbolt Port: 2 (Thunderbolt 3)
M.2 SSD Slot: 2 x M.2 2280 PCIe Gen3 x2 slots
Power Supply: 250W, 100-240V
HDMI Output: 1, HDMI 2.0 (up to 3840 x 2160 60Hz)
Warranty: 2 years Standard Warranty ( scale to 5 yrs )

QNAP TS 453BT3 8GB NAS STORAGE

Brand: Qnap
processor: Intel Celeron J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz) processor
CPU Architecture: 64-bit x86
Memory: 8 GB SO-DIMM DDR3L (2 x 4 GB) Memory
Graphic Card: Intel HD Graphics 500
Form Factor: Tower
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 168 × 170 × 226 mm
Thunderbolt Port: 2 (Thunderbolt 3)
M.2 SSD Slot: 2 x M.2 2280 SATA 6Gb/s SSD slots (pre-installed QM2 PCIe card)
Power Supply: 120W adapter, 100-240V
HDMI Output: 2, HDMI 1.4b (up to 3840 x 2160 30Hz)
Warranty: 2 years Standard Warranty ( scale to 5 yrs )

QNAP TS 473 4GB NAS STORAGE

Brand: Qnap
processor: AMD R-Series RX-421ND quad-core 2.1 GHz processor (Turbo Core to 3.4 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (2 x 2 GB) Memory
Graphic Card: Optional via a PCIe adapter
Form Factor: Tower
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 188.2 × 199.3 × 279.6 mm
Power Supply: 250W, 100-240V AC, 50-60Hz, 3.5A
Warranty: 2 years Standard Warranty ( scale to 5 yrs )

QNAP TS 453D 4GB NAS STORAGE

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (1 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: Tower
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 168 × 170 × 226 mm
Power Supply: 90W adapter, 100-240V
Warranty: 3 years Standard Warranty ( scale to 5 yrs )

QNAP TS 431K 1GB NAS STORAGE

Brand: Qnap
processor: Alpine AL214, 4-core, 1.7GHz processor
CPU Architecture: 32-bit ARM
Memory: 1GB DDR3 Memory
Form Factor: Tower
Drive Bay: 4x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 169 × 160 × 219 mm
Power Supply: 90W Adapter, 100-240V
Warranty: 2 years Standard Warranty ( no upgrade option )

QNAP TS 251D 2GB NAS STORAGE

Brand: Qnap
processor: Intel Celeron J4025/J4005 dual-core 2.0 GHz processor
CPU Architecture: 64-bit x86
Memory: 2 GB SO-DIMM DDR4 (1 x 2 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: Tower
Drive Bay: 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 168 × 105 × 226 mm
Power Supply: External Power Adapter, 65W, 100-240V
Warranty: 2 years Standard Warranty ( no upgrade option )

QNAP TS 231K 1GB NAS STORAGE

Brand: Qnap
processor: Alpine AL214, 4-core, 1.7GHz processor
CPU Architecture: 32-bit ARM
Memory: 1GB DDR3 Memory
Form Factor: Tower
Drive Bay: 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 169 × 102 × 219 mm
Power Supply: 60W/65W Adapter, 100-240V
Warranty: 2 years Standard Warranty ( no upgrade option )

QNAP TS 230 2GB NAS STORAGE

Brand: Qnap
processor: Realtek RTD1296 quad-core 1.4GHz processor
CPU Architecture: 64-bit ARM
Memory: 2GB DDR4, not expandable
Form Factor: Tower
Drive Bay: 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 188.64 × 90.18 × 156.26 mm
Power Consumption: 4.48 W
Hot-swappable: Yes
Warranty: 2 years Standard Warranty ( no upgrade option )

DELL STORAGE MD1420 DIRECT ATTACHED STORAGE

Connectivity
Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 or PERC H840 (4 enclosures per port, single path)
Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 or PERC H840 (4 enclosures connected to both ports via redundant path cabling)
Connectivity per EMM:
4 mini-SAS HD connector for connection to the host or expansion
Service management:
USB mini b connector (for factory use only)
Dimensions & Weight
Height x width x depth:
MD1400: 8.7 cm (3.43") x 48.2 cm (18.98") x 59.2 cm (23.3") (depth includes PSU handle)
MD1420: 8.7 cm (3.43") x 48.2 cm (18.98") x 53.9 cm (21.22") (depth includes PSU handle)
Weight:24.2 kg (53.35 lb) (maximum configuration)
8.8 kg (19.4 lb) (empty)
Environmental Operating Conditions
Temperature:
Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
Relative Humidity:
Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing)
Altitude:
Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)
Expansion Capacity :
PERC H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure
Management
Enclosure Management Modules (EMM)
2 EMM provide redundant enclosure management capability
Power
Wattage – also supports DC power: AC – 600W; DC – 700W
Host heat dissipation: AC – 2047 BTU/hr; DC – 2388 BTU/hr
Input voltage range: 100-240 VAC, auto-sensing; 48 V DC
Frequency range:50/60 Hz
Amperage:8.6 A at 100 V, 4.3 A at 240 V
Supported continuous consumption:
Up to 1.2 A at +5V
Up to 0.5 A at +12V
RAID
RAID levels 0, 1, 5, 6, 10, 50 and 60
Rack Support
Dell ReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Storage
Drive type
2.5" SAS, NL-SAS, SSD, SED
Maximum Raw Capacity (per enclosure)
Up to 57.6TB when using 24 x 2.4TB NL-SAS
2.5" HDDs

QNAP ES2486DC 2142IT 24 BAY 96GB STORAGE

CPU: Intel Xeon D 2142IT 8 core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture: 64 bit x86
Floating Point Unit
Encryption Engine: (AES-NI)
System Memory: 48 GB RDIMM DDR4 ECC (4 x 4 GB+4 x 8GB) per controller
Maximum Memory: 512 GB (8 x 64GB)
Memory Slot: 8 x R DIMM/LR DIMM DDR4
IMPORTANT: You can only use one type of dual in line memory module (DIMM) at a time Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 24 x 2.5-inch
SAS 12Gb/s backward compatible to SAS 6Gb/s
Drive Compatibility: 2.5-inch bays
2.5 inch SAS/SATA hard disk drives
2.5 inch SAS/SATA solid state drives
When installing SATA HDD/SSD QDA SA3 adapter is required
The QDA SA3 adapter is designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gbps drive in a 2.5 inch SAS drive bay
Hot swappable
SSD Cache Acceleration Support
Read cache only
Cache for Copy To Flash (C2F): 1 per each controller (64GB)
Gigabit Ethernet Port (RJ45): 3 for each controller (one for remote management)
10 Gigabit Ethernet Port: 4 x 10GbE SFP+ for each controller
Jumbo Frame
PCIe Slot: 2
Slot 1: PCIe Gen 3 x8 (CPU)
Slot 2: PCIe Gen 3 x8 (CPU)
USB 3.2 Gen 1 port: 2 per each controller
Form Factor: 2U Rackmount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation system errors low power degraded RAID mode memory failure fan/power supply failure system/disk temperature too high storage pool reaching threshold value system performing take over power supply unit unplugged LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power Reset
Dimensions (HxWxD): 88.3 × 483 × 545.1 mm
Weight (Net): 27.41 kg
Weight (Gross): 32.83 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Redundant/ Hot Swap Power Vin:90~264VAC;700W
Power Consumption: Operating Mode, Typical 579.59 W
Fan: Hot swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
Sound Level: 60.9 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 1500
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A EN55024)EN60950 BSMI VCCI CB LVD

QNAP ES2486DC 2142IT 128G 24 BAY NAS ENTERPRISES

CPU: Intel Xeon D 2142IT 8 core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture: 64 bit x86
Floating Point Unit
Encryption Engine: (AES-NI)
System Memory: 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
Maximum Memory: 512 GB (8 x 64GB)
Memory Slot: 8 x R-DIMM/LR-DIMM DDR4
IMPORTANT: You can only use one type of dual in line memory module (DIMM) at a time Do not use registered DIMM (RDIMM) with load reduction DIMM (LRDIMM) memory
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 24 x 2.5 inch
SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility: 2.5-inch bays:
2.5 inch SAS/SATA hard disk drives
2.5 inch SAS/SATA solid state drives
When installing SATA HDD/SSD QDA SA3 adapter is required
The QDA SA3 adapter is designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gbps drive in a 2.5 inch SAS drive bay
Hot swappable
SSD Cache Acceleration Support
Read cache only
Cache for Copy To Flash (C2F): 1 per each controller (64GB)
Gigabit Ethernet Port (RJ45): 3 for each controller (one for remote management)
10 Gigabit Ethernet Port: 4 x 10GbE SFP+ for each controller
Jumbo Frame
PCIe Slot: 2
Slot 1: PCIe Gen 3 x8 (CPU)
Slot 2: PCIe Gen 3 x8 (CPU)
USB 3.2 Gen 1 port: 2 per each controller
Form Factor: 2U Rackmount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation system errors, low power degraded RAID mode memory failure fan/power supply failure system/disk temperature too high storage pool reaching threshold value system performing take over power supply unit unplugged LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power Reset
Dimensions (HxWxD): 88.3 × 483 × 545.1 mm
Weight (Net): 27.41 kg
Weight (Gross): 32.83 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing wet bulb: 27?C (80.6?F)
Power Supply Unit: Redundant/ Hot Swap Power Vin:90~264VAC;700W
Power Consumption: Operating Mode Typical 579.59 W
Fan: Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
Sound Level: 60.9 db(A)
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS): 1500
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A EN55024)EN60950 BSMI VCCI CB LVD

Dell EMC NX3240 20TB storage Dealers in Hyderabad, Telangana, Ameerpet

.Processor : Dell EMC NX3240, Single Intel® Xeon® Bronze 3204 1.9G, 16GB Mem, Entry Config, RAID : C12, RAID 5 for 4 or more HDDs or SSDs (Matching Type/Speed/Capacity), Hard Drive : 600GB 10K RPM SAS 12Gbps 512n 2.5in Flex Bay Hard Drive, 3.5in HYB CARR, Hard Drives (Front Bay) : 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive, Power Supply : Single, Hot-plug Power Supply (1+0), 750W, Power Cords : NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America, Network Daughter Card : Broadcom 5720 Quad Port 1GbE BASE-T, rNDC, Embedded Systems Management : iDRAC9,Enterprise, Trusted Platform Module : No Trusted Platform Module, Rack Rails : No Rack Rails or Cable, Management Arm, External Optical Drive : None, Warranty Basic Service : 3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite

DELL EMC NX3240 20TB STORAGE

.Processor : Dell EMC NX3240, Single Intel® Xeon® Bronze 3204 1.9G, 16GB Mem, Entry Config, RAID : C12, RAID 5 for 4 or more HDDs or SSDs (Matching Type/Speed/Capacity), Hard Drive : 600GB 10K RPM SAS 12Gbps 512n 2.5in Flex Bay Hard Drive, 3.5in HYB CARR, Hard Drives (Front Bay) : 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive, Power Supply : Single, Hot-plug Power Supply (1+0), 750W, Power Cords : NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America, Network Daughter Card : Broadcom 5720 Quad Port 1GbE BASE-T, rNDC, Embedded Systems Management : iDRAC9,Enterprise, Trusted Platform Module : No Trusted Platform Module, Rack Rails : No Rack Rails or Cable Management Arm, External Optical Drive : None, Warranty Basic Service : 3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite

DELL EMC NX3240 60TB STORAGE

Embedded Systems Management : iDRAC9,Enterprise, Trusted Platform Module : No Trusted Platform Module, Rack Rails : No Rack Rails or Cable Management Arm, External Optical Drive : None, Warranty Basic Service : 3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite

DELL EMC NX3240 60TB STORAGE

LENOVO IBM TS2280 TAPE DRIVE

Ideal for growing storage requirements

Long-term tape storage for backup & archive

Easy access to data on LTO Ultrium 8 cartridges, through IBM Linear Tape File System (LTFS) technology

Media-partitioning on LTO Ultrium 8 media & LTFS

Features

Highlights

Provide long-term backup and archive storage data protection while lowering overall storage costs
Easily access data stored on Linear Tape-Open (LTO)
Support media partitioning on LTO Ultrium 8 media
Interchangeable Ultrium 8 and Ultrium 7 tape media

Advanced features

The TS2280 6Gbps SAS interface enables it to connect to a wide spectrum of open-system servers. The LTO Ultrium 8 tape media provides partitioning support, which, in conjunction with IBM Spectrum Archive, provides users with filelevel access to tape data.

This support helps users quickly locate and update information on the tape media. LTO Ultrium 8 technology is also designed to natively support data encryption, with core hardware encryption and decryption capabilities resident in the LTO Ultrium 8 tape drive itself.

Software support

Management solutions such as IBM Spectrum Protect™ or third-party storage management software can extend the power of TS2280. IBM Spectrum Archive helps simplify access and management of TS2280 by enabling text-based file tagging, enabling more intuitive searches of drive content. This software creates an efficient “data footprint” to dynamically store every bit of data, helping maximize performance and ensure security.

Media

TS2280 Tape Drive supports the LTO Consortium compressed specification for LTO Ultrium 8, offering up to 30TB of data storage per cartridge (12TB native), twice the compressed capacity of the previous LTO Ultrium 7 cartridges. In addition to reading and writing to LTO Ultrium 8 tape cartridges, TS2280 can read and write to LTO Ultrium 7 cartridges. TS2280 supports the self-describing features of LTO tape cartridges for operational simplicity.

LENOVO IBM TS2900 TAPE AUTOLOADER

Entry-Level Tape Autoloader With Latest Gen Technology

Slim profile, 1U system designed for rack system environments for automated, high-capacity tape storage
Features the latest generation of Linear Tape-Open (LTO) with Ultrium 8 half-height technology designed for reliable performance in small to midsize open-system environments
Lowest entry price of any IBM tape automation offering half-height tape technology

Features

Highlights

1U slim profile designed for rack system environments for automated, high-capacity tape storage
Features half-height LTO Ultrium technology designed for reliable performance in small to midsize open-system environments
Adheres to LTO Ultrium specifications
Half-height LTO Ultrium 8, 7, 6 and 5 support the encryption of data for increased security with archived data
Lowest entry price of any IBM tape automation offering IBM half-height tape technology

Advance features

The TS2900 is equipped with standard features designed to provide ease-of-use and secured data backup. Web-based remote management, a bar code reader and a removable tape magazine help provide ease of use. The TS2900 can be used in a rack system or on a desktop next to a server in an office. These types of features help reduce the amount of required IT personnel, as well as help centralize backups in the data center. The TS2900 is also designed to support the encryption of sensitive user data in combination with half-height LTO Ultrium 8, 7, 6 or 5 tape technology. With a 6 Gbps serial-attached SCSI (SAS) interface, the TS2900 is supported on IBM System x®, Intel and other competitor open-system server platforms.

The TS2900 Tape Autoloader has a nine-data-slot cartridge capacity for a total storage capacity of up to 270 TB with 2.5:1 compression, as well as a single I/O station designed to provide undisturbed library operation when extracting or inserting data cartridges. The TS2900 utilizes one half-height LTO Ultrium drive—generation 8, 7, 6, or 5. The TS2900 is shipped as a rack-mount unit with the option of a desktop conversion kit.

Half-height LTO Ultrium 8 tape drives are designed to read and write data at a transfer rate of up to 300 MBps and store up to 12TB native on a single LTO Ultrium 8 data cartridge (30 TB with 2.5:1 compression). LTO Ultrium 8 technology is designed with the ability to read and write data to LTO Ultrium 7 data cartridges, thus helping to protect current investments in LTO Ultrium cartridges.

LENOVO IBM TS4300 TAPE LIBRARY

Standalone tape automation solution

3U tape library supporting the latest Linear Tape (LTO) technology
Outstanding capacity, performance, & reliability for cost-effective backup, restore, & archive for midrange storage environments
Remote library management through web-based interface

Features

Highlights
Increase cartridge and drive capacity as needed with the modular design
Scale vertically with up to seven modules, with expansion for LTO Ultrium 8, 7, and 6 cartridges
Supports WORM cartridges to enhance data protection and provides library-managed encryption with IBM Security Key Lifecycle Manager
Speed deployment and simplify management with an embedded, open-source software architecture
Keep data securely stored long-term, while helping reduce the costs associated with data center space and utilities

Scalable tape library

Requirements for secure, long-term data retention—especially in the financial services, healthcare and life sciences industries—are common and increasingly stringent, with data volumes growing massively as a result. Tape storage offers a less costly long-term storage option than disk drives or flash. And data stored on tape kept offline, or on write once media, is nearly invulnerable to hacking.\
IBM TS4300 Tape Library is a high-density, highly scalable, easy-to-manage tape library designed to keep data securely stored long-term, while helping reduce the costs associated with data center space and utilities. Its modular design enables users to increase cartridge and drive capacity as needed.
Built around a 3U-high modular base library, TS4300 can scale vertically with up to seven modules (including the base library), with expansion for Linear Tape-Open (LTO) Ultrium cartridges (LTO 6, 7, and 8) drives and redundant power supplies. A single robot manages all modules in the stack.
In a seven-module configuration, TS4300 offers a capacity of more than 270 LTO cartridges. A wizard for installation and configuration enables users to install, expand and service the library without special training.

Get automatic control

To help meet security and compliance requirements, TS4300 supports write-once-read-many (WORM) cartridges to enhance data protection, and provides library-managed encryption with IBM Security Key Lifecycle Manager. Also, improve business continuity with IBM TS4300 Tape Library-supported features like automatic control-path and datapath failover to provide automatic control in the event of a loss of a host adapter or control path.

LENOVO D1212 DIRECT ATTACHED STORAGE

High-Performance, High-Capacity DAS

Powerful, expandable, affordable capacity expansion unit
High-capacity JBOD unit
Flexible, expandable DAS configurations
Supports high-performance SSDs and HDDs
Supports high-capacity SSDs and HDDs
Ruggedized components, NEBS-compliant

High-Performance, High-Capacity DAS

The Lenovo Storage D1212 has the flexibility and capacity to handle many different types of workloads. You can start with one D1212 enclosure containing up to 12x 3.5-inch drives as a simple JBOD, and later daisy-chain up to 8 enclosures per SAS Chain (using multiple ports). One chain supports up to 96 drives.

Supported drives include 10,000rpm and 7,200rpm HDDs, secure self-encrypting 7,200rpm SED HDDs, and high-performance/high-capacity SSDs for read-intensive workloads. The D1212 supports RAID-0, 1, 10, 5, 50, 6, and 60, using a variety of RAID HBAs. A single chain can contain a combination of HDDs and SSDs with multiple speeds and capacities. If 15,000rpm and 2.5-inch HDDs are required, D1224 expansion units may be included in the chain.

LENOVO D1224 DIRECT ATTACHED STORAGE

High-Performance, High-Capacity DAS

Powerful, Expandable, Affordable Capacity Expansion Unit
High-capacity JBOD unit
Flexible, expandable DAS configurations
Supports high-performance SSDs and HDDs
Supports high-capacity SSDs and HDDs
Ruggedized components, NEBS-compliant

High-Performance, High-Capacity DAS

The Lenovo Storage D1224 has the flexibility and capacity to handle many different types of workloads. You can start with one D1224 enclosure containing up to 24x 2.5-inch drives as a simple JBOD, and later daisy-chain up to 8 enclosures per SAS Chain (using multiple ports). One chain supports up to 192 drives.

Supported drives include 15,000, 10,000 and 7,200rpm HDDs, secure self-encrypting 10,000rpm SED HDDs, and high-performance/high-capacity SSDs for read-intensive workloads. The D1224 supports RAID-0, 1, 10, 5, 50, 6, and 60, using a variety of RAID HBAs. A single chain can contain a combination of HDDs and SSDs with multiple speeds and capacities. If 3.5-inch HDDs are required, D1212 expansion units may be included in the chain.

Easy to Deploy and Highly Available

Simply cable-connect new units and they come online immediately (OS-dependent) with instant drive identification. Virtual machines can share these expansion chassis as well.
And because storage is useless when it’s offline, the D1224 uses ruggedized components that are designed for 99.999 percent availability and NEBS3 compliance, along with hot-swap drives and HS/redundant power supplies for maximum uptime. Redundant I/O modules with failover completes the package.

LENOVO D3284 DIRECT ATTACHED STORAGE

Flexible Storage Platform

Affordable high-density storage
Works as server storage
Attach to multiple hosts
Chain multiple enclosures together
Ideal for medium/large enterprise/HPC/Cloud DC

Features

Highlights

5U enclosure
Dual 12Gb SAS ESMs per enclosure
3 universal 4x 12Gb mini-SAS HD connectors per enclosure
Up to 84 3.5-inch drives per enclosure
Daisy-chain 4 enclosures for up to 336 drives
Direct-attach server storage (JBOD)
Use a combination of high-capacity NL-SAS drives and high-IOPS/low-latency SSDs in the same enclosure
Perfect for HPC, Tier-3 Cloud data centers, and medium-to-large enterprise data centers
Hot-swappable components: all drives, 2x ESMs, 5x fans, 2x 80 Plus Platinum power supplies
Compatible with all Lenovo ThinkServer and System x servers†

Mega Storage at a Great Price

The Lenovo Storage D3284 delivers high-density direct-attach storage. It supports mixing-and-matching different drive types for high performance, high capacity, or a combination of the two. Affordable high-density options, combining 7,200rpm NL-SAS hard disk drives (HDDs) with high-IOPS/low-latency SAS solid-state drives (SSDs), enable a multitiered storage infrastructure in a single enclosure or daisy-chain. It supports up to 4 enclosures in a single chain. Chains can be connected to up to three servers.

Affordable, High-Capacity, Flexible Storage

High-capacity 3.5-inch NL-SAS drives offer up to 840TB of “cold” or archive storage in only 5U (that’s 1.5x the capacity of the HP D6000*), and up to 3.36PB in 20U, using four daisy-chained enclosures.
SSDs (33.6TB/134.4TB) provide the extreme throughput necessary for the most I/O-intensive jobs, such as HPC, high-frequency trading (HFT), and caching. With up to 84 drives per enclosure and 336 per daisy-chain, there is plenty of room for multitiered drive types.

High Availability, High Density

Hot-swap redundant components, including dual ESMs, dual 80 Plus Platinum power supplies, and five fans, provide the high availability needed for a high-density storage platform.
D3284 is a key component of the Lenovo GPFS Storage Server and Lenovo Storage DX8200N Powered by NexentaStor.
The high-density enclosure uses 1/3 less rack space than the equivalent number of drives in traditional 2U enclosures and fits in 1m deep racks, so it works with existing infrastructures. * As of this publication date.

DECK DR8-TB2

A stand-alone hardware RAID could let your PC works more efficiently

DR8-TB2 is built-in the easy-to-use hardware RAID, and it won’t hurt system performance during its REBUILDING WORK completely! It would meet your requirement who always requests for both of system performance and the high memory capacity.

DR8-TB2 with RAID 5 or even RAID 6 feature would be your best cost-effective storage solution at both of data protection and the system performance.

Easy to use with its Monitoring feature

It's really easy for you to set up your new buy DR8-TB2 in your office or even at home. Thru Marvell's MSU Tool, you could set up its hardware RAID thru a graphic user-friendly interface. You could choose one of the following 8 different RAID modes, RAID 0, 1, 5, 6, 10, 50, 60 and JBOD, to fit your needs for the available large storage space together with its data protection feature.

RAID 0 mode to help an efficience

DR8-TB2 provides RAID 0 mode, and pluses its Thunderbolt 2.0 interface protocol, it really gives you an excellent data transfer performance up to 1300MB/s. It helps your heavy duty video or photos editing works in your Post-production studio.

The built-in power supply unit

DR8-TB2 uses a UL/CE certified 300W power supply unit which provides a stable and high efficient power output and definitely satisfies the big power consumption from all 8 HDDs.

DECK DR8-TB3-B

A stand-alone hardware RAID could let your PC works more efficiently

DR8-TB3 is built-in the easy-to-use hardware RAID, and it won’t hurt system performance during its REBUILDING WORK completely! It would meet your requirement who always requests for both of system performance and the high memory capacity.DR8-TB3 with RAID 5 or even RAID 6 feature would be your best cost-effective storage solution at both of data protection and the system performance.

It's really easy for you to set up your new buy DR8-TB3 in your office or even at home.Thru Marvell's MSU Tool, you could set up its hardware RAID thru a graphic user-friendly interface. You could choose one of the following 8 different RAID modes, RAID 0, 1, 5, 6, 10, 50, 60 and JBOD, to fit your needs for the available large storage space together with its data protection feature.

RAID 0 mode to help an efficiency

DR8-TB3 provides RAID 0 mode, and pluses its Thunderbolt 3.0 interface protocol, it really gives you an excellent data transfer performance. It helps your heavy duty video or photos editing works in your Post-production studio.

RAID 5 mode provides highest data parity function ensure your data security

RAID 5 mode provides both of the read-&-write efficiency and the data protection features for your daily works. Under RAID 5 mode, DR8-TB3 would need at least 3 and three more HDDs to start working. And if anyone of your HDDs is defect, your DR8-TB3 would still work fine for you, but just with no more data protection feature. Comparing to RAID 0 and RAID 1 modes, it's no doubt that RAID 5 is your best choice.

RAID 6 mode, double security is an even better solution in enterprise

To you, an Enterprise MIS supervisor, the data protection feature would be your first priority to choose your storage product. Comparing to RAID 5, RAID 6 provides you a way better data protection level. Under RAID 6 mode, DR8-TB3 would need at least 4 HDDs to start working.RAID 6 mode provides you the even better data protection than that of RAID 5's from its extremely ZERO Possibility that two HDDs become defect at the same time! DR8-TB3 still works perfect even though two of the whole HDDs are defect at the same time which won't happen at all!

DECK DR8M-TB3-B

A stand-alone hardware RAID could let your Mac & PC work more efficiently

DR8M-TB3 is built-in the easy-to-use hardware RAID, and it won’t hurt system performance during its REBUILDING WORK completely! It would meet your requirement who always requests for both of system performance and the high memory capacity. DR8M-TB3 with RAID 5 or even RAID 6 feature would be your best cost-effective storage solution at both of data protection and the system performance.

It's really easy for you to set up your new buy DR8M-TB3 in your office or even at home. Thru Marvell's MSU Tool, you could set up its hardware RAID thru a graphic user-friendly interface. You could choose one of the following 8 different RAID modes, RAID 0, 1, 5, 6, 10, 50, 60 and JBOD, to fit your needs for the available large storage space together with its data protection feature.

To support monitoring, buzzer, email notification, and S.M.A.R.T. features

The Marvel MSU Utility could help monitoring the RAID status while your DR8M-TB3 is working, and alert you thru beeping sound from a loud buzzer, and sending you a warning message thru e-mail system. MSU also records all the product status in detailed and helps testing your HDD quality thru its built-in S.M.A.R.T. testing software for you.

To support "SPARE" and "MIGRATE" features

Marvell MSU Utility provides "SPARE" feature which lets you set up a spare HDD/SSD as a redundant storage. Once any of your HDDs becomes defective, "SPARE" helps protecting your data thru transferring your data from that defect to the free HDD/SSD.

MSU Utility also gives you a very smart feature, called "MIGRATE". "MIGRATE" lets you easily change your RAID setting. You no need reset your new RAID storage, and just only use "MIGRATE" function of MSU Utility, to migrate easily your RAID configure.

QNAP TS 453BT3 STORAGE

overview:

Blazing Fast NAS for Creatives and Media Studios

Featuring dual Thunderbolt 3 ports, coupled with M.2 SATA SSD caching and 10GBASE-T connectivity, the TS-453BT3 provides an ideal environment for professional collaborative media editing and high-speed file sharing. The TS-453BT3 features a sleek new look with an OLED panel and two capacitive touch buttons. With powerful hardware capabilities and feature-rich productivity tools, the TS-453BT3 provides the best NAS solution for media studios or small creative workgroups looking to greatly simplify their workflows.

File Sharing and Synchronization

The TS-453BT3 supports SMB, NFS and AFP, allowing you to quickly share files to Windows, Mac, and Linux UNIX devices. With QNAP's Qsync app, the TS-453BT3 becomes a safe data center for file synchronization with huge storage potential.

Ultimate NAS for your Plex Server

A perfect media experience, whether it’s watching a movie or video or streaming music, requires a stable environment that includes your Plex Media Server and your network. Since our NAS is designed to run 24/7 without having to power off everyday like your PC, your multimedia files are available online all the time. The NAS acts as your private cloud which allowing you to remotely access and enjoy your media anytime on any device.

QNAP TVS 1582TU STORAGE

overview:

Thunderbolt 3 NAS, extraordinary performance

Featuring high-performance 7th Generation Intel processors, the TVS-1582TU provides two options powered by an Intel Core i5 quad-core processor with 16GB DDR4 RAM and Intel Core i7 quad-core processor with 32GB DDR4 RAM (both upgradable to 64GB RAM), driving outstanding system performance for CPU-demanding applications. The TVS-1582TU Thunderbolt 3 NAS not only features Thunderbolt 3 technology for faster data transfer but also has dual 10GbE ports giving you incredible flexibility for network connectivity. The Thunderbolt 3 ports on the TVS 1582TU are also compatible with USB Type-C cables/devices and supports 10 Gbps USB 3.1 Gen2, allowing compatibility with newer, faster USB external drives/enclosures for transferring large-sized media files.

A reliable NAS solution for SNG OB van live production

TV and film productions and outdoor broadcasting require on-location recording, and need their videos to be backed up immediately to prevent file loss. For live outdoor broadcasting of sporting events, concerts or seminars, the videos usually require on-site editing before sending to TV stations for broadcast. The rackmount TVS-1582TU can fit in a standard 19" rack to function well on a moving vehicle or in an outdoor media editing environment. Coupled with its Thunderbolt™ 3, 10GbE network and USB 3.1 ports for high-speed data transfer and backup tasks, the TVS-1582TU provides an ideal storage center for these working environments.

Highly efficient media collaboration for Mac and Windows

The TVS 1582TU is a perfect match for Thunderbolt 3-capable MacBook Pro, and is backward-compatible with Thunderbolt 2 devices via Thunderbolt 3 (USB-C) to Thunderbolt 2 converter. The higher bandwidth is especially suited for creative professionals and enthusiasts from photographers, filmmakers to graphic designers who focus more on 4K or 3D workflows. The latest Final Cut Pro X 10.3 adds support for the SMB protocol, allowing you to easily store files in the TVS-1582TU and share files with Windows, and other devices using Thunderbolt, 10GbE or 1GbE connection. Up to 4 Thunderbolt devices can connect to the TVS-1582TU to process real-time video editing simultaneously without impacting NAS performance, while 4K videos can be directly displayed using the NAS HDMI output. The TVS-1582TU's large capacity potential provides an ideal storage solution with unmatched performance for high-resolution file storage and I/O-intensive tasks to increase productivity in multi-workstation environments.

QNAP TS 1685 STORAGE

overview:

Supporting up to twelve 3.5" HDDs and four 2.5" SSDs, the TS-1685 is a high-capacity, robust, and reliable business NAS powered by an Intel® Xeon® D processor. Designed to optimize enterprise IT infrastructure, the TS-1685 comes with three PCIe slots that support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards. Incorporating security and scalability, the TS-1685 presents an ideal choice for a complete business-ready storage solution with cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization, and more business applications.

NAS and iSCSI-SAN unified storage solution
Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
Qtier technology and SSD caching enable 24/7 optimized storage efficiency
10GbE/40GbE expandability, highly-efficient storage solution for virtualization and intensive data transmission
Supports virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery
Q’center for centrally managing all of your NAS devices, and QRM+ as a centralized management solution for networked computing devices
Qfiling enabling automated file organization, Qsirch full-text search engine, and QmailAgent for centralized email management
Scalable up to 56 drive capacity with QNAP expansion enclosures

QNAP TDS 16489U STORAGE

overview:

QNAP furthers its innovation into the field of business servers and introduces the TDS-16489U, a powerful Double Server that integrates an application server and storage server into one chassis. The TDS-16489U is powered by dual Intel Xeon E5 processors with RAM expandable to 1TB and with a server-grade hardware design that optimizes mission-critical tasks and boasts unrivaled performance for Big Data computing. Coupled with Auto Tiering support, 12Gb/s SAS drives and 40GbE expandability, the TDS-16489U performs as an efficient, scalable and unrivaled unified and tiered storage solution for businesses to fulfill cross-platform file sharing, backups, iSCSI & virtualization applications, and everyday practical business needs.

Cost efficient Double Server for hosting virtual machines and accommodating virtualization storage in one box
Excellent performance: 3,800+ MB/s throughput and 260,000+ IOPS
Server-grade hardware design: dual processors, triple SAS controllers, quad SFP+ 10GbE ports, 10/40GbE slot, PCle SSD NVMe, IPMI and GPU for virtualization
Qtier Technology driving Auto Tiering for optimal storage efficiency
NAS and iSCSI/IP-SAN storage fulfilling data storage, backup, sharing and disaster recovery
5 year warranty - Global warranty inclusive

Graphic card support for virtualization

PCIe Gen.3 x 16 slot supports AMD Radeon R7 and R9 Series Graphics Cards for GPU passthrough to virtualization applications. The IOMMU allows the attached AMD GPU to be given to specific virtual machines to power the image and motion processing from the guest OS when running multiple virtual machines for graphic applications.

QNAP TES 1885U STORAGE

overview:

Powered by an Intel Xeon D processor, the powerful enterprise-class TES-1885U is open for two operating systems – either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology, SSD cache, and an abundance of value-added apps to realize storage efficiency and diverse usage applications. The TES-1885U gives the flexibility to choose from two operating systems, enabling businesses to deploy proper operating systems on multiple TES-1885U based on their needs and goals in different stages.

Dual OS options system inside a single rackmount NAS

The TES-1885U provides flexibility for choosing between uncompromising reliability and greater versatility. The QES operating system is suited for enterprise-level storage with maximized business continuity, or the QTS operating system for enjoying application storage for greater functionality.

QES operating system based on FreeBSD & ZFS

The TES-1885U supports the brand-new QES (QNAP Enterprise Storage) operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Continuing the same user experience with the QTS operating system, QES provides business users with an easy learning curve to quickly deploy the TES-1885U, and provides the best storage solution jointly with the current QNAP NAS.

QNAP ES1640DC V2 STORAGE

overview:

The ES1640dc v2 is whole-new product line developed by QNAP for mission-critical tasks and intensive virtualization applications. With Intel Xeon E5 processors, dual active controllers, ZFS, and fully supporting virtualization environments, the ES1640dc v2 delivers “real business-class” cloud computing data storage. The ES1640dc v2 features the brand-new QES operating system that allows almost limitless snapshots, block-level data deduplication, and thin provisioning with reclaim, assisting businesses in building the most cost-efficient VDI platform and storage for critical data. The ES1640dc v2 provides the same user experience as the current QNAP NAS and QTS system, allowing business users to enjoy the easy learning curve and quickly deploy the system, and making it ideal for small and medium businesses with budget constraints or large-scale IT divisions coping with mission-critical tasks.

Dual active controllers, NVRAM cache, dual mini-SAS channel backup, 40GbE-ready, SAS 12Gb/s-enabled
QES operating system which is based on FreeBSD and ZFS
Data deduplication and compression allows hosting over 500 VDI in one chassis
Near-limitless snapshots and SnapSync for efficient disaster recovery
NAS and iSCSI/IP-SAN storage supporting VMware, Microsoft Hyper-V, KVM and advanced virtualization featuresFully supports OpenStack iSCSI Cinder driver
Scalable design, over 1 PB total storage capacity
5 year warranty - Global warranty inclusive

NVRAM cache reducing the risks of losing write cache data

To increase random write performance and reliability, the ES1640dc v2 features NVRAM modules (DRAM Write Cache with Copy-to-flash) to protect write data. When data is written into NVRAM, there are dedicated backup battery units to protect writing to the cache, and at the same time the data is replicated to a backup controller, to achieve 100% data integrity. NVRAM-backed write cache in the dual-controller architecture presents high performance, fault-tolerant, and helps reduce flash SSD write amplification.

LENOVO FLEX SYSTEM STORAGE EXPANSION NODE

Introduction

The Flex System Storage Expansion Node is a storage enclosure that attaches to a single half-wide compute node to provide that compute node with additional direct-attach local storage. The Storage Expansion Node provide flexible storage to match capacity, performance, and reliability needs.
Ideal workloads include distributed database, transactional database, NAS infrastructure, video surveillance and streaming solutions. For example, when coupled with third-party NAS software, the combined compute node and storage expansion node make for an ideal infrastructure platform for a network-attached storage (NAS) server.
the Flex System Storage Expansion Node attached to an Flex System x240 Compute Node.

Supported drives

The Storage Expansion Node is a PCIe 3.0 and a SAS 2.1 complaint enclosure supporting up to twelve 2.5-inch drives. The drives can be HDD or SSD, and both SAS or SATA. Drive modes supported are JBOD or RAID. Supported RAID modes are RAID-0, 1, 5, 10, and 50 (cache upgrade required for RAID 5, 50 support).
The drives are accessed by opening the handle on the front of the Storage Expansion Node and sliding out the drive tray. Opening the drive tray can be done while it is operational. Figure 3 shows the Storage Expansion Node connected to an x240 compute node and with the drive tray extended part way out. With the drive tray extended, all twelve hot-swap drives can be accessed on the left side of the tray.

Features

The System Expansion Node has the following features:
Connects directly to supported compute nodes via a PCIe 3.0 interface to the compute node's interposer connector (also known as the ETE connector)
Support for 12 hot-swap 2.5-inch drives, accessible via a sliding tray
Support for 6 Gbps SAS and SATA drives, both HDDs and SSDs
Based on an LSI SAS2208 6 Gbps RAID on Chip (ROC) controller
Optional 512 MB or 1 GB cache with cache-to-flash super capacitor off-load
Supports RAID 0, 1, 10 as standard. JBOD also supported. Optional RAID 5, 50 with cache upgrade. (Note: The original RAID 6, 60 upgrade option is withdrawn from marketing)
Includes an expansion shelf to physically support the Storage Expansion Node and its compute node attached together
Internal and external light path diagnostics
Optional support for SSD performance acceleration with Features on Demand upgrade
Support for up to 64 virtual drives, up to 128 drive groups, up to 16 virtual drives per one drive group, and up to 32 physical drives per one drive group
Support for logical unit number (LUN) sizes up to 64 TB
Configurable stripe size up to 1 MB
Compliant with Disk Data Format (DDF) configuration on disk (COD)
S.M.A.R.T. support
Managed through the IMMv2 management processor on the compute node and with the MegaRAID Storage Manager management software

DELL EQUALLOGIC PS M4110 BLADE ARRAY SERIES

Storage for a converged blade solution:

Consolidate storage, blade servers and networking into a scalable, virtualized data center with the Dell EqualLogic PS-M4110 Blade Array.

Converge your data center

Compute, network and store in a single PowerEdge M1000e blade chassis and help reduce your data center real estate, cable configurations and power/cooling requirements.

Integrate enterprise-class storage with your blades

Gain highly flexible storage for your blade environment with a double-wide, half-height blade array that can be installed in any slot in the PowerEdge M1000e chassis.

Expand your storage with ease

Save time scaling storage capacity and performance simultaneously and non-disruptively with EqualLogic’s outstanding peer-scaling architecture.

Help simplify management and mitigate risk

Depend on centralized monitoring and reporting as well as powerful data protection with the enhanced all-inclusive software features of the EqualLogic PS-M4110 Blade Array.

DELL STORAGE PS6610 SERIES ARRAYS

More capacity and performance

Increase capacity and improve performance with an ultra-dense array for midsized deployments.

High-performing, ultra-dense arrays:

The Dell Storage PS6610 arrays combine next-generation powerful controllers and an updated dense storage architecture to meet large data repository requirements. PS and SC Series latest software releases offer common management and cross-platform replication, allowing you to leverage existing investments while taking advantage of new functionality.

The PS6610 can scale out to over 8PB in a group of 16 arrays with improved density, memory and performance than the previous generation.

Provides up to 7x greater performance in a hybrid configuration than previous generation arrays

Supports over half a petabyte in a single array and up to 3.5x* greater capacity than the previous generation

Offers space savings with 2.8x* more density per U than the previous generation

DELL EQUALLOGIC PS6210 SERIES ARRAYS

Power, simplicity and versatility.

New-generation Dell Storage PS Series arrays streamline storage management and improve and simplify performance for lasting value.

Streamline storage management:

The Dell EqualLogic PS6210 array allows you to manage more data with fewer resources, and integrate with common application environments and various operating systems. In addition, the latest Dell Storage PS and SC Series software releases provide common management and cross-platform replication capabilities, allowing you to take advantage of new functionality while utilizing existing investments. The PS6210 Series is designed to:

Deploy in virtualized VMware environments, Microsoft Exchange and SQL Server applications and distributed DAS implementations

Support block and file data along with the FS Series through a single intuitive interface

Support server and desktop virtualization

Advanced software that eases management

Manage day-to-day tasks, replicate volumes and initiate migration from PS Series to SC Series arrays with the latest software releases, which include Dell Storage Manager (DSM). The Dell Storage PS Series Array Software helps you store, protect, virtualize and optimize data on the PS6210. The full Dell Storage PS Series software suite also includes:

PS Series Host Software that extends the functionality of the array-based software to enable cooperation with host operating systems, hypervisors and applications

Host Integration Tools for Microsoft, VMware and Linux products

SAN HQ management software with an interface for monitoring your groups of PS Series arrays that are integrated into Dell Services with Support Assist

DELL STORAGE PS4210 ARRAY SERIES

Performance, capacity and power:

Increase performance with the right-sized and priced PS4210 Series for your growing business.

Optimized performance and connectivity:

The Dell Storage PS4210 10GbE iSCSI arrays increase performance and connectivity options for small- to mid-sized businesses. With the latest software releases, PS and SC Series offer common management and cross-platform replication capabilities between arrays, allowing you to take advantage of new functionality while leveraging existing investments. As part of the PS Series line, the Dell Storage PS4210 arrays provide tight integration in common application environments while offering:

Better performance—up to six times the performance with new hybrid-flash arrays compared to previous generation arrays

Dual 10GbE ports, twice as many ports as the previous generation

Support for server and desktop virtualization

DELL EMC SCV3000 SERIES STORAGE ARRAYS

Our most affordable hybrid array:

New entry point to SC Series auto-tiering and enterprise-class storage features

Features

Unprecedented advantage at this price point:

Why should budget constraints limit your access to state-of-the-art storage technology? The new SCv3000 Series arrays pack more advanced capabilities in an entry-level hybrid solution than ever before, helping even the smallest companies compete effectively against larger, more expensive deployments.

SCv3000 starting cost is among the lowest in the industry – but don’t let the price fool you! This array punches well above its weight, offering a unique combination of features designed to accelerate business outcomes for budget-conscious customers.

DELL EMC SC ALL FLASH STORAGE ARRAYS

Welcome to a better flash architecture:

Smart AFA choice for modern workloads provides self-optimizing performance, federated scale and mobility, all-inclusive software value

Federate the performance and capacity of up to 10 arrays:

Built-in “storage hypervisor” lets you move workloads seamlessly between arrays, making storage changes without impacting hosts. The enterprise-proven SC Operating System automates and manages time-consuming, error-prone management tasks, including server/LUN mappings and RAID provisioning. Increase both deployment velocity and configuration agility to help your business compete in today’s volatile markets.

DELL EMC SC9000 ARRAY CONTROLLER

Optimize the core of your business:

Turbocharge your data center and lower TCO with the fast, highly scalable Dell EMC SC9000.

Features

Scale, streamline and accelerate your enterprise data center:

The SC9000 provides an ideal solution for large-scale storage, high-end workloads and distributed enterprise environments. Our latest flagship array offers all the industry-leading capabilities of the SC Series line in a fully upgraded, more scalable system. Enhancements include:

40% more IOPS over 110% more throughput

Dual 8-core Intel Xeon, 4x system memory

Intelligent deduplication and compression

Multi-array federation and auto-failover

Enhanced virtualization and encryption

Cross-platform replication and shared management with PS Series arrays

The SC9000 is backed by Dell Copilot Services, which combines centralized support, education and sales resources with 24x7 active system monitoring to help improve performance and stability.

DELL EMC SC7020

Features

A new level of Storage Center OS efficiency:

SCOS 7 is a groundbreaking leap forward in the evolution of Dell EMC SC platform, offering diverse envrionments the ideal access point to deploy uniquely adaptable, future-ready storage solutions. New capabilities include:

Over 10:1 capacity savings with intelligent deduplication and compression

Federated data control with Live Migrate

Seamless business continuity with Live Volume auto-failover between arrays

Federated management and cross-platform replication between SC and PS Series arrays

Quality-of-Service (QoS), VMware Virtual Volumes (VVols) support,iSCSI Datacenter Bridging (DCB)

See individual spec sheets and product documentation for additional features and specific platform support.

DELL EMC SC5020 STORAGE ARRAY

Features

All-new hardware platform

Designed as the next-generation successor to the popular SC4020 array, SC5020 is a performance powerhouse. With dual 8-core Intel processors, 4x more memory and a 12Gb SAS back end, the SC5020 delivers

Up to 45% more IOPs

Up to 3X higher bandwidth (GB/sec)

2X greater max capacity

The new 3U “all-in-one” chassis includes 30 drive bays plus dual hot-swappable controllers, providing up to 460TB raw capacity in a single compact unit. A variety of expansion enclosures lets you scale over 2PB per array – with even larger scale-out potential in federated multi-array systems.

But the advantages don’t stop with fast hardware. SC5020 includes all the Storage Center Operating System (SCOS) features you’ve come to expect from SC Series storage.

Crank up the performance, crank down the cost:

SC5020 makes storage cost savings automatic with a modern architecture that optimizes your data center for economics while delivering transformational SSD, HDD or hybrid performance.

SC Series provides the lowest effective price/GB for flash and hybrid flash, giving companies of any size the technology advantage they need to compete in today’s fast-changing markets. Highlights include:

Data Progression – Achieve IOPS goals with the least expensive mix of storage media, even as performance needs evolve

Deduplication & Compression – Dramatically reduce the raw capacity required to store your data

RAID tiering – Eliminate manual provisioning, increase efficiency and utilization

Federation – Simplify multi-array environments with quick and seamless data movement, plus proactive load balancing assistance via Live Migrate and Volume Advisor

ProSupport Services – Reduce deployment costs with remote installation options that ensure your project goes right the first time.

Persistent software licensing – Future-proof your investment, minimize the cost of upgrades and expansions

DELL POWERVAULT RD1000 DISK MEDIA

Features

The Dell PowerVault RD1000 removable disk cartridges provide an easy-to-use, cost-effective and durable solution for storing and archiving data using the PowerVault RD1000 removable disk drive. The cartridges offer easy portability for offsite storage and disaster recovery protection. When your back up is finished, simply remove the cartridge and put it away for safe keeping or take is with you. Continuous Data Protection software included with every PowerVault RD1000 provides users with an easy, reliable total data protection solution.

Rugged. Removable. Ready.

The PowerVault RD1000 removable hard disk cartridge is the sensible solution that lets you quickly protect all of your important information and take it with you. Removable disk media are built with a tough exterior design and internal shock absorbers so they are rugged enough to withstand a fall from nearly one meter. Built-in bumpers on the PowerVault RD1000 are designed to:

Prevent vibration

Increase durability when transporting

Enable the PowerVault RD1000 to be oriented in either horizontal or vertical positions

Range of Capacity Options

Removable disk cartridges are available in capacities of 500GB, 1TB and 2TB. For added protection and enhanced disaster recovery, multiple removable disk cartridges can be rotated daily or weekly, on-site and off-site.

DELL POWERVAULT RD1000 DISK MEDIA

Features

Rugged. Removable. Ready.

Prevent vibration

Increase durability when transporting

Enable the PowerVault RD1000 to be oriented in either horizontal or vertical positions

Range of Capacity Options

DELL POWERVAULT TL1000 TAPE AUTOLOADER

Simple, reliable backup at minimal cost:

Automate backups and save time with an affordable, high-density tape autoloader featuring a compact 1U design and remote management.

Easy, automated backup:

With remote management and time-saving automation, the PowerVault TL1000 autoloader is an ideal choice to simplify large or frequent backups.

Convenient remote management: Monitor and manage from anywhere using a web-based browser.

Time-saving automation Eliminate: the need to manually load and unload single tape cartridges to save time and reduce the risk for error.

Fast installation: Simply unpack and rack the unit, connect the SAS cable, load tape media and power on the TL1000 to get started.

Seamless integration: Easily integrate the TL1000 into your network and use it with Windows or Linux® operating systems.

Cost effective and future ready:

Help reduce acquisition, administration and service costs with an affordable, future-ready solution.

Minimize acquisition expenses with cost-effective hardware, media and software.

Ensure long-term value providing forward compatibility to protect your investments.

Help lower administration costs with fast bulk loading and unloading of tapes using removable magazines.

DELL POWERVAULT RD1000 REMOVABLE DISK DRIVE FOR BACKUP

Tough and portable:

Customers seeking a rugged, removable disk backup for servers or desktops with a simple USB port connection.

Removable disk drive versus other storage:

The benefits of using a high-capacity, removable disk drive and accompanying cartridge like Dell PowerVault RD1000 are evident when compared to alternative backup media. Rugged, removable disk media offers increased portability and durability over standard USB-based hard drive storage. The PowerVault RD1000 cartridges are built to withstand a fall from nearly one meter so they are very durable, and the removable disk cartridges are small and lightweight and can be stored off-site for better disaster recovery protection. PowerVault RD1000 provides easy expandability when you reach capacity with one removable disk cartridge, just insert in a new one. There's no need to buy additional hardware. PowerVault RD1000 includes backup software that provides data protection for faster data restores and reduced downtime.

PowerVault RD1000 features a protective disk drive cartridge that is available in 1TB*, and 2TB capacities. The RD removable disk cartridges are all interchangeable and preformatted. Archiving a collection of PowerVault RD1000 disk cartridges takes considerably less room than a similar amount of DVDs or CDs — it would take over 200 standard DVDs to hold the volume of a single 1TB removable disk cartridge — all while saving shelf space.

Tough and compact form:

The PowerVault RD1000 functions lying flat or on its edge. Its compact profile takes up very little space on a desk or close to your server, allowing a backup solution that doesn't require rethinking your office arrangement. The removable disk cartridge is designed for durability and easily fits into a briefcase, backpack or even a coat pocket. The PowerVault RD1000's simple plug-and-play USB connection allows you to back up more than one system, or move it from home to office as you need. Each removable disk drive cartridge weighs about as much as a cell phone and is only slightly larger.

DELL POWERVAULT 114X TAPE RACK ENCLOSURE

Superior capacity in a 2U form factor

Customers needing to perform weekly backups of one or two servers with less than 6TB. (Rackable option.)

Features

2U rackmount backup solution holds up to 2 LTO drives

Ideal for backup and recovery of rack-dense servers

Great for workgroup and departmental environments

Ideal for customers who require multi-drive, rack-optimized data protection that can be externally connected to a server

DELL POWERVAULT TL1000 TAPE AUTOLOADER

Simple, reliable backup at minimal cost:

Automate backups and save time with an affordable, high-density tape autoloader featuring a compact 1U design and remote management.

Easy, automated backup:

With remote management and time saving automation, the PowerVault TL1000 autoloader is an ideal choice to simplify large or frequent backups.

Convenient remote management Monitor and manage from anywhere using a web-based browser.

Time-saving automation Eliminate the need to manually load and unload single tape cartridges to save time and reduce the risk for error.

Fast installation Simply unpack and rack the unit, connect the SAS cable, load tape media and power on the TL1000 to get started.

Seamless integration Easily integrate the TL1000 into your network and use it with Windows or Linux operating systems.

Dependable, high-capacity storage:

Deploy a reliable backup solution with exceptional storage density and efficiency.

Back up more data in less space with nine cartridges in a compact 1U chassis.

Efficiently add or remove cartridges with the removable tape magazine and support continuous operation when inserting or removing cartridges with the I/O station.

Deploy a certified, tested and validated solution compatible with PowerEdge servers and select storage devices and supported by common independent software vendor (ISV) packages.

Support lights-out operations for unattended, automated backup.

DELL POWERVAULT LTO TAPE DRIVES

Lower your long-term storage TCO and environmental impact:

In addition to a lower acquisition cost per gigabyte, LTO tape drives lower your energy consumption and costs because power is used only when data is written to or read from the tape media. For infrequently accessed data, tape remains one of the most economical and environmentally friendly storage technologies available.

Tape storage also gives you room to grow. Its lower power consumption makes it an ideal part of a cloud physical infrastructure build-out. Linear Tape File System (LTFS) support removes software incompatibilities, creating portability between different vendors and operating systems to extend the life of your infrastructure investments.

Safeguard your data and meet regulatory compliance:

LTO tape drives deliver peace of mind that your data is securely stored and in regulatory compliance against problems like hardware failure, natural disasters, theft or cyber threats.

AES 256-bit hardware encryption helps prevent unauthorized access to sensitive data, reducing the risk of data loss or corruption due to virus or sabotage and protecting data privacy during media transport.

An LED encryption indicator visually confirms when data is being encrypted or when an encrypted cartridge is mounted.

Write-once, read-many (WORM) media ensures that once data has been written, it cannot be altered.

DELL POWERVAULT LTO CARTRIDGES

Certified Solution

Dell Tape LTO Media delivers quality, compatibility and reliability, all at an affordable price, and is recommended for use with all Dell PowerVault tape backup devices and third-party tape backup products. Dell products have been tested and validated on Dell systems to ensure compatibility and long working life with your servers. Dell media offers smooth, stable transitions with minimal error rate and high efficiency. Backed by a limited lifetime warranty* by Dell technical service and support, you can rely on Dell's proven leadership and quality to help ensure that your data is protected and accessible.

Large Storage Capacity and High Transfer Speeds

As database- and internet-related applications require greater data storage, and critical operations demand minimized downtime due to backup operations, new cost-effective solutions are needed. LTO Ultrium ultra-high-capacity cartridge is such a solution. With storage capacity of up to 12TB native and data-transfer rates of up to 360MB/sec native (Full Height), this increased performance (measured by higher transfer speeds) means less time spent on backups and archive operations, and greater overall efficiency.

WORM Media

Dell offers LTO-5 and later generation WORM media, which provide a cost-effective means for storing data in non-rewriteable format to help address compliance requirements. This means once data is written to a piece of WORM media, the data on the tape cannot be changed or overwritten. WORM media can be appended to if data is already present on the tape. The media also stores unique identifiers, which enable the drive to determine whether or not the media has been tampered with. WORM media offers a method of data retention for compliance laws such as the Sarbanes-Oxley Act of 2002. Specific WORM media bar code labels will end in LT.

DELL EMC ML3 TAPE LIBRARY

Backup with Ease

Easy to order, easy to use and easy to service with a 3U form factor, expandable to up to 272 slots

A simple approach to automating backup:

The Dell EMC ML3 Tape Library offers scalability above and beyond traditional tape solutions, so that you can grow your data environment with your business.

Keep it simple and save on time and support costs with the easy to order, easy to configure, and easy to upgrade ML3 with ML3E expansion.

With a media life span of 30 years, you can rely on Dell EMC’s ML3 tape solution to provide your company with secure back-up.

There’s no beating the TCO of tape technology, and with the Dell EMC ML3, you get the assurance your company is backed by a trusted brand with top of the line technology.

Automated Data Protection:

Regular, disciplined backup is a vital part of a complete disaster recovery strategy. The Dell EMC ML3 is a powerful tape library that helps organizations automate their backup processes to reduce the need for manual intervention and the risk of human error. The Dell EMC ML3 uses optical cartridge location technology for precision cartridge handling and inventory, which helps improve the overall reliability of backups.

Simplified Operations

Tapes can be imported and exported individually using the mail slot or either sixteen (ML3) or twenty (ML3E) at a time using one of two magazines. The library utilizes barcode-scanning technology to record the location of tape media, so you can be assured that your critical data is properly stored and ready in case disaster strikes.

Intuitive Management

An on-board, user-friendly LCD interface allows you to easily monitor, control, configure, and service the library. While you are away, the tape library enables you to remotely administer all functions, including system status and logs, diagnostics and drive operations, as well as configuration and inventory management features.

Tape Versatility

The comparative low cost for tape combined with its long history of proven reliability helps ensure its continued use for both backup and archiving. The portability of tape enables it to be taken off-site and stored in a vault. In addition, LTO tape technology supports write-once, read-many (WORM) capability, which enables permanent data storage that cannot be overwritten — a requirement of many compliance regulations.

DELL STORAGE NX FAMILY OF NETWORK ATTACHED STORAGE NAS APPLIANCES

Latest generation NX Windows NAS appliance:

Dell Storage NX network attached storage is an affordable NAS appliance harnessing the innovations of Windows Storage Server 2016.

Features

Enhanced NAS:

The Dell Storage NX storage appliances are easy to use and manage through a familiar, central management interface for stand-alone or cluster configurations:

OS pre-installed for easy deployment
Optimized for file serving with Windows Storage Server 2016
Clustering capabilities when using the NX3340

PowerEdge platforms:

Rely on high speed and efficiency with NAS appliances built on 13th and 14th Generation PowerEdge rack mount server technology.

The latest generation multi-core Intel Xeon processors
Up to 64GB of memory and 192TB raw capacity (NX3240)
Options for SATA, NL-SAS and SAS drives

Simple Management:

Spend less time managing data and more time building your business using Microsoft System Center and the Remote Desktop for Administration feature in Windows Storage Server 2016 or the Integrated Dell Remote Access Controller (iDRAC9 or iDRAC8) Enterprise Edition to manage your data. In addition, you’re able to efficiently utilize NAS capacity resources and optimize your disk space with integrated features within the Dell Storage NX family, including:

Data reduplication
Thin provisioning
DFS-R synchronization capabilities across limited bandwidth network connections in distributed and remote office environments
Volume Shadow Copy Service (VSS) for SMB file shares that allows backup operations using snapshots of remote file shares supporting SMB-based server applications

DELL STORAGE MD1400 DIRECT ATTACHED STORAGE

Connectivity
Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 or PERC H840 (4 enclosures per port, single path)
Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 or PERC H840 (4 enclosures connected to both ports via redundant path cabling)
Connectivity per EMM:
4 mini-SAS HD connector for connection to the host or expansion
Service management:
USB mini b connector (for factory use only)
Dimensions & Weight
Height x width x depth:
MD1400: 8.7 cm (3.43") x 48.2 cm (18.98") x 59.2 cm (23.3") (depth includes PSU handle)
MD1420: 8.7 cm (3.43") x 48.2 cm (18.98") x 53.9 cm (21.22") (depth includes PSU handle)
Weight: 28.59 kg (63.03 lb) (maximum configuration)
9.0 kg (19.8 lb ) (empty)
Environmental Operating Conditions
Temperature:
Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
Relative Humidity:
Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing)
Altitude:
Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)
Expansion Capacity :
PERC H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure
Management :
Enclosure Management Modules (EMM)
2 EMM provide redundant enclosure management capability
Power
Wattage – also supports DC power: AC – 600W; DC – 700W
Host heat dissipation: AC – 2047 BTU/hr; DC – 2388 BTU/hr
Input voltage range: 100-240 VAC, auto-sensing; 48 V DC
Frequency range:50/60 Hz
Amperage:8.6 A at 100 V, 4.3 A at 240 V
Supported continuous consumption:
Up to 1.2 A at +5V
Up to 0.5 A at +12V
RAID
RAID levels 0, 1, 5, 6, 10, 50 and 60
Rack Support
Dell ReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Storage :
Drive type
3.5" and 2.5" SAS, NL-SAS, SSD, SED (2.5” available with adapter)
Maximum Raw Capacity (per enclosure)
Up to 144TB when using 12 x 10TB NL-SAS 3.5" HDDs

DELL STORAGE MD1280 DENSE ENCLOSURE

Dell Storage MD1280 Dense Enclosure:

Benefit from the Dell Storage MD1280 Dense Enclosure ultra-dense server storage capacity at an affordable price per gigabyte.

Ultra-dense storage capacity:

Add capacity to your PowerEdge servers — 40 percent more capacity than previous generations of dense enclosure options with the Dell Storage MD1280, Dell’s most dense storage enclosure.

The MD1280 operates as a JBOD (just a box of disks). Add storage capacity to your PowerEdge servers simply and efficiently to take advantage of the Dell’s competitive price per gigabyte.

Scale the MD1280 up to 168 drives with two enclosures, and use various optimized drive speeds to tailor the enclosure to meet your most stringent performance requirements.

Competitive pricing, maximum storage:

Easily add affordable capacity to your Dell PowerEdge servers with the modular MD1280 Storage Enclosure. Together, the MD1280 and Dell enterprise hard-drives enable you to add capacity at a competitive price per gigabyte of storage. MD1280 features include:

84 hard drives in a 5U standard rack mount chassis

High capacity 8TB hard drives

The ability to scale up to 1.3PB of capacity

DELL POWERVAULT MD3060E DENSE ENCLOSURE

Make server expansion affordable:

Optimize your server space, and help cut power and cooling expenses with up to 240 HDDs (four MD3060e enclosures) per server in just 16U of space.

Features

Affordable density for Dell servers:

When it comes to expanding DAS in your server deployment, there are several important questions to consider:

How much space do you need?

How quickly you can add more storage?

How can you add capacity while keeping power and cooling costs under control?

Your answer is the Dell PowerVault MD3060e dense enclosure, or JBOD (just a bunch of disks). The high-density storage solution in a compact 4U chassis enables quick expansion for PowerEdge R630, R730 and the R730xd servers while saving space, power and cooling expenses. The versatile design allows you to:

Mix and match up to 60 HDDs and SSDs in one chassis

Scale to 240 HDDs (with four MD3060e enclosure) per server

Maximize capacity to 2.4PB per R630 or R730 server

Store over 2PB of data in less than one-half of a standard rack

Capacity based on your design:

Easily scale with versatile enclosure options, drive types and operating system choices, and have the flexibility to design solutions for your specific needs. The MD3060e is a modular platform that allows you to add or reconfigure enclosures, as your workloads require.

Mix and match SAS, NL-SAS HDDs or SSDs to optimize performance or capacity.

Hot-swap drives, fans, enclosure management modules (EMMs) and power supplies for quick modifications and maintenance.

With small-scale-to-hyperscale flexibility, the MD3060e dense enclosure is an ideal solution for:

Hosting companies that need affordable and dense storage

Work groups within a large IT organization, such as an R&D department

Universities or government agencies with high performance computing (HPC) deployments that require high-density storage

High-bandwidth or modular infrastructures, such as manufacturing, oil and gas, and video surveillance

Financial institutions that need to process volumes of data without increasing their data center footprint

DELL POWERVAULT MD1220

High-performance, energy-efficient direct-attached storage (DAS):

Customers seeking a direct-attached, energy-efficient storage array that provides the performance to satisfy demanding applications.

Expansion for Performance-Intensive, Single-Server Applications:

PowerVault MD1220 direct-attached storage (DAS) enclosure is the second generation of Dell's energy-efficient, small-form-factor (SFF), 2.5-inch drive expansion enclosure. The PowerVault MD1220 offers seamless expansion for Dell PowerEdge servers and various Dell Storage arrays, providing IOPs needed to satisfy performance-intensive application. This expansion array can support 24, 2.5-inch SAS hard-disk drives (HDDs) or solid-state drives (SSDs)* in a 2U array and expands up to 8 arrays per adapter, so you don’t have to trade capacity for performance.

Optimizing Performance, Enhancing Security While doubling the Throughput: The PowerVault MD1220 leverages SAS 2.0 technology, which enables double the throughput over previous generation, with a 6Gb/s SAS interface and offers performance optimization with automatic I/O load balancing across redundant paths and enhanced security, over previous generation with new self-encrypting drive (SED) support.

Improved efficiency: The PowerVault MD1220 improves energy efficiency over previous generation, with new 80PLUS® Silver Certified power supplies. This enhancement augments the efficiencies already gained with 2.5-inch drives and variable speed fans.

Satisfying Even the Most Performance-Hungry Applications:

The PowerVault MD1220 direct-attached storage array offers compelling performance.

6Gb/s SAS: With improved throughput from the last-generation, the PowerVault MD1220 can satisfy even the most performance-intensive applications, such as Web hosting, database and e-mail.

Solid State Drives: Pair the increased IOPs and throughput of 6Gb/s SAS with support for solid state drives (SSD), an ideal solution for applications that rely on random block access.

Automatic I/O Load Balancing: Further optimizing the performance of the PowerVault MD1220, the PERC H810 Host-RAID adapter has automatic I/O balancing between the server and storage array. The PERC H810 can detect when a single path starts to get saturated and then balance the I/O traffic across both paths.

The PowerVault MD1220 can deliver the speed, performance and reliability to satisfy performance intensive single server applications that store active and frequently changing information.

Leveraging the PERC H810 RAID Controller:

The PowerVault MD1220 leverages the latest PCI Express 2.0 interface, offering excellent performance for enterprise.

The configuration of the PERC H810 Host-RAID adapter helps to increase reliability and fault tolerance by enabling the software to recognize the entire array as a single unit, regardless of how many disks are activated for storage in the array. With the PERC H810, customers can choose the RAID option that supports their application. The PERC H810 supports RAID levels 0, 1, 5, 6, 10, 50 and 60.

Dell PowerVault MD1220 storage array is engineered to work optimally with Dell PowerEdge servers. Dell OpenManage Storage Manager Software can manage both the external array and internal storage within the server itself. See PERC H810 server compatibility matrix for a list of currently supported servers.

Streamlining storage management through a single, common interface helps reduce resource load on the system, and is easier to navigate for the user as well. The PowerVault MD1220 utilizes the same 2.5-inch drives as PowerEdge servers, and the same power supplies and fans as the PowerVault MD1200, helping to reduce the number of spares required.

DELL POWERVAULT MD1200

Versatile, high-capacity direct-attached storage DAS:

Versatile, high-capacity storage for mainstream applications, with optimal performance in sequential (streaming) applications.

Expansion for Mainstream and Capacity-Intensive Single Server Applications:

Dell PowerVault MD1200 is the second generation of Dell’s low-cost, high-capacity expansion enclosure that improves density, versatility and performance over previous generation to enhance support for mainstream and capacity-intensive applications.

The PowerVault MD1200 offers seamless expansion for Dell PowerEdge servers with the PERC H810 Host-RAID adapter. It also offers drive flexibility when adding capacity or data tiering to any of Dell's primary storage arrays.

Easily Expand Your Server Capacity: The PowerVault MD1200 is engineered to seamlessly expand the capacity of Dell PowerEdge servers and PowerVault MD3 storage series.This expansion enclosure can support twelve, 3.5- or 2.5-inch SAS hard-disk drives (HDDs) or solid-state drives (SSDs) in a 2U array and expands up to 8 arrays behind a single PERC H810 Host-RAID adapter.

Versatility and Flexibility to Meet Most Business Needs: The MD1200 is Dell’s most versatile direct-attached storage expansion enclosure. Featuring support for 2.5 inch drives, as well as the ability to mix 2.5-inch* and 3.5-inch enclosures behind a single PERC H810 Host-RAID adapter,the PowerVault MD1200 delivers capacity and performance to support most customer deployments.

Support the Business, No Matter the Need:

The PowerVault MD1200 supports most mainstream business requirements with added flexibility and versatility to mix 2.5-inch drives in a 3.5-inch enclosure and mix 2.5- and 3.5-inch enclosures behind a single PERC H810 Host-RAID adapter.

Latest storage Models Hyderabad, Telangana

Pricelist of Best storage Models

QNAP TS H1677AXU RP 16 BAY NAS ENCLOSURE

QNAP TS 216G NETWORK ATTACHED STORAGE

QNAP TS 632X 4G NETWORK ATTACHED STORAGE

QNAP TS 855X 8G NETWORK ATTACHED STORAGE

QNAP TVS H874T I7 32G NETWORK ATTACHED STORAGE

QNAP TBS H574TX I5 16G THUNDERBOLT 4 NASBOOK

LENOVO THINKSYSTEM D4390 DIRECT ATTACHED STORAGE

LENOVO THINKSYSTEM DE6400F 2U ALL FLASH ARRAY STORAGE

LENOVO THINKSYSTEM DE6600F ALL FLASH ARRAY STORAGE

LENOVO THINKSYSTEM DE600S 4U60 LFF EXPANSION ENCLOSURE STORAGE

LENOVO THINKSYSTEM DE6400H HYBRID FLASH ARRAY

LENOVO THINKSYSTEM DE6600H HYBRID FLASH ARRAY STORAGE

LENOVO THINKSYSTEM DG5000 ALL FLASH QLC ARRAY STORAGE

LENOVO THINKSYSTEM DG7000 ALL FLASH QLC ARRAY STORAGE

LENOVO TS3200 TAPE LIBRARY STORAGE

LENOVO TS3100 TAPE LIBRARY STORAGE

QNAP TS 453E NAS STORAGE

QNAP TS 464 NAS STORAGE

QNAP TS 451 NAS STORAGE

QNAP TS 433 NAS STORAGE

QNAP TR 002 NAS STORAGE

QNAP TS 230 NAS STORAGE

QNAP TS 233 NAS STORAGE

STARDOM ITANK I310B31 PLUS SINGLEBAYS STORAGE SYSTEM

STARDOM ITANK I310B31 SINGLEBAYS STORAGE SYSTEM

STARDOM ITANK I310BA31 SINGLEBAYS STORAGE SYSTEM

STARDOM ITANK I310B31A SINGLEBAYS STORAGE SYSTEM

STARDOM GT1670B31 SINGLEBAYS STORAGE SYSTEM

STARDOM GT1670B31A SINGLEBAYS STORAGE SYSTEM

STARDOM GT1670BA31 SINGLEBAYS STORAGE SYSTEM

STARDOM ITANK MT1B31BP SINGLEBAYS STORAGE SYSTEM

STARDOM ITANK MT1-BA31BP SINGLEBAYS STORAGE SYSTEM

STARDOM ITANK ZT1B31BP SINGLEBAYS STORAGE SYSTEM

STARDOM ITANK ZT1BA31BP SINGLEBAYS STORAGE SYSTEM

STARDOM UBOXB4BP SINGLEBAYS STORAGE SYSTEM

STARDOM SOHORAID SR2B31 DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID SR2B31A DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID SR2BA31 DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID ST2B31 DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID ST2BA31 DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID ST2B31A DUALBAYS STORAGE SYSTEM

STARDOM GR3680BA31 DUALBAYS STORAGE SYSTEM

STARDOM GR3680B31A DUALBAYS STORAGE SYSTEM

STARDOM GR3680B31 DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID MR2B31 DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID MR2B31BP DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID MR2BA31BP DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR2B31BP DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR2B31 DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR2BA31BP DUALBAYS STORAGE SYSTEM

STARDOM SOHOTANK U2FB32 DUALBAYS STORAGE SYSTEM

STARDOM SOHOTANK US2B32 DUALBAYS STORAGE SYSTEM

STARDOM MOBILE RACK SERIES IR2774C DUALBAYS STORAGE SYSTEM

STARDOM UR2B32 DUALBAYS STORAGE SYSTEM

STARDOM SOHORAID ST4U6B MULTIBAYS STORAGE SYSTEM

STARDOM SOHOTANK ST8U6B MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR4BA31 PLUS MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR4B31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR4B31A MULTIBAYS STORAGE SYSTEM

STARDOM SAFETANK GR5640BA31 PLUS MULTIBAYS STORAGE SYSTEM

STARDOM SAFETANK GR5640B31A MULTIBAYS STORAGE SYSTEM

STARDOM SAFETANK GR5640B31 PLUS MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR3MSB31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR3MSB31A MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR3MSBA31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHOTANK ST4B31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR3MSBB31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR3MSBB31A MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID SR3MSBBA31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR3MSB31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR3MSBA31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR3MSB31A MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR3MSBBA31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR3MSBB31 MULTIBAYS STORAGE SYSTEM

STARDOM SOHORAID ZR3MSBB31A MULTIBAYS STORAGE SYSTEM

STARDOM SOHOTANK ST4FB32 MULTIBAYS STORAGE SYSTEM

STARDOM RAIDON GT5640B31 MULTIBAYS STORAGE SYSTEM

QNAP TVS H1688X W1250 32G NAS STORAGE
