Dimensions: 17.3 inches wide 15 inches deep 1 RU high
Weight: 6.1 kg (13.45 lb)
Port Speeds: 1 GbE RJ-45 fixed ports:
10/100/1000 Mbps autosensing
10 GbE SFP+ transceivers DAC cables and AOCs: 10 Gbps
1/10 GbE SFP+ transceivers: 1 Gbps or 10 Gbps
1 GbE SFP transceivers: 1 Gbps
Temperature:
Ambient operating: 0º C to 40º C
Altitude: Operating 1800 m (6000 ft)
Acoustic Noise
Less than 65 dB
Heat Dissipation
259 BTU/hour
Mean time between failures (MTBF)
204577 hours with ambient operating temperature of 40º C
Airflow
Rear to front cooling
Power: Single power 50 - 60 Hz 100 - 240 V ac with typical power consumption of 76 W optional external Lenovo RackSwitch G7000 Redundant Power Supply with support
for up to four RackSwitch G7052 switches
Warranty: 3 year next business day replacement phone support and software upgrades service upgrades and extensions available
Performance: Line rate performance 1.08Tbps switching throughput up to 714 Million packets per second (Mpps) up to 9,416 byte jumbo frames 32MB buffer size
Interface configurations: 48x 10GBase T (RJ45)
6x 100GbE ports supporting various combinations of: Up to 6x 100GbE QSFP28 transceivers
Up to 16x 25GbE SFP28 ports using special (QSFP28 to 4x SFP28) break out DAC or optics cable
Up to 16x 10GbE SFP+ ports using special (QSFP28 to 4x SFP+) break out DAC or optics cable
Management interfaces: 1x RJ45 Ethernet Management port
1x Mini USB (Type AB) serial console port
1x USB2.0 for mass storage access
Cooling: Rear to front model with five variable-speed hot swap fan modules that provide 4+1 redundancy
Power: Dual hot swap internal power modules that provide 1+1 redundancy with 407W maximum consumption
Performance: Line rate performance up to 3.6Tbps aggregated throughput as low as 480 ns (QSFP28) or 535 ns (SPP28) port to port switching latency up to 2678 Million packets per second (Mpps) (64 byte packets) up to 9216-byte jumbo frames buffer size 22MB
Interface Configurations: 48x 25Gb Ethernet ports supporting various combinations of:
Up to 48x SFP28 25GbE SFP28 transceivers
Up to 48x SFP+ 10GbE SFP+ transceivers
Up to 48x SFP28 25GbE SFP28 DAC and AOC (Various lengths: 1m 3m 5m etc.)
Up to 48x SFP+ 10GbE SFP+ DAC and AOC (Various lengths: 1m 3m 5m etc.)
6x 100Gb Ethernet ports supporting various combination of:
Up to 6x QSFP28 100GbE QSFP28 transceivers
Up to 6x QSFP 40GbE QSFP transceivers
Up to 6x QSFP28 100Gb DAC cable or AOC cable (Various lengths: 1m 3m 5m etc.)
Up to 24x SFP28 25GbE ports using special (QSFP28 to 4xSFP28) break out DAC cable or optics with break-out fibers (Various lengths: 1m 3m 5m etc.)
Up to 12x QSFP28 50GbE ports using special (QSFP28 to 2xQSFP28) break out DAC cable or optics with break-out fibers (Various Lengths 1m 3m 5m etc.)
Up to 24x SFP+ 10GbE ports using special (QSFP to 4xSFP+) break out DAC cable or optics with break-out fibers (Various lengths: 1m 3m 5m etc.)
Virtualization: VLAG SDN ready
Cooling: Front to rear or rear to front cooling six variable speed hot swap fan assemblies that provide N+1 cooling redundancy
Power: Dual load sharing hot swap internal power modules 213W typical / 289W maximum consumption
Performance: Line rate performance up to 6.4Tbps switching throughput as low as 490 ns port to port switching latency up to 2702 Million packets per second (Mpps) up to 9216 byte jumbo frames 16MB buffer size
Interface Configurations: 32x 100Gb Ethernet ports supporting various combinations:
Up to 32x QSFP28 100GbE QSFP28 transceivers
Up to 32x QSFP 40GbE QSFP transceivers
Up to 32x QSFP28 100Gb DAC cable or AOC cable (Various lengths: 1m 3m 5m etc.)
Up to 128x SFP28 25GbE ports using special (QSFP28 to 4xQSFP28) break-out DAC cable or optics with break out fibers (Various lengths: 1m 3m 5m etc.)
Up to 64x QSFP28 50GbE ports using special (QSFP28 to 2xQSFP28) break-out DAC cable or optics with break out fibers. (Various lengths: 1m 3m 5m etc.)
Up to 128x SFP+ 10GbE ports using special (QSFP to 4xSFP+) break-out DAC cable or optics with break out fibers (Various lengths: 1m 3m 5m etc.)
Virtualization: VLAG SDN ready
Cooling: Front to rear or rear to front cooling six variable speed hot swap fan assemblies that provide N+1 cooling redundancy
Power: Dual load sharing hot swap internal power modules 212W typical / 436W maximum consumption
Performance: Line rate performance 1.44Tbps switching throughput as low as 700 ns (QSFP+) or 2.4 us (10GBASET) port-to-port switching latency up to 714 Million packets per second (Mpps) up to 9216 byte jumbo frames 12MB buffer size
Interface Configurations: 48x 10GBase T + 6x 40Gb QSFP+ Ethernet ports or 6x (4x 10GbE) with breakout cables
Virtualization: VLAG SDN ready
Cooling: Front to rear or rear to front cooling five variable speed hot swap fan assemblies that provide N+1 cooling redundancy
Power: Dual load sharing hot swap internal power modules 202W typical / 291W maximum consumption
Performance: Line rate performance up to 640Gbps switching throughput; as low as 760 ns (SFP+) or 2.3 us (10GBASE-T) port to port switching latency; up to 476 million packets per second (Mpps) (64 byte packets); up to 9,216 byte jumbo frames; 12MB buffer size
Performance: Line rate performance up to 640Gbps switching throughput; as low as 760 ns port to port switching latency up to 476 Million packets per second (64-byte packets); up to 9216 byte jumbo frames; 12MB buffer size

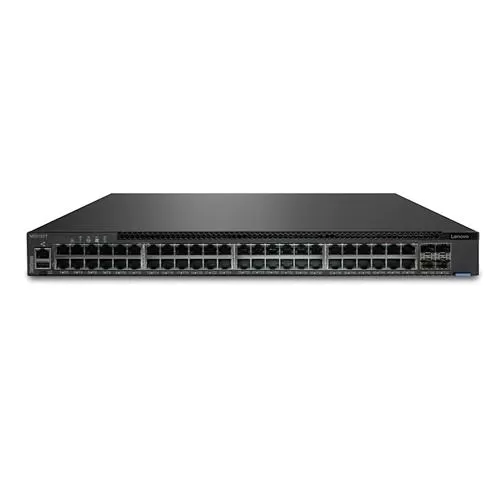

Part Number: NE0152T Ports: 48x 1GBASE T RJ45 ports 4x 10GbE SFP+ ports Connectitivty: Lenovo CNOS included Redundant hot swap power & fansGet Lenovo CNOS on a full featured high performance 1GBASE T switch optimized for data center management or SMB data network
