Latest dell storage Models Hyderabad, Telangana
As trusted dell storage dealers, we specialize in providing high-performance server solutions tailored to meet the diverse needs of businesses, data centers, and IT infrastructure providers. With a comprehensive range of servers from leading brands, we ensure our clients receive reliable, scalable, and cost-effective hardware that supports smooth operations and future growth. Our expertise, commitment to quality, and customer-focused approach make us a preferred partner for organizations looking to enhance their IT capabilities with dependable server solutions.
Pricelist of Best dell storage Models

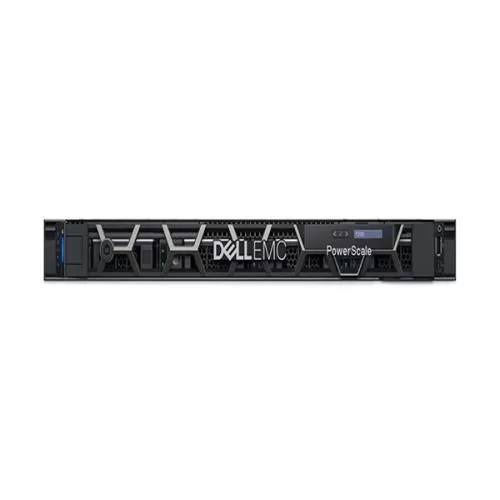

- Brand: Dell
- Raw node capacity:7.7 TB - 61 TB
- Nodes per cluster:3 up to 252
- Raw cluster capacity:23 TB to 15 PB
- Memory:128 GB
- Storage type:NVMe SSD (TLC, QLC)
- SSD drives per node:4
- Processor: 2 Intel Xeon CPUs, 2GHz/10C
- Functional: All-flash, all-NVMe NAS, Scale-out storage
- Memory: 128 GB DRAM DDR5 ECC
- Base enclosure: 1U Form Factor, 4x2.5” NVMe SSD drives
- Expansion Capacity: Scale-out architecture, Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
- Expansion enclosures: Minimum cluster size: 3 nodes, Maximum cluster size: 252 nodes
- Front End Networking (per node): Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28), Dual port 100G NIC supporting 40G or 100G connections
- Infrastructure Networking (per node): Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28), Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
- Software: OneFS 9.2.1 or later. Upgrades are non-disruptive, PowerScale OneFS distributed file system creates a cluster with a single file system and
- Base unit: 1U Form Factor
- Height: 42.8 mm / 1.68 in.
- Width: 482 mm / 18.97 in.
- Depth: 822.88 mm / 32.39 in. (with bezel)
- Weight: 20.3 kg / 44.8 lb
- Power: 800 W, Dual redundant power supplies
- Max Power consumption: (200-240V per node), 25°C – 286 Watts, 35°C – 309 Watts
- Typical Thermal rating: 25°C – 975 BTU/hr, 35°C – 1054 BTU/hr

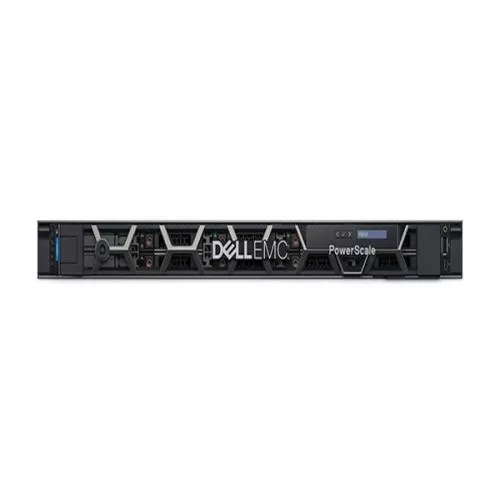

- Brand: Dell
- Raw node capacity:38 TB - 1.2 PB
- Nodes per cluster:3 up to 252
- Raw cluster capacity:115 TB - 307 PB
- Memory:512 GB
- Storage type:NVMe SSD (TLC, QLC)
- SSD drives per node:10
- Processor: 2 Intel Xeon CPUs, 2.6GHz/24C
- Functional: All-flash, all-NVMe NAS, Scale-out storage
- Memory: 512 GB DRAM DDR5
- Base enclosure: 1U Form Factor, 10x2.5” NVMe SSD drives
- Scale-out architecture: Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
- Expansion enclosures: Minimum cluster size: 3 nodes, Maximum cluster size: 252 nodes
- Front End Networking (per node): Dual port 25 NIC supporting 10G or 25G connections (SFP+/SFP28), Dual Port 100G NIC supporting 40G or 100G connections
- Infrastructure Networking (per node): Dual port 100G NIC supporting 40G or 100G connections (QSFP+SFP28)
- Media Types: NVMe SSDs, 3.84 TB (TLC), 7.68 TB (TLC), 15.36 TB (QLC), 30.72 TB (QLC)
- Software: OneFS 9.2.1 or later. Upgrades are non-disruptive, PowerScale OneFS distributed file system
- Base unit:1U Form Factor
- Height: 42.8mm / 1.68in
- Width: 482mm / 18.97 in
- Depth: 822.88mm / 32.39 in. with bezel
- Weight: 22.5 kg / 49.6 lbs.
- Power: 1400 W, Dual redundant power supplies
- Max Power consumption: (200-240V per node), 25°C – 769 Watts, 35°C – 887 Watts
- Typical Thermal rating: 25°C – 2622 BTU/hr, 35°C – 3025 BTU/hr

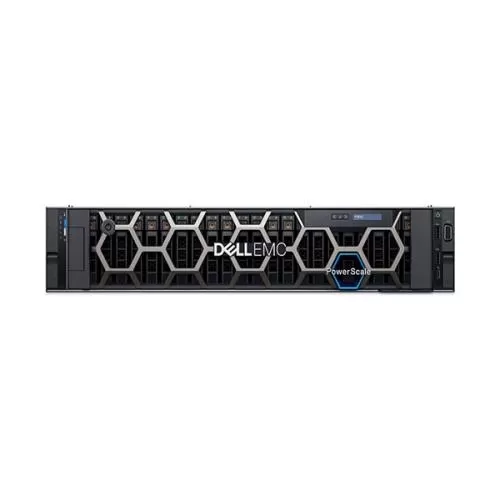

- Brand: Dell
- Raw node capacity: 92 TB - 2.9 PB
- Nodes per cluster: 3 up to 252
- Raw cluster capacity: 276 TB - 737 PB
- Memory: 512 GB
- Storage type: NVMe SSD (TLC, QLC)
- SSD drives per node: 24
- Processor: 2 Intel Xeon CPUs, 2.4GHz/24C
- Functional: All-flash, all-NVMe NAS, Scale-out storage
- Memory: 512GB DRAM DDR5 ECC
- Base enclosure: 2U Form Factor, 24x2.5” NVMe SSD drives
- Expansion Capacity: Scale-out architecture, Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
- Expansion enclosures: Minimum cluster size: 3 nodes, Maximum cluster size: 252 nodes
- Front End Networking (per node): Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28), Dual port 100G NIC supporting 40G or 100G connections
- Infrastructure Networking (per node): 2 InfiniBand connections with QDR links or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
- Media Types: NVMe SSDs, 3.84 TB (TLC), 7.68 TB (TLC), 15.36 TB (QLC), 30.72 TB (QLC)
- Form Factor: 2U
- Height: 86.8 mm / 3.41 in.
- Width: 482 mm / 18.97 in.
- Depth: 772.13 mm / 30.39 in. with bezel
- Weight: 32.75 kg / 72.2 lbs
- Power: 1400 W, Dual redundant power supplies
- Max Power consumption : (200-240V per node) , 25°C – 877 Watts, 35°C – 913 Watts
- Typical Thermal rating: 25°C – 2992 BTU/hr, 35°C – 3115 BTU/hr

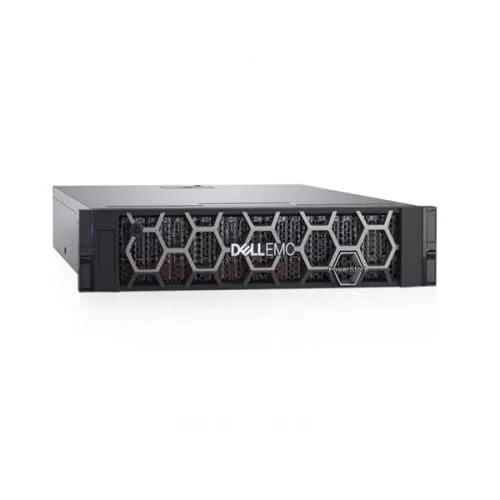

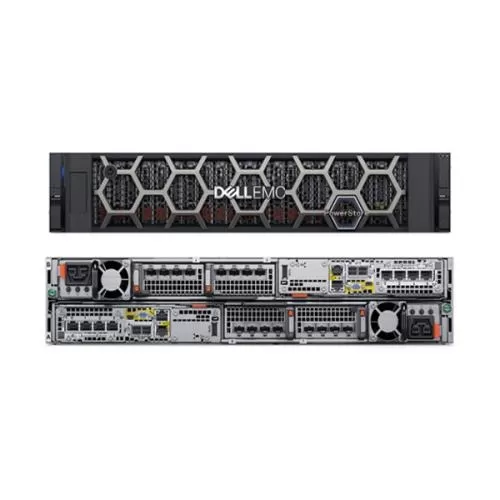

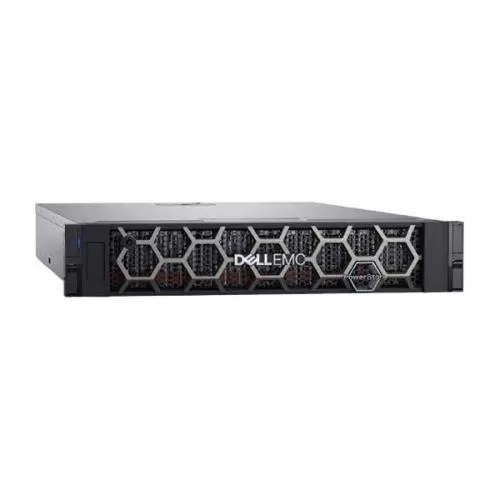

- Brand: Dell
- Processors:4 Intel Xeon CPUs 64 cores, 2.1 GHz
- Memory:768GB
- Max drives:93
- NVRAM drives:2
- Base enclosure: 2U enclosure with dual active/active nodes and twenty-five (25) 2.5” NVMe drive slots
- Expansion enclosures: 2U enclosures with twenty-four (24) 2.5” NVMe drives slots, up to three per appliance
- Power supplies: Two redundant power supplies (PS) per base and per expansion enclosure.
- Data resiliency: Dynamic Resiliency Engine (DRE), protects against multiple simultaneous drive failures
- Max mezzanine cards:2
- Max front-end ports:24
- Max IO modules:4
- Max 16/32Gb FC ports: 16
- Max 10GBase-T/iSCSI:24
- Management Software: PowerStore Manager, Infrastructure Observability (cloud-based storage analytics with ProSupport, Thin Provisioning, Dynamic Resiliency Engine (DRE) – Single & Dual parity, Data Reduction: Zero Detect/Deduplication/Compression, Proactive Assist: Configure remote support, online chat, open a service request, etc, Quality of Service (Block, File, vVols), Capacity Accounting
- Protocols: PowerStore T/Q Models:Block, vVols, File
- Brand: Dell
- Model No: Dell PowerVault ME5084
- Rack Units: 5U
- Drives: 84 x 3.5 inch
- Max Capacity: Up to 7.39 PB
- Expansion: Up to 3 5U enclosures
- Front End Connectivity: 12 Gb SAS
Processor
Intel Xeon Processor
Operating System
Windows 2022, 2019 and 2016
RHEL 8.2 and 7.8
SLES 15.2 and 12.5
VMware 7.0 and 6.7
Citrix XenServer 8.x and 7.x
Functional
All-flash, hybrid flash, HDD only arrays
Native block-level SAN or DAS
Connectivity
10Gb iSCSI BaseT 8 port
25Gb iSCSI SFP+ 8 port
12Gb SAS 8 port
32Gb FC 8 port
1Gb BaseT 2 port (Management Port)
Network and Expansion I/O
Host interface: FC, iSCSI (optical or BaseT), SAS
Disk expansion protocol: 12Gb SAS
Disk interface expansion options:
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Media Types
Storage Media
NLSAS 7.2K 3.5 inch - 4TB, 8TB, 8TB SED/FIPS, 12TB, 16TB, 16TB SED/FIPS, 20TB, 24TB
SAS 10K 2.5 inch - 1.2TB, 2.4TB, 2.4TB SED/FIPS
SSD 1.6TB, 1.92TB, 3.2TB SED/FIPS, 3.84TB, 7.68TB
Software
PowerVault ME5 provides simplified, all-inclusive software
ADAPT RAID
Auto-tiering
Dell AIOps (with ProSupport)
Intelligent Drive Firmware updates
KMIP (Key Management Interoperability Protocol) support
Management GUI
Replication
Snapshots
SSD Read Cache
Thin provisioning
Volume Copy
Data Optimisation
RAID: 1, 5, 6, 10, or ADAPT RAID
Auto-tiering
SSD Read Cache
Snapshots
Thin provisioning
Data Protection
Extended Services
VMware Site Recovery Manager
Data-at-rest encryption (SED)
Key management
Management
PowerVault Manager HTML5 GUI element manager, CLI
VMware vCenter plugin
Redfish/Swordfish REST API, CLI API scripting
VMware vSphere (ESXi), vCenter; SRM, Microsoft Hyper-V
Data Mobility
Asynchronous replication: FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5
Volume Copy
Physical
Base
All-in-one: dual controllers, internal drive bays, networking and with expansion options
2U or 5U
Physical
Base system height:
ME5012: 8.79 cm (3.46 in inch)
ME5024: 8.79 cm (3.46 in inch)
ME5084: 22.23 cm (8.75 in inch)
Base system width:
ME5012: 48.30 cm (19.01 in inch)
ME5024: 48.30 cm (19.01 in inch)
ME5084: 48.30 cm (19.01 in inch)
Base system depth:
ME5012: 61.87 cm (24.36 in inch)
ME5024: 54.78 cm (21.56 in inch)
ME5084: 98.10 cm (38.62 in inch)
Weight (max. cfg):
ME5012: 32.00 kg (71.00 lbs)
ME5024: 30.00 kg (66.00 lbs)
ME5084: 135.00 kg (298.00 lbs)
Power
Power Supply
Storage Enclosures:
ME5212: 580W, 1980 BTU
ME5224: 580W, 1980 BTU
ME5284: 2200W, 7507 BTU
Expansion Enclosures:
ME512: 580W, 1980 BTU
ME524: 580W, 1980 BTU
ME584: 2200W, 7507 BTU
- Brand: Dell
- Model No: Dell PowerVault ME5024
- Rack Units: 2U
- Drives: 24 x 2.5 inch
- Max Capacity: Up to 5.72 PB
- Expansion: Up to 9 2U or 3 5U enclosures
- Front End Connectivity: 12 Gb SAS
Processor
Intel Xeon Processor
Operating System
Windows 2022, 2019 and 2016
RHEL 8.2 and 7.8
SLES 15.2 and 12.5
VMware 7.0 and 6.7
Citrix XenServer 8.x and 7.x
Functional
All-flash, hybrid flash, HDD only arrays
Native block-level SAN or DAS
Connectivity
10Gb iSCSI BaseT 8 port
25Gb iSCSI SFP+ 8 port
12Gb SAS 8 port
32Gb FC 8 port
1Gb BaseT 2 port (Management Port)
Network and Expansion I/O
Host interface: FC, iSCSI (optical or BaseT), SAS
Disk expansion protocol: 12Gb SAS
Disk interface expansion options:
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Media Types
Storage Media
NLSAS 7.2K 3.5 inch - 4TB, 8TB, 8TB SED/FIPS, 12TB, 16TB, 16TB SED/FIPS, 20TB, 24TB
SAS 10K 2.5 inch - 1.2TB, 2.4TB, 2.4TB SED/FIPS
SSD 1.6TB, 1.92TB, 3.2TB SED/FIPS, 3.84TB, 7.68TB
Software
PowerVault ME5 provides simplified, all-inclusive software
ADAPT RAID
Auto-tiering
Dell AIOps (with ProSupport)
Intelligent Drive Firmware updates
KMIP (Key Management Interoperability Protocol) support
Management GUI
Replication
Snapshots
SSD Read Cache
Thin provisioning
Volume Copy
Data Optimisation
RAID: 1, 5, 6, 10, or ADAPT RAID
Auto-tiering
SSD Read Cache
Snapshots
Thin provisioning
Data Protection
Extended Services
VMware Site Recovery Manager
Data-at-rest encryption (SED)
Key management
Management
PowerVault Manager HTML5 GUI element manager, CLI
VMware vCenter plugin
Redfish/Swordfish REST API, CLI API scripting
VMware vSphere (ESXi), vCenter; SRM, Microsoft Hyper-V
Data Mobility
Asynchronous replication: FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5
Volume Copy
Physical
Base
All-in-one: dual controllers, internal drive bays, networking and with expansion options
2U or 5U
Physical
Base system height:
ME5012: 8.79 cm (3.46 in inch)
ME5024: 8.79 cm (3.46 in inch)
ME5084: 22.23 cm (8.75 in inch)
Base system width:
ME5012: 48.30 cm (19.01 in inch)
ME5024: 48.30 cm (19.01 in inch)
ME5084: 48.30 cm (19.01 in inch)
Base system depth:
ME5012: 61.87 cm (24.36 in inch)
ME5024: 54.78 cm (21.56 in inch)
ME5084: 98.10 cm (38.62 in inch)
Weight (max. cfg):
ME5012: 32.00 kg (71.00 lbs)
ME5024: 30.00 kg (66.00 lbs)
ME5084: 135.00 kg (298.00 lbs)
Power
Power Supply
Storage Enclosures:
ME5212: 580W, 1980 BTU
ME5224: 580W, 1980 BTU
ME5284: 2200W, 7507 BTU
Expansion Enclosures:
ME512: 580W, 1980 BTU
ME524: 580W, 1980 BTU
ME584: 2200W, 7507 BTU
- Brand: Dell
- Model No: Dell PowerVault ME5012
- Rack Units: 2U
- Drives: 12 x 3.5 inch
- Max Capacity: Up to 5.80 PB
- Expansion: Up to 9 2U or 3 5U enclosures
- Front End Connectivity: 12 Gb SAS
Processor
Intel Xeon Processor
Operating System
Windows 2022, 2019 and 2016
RHEL 8.2 and 7.8
SLES 15.2 and 12.5
VMware 7.0 and 6.7
Citrix XenServer 8.x and 7.x
Functional
All-flash, hybrid flash, HDD only arrays
Native block-level SAN or DAS
Connectivity
10Gb iSCSI BaseT 8 port
25Gb iSCSI SFP+ 8 port
12Gb SAS 8 port
32Gb FC 8 port
1Gb BaseT 2 port (Management Port)
Network and Expansion I/O
Host interface: FC, iSCSI (optical or BaseT), SAS
Disk expansion protocol: 12Gb SAS
Disk interface expansion options:
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Media Types
Storage Media
NLSAS 7.2K 3.5 inch - 4TB, 8TB, 8TB SED/FIPS, 12TB, 16TB, 16TB SED/FIPS, 20TB, 24TB
SAS 10K 2.5 inch - 1.2TB, 2.4TB, 2.4TB SED/FIPS
SSD 1.6TB, 1.92TB, 3.2TB SED/FIPS, 3.84TB, 7.68TB
Software
PowerVault ME5 provides simplified, all-inclusive software
ADAPT RAID
Auto-tiering
Dell AIOps (with ProSupport)
Intelligent Drive Firmware updates
KMIP (Key Management Interoperability Protocol) support
Management GUI
Replication
Snapshots
SSD Read Cache
Thin provisioning
Volume Copy
Data Optimisation
RAID: 1, 5, 6, 10, or ADAPT RAID
Auto-tiering
SSD Read Cache
Snapshots
Thin provisioning
Data Protection
Extended Services
VMware Site Recovery Manager
Data-at-rest encryption (SED)
Key management
Management
PowerVault Manager HTML5 GUI element manager, CLI
VMware vCenter plugin
Redfish/Swordfish REST API, CLI API scripting
VMware vSphere (ESXi), vCenter; SRM, Microsoft Hyper-V
Data Mobility
Asynchronous replication: FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5
Volume Copy
Physical
Base
All-in-one: dual controllers, internal drive bays, networking and with expansion options
2U or 5U
Physical
Base system height:
ME5012: 8.79 cm (3.46 in inch)
ME5024: 8.79 cm (3.46 in inch)
ME5084: 22.23 cm (8.75 in inch)
Base system width:
ME5012: 48.30 cm (19.01 in inch)
ME5024: 48.30 cm (19.01 in inch)
ME5084: 48.30 cm (19.01 in inch)
Base system depth:
ME5012: 61.87 cm (24.36 in inch)
ME5024: 54.78 cm (21.56 in inch)
ME5084: 98.10 cm (38.62 in inch)
Weight (max. cfg):
ME5012: 32.00 kg (71.00 lbs)
ME5024: 30.00 kg (66.00 lbs)
ME5084: 135.00 kg (298.00 lbs)
Power
Power Supply
Storage Enclosures:
ME5212: 580W, 1980 BTU
ME5224: 580W, 1980 BTU
ME5284: 2200W, 7507 BTU
Expansion Enclosures:
ME512: 580W, 1980 BTU
ME524: 580W, 1980 BTU
ME584: 2200W, 7507 BTU
- Brand: Dell
- Model No: Dell PowerVault ME5284 Storage
- Rack Units: 5U
- Drives: 84 x 3.5 inch
- Max Capacity: Up to 8.064 PB
- Expansion: Up to 3 5U enclosures
- Front End Connectivity: 12 Gb SAS
Processor
Intel Xeon Processor
Operating System
Windows 2025 (inc. Hyper-V), Windows 2022 (inc. hyper-V)
RHEL 9.5, 8.10
SLES 15 SLES 15 SP6, SLES 12 SP 8
VMware 9.0 and 8.0 U3
Functional
All-flash, hybrid flash, HDD only arrays
Native block-level SAN or DAS
Connectivity
10Gb iSCSI BaseT 8 port
25Gb iSCSI SFP+ 8 port
12Gb SAS 8 port
32Gb FC 8 port
1Gb BaseT 2 port (Management Port)
Network and Expansion I/O
Host interface: FC, iSCSI (optical or BaseT), SAS
Disk expansion protocol: 12Gb SAS
Disk interface expansion options:
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Media Types
Storage Media
NLSAS 7.2K 3.5 inch - 4TB, 8TB, 8TB SED/FIPS, 12TB, 16TB, 16TB SED/FIPS, 20TB, 24TB
SAS 10K 2.5 inch - 1.2TB, 2.4TB, 2.4TB SED/FIPS
SSD 1.6TB, 1.92TB, 3.2TB SED/FIPS, 3.84TB, 7.68TB
Software
PowerVault ME5 provides simplified, all-inclusive software
ADAPT RAID
Auto-tiering
Dell AIOps (with ProSupport)
Intelligent Drive Firmware updates
KMIP (Key Management Interoperability Protocol) support
Management GUI
Replication
Snapshots
SSD Read Cache
Thin provisioning
Volume Copy
Data Optimisation
RAID: 1, 5, 6, 10, or ADAPT RAID
Auto-tiering
SSD Read Cache
Snapshots
Thin provisioning
Data Protection
Extended Services
VMware Site Recovery Manager
Data-at-rest encryption (SED)
Key management
Management
PowerVault Manager HTML5 GUI element manager, CLI
VMware vCenter plugin
Redfish/Swordfish REST API, CLI API scripting
VMware vSphere (ESXi), vCenter; SRM, Microsoft Hyper-V
Data Mobility
Asynchronous replication: FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5
Volume Copy
Physical
Base
All-in-one: dual controllers, internal drive bays, networking and with expansion options
2U or 5U
Physical
Base system height:
ME5284: 22.23 cm (8.75 inch)
Base system width:
ME5284: 48.30 cm (19.01 inch)
Base system depth:
ME5284: 981 mm (38.62 inch)
Weight (max. cfg):
ME5284: 135.00 kg (298.00 lbs)
Power
Power Supply
Storage Enclosures:
ME5284: 2200W, 7507 BTU
- Brand: Dell
- Model No: Dell PowerVault ME5224 Storage
- Rack Units: 2U
- Drives: 24 x 2.5 inch
- Max Capacity: Up to 6.232 PB
- Expansion: Up to 9 2U or 3 5U enclosures
- Front End Connectivity: 12 Gb SAS
Processor
Intel Xeon Processor
Operating System
Windows 2025 (inc. Hyper-V), Windows 2022 (inc. hyper-V)
RHEL 9.5, 8.10
SLES 15 SLES 15 SP6, SLES 12 SP 8
VMware 9.0 and 8.0 U3
Functional
All-flash, hybrid flash, HDD only arrays
Native block-level SAN or DAS
Connectivity
10Gb iSCSI BaseT 8 port
25Gb iSCSI SFP+ 8 port
12Gb SAS 8 port
32Gb FC 8 port
1Gb BaseT 2 port (Management Port)
Network and Expansion I/O
Host interface: FC, iSCSI (optical or BaseT), SAS
Disk expansion protocol: 12Gb SAS
Disk interface expansion options:
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Media Types
Storage Media
NLSAS 7.2K 3.5 inch - 4TB, 8TB, 8TB SED/FIPS, 12TB, 16TB, 16TB SED/FIPS, 20TB, 24TB
SAS 10K 2.5 inch - 1.2TB, 2.4TB, 2.4TB SED/FIPS
SSD 1.6TB, 1.92TB, 3.2TB SED/FIPS, 3.84TB, 7.68TB
Software
PowerVault ME5 provides simplified, all-inclusive software
ADAPT RAID
Auto-tiering
Dell AIOps (with ProSupport)
Intelligent Drive Firmware updates
KMIP (Key Management Interoperability Protocol) support
Management GUI
Replication
Snapshots
SSD Read Cache
Thin provisioning
Volume Copy
Data Optimisation
RAID: 1, 5, 6, 10, or ADAPT RAID
Auto-tiering
SSD Read Cache
Snapshots
Thin provisioning
Data Protection
Extended Services
VMware Site Recovery Manager
Data-at-rest encryption (SED)
Key management
Management
PowerVault Manager HTML5 GUI element manager, CLI
VMware vCenter plugin
Redfish/Swordfish REST API, CLI API scripting
VMware vSphere (ESXi), vCenter; SRM, Microsoft Hyper-V
Data Mobility
Asynchronous replication: FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5
Volume Copy
Physical
Base
All-in-one: dual controllers, internal drive bays, networking and with expansion options
2U or 5U
Physical
Base system height:
ME5212: 8.79 cm (3.46 in.)
ME5224: 8.79 cm (3.46 in.)
ME5284: 22.23 cm (8.75 in.)
Base system width:
ME5212: 48.30 cm (19.01 in.)
ME5224: 48.30 cm (19.01 in.)
ME5284: 48.30 cm (19.01 in.)
Base system depth:
ME5212: 61.87 cm (24.36 in.)
ME5224: 54.78 cm (21.56 in.)
ME5284: 98.10 cm (38.62 in.)
Weight (max. cfg):
ME5212: 32.00 kg (71.00 lbs)
ME5224: 30.00 kg (66.00 lbs)
ME5284: 135.00 kg (298.00 lbs)
Power
Power Supply
Storage Enclosures:
ME5224: AC: 580W. 1980 BTU I DC: 764W, 2607 BTU
- Brand: Dell
- Model No: Dell PowerVault ME5212 Storage
- Rack Units: 2U
- Drives: 12 x 3.5 inch
- Max Capacity: Up to 6.336 PB
- Expansion: Up to 9 2U or 3 5U enclosures
- Front End Connectivity: 12 Gb SAS
Processor
Intel Xeon Processor
Operating System
Windows 2025 (inc. Hyper-V), Windows 2022 (inc. hyper-V)
RHEL 9.5, 8.10
SLES 15 SLES 15 SP6, SLES 12 SP 8
VMware 9.0 and 8.0 U3
Functional
All-flash, hybrid flash, HDD only arrays
Native block-level SAN or DAS
Connectivity
10Gb iSCSI BaseT 8 port
25Gb iSCSI SFP+ 8 port
12Gb SAS 8 port
32Gb FC 8 port
1Gb BaseT 2 port (Management Port)
Network and Expansion I/O
Host interface: FC, iSCSI (optical or BaseT), SAS
Disk expansion protocol: 12Gb SAS
Disk interface expansion options:
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Media Types
Storage Media
NLSAS 7.2K 3.5 inch - 4TB, 8TB, 8TB SED/FIPS, 12TB, 16TB, 16TB SED/FIPS, 20TB, 24TB
SAS 10K 2.5 inch - 1.2TB, 2.4TB, 2.4TB SED/FIPS
SSD 1.6TB, 1.92TB, 3.2TB SED/FIPS, 3.84TB, 7.68TB
Software
PowerVault ME5 provides simplified, all-inclusive software
ADAPT RAID
Auto-tiering
Dell AIOps (with ProSupport)
Intelligent Drive Firmware updates
KMIP (Key Management Interoperability Protocol) support
Management GUI
Replication
Snapshots
SSD Read Cache
Thin provisioning
Volume Copy
Data Optimisation
RAID: 1, 5, 6, 10, or ADAPT RAID
Auto-tiering
SSD Read Cache
Snapshots
Thin provisioning
Data Protection
Extended Services
VMware Site Recovery Manager
Data-at-rest encryption (SED)
Key management
Management
PowerVault Manager HTML5 GUI element manager, CLI
VMware vCenter plugin
Redfish/Swordfish REST API, CLI API scripting
VMware vSphere (ESXi), vCenter; SRM, Microsoft Hyper-V
Data Mobility
Asynchronous replication: FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5
Volume Copy
Physical
Base
All-in-one: dual controllers, internal drive bays, networking and with expansion options
2U or 5U
Physical
Base system height:
ME5212 and ME512: 8.79 cm (3.46 in.)
ME5224 and ME524: 8.79 cm (3.46 in.)
ME5284 and ME584: 22.23 cm (8.75 in.)
Base system width:
ME5212 and ME512: 61.87 cm (24.36 in.)
ME5224 and ME524: 54.78 cm (21.56 in.)
ME5284 and ME584: 98.10 cm (38.62 in.)
Base system depth:
ME5212 and ME512: 61.87 cm (24.36 in.)
ME5224 and ME524: 54.78 cm (21.56 in.)
ME5284 and ME584: 98.10 cm (38.62 in.)
Weight (max. cfg):
ME5212: 32.00 kg (71.00 lbs) ME512: 28.00 kg (62.00 lbs)
ME5224: 30.00 kg (66.00 lbs) ME524: 25.00 kg (55.00 lbs)
ME5284: 135.00 kg (298.00 lbs) ME584: 130.00 kg (287.00 lbs)
Power
Power Supply
Storage Enclosures:
ME5212: 580W, 1980 BTU
ME5224: 580W, 1980 BTU
ME5284: 2200W, 7507 BTU
Expansion Enclosures:
ME512: 580W, 1980 BTU
ME524: 580W, 1980 BTU
ME584: 2200W, 7507 BTU
- Brand : Dell
- Model No : Dell Unity XT 880
- Processors : 2 dual-socket Intel CPUs; 48 cores; 2.1GHz
- Drive Enclosure : 2.5 (2U); 25 drives; 2.5 (3U); 80 drives and 3.5 (3U); 15 drives
- Memory : 768 GB
- Capacity : 16 PB
- Min/Max Drives : 6/1500
- CAN/Mezz Ports : 25GbE Opt; 10GbE BaseT
- IO Modules : 10GbE BaseT; 16Gb FC; 25GbE Opt; 10GbE Opt; SAS BE
- Max Fast Cache : Up to 6 TB
- RAID Options : 1/0; 5; 6
- Voltage : 100 to 240 VAC 10%; single phase; 47 to 63 Hz
- Power Consumption : 1440.77 VA (1411.96 W) max at 100 VAC; 1440.77 VA (1411.96 W) max at 200 VAC
- AC Protection : 20 A fuse on each power supply; single line
- Heat Dissipation : 5.08 x 106 J/hr; (4818 Btu/hr) max at 100 VAC; 5.08 x 106 J/hr; (4818 Btu/hr) max 200VAC
- Dimensions (WxDxH) : 44.72 cm x 79.55 cm x 8.72 cm
- Weight : 25.90 kg
- Brand : Dell
- Model No : Dell Unity XT 680
- Processors : 2 dual-socket Intel CPUs; 48 cores; 2.1GHz
- Drive Enclosure : 2.5 (2U); 25 drives; 2.5 (3U); 80 drives and 3.5 (3U); 15 drives
- Memory : 384 GB
- Capacity : 8 PB
- Min/Max Drives : 6/1000
- CAN/Mezz Ports : 25GbE Opt; 10GbE BaseT
- IO Modules : 10GbE BaseT; 16Gb FC; 25GbE Opt; 10GbE Opt; SAS BE
- Max Fast Cache : Up to 3.2 TB
- RAID Options : 1/0; 5; 6
- Voltage : 100 to 240 VAC 10%; single phase; 47 to 63 Hz
- Power Consumption : 1172 VA (1161 W) max at 100 VAC; 1172 VA (1161 W) max at 200 VAC
- AC Protection : 20 A fuse on each power supply; single line
- Heat Dissipation : 4.18 x 106 J/hr; (3,960 Btu/hr) max at 100 VAC; 4.18 x 106 J/hr; (3,960 Btu/hr) max 200VAC
- Dimensions (WxDxH) : 44.72 cm x 79.55 cm x 8.72 cm
- Weight : 25.90 kg
- Brand : Dell
- Model No : Dell Unity XT 480
- Processors : 2 dual-socket Intel CPUs; 32 cores; 1.8GHz
- Drive Enclosure : 2.5 (2U); 25 drives; 2.5 (3U); 80 drives and 3.5 (3U); 15 drives
- Memory : 192 GB
- Capacity : 4 PB
- Min/Max Drives : 6/750
- CAN/Mezz Ports : 25GbE Opt; 10GbE BaseT
- IO Modules : 10GbE BaseT; 16Gb FC; 25GbE Opt; 10GbE Opt; SAS BE
- Max Fast Cache : Up to 1.2 TB
- RAID Options : 1/0; 5; 6
- Voltage : 100 to 240 VAC 10%; single phase; 47 to 63 Hz
- Power Consumption : 1060 VA (1050 W) max at 100 VAC; 1060 VA (1050 W) max at 200 VAC
- AC Protection : 20 A fuse on each power supply; single line
- Heat Dissipation : 3.78 x 106 J/hr; (3581 Btu/hr) max at 100 VAC; 3.78 x 106 J/hr; (3,581 Btu/hr) max 200VAC
- Dimensions (WxDxH) : 44.72 cm x 79.55 cm x 8.72 cm
- Weight : 25.90 kg
- Brand : Dell
- Model No : Dell Unity XT 380
- Processors : 2 x Intel CPUs; 12 cores per Array; 1.7GHz
- Drive Enclosure : 2.5 (2U); 25 drives; 2.5 (3U); 80 drives and 3.5 (3U); 15 drives
- Memory : 128 GB
- Capacity : 2.4 PB
- Min/Max Drives : 6/500
- CAN/Mezz Ports : 8/16Gb FC; 10GbE Opt; 1GbE BaseT
- IO Modules : 10 GbE Base T; 16Gb FC; 25GbE Opt; 10Gbe Opt
- Max Fast Cache : Up to 800 GB
- RAID Options : 1/0; 5; 6
- Voltage : 100 to 240 VAC 10%; single phase; 47 to 63 Hz
- Power Consumption : 1007 VA (970.5 W) max at 100 VAC; 1007 VA (970.5 W) max at 200 VAC
- AC Protection : 15 A fuse on each power supply; single line
- Heat Dissipation : 3.49 x 106 J/hr; (3,311 Btu/hr) max at 100 VAC; 3.49 x 106 J/hr; (3,311 Btu/hr) max (100V)
- Dimensions (WxDxH) : 44.76 cm x 61.39 cm x 8.88 cm
- Weight : 24.60 kg
- Brand : Dell
- Model No : Dell Unity XT 880F
- Processors : 2 x dual-socket Intel CPUs; 64 cores; 2.1GHz
- Drive Enclosure : 2.5 (2U); 25 drives and 2.5 (3U); 80 drives
- Memory : 768 GB
- Capacity : 16 PB
- Min/Max Drives : 6/1500
- CAN/Mezz Ports : 25GbE Opt; 10GbE BaseT
- IO Modules : 10GbE BaseT; 16Gb FC; 25GbE Opt; 10GbE Opt; SAS BE
- RAID Options : 1/0; 5; 6
- Voltage : 100 to 240 VAC 10%; single phase; 47 to 63 Hz
- Power Consumption : 1440.77 VA (1411.96 W) max at 100 VAC; 1440.77 VA (1411.96 W) max at 200 VAC
- AC Protection : 20 A fuse on each power supply; single line
- Heat Dissipation : 5.08 x 106 J/hr; (4818 Btu/hr) max at 100 VAC; 5.08 x 106 J/hr; (4,818 Btu/hr) max 200VAC
- Dimensions (WxDxH) : 44.72 cm x 79.55 cm x 8.72 cm
- Weight : 25.90 kg
- Brand : Dell
- Model No : Dell Unity XT 680F
- Processors : 2 x dual-socket Intel CPUs; 48 cores; 2.1GHz
- Drive Enclosure : 2.5 (2U); 25 drives and 2.5 (3U); 80 drives
- Memory : 384 GB
- Capacity : 8 PB
- Min/Max Drives : 6/1000
- CAN/Mezz Ports : 25GbE Opt; 10GbE BaseT
- IO Modules : 10GbE BaseT; 16Gb FC; 25GbE Opt; 10GbE Opt; SAS BE
- RAID Options : 1/0; 5; 6
- Voltage : 100 to 240 VAC 10%; single phase; 47 to 63 Hz
- Power Consumption : 1172 VA (1161 W) max at 100 VAC; 1172 VA (1161 W) max at 200 VAC
- AC Protection : 20 A fuse on each power supply; single line
- Heat Dissipation : 4.18 x 106 J/hr; (3960 Btu/hr) max at 100 VAC; 4.18 x 106 J/hr; (3960 Btu/hr) max 200VAC
- Dimensions (WxDxH) : 44.72 cm x 79.55 cm x 8.72 cm
- Weight : 25.90 kg
- Brand : Dell
- Model No : Dell Unity XT 480F
- Processors : 2 x dual-socket Intel CPUs; 32 cores; 1.8GHz
- Drive Enclosure : 2.5 (2U); 25 drives and 2.5 (3U); 80 drives
- Memory : 192 GB
- Capacity : 4 PB
- Min/Max Drives : 6/750
- CAN/Mezz Ports : 25GbE Opt; 10GbE BaseT
- IO Modules : 10GbE BaseT; 16Gb FC; 25GbE Opt; 10GbE Opt; SAS BE
- RAID Options : 1/0; 5; 6
- Voltage : 100 to 240 VAC 10%; single phase; 47 to 63 Hz
- Power Consumption : 1060 VA (1050 W) max at 100 VAC; 1060 VA (1050 W) max at 200 VAC
- AC Protection : 20 A fuse on each power supply; single line
- Heat Dissipation : 3.78 x 106 J/hr; (3581 Btu/hr) max at 100 VAC; 3.78 x 106 J/hr; (3581 Btu/hr) max 200VAC
- Dimensions (WxDxH) : 44.72 cm x 79.55 cm x 8.72 cm
- Weight : 25.90 kg
- Brand : Dell
- Model No : Dell Unity XT 380F
- Processors : 2 x Intel CPUs; 12 cores; 1.7GHz
- Drive Enclosure : 2.5 (2U); 25 drives and 2.5 (3U); 80 drives
- Memory : 128 GB
- Capacity : 2.4 PB
- Min/Max Drives : 6/500
- CAN/Mezz Ports : 8/16Gb FC; 10GbE Opt; 1GbE BaseT
- IO Modules : 10 GbE Base T; 16Gb FC; 25GbE Opt; 10Gbe Opt
- RAID Options : 1/0; 5; 6
- Voltage : 100 to 240 VAC 10%; single phase; 47 to 63 Hz
- Power Consumption : 1007 VA (970.5 W) max at 100 VAC; 1007 VA (970.5 W) max at 200 VAC
- AC Protection : 15 A fuse on each power supply; single line
- Heat Dissipation : 3.49 x 106 J/hr; (3311 Btu/hr) max at 100 VAC; 3.49 x 106 J/hr; (3311 Btu/hr) max (100V)
- Dimensions (WxDxH) : 44.76 cm x 61.39 cm x 8.88 cm
- Weight : 24.60 kg
Processors:
Intel Xeon single-socket processors
Drive Enclosure:
2.5" (2U), 25 drives
2.5" (3U), 80 drives
Included Software:
Dell EMC Unity XT Base Software
Unisphere Management
CloudIQ predictive storage analytics
Remote Protection
Local Protection
Ecosystem Integration
Max FAST Cache:
Up to 800 GBs
Max Raw Capacity:
2.4 PB
Memory per Array:
128 GB
Min/Max Drives:
6/500
Protocol:
Fibre Channel
NFS
iSCSI
CPU (per SP):
Single-socket 6c/1.7GHz
Memory (per SP):
64GB
Max Raw Capacity:
2.4PB
CAN/Mezz Ports:
8/16Gb FC,
10GbE Opt,
1GbE BaseT
IO Modules:
10 GbE Base T,
16Gb FC,
25GbE Opt,
10Gbe Opt
- Brand : Dell
- Model No : Dell PowerMax 8500
- CPU : Memory config 2-3: Intel Xeon Gold 6254 3.9 GHz with 18 core; Memory config 4: Intel Xeon Gold 8280L
- Number of Bricks : 1 to 8
- Engine Enclosure : 3U
- Capacity Per Array : 13 TBu - 8 PBe
- Response Time : Under 60 microseconds
- Data Reduction Guarantee : 5:1 data reduction (Open); 3:1 data reduction (Mainframe)
- Nodes Per Array : 2-16 nodes
- Dynamic virtual matrix interconnect : Direct Connect InfiniBand; 100 Gbps per port
- Max Number of Devices/Secure Snapshots : 64K LUNs / 65M snapshots
- Cache-system min (raw) : 1792 GB
- Cache-system max (raw) : 45.056 TB
- Cache-per engine options : 1.792 TB; 3.584 TB; 7.680 TB
- Vault stratery : Vault to Flash
- Vault implementation : 4 NVMe SED Flash Module /Node Pair
- Maximum front-end I/O modules/Node Pair : 8
- Front-end I/O modules and protocols supports : 4 x 32Gbs (FC; NVMe/FC; FICON; SRDF); 4 x 25GbE (iSCSI; SRDF; NVMe/TCP); 4 x 10GbE (iSCSI; SRDF; NVMe/TCP); 1 x zHyperlink Port (MF; zHyperlink)
- NVMe Drives Supported : 3.84TB; 7.68TB; 15.36TB
- Dimensions (WxDxH) : 60 cm x 120 cm x 199.2 cm
- Weight System Bay 1 Four Node Pair; Four DME(Balanced)and Six Node Pair; Four DME(Dense)/ System Bay 2 Four Node Pair; Four DME (Balanced)and Dual Node Pair; Four DME (Dense): 697/819/640/515 kg
NUMBER OF NODE PAIRS: 1 to 8
NODE PAIR MODULE:3U
CPU:
Memory config 2-3: Intel Xeon Gold 6254 3.9
GHz with 18 core1
Memory Config 4: Intel Xeon Gold 8280L
CORE NUMBER PER CPU/PER NODE PAIR/PER SYSTEM:
Memcfg 1-3: 18/72/576
Memcfg 4: 20/80/6084,5
DYNAMIC FABRIC:
InfiniBand Dual Redundant Fabric:
100 Gbps per port
CACHE:
CACHE-SYSTEM MIN (RAW):1792GB
CACHE-SYSTEM MAX (RAW): 45.056TB4
CACHE-PER NODE PAIR OPTIONS: 1.792TB, 3.584TB, 7.680TB
VAULT:
VAULT STRATEGY: Vault to Flash
VAULT IMPLEMENTATION:4 NVMe SED Flash Module /Node Pair3
FRONT-END I/O MODULES:
MAX. FRONT-END I/O MODULES/NODE PAIR:8
FRONT-END I/O MODULES AND PROTOCOLS SUPPORTED:
4 x 32Gbs (FC, NVMe/FC, FICON, SRDF)
4 x 25GbE (iSCSI, SRDF, NVMe/TCP)
4 x 10GbE (iSCSI, SRDF, NVMe/TCP)
1 x zHyperlink Port (MF, zHyperlink)
POWERMAX FILE MODULES:
MAX FILE I/O MODULES/SOFTWARE NODES:4
FILE I/O MODULES SUPPORTED:
10 GbE: 4 x 10GbE File
25 GbE: 4 x 25GbE File
POWERMAX FILE SOFTWARE NODES:
MAX SOFTWARE FILE NODES: 8 (1 per Node, 2 per Node pair)
MAX FILE CAPACITY/ARRAY (PETABYTES USABLE):18PiBe
Max Capacity per Array (Open): 18 PiBe / 20 PBe
Base capacity (Open):30.72TBu
Max Capacity per Array (Mainframe): 9.8 PiBe / 10.7PBe
Base capacity (Mainframe):15.36TBu
Incremental Flash Capacity :3.84TB, 7.68TB, 15.36TB3
Maximum Drives per Array:384
Maximum Drives per System Bay: 192/384
Minimum Drive Count per System: 6 (Mainframe) / 10 (Open)
NVMe DRIVES:
NVMe units accepted (2.5 in.) : 3.84TB, 7.68TB, 15.36TB3
Interface BE: NVMe/NVMeoF via InfiniBand fabric
Flexible Raid options with support:
RAID1 (1+1)
RAID 5(8+1)
RAID 5(12+1)
RAID 6(12+2)
Mixed RAID group support:No
Support for Mixed Drive Capacities:Yes
NVMe DYNAMIC MEDIA ENCLOSURE:
48 x 2.5” Drive DME:Yes
CABINET SETTINGS:
Standard 19" bays:Yes
System Bay configurations:Up to 6 Node Pairs/Bay4,5
Third-party rack mount option:Yes
DISPERSION:
Standard and third-party enclosures N/A — single floor tile system Yes
PRE-CONFIGURATION FROM FACTORY:
100% Thin Provisioned:Yes
HOST SUPPORT:
Open Systems:Yes
Mainframe:Yes
Mixed Mainframe and Open Systems:Yes
POWER OPTIONS:
Input power options:
Single phase or three-phase
Delta or Wye
POWER DISTRIBUTION UNIT:
Intelligent PDU: Default
- Brand : Dell
- Model No : Dell PowerMax 8000
- CPU : Intel Xeon E5-2697-v; 2.8 GHz 18 core
- Number of Bricks : 1 to 8
- Engine Enclosure : 4U
- Capacity Per Array : 54 TBu - 4.5 PBe
- Response Time : Under 100 microseconds
- Data Reduction Guarantee : 3.5:1 data reduction (Open)
- Nodes Per Array : 2-16 controllers
- Dynamic virtual matrix interconnect : Direct Connect InfiniBand; 56 Gbps per port
- Max Number of Devices/Secure Snapshots : 64K LUNs / 65M snapshots
- Cache-system min (raw) : 1024 GB
- Cache-system max (raw) : 16 TB (with 2048 GB engine)
- Cache-per engine options : 1 TB; 2 TB
- Vault stratery : Vault to Flash
- Vault implementation : 4 to 8 NVMe Flash SLICs / Engine
- Maximum front-end I/O modules/brick : 8
- Front-end I/O modules and protocols supports : 4 x 32 Gbs (FC; SRDF); 4 x 32 Gbs (FC-NVMe); 4 x 16 Gbs (FC; SRDF); 10 GbE: 4 x 10 GbE (iSCSI; SRDF); 25 GbE: 4 x 25 GbE (iSCSI; SRDF); 4 x 16 Gbs (FICON)
- NVMe Drives Supported : 1.92 TB; 3.84 TB; 7.68 TB; 15.36 TB
- SCM Drives Supported : 750 GB; 1.5 TB
- Dimensions (WxDxH) : 61 cm x 119 cm x 190 cm
- Weight System bay 1 quad engine/ System bay 2 quad engine : 758/692 kg
Number of Bricks or zBricks: 1 to 8
Engine Enclosure:4U
CPU:
Intel Xeon E5-2697-v4
2.8 GHz 18 core4
Cores per CPU/per engine/per system:
18/72/576
Dynamic virtual matrix interconnect:
InfiniBand Dual Redundant Fabric:
56 Gbps per port
Maximum IOPS:
15 Million
Response Times (Reads):
Under 100 microseconds
Cache:
Cache-system min (raw): 1,024 GB
Cache-system max (raw): 16 TB (with 2,048 GB engine)
Cache-per engine options:1 TB, 2 TB
Vault:
Vault stratery: Vault to Flash Vault to Flash
Vault implementation: 4 to 8 NVMe Flash SLICs / Engine
Front End I/O Modules:
Maximum front-end I/O modules/brick: 87
Front-end I/O modules and protocols supports:
4 x 32 Gbs (FC, SRDF)
4 x 32 Gbs (FC-NVMe)
4 x 16 Gbs (FC, SRDF)
10 GbE: 4 x 10 GbE (iSCSI, SRDF)
25 GbE: 4 x 25 GbE (iSCSI, SRDF)
4 x 16 Gbs (FICON)
eNAS I/O Modules:
Max eNAS I/O modules / software data mover: 3 power of 6
eNAS I/O modules support:
10 GbE: 2 x 10 GbE Optical
10 GbE: 2 x 10 GbE Cu1
8 Gbs: 4 x 8 Gbs FC (Tape BU)2
eNAS Software Data Movers:
Max software data movers:8 (7 Active and 1 Standby - 8 Data Movers requires minimum 4 Bricks)3
Max NAS capacity/array (terabytes usable):3584
End-to-end efficient encryption modules:2 per Brick – Maximum 16 per Array8
Cloud mobility for Dell EMC Powermax Modules:10GbE: 4 x 10GbE – 1 SLiC dedicated to a single director9
Capacity, Drives:
Max Capacity per Array: 4.5 PBe
Base Capacity per Brick (NAND, Open):54.0 TBu
Base Capacity per Brick (SCM, Open):21.0 TBu14
Base Capacity per zBrick (NAND, Mainframe):13.2 TBu
Base Capacity per zBrick (SCM, Mainframe):21.0 TBu14
Incremental Flash Capacity Packs (NAND):13.2 TBu
Incremental Flash Capacity Packs (SCM):5.25 TBu
Max Drives per Brick:32 Usable + spare(s)
Max Drives per Array:288
Max Drives per System Bay:144
Min Drive Count per Brick:8 + 1 spare
NVMe Drives:
NVMe Drives Supported (2.5”):1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
SCM Drives:
SCM Drives Supported (2.5”):750 GB, 1.5 TB
BE Interface:NVMe over PCIe
RAID Options Supported:
RAID 5 (7 +1) (default)
RAID 6 (6+2)
RAID 1
Mixed RAID Group Support:No
Support for Mixed Drive Capacities:Yes
NVMe Drive Array Enclosure:PowerMax 8000
24 x 2.5” Drive DAE:Yes
Cabinet Configurations:
Standard 19" bays:Yes
Single Brick System Bay Configuration:No - (Packaging based on Quad Bricks, but initial Brick in each System Bay supported)
Dual/Quad Brick System Bay Configuration:Quad
Third Party Rack Mount Option:Yes
Dispersion:
Standard and 3rd Party Cabinets :Yes
Pre-Configuration From Factory:
100% Thin Provisioned:Yes
Host Support:
Open Systems:Yes
Mainframe:Yes
Mixed Mainframe and Open:Yes
Power Options:
Input Power Options:
Single or Three Phase
Delta or Wye
Front End and SRDF I/O Protocols Supported:
32 Gb/s FC/FC-NVMe Host Ports:
Maximum/Brick: 32
Maximum/Array: 256
32 Gb/s FC SRDF Ports:
Maximum/Brick: 32
Maximum/Array: 256
16 Gb/s FC Host Ports:
Maximum/Brick: 32
Maximum/Array: 256
16 Gb/s FC SRDF Ports:
Maximum/Brick: 32
Maximum/Array: 256
16 Gb/s FICON Host Ports:
Maximum/Brick: 32
Maximum/Array: 256
10 GbE iSCSI Ports (Optical):
Maximum/Brick: 32
Maximum/Array: 256
10 GbE SRDF Ports (Optical):
Maximum/Brick: 32
Maximum/Array: 256
25 GbE iSCSI Ports (Optical):
Maximum/Brick: 32
Maximum/Array: 256
25 GbE SRDF Ports (Optical):
Maximum/Brick: 32
Maximum/Array: 256
Embedded eNAS Ports:
10 GbE Optical Ports:
Max ports/Software Data Mover: 4
Maximum ports/array: 32
10 GbE Copper Ports:
Max ports/Software Data Mover: 4
Maximum ports/array: 32
8 Gb/s FC Tape Back Up Ports:
Max ports/Software Data Mover: 2
Maximum ports/array: 16: at <26 and >35 degree C
Maximum Total power consumption (kVA):
System bay 1, dual engine
<26o C - N/A
>35o C - N/A
System bay 1, quad engine
<26o C - 8.339
>35o C - 11.695
System bay 2, quad engine
<26o C - 7.976
>35o C - 11.332
Maximum Heat dissipation (Btu/hr):
System bay 1, dual engine
<26o C - N/A
>35o C - N/A
System bay 1, quad engine
<26o C - 28,453
>35o C - 39,903
System bay 2, quad engine
<26o C - 27,214
>35o C - 38,665
Physical Specifications:
Height:
System bay 1, quad engine: 75 inch / 190 cm
System bay 2, quad engine: 75 inch / 190 cm
Width:
System bay 1, quad engine: 24 inch / 61 cm
System bay 2, quad engine: 24 inch / 61 cm
Depth:
System bay 1, quad engine: 42 inch / 106.7 cm
System bay 2, quad engine: 42 inch / 106.7 cm
Weight (maximum):
System bay 1, quad engine: 1670 lbs / 758 kg
System bay 2, quad engine: 1525 lbs / 692 kg
Input Power Requirements
Input nominal voltage 200 – 240 VAC +/- 10% L- L nom
Frequency:50 – 60 Hz
Circuit breakers:30 A/50 A
Power zones:Two
Power requirements at customer site:
Max of two 30A single phase drops per system per cabinet for PowerMax 2000:
Quantity one 30A drop per zone for single Brick
Quantity two 30A drops per zone for two Bricks
Max of three 30A, single phase drops (per cabinet) PowerMax 8000 as follows:
Quantity one 30A drop per zone for single Brick
Quantity two 30A drops per zone for two Bricks
Quantity three 30A drops per zone for three or four Bricks
Two 50 A, three-phase drops per bay
Dell Technologies service:
Deployment Services:
Dell EMC ProDeploy Enterprise Suite
Dell EMC Data Migration Services
Dell EMC Residency Services
Dell EMC Data Sanitization Services for Enterprise
Support Services:
Dell EMC ProSupport Enterprise Suite
Dell EMC Keep Your Hard Drive for Enterprise
Managed Services:
Dell EMC Managed Services for Storage
Dell Technologies Consulting Services: Advisory Services and workshops
Dell Technologies Education Services: PowerMax technical training courses and certifications
Support & Services Technology:
MyService360
Secure Remote Services, SupportAssist Enterprise
- Brand : Dell
- Model No : Dell PowerMax 2500
- CPU : Memory config 1-3: Intel Xeon Gold 5218 2.8 GHz with 16 core; Memory config 4: Intel Xeon Gold 6240L
- Number of Bricks : 1 to 2
- Engine Enclosure : 3U
- Capacity Per Array : 13 TBu - 8 PBe
- Response Time : Under 60 microseconds
- Data Reduction Guarantee : 5:1 data reduction (Open); 3:1 data reduction (Mainframe)
- Nodes Per Array : 2-4 nodes
- Dynamic virtual matrix interconnect : Direct Connect InfiniBand; 100 Gbps per port
- Max Number of Devices/Secure Snapshots : 64K LUNs / 65M snapshots
- Cache-system min (raw) : 896 GB
- Cache-system max (raw) : 15.36 TB
- Cache-per engine options : 896 GB; 1.792 TB; 3.584 TB; 7.680 TB
- Vault stratery : Vault to Flash
- Vault implementation : 2 to 4 NVMe SED Flash Module/Node Pair
- Maximum front-end I/O modules/Node Pair : 8
- Front-end I/O modules and protocols supports : 4 x 32Gbs (FC; NVMe/FC; FICON; SRDF); 4 x 25GbE (iSCSI; SRDF; NVMe/TCP); 4 x 10GbE (iSCSI; SRDF; NVMe/TCP); 1 x zHyperlink Port (MF; zHyperlink)
- NVMe Drives Supported : 3.84TB; 7.68TB; 15.36TB; 30.72TB
- Dimensions (WxDxH) : 60 cm x 114.8 cm x 199.2 cm
- Weight System Bay 1 Node Pair Single DME/Dual DME/Three DME/Four DME/Six DME : 369/408/510/624/834 kg
NUMBER OF NODE PAIRS: 1 to 2
NODE PAIR MODULE: 3U
CPU:
Memory config 1-3: Intel Xeon Gold 5218 2.8
GHz with 16 core1
Memory config 4: Intel Xeon Gold 6240L
CORE NUMBER PER CPU/PER NODE PAIR/PER SYSTEM:
Memcfg 1-3: 16/64/128
Memcfg 4: 18/72/1445
DYNAMIC FABRIC:
Direct Connection InfiniBand:
Direct Connection InfiniBand:
100 Gbps per port
CACHE:
CACHE-SYSTEM MIN (RAW): 896GB
CACHE-SYSTEM MAX (RAW): 15.36TB
CACHE-PER NODE PAIR OPTIONS: 896GB, 1.792TB, 3.584TB, 7.680TB
VAULT:
VAULT STRATEGY: Vault to Flash
VAULT IMPLEMENTATION: 2 to 4 NVMe SED Flash Module/Node Pair3
FRONT-END I/O MODULES:
MAX. FRONT-END I/O MODULES/NODE PAIR: 8
FRONT-END I/O MODULES AND PROTOCOLS SUPPORTED:
4 x 32Gbs (FC, NVMe/FC, FICON, SRDF)
4 x 25GbE (iSCSI, SRDF, NVMe/TCP)
4 x 10GbE (iSCSI, SRDF, NVMe/TCP)
1 x zHyperlink Port (MF, zHyperlink)
POWERMAX FILE MODULES:
MAX FILE I/O MODULES/SOFTWARE NODES: 4
FILE I/O MODULES SUPPORTED:
10 GbE: 4 x 10GbE File
25 GbE: 4 x 25GbE File
POWERMAX FILE SOFTWARE NODES:
MAX SOFTWARE FILE NODES 4 (1 per Node, 2 per Node pair)
MAX FILE CAPACITY/ARRAY (PETABYTES USABLE): 8PiBe
Max Capacity per Array: 8PiBe / 8.8 PBe
Base capacity (Open): 30.72TBu
Max Capacity per Array: 3.8PiBe / 4.1PBe
Base capacity (Mainframe): 15.36TBu
Incremental Flash Capacity Upgrades: 3.84TB, 7.68TB, 15.36TB, 30.72TB3
Maximum Drives per Array: 96
Maximum Drives per System Bay: 96/192/2882
Minimum Drive Count per System:(Mainframe) / 10 (Open)
NVMe DRIVES:
NVMe units accepted (2.5 in.): 3.84TB, 7.68TB, 15.36TB, 30.72TB3
Interface BE: NVMe/NVMeoF via InfiniBand fabric
Flexible Raid options with support:
RAID1 (1+1)
RAID 5(4+1)6
RAID 5(8+1)
RAID 5(12+1)
RAID 6(12+2)
Mixed RAID group support: No
Support for Mixed Drive Capacities: Yes
NVMe DYNAMIC MEDIA ENCLOSURE:
48 x 2.5” Drive DME: Yes
CABINET SETTINGS:
Standard 19" bays: Yes
System Bay configurations: Up to 3 Systems/Bay
Third-party rack mount option: Yes
DISPERSION:
Standard and third-party enclosures: N/A — single floor tile system
PRE-CONFIGURATION FROM FACTORY:
100% Thin Provisioned: Yes
HOST SUPPORT:
Open Systems: Yes
Mainframe: Yes
Mixed Mainframe and Open Systems Yes
POWER OPTIONS:
Input power options: Single phase or three-phase
Delta or Wye
POWER DISTRIBUTION UNIT:
Intelligent PDU: Default
- Brand : Dell
- Model No : Dell PowerMax 2000
- CPU : Intel Xeon E5-2650-v; 2.5 GHz 12 core
- Number of Bricks : 1 to 2
- Engine Enclosure : 4U
- Capacity Per Array : 13 TBu-1.2 PBe
- Response Time : Under 100 microseconds
- Data Reduction Guarantee : 3.5:1 data reduction (Open)
- Nodes Per Array : 2-4 controllers
- Dynamic virtual matrix interconnect : Direct Connect InfiniBand; 56 Gbps per port
- Max Number of Devices/Secure Snapshots : 64K LUNs / 65M snapshots
- Cache-system min (raw) : 512 GB
- Cache-system max (raw) : 4 TB (with 2048 GB engine)
- Cache-per engine options : 512 GB; 1 TB and 2 TB
- Vault stratery : Vault to Flash
- Vault implementation : 2 to 4 NVMe Flash SLICs / Engine
- Maximum front-end I/O modules/brick : 8
- Front-end I/O modules and protocols supports : 4 x 32 Gbs (FC; SRDF); 4 x 32 Gbs (FC-NVMe); 4 x 16 Gbs (FC; SRDF); 10 GbE: 4 x 10 GbE (iSCSI; SRDF); 25 GbE: 4 x 25 GbE (iSCSI; SRDF)
- NVMe Drives Supported : 1.92 TB; 3.84 TB; 7.68 TB; 15.36 TB
- SCM Drives Supported : 750 GB; 1.5 TB
- Dimensions (WxDxH) : 61 cm x 106.7 cm x 190 cm
- Weight System bay, dual engine/ dual system : 431 kg/ 730 kg
Number of Bricks or zBricks: 1 to 2
Engine Enclosure: 4U
CPU:
Intel Xeon E5-2650-v4
2.5 GHz 12 core4
Cores per CPU/per engine/per system: 12/48/96
Dynamic virtual matrix interconnect:
Direct Connect InfiniBand
56 Gbps per port
Maximum IOPS:
2.7 Million
Response Times (Reads): Under 100 microseconds
Cache-system min (raw): 512 GB
Cache-system max (raw): 4 TB (with 2,048 GB engine)
Cache-per engine options:512 GB, 1 TB, and 2 TB
Vault:
Vault stratery Vault to Flash
Vault implementation: 2 to 4 NVMe Flash SLICs / Engine
Front End I/O Modules:
Maximum front-end I/O modules/brick:8
Front-end I/O modules and protocols supports:
4 x 32 Gbs (FC,SRDF)
4 x 32 Gbs (FC-NVMe)
4 x 16 Gbs (FC, SRDF)
10 GbE: 4 x 10 GbE (iSCSI, SRDF)
25 GbE: 4 x 25 GbE (iSCSI, SRDF)
eNAS I/O Modules:
Max eNAS I/O modules / software data mover: 36 36
eNAS I/O modules support:
10 GbE: 2 x 10 GbE Optical
10 GbE: 2 x 10 GbE Cu
8 Gbs: 4 x 8 Gbs FC
eNAS Software Data Movers:
Max software data movers: 4 (3 Active + 1 Standby - 4 Data Movers requires minimum 2 Bricks)
Max NAS capacity/array (terabytes usable):1158 (cache limited)
End-to-end efficient encryption modules:2 per Brick – Maximum 4 per Array8
Cloud mobility for Dell EMC Powermax Modules: 10GbE: 4 x 10GbE – 1 SLiC dedicated to a single director
Max Capacity per Array: 1.2 PBe
Base Capacity per Brick: 13.2 TBu
Base Capacity per Brick (SCM, Open) 21.0 TBu14
Base Capacity per zBrick (NAND, Mainframe):N/A
Base Capacity per zBrick (SCM, Mainframe):N/A
Incremental Flash Capacity Packs (NAND):13.2 TBu12,16
Incremental Flash Capacity Packs (SCM): 5.25 TBu15
Max Drives per Brick: 44 Usable + spare(s)
Max Drives per Array: 96
Max Drives per System Bay:96/19211
Min Drive Count per Brick:4 + 1 Spare
NVMe Drives:
NVMe Drives Supported (2.5”) 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB
SCM Drives:
SCM Drives Supported (2.5”): 750 GB, 1.5 TB
BE Interface: NVMe over PCIe
RAID Options Supported:
RAID 5 (7+1) (default)
RAID 5 (3+1)
RAID 6 (6+2)
Mixed RAID Group Support:No
Support for Mixed Drive Capacities:Yes
NVMe Drive Array Enclosure:
24 x 2.5” Drive DAE:Yes
Cabinet Configurations:
Standard 19" bays:Yes
Single Brick System Bay Configuration: No - (Packaging based on Quad Bricks, but initial Brick in each System Bay supported)
Dual/Quad Brick System Bay Configuration:Dual
Third Party Rack Mount Option: Yes
Dispersion:
Standard and 3rd Party Cabinets:N/A - single floor tile system
Pre-Configuration From Factory:
100% Thin Provisioned: Yes
Host Support:
Open Systems:Yes
Mainframe:No
Mixed Mainframe and Open:No
Power Options:
Input Power Options:
Single or Three Phase
Delta or Wye
Front End and SRDF I/O Protocols Supported:
32 Gb/s FC/FC-NVMe
Host Ports:
Host Ports:
Maximum/Brick: 32
Maximum/Array: 64
32 Gb/s FC SRDF Ports:
Maximum/Brick: 32
Maximum/Array: 64
16 Gb/s FC Host Ports:
Maximum/Brick: 32
Maximum/Array: 64
16 Gb/s FC SRDF Ports:
Maximum/Brick: 32
Maximum/Array: 64
16 Gb/s FICON Host Ports:
Maximum/Brick: N/A
Maximum/Array: N/A
10 GbE iSCSI Ports (Optical):
Maximum/Brick: 32
Maximum/Array: 64
10 GbE SRDF Ports (Optical):
Maximum/Brick: 32
Maximum/Array: 64
25 GbE iSCSI Ports (Optical):
Maximum/Brick: 32
Maximum/Array: 64
25 GbE SRDF Ports (Optical):
Maximum/Brick: 32
Maximum/Array: 64
Embedded eNAS Ports:
10 GbE Optical Ports:
Max ports/Software Data Mover: 4
Maximum ports/array: 16
10 GbE Copper Ports:
Max ports/Software Data Mover: 4
Maximum ports/array: 16
8 Gb/s FC Tape Back Up Ports:
Max ports/Software Data Mover: 2
Maximum ports/array: 8
Power consumption and heat dissipation:
Maximum Total power consumption (kVA):
System bay 1, dual engine
<26o C - 4.313
>35o C - 6.166
System bay 1, quad engine
<26o C - N/A
>35o C - N/A
System bay 2, quad engine
<26o C - N/A
>35o C - N/A
System bay 1, dual engine
<26o C - N/A
>35o C - N/A
System bay 1, quad engine
<26o C - 8.339
>35o C - 11.695
System bay 2, quad engine
<26o C - 7.976
>35o C - 11.332
Maximum Heat dissipation (Btu/hr):
System bay 1, dual engine
<26o C - 14,716
>35o C - 21,038
System bay 1, quad engine
<26o C - N/A
>35o C - N/A
System bay 2, quad engine
<26o C - N/A
>35o C - N/A
System bay 1, dual engine
<26o C - N/A
>35o C - N/A
System bay 1, quad engine
<26o C - 28,453
>35o C - 39,903
System bay 2, quad engine
<26o C - 27,214
>35o C - 38,665
Physical Specifications
Height:
System bay, dual engine: 75 inch / 190 cm
Height:
System bay, dual engine: 75 inch / 190 cm
System bay, dual engine, dual system: 75 inch / 190 cm
Width:
System bay, dual engine: 24 inch / 61 cm
System bay, dual engine: 24 inch / 61 cm
System bay, dual engine, dual system: 24 inch / 61 cm
Depth:
System bay, dual engine: 42 inch / 106.7 cm
System bay, dual engine: 42 inch / 106.7 cm
System bay, dual engine, dual system: 42 inch / 106.7 cm
Weight:
System bay, dual engine: 950 lbs / 431 kg
System bay, dual engine: 950 lbs / 431 kg
System bay, dual engine, dual system: 1610 lbs / 730 kg
Input Power Requirements:
Input nominal voltage 200 – 240 VAC +/- 10% L- L nom
Frequency:50 – 60 Hz
Circuit breakers:30 A/50 A
Power zones:Two
Power requirements at customer site:
Max of two 30A single phase drops per system per cabinet for PowerMax 2000:
Quantity one 30A drop per zone for single Brick
Quantity two 30A drops per zone for two Bricks
Max of three 30A, single phase drops (per cabinet) PowerMax 8000 as follows:
Quantity one 30A drop per zone for single Brick
Quantity two 30A drops per zone for two Bricks
Quantity three 30A drops per zone for three or four Bricks
Two 50 A, three-phase drops per bay
Dell Technologies service:
Deployment Services:
Dell EMC ProDeploy Enterprise Suite
Dell EMC Data Migration Services
Dell EMC Residency Services
Dell EMC Data Sanitization Services for Enterprise
Support Services:
Dell EMC ProSupport Enterprise Suite
Dell EMC Keep Your Hard Drive for Enterprise
Managed Services:
Dell EMC Managed Services for Storage
Dell Technologies Consulting Services:
Advisory Services and workshops
Dell Technologies Education Services:
PowerMax technical training courses and certifications
Support & Services Technology:
MyService360
Secure Remote Services, SupportAssist Enterprise
- Brand : Dell
- Model No : Dell PowerScale H7000
- Raw node capacity : 240 - 400 TB
- Operating system : OneFS 9.2.1 or later
- ECC memory (per node) : 384 GB
- Raw Cluster Capacity : 960 - 100 PB
- Inline Data Reduction : Yes
- Storage Type : SATA
- HDD drives per chassis : 60
- Number of nodes per chassis : 4
- Front-end networking : 2 x 100GbE (QSFP28)
- Infrastructure networking : 2 InfiniBand connections with QDR links or 2 x 100 GbE (QSFP28)
- Max Power Consumption : 1688 Watts
- Power : Dual-redundant; hot-swappable 1450W power supplies with power factor correction (PFC)
- Voltage : 180 – 265 VAC CFM – Volume of airflow; cubic feet/minute : Each Node 60CFM; total chassis 240CFM (max)
- Operating Environment : Compliant with ASHRAE A3 data center environment guidelines
- Dimensions (WxDxH) : 44.8 cm x 107.1 cm x 17.8 cm
- Weight : 141.4 kg
Chassis capacity:
120 TB up to 1.2 PB
Nodes per chassis:
4 - 252
Raw cluster capacity:
120 TB - 75 PB
ECC memory:
192 GB
Storage type:
SATA
HDD drives per node:
60
Processor:
CLX-SP 6208U 16-core 2.9GHz
Functional:
All-flash, all-NVMe NAS
Scale-out storage
Memory:
192 GB
System Overview:
Scale-out architecture:
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Cluster Attributes:
Number of chassis: 1 to 63
Number of nodes: 4 to 252
Cluster Capacity: 120 TB to 75 PB
Rack Units: 4 to 252
Raw capacity:
60 HDD drives (3.5 in.) per chassis.
Chassis Capacity:
120 TB
240 TB
480 TB
720 TB
960 TB
1.2 PB
Cache (per node) solid state drives:
(800GB, 1.6TB, 3.2TB, 7.68 TB)
Capacity and number of SDDs (1 or 2) determined by HDD size and count
Connectivity:
Front End Networking (per node):
2 x 100 GbE (QSFP28) or 2 x 25GbE (SFP28)
Infrastructure Networking (per node):
2 InfiniBand connections with QDR links or 2 X 100 GbE (QSFP28) or 2 X 25GbE (SFP28)
Media Types:
HDD:
2 TB
4 TB
8 TB
12 TB
16 TB
20 TB
Software:
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimisation:
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression.
2:1 DRR guarantee
Network protocol support:
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimise storage resources and lower costs.
Data retention:
SmartLock policy-based retention and protection against accidental deletion.
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Data Protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security:
Data at Rest Encryption with External Key Manager?
Data in flight encryption?
Role-Based Access Control (RBAC)?
Multi-factor authentication?
Secure Boot?
Auditing?
Anti-Virus
Physical:
Base unit
1U Form Factor
Height: 17.8 cm / 7 in.
Width: 44.8 cm / 17.6 in.
Depth 91.0 cm / 35.8 in. (front NEMA rail to rear 2.5 in. SSD cover ejector)
Depth 95.5 cm / 37.6 in. (front of bezel to rear 2.5 in. SSD cover ejector)
Max weights per Chassis/node: 118.4 kg / 261 lb
Power:
XWatts
Dual redundant power supplies
Max Power consumption
(200-240V per chassis)
@25°C – 1528 Watts
Typical Thermal rating:
@25°C – 5213 BTU/hr
- Brand : Dell
- Model No : Dell PowerScale H700
- Raw node capacity : 30 - 300 TB
- Operating system : OneFS 9.2.1 or later
- ECC memory (per node) : 192 GB
- Raw Cluster Capacity : 120 - 75 PB
- Inline Data Reduction : Yes
- Storage Type : SATA
- HDD drives per chassis : 60
- Number of nodes per chassis : 4
- Front-end networking : 2 x 100GbE (QSFP28)
- Infrastructure networking : 2 InfiniBand connections with QDR links or 2 x 100 GbE (QSFP28)
- Max Power Consumption : 1528 Watts
- Power : Dual-redundant; hot-swappable 1050W (low line) 1100W (high line) power supplies with power factor correction (PFC)
- Voltage : 90 - 130 VAC (low line) and 180-264 VAC (high line)
- Operating Environment : Compliant with ASHRAE A3 data center environment guidelines
- Dimensions (WxDxH) : 44.8 cm x 95.5 cm x 17.8 cm
- Weight : 118.4 kg
Chassis capacity:
120 TB up to 1.2 PB
Nodes per chassis:
4 - 252
Raw cluster capacity:
120 TB - 75 PB
ECC memory:
192 GB
Storage type:
SATA
HDD drives per node:
60
Processor:
CLX-SP 6208U 16-core 2.9GHz
Functional:
All-flash, all-NVMe NAS
Scale-out storage
Memory:
192 GB
System Overview:
Scale-out architecture
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Cluster Attributes:
Number of chassis: 1 to 63
Number of nodes: 4 to 252
Cluster Capacity: 120 TB to 75 PB
Rack Units: 4 to 252
Raw capacity:
60 HDD drives (3.5 in.) per chassis.
Chassis Capacity:
120 TB
240 TB
480 TB
720 TB
960 TB
1.2 PB
Cache solid state drives:
(800GB, 1.6TB, 3.2TB, 7.68 TB)
Capacity and number of SDDs (1 or 2) determined by HDD size and count
Connectivity:
Front End Networking (per node):
2 x 100 GbE (QSFP28) or 2 x 25GbE (SFP28)
Infrastructure Networking:
2 InfiniBand connections with QDR links or 2 X 100 GbE (QSFP28) or 2 X 25GbE (SFP28)
Media Types:
HDD:
2 TB
4 TB
8 TB
12 TB
16 TB
20 TB
Software:
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimisation:
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression.
2:1 DRR guarantee
Network protocol support:
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimise storage resources and lower costs.
Data retention:
SmartLock policy-based retention and protection against accidental deletion.
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Data Protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security:
Data at Rest Encryption with External Key Manager?
Data in flight encryption?
Role-Based Access Control (RBAC)?
Multi-factor authentication?
Secure Boot?
Auditing?
Anti-Virus
Physical:
Base unit
1U Form Factor
Height: 17.8 cm / 7 in.
Width: 44.8 cm / 17.6 in.
Depth 91.0 cm / 35.8 in. (front NEMA rail to rear 2.5 in. SSD cover ejector)
Depth 95.5 cm / 37.6 in. (front of bezel to rear 2.5 in. SSD cover ejector)
Max weights per Chassis/node: 118.4 kg / 261 lb
Power:
XWatts
Dual redundant power supplies
Max Power consumption:
(200-240V per chassis)
@25°C – 1528 Watts
Typical Thermal rating:
@25°C – 5213 BTU/hr
- Brand : Dell
- Model No : Dell PowerScale A3000
- Raw node capacity : 240 - 400 TB
- Operating system : OneFS 9.2.1 or later
- ECC memory (per node) : 96 GB
- Raw Cluster Capacity : 960 - 100 PB
- Inline Data Reduction : Yes
- Storage Type : SATA
- HDD drives per chassis : 60
- Number of nodes per chassis : 4
- Front-end networking : 2 x 100GbE (QSFP28)
- Infrastructure networking : 2 InfiniBand connections with QDR links or 2 X 25GbE (SFP28)
- Max Power Consumption : 1230 Watts
- Power : Dual-redundant; hot-swappable 1050W (low line) 1100W (high line) power supplies with power factor correction (PFC)
- Voltage : 90 - 130 VAC (low line) and 180-264 VAC (high line)
- Operating Environment : Compliant with ASHRAE A3 data center environment guidelines
- Dimensions (WxDxH) : 44.8 cm x 107.1 cm x 17.8 cm
- Weight : 137.4 kg
Chassis capacity:
960 TB - 1.6 PB
Nodes per chassis:
4
Raw cluster capacity:
960 TB - 100 PB
ECC memory:
96 GB
Storage type:
SATA
HDD drives per node:
80
Processor:
CLX-SP 3204 6-core 1.9GHz
Functional:
PowerScale Archive NAS
Scale-out architecture: Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem
Modular design: Four self-contained Isilon or PowerScale nodes include server, software, HDDs and SSDs in a 4U rackmountable chassis. All nodes can be integrated into existing PowerScale and Isilon clusters with backend Ethernet or InfiniBand connectivity
Memory:
96GB
System Overview:
Scale-out architecture:
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Cluster Attributes:
Number of chassis: 1 to 63
Number of nodes: 4 to 252
Cluster Capacity: 960 TB to 100 PB
Rack Units: 4 to 252
Raw capacity:
80 HDD drives (3.5 in.) per chassis.
Chassis Capacity:
960 TB
1.28 PB
1.6 PB TB
Cache (per node) solid state drives:
(800GB, 3.2TB, 7.68TB)
Capacity and number of SDDs (1 or 2) determined by HDD size and count
Connectivity:
Front End Networking (per node):
2 x 100 GbE (QSFP28) or 2 x 25GbE (SFP28)
Infrastructure Networking (per node):
2 InfiniBand connections with QDR links or 2 X 100 GbE (QSFP28) or 2 X 25GbE (SFP28)
Media Types:
HDD:
12 TB
16 TB
20 TB
Software:
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimisation:
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent.
2:1 DRR guarantee
Network protocol support:
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimise storage resources and lower costs.
Data retention:
SmartLock policy-based retention and protection against accidental deletion.
Data Protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security:
Data at Rest Encryption with External Key Manager?
Data in flight encryption?
Role-Based Access Control (RBAC)?
Multi-factor authentication?
Secure Boot?
Auditing?
Anti-Virus
Physical:
Base unit:
1U Form Factor
Height: 17.8 cm / 7 in.
Width: 44.8 cm / 17.6 in.
Depth: 102.6 cm / 40.4 in. (front NEMA rail to rear 2.5 in. SSD cover ejector)
Depth: 107.1 cm / 42.2 in. (front of bezel to rear 2.5 in. SSD cover ejector)
Max weights per Chassis/node: 137.4 kg / 303 lb
Power:
PSU (Artesyn Gen2 Optimus) 1100W
Max Power consumption:
(200-240V per chassis)
@25°C – 1230 Watts
Typical Thermal rating:
@25°C – 4197 BTU/hr
- Brand : Dell
- Model No : Dell PowerScale A300
- Raw node capacity : 30 - 300 TB
- Operating system : PowerScale OneFS 9.2.1 or later
- ECC memory (per node) : 96 GB
- Raw Cluster Capacity : 120 - 75 PB
- Inline Data Reduction : Yes
- Storage Type : SATA
- HDD drives per chassis : 60
- Number of nodes per chassis : 4
- Front-end networking : 2 x 25GbE (SFP28)
- Infrastructure networking : 2 InfiniBand connections with QDR links or 2 X 25GbE (SFP28)
- Max Power Consumption : 1070 Watts
- Power : Dual-redundant; hot-swappable 1050W (low line) 1100W (high line) power supplies with power factor correction (PFC)
- Voltage : 90 - 130 VAC (low line) and 180-264 VAC (high line)
- Operating Environment : Compliant with ASHRAE A3 data center environment guidelines
- Dimensions (WxDxH) : 44.8 cm x 95.5 cm x 17.8 cm
- Weight : 114.4 kg
Chassis capacity:
120 TB up to 1.2 PB
Nodes per chassis:
4
Raw cluster capacity:
120 TB - 75 PB
ECC memory:
96 GB
Storage type:
SATA
HDD drives per node:
60
Processor:
CLX-SP 3204 6-core 1.9GHz
Functional:
PowerScale Archive NAS
Scale-out architecture: Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem
Modular design: Four self-contained Isilon or PowerScale nodes include server, software, HDDs and SSDs in a 4U rackmountable chassis. All nodes can be integrated into existing PowerScale and Isilon clusters with backend Ethernet or InfiniBand connectivity
Memory:
96GB
System Overview:
Scale-out architecture:
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Cluster Attributes:
Number of chassis: 1 to 63
Number of nodes: 4 to 252
Cluster Capacity: 120 TB to 75 PB
Rack Units: 4 to 252
Raw capacity:
60 HDD drives (3.5 in.) per chassis.
Chassis Capacity:
120 TB
240 TB
480 TB
720 TB
960 TB
1.2 PB
Cache (per node) solid state drives:
(800GB, 1.6TB, 3.2TB, 7.68 TB)
Capacity and number of SDDs (1 or 2) determined by HDD size and count
Connectivity:
Front End Networking (per node):
2 x 100 GbE (QSFP28) or 2 x 25GbE (SFP28)
Infrastructure Networking (per node):
2 InfiniBand connections with QDR links or 2 X 100 GbE (QSFP28) or 2 X 25GbE (SFP28)
Media Types:
HDD:
2 TB
4 TB
8 TB
12 TB
16 TB
20 TB
Software:
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimization:
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent.
2:1 DRR guarantee
Network protocol support:
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimise storage resources and lower costs.
Data retention:
SmartLock policy-based retention and protection against accidental deletion.
Data Protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security:
Data at Rest Encryption with External Key Manager?
Data in flight encryption?
Role-Based Access Control (RBAC)?
Multi-factor authentication?
Secure Boot?
Auditing?
Anti-Virus
Physical:
Base unit:
1U Form Factor
Height: 17.8 cm / 7 in.
Width: 44.8 cm / 17.6 in.
Depth: 91.0 cm / 35.8 in. (front NEMA rail to rear 2.5in. SSD cover ejector):
Depth: 95.5 cm / 37.6 in. (front of bezel to rear 2.5in. SSD cover ejector)
Max weights per Chassis/node: 114.4 kg / 252.2 lb
Power:
PSU (Artesyn Gen2 Optimus) 1100W
Max Power consumption:
(200-240V per chassis)
@25°C – 1070 Watts
Typical Thermal rating:
@25°C – 3651 BTU/hr
- Brand : Dell
- Model No : Dell Isilon F810
- Raw node capacity : 57 - 230 TB
- Operating system : Isilon OneFS 8.1.3 only
- CPU : Intel Xeon Processor E5-2697A v4
- SSD drives Per Chassis : 60
- ECC memory (per node) : 256 GB
- Front-end networking : 2 x 10GbE (SFP+) or 2 x 40GbE (QSFP+)
- Infrastructure Networking : 2 x 40GbE (QSFP+)
- Storage Type : SSD
- Inline Data Reduction : Yes
- Raw Cluster Capacity : 230 - 58 PB
- Frequency : 50/60 Hz
- Power Supply : Isilon F800 and F810: Dual-redundant; hot-swappable 1450W power supplies with power factor correction (PFC); rated for input voltage 180 – 265 VAC (optional rack mount step-up transformer for 90-130 VAC input regions)
- Max Power Consumption : 1800 Watts
- Operating Environment : Compliant with ASHRAE A3 data center environment guidelines
- Dimensions (WxDxH) : 44.8 cm x 95.5 cm x 17.8 cm
- Weight : 77.1 kg
Raw chassis capacity:
230 TB 460 TB 924 TB
SSD drives (2.5") per chassis: 60
Self-Encrypting drive (SED SSD) FIPS 140-2 compliant option: Yes
Operating system: OneFS 8.1.3 or later
Number of nodes per chassis: 4
ECC memory: 256 GB
Front-End networking: 2 x 10GbE (SFP+) or 2 x 25GbE (SFP28) or 2 x 40GbE (QSFP+)
Infrastructure networking: 2 X 40GbE (QSFP+)
Max Power Consumption: 1300 Watts (@25?C)
Typical thermal rating: 4,440 BTU/hour
Number of chassis: 1 to 63
Number of nodes: 4 to 252
Raw cluster capacity: 230 TB to 58 PB
Scale-out architecture:
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace and single filesystem
Modular design:
Four self-contained Isilon nodes include server, software, HDDs and SSDs in a 4U rack-mountable chassis. 1U or 2U Rack-mountable PowerScale node that integrates into existing PowerScale and Isilon clusters with backend Ethernet or InfiniBand connectivity
Operating system:
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache
High availability:
No-single-point-of-failure. Self-healing design protects against disk or node failure; includes back-end intra-cluster failover
No-single-point-of-failure. Self-healing design protects against disk or node failure; includes back-end intra-cluster failover
Scalability:
A cluster can scale up to 252 nodes. Minimum number of Isilon nodes per cluster is four. Minimum number of PowerScale all-flash nodes per cluster is three. Add nodes to scale performance and capacity
A cluster can scale up to 252 nodes. Minimum number of Isilon nodes per cluster is four. Minimum number of PowerScale all-flash nodes per cluster is three. Add nodes to scale performance and capacity
Data protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes
2-way NDMP: Supports two ports of Fibre Channel (8G) that allows for two-way NDMP connections and two ports of standard 10GbE connectivity
Data retention:
SmartLock policy-based retention and protection against accidental deletion
SmartLock policy-based retention and protection against accidental deletion
Security:
File system audit capability to improve security and control of your storage infrastructure and address regulatory compliance requirements
File system audit capability to improve security and control of your storage infrastructure and address regulatory compliance requirements
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression available on F200, F600, F900, F810 and H5600
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimize storage resources and lower costs
Network protocol support:
NFSv3, NFSv4, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3 CA,Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters
- Brand : Dell
- Model No : Dell Isilon F800
- Raw node capacity : 24 - 230 TB
- Operating system : Isilon 8.1.3 or later
- CPU : Intel Xeon Processor E5-2697A v4
- SSD drives Per Chassis : 60
- ECC memory (per node) : 256 GB
- Front-end networking : 2 x 10GbE (SFP+) or 2 x 40GbE (QSFP+)
- Infrastructure Networking : 2 InfiniBand connections supporting QDR links or 2 x 40GbE (QSFP+)
- Storage Type : SSD
- Inline Data Reduction : No
- Raw Cluster Capacity : 96 - 58 PB
- Frequency : 50/60 Hz
- Power Supply : Isilon F800 and F810: Dual-redundant; hot-swappable 1450W power supplies with power factor correction (PFC); rated for input voltage 180 – 265 VAC (optional rack mount step-up transformer for 90-130 VAC input regions)
- Max Power Consumption : 1800 Watts
- Operating Environment : Compliant with ASHRAE A3 data center environment guidelines
- Dimensions (WxDxH) : 44.8 cm x 95.5 cm x 17.8 cm
- Weight : 77.1 kg
Raw chassis capacity: 96 TB
SSD drives (2.5") per chassis: 60
Self-Encrypting drive (SED SSD) FIPS 140-2 compliant option: Yes
Operating system: OneFS 8.1 or later except for self-encrypting drive options which require OneFS 8.1.0.1 or later
Number of nodes per chassis 4
ECC memory: 256 GB
Front-End networking: 2 x 10GbE (SFP+) or 2 x 25GbE (SFP28) or 2 x 40GbE (QSFP+)
Infrastructure networking: 2 InfiniBand connections supporting QDR links or 2 x 40GbE (QSFP+)
Max Power Consumption:1300 Watts (@25?C)
Typical thermal rating: 4,440 BTU/hr
Number of chassis: 1 to 63
Number of nodes: 4 to 252
Raw cluster capacity: 96 TB to 58 PB
Scale-out architecture:
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace and single filesystem
Modular design:
Four self-contained Isilon nodes include server, software, HDDs and SSDs in a 4U rack-mountable chassis. 1U or 2U Rack-mountable PowerScale node that integrates into existing PowerScale and Isilon clusters with backend Ethernet or InfiniBand connectivity
Operating system:
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache
High availability:
No-single-point-of-failure. Self-healing design protects against disk or node failure; includes back-end intra-cluster failover
No-single-point-of-failure. Self-healing design protects against disk or node failure; includes back-end intra-cluster failover
Scalability:
A cluster can scale up to 252 nodes. Minimum number of Isilon nodes per cluster is four. Minimum number of PowerScale all-flash nodes per cluster is three. Add nodes to scale performance and capacity
A cluster can scale up to 252 nodes. Minimum number of Isilon nodes per cluster is four. Minimum number of PowerScale all-flash nodes per cluster is three. Add nodes to scale performance and capacity
Data protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes
2-way NDMP:
Supports two ports of Fibre Channel (8G) that allows for two-way NDMP connections and two ports of standard 10GbE connectivity
Supports two ports of Fibre Channel (8G) that allows for two-way NDMP connections and two ports of standard 10GbE connectivity
Data retention:
SmartLock policy-based retention and protection against accidental deletion
SmartLock policy-based retention and protection against accidental deletion
Security:
File system audit capability to improve security and control of your storage infrastructure and address regulatory compliance requirements
File system audit capability to improve security and control of your storage infrastructure and address regulatory compliance requirements
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression available on F200, F600, F900, F810 and H5600
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimize storage resources and lower costs
Network protocol support:
NFSv3, NFSv4, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3 CA,Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters
- Brand : Dell
- Model No : Dell PowerScale F200
- Raw node capacity : 3.84 - 30.72 TB
- Operating system : PowerScale OneFS 9.0 or later
- SSD drives per node : 4
- ECC memory (per node) : 48 GB or 96 GB
- Front-end networking : Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)
- Storage Type : SSD
- Inline Data Reduction : Yes
- Raw Cluster Capacity : 11 - 7.7 PB
- Frequency : 50/60 Hz
- Voltage : 100-240V; 10 A – 5 A
- Heat dissipation : 2902 BTU/hr
- Max Power Consumption : 239 Watts
- Operating Environment : Compliant with ASHRAE A3 data center environment guidelines
- Dimensions (WxDxH) : 434mm x 808.5mm x 42.8mm
- Weight : 21.9 kg
Raw node capacity:
3.84 - 30.72 TB
Nodes per cluster:
3 up to 252
Raw cluster capacity:
11 TB - 7.7 PB
ECC memory:
48 GB or 96 GB
Storage type:
SSD
SSD drives per node:
4
Processor:
2 Intel Xeon CPUs, 2.2GHz/10C
Functional:
All-flash, all-NVMe NAS
Scale-out storage
Memory:
48 GB, 96 GB DRAM DDR4 ECC
System Overview:
Base enclosure
1U Form Factor
4x2.5” SAS SSD drives
Expansion Capacity:
Scale-out architecture:
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Expansion enclosures:
Minimum cluster size: 3 nodes
Maximum cluster size: 252 nodes
Connectivity:
Front End Networking (per node):
Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)
Dual port 100G NIC supporting 40G or 100G connections
Infrastructure Networking (per node):
Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28) Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28) requires OneFS 9.5 or later
Media Types:
SSDs:
960 GB (TLC)
1.92 TB (TLC)
3.84 TB (TLC)
7.68 TB (TLC)
Software:
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimisation:
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression.
2:1 DRR guarantee
Network protocol support:
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimise storage resources and lower costs.
Data retention:
SmartLock policy-based retention and protection against accidental deletion.
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Data Protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security:
Data at Rest Encryption with External Key Manager?
Data in flight encryption?
Role-Based Access Control (RBAC)?
Multi-factor authentication?
Secure Boot?
Auditing?
Anti-Virus
Physical:
Base unit:
1U Form Factor
Height: 42.8 mm / 1.68 in.
Width: 434 mm / 17.08 in.
Depth: 808.5 mm / 31.83 in. (end of the power supply latches)
Weight: 21.9 kg / 48.28 lb
Power:
750 W
Dual redundant power supplies
Max Power consumption:
(200-240V per node)
@25°C – 165 Watts
@35°C – 178 Watts
Typical Thermal rating:
@25°C – 563 BTU/hr
@35°C – 607 BTU/hr
- Brand : Dell
- Model No : Dell PowerScale F600
- Raw node capacity : 15.36 - 240 TB
- Operating system : PowerScale OneFS 9.0 or later
- NVMe SSD Non-SED drives per node : 8
- ECC memory (per node) : 128; 192; 384 or 736 GB
- Front-end networking : Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28) or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
- Raw Cluster Capacity : 46 - 60 PB
- Frequency : 50/60 Hz
- Voltage : 100-240V; 10 A – 5 A
- Heat dissipation : 2902 BTU/hr
- Storage Type : NVMe SSD (TLC; QLC)
- Inline Data Reduction : Yes
- Max Power Consumption : 467 Watts
- Operating Environment : Compliant with ASHRAE A3 data center environment guidelines
- Dimensions (WxDxH) : 434mm x 808.5mm x 42.8mm
- Weight : 21.9 kg
Processor:
2 Intel Xeon CPUs, 2.2G/10C
Functional:
All-flash, all-NVMe NAS
Scale-out storage
Memory:
128 GB, 192 GB, 382 GB, or 736 GB DRAM DDR4 ECC
System Overview:
Base enclosure:
1U Form Factor
8x2.5” NVMe SSD drives
Expansion Capacity:
Scale-out architecture:
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Expansion enclosures:
Minimum cluster size: 3 nodes
Maximum cluster size: 252 nodes
Connectivity:
Front End Networking (per node):
Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)
Dual port 100G NIC supporting 40G or 100G connections
Infrastructure Networking (per node):
2 InfiniBand connections with QDR links or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
Media Types:
NVMe SSDs
1.92 TB (TLC)
3.84 TB (TLC)
7.68 TB (TLC)
15.36 TB (QLC)
30.72 TB (QLC)
Software:
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimisation:
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression.
2:1 DRR guarantee
Network protocol support:
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimise storage resources and lower costs.
Data retention:
SmartLock policy-based retention and protection against accidental deletion.
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Data Protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security:
Data at Rest Encryption with External Key Manager?
Data in flight encryption?
Role-Based Access Control (RBAC)?
Multi-factor authentication?
Secure Boot?
Auditing?
Anti-Virus
Physical:
Base unit
1U Form Factor
Height: 42.8 mm / 1.68 in.
Width: 434 mm / 17.08 in.
Depth: 808.5 mm / 31.83 in. (end of the power supply latches)
Weight: 21.9 kg / 48.28 lbs
Power:
750 W
Dual redundant power supplies
Max Power consumption :
(200-240V per node)
@25°C – 615 Watts
@35°C – 693 Watts
Typical Thermal rating:
@25°C – 2097 BTU/hr
@35°C – 2363 BTU/hr
- Brand : Dell
- Model No : Dell PowerScale F900
- Raw node capacity : 46 - 720 TB
- Operating system : PowerScale OneFS 9.2 or later
- NVMe SSD Non-SED drives per node : 24
- ECC memory (per node) : 736 GB
- Front-end networking : Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28) Dual port 100G NIC supporting 40G or 100G connections
- Raw Cluster Capacity : 138 - 186 PB
- Frequency : 50/60 Hz
- Voltage : 100-240V; 12 A – 6.5 A
- Heat dissipation : 4100 BTU/hr
- Storage Type : NVMe SSD (TLC; QLC)
- Inline Data Reduction : Yes
- Max Power Consumption : 859 Watts
- Dimensions (WxDxH) : 434mm x 737.5mm x 86.8mm
- Weight : 28.1kg
Raw node capacity:
46 - 720 TB
Nodes per cluster:
3 up to 252
Raw cluster capacity:
138 TB - 186 PB
ECC memory:
736 GB
Storage type:
NVMe SSD (TLC, QLC)
SSD drives per node:
24
Processor:
2 Intel Xeon CPUs, 2.4G/24C
Functional:
All-flash, all-NVMe NAS
Scale-out storage
Memory:
736 GB DRAM DDR4 ECC
System Overview:
Base enclosure
2U Form Factor
24x2.5” NVMe SSD drives
Expansion Capacity:
Scale-out architecture:
Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
Expansion enclosures:
Minimum cluster size: 3 nodes
Maximum cluster size: 252 nodes
Connectivity:
Front End Networking (per node):
Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)
Dual port 100G NIC supporting 40G or 100G connections
Infrastructure Networking (per node):
2 InfiniBand connections with QDR links or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
Media Types:
NVMe SSDs:
3.84 TB (TLC)?
7.68 TB (TLC)?
15.36 TB (QLC)
30.72 TB (QLC)
Software:
OneFS 9.2.1 or later. Upgrades are non-disruptive
PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache.
Data Optimisation:
Efficiency:
SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression.
2:1 DRR guarantee
Network protocol support:
NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Automated storage tiering:
Policy-based automated tiering options including SmartPools and CloudPools software to optimise storage resources and lower costs.
Data retention:
SmartLock policy-based retention and protection against accidental deletion.
Data replication:
SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Data Protection:
FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes.
File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements, with our Cyber Protection Suite.
Security:
Data at Rest Encryption with External Key Manager?
Data in flight encryption?
Role-Based Access Control (RBAC)?
Multi-factor authentication?
Secure Boot?
Auditing?
Anti-Virus
Physical:
Base unit:
2U Form Factor
Height: 86.8 mm / 3.42 in.
Width: 434 mm / 17.08 in.
Depth: 737.5 mm / 29.04 in.
Weight: 28.1 kg / 61.95 lb
Power:
750 W
Dual redundant power supplies
Max Power consumption:
(200-240V per node)
@25°C – 816 Watts
@35°C – 921 Watts
Typical Thermal rating:
@25°C – 2783 BTU/hr
@35°C – 3141 BTU/hr
- Brand : Dell
- Model No : Dell PowerFlex R750
- Chassis : 2 RU
- CPU : 3 rd Gen Intel Xeon
- CPU sockets : Two
- CPU cores (total) : 16 – 80
- Capacity : 128TB SAS; 92TB SATA; 128TB NVMe
- Memory : 256 GB - 8192 GB
- Drive bays : 24 x 2.5
- NVDIMM Support : Yes
- Nvidia GPU options : A100; A40; A30; A16; A10; A2; T4; L40
- CPU frequency : 2.00 GHz - 3.60 GHz
- Fully redundant power supplies : 800W 100-240Vac / 240Vdc; 1100W 100-240Vac / 240Vdc; 1400W 100-240Vac / 240Vdc; 2400W 100-240Vac / 240Vdc
- PowerFlex network connectivity : Mellanox ConnectX-5 OCP; Mellanox ConnectX-5 PCIe; Mellanox ConnectX-6 PCIe
- Management port : iDRAC 9 Out of Band Management
- Redundant cooling fans : 6
- Dimensions (WxDxH) : 434mm x 678.8mm x 86.8mm
- Weight : 35.3 kg
Chassis:
2RU
CPU:
3rd gen intel Xeon
CPU sockets:
2
CPU cores:
16-80
CPU frequency:
2.00 GHz - 3.60 GHz
RAM:256 GB - 8192 GB
Storage capaity:
128TB SAS
92TB SATA
128TB NVMe
Drive bays:24 x 2.5”
NVDIMM+RDIMM support:yes
Boot/os solution:480 GB SATA M.2 (RAID1) “BOSS-S2”
GPU option:A100, A40, A30, A16, A10, A2, T4, L40
Network Connectivity:
Mellanox ConnectX-5 OCP
Mellanox ConnectX-5 PCIe
Mellanox ConnectX-6 PCIe
Management port:
iDRAC 9 Out of Band Management
Scaling and management:
Min Nodes Per Cluster (Two-Layer Configuration):
4 Storage Only nodes minimum (6 or more recommended),
1 to 3 Compute Only nodes (depending on host OS)
Min Nodes Per Cluster (HCI Configuration):
4 HCI Nodes minimum (6 or more recommended)
Scaling Increments:
1 Node (HCI, Compute Only or Storage Only)2
PowerFlex Manager Management Node Requirements: Jump Server: 8GB RAM, 2 vCPU, 320GB storage:
SRS: 4GB RAM, 2 vCPU, 16GB storage
PowerFlex Manager: 96GB RAM, 48 vCPU, 1.95TB storage
CloudLink (optional): 18GB RAM, 12 vCPU, 192GB storage
(These are all supplied as virtual machines)
PowerFlex Manager Supported Switches:
Management Switches:
Cisco Nexus 3172TQ, Cisco Nexus 31108TC-V, Cisco Nexus 92348GC-X, Dell S4148T-ON
Access or Leaf Switches :
Cisco Nexus 3132QX, Cisco Nexus 3164Q, Cisco Nexus 93180YC-EX, Cisco Nexus 93180YC-FX, Cisco Nexus 93240YC-FX2, Cisco Nexus N93360YC-FX2, Dell S5048F-ON, Dell S5248F-ON, Dell S5296F-ON5, Dell S5224F-ON‡ , Dell S4148F-ON5
Aggregation or Spine Switches:
Cisco Nexus 9236C, Cisco Nexus 9336C-FX2, Cisco Nexus 9364C-GX, Cisco Nexus 9364C-GX, Dell S5232F-ON
Fully redundant power supplies:
800W 100-240Vac / 240Vdc
1100W 100-240Vac / 240Vdc
1400W 100-240Vac / 240Vdc
2400W 100-240Vac / 240Vdc
Redundant cooling fans:
6
Physical dimensions:
H: 86.8mm
W: 434mm
D: 678.8mm
Wgt: 35.3 kg
Ambient operating temperature:
10°C to 30°C
50°F to 86°F
Storage temperature range:
40°C to +65°C
-40°F to +149°F
Operating relative humidity:
8% to 80% (non-condensing)
Operating altitude with no deratings:
3048m approx. 10,000 ft
- Brand : Dell
- Model No : Dell PowerFlex R840
- Chassis : 2 RU
- CPU : Intel Xeon Scalable Gen 1 and Gen 2 Processors
- CPU sockets : Four
- CPU cores (total) : 16 - 112
- Capacity : up to 122 TB SAS; up to 92 TB SATA; up to 122 TB NVMe
- Memory : 384 GB - 6144 GB
- Drive bays : 24 x 2.5
- NVDIMM Support : Yes
- Nvidia GPU options : Nvidia V100S; RTX 6000; RTX 8000; A40; A100
- CPU frequency : 2.1 GHz - 3.8 GHz
- High-efficiency dual redundant PSU : 1600W 200V – 240V AC; 2000W 200V – 240V AC; 2400W 200V – 240V AC
- Node network connectivity : Intel X710/I350 NDC; Intel X7103; Mellanox CX4 NDC; Mellanox CX4; Mellanox CX6
- Connectivity : 4x10/25 GbE SFP28 or 4x10 GbE RJ45
- Management Ports : 2x 1GbE (via rNDC)
- Redundant cooling fans : 4 or 6
- Dimensions (WxDxH) : 434mm x 678.8mm x 86.8mm
- Weight : 28.1kg
Chassis:
2RU
CPU:
Intel Xeon Scalable Gen 1 and Gen 2 Processors
CPU sockets:
4
CPU cores:
16-112
CPU frequency:
2.1 GHz - 3.8 GHz
RAM:384 GB - 6144 GB
Storage capaity:
up to 76 TB SAS
up to 38 TB SATA
up to 76 TB NVMe
Drive bays:10 x 2.5”
NVDIMM+RDIMM support:yes
Boot/os solution:240 GB SATA M.2 (RAID1) “BOSS”
GPU option:Nvidia V100S, RTX 6000, RTX 8000, A40, A100
Network Connectivity:
Intel X710/I350 NDC
Intel X7103
Mellanox CX4 NDC
Mellanox CX4
Mellanox CX6
Management port:
iDRAC 9 Out of Band Management
Min Nodes Per Cluster (integrated rack, Two Layer Configuration):
4 Storage Only Nodes Minimum (6 or more recommended), 3 Compute Only Nodes
Min Nodes Per Cluster (integrated rack, HCI Configuration):
4 HCI Nodes minimum (6 or more recommended)
Min Nodes Per Cluster (appliance, Two Layer Configuration):
4 Storage Only Nodes, 1 Compute Only Nodes (6 or more Storage Only Nodes, 3 or more Compute Only Nodes recommended)
Min Nodes Per Cluster (appliance, HCI Configuration):
4 HCI Nodes minimum4
Scaling Increments:
1 Node (HCI, Compute Only or Storage Only) 5
PowerFlex Manager Management Node Requirements:
PowerFlex Manager: 8 vCPU, 32G RAM, 300GB disk space minimum
PowerFlex Gateway: 2 vCPU, 4GB RAM
SRS: 2 vCPU, 4 GB RAM
Jump server: 2 vCPU, 4 GB RAM (These may reside on physical servers or as VMs)
Appliance Connectivity:
4x10/25 GbE SFP28 or 4x10 GbE RJ458
Management Ports:
2x 1GbE (via rNDC)
Management Switches:
Cisco Nexus 3172, Cisco Nexus 31108TC-V, Dell EMC S4148T-ON
Access or Leaf Switches:
Cisco Nexus 3132QX, Cisco Nexus 3164Q, Cisco Nexus 93180YC-EX, Cisco Nexus 93180YC-FX, Cisco Nexus 93240YC-FX2, Dell S5048F-ON, Dell S5248F-ON, Dell S5296F-ON9, Dell S5224F-ON9, Dell S4148F-ON9
Aggregation or Spine Switches:
Cisco Nexus 9236C, Cisco Nexus 9336C-FX2, Cisco Nexus 9332-PQ, Cisco Nexus 9364C, Cisco Nexus 9364C-GX, Dell EMC S5232F-ON
High-efficiency dual redundant PSU:
1100W 100 - 240V AC
1600W100 - 240V AC
2000W 200V – 240V AC
2400W 200V – 240V AC
Redundant cooling fans:
6
Physical dimensions:
86.8mm/3.42in H
434mm/17.09in W
678.8mm/26.72in D
28.1kg/61.95lb
Ambient operating temperature:
10°C to 30°C
50°F to 86°F
Storage temperature range:
40°C to +65°C
-40°F to +149°F
Operating relative humidity:
8% to 80% (non-condensing)
Operating altitude with no deratings:
3048m approx. 10,000 ft
- Brand : Dell
- Model No : Dell PowerFlex R740xd
- Chassis : 2 RU
- CPU : Intel Xeon Scalable Gen 1 and Gen 2 Processors
- CPU sockets : Two
- CPU cores (total) : 8 – 56
- Capacity : up to 122 TB SAS; up to 92 TB SATA; up to 122 TB NVMe
- Memory : 96 GB - 3072 GB
- Drive bays : 24 x 2.5
- NVDIMM Support : Yes
- Nvidia GPU options : Nvidia V100S; RTX 6000; RTX 8000; A40; A100
- CPU frequency : 2.1 GHz - 3.8 GHz
- High-efficiency dual redundant PSU : 1100W 100 - 240V AC; 1600W100 - 240V AC; 2000W 200V – 240V AC; 2400W 200V – 240V AC
- Node network connectivity : Intel X710/I350 NDC; Intel X7103; Mellanox CX4 NDC; Mellanox CX4; Mellanox CX6
- Connectivity : 4x10/25 GbE SFP28 or 4x10 GbE RJ45
- Management Ports : 2x 1GbE (via rNDC)
- Redundant cooling fans : 6
- Dimensions (WxDxH) : 434mm x 678.8mm x 86.8mm
- Weight : 28.1kg
Chassis:
2RU
CPU:
Intel Xeon Scalable Gen 1 and Gen 2 Processors
CPU sockets:
2
CPU cores:
8-56
CPU frequency:
2.1 GHz - 3.8 GHz
RAM:96 GB - 3072 GB
Storage capaity:
up to 76 TB SAS
up to 38 TB SATA
up to 76 TB NVMe
Drive bays:10 x 2.5”
NVDIMM+RDIMM support:yes
Boot/os solution:240 GB SATA M.2 (RAID1) “BOSS”
GPU option:Nvidia V100S, RTX 6000, RTX 8000, A40, A100
Network Connectivity:
Intel X710/I350 NDC
Intel X7103
Mellanox CX4 NDC
Mellanox CX4
Mellanox CX6
Management port:
iDRAC 9 Out of Band Management
Min Nodes Per Cluster (integrated rack, Two Layer Configuration):
4 Storage Only Nodes Minimum (6 or more recommended), 3 Compute Only Nodes
Min Nodes Per Cluster (integrated rack, HCI Configuration):
4 HCI Nodes minimum (6 or more recommended)
Min Nodes Per Cluster (appliance, Two Layer Configuration):
4 Storage Only Nodes, 1 Compute Only Nodes (6 or more Storage Only Nodes, 3 or more Compute Only Nodes recommended)
Min Nodes Per Cluster (appliance, HCI Configuration):
4 HCI Nodes minimum4
Scaling Increments:
1 Node (HCI, Compute Only or Storage Only) 5
PowerFlex Manager Management Node Requirements:
PowerFlex Manager: 8 vCPU, 32G RAM, 300GB disk space minimum
PowerFlex Gateway: 2 vCPU, 4GB RAM
SRS: 2 vCPU, 4 GB RAM
Jump server: 2 vCPU, 4 GB RAM (These may reside on physical servers or as VMs)
Appliance Connectivity:
4x10/25 GbE SFP28 or 4x10 GbE RJ458
Management Ports:
2x 1GbE (via rNDC)
Management Switches:
Cisco Nexus 3172, Cisco Nexus 31108TC-V, Dell EMC S4148T-ON
Access or Leaf Switches:
Cisco Nexus 3132QX, Cisco Nexus 3164Q, Cisco Nexus 93180YC-EX, Cisco Nexus 93180YC-FX, Cisco Nexus 93240YC-FX2, Dell S5048F-ON, Dell S5248F-ON, Dell S5296F-ON9, Dell S5224F-ON9, Dell S4148F-ON9
Aggregation or Spine Switches:
Cisco Nexus 9236C, Cisco Nexus 9336C-FX2, Cisco Nexus 9332-PQ, Cisco Nexus 9364C, Cisco Nexus 9364C-GX, Dell EMC S5232F-ON
High-efficiency dual redundant PSU:
1100W 100 - 240V AC
1600W100 - 240V AC
2000W 200V – 240V AC
2400W 200V – 240V AC
Redundant cooling fans:
6
Physical dimensions:
86.8mm/3.42in H
434mm/17.09in W
678.8mm/26.72in D
28.1kg/61.95lb
Ambient operating temperature:
10°C to 30°C
50°F to 86°F
Storage temperature range:
40°C to +65°C
-40°F to +149°F
Operating relative humidity:
8% to 80% (non-condensing)
Operating altitude with no deratings:
3048m approx. 10,000 ft
- Brand : Dell
- Model No : Dell PowerFlex R640
- Chassis : 1 RU
- CPU : Intel Xeon Scalable Gen 1 and Gen 2 Processors
- CPU sockets : Two
- CPU cores (total) : 8 – 56
- Capacity : up to 76 TB SAS; up to 38 TB SATA; up to 76 TB NVMe
- Memory : 96 GB - 3072 GB
- Drive bays : 10 x 2.5
- NVDIMM Support : Yes
- Nvidia GPU options : T4
- CPU frequency : 2.1 GHz - 3.8 GHz
- High-efficiency dual redundant PSU : 1100W -48V DC; 750W 100 - 240V AC; 1100W 100V – 240V AC; 1600W 100V – 240V AC
- Node network connectivity : Intel X710/I350 NDC; Intel X7103; Mellanox CX4 NDC; Mellanox CX4; Mellanox CX6
- Connectivity : 4x10/25 GbE SFP28 or 4x10 GbE RJ45
- Management Ports : 2x 1GbE (via rNDC)
- Redundant cooling fans : 8
- Dimensions (WxDxH) : 434.0mm x 733.82mm x 42.8mm
- Weight : 21.9kg
Chassis:
1RU
CPU:
Intel Xeon Scalable Gen 1 and Gen 2 Processors
CPU sockets:
2
CPU cores:
8-56
CPU frequency:
2.1 GHz - 3.8 GHz
RAM:96 GB - 3072 GB
Storage capaity:
up to 76 TB SAS
up to 38 TB SATA
up to 76 TB NVMe
Drive bays:10 x 2.5”
NVDIMM+RDIMM support:yes
Boot/os solution:240 GB SATA M.2 (RAID1) “BOSS”
GPU option:T4
Network Connectivity:
Intel X710/I350 NDC
Intel X7103
Mellanox CX4 NDC
Mellanox CX4
Mellanox CX6
Management port:
iDRAC 9 Out of Band Management
Min Nodes Per Cluster (integrated rack, Two Layer Configuration):
4 Storage Only Nodes Minimum (6 or more recommended), 3 Compute Only Nodes
Min Nodes Per Cluster (integrated rack, HCI Configuration):
4 HCI Nodes minimum (6 or more recommended)
Min Nodes Per Cluster (appliance, Two Layer Configuration):
4 Storage Only Nodes, 1 Compute Only Nodes (6 or more Storage Only Nodes, 3 or more Compute Only Nodes recommended)
Min Nodes Per Cluster (appliance, HCI Configuration):
4 HCI Nodes minimum4
Scaling Increments:
1 Node (HCI, Compute Only or Storage Only) 5
PowerFlex Manager Management Node Requirements:
PowerFlex Manager: 8 vCPU, 32G RAM, 300GB disk space minimum
PowerFlex Gateway: 2 vCPU, 4GB RAM
SRS: 2 vCPU, 4 GB RAM
Jump server: 2 vCPU, 4 GB RAM (These may reside on physical servers or as VMs)
Appliance Connectivity:
4x10/25 GbE SFP28 or 4x10 GbE RJ458
Management Ports:
2x 1GbE (via rNDC)
Management Switches:
Cisco Nexus 3172, Cisco Nexus 31108TC-V, Dell EMC S4148T-ON
Access or Leaf Switches:
Cisco Nexus 3132QX, Cisco Nexus 3164Q, Cisco Nexus 93180YC-EX, Cisco Nexus 93180YC-FX, Cisco Nexus 93240YC-FX2, Dell S5048F-ON, Dell S5248F-ON, Dell S5296F-ON9, Dell S5224F-ON9, Dell S4148F-ON9
Aggregation or Spine Switches:
Cisco Nexus 9236C, Cisco Nexus 9336C-FX2, Cisco Nexus 9332-PQ, Cisco Nexus 9364C, Cisco Nexus 9364C-GX, Dell EMC S5232F-ON
High-efficiency dual redundant PSU:
1100W -48V DC
750W 100 - 240V AC
1100W 100V – 240V AC
1600W 100V – 240V AC
Redundant cooling fans:
8
Physical dimensions:
42.8mm/1.68in H
434.0mm/17.09in W
733.82mm/29.61in D
21.9kg/48.28lb
Ambient operating temperature:
10°C to 30°C
50°F to 86°F
Storage temperature range:
40°C to +65°C
-40°F to +149°F
Operating relative humidity:
8% to 80% (non-condensing)
Operating altitude with no deratings:
3048m approx. 10,000 ft
- Brand : Dell
- Model No : Dell PowerFlex R7525
- Chassis : 2 RU
- CPU : 3 rd Gen AMD EPIC
- CPU sockets : Two
- CPU cores (total) : 16 – 128
- Capacity : Diskless
- Memory : 256 GB - 4 TB
- Drive bays : Diskless
- NVDIMM Support : No
- Nvidia GPU options : A100; A40; A30; A16; A10; A2; T4; L40
- CPU frequency : 2.00 GHz - 3.70 GHz
- Fully redundant power supplies : 1100W 100-240Vac / 240Vdc; 1400W 100-240Vac / 240Vdc; 2400W 100-240Vac / 240Vdc
- PowerFlex network connectivity : Mellanox ConnectX-5 OCP; Mellanox ConnectX-5 PCIe; Mellanox ConnectX-6 PCIe
- Management port : iDRAC 9 Out of Band Management
- Redundant cooling fans : 6
- Dimensions (WxDxH) : 434mm x 678.8mm x 86.8mm
- Weight : 24.6 kg
Chassis:
2RU
CPU:
3 rd Gen AMD EPIC
CPU sockets:
2
CPU cores:
16-128
CPU frequency:
2.00 GHz - 3.70 GHz
RAM:256 GB - 4TB
Storage capaity:
Diskless
Drive bays:diskless
NVDIMM+RDIMM support:No
Boot/os solution:480 GB SATA M.2 (RAID1) “BOSS-S2”
GPU option:A100, A40, A30, A16, A10, A2, T4, L40
Network Connectivity:
Mellanox ConnectX-5 OCP
Mellanox ConnectX-5 PCIe
Mellanox ConnectX-6 PCIe
Management port:
iDRAC 9 Out of Band Management
Scaling and management:
Min Nodes Per Cluster (Two-Layer Configuration):
4 Storage Only nodes minimum (6 or more recommended),
1 to 3 Compute Only nodes (depending on host OS)
Min Nodes Per Cluster (HCI Configuration):
4 HCI Nodes minimum (6 or more recommended)
Scaling Increments:
1 Node (HCI, Compute Only or Storage Only)2
PowerFlex Manager Management Node Requirements: Jump Server: 8GB RAM, 2 vCPU, 320GB storage:
SRS: 4GB RAM, 2 vCPU, 16GB storage
PowerFlex Manager: 96GB RAM, 48 vCPU, 1.95TB storage
CloudLink (optional): 18GB RAM, 12 vCPU, 192GB storage
(These are all supplied as virtual machines)
PowerFlex Manager Supported Switches:
Management Switches:
Cisco Nexus 3172TQ, Cisco Nexus 31108TC-V, Cisco Nexus 92348GC-X, Dell S4148T-ON
Access or Leaf Switches :
Cisco Nexus 3132QX, Cisco Nexus 3164Q, Cisco Nexus 93180YC-EX, Cisco Nexus 93180YC-FX, Cisco Nexus 93240YC-FX2, Cisco Nexus N93360YC-FX2, Dell S5048F-ON, Dell S5248F-ON, Dell S5296F-ON5, Dell S5224F-ON‡ , Dell S4148F-ON5
Aggregation or Spine Switches:
Cisco Nexus 9236C, Cisco Nexus 9336C-FX2, Cisco Nexus 9364C-GX, Cisco Nexus 9364C-GX, Dell S5232F-ON
Fully redundant power supplies:
1100W 100-240Vac / 240Vdc
1400W 100-240Vac / 240Vdc
2400W 100-240Vac / 240Vdc
Redundant cooling fans:
6
Physical dimensions:
H: 86.8mm
W: 434mm
D: 678.8mm
Wgt: 24.6 kg
Ambient operating temperature:
10°C to 30°C
50°F to 86°F
Storage temperature range:
40°C to +65°C
-40°F to +149°F
Operating relative humidity:
8% to 80% (non-condensing)
Operating altitude with no deratings:
3048m approx. 10,000 ft
- Brand : Dell
- Model No : Dell PowerFlex R6525
- Chassis : 1 RU
- CPU : 3 rd Gen AMD EPIC
- CPU sockets : Two
- CPU cores (total) : 16 – 128
- Capacity : Diskless
- Memory : 256 GB - 4 TB
- Drive bays : Diskless
- NVDIMM Support : No
- Nvidia GPU options : A2, T4
- CPU frequency : 2.00 GHz - 3.70 GHz
- Fully redundant power supplies : 800W 100-240Vac / 240Vdc, 1100W 100-240Vac / 240Vdc, 1400W 100-240Vac / 240Vdc, 1100W 48-60Vdc
- PowerFlex network connectivity : Mellanox ConnectX-5 OCP, Mellanox ConnectX-5 PCIe, Mellanox ConnectX-6 PCIe
- Management port : iDRAC 9 Out of Band Management
- Redundant cooling fans : 8
- Dimensions (WxDxH) : 434.0mm x 751mm x 42.8mm
- Weight : 21.2 kg
Chassis:
1RU
CPU:
3 rd Gen AMD EPIC
CPU sockets:
2
CPU cores:
16-128
CPU frequency:
2.00 GHz - 3.70 GHz
RAM:256 GB - 4TB
Storage capaity:
Diskless
Drive bays:diskless
NVDIMM+RDIMM support:No
Boot/os solution:480 GB SATA M.2 (RAID1) “BOSS-S2”
GPU option:A2,t4
Network Connectivity:
Mellanox ConnectX-5 OCP
Mellanox ConnectX-5 PCIe
Mellanox ConnectX-6 PCIe
Management port:
iDRAC 9 Out of Band Management
Scaling and management:
Min Nodes Per Cluster (Two-Layer Configuration):
4 Storage Only nodes minimum (6 or more recommended),
1 to 3 Compute Only nodes (depending on host OS)
Min Nodes Per Cluster (HCI Configuration):
4 HCI Nodes minimum (6 or more recommended)
Scaling Increments:
1 Node (HCI, Compute Only or Storage Only)2
PowerFlex Manager Management Node Requirements: Jump Server: 8GB RAM, 2 vCPU, 320GB storage:
SRS: 4GB RAM, 2 vCPU, 16GB storage
PowerFlex Manager: 96GB RAM, 48 vCPU, 1.95TB storage
CloudLink (optional): 18GB RAM, 12 vCPU, 192GB storage
(These are all supplied as virtual machines)
PowerFlex Manager Supported Switches:
Management Switches:
Cisco Nexus 3172TQ, Cisco Nexus 31108TC-V, Cisco Nexus 92348GC-X, Dell S4148T-ON
Access or Leaf Switches :
Cisco Nexus 3132QX, Cisco Nexus 3164Q, Cisco Nexus 93180YC-EX, Cisco Nexus 93180YC-FX, Cisco Nexus 93240YC-FX2, Cisco Nexus N93360YC-FX2, Dell S5048F-ON, Dell S5248F-ON, Dell S5296F-ON5, Dell S5224F-ON‡ , Dell S4148F-ON5
Aggregation or Spine Switches:
Cisco Nexus 9236C, Cisco Nexus 9336C-FX2, Cisco Nexus 9364C-GX, Cisco Nexus 9364C-GX, Dell S5232F-ON
Fully redundant power supplies:
800W 100-240Vac / 240Vdc
1100W 100-240Vac / 240Vdc
1400W 100-240Vac / 240Vdc
1100W 48-60Vdc
Redundant cooling fans:
8
Physical dimensions:
H: 42.8mm
W: 434.0mm
D: 751 mm
Wgt: 21.2 kg
Ambient operating temperature:
10°C to 30°C
50°F to 86°F
Storage temperature range:
40°C to +65°C
-40°F to +149°F
Operating relative humidity:
8% to 80% (non-condensing)
Operating altitude with no deratings:
3048m approx. 10,000 ft
- Brand : Dell
- Model No : Dell PowerFlex R650
- Chassis : 1 RU
- CPU : 3 rd Gen Intel Xeon
- CPU sockets : Two
- CPU cores (total) : 16 – 80
- Capacity : 76TB SAS, 38TB SATA, 76TB NVMe
- Memory : 256 GB - 8192 GB
- Drive bays : 10 x 2.5
- NVDIMM + RDIMM Support : Yes
- Nvidia GPU options : A2, T4
- CPU frequency : 2.00 GHz - 3.60 GHz
- Fully redundant power supplies : 800W 100-240Vac / 240Vdc, 1100W 100-240Vac / 240Vdc, 1400W 100-240Vac / 240Vdc, 1100W 48-60Vdc
- PowerFlex network connectivity : Mellanox ConnectX-5 OCP, Mellanox ConnectX-5 PCIe, Mellanox ConnectX-6 PCIe
- Management port : iDRAC 9 Out of Band Management
- Redundant cooling fans : 8
- Dimensions (WxDxH) : 434.0mm x 751 mm x 42.8mm
- Weight : 21.2 kg
Chassis:
1RU
CPU:
3rd gen intel Xeon
CPU sockets:
2
CPU cores:
16-80
CPU frequency:
2.00 GHz - 3.60 GHz
RAM:
Storage capaity:
76TB SAS
38TB SATA
76TB NVMe
Drive bays:10 x 2.5”
NVDIMM+RDIMM support:yes
Boot/os solution:480 GB SATA M.2 (RAID1) “BOSS-S2”
GPU option:A2,T4
Network Connectivity:
Mellanox ConnectX-5 OCP
Mellanox ConnectX-5 PCIe
Mellanox ConnectX-6 PCIe
Management port:
iDRAC 9 Out of Band Management
Scaling and management:
Min Nodes Per Cluster (Two-Layer Configuration): 4 Storage Only nodes minimum (6 or more recommended),
1 to 3 Compute Only nodes (depending on host OS)
Min Nodes Per Cluster (HCI Configuration): 4 HCI Nodes minimum (6 or more recommended)
Scaling Increments:
1 Node (HCI, Compute Only or Storage Only)2
1 Node (HCI, Compute Only or Storage Only)2
PowerFlex Manager Management Node Requirements:
Jump Server: 8GB RAM, 2 vCPU, 320GB storage
Jump Server: 8GB RAM, 2 vCPU, 320GB storage
SRS: 4GB RAM, 2 vCPU, 16GB storage
PowerFlex Manager:
96GB RAM, 48 vCPU, 1.95TB storage
96GB RAM, 48 vCPU, 1.95TB storage
CloudLink (optional): 18GB RAM, 12 vCPU, 192GB storage
(These are all supplied as virtual machines)
PowerFlex Manager Supported Switches:
Management Switches:
Cisco Nexus 3172TQ, Cisco Nexus 31108TC-V, Cisco Nexus 92348GC-X, Dell S4148T-ON
Cisco Nexus 3172TQ, Cisco Nexus 31108TC-V, Cisco Nexus 92348GC-X, Dell S4148T-ON
Access or Leaf Switches :
Cisco Nexus 3132QX, Cisco Nexus 3164Q, Cisco Nexus 93180YC-EX, Cisco Nexus 93180YC-FX, Cisco Nexus 93240YC-FX2, Cisco Nexus N93360YC-FX2, Dell S5048F-ON, Dell S5248F-ON, Dell S5296F-ON5, Dell S5224F-ON‡ , Dell S4148F-ON5
Cisco Nexus 3132QX, Cisco Nexus 3164Q, Cisco Nexus 93180YC-EX, Cisco Nexus 93180YC-FX, Cisco Nexus 93240YC-FX2, Cisco Nexus N93360YC-FX2, Dell S5048F-ON, Dell S5248F-ON, Dell S5296F-ON5, Dell S5224F-ON‡ , Dell S4148F-ON5
Aggregation or Spine Switches:
Cisco Nexus 9236C, Cisco Nexus 9336C-FX2, Cisco Nexus 9364C-GX, Cisco Nexus 9364C-GX, Dell S5232F-ON
Cisco Nexus 9236C, Cisco Nexus 9336C-FX2, Cisco Nexus 9364C-GX, Cisco Nexus 9364C-GX, Dell S5232F-ON
Fully redundant power supplies:
800W 100-240Vac / 240Vdc
800W 100-240Vac / 240Vdc
1100W 100-240Vac / 240Vdc
1400W 100-240Vac / 240Vdc
1100W 48-60Vdc
Redundant cooling fans:
8
Physical dimensions:
H: 42.8mm
W: 434.0mm
D: 751 mm
Wgt: 21.2 kg
Ambient operating temperature:
10°C to 30°C
50°F to 86°F
Storage temperature range:
40°C to +65°C
-40°F to +149°F
Operating relative humidity:
8% to 80% (non-condensing)
Operating altitude with no deratings:
3048m approx. 10,000 ft
- Brand : Dell
- Model No : Dell PowerStore 9200T
- Processor : 4 Intel CPUs; 112 cores; 2.2 GHz
- Memory : 2560 GB
- Max Capacity : 4.52 PBe per appliance / 18.06 PBe per cluster
- Max Drives : 93 per appliance / 372 per cluster
- Power supplies : Two redundant power supplies (PS) per base and per expansion enclosure
- Appliance per Cluster : 4
- Volume Support : 16000 vols
- Size : 256 TB
- Network Support : 100Gb/25GbE; 32Gb FC
- Protocols : iSCSI; NVMe/TCP; FC; NVMe/FC; vVols; SMB; NFS
- Brand : Dell
- Model No : Dell PowerStore 5200T
- Processor : 4 Intel CPUs; 96 cores; 2.2 GHz
- Memory : 1152 GB
- Max Capacity : 4.52 PBe per appliance / 18.06 PBe per cluster
- Max Drives : 93 per appliance / 372 per cluster
- Power supplies : Two redundant power supplies (PS) per base and per expansion enclosure
- Appliance per Cluster : 4
- Volume Support : 6000 vols
- Size : 256 TB
- Network Support : 100Gb/25GbE; 32Gb FC
- Protocols : iSCSI; NVMe/TCP; FC; NVMe/FC; vVols; SMB; NFS
- Brand : Dell
- Model No : Dell PowerStore 3200T
- Processor : 4 Intel CPUs; 64 cores; 2.1 GHz
- Memory : 768 GB
- Max Capacity : 4.52 PBe per appliance / 18.06 PBe per cluster
- Max Drives : 93 per appliance / 372 per cluster
- Power supplies : Two redundant power supplies (PS) per base and per expansion enclosure
- Appliance per Cluster : 4
- Volume Support : 4000 vols
- Size : 256 TB
- Network Support : 100Gb/25GbE; 32Gb FC
- Protocols : iSCSI; NVMe/TCP; FC; NVMe/FC; vVols; SMB; NFS
- Brand : Dell
- Model No : Dell PowerStore 1200T
- Processor : 4 Intel CPUs; 40 cores; 2.4 GHz
- Memory : 384 GB
- Max Capacity : 4.52 PBe per appliance / 18.06 PBe per cluster
- Max Drives : 93 per appliance / 372 per cluster
- Power supplies : Two redundant power supplies (PS) per base and per expansion enclosure
- Appliance per Cluster : 4
- Volume Support : 3000 vols
- Size : 256 TB
- Network Support : 100Gb/25GbE; 32Gb FC
- Protocols : iSCSI; NVMe/TCP; FC; NVMe/FC; vVols; SMB; NFS
- Brand : Dell
- Model No : Dell PowerStore 500T
- Processor : 2 Intel CPUs; 24 cores; 2.2 GHz
- Memory : 192 GB
- Drive Bays : 25 x 2.5 drive bays
- Max Capacity : 4.71 PBe per appliance / 18.83 PBe per cluster
- Max Drives : 97 per appliance / 388 per cluster
- Power supplies : Two redundant power supplies (PS) per base and per expansion enclosure
- Volume Support : 1000 vols
- Size : 256 TB
- Appliance per Cluster : 4
- Hard Drive Configuration : NVMe Flash and Intel Optane (SCM) SSD
- Network Support : 25GbE; 32Gb FC
- Protocols : iSCSI; NVMe/TCP; FC; NVMe/FC; vVols; SMB; NFS
- Storage Devices : NVMe Flash SSD: 1.92TB; 3.84TB; 7.68TB; 15.36 TB; NVMe Intel Optane SSD (SCM): 375GB; 750GB; 1.5TB
- Dimensions (WxDxH) : 8.72 cm x 44.72 cm x 79.55 cm
- Operating System :Microsoft Windows Storage Server 2016 Standard Edition
- Additional Features :
- Cluster support up to 64 nodes
- Chassis :
- Weight (Maximum): 21.9 kg (48.28 lbs)
- Height: 42.8 mm (1.68 in)
- Width : 482.0 mm (18.98 in with rack ears)
- Depth:705.05 mm
- Chassis Overview :1U rack-mount
- Data Protection Features : DFS-R (Replication), VSS (Snapshots), Optional TPM
- Hard Drive Configuration
- 2 or 4 x 2.5" front accessible for OS. Each platform in a clustered configuration with 2 HDDS for OS (RAID1) or 4 HDDs for OS (RAID5). PERC H730 (internal drives) or H840 (optional for external drives).
- Maximum Usable Capacity : Leverages shared storage arrays attached via SAS, iSCSI or FC
- Management:
- Dell OpenManage featuring Dell Management Console, iDRAC9 Enterprise, Native Java RDP plug-in or Windows Server Management interface
- Data Management Features:
- Data deduplication with compression, FCI (File Classification Infrastructure), FSRM (File Server Resource Manager)
- Data Protection, Disaster Recovery, Security:
- Hot-plug hard drives, hot-plug power, hot-plug cooling, ECC memory
- Power : AC Power/Max Current: Redundant and non-redundant hot-plug 750W PSU options
- Regulatory :
- Product Safety, EMC and Environmental Datasheets
- Dell Regulatory Compliance Home Page
- Dell and the Environment
- Operating System : Microsoft Windows Storage Server 2016 Standard Edition
- Chassis :
- Weight (Maximum): 28.1 kg (61.95 lbs)
- Height: 86.8 mm (3.42 in)
- Width: 482.0 mm (18.98 in with rack ears)
- Depth:maximum 715.5 mm
- Chassis Overview : 2U rack-mount
- Data Protection Features
- DFS-R (Replication), VSS (Snapshots), Optional TPM
- Hard Drive Configuration:
- Up to 12 x 3.5" front accessible for data, up to 4x3.5" in mid-bay and 2 x 3.5" rear accessible for the OS (2.5" OS HDDs in hybrid carrier). OS HDDs (on rear 2.5" HDDs) are always RAID 1. Data HDDs can be configured from factory in RAID5 or RAID6 (minimum 4 HDDs). PERC H730 (internal drives) or H840 (optional for external drives).
- Maximum Usable Capacity : 192TB raw capacity using 12TB HDDs
- Management:
- Dell OpenManage featuring Dell Management Console, iDRAC9 Enterprise, Native Java RDP plug-in or Windows Server Management interface
- Data Management Features:
- Data deduplication with compression, FCI (File Classification Infrastructure), FSRM (File Server Resource Manager)
- Data Protection, Disaster Recovery, Security :
- Hot-plug hard drives, hot-plug power, hot-plug cooling, ECC memory
- Power :
- AC Power/Max Current: Redundant and non-redundant hot-plug 750W and redundant 1100W PSU options
- Regulatory :
- Product Safety, EMC and Environmental Datasheets
- Dell Regulatory Compliance Home Page
- Dell and the Environment
- Operating :
- Microsoft Windows Storage Server 2016 (Standard Edition and Workgroup Edition)
- Chassis
- Weight (Maximum): 13.2 kg (29.10 lb)
- Height: 42.8 mm (1.68 in)
- Width:482.0 mm (18.98 inches with rack ears)
- Depth:573.6 mm (22.58 in)
- Chassis Overview
- 1U rack-mount
- Data Protection Features
- DFS-R (Replication), VSS (Snapshots), Optional TPM
- Hard Drive Configuration
- 4 x 3.5" internal drives that must be identical in capacity and type. OS HDDs from factory in RAID 5. PERC H730P (internal drives).
- Maximum Usable Capacity
- 48TB raw capacity using 12TB HDDs)
- Management
- Dell OpenManage featuring Dell Management Console, iDRAC9 Enterprise, Native Java RDP plug-in or Windows Server Management interface
- Data Management Features:
- Data deduplication with compression, FCI (File Classification Infrastructure), FSRM (File Server Resource Manager)
- Data Protection, Disaster Recovery, Security:
- Hot-plug hard drives, hot-plug power, hot-plug cooling, ECC memory
- Power:
- AC Power/Max Current: Single or dual hot-plug, redundant and non-redundant 350W PSU options
- Regulatory:
- Product Safety, EMC and Environmental Datasheets
- Dell Regulatory Compliance Home Page
- Dell and the Environment
Your Go-To Source for High-Performance IT Equipment
As leading dell storage dealers in the IT hardware industry, we are committed to delivering reliable, high-performance server solutions that cater to the dynamic needs of modern businesses. Our extensive portfolio includes a wide range of servers—rack servers, tower servers, blade servers, and customized enterprise-grade systems—from globally recognized brands such as Dell, HP, Lenovo, Cisco, and more. Whether you are a small business looking for an entry-level server or a large enterprise seeking powerful, scalable data center infrastructure, we provide tailored solutions that align with your technical requirements and budget.
Our services go beyond just sales—we offer expert consultation to help clients choose the right server configurations based on workload, performance goals, and scalability. Each product we supply is rigorously tested for quality assurance and comes with warranty options and after-sales support, ensuring peace of mind and long-term performance. With a team of knowledgeable professionals, competitive pricing, and a customer-centric approach, we have established ourselves as a trusted partner for businesses, IT integrators, system administrators, and government organizations.
Whether you're upgrading your existing infrastructure, setting up a new data center, or integrating servers into a hybrid IT environment, our goal is to deliver dependable hardware solutions that empower your operations and drive digital transformation.
Most Searchable Keywords
dell storage price in hyderabad, dell storage cost hyderabad, buy dell storage in hyderabad, dell storage pricelist hyderabad, dell storage dealers hyderabad, dell storage suppliers hyderabad, dell storage in hyderabad, dell storage shop hyderabad, dell storage quotes hyderabad, dell storage distributors hyderabad, affordable dell storage hyderabad, dell storage installation hyderabad, dell storage maintenance hyderabad, top most dell storage in hyderabad, dell storage offers hyderabad, dell storage configurations hyderabad, dell storage pricing hyderabad, dell storage comparison hyderabad, dell storage features hyderabad, dell storage hyderabad, dell storage reviews hyderabad, dell storage availability hyderabad, cheap dell storage hyderabad, dell storage IT solutions hyderabad, dell storage hardware hyderabad, best dell storage dealers hyderabad, dell storage networking hyderabad, dell storage enterprises hyderabad, dell storage purchase consultation hyderabad, dell storage deals in hyderabad, dell storage dealers in hyderabad, dell storage suppliers price hyderabad, buy dell storage hyderabad, dell storage purchased in hyderabad, dell storage dealer price hyderabad, dell storage authorized dealers hyderabad, dell storage resellers hyderabad, dell storage India, dell storage distributors hyderabad, dell storage prices hyderabad, dell storage shop hyderabad, dell storage stores in hyderabad, discount dell storage hyderabad, dell storage pricing range hyderabad, affordable dell storage price hyderabad, dell storage consultants hyderabad, dell storage sale hyderabad, New dell storage hyderabad, dell storage offers hyderabad, dell storage vendors hyderabad, purchase dell storage in hyderabad, dell storage installations hyderabad, best dell storage in hyderabad, dell storage shops, dell storage maintenance in hyderabad, local dell storage dealers hyderabad, hyderabad authorized dell storage, dell storage products hyderabad, dell storage distributors in hyderabad, best dell storage pricelist hyderabad, dell storage distributor hyderabad, Dell serverdell storage suppliers at hyderabad, hyderabad dell storage retailer, dell storage wholesale hyderabad, dell storage deals in hyderabad, dell storage reseller hyderabad, best dell storage distributor in hyderabad, dell storage supplier hyderabad, cheap dell storage in hyderabad, dell storage shop hyderabad, dell storage for business hyderabad, most trusted dell storage in hyderabad, dell storage sales hyderabad, dell storage parts hyderabad, dell storage IT solution in hyderabad, business dell storage supplier hyderabad, dell storage installation hyderabad, enterprise provider hyderabad, dell storage hardware distributor hyderabad, hyderabad dell storage partners, dell storage store near me hyderabad, authorized dell storage distributor hyderabad, dell storage experts hyderabad, top dell storage distributors near hyderabad, dell storage sales near me hyderabad, dell storage equipment hyderabad, dell storage infrastructure in hyderabad, dell storage stores near by hyderabad, dell storage, dell storage price, top dell storage in hyderabad, dell storage dealer in hyderabad, latest dell storage price hyderabad, top dell storage dealers hyderabad, dell storage good price in hyderabad
