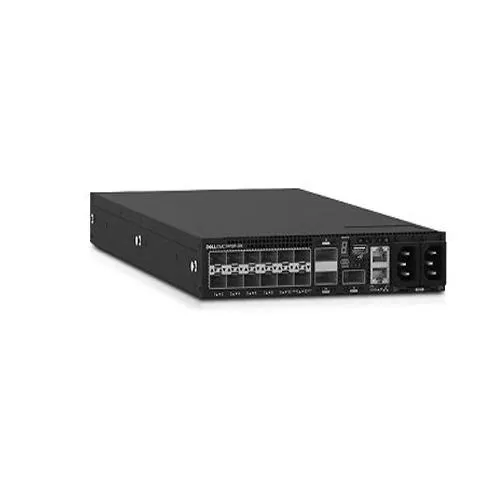

Dell Networking S4048 On Ports 10GbE SFP Managed Switch

Dell Networking S4048 On Ports 10GbE SFP Managed Switch - DEALER PRICE LIST | SPECIFICATION | HYDERABAD | CHENNAI

Dell Networking S4048 On Ports 10GbE SFP Managed Switch - Offer Price

Call for Best Price

Product Description

  • Line-rate : 48 x 10GbE SFP+ ports or 72 10GbE
  • ports : ports with breakout cables
  • Power supply : 100 - 240 VAC 50/60 Hz
  • rate : 720Gbps
  • memory : 12MB

Build and Design

The Dell EMC S4048-ON is a 1U form-factor switch which is packaged with Dell's ReadyRails system. The ReadyRails kit allows front-rack and two-post installations via two separate rail assemblies. The rails are completely tool-less and allow a switch to be racked in a matter of minutes. The front side of the S4048-ON incorporates 48 SFP+ ports and 6 QSFP+ ports. Beyond the 48 dedicated 10G ports, users are able to further expand 10G connectivity through breakout cables attached to the QSFP+ ports. Leveraging all six additional ports, total 10G connectivity jumps from 48 to 72 ports for a dense 1U switch platform.

Dell Networking S4048 On Ports 10GbE SFP Managed Switch - Specification


48 10 Gigabit Ethernet SFP+ ports
6 40 Gigabit Ethernet QSFP+ ports
1RJ45console/managementportwithRS232 signaling
1USB2.0typeAtosupportmass storagedevice 1Micro-USB2.0typeBSerialConsolePort
Weight: 18.52 lbs (8.4kg)
ISO7779A-weightedsoundpressurelevel:59.6dBAat 73.4°F(23°C)
Power supply: 100–240V AC 50/60Hz DC Power supply: -40.5V ~ -60V Max. thermal output: 799.64 BTU/h


2.344A/1953A at 100/120V AC,
1.145A/0.954A at 200/240V AC
Max. DC current: -40.5V/23.8A, -48V/19A,-60V/15.6A
Max. power consumption: 234.35 Watts (AC), 800 Watts (DC)
Max. operatingspecifications: Operating temperature: 32°F to 113°F (0°C to 45°C)
Operatinghumidity:10to85%(RH),non- condensing
Max. non-operating specifications
Storage temperature: –40°F to 158°F (–40°C to 70°C)
Storagehumidity:5to95%(RH),non- condensing


Hot swappable redundant power
Hot swappable redundant fans
Performance general Switch fabric capacity: 1.44Tbps (full-duplex) 720Gbps (half-duplex)
Forwarding Capacity: 1080 Mpps
Latency: Sub 600ns
Packet buffermemory:12MB
CPU memory: 4GB
OS9 Performance:
MAC addresses: 160K
ARP table 128K
IPv4 routes: 128K
IPv6 hosts: 64K IPv6 routes: 64K Multicast hosts: 8K
Link aggregation: 16 links per group, 128 groups


8MB cache on Intel Xeon E3-1225 v5
3MB on Pentium G4400


(96 DIMMS): 8GB/16GB/32GB/64GB/128GB RDIMM, LRDIMM up to 2400 MT/s

I/O slots

1 PCIe x16 3.0
1 PCIe x16 3.0 (x4 speed)
1 PCIe x4 3.0

RAID controllers

Software RAID: Intel Rapid Storage Controller 12.0 (supports SATA 6Gb/s or SATA 3Gb/s)


2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
2.5” Dell PowerEdge NVMe Express Flash PCIe SSD

Power supply
