Pricelist of Best juniper switch Models

Brand: Juniper

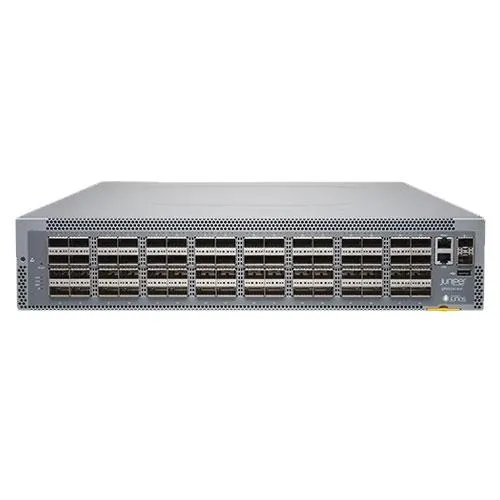

Product: QFX5230 Ethernet Switch
Form factor: Fixed 2 U
Switching capacity: 25.6/51.2 Tbps uni/bidirectional / 10.6 Bpps unidirectional
Port densities(10/25/40/50/100/400GbE): 64 ports of QSFP56-DD 400GbE
Power consumption (Typical power draw): 580 W (50% traffic with DACs @ [25C-31C])
Power consumption (Max power draw): 1600 W (100% traffic with 16 ZR4 optics and 48 non-ZR4 optics @41C)
Buffer capacity: 112 MB
MAC addresses: 128,000
IPv4 unicast/multicast routes: 850,000
IPv6 unicast/multicast routes: 360,000
Number of VLANs: 4,000
ARP entries: 32,000
Dimensions (W x H x D): 17.4 x 3.43 x 25.6 in

Brand: Juniper

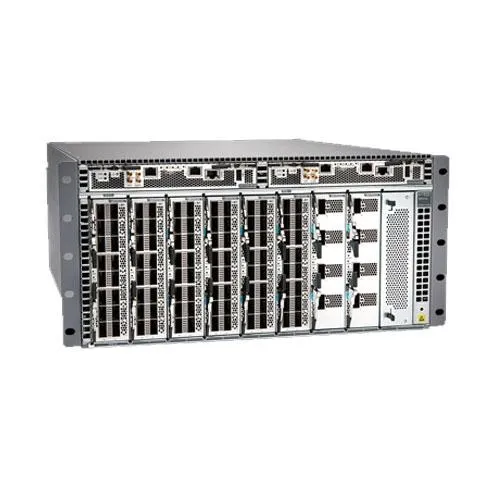

Product: QFX5700 Network Switch
Form factor: Modular 5 U
Switching capacity: 25.6 Tbps
Port densities(10/25/40/50/100/400GbE); 32x400GbE; 64x200GbE; 128x100GbE; 144x50/40/25/10GbE
Power consumption: Redundant (N+N) hot-pluggable AC/ DC power supplies (2n)
Maximum power draw: 3338 W
Typical power draw: 2722 W
Buffer capacity: 132 MB
MAC addresses: 160,000
IPv4 unicast/multicast routes: 1.24 million
IPv6 unicast/multicast routes: 610,000
Number of VLANs: 4091
ARP entries: 32,000 (tunnel mode); 64,000 (non-tunnel mode)
Latency: 630 ns
Overlay Management and Protocols: Contrail Networking, EVPN-VXLAN
Dimensions (W x H x D): 19.0 in x 8.74 in (5RU) x 32 in (48.2 x 22.2 x 81.5 cm)

Brand: Juniper

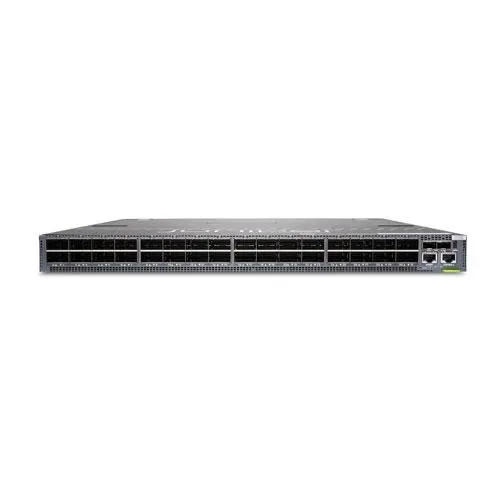

Product: QFX5241-32OD Network Switch
Rack units: 1 U
System throughput: 25.6/51.2 Tbps uni/bidirectional
Max Forwarding Rate: 10.6 Bpps
Port density: 32 ports of OSFP 800GbE
Max ports with breakout: 32 × 800GbE, 64 × 400GbE, 128 x 200GbE, 160 x 100GbE, 128 x 50GbE
Operating system: Junos OS Evolved
Switch chip: Broadcom Tomahawk5
CPU: Intel Ice Lake (4 core)
Memory: 32GB (16GBx2) of DDR4
Storage: 2x480GB
Power: Redundant (1+1) hot-pluggable 3000W AC (200 to 240V) power supplies
Cooling: Ports-to-PSU (AFO) 7 hot-pluggable fan modules
Total packet buffer: 83 MB
Dimensions (W x H x D): 17.25 × 1.69 × 23.19 in (43.4 × 4.3 × 58.9 cm)
Weight: 15kgs (33.17lbs)
Warranty: 1 year warranty

Brand: Juniper

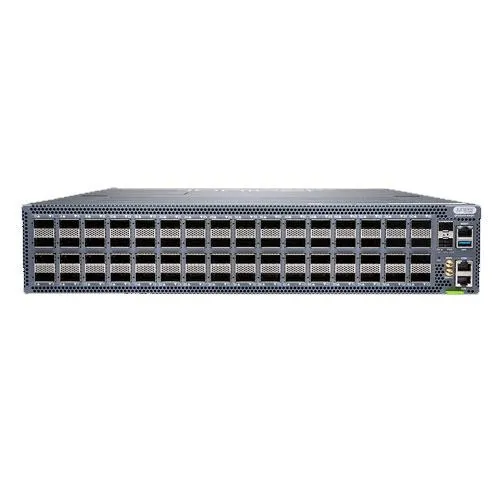

Product: QFX5240-64QD Network Switch
Rack units: 2 U
System throughput: 51.2/102.4 Tbps uni/bidirectional
Max Forwarding Rate: 21.2Bpps
Port density: 64 ports of QSFP-DD 800GbE
Max ports with breakout: 64 × 800GbE, 128 × 400GbE, 256 x 200GbE, 320 x 100GbE, 256 x 50GbE. Max port density with mixed speeds 320 (please use online port checker to validate mixed speed configurations)
Operating system: Junos OS Evolved
Switch chip: Broadcom Tomahawk5
CPU: Intel Ice Lake (4 core)
Memory: 32GB (16GBx2) of DDR4
Storage: 2x480GB
Power: Redundant (1+1) hot-pluggable 3000W AC (200 to 240V) power supplies
Cooling Ports-to-PSU (AFO): 4 hot-pluggable fan modules
Total packet buffer: 165 MB
Dimensions (W x H x D): 17.26 x 3.46 x 25.52 in (43.8 x 8.8 x 64.8 cm)
Weight: 22kgs (48.50lbs) fully loaded without optics
Warranty: 1 year warranty

Brand: Juniper

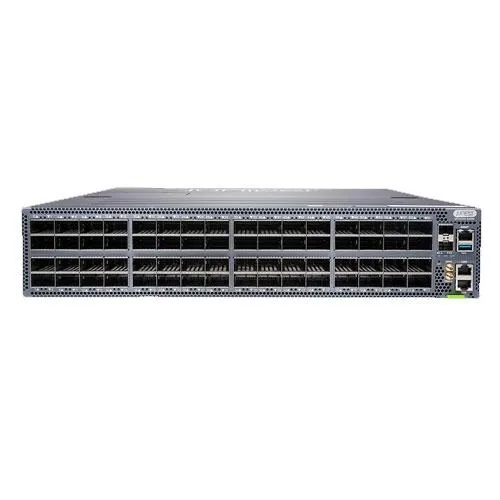

Product: QFX5240-64OD Network Switch
Rack units: 2 U
System throughput: 51.2/102.4 Tbps uni/bidirectional
Max Forwarding Rate: 21.2Bpps
Port density: 64 ports of OSFP 800GbE
Max ports with breakout: 64 × 800GbE, 128 × 400GbE, 256 x 200GbE, 256 x 100GbE. Max port density with mixed speeds 320 (please use online port checker to validate mixed speed configurations)
Operating system: Junos OS Evolved
Switch chip: Broadcom Tomahawk5
CPU: Intel Ice Lake (4 core)
Memory: 32GB (16GBx2) of DDR4
Storage: 2x480GB
Power: Redundant (1+1) hot-pluggable 3000W AC (200 to 240V) power supplies
Cooling Ports-to-PSU (AFO): 4 hot-pluggable fan modules
Total packet buffer: 165 MB
Dimensions (W x H x D): 17.26 x 3.46 x 25.52 in (43.8 x 8.8 x 64.8 cm)
Weight: 22kgs (48.50lbs) fully loaded without optics
Warranty: 1 year warranty

Brand: Juniper

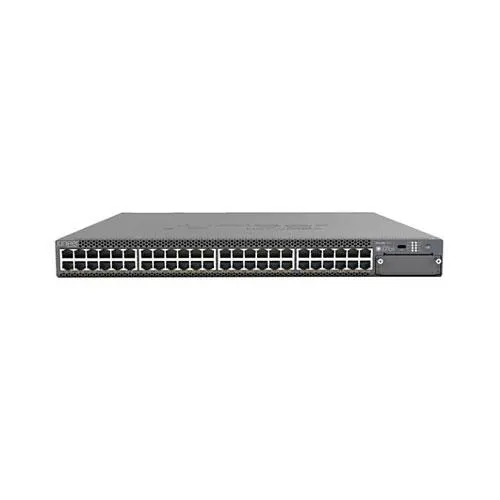

Product: EX4400-48P Network Switch
Port Density: 1/10GbE access ports, 100GbE uplink/stacking, optional 10/25/40/100GbE uplink
Form factor: 1 RU
Power: PoE++ up to 90W per port; 3600W total
Switching capacity: 696 Gbps
Fabric: EVPN-VXLAN, Virtual Chassis
Access/Revenue Port Configuration:48-port 10/100/1000BASE-T
PoE++ Ports: 48Ports
PoE++ Budget 1 PSU/2 PSU(220 V):1310 W/ 2200 W
PoE++ Budget 1 PSU/2 PSU(110 V): 773 W/ 1796 W
10GbE Ports (max with module): 0(4)
25GbE Ports (max with module): 0(4)
100GbE/40GbE Ports(max with module): 2(3)
Power Supply Rating: 1600 W AC
Cooling: AFO (front-to-back airflow)

Brand: Juniper

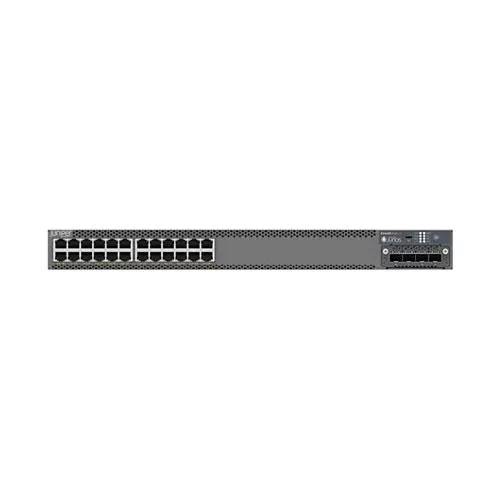

Product: EX4400-24P Ethernet Switch
Port Density: 1/10GbE access ports, 100GbE uplink/stacking, optional 10/25/40/100GbE uplink
Form factor: 1 RU
Power: PoE++ up to 90W per port; 3600W total
Switching capacity: 696
Fabric: EVPN-VXLAN, Virtual Chassis
Access/Revenue Port Configuration:24-port 10/100/1000BASE-T
PoE++ Ports: 24 Ports
PoE++ Budget 1 PSU/2 PSU(220 V):1320 W/ 2160 W
PoE++ Budget 1 PSU/2 PSU(110 V):783 W/ 1806 W
10GbE Ports (max. with module): 0(4)
25GbE Ports (max. with module): 0(4)
100GbE/40GbE Ports(max with module): 2(3)
Power Supply Rating: 1600 W AC (optional)
Cooling: AFO (front-to-back airflow)

Brand: Juniper
Product: EX4400-48F Network Switch
Port Density: 1/10GbE access ports, 100GbE uplink/stacking, optional 10/25/40/100GbE uplink
Form factor: 1 RU
Power: PoE++ up to 90W per port; 1800W power
Switching capacity: 696
Fabric: EVPN-VXLAN, Virtual Chassis
Access/Revenue Port Configuration: 12-port 1000/10000BASE-X + 36-port 100/1000BASE-X
PoE++ Ports: 0
PoE++ Budget 1 PSU/2 PSU(220 V):N/A
PoE++ Budget 1 PSU/2 PSU(110 V):N/A
10GbE Ports (max. with module): 12(16)
25GbE Ports (max. with module): 0(4)
100GbE/40GbE Ports(max with module): 2(3)
Power Supply Rating: 550 W AC
Cooling: AFO (front-to-back airflow)

Brand: Juniper

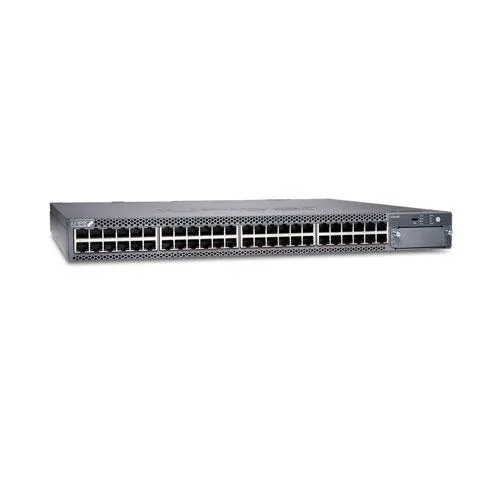

Product: EX4400-48XP Network Switch
Port Density: 1 GbE access ports, 100GbE uplink/stacking, Optional 10/25/40/100GbE uplink
Form factor: 1 RU
Power: PoE++ up to 90W per port; 3600W total.
Switching capacity: 696 Gbps
Fabric: EVPN-VXLAN, Virtual Chassis
Access/Revenue Port Configuration:48-port 10/100/1000BASE-T
PoE++ Ports: 48 Ports
PoE++ Budget 1 PSU/2 PSU(220 V):1650 W/ 3600 W
PoE++ Budget 1 PSU/2 PSU(110 V):724 W/ 1748 W
10GbE Ports (max. with module): 0(4)
25GbE Ports (max. with module): 0(4)
100GbE/40GbE Ports(max with module): 2(3)
Power Supply Rating: 2000 W AC
Cooling: AFO (front-to-back airflow)

Brand: Juniper

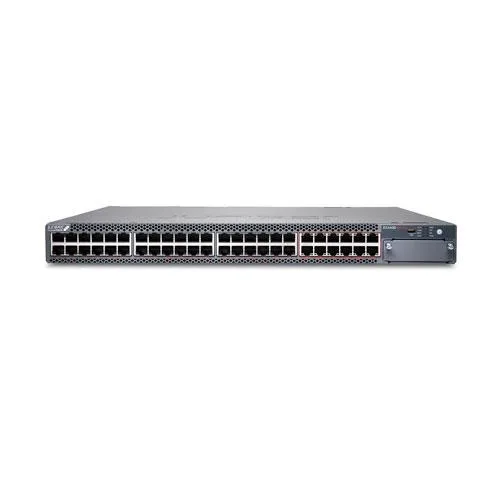

Product: EX4400-48MXP Network Switch
Port Density: 1/10GbE access ports, 100GbE uplink/stacking, optional 10/25/40/100GbE uplink
Form factor: 1 RU
Power: PoE++ up to 90W per port; 3600W total
Switching capacity: 1020 Gbps
Fabric: EVPN-VXLAN, Virtual Chassis
Access/Revenue Port Configuration: 48-port GbE (12x100M/1/2.5/5/10GbE +36x100M/1/2.5GbE
PoE++ Ports: 48 Ports
PoE++ Budget 1 PSU/2 PSU(220 V):1650 W/ 3600 W
PoE++ Budget 1 PSU/2 PSU(110 V): 724 W/ 1748 W
10GbE Ports (max. with module): 12(16)
25GbE Ports (max. with module): 0(4)
100GbE/40GbE Ports(max with module): 2(3)
Power Supply Rating: 2000 W AC
Cooling: AFO (front-to-back airflow)
