Pricelist of Best numax ups Models

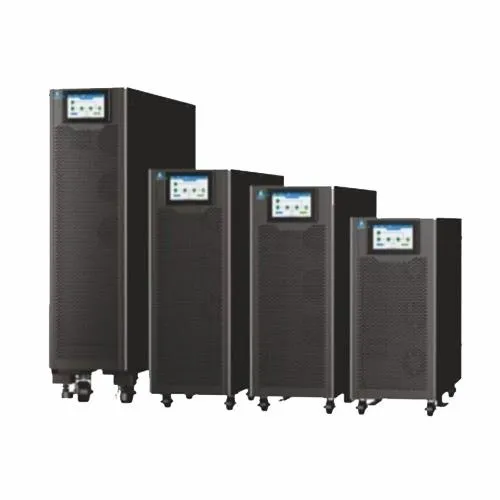

NUMAX ONLINE NX990 G5 10KVA 60KVA UPS

MODEL: Nx9910,Nx9915 Nx9920 Nx9930 Nx9940 Nx9960
Capacity: 10 kVA/10 kW,15 kVA/15 kW,20 kVA/20 kW,30 kVA/30 kW 40 kVA/40 kW 60 kVA/60 kW
INPUT:
Rated voltage: 380/400/415 Vac (L-L)
Voltage range: 304-478Vac (L-L), full load 228V-304Vac (L-L), load decrease linearly according to the min phase voltage
Rated frequency: 50/60 Hz (auto-sensing)
Frequency range: 40-70 Hz
Power factor: >0.99
Bypass voltage range: Selectable, default -20%~+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, 15%, -20%, -30%, -40%
Bypass frequency range: Selectable, ±1Hz, ±3Hz, ±5Hz
Total harmonic distortion (THDI): <3% (full linear load)
Bypass overload: 125%: long term operation; 125%~130%: 10min; 130%~150%: 1min; 150%-400%: 1s; >400%, less than 200ms
OUTPUT:
Rated voltage: 380/400/415 Vac (L-L)
Voltage regulation: ±1% (full linear load)
Frequency: Synchronized with utility in mains mode, 50/60 Hz ±0.1% in battery mode
Waveform: Sinusoidal
Power factor: 1
Total harmonic distortion (THDv): <1% (full linear load) <3% (full non-linear load according to IEC/EN62040-3)
Crest factor: 3:1
Overload: <110%, 60min; 110%~125%, 10min; 125%~150%, 1min; >150%, 200ms
BATTERIES:
DC voltage: Long time model: ±240VDC (Selectable, 32-40pcs)
Inbuilt battery (standard model): (10 + 10) * 9AH ( (20 + 20) * 7AH ( 20+20)* 9AH x 2 strings (15 + 15) * 9AH (20+20) x 9AH x 2 strings
Charging current: 10A Max. 15A Max. 20A Max.
Charger voltage precision: 1%
Recharge time.: Standard model: 90% capacity restored in 8 hours; Long time model: depend on the capacity of battery
SYSTEM:
Efficiency: 95% Max
Transfer time Max. number of parallel connections: 0 ms
Max. number of parallel connections: 4
Protections: Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure
Communications: RS232, USB, RS485, EPO, Dry contacts, Parallel port (Standard) SNMP card, WI-FI card, GPRS card, SMS alarms (Optional)
Display: LED + 5 inches LCD touch screen
OTHERS:
Operating temperature: 0^ C sim 40 deg * C
Storage temperature: 40 deg * C - 70 deg * C
Relative humidity: 0-95% (Non-condensing)
Altitude: <1000m, load derated 1% per 100m from 1000-2000m
IP rating: IP 20
Noise level at 1 m:55dB @ 100% load, 52dB @ 50% load 58dB @ 100% load, 55dB @ 50% load
Dimensions (WDH) (mm): 250 * 720 * 560 ( ) 250 * 720 * 560 (H) 250 * 800 * 700(S) 250 * 720 * 560(H) 250 * 800 * 700(S) 250 * 720 * 560(H)
Packaged dimensions (WDH) (mm): 350 * 800 *722 (s)350 * 800 * 718(H).(350 * 900 * 862(S) 350 * 800 * 718(H) 350*950*1102 (S)350*980*810(H)
Net weight (kg): 82 (S) 31 (H),131 (S) 33 (H),145 (S) 33 (H),215 (S) 42 (H)
Gross weight (kg): 93 (S) 40 (H) 142 (S) 42 (H) 156 (S) 42 (H) 227 (S) 52 (H)

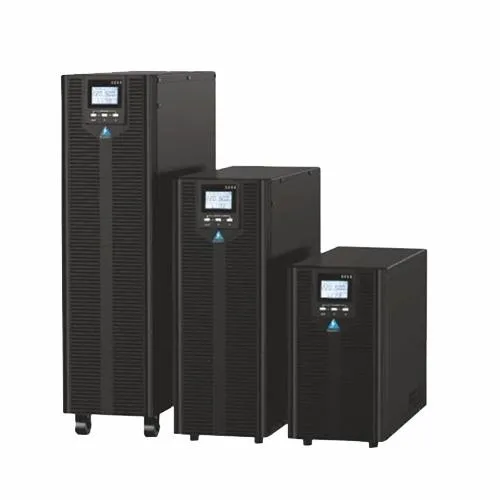

NUMAX ONLINE NX900 G5 10KVA 20KVA UPS

MODEL: Nx9010 (3:1),Nx9015 (3:1),Nx9020(3:1)
Capacity: 10 kVA/10 kW,15 kVA/15 kW,20 kVA/20 KW
INPUT:
Input wiring: Three-phase five-wire (3 + N + PE)
Rated voltage: 380/400/415 Vac
Voltage range: 380/400/415 Vac
Rated frequency: 50/60 Hz (auto-sensing)
Frequency range: 40-70 Hz
Power factor: ? 0.99
Bypass voltage range: -40%~+15% (settable)
Total harmonic distortion (THDI): 5%
OUTPUT:
Output wiring: Single-phase three-wire (10 + N + ??)
Rated voltage: 208 (PF=0.9)/220/230/240 Vac
Voltage regulation: ±1%
Frequency: Synchronized to bypass in mains mode; 50/60 Hz ± 0.1% Hz in battery mode
Waveform: Sinusoidal
Power factor: 1
Total harmonic distortion (THDv): 1% (linear load); 3% (non-linear load)
Crest factor: 3:1
Overload: 105%~110% for 10 min, 110% 125% for 1 min, 126%~150% for 30 s
BATTERIES:
DC voltage: 120 Vdc (120-240 Vdc settable)
Number of battery: 10 pcs (10-20 settable)
Inbuilt battery (standard model): 12 V/9Ah×10
Charging current: Standard model: 1 A; Long time model: 5 A (default), 1-5A settable; 10 A (optional)
Recharge time: Standard model: 90% capacity restored in 8 hours; Long time model: depend on the capacity of battery
SYSTEM:
Efficiency: 94% at 100% load, max. 95% at 60% load, 98% in ECO mode
Transfer time: 0 ms
Protections: Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure.
Max. number of parallel connections: 4
Communications: RS232 (standard), USB/RS485/dry contacts/SNMP / battery temperature compensation (optional)
Display: LCD + LED
OTHERS:
Operating temperature: 0^ C sim 40 deg * C
Storage temperature: -25^ C sim 55 deg * C (without battery)
Relative humidity: 0 sim 95% non-condensing)
Altitude: <= 1000m , derating 1% for each additional 100 m
IP rating: IP 20 / IP 21
Noise level at 1 m: 58 dB
Dimensions (WDH)(mm): 191 * 495 * 711(S) 191 * 495 * 350(H),191 * 495 * 515 (t )
Packaged dimensions. (WDH) (mm): 310 * 685 * 941(S) 318 * 617 * 475(H),285 * 593 * 618(H)
Net weight (kg): 64 (S), 18.5 (H),26.5 (H)
Gross weight (kg): 72 (S), 20 (H),28 (H)

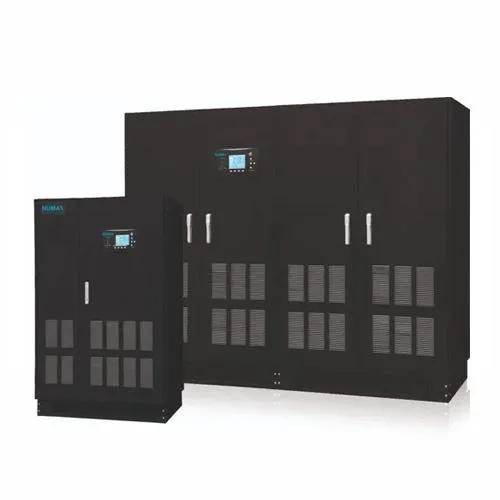

NUMAX ONLINE NX890 B 80KVA 600KVA UPS

MODEL: Nx8980 | Nx89100| Nx89120 | Nx89120 |Nx89200 | Nx89250 | Nx89300 | Nx89400 | Nx89500 | Nx89600
Capacity: 80 kVA | 100KVA | 120KVA | 160KVA | 200KVA | 250KVA | 300KVA | 400KVA | 500KVA | 600KVA |
INPUT:
Input wiring: Three-phase five-wire (30+N+PE)
Rated voltage: 380/400/415 Vac
Voltage range: 304346 V (derating 10%), 346~456 V (full load)
Rated Frequency: 50/60 Hz
Frequency range: (50/60) ±5 Hz
Power factor: 20,99
Total harmonic distortion (THDI): 3%
Delayed start of rectifier: 10 s (1300 settable)
Bypass voltage range: ± 20% (settable)
OUTPUT:
Output wiring: Three-phase five-wire (3Ø+N+PE)
Rated voltage: 380/400/415 Vac
Output Voltage regulation: ±1%
Output Frequency regulation: 50/60 Hz ± 0.1% Hz in battery mode
Waveform: Sinusoidal
Power factor: 0.9/0.8
Voltage distortion (THDV): 2% (linear load); 5% (non-linear load)
Crest Factor: 3:1
Overload: 105% 110% for 60 min, 110%~125% for 10 min
BATTERIES:
DC Voltage: Lead acid battery: 600 Vdc Lithium iron phosphate battery: 614.4 Vdc
Number of battery: Lead Acid battery: 12 V x 50 pcs (support 48~52 pcs) Lead Acid battery: 2 V x 300 pcs (support 288~312 pcs) Lithium iron phosphate battery: 3.2 V x 192 pcs (support 192/208 pcs)
Charging current: Charging rate (settable) x battery capacity (settable) x number of battery groups (settable)
SYSTEM:
Efficiency: Line mode 92% ECO mode 97%,Line mode 94% ECO mode 98%
Max. number of parallel connections: 6
Protections: Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure.
Communications: Standard configuration: RS232, RS485, dry contacts Optional configuration: SNMP card, temperature compensation, SMS alarms
Display: 5.7 inches LCD touch screen
OTHERS:
Operating temperature: 0^ C sim 40 deg * C
Storage temperature: -25^ C sim 55 deg * C (without batteries)
Relative humidity: 0% sim95\% non-condensing)
Altitude: 1000 m, Above 1000 m, derating 1% for each additional 100 m
IP rating: IP 20
Noise level at 1 m: 65 dB
Dimensions (WxDxH) (mm): 800 * 800 * 1800,800 * 860 * 860* 1700,,1210 * 860 * 1950,2380*860*1950
Dimensions (WxDxH) (mm): 900 * 900 * 2050,900 x 1000 x 1950,1300 * 1000 * 2200,1300 * 1000 * 2200 (*2)
Net weight (kg): 580,630,680,790 1135,1275,1355,2090,2300
Gross weight (kg): 630 680 730 840,1200,1340,1420,2200,2410

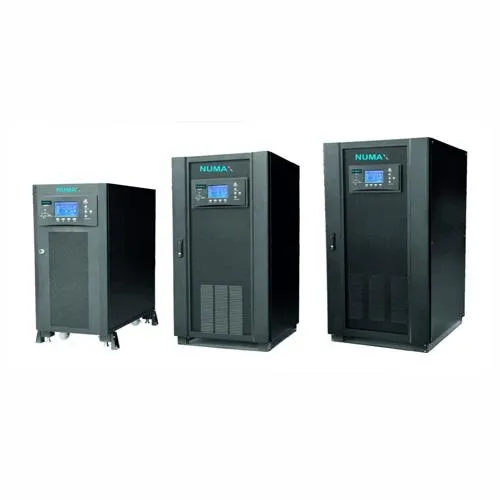

NUMAX NX890 A 10KVA 120KVA ONLINE UPS

MODEL: Nx8910 | Nx8915 | Nx8920 | Nx8930 | Nx8940 | Nx8960 | Nx8980 | Nx89100 | Nx89120
Capacity:10 kVA | 15 kVA | 20 kVA | 30 kVA | 40 KVA | 60 KVA | 80 kVA | 100 kVA | 120 kVA
INPUT:
Input wirting:Three-phase five-wire (30+N+PE)
Rated voltage: 380/400/415 Vac
Voltage range: 285-475 V
Frequency range: (50/60) ± 5 Hz
Power factor: 0.95 (with Filter)
Delayed start of rectifier:10 s (1-300 settable)
Bypass voltage range: ±20% (settable)
OUTPUT:
Output wiring: Three-phase five-wire (30+ N + PE)
Rated voltage: 380/400/415 Vac
Output Voltage regulation: ±1%
Output Frequency: 50/60 Hz ± 0.1% Hz in battery mode
Waveform: Sinusoidal
Power factor: 0.9/0.8
Voltage distortion (THDv): 1% (linear load); 5% (non-linear load)
Crest Factor: 3:1
Overload: 105%~110% for 60 min, 110% 125% for 10 min
BATTERIES:
DC Voltage: Lead acid battery: 360 Vdc Lithium iron phosphate battery: 384 Vdc
Number of battery: Lead Acid battery: 12 V x 30 pcs (support 28-32 pcs) Lead Acid battery: 2 V x 180 pcs (support 168-192 pcs) Lithium iron phosphate battery: 3.2 V x 120 pcs (support 112/120 pcs)
Charging current: Charging rate (settable) x battery capacity (settable) x number of battery groups (settable)
SYSTEM:
Efficiency: In Line mode: Max, 93%; ECO mode: 98%
Max. number of parallel connections: 6
Protections: Short-circuit, overload, over temperature, battery low voltage, over voltage, under voltage and fan failure
Communications: RS232/RS485/dry contacts (standard), SNMP (optional)
EMI: EN62040-2
EMS: IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4-(EFT) IEC61000-4-5 (surge)
OTHERS:
Operating temperature: 0^ C sim 40 deg * C
Storage temperature: -25^ C sim 55 deg * C (without batteries)
Relative humidty: 0%-95% (non-condensing)
Altitude: 1000 m (derating 1% for each additional 100m)
IP rating: IP 20
Noise level at 1 m: 65 dB
Dimensions(WxDxH) (mm): 400 * 800 * 1100 , 600 * 700 * 1500,700 * 800 * 700
Packaged dimensions (WxDxH) (mm): 490 * 920 * 1300,700 x 800 x 1650,800 * 900 * 1850
Net weight (kg): 158 165 175 210 260 460 590 630 690
Gross weight (kg): 200 207 217 252 302 480 620 660 720

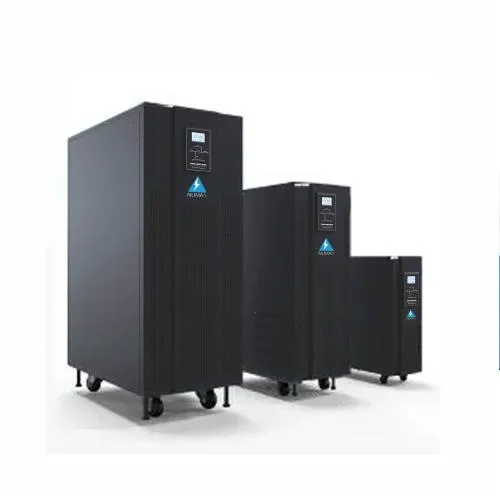

NUMAX ONLINE NX800 10KVA 30KVA UPS

MODEL: Nx810 (3:1) Nx815 (3:1) Nx820 (3:1),Nx830 (3:1)
Capacity: 10 kVA/8 kW 15 kVA/20 KVA/30 kVA/24 kW
INPUT:
Input wiring: Three-phase five-wire (30+N+PE)
Rated voltage: 380/400/415 Vac
Voltage range:285-475 Vac
Rated frequency: 50/60 Hz
Frequency range: 40-70 Hz
Bypass voltage range: ± 25% (settable)
OUTPUT:
Output wiring: Single-phase three-wire (10+ N + PE)
Rated voltage: 220/230/240 Vac
Output voltage regulation: ± 1%
Rated frequency: 50/60 Hz (settable)
Output frequency regulation: 50/60 Hz ± 0.1 Hz in battery mode
Waveform: Sinusoidal
Power factor: 0.8
Voltage distortion (THD): <2% (linear load): ?5% (non-linear load)
Crest factor: 3:1
Overload: 105%~125% for 10 min, 125%-150% for 1 min, 150%-200% for 200 ms, > 200% for 100 ms.
BATTERIES:
DC voltage: 192 Vdc
Number of batteries: 12 V x 16 pcs
Charging voltage: 216 Vdc
EOD: 168 Vdc
Charging current: Default 8 A (2A/4A/6A/8A/10A/12 A selectable)
SYSTEM:
Max. number of parallel connections.: 2
Protections: Short-circuit, overload, overvoltage, undervoltage, low battery, overtemperature
Communications: RS232/USB (standard); RS485/SNMP/dry contacts (optional)
OTHERS:
Operating temperature: 0 sim 40 deg * C
Storage temperature: -25?~55? (without batteries)
Relative humidity: 0~95% (non-condensing)
Altitude: <1000 m (derating 1% for each additional 100 m)
IP rating: IP 20
Noise level at 1 m.: < 60 dB
Dimensions (WxDxH) (mm): 310 * 600 * 880 400 * 815 * 1100
Packaged dimensions 430 * 710 * 1080 525 * 925 * 1305 (WDH) mm): 430 * 710 * 1080 525 * 925 * 1305
Net weight (kg): 430 * 710 * 1080 525 * 925 * 1305
Gross weight (kg): 153 225 255 295

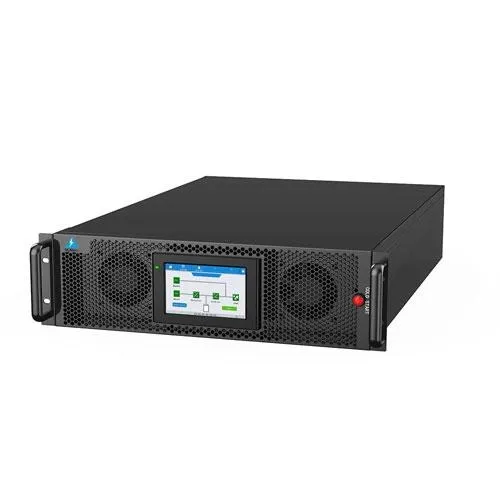

NUMAX ONLINE 990 G5 10KVA 60KVA UPS

Brand: Numax
MODEL: Nx9910 Nx9915 Nx9920 Nx9930
Capacity: 10kVA/10kW 15kVA/15kW 20kVA/20kW 30kVA/30kW
INPUT:
Rated voltage: 380 / 400 / 415 Vac (3 + N + PE)
Voltage range: 304~478Vac, full load 228 V ~ 304 Vac, load decrease linearly according to the min phase voltage
Rated frequency: 50 / 60 Hz (auto-sensing)
Frequency range: 40 ~ 70 Hz
Power factor: > 0.99
Bypass voltage range: Selectable, default -20%?+15% Up limited: +10%, +15%, +20%, +25%; Down limited: -10%, -15%, -20%, -30%, -40%
Bypass frequency range: Selectable, ±1Hz, ±3Hz, ±5Hz
Total harmonic distortion (THDi): <3% (full linear load)
Bypass overload: 125%: Long term operation; 125%~130%: 10min; 130%~150%: 1min; 150%~400%: 1s; >400%, less than 200ms
OUTPUT:
Rated voltage: 380 / 400 / 415 Vac (3 + N + PE)
Voltage regulation: ±1% (full linear load)
Frequency: Synchronized with utility in mains mode, 50 / 60Hz ±0.1% in battery mode
Waveform: Sinusoidal
Power factor: 1
Total harmonic distortion (THDv): <1% (full linear load); <3% (full non-linear load according to IEC/EN62040-3)
Crest factor: 3:1
Overload: <110%, 60min; 110%~125%,10min; 125%~150%,1min; >150%, 200ms
BATTERIES:
DC voltage: ±240VDC(selectable, 32 - 40pcs)
Charging current: 10 A max 15A 20A
Charger voltage precision: 1%
Recharge time: Long time model: depend on the capacity of battery
SYSTEM:
Efficiency: 95% Max 96% Max
Transfer time: 0 ms
Max. number of parallel connections: 4
Protections: Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure
Communications: Sandard: RS232, USB, RS485, EPO, Dry contacts, Parallel port Optional: SNMP card, WI-FI card, GPRS card, SMS alarms
Display: LED + 5 inches LCD touch screen
OTHERS:
Operating temperature: 0 ~ 40
Storage temperature: -40~70
Relative humidity: 0 95% (non-condensing)
Altitude: <1000m, load derated 1% per 100m from 1000 2000m
IP rating: IP 20
Noise level at 1m: <60dB <65dB
Dimensions (W × D × H) (mm): 440*660*130 440*750*130 440*730*130 440*800*130
Packaged dimensions (W × D × H) (mm): 532*800*204 532*890*204 535*865*226 535*930*226
Net weight (kg): 22 24 29 33 39
Gross weight (kg): 24 26 31 36 42

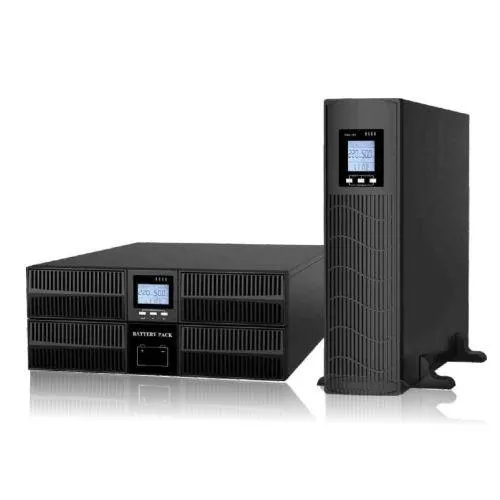

NUMAX ONLINE NX900RT G4 10 20KVA UPS

Brand: Numax
MODEL: NX9010RT (3:1) NX9015RT (3:1) NX9020RT (3:1)
Capacity: 10 kVA / 10 kW 15 kVA / 15 kW 20 kVA / 20 kW
INPUT:
Input wiring: Three-phase five-wire (3 + N + PE)
Rated voltage: 380 / 400 / 415 Vac
Voltage range: 190 ~ 304 Vac (linear derating between 50% and 100% load); 304 ~ 478 Vac (no derating)
Rated frequency: 50/60Hz(auto-sensing)
Frequency range: 40 ~ 70 Hz
Power factor: 0.99
Bypass voltage range: - 40% ~ +15% (settable)
Total harmonic distortion (THDI): 5%
OUTPUT:
Output wiring: Single-phase (L-N)
Rated voltage: 208 (PF=0.9) / 220 / 230 / 240 Vac
Voltage regulation: ±1%
Frequency: Synchronized to bypass in mains mode; 50 / 60 Hz ± 0.1% Hz in battery mode
Waveform: Sinusoidal
Power factor: 1
Total harmonic distortion (THDV): 1% (linear load); 3% (non-linear load)
Crest factor: 3:1
Overload: 105% ~ 110% for 10 min, 110% ~ 125% for 1 min,125% ~ 150% for 30 s
BATTERIES:
DC voltage: 192 Vdc (192 ~ 240 Vdc settable)
Number of battery: 16 pcs (16 ~ 20 settable)
Inbuilt battery (standard model): 12 V / 9 Ah × 16
Charging current: Standard model: 1 A; Long time model: 5 A (default),1 ~ 5 A settable; 10 A (optional)
Recharge time: Standard model: 90% capacity restored in 8 hours; Long time model: depend on the capacity of battery
SYSTEM:
Efficiency: 94% at 100% load, max. 95% at 60% load, 98% in ECO mode
Transfer time: 0 ms
Protections: Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure
Max. number of parallel connections: 4
Communications: RS232 (standard), USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional)
Display: LCD + LED
OTHERS:
Operating temperature: 0 ~ 40
Storage temperature: -25 ~ 55 (without battery)
Relative humidity: 0 ~ 95% (non-condensing)
Altitude: 1000 m, derating 1% for each additional 100 m
IP rating: IP 20
Noise level at 1 m: 58 dB
Dimensions (W × D × H) (mm): 440 × 650 × 88 (H) 440 × 660 × 176 (S) 440 ×780 × 132
Packaged dimensions (W × D × H) (mm): 514 x 696 x 168 (H) 554 x 792 x 418 (S) 554 x 792 x 400
Net weight (kg): 17 (H), 67 (S) 25.5
Gross weight (kg): 19 (H), 77 (S) 28

NUMAX NX900RT G4 5KVA 10KVA ONLINE UPS

Brand: Numax
MODEL: NX905RT / NX906RT /NX910RT
Capacity: 5kVA / 5KW / 6kVA / 6KW / 10 kVA / 10 KW
INPUT:
Input wiring: Single-phase three-wire (1 + N + PE)
Rated voltage: 208 / 220 / 230 / 240 Vac
Voltage range: 110 ~ 176 Vac (linear derating between 50% and 100% load); 176 ~ 288 Vac (no derating)
Rated frequency: 50 / 60 Hz (auto-sensing)
Frequency range: 40 ~ 70 Hz
Power factor: 0.99
Bypass voltage range: - 40% ~ +15% (settable
Total harmonic distortion (THDI): 5%
OUTPUT:
Output wiring: Single-phase (L-N)
Rated voltage: 08 (PF=0.9) / 220 / 230 / 240 Vac
Voltage regulation: ± 1%
Frequency: Synchronized to bypass in mains mode; 50 / 60 Hz ± 0.1% Hz in battery mode
Waveform: Sinusoidal
Power factor: 1
Total harmonic distortion (THDV): ? 1% (linear load); 4% (non-linear load)
Crest factor: 3:1
Overload: 105% ~ 110% for 10 min, 110% ~ 125% for 1 min,126% ~ 150% for 30 s
BATTERIES:
DC voltage: 192 Vdc (192 ~ 240 Vdc settable)
Number of battery: 16 pcs (16 ~ 20 settable)
Inbuilt battery (standard model): 12 V / 7 Ah × 16 12 V / 9 Ah × 16
Charging current: Standard model: 1 A; Long time model: 5 A (default),1 ~ 5 A settable; 12 A (optional)
Recharge time: Standard model: 90% capacity restored in 8 hours; Long time model: depend on the capacity of battery
SYSTEM:
Efficiency: 94% at 100% load, max. 94.5% at 60% load, 98% in ECO mode
Transfer time: 0 ms
Protections: Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure
Max. number of parallel connections: 4
Communications: RS232 (standard), USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional)
Display: LCD + LED
OTHERS:
Operating temperature: Operating temperature 0 ~ 40
Storage temperature: -25 ~ 55 (without battery)
Relative humidity: 0 ~ 95% (non-condensing)
Altitude: 1000 m, derating 1% for each additional 100 m
IP rating: IP 20
Noise level at 1 m: 55 dB 58 dB
Dimensions (W × D × H) (mm): 440 × 580 × 88 (H), 440 × 660 × 176(S)
Packaged dimensions (W × D × H) (mm): 514 x 696 x 168 (H), 554 x 792 x 418 (S)
Net weight (kg): 12 (H), 58 (S) 14 (H), 63 (S)
Gross weight (kg): 14 (H), 68 (S) 16 (H), 73 (S)

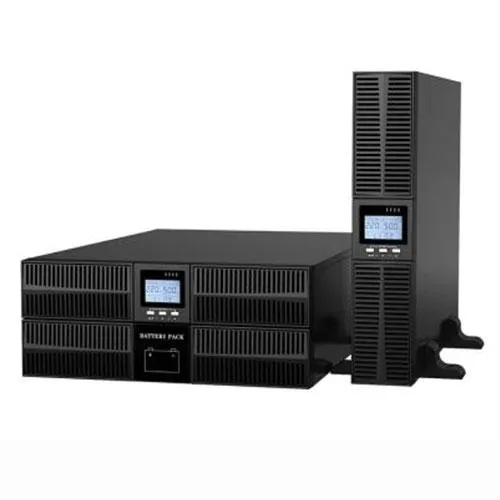

NUMAX DOU SERIES RT G4 1KVA 3KVA UPS

Brand: Numax
MODEL: DOU1KRT DOU2KRT DOU3KR
Capacity: 1 kVA / 1 kW 2 kVA / 2 kW 3 kVA / 3kW
INPUT:
Rated voltage: 208 / 220 / 230 / 240 Vac
Voltage range: 110 ~ 176 Vac (linear derating between 50% and 100% load ); 176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%)
Frequency range: 50/60 Hz ± 5 Hz (auto-sensing)
Power factor: 0.99
Bypass voltage range: - 40% ~ +20% (settable)
THDi: 5%
OUTPUT:
Voltage: 208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage regulation: ± 1%
Frequency: 45~55Hz or 55~65Hz(synchronized range); 50/60Hz ±0.1Hz?battery mode)
Waveform: Sinusoidal
THDv: 2% (linear load), 5% (non-linear load)
Crest factor: 3:1
Overload: 105% ~ 110% for 30 min, 110% ~ 130% for 10 min, 130% ~ 150% for 30 s, > 150% for 500 ms
BATTERIES:
Battery type: Sealed lead acid maintenance free battery
DC voltage: 24V(S) 36V(S) 24V(H) 36V(H) 48V(S) 72V(S) 48V(H) 72V(H) 72V(S) 96V(S) 72V(H) 96V(H)
Inbuilt battery: 2×9Ah 3×7Ah / / 4×9Ah 6×7Ah / / 6×9Ah 8×7Ah
Charging current (max.): Standard model: 1 A Long time model: 12 A (1 ~12A settable)
Recharge time: Standard model: 90% capacity restored in 3 hours; Long time model: depend on the capacity of battery
SYSTEM CONTROL AND COMMUNICATIONS:
Efficiency:
93.5% (Mains mode) 94.5% (Mains mode) 94.4% (Mains mode)
89.2% (Battery mode) 91% (Battery mode) 92.3% (Battery mode)
97.5% (ECO mode) 98.5% (ECO mode) 98.3% (ECO mode)
Transfer time: Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical)
Protections: Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
Communication port: RS232 (standard), USB / RS485 / SNMP/ dry contacts (optional)
Display: LCD + LED

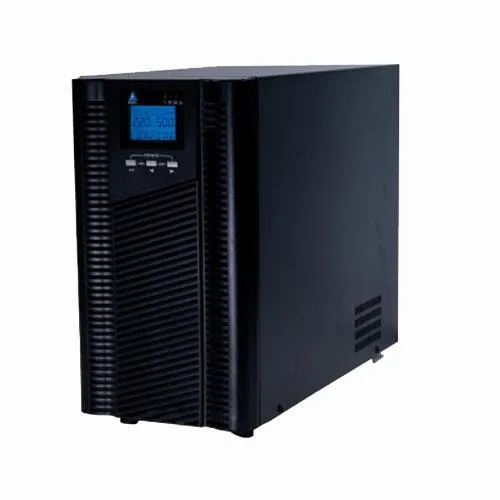

NUMAX DOU SERIES 1KVA 10KVA UPS

Brand: Numax
Model: DOU1K DOU2K DOU3K DOU5K DOU6K DOU10K
Capacity: 1kVA/kW 2kVA/kW 3kVW/kW 5kVA/kW 6kVA/kW 10KVA/KW
Nominal Voltage: 220/230/240 VAC (1ph+N+ PE, 3wire)
Operating Voltage range: 110V-300V AC @ 50% Load/140V-300VAC @ Full Load
Operating Frequency range: 50/60 Hz ± 10% (Auto Sensing)
Power factor: >0.99
OUTPUT:
Output Voltage/Power factor: 220/230/240 Vac/ ± 1%/1 Unity Pf
Output frequency: Auto sensing 50/60 Hz ±1~10% Sync Mode (Configurable), 50/60 Hz ± 0.1 Hz Battery mode
linear load): ? 5% (non-linear load): 2% (linear load): 5% (non-linear load)
Crest factor: 3:1
Efficiency: Up to 94% Dual Conversion Mode, 99% ECO mode
Waveform: Sinusoidal
BATTERY:
DC voltage: 36V 48V 72V 96V 72V Sinusoidal 96V 120-240V Configurable
Charger: 6.5-13A Configurable
Typical Recharge Time: 8-12 Hours (90% of full capacity)
SYSTEM FEATURES:
LCD Indications: Input Voltage/Frequency, Output Voltage/Frequency, Battery Voltage, Load Watt/VA and %, Inverter Temperature, Operation Mode such as "On Line", "ON Batt" or On "Bypass", Fault Codes, Battery & Load Bar graph, Input Current, Output Current, Battery current
LED Indications: Normal Operation, Bypass, Abnormal, Fault and Battery Mode
Alarms/Protection: Batt. Low, DC High, Inverter Under/Over Voltage, UPS over Load, Short Circuit, Fan Failure and UPS fault, Transient surge, Input & Output Fuse
Overload Capability: 125% for 10 min, 125-150% for 1 min, 150% for 200ms
Transfer Time: AC to Battery: Oms, Inverter to Bypass: 4ms (Typical)
ENVIRONMENTAL:
Temperature: Operating: 0-45°C, Storage:-10°C-55°C
Humidity/Altitude: 0-95% RH (non-condensing)/<1500M
Noise/Cooling: <55 Db/Forced air Cooling
PHYSICAL:
Dimensions (W x D x H) (mm): ( 144x400x215 A Net weight (kg) STANDARDS Quality Safety/ IP Rating 192x469x399 6 10.7 10.8 11.2 10.8 11.2 EMC/Performance COMMUNICATION INTERFACE Standard Optional ISO 9001:2015, ISO 140001:2015, BIS IEC/EN62040-1/IP20/Ip21 IEC/EN62040-2; IEC/EN62040-3, Complying to CE RS-232 SNMP/ModBus/Dry Contact/USB/RS-485 220x481x438
Net weight (kg) STANDARDS: 6 10.7 10.8 11.2 1017 18 20.8 11.2
STANDARDS:
Quality: ISO 9001:2015, ISO 140001:2015, BIS
Safety/ IP Rating: IEC/EN62040-1/IP20/Ip21
EMC/Performance: IEC/EN62040-2; IEC/EN62040-3, Complying to CE
COMMUNICATION INTERFACE:
Standard: RS-232
Optional: SNMP/ModBus / Dry Contact/USB/RS-485
Monitoring Software: iStars v2.0 / NetAgent utility v5.8/UPSilon 2000

Corporate Sales Team:
+91-9885129292

Corporate Service Team:
+91-9962186219

Latest numax ups Models Hyderabad, Telangana

Pricelist of Best numax ups Models

NUMAX ONLINE NX990 G5 10KVA 60KVA UPS

NUMAX ONLINE NX900 G5 10KVA 20KVA UPS

NUMAX ONLINE NX890 B 80KVA 600KVA UPS

NUMAX NX890 A 10KVA 120KVA ONLINE UPS

NUMAX ONLINE NX800 10KVA 30KVA UPS

NUMAX ONLINE 990 G5 10KVA 60KVA UPS

NUMAX ONLINE NX900RT G4 10 20KVA UPS

NUMAX NX900RT G4 5KVA 10KVA ONLINE UPS

NUMAX DOU SERIES RT G4 1KVA 3KVA UPS

NUMAX DOU SERIES 1KVA 10KVA UPS

Your Go-To Source for High-Performance IT Equipment

Most Searchable Keywords
