Pricelist of Best seagate storage Models

Brand: Seagate

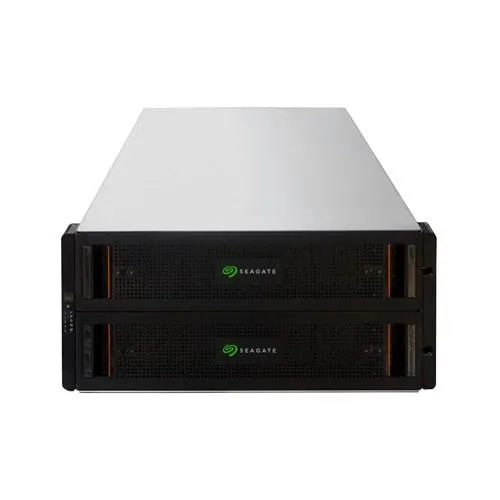

Product: Seagate Exos AP 5U84 Storage
Form factor: 5U
Controllers: One or two AP-BV-1 Controllers, redundancy optional
CPU: AMD SP3 7292P EPYC CPU (12,16 Core)
Memory: 4 x DDR4 - 3,200 MHz DIMM slots - 32,64,128 GB DIMM support
Internal Boot Drive: Single or Dual M.2 NVMe SSD for Redundant Boot/Logs
Onboard I/O: On-board NVidia CX4 Dual Port 10/25GbE I/O, / 2x 1GbE onboard connections (Management/Data)
PCIe Expansion: One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot One OCP v2.0 Gen 4x8 host interface slot
Storage Infrastructure: Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports
Inter-Controller Link: PCI Express Gen 3 x16 NTB Inter-controller Interface
Redundant Path: Yes (SAS only)
Host/Expansion I/O Ports: Two ×4 mini-SAS HD Expansion I/O connectors
Management/Status Reporting: Redfish API + IPMI & SES
Device Support: 12 Gb/s SAS drives
Max Drives Per Enclsoure: 84 × 3.5-in LFF drive slots
Hot-Swappable Components: HDDs and SSDs (in chassis data slots), power supply units (PSU), cooling modules, side-plane expanders, and controllers
Input Power Requirements: 200VAC-240VAC, 50Hz/60Hz
Max Power Output per PSU: 2200W
Power Supply: Power Efficiency 230VAC50/Hz, Power Factor Conditions (PFC)
Dimension (Height x Width x Depth): 220 mm x 483 mm x 933 mm
Weight: 135 Kg

Brand: Seagate

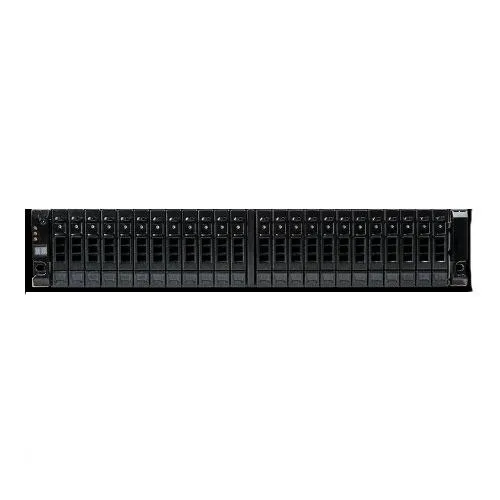

Product: Seagate Exos AP 2U24 Storage
Form factor: 2U
Controllers: One or two AP-BV-1 Controllers, redundancy optional
CPU: AMD SP3 7292P EPYC CPU (12,16 Core)
Memory: 4 x DDR4 - 3,200 MHz DIMM slots - 32,64,128 GB DIMM support
Internal Boot Drive: Single or Dual M.2 NVMe SSD for Redundant Boot/Logs
Onboard I/O: On-board NVidia CX4 Dual Port 10/25GbE I/O, / 2x 1GbE onboard connections (Management/Data)
PCIe Expansion: One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot One OCP v2.0 Gen 4x8 host interface slot
Storage Infrastructure: Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports
Inter-Controller Link: PCI Express Gen 3 x16 NTB Inter-controller Interface
Redundant Path: Yes (SAS only)
Management/Status Reporting: Redfish API + IPMI & SES
Device Support: 12 Gb/s SAS drives and 6 Gb/s SATA drives
Max Drives Per Enclsoure: up to 24 × 2.5 in SFF drives
Hot-Swappable Components: SSDs (in chassis data slots), power supply and cooling modules units (PCU), controllers
Input Power Requirements: 100V-240V AC 60 Hz/50 Hz
Max Power Output per PSU: 764W
Power Supply: Power Efficiency 115 VAC/60 Hz | 230 VAC/50 Hz, Power Factor Conditions (PFC)
Dimension (Height x Width x Depth): 87.9 mm x 443 mm x 630 mm
Weight: 30 Kg

Brand: Seagate

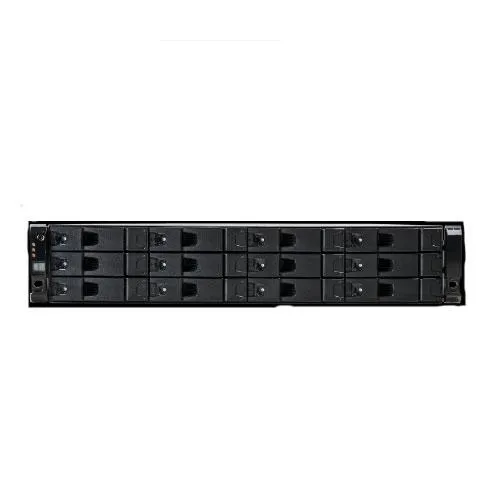

Model No: Seagate Exos AP 2U12 Storage
Form factor: 2U
Controllers: One or two AP-BV-1 Controllers, redundancy optional
CPU: AMD SP3 7292P EPYC CPU (12,16 Core)
Memory: 4 x DDR4 - 3,200 MHz DIMM slots - 32,64,128 GB DIMM support
Internal Boot Drive: Single or Dual M.2 NVMe SSD for Redundant Boot/Logs
Onboard I/O: On-board NVidia CX4 Dual Port 10/25GbE I/O, / 2x 1GbE onboard connections (Management/Data)
PCIe Expansion: One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot One OCP v2.0 Gen 4x8 host interface slot
Storage Infrastructure: Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports
Inter-Controller Link: PCI Express Gen 3 x16 NTB Inter-controller Interface
Redundant Path: Yes (SAS only)
Management/Status Reporting: Redfish API + IPMI & SES
Device Support: 12 Gb/s SAS drives and 6 Gb/s SATA drives
Max Drives Per Enclsoure: up to 12 × 3.5-in LFF or 2.5 in SFF drives
Hot-Swappable Components: HDDs and SSDs (in chassis data slots), power supply and cooling modules units (PCU), and controllers
Input Power Requirements: 100V-240V AC 60 Hz/50 Hz
Max Power Output per PSU: 764W
Power Supply: Power Efficiency 115 VAC/60 Hz | 230 VAC/50 Hz, Power Factor Conditions (PFC)
Dimension (Height x Width x Depth): 87.9 mm x 443 mm x 630 mm
Weight: 32 Kg

Brand: Seagate
Product: Seagate Exos E 2U24 Storage
Max Capacity Per Enclosure: 24 drives
Controllers: Exos E IOM. 14.4 GB/s single I/O and 28.8 GB/s dual I/O.
Host I/O Interface (defined by controller): Three x4 12 Gb/s mini-SAS HD connectors (SFF-8644) per I/O module
Management Interface: 2 X 1GbE
Exos X EBOD Expansion: 10 Enclosures Max (Controller Enclosure and up to 9 Expansion Enclosures) 240 Drives Max
Max TB Per Chassis: 368 TB Using Qty 24, 15.36 TB 2.5” SAS SSD Drives
SAS Controllers (Exos E IOM): Exos E IOM. 14.4 GB/s single I/O and 28.8 GB/s dual I/O.

Brand: Seagate
Product: Seagate Exos E 2U12 Storage
Max Capacity Per Enclosure: 12 drives
Controllers: Exos E IOM. 14.4 GB/s single I/O and 28.8 GB/s dual I/O.
Host I/O Interface (defined by controller): Three x4 12 Gb/s mini-SAS HD connectors (SFF-8644) per I/O module
Management Interface: 2 X 1GbE
Exos X EBOD Expansion: 10 Enclosures Max (Controller Enclosure and up to 9 Expansion Enclosures) 120 Drives Max
Max TB Per Chassis: 264 TB Using Qty 12, 22 TB 3.5” SAS Drives
SAS Controllers (Exos E IOM): Exos E IOM. 14.4 GB/s single I/O and 28.8 GB/s dual I/O.

Brand: Seagate
Product: Seagate Exos X 5U84 Storage
Form factor: 5U rack mount
Max Capacity Per Enclosure: 84 drives
Expansion: 4 Enclosures Max (Controller Enclosure and up to 3 Expansion Enclosures) 336 Drives Max
Host Port Options: 4 per controller 8 per system SFP+/SFP28 or mini-SAS HD
Host Interface Options: 12 Gb SAS; 32/16 Gb FC; 25/10 GbE iSCSI 10GBASE-T Auto to 1Gb
Data Protection Options: Improved ADAPT, NRAID RAID 0, 1, 5, 6, 10
High Availability Features: ADR drive support, dual hot-swap controllers, drives, fans, power supplies, dual power cords, hot standby spare, automatic failover, multi-path support
Advanced Features: Virtual pools, Thin provisioning, SSD read cache, Encryption, Auto-Tiering, Snapshots, Asynchronous replication

Brand: Seagate
Product: Seagate Exos X 2U24 Storage
Form factor: 2U rack mount
Max Capacity Per Enclosure: 24 drives
Expansion: 10 Enclosures Max (Controller Enclosure and up to 9 Expansion Enclosures) 240 Drives Max
Host Port Options: 4 per controller 8 per system SFP+/SFP28 or mini-SAS HD
Host Interface Options: 12 Gb SAS; 32/16 Gb FC; 25/10 GbE iSCSI 10GBASE-T Auto to 1Gb
Data Protection Options: Improved ADAPT, NRAID RAID 0, 1, 5, 6, 10
High Availability Features: Dual hot-swap controllers, drives, fans, power supplies, dual power cords, hot standby spare, automatic failover, multi-path support
Advanced Features: Virtual pools, Thin provisioning, SSD read cache, Encryption, Auto-Tiering, Snapshots, Asynchronous replication

Brand: Seagate
Product: Seagate Exos X 2U12 Storage
Form factor: 2U rack mount
Max Capacity Per Enclosure: 12 drives
Expansion: 10 Enclosures Max (Controller Enclosure and up to 9 Expansion Enclosures) 120 Drives Max
Host Port Options: 4 per controller 8 per system SFP+/SFP28 or mini-SAS HD
Host Interface Options: 12 Gb SAS; 32/16 Gb FC; 25/10 GbE iSCSI 10GBASE-T Auto to 1Gb
Data Protection Options: Improved ADAPT, NRAID RAID 0, 1, 5, 6, 10
High Availability Features: ADR drive support, dual hot-swap controllers, drives, fans, power supplies, dual power cords, hot standby spare, automatic failover, multi-path support
Advanced Features: Virtual pools, Thin provisioning, SSD read cache, Encryption, Auto-Tiering, Snapshots, Asynchronous replication
