Pricelist of Best plotter Models

GRAPHTEC CE7000 160 CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE7000 160 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 1524?? × 50?
Cutting area of guaranteed accuracy (*1): 1504?? × 2m, (1504?? × 5?)
Mountable media width: Min-50mm, Max-1626mm(64inch)
Mountable roll media mass: 20 kg
Number of push rollers: 4 rollers(Max. 5 (option))
Max. cutting speed at all direction: 1000mm/s at 45° direction
Acceleration: 13.9m/s2 at 45° direction
Cutting force: Max. 4.41N (450gf)
Minimum character size: Approx. 5 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Programmable resolution: GP-GL?0.1/0.05/0.025/0.01???HP-GL™ (*2)?0.025??
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Mountable number of tools: 1 tool
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Up to 0.25mm thickness, Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect) (*2)
Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Power source: 100V to 240V AC, 50 / 60 Hz
Power consumption: Up to 100W
Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment: 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions: 1916×811×1215 mm (1916×1148×1215 mm)(*3)

GRAPHTEC CE7000 130 CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE7000 130 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 1270?? × 50?
Cutting area of guaranteed accuracy (*1): 1250?? × 2m, (1250?? × 5?)
Mountable media width: Min-50mm, Max-1372mm(54inch)
Mountable roll media mass: 17 kg
Number of push rollers: 4 rollers(Max. 5 (option))
Max. cutting speed at all direction: 1000mm/s at 45° direction
Acceleration: 13.9m/s2 at 45° direction
Cutting force: Max. 4.41N (450gf)
Minimum character size: Approx. 5 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Programmable resolution: GP-GL?0.1/0.05/0.025/0.01???HP-GL™ (*2)?0.025??
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Mountable number of tools: 1 tool
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Up to 0.25mm thickness, Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect) (*2)
Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Power source: 100V to 240V AC, 50 / 60 Hz
Power consumption: Up to 100W
Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment: 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions: 1704×811×1215 mm (1704×1148×1215 mm)(*3)

GRAPHTEC CE7000 60 CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE7000 60 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 603?? × 50?
Cutting area of guaranteed accuracy (*1): 583?? × 2m, (583?? × 5?)
Mountable media width: Min-50mm, Max-712mm(28inch)
Mountable roll media mass: 9 kg
Number of push rollers: 2 rollers
Max. cutting speed at all direction: 900mm/s at 45° direction
Acceleration: 21.2?/s2 at 45° direction
Cutting force: Max. 4.41N (450gf)
Minimum character size: Approx. 5 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Programmable resolution: GP-GL?0.1/0.05/0.025/0.01???HP-GL™ (*2)?0.025??
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Mountable number of tools: 1 tool
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Up to 0.25mm thickness, Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect) (*2)
Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Power source: 100V to 240V AC, 50 / 60 Hz
Power consumption: Up to 100W
Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment: 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions: 1005×582×1092 mm (1005×936×1092 mm)(*3)

GRAPHTEC CE7000 40 CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE7000 40 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 375?? × 50?
Cutting area of guaranteed accuracy (*1): 355?? × 2m
Mountable media width: Min-50mm, Max-484??(19inch)
Mountable roll media mass: 5 kg
Number of push rollers: 2 rollers
Max. cutting speed at all direction: 600mm/s at all direction
Acceleration: 21.2?/s2 at 45° direction
Cutting force: Max. 4.41N (450gf)
Minimum character size: Approx. 5 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Programmable resolution: GP-GL?0.1/0.05/0.025/0.01???HP-GL™ (*2)?0.025??
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Mountable number of tools: 1 tool
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Up to 0.25mm thickness, Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect) (*2)
Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Power source: 100V to 240V AC, 50 / 60 Hz
Power consumption: Up to 100W
Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment: 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions: 772?292?313 mm

GRAPHTEC CE7000 130AP CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE7000 130AP Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 1220 mm × 50 m
Cutting area of guaranteed accuracy (*1): 1200 mm × 3 m
Mountable media width (*2): Min. 594 mm, Max. 1321 mm
Mountable roll media inside-diameter: 3 inches
Mountable roll media outside-diameter: Max. 200 mm
Mountable roll media mass: Max. 20 kg
Number of push rollers: 5 rollers
Cutting speed: Max. 600 mm/s at all direction
Cutting force: Max. 4.41N (450gf )
Mechanical resolution: 0.005 mm
Programmable resolution: GP-GL?0.1 / 0.05 / 0.025 / 0.01 mm, HP-GLTM (*3)?0.025mm
Repeatability: Max. 0.1 mm in plot up to 2 m (*1)(*4)
Mountable number of tools: 2 tool
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Interface: USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Command sets: GP-GL / HP-GLTM (*3) (Set by command)
Display: Graphic type LCD with back-light (240dots x 128dots), supports 10 languages
Power source: 100V to 120V AC, 200V to 240V AC, 50/60 Hz (Auto switch)
Power consumption: 100W
Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment: 18 to 28 ºC, 40 to 65 % R.H. (non-condensing)
External dimensions (W x D x H): Approx. 1704 × 1148 × 1215 mm (Including Stand and Basket)
Weight: Approx. 60kg (Including Stand and Basket)
Compatible OS (*5): Windows 11

GRAPHTEC CE8000 130AP CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE8000 130AP Cutting Plotter
Cutter type: Roll feed
Drive system: Digital servo
Max. cutting area (W × L) (*1): 1220mm × 50m
Cutting area of guaranteed accuracy (*1): 1200mm × 3m
Mountable media width (*2): Min. 594mm, Max. 1321mm
Mountable roll media inside-diameter: 3 inches
Mountable roll media outside-diameter: Max. 200mm
Number of push rollers: 4
Max. cutting speed: 600mm/s (All directions)
Cutting force: Tool holder: 4.41N (450gf), Pen holder: 2.94N (300gf)
Min. font size: 5mm (0.197in.) alphanumeric Helvetica med. Font (*1)
Mechanical step size: 0.005mm
Programmable step size: GP-GL: 0.1 / 0.05 / 0.025 / 0.01mm, HP-GLTM (*3): 0.025mm
Repeatability (*1): 0.1mm or less / in unit of 2m (Designated Film and Cut Conditions)
Installable number of tools: 2
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Interface: USB2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100BASE-TX (Available on Wired LAN model only.) (*4)
Buffer memory: 2MB
Command sets: GP-GL / HP-GLTM (*3) (Control panel switching)
Display: Touch panel (240-dot × 128-dot)
Power source: AC100V-120V / AC200V-240V, 50/60Hz (Auto switch)
Power consumption: 140W or less
Operating environment: 10 – 30?, 35 – 75% R.H. (non-condensing)
Accuracy guaranteed environment: 18 – 28?, 40 – 65% R.H. (non-condensing)
External dimensions (*5): 1644 × 1219 × 1076mm
Weight (*5) (Approx.): 45.5kg
Compatible OS (*6): Windows 11

GRAPHTEC CE8000 130 CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE8000 130 Cutting Plotter
Cutter type: Grit rolling type
Drive system: Digital servo drive
Max. cutting area (W x L) (*1): 1270mm × 50m
Accuracy guaranteed cutting area (W x L)when using basket: 1250mm × 2m(1250mm × 5m)
Mountable media width: Min-85mm, Max-1372mm (54inch)
Mountable roll media weight: 17kg
Number of push rollers: 3
Max. cutting speed: 100cm/s (45°direction)
Max. acceleration: 14.1m/s2 (45°direction)
Cutting force: 4.41N (450gf)
Min. Character size: Alphanumeric: approx. 5mm (varies depending on font and media)
Mechanical step size: 0.005mm
Programmable step size: GP-GL: 0.1 / 0.05 / 0.025 / 0.01mm, HP-GLTM (*2): 0.025mm
Repeatability: Max. 0.1mm in plot up to 2m (Excluding media expansion and contraction)
Installable number of tools: 1
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Max. 0.25mm thickness Marking film (PVC / fluorescent / reflective), *High intensity reflective sheet is not supported
Interface: USB2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100BASE-TX (*3)
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect)
LCD display: Touch panel (240-dot × 128-dot)
Power source: AC100-120V, AC200-240V, 50/60Hz (auto-switchover)
Power consumption: Max. 140W
Operating environment: 10 – 35? , 35 – 75? R.H. (non-condensing)
Accuracy guaranteed environment: 16 – 32? , 35 – 70? R.H. (non-condensing)
External dimensions(W x D x H)including stand: 1644 × 811 × 1076mm

GRAPHTEC CE8000 60 CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE8000 60 Cutting Plotter
Cutter type: Grit rolling type
Drive system: Digital servo drive
Max. cutting area (W x L) (*1): 603mm × 50m
Accuracy guaranteed cutting area (W x L)when using basket: 583mm × 2m(583mm × 5m)
Mountable media width: Min-50mm, Max-712mm (28inch)
Mountable roll media weight: 9kg
Number of push rollers: 2
Max. cutting speed: 90cm/s (45°direction)
Max. acceleration: 21.2m/s2 (45°direction)
Cutting force: 4.41N (450gf)
Min. Character size: Alphanumeric: approx. 5mm (varies depending on font and media)
Mechanical step size: 0.005mm
Programmable step size: GP-GL: 0.1 / 0.05 / 0.025 / 0.01mm, HP-GLTM (*2): 0.025mm
Repeatability: Max. 0.1mm in plot up to 2m (Excluding media expansion and contraction)
Installable number of tools: 1
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Max. 0.25mm thickness Marking film (PVC / fluorescent / reflective), *High intensity reflective sheet is not supported
Interface: USB2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100BASE-TX (*3)
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect)
LCD display: Touch panel (240-dot × 128-dot)
Power source: AC100-120V, AC200-240V, 50/60Hz (auto-switchover)
Power consumption: Max. 140W
Operating environment: 10 – 35? , 35 – 75? R.H. (non-condensing)
Accuracy guaranteed environment: 16 – 32? , 35 – 70? R.H. (non-condensing)
External dimensions(W x D x H)including stand: 903 × 582 × 1076mm

GRAPHTEC CE8000 40 CUTTING PLOTTER

Brand: Graphtec
Model No: Graphtec CE8000 40 Cutting Plotter
Cutter type: Grit rolling type
Drive system: Digital servo drive
Max. cutting area (W x L) (*1): 375mm × 50?
Accuracy guaranteed cutting area (W x L)when using basket: 355mm × 2m
Mountable media width: Min-50mm, Max-484mm (19inch)
Mountable roll media weight: 5kg
Number of push rollers: 2
Max. cutting speed: 90cm/s (45°direction)
Max. acceleration: 21.2m/s2 (45°direction)
Cutting force: 4.41N (450gf)
Min. Character size: Alphanumeric: approx. 5mm (varies depending on font and media)
Mechanical step size: 0.005mm
Programmable step size: GP-GL: 0.1 / 0.05 / 0.025 / 0.01mm, HP-GLTM (*2): 0.025mm
Repeatability: Max. 0.1mm in plot up to 2m (Excluding media expansion and contraction)
Installable number of tools: 1
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Max. 0.25mm thickness Marking film (PVC / fluorescent / reflective), *High intensity reflective sheet is not supported
Interface: USB2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100BASE-TX (*3)
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect)
LCD display: Touch panel (240-dot × 128-dot)
Power source: AC100-120V, AC200-240V, 50/60Hz (auto-switchover)
Power consumption: Max. 140W
Operating environment: 10 – 35? , 35 – 75? R.H. (non-condensing)
Accuracy guaranteed environment: 16 – 32? , 35 – 70? R.H. (non-condensing)
External dimensions(W x D x H)including stand: 677 x 289 x 266mm

SKYCUT A3 MAX AUTO FEEDER PLOTTER

Brand: Skycut
Model No: Skycut A3 Max Auto Feeder Plotter
Max Media Width: 330mm
Max Cutting Width: 330mm
Max Feeding Quantity: upto 100PCS
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Max force: 2000g
Connector Interface: U-disk/WIFI/USB Cable
Power: < 100W
Working environment: +5°C - +35°C
Packing Size: 730*330*330mm
Packing Gross Weight: appx 42kg

SKYCUT V60 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut V60 Cutting Plotter
Max Media Width: 1650mm
Max Cutting Width: 1540mm
Max Contour Cutting Width: 1500mm
Packing Size: 1920*360*388mm
Packing Gross Weight: 50kg
Max Force: 2000g
Number of Heads: 1
Floor Stand: option
Auto Contour Cut: Camera
CorelDRAW Directly: Yes
Power Supply, V/Hz: 220/50
Laser Engrave Option: No
Scratch Engrave: Yes
Motor: Stepper
Processor Memory: 128MB
Cutting Precision: +/- 0.01mm
Repeat Precision: 0.082 mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Connector Interface: USB flash/ WIFI(option)/ USB cable
Power: <100W
Working Environment: +5°C - +35°C

SKYCUT V48 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut V48 Cutting Plotter
Max Media Width: 1350mm
Max Cutting Width: 1240mm
Max Contour Cutting Width: 1200mm
Packing Size: 1620*360*388mm
Packing Gross Weight: 39kg
Max Force: 2000g
Number of Heads: 1
Floor Stand: option
Auto Contour Cut: Camera
CorelDRAW Directly: Yes
Power Supply, V/Hz: 220/50
Laser Engrave Option: No
Scratch Engrave: Yes
Motor: Stepper
Processor Memory: 128MB
Cutting Precision: +/- 0.01mm
Repeat Precision: 0.082 mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Connector Interface: USB flash/ WIFI(option)/ USB cable
Power: <100W
Working Environment: +5°C - +35°C

SKYCUT V24 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut V24 Cutting Plotter
Max Media Width: 720mm
Max Cutting Width; 610mm
Max Contour Cutting Width: 570mm
Packing Size: 1000*360*388mm
Packing Gross Weight: 18kg
Max Force: 2000g
Number of Heads: 1
Floor Stand: option
Auto Contour Cut: Camera
CorelDRAW Directly: Yes
Power Supply, V/Hz: 220/50
Laser Engrave Option: No
Scratch Engrave: Yes
Motor: Stepper
Processor Memory: 128MB
Cutting Precision: +/- 0.01mm
Repeat Precision: 0.082 mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Connector Interface: USB flash/ WIFI(option)/ USB cable
Power: <100W
Working Environment: +5°C - +35°C

SKYCUT C24 VINYL CUTTING PLOTTER

Brand: Skycut
Model No: Skycut C24 Vinyl Cutting Plotter
Max Media Width: 720mm
Max Cutting Width: 610mm
Max Contour Cutting Width: 570mm
Packing Size: 770*310*265mm
Packing Gross Weight: 14kg
Max Force: 800g
Number of Heads: 1
Floor Stand: Option
Auto Contour Cut: Camera
CorelDRAW Directly: Yes
Power Supply, V/Hz: 24V 1.5A
Laser Engrave Option: Yes
Scratch Engrave: Yes
Motor: Stepper
Processor Memory: 128MB
Cutting Precision: +/- 0.01mm
Repeat Precision: 0.082 mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Connector Interface: USB flash/ WIFI(option)/ USB cable
Power: <100W
Working Environment: +5°C - +35°C

SKYCUT C16 VINYL CUTTING PLOTTER

Brand: Skycut
Model No: Skycut C16 Vinyl Cutting Plotter
Max Media Width: 500mm
Max Cutting Width: 390mm
Max Contour Cutting Width: 350mm
Packing Size: 770*310*265mm
Packing Gross Weight: 11kg
Max Force: 800g
Number of Heads: 1
Floor Stand: No
Auto Contour Cut: Camera
CorelDRAW Directly: Yes
Power Supply, V/Hz: 24V 1.5A
Laser Engrave Option: Yes
Scratch Engrave: Yes
Motor: Stepper
Processor Memory: 128MB
Cutting Precision: +/- 0.01mm
Repeat Precision: 0.082 mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Connector Interface: USB flash/ WIFI(option)/ USB cable
Power: <100W
Working Environment: +5°C - +35°C

SKYCUT A3 MAX 2 AUTO FEEDER CUTTING PLOTTER

Brand: Skycut
Model No: Skycut A3 Max 2 Auto Feeder Cutting Plotter
Max Media Width: 330mm
Max Cutting Width: 330mm
Max Feeding Quantity: upto 100PCS
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Max force: 1000g
Connector Interface: U-disk/WIFI(Optional)/USB Cable
Power: < 100W
Working environment: +5°C - +35°C
Packing Size: 730*330*330mm
Packing Gross Weight: appx 30kg

SKYCUT VH 60 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut VH 60 Cutting Plotter
Max Media Width: 1650mm
Max Cutting Width: 1540mm
Motor: Servo
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Max Moving Speed: 1200mm/s
Max Cutting Speed: 1200mm/s
Max force: 2000g
Connector Interface: U-disk/WIFI(Optional)/USB Cable
Power: < 100W
Working environment: +5°C - +35°C
Packing Size: 730*330*330mm
Packing Gross Weight: appx 50kg

SKYCUT VH 48 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut VH 48 Cutting Plotter
Max Media Width: 1350mm
Max Cutting Width: 1240mm
Motor: Servo
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Max Moving Speed: 1200mm/s
Max Cutting Speed: 1100mm/s
Max force: 2000g
Connector Interface: U-disk/WIFI(Optional)/USB Cable
Power: < 100W
Working environment: +5°C - +35°C
Packing Size: 1920*360*388mm
Packing Gross Weight: appx 39kg

SKYCUT VH 24 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut VH 24 Cutting Plotter
Max Media Width: 720mm
Max Cutting Width: 610mm
Motor: High Speed Servo Motor
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Max Moving Speed: 1200mm/s
Max Cutting Speed: 1200mm/s
Max force: 2000g
Connector Interface: U-disk/WIFI/USB Cable
Power: < 100W
Working environment: +5°C - +35°C
Packing Size: 730*330*330mm
Packing Gross Weight: appx 22kg

SKYCUT CX 24 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut CX 24 Cutting Plotter
Max Media Width: 720mm
Max Cutting Width: 610mm
Max contour Cutting Width: 570mm
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Max force: 800g
Connector Interface: U-disk/WIFI/USB Cable
Power: < 100W
Working environment: +5°C - +35°C
Packing Size: 730*330*330mm
Packing Gross Weight: appx 14kg

SKYCUT A3 MAX 5 PRO DOUBLE HEAD CUTTING PLOTTER

Brand: Skycut
Model No: Skycut A3 Max 5 Pro Double Head Cutting Plotter
Type: Advanced Auto Feeder Cutting & Creasing Machine
Max Cutting Width: 370 mm
Contour Cutting Size: 350 mm
Creasing Tool: Advanced Rotary Tool
Number of Heads: 2 Nos (Optimized Dual Head)
Auto Contour Cut: Powered Camera System
Max Cutting Speed: 1800 mm/s
Motor Type: Enhanced Servo Motor
Max Force: 3500 g
Cutting Precision: ±0.01 mm
Connector Interface: USB / Wi-Fi / Ethernet / Bluetooth
Compatible Software: CorelDraw, Adobe Illustrator, SignMaster
Display: 5-inch HD Touch Screen
Voltage: 110V / 220V AC, 50/60 Hz
Power Consumption: 200W
Dimension (L×W×H): 820 × 600 × 560 mm
Weight: 55 kg

SKYCUT A3 MAX 5 DOUBLE HEAD CUTTING PLOTTER

Brand: Skycut
Model No: Skycut A3 Max 5 Double Head Cutting Plotter
Max Media Width: 370mm
Max Cutting Width: 370mm
Max Feeding Quantity: upto 1000PCS
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 1200mm/s
Max force: 2000g
Connector Interface: U-disk/WIFI/USB Cable
Power: < 100W
Working environment: +5°C - +35°C
Packing Size: 975*975*790mm
Packing Gross Weight: appx 40kg

SKYCUT KARA 007 MOBILE SKIN CUTTING PLOTTER

Brand: Skycut
Model No: Skycut Kara 007 Mobile Skin Cutting Plotter
Max Cutting Width: 190mm(7.5")
Max Cutting Speed: 500 mm/s
Max force: 1000g
Connector Interface: WIFI/USB
Software: Pre-Installed
Auto Paper Feeding Sensor: Yes
Power: < 100W
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Working environment: +5°C - +35°C
Packing Size: 320*180*150 mm
Packing Gross Weight: appx 7 kg

SKYCUT A3 MAX 4 DOUBLE HEAD CUTTING PLOTTER

Brand: Skycut
Model No: Skycut A3 Max 4 Double Head Cutting Plotter
Max Media Width: 340mm
Max Cutting Width: 340mm
Max Feeding Quantity: upto 180PCS
Motor: Servo Motor
max thickness: 400 GSM
CORALdraw: YES
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Max Moving Speed: 1600mm/s
Max Cutting Speed: 1600mm/s
Max force: 2000g
Connector Interface: U-disk/WIFI/USB Cable
Power: <100W
Working environment: +5°C - +35°C
Packing Size: 730*330*330mm
Packing Gross Weight: appx 50kg

SKYCUT A3 MAX 6 DOUBLE HEAD CUTTING PLOTTER

Brand: Skycut
Model No: Skycut A3 Max 6 Double Head Cutting Plotter
Max Media Width: 370mm
Max Cutting Width: 350mm
Max Feeding Quantity: upto 180PCS
Number of tool heads: 2 Heads(1 tool holder for each Carriage.
Motor: Servo Motor
Max Moving Speed: 1600 mm/s
Max Cutting Speed: 1600 mm/s
Max force: 2000g
Cutting Precision: 0.01mm
Repeat Precision: 0.082mm
Connector Interface: U-disk/WIFI/USB Cable/Network cable
Power: <100W
Working environment: +5°C - +35°C
Packing Size: 950x560x455mm
Packing Gross Weight: appx 53 kg

SKYCUT JDJ330 AUTOMATIC CUTTING PLOTTER

Brand: Skycut
Model No: Skycut JDJ330 Automatic Cutting Plotter
Max Media Width: 490 mm
Max Cutting Width: 330 mm
Media Handling: Auto feeding, cutting & waste dealing
Cutting Precision: 0.01 mm
Repeat Precision: 0.082 mm
Max Cutting Speed: 1200 mm/s
Max Force: 2000 g
Interface: U Disk / WiFi / USB
Power Consumption: <100 W
Working Environment: 5 – 35 °C
Packing Size: 1330 × 980 × 1250 mm
Packing Gross Weight: 120 kg

SKYCUT F6090 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut F6090 Cutting Plotter
Acceptable Media Size: 600*900mm
Max Cutting Size: 600*900mm
Work Mode: Vacuum Adsorbing
Control Panel: Touch Screen
Heads: Double Heads
Cutting Precision: 0.01mm
Repeat Precision: 0.05 mm
Max. Moving Speed: 700mm/s
Max. Cutting Speed: 600mm/s
Max. Force: 2000g
Connector Interface: U-disk/WIFI(Optional)/USB Cable
Power: <100W
Working Environment: +5°C - +35°C
Packing Size: 1370*1020*1020mm
Packing Gross Weight: 200KG

SKYCUT F4560 CUTTING PLOTTER

Brand: Skycut
Model No: Skycut F4560 Cutting Plotter
Acceptable Media Size: 450*600mm
Max Cutting Size: 450*600mm
Work Mode: Vacuum Adsorbing
Control Panel: Touch Screen
Heads: Double Heads
Cutting Precision: 0.01mm
Repeat Precision: 0.05 mm
Max. Moving Speed: 700mm/s
Max. Cutting Speed: 600mm/s
Max. Force: 2000g
Connector Interface: U-disk/WIFI(Optional)/USB Cable
Power: <100W
Working Environment: +5°C - +35°C
Packing Size: 1050*900*1020mm
Packing Gross Weight: 180KG

SKYCUT D48 CUTTING PLOTTER

Brand : Skycut
Model No: Skycut D48 Cutting Plotter
Max Media Width: 1350mm
Max Cutting Width: 1190mm
Max Contour Cutting Width: 1080mm
Max Force: 2000g
Number of Heads: 2
Floor Stand: option
Auto Contour Cut: Camera
CorelDRAW Directly: Yes
Power Supply, V/Hz: 220/50
Laser Engrave Option: No
Scratch Engrave: Yes
Motor: Stepper
Processor Memory: 128MB
Cutting Precision: +/- 0.01mm
Repeat Precision: 0.082 mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Connector Interface: USB flash/ WIFI(option)/ USB cable
Power: <100W
Working Environment: +5°C - +35°C
Db Values: 75
Packing Size: 1620*360*388mm
Packing Gross Weight: 39.5kg

SKYCUT D24 CUTTING PLOTTER

Brand Name: Skycut
Model No: Skycut D24 Cutting Plotter
Max Media Width: 720mm
Max Cutting Width: 560mm
Max Contour Cutting Width: 450mm
Max Force: 2000g
Number of Heads: 2
Floor Stand: option
Auto Contour Cut: Camera
CorelDRAW Directly: Yes
Power Supply, V/Hz: 220/50
Laser Engrave Option: No
Scratch Engrave: Yes
Motor: Stepper
Processor Memory: 128MB
Cutting Precision: +/- 0.01mm
Repeat Precision: 0.082 mm
Max Moving Speed: 700mm/s
Max Cutting Speed: 600mm/s
Connector Interface: USB flash/ WIFI(option)/ USB cable
Power: <100W
Working Environment: +5°C - +35°C
Db Values: 75
Packing Size: 1000*360*388mm
Packing Gross Weight: 18.5kg

SKYCUT FR6090 FLATBED PLOTTER

Brand Name: Skycut
Model No: Skycut FR6090 Flatbed Plotter
Motor: DC Stepper Motor
Control Panel: 5-Inch Touch Screen
Number of Tool: DUAL HEAD
Working Area Size: 630 × 1200 mm
Maximum Material Placement Size: 600 × 900 mm
Maximum Cutting Speed: 800 mm/s
Maximum Cutting Pressure: 2000 g
Repeatability Accuracy: ±0.01 mm
Cutting Accuracy: 0.025 mm
Connection: Wi-Fi / USB / LAN Cable
Camera: Supported
Automatic Feeding: Supported
QR Code Recognition: L Corner, Dot
Applicable Cutting Materials: Cardstock, Heat Transfer Film, Self-Adhesive Paper, Kraft Paper, PVC, PET
Input Power: 100–240V AC, 50/60Hz
Power Consumption: Main Unit: 150W / Fan: 1500W
Operating Temperature: 5°C – 35°C
Overall Machine Size: 1770 × 1000 × 980 mm
Weight: 200 kg

REDSAIL M3050 LASER MACHINE

Brand: Redsail
Model No: Redsail M3050 Laser Machine
Laser Power: 50W
Laser Tube Type: CO2 sealed glass tube
Working Table Surface: Honeycomb working table
Drive type: Stepper motor
Max. Travelling Speed: 500mm/s
Max. Working Speed: 200mm/s
Resolution: 1000DPI
Support Graphic Formats: PLT, DXF, JPG, BMP, AI, DST
Support Software: Coreldraw output directly/Shenzhou Easy Moment
Cooling Mode: Water cooling
Adjustable Table: No
Red Dot Positioning System: Yes
Repeatability: 0.01mm
Operating System: Windows2000/XP/Vista/Win 7
Working Voltage: 110~240V/50~60Hz
Warranty: 1 Year Warranty

REDSAIL RS1360C CUTTING PLOTTER

Brand: Redsail
Model No: Redsail RS1360C Cutting Plotter
Control system: Risc micro-controller
Drive type: Stepper motor
Media Size(mm): 1360
Cutting size(mm): 1200
Cutting speed: 600 mm/s
Cutting force: 10-500 g
Lcd display: English
Resolution: 1000 DPI
Repeatability(mm): 0.01
Command: HPGL
Interface: 232/USB
Power: 90~240V / 50~60Hz
Warranty: 1 Year Warranty

REDSAIL RS1120C CUTTING PLOTTER

Brand: Redsail
Model No: Redsail RS1120C Cutting Plotter
Control system: Risc micro-controller
Drive type: Stepper motor
Media Size(mm): 1120
Cutting size(mm): 1000
Cutting speed: 600 mm/s
Cutting force: 10-500 g
Lcd display: English
Resolution: 1000 DPI
Repeatability(mm): 0.01
Command: HPGL
Interface: 232/USB
Power: 90~240V / 50~60Hz
Warranty: 1 Year Warranty

REDSAIL RS800C CUTTING PLOTTER

Brand: Redsail
Model No: Redsail RS800C Cutting Plotter
Control system: Risc micro-controller
Drive type: Stepper motor
Media Size(mm): 800
Cutting size(mm): 700
Cutting speed: 600 mm/s
Cutting force: 10-500 g
Lcd display: English
Resolution: 1000 DPI
Repeatability(mm): 0.01
Command: HPGL
Interface: 232/USB
Power: 90~240V / 50~60Hz
Warranty: 1 Year Warranty

REDSAIL RS720C CUTTING PLOTTER

Brand: Redsail
Model No: Redsail RS720C Cutting Plotter
Control system: Risc micro-controller
Drive type: Stepper motor
Media Size(mm): 720
Cutting size(mm): 600
Cutting speed: 600 mm/s
Cutting force: 10-500 g
Lcd display: English
Resolution: 1000 DPI
Repeatability(mm): 0.01
Command: HPGL
Interface: 232/USB
Power: 90~240V / 50~60Hz
Warranty: 1 Year Warranty

MUTOH XPERTJET C641SR PRO VINYL PLOTTER

Brand: Mutoh
Model No: Xpertjet C641SR Pro Plotter
Media Width/ Roll diameter/ Weight: Max. 630 mm - 24.8”/ Max. Ø 150 mm/ 8 kg
Maximum print/ cut width: 600 mm – 23.62 inch
Maximum media thickness: 0.4 (Low) 0.8 (High) mm/ 0.4 (liner) 0.22 (film) mm
Print/ Cut Technology: Drop-on-demand micro piezo inkjet / Drag knife
Print Head/ Resolution: AccuFine 1600 – max. 1200 x 1200 dpi
Head Heights: Two level adjustment : low 1.5 mm/ high 2.8 mm
Print Performance: Super Quality - 2.48 m²/h, High Quality - 4.94 m²/h, Production Quality - 6.5 m²/h, High Speed - 9.73 m²/h
Cutting Speed: 20 – 150 mm/s
Cutting Force: 30 – 300 gf
Inks: MS31 – CMYK
Interface: Network connection
Power Supply: AC100V?120V ±10 % or 200V?240V ± 10 % Frequency: 50/60 Hz ± 1Hz
Dimensions W x D x H: 1190 x 438 x 366 mm

MUTOH XPERTJET 1682SR PRO VINYL PLOTTER

Brand: Mutoh
Model No: Xpertjet 1682SR Pro Plotter
Maximum Media Width: 1625 mm – 64 inch
Maximum Print Width: 1615 mm – 63.58 inch
Number of Print Heads: 2 AccuFine HD 3200 nozzle print heads
Drop Mass Range: 2.5 pl - 17.5 pl
Resolutions: 300 x 600 dpi until 1200 x 1200 dpi
Variable Head Height: 4 levels: 1.5, 2.0, 2.5, 4.0 mm
Media Thicknesses: 0.3, 0.8, 1.3, 2.8 mm
Productivity: Typical production speeds between 3.0 m²/h (1200 x 1200 dpi) and 15,2 m²/h (600 x 1200 dpi)
Top Speed: 37,1 m²/h (600 x 600 dpi)
Inks: MS41: 8 colours C, M, Y, K, Lc, Lm, Lk, Or UV durability without lamination up to 3 years outdoor
Ink Containers: 300 ml or 1 liter disposable ink packs
Weight: Printer : 141 kg / Stand : 32 kg
Dimensions (WxDxH) mm: 2770 x 895 x 1428 mm (cover closed), 2770 x 895 x 1527 mm (cover open), 2770 x 895 x 1611 mm (Ink Cases installed)

MUTOH VALUECUT II 1800 CUTTING PLOTTER

Brand: Mutoh
Model No: ValueCut II 1800 cutting plotters
Maximum Speed : 1530 mm/s
Maximum Acceleration: 4.2 G
Cutting Force Range: 5 - 600 g
Media Drive Mechanism: Micro-grit friction feed / Digital control servo motor
Cutting Principle: Drag knife
Blade Types Top Angle / Offset: 25° / 0.25 mm, 42° / 0.175 mm, 45° / 0.25 mm, 60° / 0.25 mm, 60° / 0.50 mm
Distance Accuracy: ± 0.254 mm or ± 0.1 % of moving distance, whichever is larger
Repeatability: ± 0.1 mm or less
Tracking Accuracy: ? 2 mm per 10 m
Media Loading Width (roll & sheet): 300 - 1990 mm
Max. Cutting Width: 1830 mm
Max. Media Thickness: 0.8 mm
Pinch Rollers: 6
Power Supply: 100-240 V AC - 50/60 Hz Auto-switching / Max 110 W
Interface / Input Buffer: Ethernet, USB 2.0, Serial / 32 MB
Width x Depth x Height: 2170 x 756 x 1127 mm
Weight: 63 kg

MUTOH VALUECUT II 1300 CUTTING PLOTTER

Brand: Mutoh
Model No: ValueCut II 1300 cutting plotters
Maximum Speed : 1530 mm/s
Maximum Acceleration: 4.2 G
Cutting Force Range: 5 - 600 g
Media Drive Mechanism: Micro-grit friction feed / Digital control servo motor
Cutting Principle: Drag knife
Blade Types Top Angle / Offset: 25° / 0.25 mm, 42° / 0.175 mm, 45° / 0.25 mm, 60° / 0.25 mm, 60° / 0.50 mm
Distance Accuracy: ± 0.254 mm or ± 0.1 % of moving distance, whichever is larger
Repeatability: ± 0.1 mm or less
Tracking Accuracy: ? 2 mm per 10 m
Media Loading Width (roll & sheet): 50 - 1594 mm
Max. Cutting Width: 1320 mm
Max. Media Thickness: 0.8 mm
Pinch Rollers: 4
Power Supply: 100-240 V AC - 50/60 Hz Auto-switching / Max 110 W
Interface / Input Buffer: Ethernet, USB 2.0, Serial / 32 MB
Width x Depth x Height: 1774 x 651 x 1111 mm
Weight: 50 kg

MUTOH VALUECUT 600 CUTTING PLOTTER

Brand: Mutoh
Model No: ValueCut 600 Desktop Cutter
Maximum Speed (axial): 1080 mm/s
Maximum. Speed (diagonal): 1530 mm/s
Acceleration (axial): 3.0 G
Acceleration (diagonal): 4.2 G
Max. Cutting Force: 600 g
Media Drive Mechanism: Micro-grit friction feed / Digital control servo motor
Cutting Principle: Drag knife
Blade Types Top Angle / Offset: 25° / 0.25 mm, 42° / 0.175 mm, 45° / 0.25 mm, 60° / 0.25 mm, 60° / 0.50 mm
Graphic Language: HP-GL, HP-GL/2
Media Loading Width (roll & sheet): 50 - 770 mm
Max. Cutting Width: 610 mm
Max. Media Thickness: 0.8 mm
Pinch Rollers: 3
Power Supply: 100-240 V AC - 50/60 Hz Auto-switching / Max 110 W
Width x Depth x Height: 930 x 490 x 414 mm
Weight: 37.2 kg

GCC PUMA P4 132 CUTTER PLOTTER

Brand: GCC
Model No: Puma P4 132 Vinyl Cutter Plotter
Operational Method: Roller-Type
Max. Cutting Width: 1300 mm(51.18 in.)
Max. Media Loading Width: 1470 mm(57.87 in.)
Min. Media Loading Width: 50 mm(1.97 in.)
Acceptable Material Thickness: 0.8 mm (0.03 in.)
Number of Pinch Rollers: 4
Drive: DC Servo Control
Max. Cutting Force; 500g
Max. Cutting Speed(Diagonal): 1,020 mm/s(40.2 ips) (at 45° direction)
Offset: 0-1.0 mm (with an increase of 0.025 mm)
Mechanical Resolution: 0.009 mm (0.00035")
Software Resolution: 0.025 mm (0.00098")
Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterr
Repeatability: ±0.1mm
Memory Size: 32 MB /16 MB (when using AAS)
Interfaces: USB 2.0 (High speed), Serial (RS-232C), Ethernet
Control Panel: LCM (20 digits X 2 lines), 14 Keys , 1 power LED
Diameter of Blade: 2.5 mm
Dimension(H x W x D) mm: 1065 x 1632 x 620 mm (Stand Including ) 41.93 x 64.25 x 24.41 in.
Net Weight: 53 kg / 116.4 lb
Power Supply: AC 100-240V, 50~60 Hz (auto switching)
Power Consumption: Max. 170 W
Environment Humidity: 25%~ 75% relative humidity (operating)
Environment Temperature: 15°-30°C (60°-86°F)

GCC PUMA P4 60 CUTTER PLOTTER

Brand: GCC
Model No: Puma P4 60 Vinyl Cutter Plotter
Operational Method: Roller-Type
Max. Cutting Width: 600mm(23.6 in.)
Max. Media Loading Width: 719 mm(28.3 in.)
Min. Media Loading Width: 50 mm(1.97 in.)
Acceptable Material Thickness: 0.8 mm (0.03 in.)
Number of Pinch Rollers: 2
Drive: DC Servo Control
Max. Cutting Force; 500g
Max. Cutting Speed(Diagonal): 1,020 mm/s(40.2 ips) (at 45° direction)
Offset: 0-1.0 mm (with an increase of 0.025 mm)
Mechanical Resolution: 0.009 mm (0.00035")
Software Resolution: 0.025 mm (0.00098")
Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterr
Repeatability: ±0.1mm
Memory Size: 32 MB /16 MB (when using AAS)
Interfaces: USB 2.0 (High speed), Serial (RS-232C), Ethernet
Control Panel: LCM (20 digits X 2 lines), 14 Keys , 1 power LED
Diameter of Blade: 2.5 mm
Dimension(H x W x D) mm: 220 x 879 x 258 mm 8.76 x 34.61 x 10.16 in.
Net Weight: 13 kg / 28.6 lb
Power Supply: AC 100-240V, 50~60 Hz (auto switching)
Power Consumption: Max. 170 W
Environment Humidity: 25%~ 75% relative humidity (operating)
Environment Temperature: 15°-30°C (60°-86°F)

GCC EX II 52LX CUTTER PLOTTER

Brand: GCC
Model No: EX II 52LX Vinyl Cutter Plotter
Max. Cutting Width: 1320 mm (51.96 in)
Max. Media Width: 1470 mm (57.87 in.)
Acceptable Material Thickness: 0.8 mm
Max. Cutting Force: 350 g
Max. Cutting Speed: 635 mm/sec (25 ips) (at 45 degree direction)
Mechanical Resolution: 0.012 mm (0.00047 in.)
Software Resolution: 0.025 mm (0.00098 in.)
Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
Repeatability: ±0.1
Tracking: 3M
Memory Buffer: 32MB / 16MB (when using AAS)
Control Panel: 6 LEDs / 10 Keys
Diameter of Blade: 2.5 mm
Dimension: 1633*1069*650
Net Weight: 41KG (90.2lb)
Stand: Standard
Power Supply: 100-240 VAC, 50 / 60 Hz (auto switching)
Power Consumption: Max. 65 W
Temperature: 15° C~30° C / 60°F~86° F

GCC EX II 52 CUTTER PLOTTER

Brand: GCC
Model No: EX II 52 Vinyl Cutter Plotter
Max. Cutting Width: 1320 mm (51.96 in)
Max. Media Width: 1470 mm (57.87 in.)
Acceptable Material Thickness: 0.8 mm
Max. Cutting Force: 350 g
Max. Cutting Speed: 635 mm/sec (25 ips) (at 45 degree direction)
Mechanical Resolution: 0.012 mm (0.00047 in.)
Software Resolution: 0.025 mm (0.00098 in.)
Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
Repeatability: ±0.1
Tracking: 3M
Memory Buffer: 32MB / 16MB (when using AAS)
Control Panel: 6 LEDs / 10 Keys
Diameter of Blade: 2.5 mm
Dimension: 1633*1069*650
Net Weight: 41KG (90.2lb)
Stand: Standard
Power Supply: 100-240 VAC, 50 / 60 Hz (auto switching)
Power Consumption: Max. 65 W
Temperature: 15° C~30° C / 60°F~86° F

GCC EX II 24LX CUTTER PLOTTER

Brand: GCC
Model No: EX II 24LX Vinyl Cutter Plotter
Max. Cutting Width: 600 mm (23.6 in.)
Max. Media Width: 719 mm (28.3 in.)
Acceptable Material Thickness: 0.8 mm
Max. Cutting Force: 350 g
Max. Cutting Speed: 705 mm/sec (27.8 ips) (at 45 degree direction)
Mechanical Resolution: 0.012 mm (0.00047 in.)
Software Resolution: 0.025 mm (0.00098 in.)
Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
Repeatability: ±0.1
Tracking: 3M
Memory Buffer: 32MB / 16MB (when using AAS)
Control Panel: 6 LEDs / 10 Keys
Diameter of Blade: 2.5 mm
Dimension: 233*880*255
Net Weight: 11KG (24.3lb)
Stand: Optional
Power Supply: 100-240 VAC, 50 / 60 Hz (auto switching)
Power Consumption: Max. 65 W
Temperature: 15° C~30° C / 60°F~86° F

GCC EX II 24 CUTTER PLOTTER

Brand: GCC
Model No: EX II 24 Vinyl Cutter Plotter
Max. Cutting Width: 600 mm (23.6 in.)
Max. Media Width: 719 mm (28.3 in.)
Acceptable Material Thickness: 0.8 mm
Max. Cutting Force: 350 g
Max. Cutting Speed: 705 mm/sec (27.8 ips) (at 45 degree direction)
Mechanical Resolution: 0.012 mm (0.00047 in.)
Software Resolution: 0.025 mm (0.00098 in.)
Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
Repeatability: ±0.1
Tracking: 3M
Memory Buffer: 32MB / 16MB (when using AAS)
Control Panel: 6 LEDs / 10 Keys
Diameter of Blade: 2.5 mm
Dimension: 233*880*255
Net Weight: 11KG (24.3lb)
Stand: Optional
Power Supply: 100-240 VAC, 50 / 60 Hz (auto switching)
Power Consumption: Max. 65 W
Temperature: 15° C~30° C / 60°F~86° F

GRAPHTEC FC9000 160 HIGH GRIT CUTTING PLOTTER

Brand: Graphtec
Model No: FC9000 160 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 1626mm × 50m
Cutting area of guaranteed accuracy (*1): 1607mm × 10m 894mm × 15m
Mountable media width (*2): Min. 50mm
Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
Mountable roll media mass: 24kg
Maximum cross cut width : 1626mm
Max. cutting speed: 1485mm/s at 45° direction
Axial acceleration: Max. 39.2m/s2 at 45° direction
Cutting force: Max. 5.88N (600gf)
Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Number of push rollers: 4 rollers
Mountable number of tools: 1 tool (mountable 2 tools (option))
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Power source: 100 V to 240 V AC, 50 / 60 Hz
Power consumption: Max. 120 W
Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
External dimensions (W × D × H): 2224?1151?1232 mm
Weight: 70 kg

GRAPHTEC FC9000 140 HIGH GRIT CUTTING PLOTTER

Brand: Graphtec
Model No: FC9000 140 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 1372mm × 50m
Cutting area of guaranteed accuracy (*1): 1352mm × 10m 894mm × 15m
Mountable media width (*2): Min. 50mm
Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
Mountable roll media mass: 20kg
Maximum cross cut width: 1372mm
Max. cutting speed: 1485mm/s at 45° direction
Axial acceleration: Max. 39.2m/s2 at 45° direction
Cutting force: Max. 5.88N (600gf)
Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Number of push rollers: 4 rollers
Mountable number of tools: 1 tool (mountable 2 tools (option))
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Power source: 100 V to 240 V AC, 50 / 60 Hz
Power consumption: Max. 120 W
Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
External dimensions (W × D × H): 1970?1151?1232 mm
Weight: 64 kg

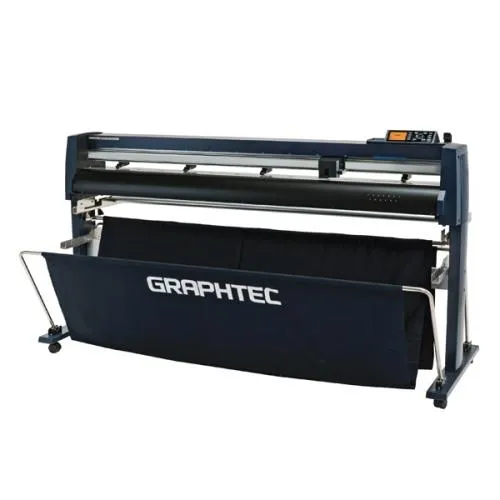

GRAPHTEC FC9000 100 HIGH GRIT CUTTING PLOTTER

Brand: Graphtec
Model No: FC9000 100 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 1067mm × 50m
Cutting area of guaranteed accuracy (*1): 1047mm × 10m 762mm × 15m
Mountable media width (*2): Min. 50mm
Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
Mountable roll media mass: 16kg
Maximum cross cut width: 1067mm
Max. cutting speed: 1485mm/s at 45° direction
Axial acceleration: Max. 39.2m/s2 at 45° direction
Cutting force: Max. 5.88N (600gf)
Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Number of push rollers: 3 rollers
Mountable number of tools: 1 tool (mountable 2 tools (option))
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Power source: 100 V to 240 V AC, 50 / 60 Hz
Power consumption: Max. 120 W
Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
External dimensions (W × D × H): 1665?1151?1232 mm
Weight: 56 kg

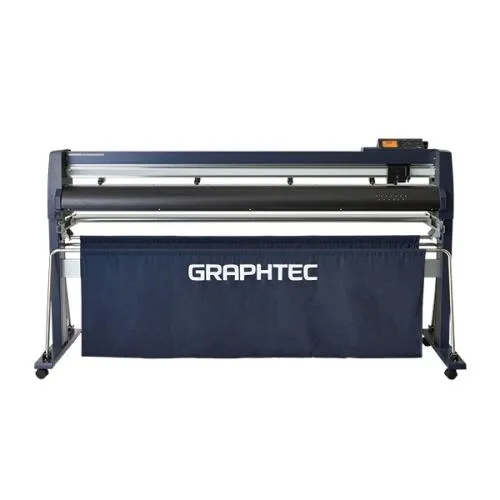

GRAPHTEC FC9000 75 HIGH GRIT CUTTING PLOTTER

Brand: Graphtec
Model No: FC9000 75 Cutting Plotter
Configuration: Grit rolling type
Drive method: Digital servo drive
Max. cutting area (W x L) (*1): 762mm × 50m
Cutting area of guaranteed accuracy (*1): 742mm × 15m
Mountable media width (*2): Min. 50mm
Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
Mountable roll media mass: 12kg
Maximum cross cut width: 762mm
Max. cutting speed: 1485mm/s at 45° direction
Axial acceleration: Max. 39.2m/s2 at 45° direction
Cutting force: Max. 5.88N (600gf)
Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
Mechanical resolution: 0.005mm
Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Number of push rollers: 2 rollers
Mountable number of tools: 1 tool (mountable 2 tools (option))
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory: 2MB
Power source: 100 V to 240 V AC, 50 / 60 Hz
Power consumption: Max. 120 W
Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
External dimensions (W × D × H): 1360?1151?1232 mm
Weight: 49 kg

MIMAKI CG 130FXII PLUS VINYL CUTTING PLOTTER

Brand: Mimaki
Model No: CG 130FXII Plus Cutting Plotter
Acceptable sheet width: 90mm~1,580mm (3.54"~62.0")
Rolled media weight: 18kg (40 lb) or less
Roll outsied diameter: ?200mm (7.87") or less
Effective cutting area *1: 1,300mm x 51m (51.2" x 167')
Maximum auto cutting width *2: 1,425mm (56.1")
Maximum cutting speed: 100cm/s (39.3"/s)
Maximum moving speed: 140cm/s (55"/s) (In a 45° direction and in a pen-up state)
Mechanical resolution: 5µm (0.0002")
Command resolution: 25?m, 10?m(MGL-IIc), 100?m, 50?m(MGL-Ic1)
Repeatability: ±0.2mm (Excluding shrinkage / expansion caused by the film temperature)
Accuracy assurance range (Repeatability): 1,300mm x 10m (51.2" x 32.8')
Max. pressure: 500g
Acceptable sheet *4: Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet
Acceptable sheet for pouncing *5: Paper thickness: 0.06~0.13mm (0.0024"~0.005")
Applicable tools *6: Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool
Type of command: MGL-II c / I c1
Interface: RS-232C, USB
Receiver buffer size: 30MB Standard (20MB when in sorting)
Operational environment: Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing)
Power requirement: AC100V~240V?1A 50/60Hz
Power consumption: 100W or less
Dimensions (WxDxH): 1,825mm(71.8")x 700mm(27.5")x 1,217mm(47.9")
Weight: 62kg (137 lb)

MIMAKI CG 75FXII PLUS VINYL CUTTING PLOTTER

Brand: Mimaki
Model No: CG 75FXII Plus Cutting Plotter
Acceptable sheet width: 90mm~1,040mm (3.54"~40.9")
Rolled media weight: 18kg (40 lb) or less
Roll outsied diameter: ?200mm (7.87") or less
Effective cutting area *1: 760mm x 51m (29.9" x 167')
Maximum auto cutting width *2: 870mm (34.2")
Maximum cutting speed: 100cm/s (39.3"/s)
Maximum moving speed: 140cm/s (55"/s) (In a 45° direction and in a pen-up state)
Mechanical resolution: 5µm (0.0002")
Command resolution: 25?m, 10?m(MGL-IIc), 100?m, 50?m(MGL-Ic1)
Repeatability: ±0.2mm (Excluding shrinkage / expansion caused by the film temperature)
Accuracy assurance range (Repeatability): 760mm x 10m (29.9" x 32.8')
Max. pressure: 500g
Acceptable sheet *4: Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet
Acceptable sheet for pouncing *5: Paper thickness: 0.06~0.13mm (0.0024"~0.005")
Applicable tools *6: Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool
Type of command: MGL-II c / I c1
Interface: RS-232C, USB
Receiver buffer size: 30MB Standard (20MB when in sorting)
Operational environment: Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing)
Power requirement: AC100V~240V?1A 50/60Hz
Power consumption: 100W or less
Dimensions (WxDxH): 1,285mm(50.5")x 700mm(27.5")x 1,217mm(47.9")
Weight: 47kg (104 lb)

MIMAKI CG 130AR VINYL CUTTING PLOTTER

Brand: Mimaki
Model No: CG 130AR Cutting Plotter
Acceptable sheet width: 90 - 1,550 mm (3.5 - 61.0")
Effective cutting area *1: 1,370 mm × 51 M (53.9" x 167.3')
Maximum speed: Cutting: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
Adjustable speed range: 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment) 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1)
Repeatability *2: ± 0.2 mm / 2 M
Effective Repeatability: 1,350 mm × 2 M
Maximum pressure: 550g
Type of command: MGL-IIc / MGL-Ic1
Interface: USB, RS-232C, Ethernet
Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
Power supply: AC 100 V - 240 V 1A 50/60Hz
Power consumption: 228W or less
Dimensions: 1,810 × 580 × 1,160 mm (71.3 × 22.8 × 45.7")
Weight: 43kg (94.8 lb)

MIMAKI CG 100AR VINYL CUTTING PLOTTER

Brand: Mimaki
Model No: CG 100AR Cutting Plotter
Acceptable sheet width: 90 - 1,250 mm (3.5 - 49.2 inch)
Effective cutting area *1: 1,070 mm × 51 M (42.1" x 167.3')
Maximum speed: Cutting: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
Adjustable speed range: 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment), 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1
Repeatability *2: ± 0.2 mm / 2 M
Effective Repeatability: 1,050 mm × 2 M
Maximum pressure: 550g
Type of command: MGL-IIc / MGL-Ic1
Interface: USB, RS-232C, Ethernet
Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
Power supply: AC 100 V - 240 V 1A 50/60Hz
Power consumption: 228W or less
Dimensions: 1,510 × 580 × 1,160 mm (59.4 × 22.8 × 45.7")
Weight: 35kg (77.2 lb)

MIMAKI CG 60AR VINYL CUTTING PLOTTER

Brand: Mimaki
Model No: CG 60AR Cutting Plotter
Acceptable sheet width: 90 - 740 mm (3.5 - 29.1 inch)
Effective cutting area *1: 606 mm × 51 M (23.9 inch x 167.3 inch)
Maximum speed: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
Adjustable speed range: 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment), 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1)
Repeatability *2: ± 0.2 mm / 2 M
Effective Repeatability: 586 mm × 2 M
Maximum pressure: 550g
Type of command: MGL-IIc / MGL-Ic1
Interface: USB, RS-232C, Ethernet
Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
Power supply: AC 100 V - 240 V 1A 50/60Hz
Power consumption: 168W or less
Dimensions: 1,010 × 355 × 355 mm (39.8 × 14.0 × 14.0") 1,010 × 580 × 1,160 mm *6 (39.8 × 22.8 × 45.7") *6
Weight: 17kg (37.5 lb) 27kg (59.5 lb) *6

Latest plotter Models Hyderabad, Telangana

Pricelist of Best plotter Models

GRAPHTEC CE7000 160 CUTTING PLOTTER

GRAPHTEC CE7000 130 CUTTING PLOTTER

GRAPHTEC CE7000 60 CUTTING PLOTTER

GRAPHTEC CE7000 40 CUTTING PLOTTER

GRAPHTEC CE7000 130AP CUTTING PLOTTER

GRAPHTEC CE8000 130AP CUTTING PLOTTER

GRAPHTEC CE8000 130 CUTTING PLOTTER

GRAPHTEC CE8000 60 CUTTING PLOTTER

GRAPHTEC CE8000 40 CUTTING PLOTTER

SKYCUT A3 MAX AUTO FEEDER PLOTTER

SKYCUT V60 CUTTING PLOTTER

SKYCUT V48 CUTTING PLOTTER

SKYCUT V24 CUTTING PLOTTER

SKYCUT C24 VINYL CUTTING PLOTTER

SKYCUT C16 VINYL CUTTING PLOTTER

SKYCUT A3 MAX 2 AUTO FEEDER CUTTING PLOTTER

SKYCUT VH 60 CUTTING PLOTTER

SKYCUT VH 48 CUTTING PLOTTER

SKYCUT VH 24 CUTTING PLOTTER

SKYCUT CX 24 CUTTING PLOTTER

SKYCUT A3 MAX 5 PRO DOUBLE HEAD CUTTING PLOTTER

SKYCUT A3 MAX 5 DOUBLE HEAD CUTTING PLOTTER

SKYCUT KARA 007 MOBILE SKIN CUTTING PLOTTER

SKYCUT A3 MAX 4 DOUBLE HEAD CUTTING PLOTTER

SKYCUT A3 MAX 6 DOUBLE HEAD CUTTING PLOTTER

SKYCUT JDJ330 AUTOMATIC CUTTING PLOTTER

SKYCUT F6090 CUTTING PLOTTER

SKYCUT F4560 CUTTING PLOTTER

SKYCUT D48 CUTTING PLOTTER

SKYCUT D24 CUTTING PLOTTER

SKYCUT FR6090 FLATBED PLOTTER

REDSAIL M3050 LASER MACHINE

REDSAIL RS1360C CUTTING PLOTTER

REDSAIL RS1120C CUTTING PLOTTER

REDSAIL RS800C CUTTING PLOTTER

REDSAIL RS720C CUTTING PLOTTER

MUTOH XPERTJET C641SR PRO VINYL PLOTTER

MUTOH XPERTJET 1682SR PRO VINYL PLOTTER

MUTOH VALUECUT II 1800 CUTTING PLOTTER

MUTOH VALUECUT II 1300 CUTTING PLOTTER

MUTOH VALUECUT 600 CUTTING PLOTTER

GCC PUMA P4 132 CUTTER PLOTTER

GCC PUMA P4 60 CUTTER PLOTTER

GCC EX II 52LX CUTTER PLOTTER

GCC EX II 52 CUTTER PLOTTER

GCC EX II 24LX CUTTER PLOTTER

GCC EX II 24 CUTTER PLOTTER

GRAPHTEC FC9000 160 HIGH GRIT CUTTING PLOTTER

GRAPHTEC FC9000 140 HIGH GRIT CUTTING PLOTTER

GRAPHTEC FC9000 100 HIGH GRIT CUTTING PLOTTER

GRAPHTEC FC9000 75 HIGH GRIT CUTTING PLOTTER

MIMAKI CG 130FXII PLUS VINYL CUTTING PLOTTER

MIMAKI CG 75FXII PLUS VINYL CUTTING PLOTTER

MIMAKI CG 130AR VINYL CUTTING PLOTTER

MIMAKI CG 100AR VINYL CUTTING PLOTTER

MIMAKI CG 60AR VINYL CUTTING PLOTTER

Your Go-To Source for High-Performance IT Equipment

Most Searchable Keywords
