Latest aadona access point Models Hyderabad, Telangana
Aadona Access Point
Pricelist of Best aadona access point Models
- Brand: Aadona
- Product: Aadona AOXE-1800 Access Point
- Model Name: AOXE-1800
- Product Series: APOLLO
- Working Frequency: 2.4G: 802.11b/g/n; 5G: 802.11a/n/ac/ax
- Maximum Data Rate: 2.4G: 575Mbps; 5G: 1200Mbps
- Physical Port: 1 * 10/100/1000Base-T PoE port for uplink; 1 * 1000M SFP fiber port(Combo); 1 * 10/100/1000Base-T downlink port ; 1 build-in M.2 port for IoT and LTE expansion
- PoE: 802.3at
- Maximum power consumption: < 18W
- Antenna: External
- Working frequency band: 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150~5.350GHz 5.47~5.725GHz 5.725~5.850GHz
- Modulation technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps; 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps; 11n: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM; 11ac:MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM; 11ax: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM,1024QAM
- Transmit power: Max 27 dBm
- Power adjustment granularity: 1 dBm
- Working/Storage temperature: -40°C to +65°C -45°C to +80°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection level: IP68
- Product positioning: Outdoor dual frequency
- Maximum Concurrent Clients: 254
- Virtual AP (BSSID): 32
- Number of spatial streams: 2.4GHz: 2; 5GHz: 2
- 802.11ax: 80 MHz bundling; 1200Mbps (PHY); Frame aggregation (A-MPDU); Maximum likelihood demodulation (MLD); Transmit beamforming (TxBF); Maximum ratio combining (MRC); Space-time block coding (STBC); Low-density parity-check code (LDPC)
- Encryption: 64/128 WEP, dynamic WEP, TKIP, and CCMP
- Protection against DoS attacks: Anti-DoS for wireless management packets
- Forwarding security: Frame filtering, white list, static blacklist, and dynamic blacklist
- User isolation: AP L2 forwarding suppression
- Isolation between Virtual APs (multiple SSIDs)
- Periodic SSID enabling and disabling: Yes
- Access control of free resources: Yes
- Secure admission control of wireless terminals: Yes
- Wireless SAVI: Yes
- ACL: Access control of various data packets such as MAC, IPv4, and IPv6 packets
- Secure access control of APs: Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC
- IP address setting: Static IP or dynamic DHCP allocation
- IPv6 forwarding: Yes
- IPv6 portal: Yes
- Local forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP switching reference: Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc.
- Priority mapping: Ethernet port 802.1P identification and marking; Mapping from wireless priorities to wired priorities
- QoS policy mapping: Mapping of different SSIDs/VLANs to different QoS policies
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
- Brand: Aadona
- Product: Aadona AOXI-1800 Access Point
- Model Name: AOXI-1800
- Product Series: APOLLO
- Working Frequency: 2.4G: 802.11b/g/n; 5G: 802.11a/n/ac/ax
- Maximum Data Rate: 2.4G: 575Mbps; 5G: 1200Mbps
- Physical Port: 1x 10/100/1000Base-T PoE; 1x 1000M SFP fiber
- PoE: 802.3at
- Maximum power consumption: < 23.4W
- Antenna: Internal antenna, 2.4G 10dBi, 5G 10dBi
- Working frequency band: 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150~5.350GHz 5.47~5.725GHz 5.725~5.850GHz
- Modulation technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps; 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps; 11n: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM; 11ac:MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM; 11ax: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM,1024QAM
- Transmit power: Max 27 dBm
- Power adjustment granularity: 1 dBm
- Working/Storage temperature: -40°C to +65°C -45°C to +80°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection level: IP68
- Product positioning: Outdoor dual frequency
- Maximum Concurrent Clients: 254
- Virtual AP (BSSID): 32
- Number of spatial streams: 2.4GHz: 2; 5GHz: 2
- Encryption: 64/128 WEP, dynamic WEP, TKIP, and CCMP
- Protection against DoS attacks: Anti-DoS for wireless management packets
- Forwarding security: Frame filtering, white list, static blacklist, and dynamic blacklist
- User isolation: AP L2 forwarding suppression
- Isolation between Virtual APs (multiple SSIDs)
- Periodic SSID enabling and disabling: Yes
- Access control of free resources: Yes
- Secure admission control of wireless terminals: Yes
- Wireless SAVI: Yes
- ACL: Access control of various data packets such as MAC, IPv4, and IPv6 packets
- Secure access control of APs: Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC
- IP address setting: Static IP or dynamic DHCP allocation
- IPv6 forwarding: Yes
- IPv6 portal: Yes
- Local forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP switching reference: Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc.
- Priority mapping: Ethernet port 802.1P identification and marking; Mapping from wireless priorities to wired priorities
- QoS policy mapping: Mapping of different SSIDs/VLANs to different QoS policies
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
- Brand: Aadona
- Product: Aadona AOE-1700-T Access Point
- Model Name: AOE-1700-T
- Product Series: APOLLO
- Working Frequency: 2.4G: 802.11b/g/n; 5G: 802.11a/n/ac Wave2: 2.4G/5G: 802.11a/b/g/n/ac
- Maximum Data Rate: 2.4G: 400Mbps; 5G: 867Mbps; 2.4/5G: 200/433Mbps
- Physical Port: 1x 10/100/1000Base-T PoE (uplink); 1x 10/100/1000Base-T (downlink); 1x 1000M SFP fiber; PoE 802.3at
- Maximum power consumption: < 20W
- Antenna: External, 4 N-type female connectors
- Working frequency band: 2.4 GHz and 5 GHz
- Modulation technology: OFDM, DSSS, MIMO-OFDM, MCS
- Transmit power: Max 27 dBm
- Power adjustment granularity: 1 dBm
- Working/Storage temperature: -40°C to +65°C -45°C to +80°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection level: IP67
- Product positioning: Outdoor tri-band 11ac wave2 AP
- Maximum Concurrent Clients: 256
- Virtual AP (BSSID): 32
- Number of spatial streams: 2.4GHz: 2; 5GHz: 2; 2.4/5GHz: 1
- 11n Enhancements: 40 MHz bundling; 400Mbps (PHY); Frame aggregation (A-MPDU); Maximum likelihood demodulation (MLD); Transmit beamforming (TxBF); Maximum ratio combining (MRC); Space-time block coding (STBC); Low-density parity-check code (LDPC)
- Encryption: 64/128 WEP, dynamic WEP, TKIP, and CCMP
- Protection against DoS attacks: Anti-DoS for wireless management packets
- Forwarding security: Frame filtering, white list, static blacklist, and dynamic blacklist
- User isolation: AP L2 forwarding suppression
- Isolation between Virtual APs (multiple SSIDs)
- Periodic SSID enabling and disabling: Yes
- Access control of free resources: Yes
- Secure admission control of wireless terminals: Yes
- Wireless SAVI: Yes
- ACL: Access control of various data packets such as MAC, IPv4, and IPv6 packets
- Secure access control of APs: Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC
- IP address setting: Static IP or dynamic DHCP allocation
- IPv6 forwarding: Yes
- IPv6 portal: Yes
- Local forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP switching reference: Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc.
- Priority mapping: Ethernet port 802.1P identification and marking; Mapping from wireless priorities to wired priorities
- QoS policy mapping: Mapping of different SSIDs/VLANs to different QoS policies
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
- Brand: Aadona
- Product: Aadona AXO-3000-AOM Access Point
- Model Name: AXO-3000-AOM
- Product Series: APOLLO
- Standard 802.11ax: Yes
- Standard Wi-Fi 6: Yes
- Standard MIMO technology: Yes
- Throughput: 3000 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n (max rate: 574 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 2402 Mbps)
- MIMO 2x2: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 128
- Housing Type: IP67
- Power Budget: 1000 mW, 30 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: NA
- Reset button: 1
- Internal Antenna 2*2.4G: 5dBi and 2*5.8G: 7dBi
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- EVM: 802.11b: -10 dB ?; 802. 11g: ?-25 dB; 802.11n: -28 dB ?; 802.11ax: -35 dB
- EVM: 802.11b: -10 dB ?; 802. 11g: ?-25 dB; 802.11n: -28 dB ?; 802.11ax: -35 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 304mm × 181mm × 88mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <16W
- Warranty: 3 Year Warranty
- Brand: Aadona
- Product: Aadona AXO-3600 Access Point
- Model Name: AXO-3600
- Product Series: APOLLO
- Standard 802.11ac: Yes
- Standard Wi-Fi 6: Yes
- Standard MIMO technology: Yes
- Throughput: 3600 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n/ac/ax (max rate: 1182 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 2475 Mbps)
- MIMO 4x4: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 512
- Housing Type: IP67
- Power Budget: 1000 mW, 20 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna Connector: 6 Female N-type connectors for External antenna support
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID: SSID for 2.4GHz: 4, SSID for 5GHz: 8
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 198mm X 198mm X 28mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
- Brand: Aadona
- Product: Aadona AXO-1800L Access Point
- Model Name: AXO-1800L
- Product Series: APOLLO
- Standard 802.11ac: Yes
- Standard Wi-Fi 6: Yes
- Standard MIMO technology: Yes
- Throughput: 1800 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n (max rate: 600 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 1200 Mbps)
- MIMO 2x2: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 128
- Housing Type: IP65
- Power Budget: 1000 mW, 30 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: NA
- Reset button: 1
- Antenna Connector: 4 Female N-type connectors for External antenna support
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard:
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 198mm X 198mm X 28mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
- Brand: Aadona
- Product: Aadona AOS-1200 Access Point
- Model Name: AOS-1200
- Product Series: APOLLO
- Standard 802.11ac: Yes
- Standard Wave 1: Yes
- Standard MIMO technology: Yes
- Throughput: 1200 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n (max rate: 300 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac (max rate: 900 Mbps):
- MIMO 2x2: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 128
- Housing Type: IP65
- Power Budget: 1000 mW, 30 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna Connector: 4 Female N-type connectors for External antenna support
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard:
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 198mm X 198mm X 28mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
- Brand: Aadona
- Product: Aadona AIX-1800 Access Point
- Model Name: AIX-1800
- Product Series: APOLLO
- Ethernet Ports: 2 x 10/100/1000Base-T
- Console Port: NA
- USB 2.0: NA
- PoE: 802.3at
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <13W
- RF Port: Built-in 2.4 GHz 3 dBi antenna and 5 GHz 3 dBi antenna
- Working Frequency Band: 802.11b/g/n: 2.4 GHz to 2.483 GHz; 802.11a/n/ac/ax : 5.150GHz to 5.250GHz 5.250GHz to 5.350GHz 5.725GHz to 5.850GHz
- Modulation Technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 22dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –10°C to +55°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor dual-frequency
- Working Frequency Band: 2.4 GHz and 5 GHz
- Virtual AP (BSSID): 8
- Number of Spatial Streams: 2.4GHz:2, 5GHz:2
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 180 x 180 x 28.5mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
- Brand: Aadona
- Product: Aadona AIX-6820-T Access Point
- Model Name: AIX-6820-T
- Product Series: APOLLO
- Ethernet Ports: 2 x 10/100/1000/2500Mbps Base-T, 1 x BLE module
- Console Port: 1
- USB 2.0: 1
- PoE: 802.3bt
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <30W
- RF Port: Built-in 2.4 GHz 4 dBi antenna and 5 GHz 5 dBi antenna
- Working Frequency Band: 802.11b/g/n: 2.4GHz-2.483GHz ; 802.11a/n/ac/ax : 5.725~5.850GHz ; 5.150~5.350GHz ;5.47~5.725GHz
- Modulation Technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 23dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –10°C to +55°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor tri-band Wi-Fi6
- Working Frequency Band: 3
- Virtual AP (BSSID): 48
- Number of Spatial Streams: 3
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 215 x 215 x 45mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
- Brand: Aadona
- Product: Aadona AIX-3000 Access Point
- Model Name: AIX-3000
- Product Series: APOLLO
- Ethernet Ports: 2 x 10/100/1000/2500Mbps Base-T, 1 x BLE module
- Console Port: 1
- USB 2.0: 2
- PoE: 802.3at
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <20W
- RF Port: Built-in 2.4 GHz 4 dBi antenna and 5 GHz 5 dBi antenna
- Working Frequency Band: 802.11a/n: 5.150 GHz to 5.850 GHz : 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11ac 5.150GHz to 5.250GHz : 5.250GHz to 5.350GHz : 5.725GHz to 5.850GHz
- Modulation Technology: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac BPSK, QPSK, 16-QAM, 64QAM, 256-QAM
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 23dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –10°C to +55°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor dual-frequency
- Working Frequency Band: 2.4 GHz and 5 GHz
- Virtual AP (BSSID): 32
- Number of Spatial Streams: 2
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 201 x 195 x 41mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
- Brand: Aadona
- Product: Aadona AIX-1700 Access Point
- Model Name: AIX-1700
- Product Series: APOLLO
- Ethernet Ports: 2 x 10/100/1000Base-T
- Console Port: 1
- USB 2.0: 1
- PoE: 802.3at
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <13W
- RF Port: Built-in 2.4 GHz 4 dBi antenna and 5 GHz 5 dBi antenna
- Working Frequency Band: 802.11a/n: 5.150 GHz to 5.850 GHz : 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11ac 5.150GHz to 5.250GHz : 5.250GHz to 5.350GHz : 5.725GHz to 5.850GHz
- Modulation Technology: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac BPSK, QPSK, 16-QAM, 64QAM, 256-QAM
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 23dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –10°C to +55°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor dual-frequency
- Working Frequency Band: 2.4 GHz and 5 GHz
- Virtual AP (BSSID): 32
- Number of Spatial Streams: 2
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 247 x 153 x 30mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
- Brand: Aadona
- Product: AIC-1200 Access Point
- Model Name: AIC-1200
- Product Series: APOLLO
- Ethernet Ports: 1 x 10/100/1000Base-T
- Console Port: N/A
- USB 2.0: 1
- PoE: 802.3af
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <15W
- RF Port: Built-in 2.4 GHz 4 dBi antenna and 5 GHz 5 dBi antenna
- Working Frequency Band: 802.11a/n: 5.150 GHz to 5.850 GHz : 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11ac 5.150GHz to 5.250GHz : 5.250GHz to 5.350GHz : 5.725GHz to 5.850GHz
- Modulation Technology: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac BPSK, QPSK, 16-QAM, 64QAM, 256-QAM
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 23dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –0°C to +50°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor dual-frequency
- Working Frequency Band: 2.4 GHz and 5 GHz
- Virtual AP (BSSID): 32
- Number of Spatial Streams: 2
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 247 x 153 x 30mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
- Brand: Aadona

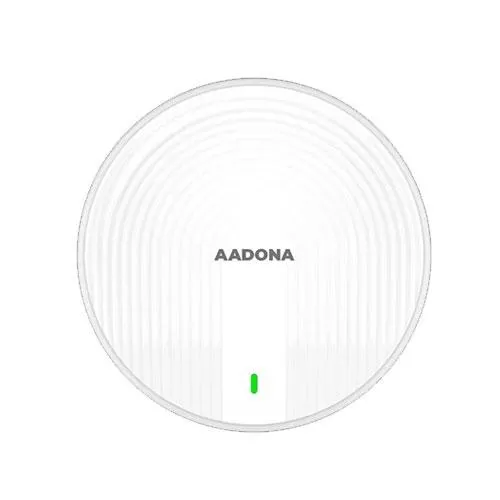

- Product: AXC-7800 Access Point
- Model Name:AXC-7800
- Product Series:APOLLO
- WiFi 6:Yes
- 802.11ax:Yes
- MU-MIMO technology:Yes
- Throughput:7800 Mbps
- Frequency Radio: 2.4GHz:802.11 b/g/n/ac (max rate: 574 Mbps)
- Frequency Radio: 5GHz:802.11 a/n/ac/ax (max rate: 5.1G : 4804Mbps, 5.8G : 2402Mbps)
- MIMO: 2x2, 4x4:Yes
- MU-MIMO:Yes
- Transmit Power:22±2dBm
- Spatial streams:4
- Concurrent Users 320+
- Physical Interfacem 10/100/1000/ 2.5G RJ45 WAN Port:1
- Physical Interface 10/100 / 1000Mbps RJ45 LAN Port:1
- Physical Interface Reset button:1
- Physical Interface Antenna gain:4dBi
- SSID for 2.4GHz:4
- SSID for 5GHz:4
- IP Standard:
- IPv4:Yes
- Watchdog:Yes
- IP Address Setting:Static or DHCP allocation
- Configuration:Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through the controller
- Supported Operating Systems:Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM
- RF Modulation DSSS = DBPSK, DQPSK, CCK
- PPM ±20ppm:
- EVM 802.11b: -10 dB ?; 802. 11g: ?-25 dB; 802.11n: -28 dB ?; 802.11ax: -35 dB
- EVM 802.11b: -10 dB ?; 802. 11g: ?-25 dB; 802.11n: -28 dB ?; 802.11ax: -35 dB
- Channel Bandwidth:Up to 160M
- Operating Temperature: -20-45 °C
- Storage Temperature: -30-70 °C
- Humidity: 5%~95% non-condensing
- Mounting:Ceiling mount preferred
- Device Dimensions:218mm × 54.6mm
- Power input:802.3at 48V PoE; <=15W DC 12V, 3A
- Warranty: 3 Year Warranty
- Brand: Aadona
- Product: AXC-3600 Access Point
- Model Name: AXC-3600
- Product Series: APOLLO
- Standard: WiFi 6; 802.11ax; MU-MIMO technology
- Throughput: 3657 Mbps
- Frequency Radio 2.4GHz: 2.400GHz – 2.484GHz
- Frequency Radio 5GHz: 5.150GHz – 5.850GHz
- MIMO: 4x4; MU-MIMO
- Transmit Power 2.4G: ? 20dBm; 5.8G: ? 19dBm
- Spatial streams 8
- Concurrent Users: 1024
- Physical Interface 10/100/1000/2500Mbps RJ45 WAN Port: 1
- Physical Interface 10/100/1000/2500Mbps RJ45 LAN Port: 1
- Physical Interface Reset button: 1
- Physical Interface Antenna gain 4dBi
- Deployment Options: Standalone Mode; Hardware Controller; Cloud Controller
- Operation Modes - Wireless AP; Gateway; WISP; Repeater (not supported)
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard: IPv4; Watchdog; IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM; DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- EVM: 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB; 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Channel Bandwidth: Up to 160M
- WAN options: Static IP; Dynamic IP; PPPoE; L2TP(Dual Access); PPTP(Dual Access)
- Security: 64/128-bit WEP; EAP; WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES); DoS attack prevention; MAC and IP Address Binding; Stateful Packet Inspection Firewall; MAC Address Filtering; IP Address Filtering; Domain Filtering;White list, static and dynamic blacklist;Secure admission control of wireless terminals;Dynamic CCA-SD (Clear Channel Assessment Signal Detection) for interference;L2-L4 packet filtering and flow classification
- Monitoring: Dashboard(Overview); Real-time Throughput Monitoring; Client List; Local logs; Syslog; Logfile export
- Network and Wireless Seamless client roaming (with controller); Transmit Power configuration; Auto Channel; Hidden SSID; Wireless Client Monitoring; Channel Scanning; AP Management VLAN; SSID VLAN Mapping; Blind area detection and repair; High density application optimization:
- RF Optimization: Beamforming, Band Steering
- Operating Temperature: -20-45 °C
- Storage Temperature: -30-70 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 186mm × 186mm ×37mm
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
- Brand: Aadona

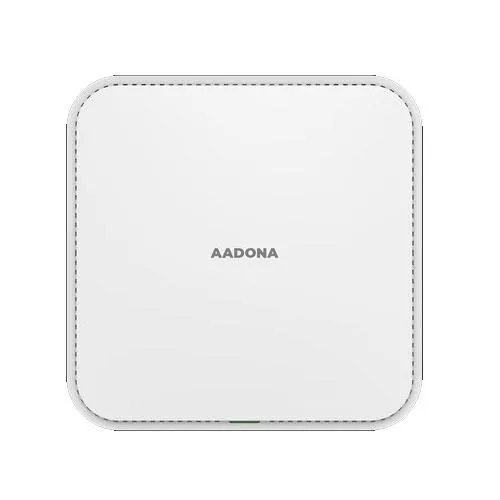

- Product: AXC-3000L Access Point
- Model Name: AXC-3000L
- Product Series: APOLLO
- WiFi 6: Yes
- 802.11ax: Yes
- MU-MIMO technology: Yes
- Throughput: 3000 Mbps
- Frequency Radio: 2.4GHz: 802.11 b/g/n/ac (max rate: 574 Mbps)
- Frequency Radio: 5GHz: 802.11 a/n/ac/ax (max rate: 2402 Mbps)
- 2x2: Yes
- MU-MIMO: Yes
- Transmit Power: 23dBm
- Spatial streams: 4
- Concurrent Users: 256:
- Physical Interface 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna gain: 4.6dBi:
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA:
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard:
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through the controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM
- RF Modulation DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm:
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB ; 80 2 . 1 1 a x : ? -3 5 dB
- Channel Bandwidth: Up to 160M
- Operating Temperature: -20-45 °C
- Storage Temperature: -30-70 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 186mm × 186mm ×37mm
- Power input: 802.3at 48V PoE; <=15W DC 12V, 1.5A
- Warranty: 3 Year Warranty
- Brand: Aadona

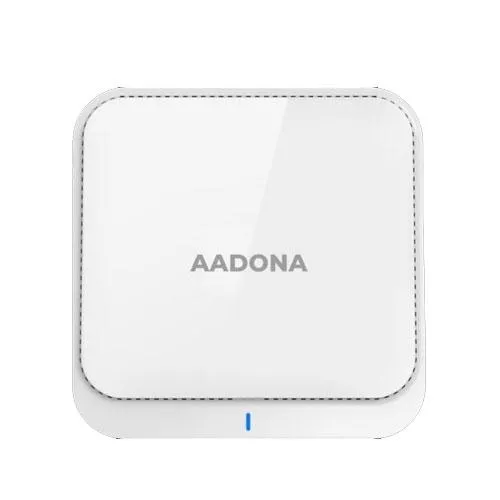

- Product: AXC-1800 Access Point
- Model Name: AXC-1800
- Product Series: APOLLO
- WiFi 6: Yes
- 802.11ax: Yes
- MU-MIMO technology: Yes
- Throughput: 1800 Mbps
- Frequency Radio 2.4GHz: 802.11 b/g/n/ac/ax (max rate: 600 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 1200 Mbps)
- 2x2: Yes
- MU-MIMO: Yes
- Transmit Power: 23dBm
- Spatial streams: 4
- Concurrent Users: 512
- Physical Interface:
- 10/100 /1000Mbps RJ45 WAN Port: 1
- 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna gain: 3dBi
- Deployment Options:
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through the controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM
- RF Modulation DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm:
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Channel Bandwidth: Up to 160M
- Operating Temperature: -2045 °C
- Storage Temperature: -3070 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 198mm X 198mm X 41mm
- Power input: 802.3at 48V PoE; <30W DC 12V, 2A
- Warranty: 3 Year Warranty
- Brand: Aadona

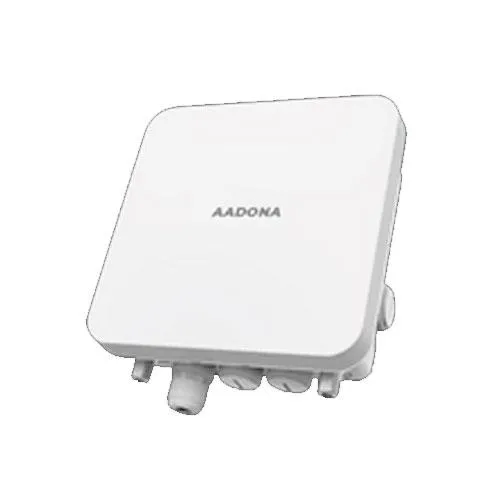

- Product: AXC-1800L Access Point
- Model Name: AXC-1800L
- Product Series: APOLLO
- WiFi 6: Yes
- 802.11ax: Yes
- MU-MIMO technology: Yes
- Throughput: 1800 Mbps
- Frequency Radio: 2.4GHz: 802.11 b/g/n/ac/ax (max rate: 600 Mbps)
- Frequency Radio: 5GHz: 802.11 a/n/ac/ax (max rate: 1200 Mbps):
- 2x2: Yes
- MU-MIMO: Yes
- Transmit Power: 23dBm
- Spatial streams: 4
- Concurrent Users: 200:
- Physical Interface 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface 10/100 / 1000Mbps RJ45 LAN Port: 1
- Physical Interface Reset button: 1
- Physical Interface Antenna gain: 4dBi
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA:
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard:
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through the controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux:
- RF specificationsOFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM
- RF specifications DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm:
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Channel Bandwidth: Up to 160M
- Operating Temperature: -20-45 °C
- Storage Temperature: -30-70 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 168mm X 168mm X 32mm
- Power input:802.3at 48V PoE; <=15W DC 12V, 1.5A
- Warranty: 3 Year Warranty
- Brand: Aadona

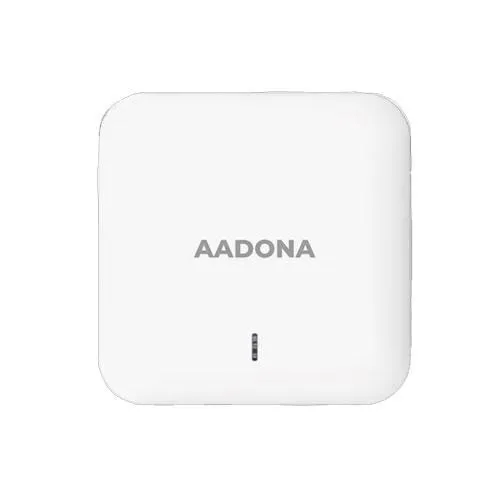

- Product: ASC-1200 Access Point
- Model Name: ASC-1200
- Product Series: APOLLO
- Standard: 802.11ac; Wave 2; MU-MIMO technology
- Throughput: 1200 Mbps
- Frequency Radio 2.4GHz: 2.400GHz – 2.484GHz
- Frequency Radio 5GHz: 5.150GHz – 5.850GHz
- 2.4GHz: 802.11 b/g/n (max rate: 300 Mbps)
- 5GHz: 802.11 a/n/ac (max rate: 900 Mbps)
- MIMO: - 2x2 MU-MIMO
- Spatial streams: 4
- Concurrent Users: 256
- Transmit Power: 28dBm
- Physical Interface 10/100/1000Mbps RJ45 WAN Port: 1
- Physical Interface 10/100/1000Mbps RJ45 LAN Port: 1
- Physical Interface Reset button: 1
- Physical Interface Antenna gain: 5dBi
- Deployment Options: - Standalone Mode Hardware Controller; Cloud Controller (Note: Currently hosted internationally, India hosting planned for 2021)
- Operation Modes: - Wireless AP; Gateway; WISP; Repeater (not supported)
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard: IPv4; Watchdog; IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM; DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- EVM: 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB; 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- WAN options: - Static IP; Dynamic IP; PPPoE; L2TP(Dual Access); PPTP(Dual Access)
- Security 64/128-bit WEP ;EAP WPA, WPA2, WPA PSK, WPA2 PSK (TKIP/AES) ;DoS attack prevention : ;MAC and IP Address Binding ;Stateful Packet Inspection Firewall ;MAC Address Filtering ;IP Address Filtering ;Domain Filtering ;White list, static and dynamic blacklist ;Secure admission control of wireless terminals ;L2-L4 packet filtering and flow classification
- Monitoring: - Dashboard(Overview); Real-time Throughput Monitoring; Client List; Local logs; Syslog; Logfile export
- Network and Wireless Seamless client roaming (with controller); Transmit Power configuration; Auto Channel; Hidden SSID; Wireless Client Monitoring; Channel Scanning; AP Management VLAN; SSID VLAN Mapping; Blind area detection and repair; High density application optimization:
- RF Optimization Band Steering;Airtime Fairness ;WMM Optimization ;Client Limiting ;RSSI Threshold ;Maximum ratio combining (MRC) ;Space-time block coding (STBC) ;Low-density parity-check code (LDPC)
- Operating Temperature: -30~55 °C
- Storage Temperature: -40~70 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 198mm X 198mm X 28mm
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
- Brand: Aadona

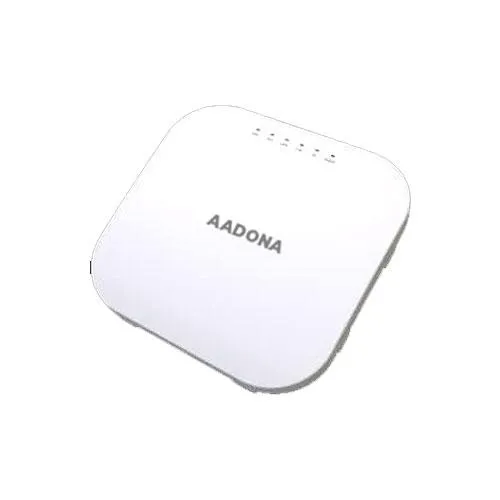

- Product: ASC-1200L Access Point
- Product Model:ASC-1200L
- Product Series:APOLLO
- Standard 802.11ac:Yes
- Wave 2:Yes
- MU-MIMO technology:Yes
- Throughput:1200 Mbps
- Frequency Radio:2.4GHz: 2.400GHz – 2.484GHz
- Frequency Radio:5GHz: 5.150GHz – 5.850GHz
- MIMO 2x2:Yes
- MU-MIMO:Yes
- Spatial streams:4
- Concurrent Users:128
- Transmit Power:20dBm
- 10/100 Mbps RJ45 WAN Port:1
- 10/100 Mbps RJ45 LAN Port:1:
- SSID for 2.4GHz:4
- SSID for 5GHz:4
- IP Address Setting:Static or DHCP allocation
- Local management and Firmware upgrade
- Remote Management through controller:
- Supported Operating Systems:Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux:
- Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM
- Modulation DSSS = DBPSK, DQPSK, CCK
- PPM:±20ppm:
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2045 °C
- Storage Temperature: -4070 °C
- Humidity: 5%~95% non-condensing
- Mounting:Ceiling mount preferred
- Device Dimensions:168mm X 168mm X 32mm
- Power input:802.3af 48V PoE; <10W
- Warranty: 3 Year Warranty
- Brand: Aadona

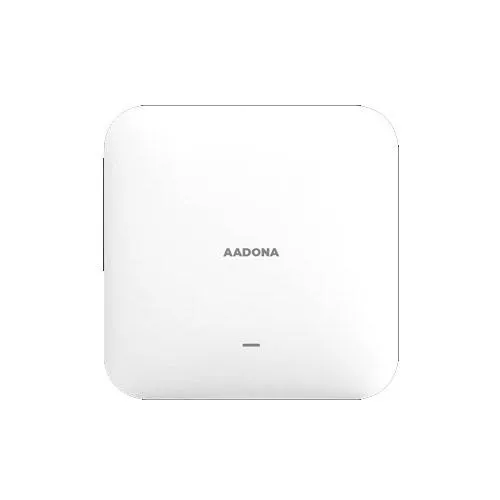

- Product: ASC-1200L V2 Access Point
- Product Model:ASC-1200L V2
- Product Series:APOLLO
- 802.11ac:Yes
- Wave 2:Yes
- MU-MIMO technology:Yes
- Throughput:1200 Mbps
- Frequency Radio:2.4GHz: 2.400GHz – 2.484GHz
- Frequency Radio:5GHz: 5.150GHz – 5.850GHz
- MIMO 2x2:Yes
- MU-MIMO:Yes
- Spatial streams:4
- Concurrent Users:128
- Transmit Power:20dBm
- Physical Interface:
- 10/100/1000 Mbps RJ45 WAN Port:1
- 10/100/1000 Mbps RJ45 LAN Port:1
- Reset button:1
- Antenna gain:4.6 dBi
- Deployment Options:
- Standalone Mode:Yes
- Hardware Controller:Yes
- Cloud Controller:Yes:
- Wireless AP:Yes
- Gateway:Yes
- WISP:Yes
- SSID for 2.4GHz:4
- SSID for 5GHz:4
- IP Standard:
- IPv4:Yes
- Watchdog:Yes
- IP Address Setting:Static or DHCP allocation
- Web Interface (HTTP):
- Local management and Firmware upgrade
- Remote Management through controller
- System RequirementsSupported Operating Systems:Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux:
- Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM
- Modulation DSSS = DBPSK, DQPSK, CCK
- PPM:±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB :
- Operating Temperature: -20 - +45 °C
- Storage Temperature: -40 - +70 °C
- Humidity: 5%~95% non-condensing
- Mounting:Ceiling mount preferred
- Device Dimensions:168mm X 168mm X 32mm
- Power input:802.3af 48V PoE; <10W
- Warranty: 3 Year Warranty
- Brand: Aadona

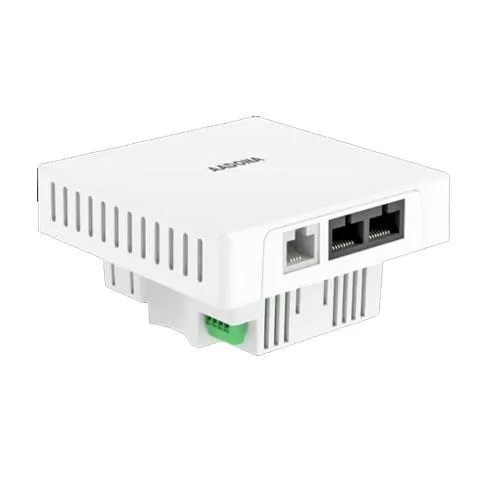

- Product: ASW-1200 Access Point
- Model Name:ASW-1200
- Product Series:APOLLO
- Standard:802.11ac
- Throughput:1200 Mbps
- 2.4GHz:802.11 b/g/n (max rate: 300 Mbps)
- 5GHz:802.11 a/n/ac (max rate: 900 Mbps)
- MIMO:Yes
- Transmit Power:19dBm
- Spatial Streams:4
- Concurrent Users:128:
- 10/100Mbps RJ45 WAN Port:1
- 10/100Mbps RJ45 LAN Port:2
- RJ11 Passthrough Port:1
- Antenna Gain:2dBi
- SSID for 2.4GHz:4
- SSID for 5GHz:4
- IP Address Setting:
- Configuration:Static or DHCP allocation
- System Requirements:
- Frequency Range:2.400GHz – 2.484GHz (2.4GHz)
5.150GHz – 5.850GHz (5GHz) - Button:Wi-Fi On/Off + Reset
- Web Interface (HTTP):
- Management:Local management and Firmware upgrade
- Remote Management:Yes, through controller
- System Requirements:
- OS Compatibility:Microsoft Windows 98SE, NT, 2000, XP, VistaTM, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
- Specifications:
- RF Specifications:
- Modulation:PPM ±20ppm
- EVM:OFDM: BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM
DSSS: DBPSK, DQPSK, CCK - WAN Options:Static IP, Dynamic IP, PPPoE, L2TP(Dual Access), PPTP(Dual Access)
- Security:
- Encryption:64/128-bit WEP, EAP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES)
- DoS Attack Prevention:Yes
- MAC and IP Binding:Yes
- Firewall:Stateful Packet Inspection, MAC Address Filtering, IP Address Filtering, Domain Filtering
- Temperature and Humidity:Operating: -3055 °C, Storage: -4070 °C, Humidity: 5%~95% non-condensing
- Mounting:InWall or Wall Mount preferred
- Dimensions:86mm X 86mm X 35mm
- Power Input:802.3af 48V PoE
- Warranty: 3 Year Warranty
Your Go-To Source for High-Performance IT Equipment
As leading aadona access point dealers in the IT hardware industry, we are committed to delivering reliable, high-performance server solutions that cater to the dynamic needs of modern businesses. Our extensive portfolio includes a wide range of servers—rack servers, tower servers, blade servers, and customized enterprise-grade systems—from globally recognized brands such as Dell, HP, Lenovo, Cisco, and more. Whether you are a small business looking for an entry-level server or a large enterprise seeking powerful, scalable data center infrastructure, we provide tailored solutions that align with your technical requirements and budget.
Our services go beyond just sales—we offer expert consultation to help clients choose the right server configurations based on workload, performance goals, and scalability. Each product we supply is rigorously tested for quality assurance and comes with warranty options and after-sales support, ensuring peace of mind and long-term performance. With a team of knowledgeable professionals, competitive pricing, and a customer-centric approach, we have established ourselves as a trusted partner for businesses, IT integrators, system administrators, and government organizations.
Whether you're upgrading your existing infrastructure, setting up a new data center, or integrating servers into a hybrid IT environment, our goal is to deliver dependable hardware solutions that empower your operations and drive digital transformation.
Most Searchable Keywords
aadona access point price in hyderabad, aadona access point cost hyderabad, buy aadona access point in hyderabad, aadona access point pricelist hyderabad, aadona access point dealers hyderabad, aadona access point suppliers hyderabad, aadona access point in hyderabad, aadona access point shop hyderabad, aadona access point quotes hyderabad, aadona access point distributors hyderabad, affordable aadona access point hyderabad, aadona access point installation hyderabad, aadona access point maintenance hyderabad, top most aadona access point in hyderabad, aadona access point offers hyderabad, aadona access point configurations hyderabad, aadona access point pricing hyderabad, aadona access point comparison hyderabad, aadona access point features hyderabad, aadona access point hyderabad, aadona access point reviews hyderabad, aadona access point availability hyderabad, cheap aadona access point hyderabad, aadona access point IT solutions hyderabad, aadona access point hardware hyderabad, best aadona access point dealers hyderabad, aadona access point networking hyderabad, aadona access point enterprises hyderabad, aadona access point purchase consultation hyderabad, aadona access point deals in hyderabad, aadona access point dealers in hyderabad, aadona access point suppliers price hyderabad, buy aadona access point hyderabad, aadona access point purchased in hyderabad, aadona access point dealer price hyderabad, aadona access point authorized dealers hyderabad, aadona access point resellers hyderabad, aadona access point India, aadona access point distributors hyderabad, aadona access point prices hyderabad, aadona access point shop hyderabad, aadona access point stores in hyderabad, discount aadona access point hyderabad, aadona access point pricing range hyderabad, affordable aadona access point price hyderabad, aadona access point consultants hyderabad, aadona access point sale hyderabad, New aadona access point hyderabad, aadona access point offers hyderabad, aadona access point vendors hyderabad, purchase aadona access point in hyderabad, aadona access point installations hyderabad, best aadona access point in hyderabad, aadona access point shops, aadona access point maintenance in hyderabad, local aadona access point dealers hyderabad, hyderabad authorized aadona access point, aadona access point products hyderabad, aadona access point distributors in hyderabad, best aadona access point pricelist hyderabad, aadona access point distributor hyderabad, Dell serveraadona access point suppliers at hyderabad, hyderabad aadona access point retailer, aadona access point wholesale hyderabad, aadona access point deals in hyderabad, aadona access point reseller hyderabad, best aadona access point distributor in hyderabad, aadona access point supplier hyderabad, cheap aadona access point in hyderabad, aadona access point shop hyderabad, aadona access point for business hyderabad, most trusted aadona access point in hyderabad, aadona access point sales hyderabad, aadona access point parts hyderabad, aadona access point IT solution in hyderabad, business aadona access point supplier hyderabad, aadona access point installation hyderabad, enterprise provider hyderabad, aadona access point hardware distributor hyderabad, hyderabad aadona access point partners, aadona access point store near me hyderabad, authorized aadona access point distributor hyderabad, aadona access point experts hyderabad, top aadona access point distributors near hyderabad, aadona access point sales near me hyderabad, aadona access point equipment hyderabad, aadona access point infrastructure in hyderabad, aadona access point stores near by hyderabad, aadona access point, aadona access point price, top aadona access point in hyderabad, aadona access point dealer in hyderabad, latest aadona access point price hyderabad, top aadona access point dealers hyderabad, aadona access point good price in hyderabad
