Pricelist of Best aadona switch Models

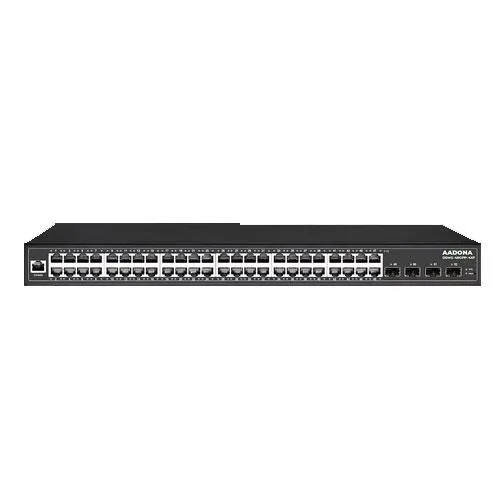

AADONA DSMS 48GPP 4XF POE WEB SMART SWITCH

Brand: Aadona
Product: DIANA DSMS-48GPP-4XF 48 Port Web Smart POE Switch
Model: DSMS-48GPP-4XF
Product Family: Diana
Port: 48G + 4* 10 G SFP Smart Managed L2 Switch
10M/100M/1G RJ45 Port: 48
100M/1G SFP Port: 4
Total Ports: 52
Switching Bandwidth: 256 Gbps (Nonblocking)
Forwarding Performance: 131 Mpps
MAC Address: 16K
Jumbo Frames: 9216 Bytes
Operating Temperature: 10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~75?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 800W
Max PoE Power Per Port: 30W
PoE Standard: 802.3af & 802.3at
VLAN: 4k VLANs
Link Aggregation: Max 8 aggregation groups, each supports 8 ports
Port: Auto-MDIX; Auto-negotiation
Warranty: 3 Year Warranty

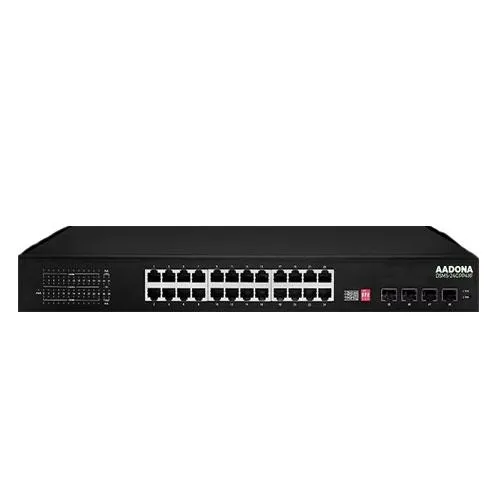

AADONA DSMS DSMS 24GPP 4XF POE WEB SMART SWITCH

Brand: Aadona
Product: DIANA DSMS-24GPP-4XF 24 Port Web Smart POE Switch
Model: DSMS-24GPP-4XF
Product Family: Diana
Port: 24G + 4* 10 G SFP Smart Managed L2 Switch
10M/100M/1G RJ45 Port: 24
100M/1G SFP Port: 4
Total Ports: 28
Switching Bandwidth: 256 Gbps (Nonblocking)
Forwarding Performance: 92.32 Mpps
MAC Address: 16K
Jumbo Frames: 9216 Bytes
Operating Temperature: 10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~75?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 375W
Max PoE Power Per Port: 30W
PoE Standard: 802.3af & 802.3at
VLAN: 4k VLANs
Link Aggregation: Max 8 aggregation groups, each supports 8 ports
Port: Auto-MDIX; Auto-negotiation
Warranty: 3 Year Warranty

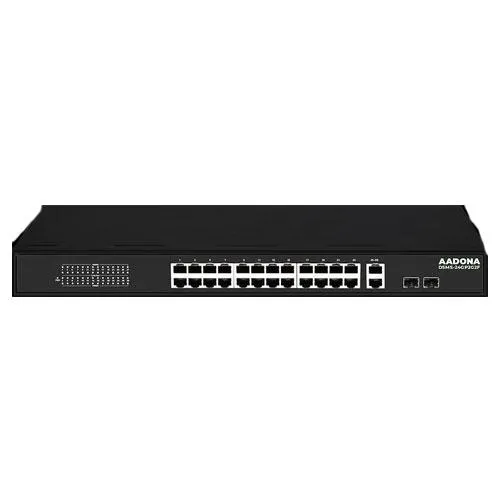

AADONA DSMS 24GP 2G 2F POE WEB SMART SWITCH

Brand: Aadona
Product: DIANA DSMS-24GP-2G-2F 24 Port Web Smart POE Switch
Model: DSMS-24GP-2G-2F
Product Family: Diana
Port: 24G + 2G Copper + 2 G SFP Smart Managed L2 Switch
10M/100M/1G RJ45 Port: 26
100M/1G SFP Port: 2
Total Ports: 28
Switching Bandwidth: 56 Gbps (Nonblocking)
Forwarding Performance: 40.32 Mpps
MAC Address: 8K
Jumbo Frames: 9216 Bytes
Operating Temperature: 10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~75?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 400W
Max PoE Power Per Port: 30W
PoE Standard: 802.3af & 802.3at
VLAN: 4k VLANs
Port: Auto-MDIX; Auto-negotiation
Warranty: 3 Year Warranty

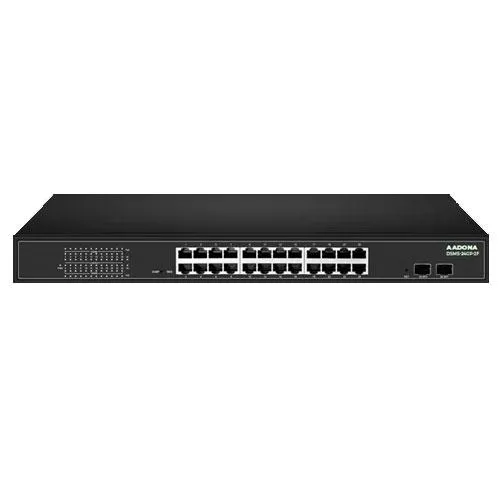

AADONA DSMS 24GP 2F POE WEB SMART SWITCH

Brand: Aadona
Product: DIANA DSMS-24GP-2F 24 Port Web Smart POE Switch
Model: DSMS-24GP-2F
Product Family: Diana
Port: 24G + 2 G SFP Smart Managed L2 Switch
10M/100M/1G RJ45 Port: 24
100M/1G SFP Port: 2
Total Ports: 26
Switching Bandwidth: 52 Gbps (Nonblocking)
Forwarding Performance: 38.6 Mpps
MAC Address: 8K
Jumbo Frames: 9216 Bytes
Operating Temperature: 10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~75?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 400W
Max PoE Power Per Port: 30W
PoE Standard: 802.3af & 802.3at
VLAN: 4k VLANs
Port: Auto-MDIX; Auto-negotiation
Warranty: 3 Year Warranty

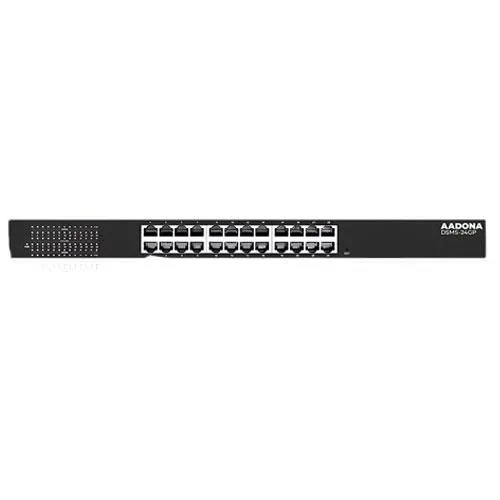

AADONA DSMS 24GP POE WEB SMART SWITCH

Brand: Aadona
Product: DIANA DSMS-24GP 24 Port Web Smart POE Switch
Model: DSMS-24GP
Product Family: Diana
Port: 24G Smart Managed L2 Switch
10M/100M/1G RJ45 Port: 24
100M/1G SFP Port: NA
Total Ports: 24
Switching Bandwidth: 48 Gbps (Nonblocking)
Forwarding Performance: 35.7 Mpps
MAC Address: 8K
Jumbo Frames: 9216 Bytes
Operating Temperature: 10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~75?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 400W
Max PoE Power Per Port: 30W
PoE Standard: 802.3af & 802.3at
VLAN: 4k VLANs
Port: Auto-MDIX; Auto-negotiation
Warranty: 3 Year Warranty

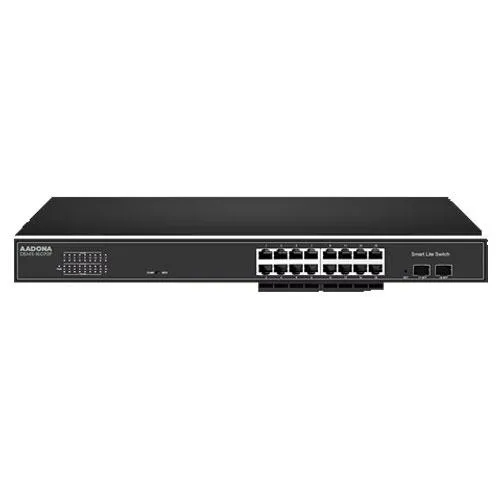

AADONA DSMS 16GP 2F GIGABIT SWITCH

Brand: Aadona
Product: DIANA DSMS-16GP2F 8 Port Web Smart POE Switch
Model Name: DSMS-16GP-2F
Product Family: Diana
Port: 16 Port 10/100M/1000M Ethernet + 2 Port 100/1000M SFP Uplink L2 Web Managed PoE Switch
10M/100M/1G RJ45 Port: 16
100M/1G SFP Port: 2
Total Ports: 18
Switching Bandwidth: 56 Gbps (Nonblocking)
Forwarding Performance: 40.32 Mpps
MAC Address: 8K
Jumbo Frames: 9216 Bytes
Operating Temperature: -10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~70?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 300W
Max PoE Power Per Port: 30W
PoE Standard: 802.3af & 802.3at
VLAN: 4k VLANs
Port-based VLANs: Yes
Spanning Tree: Yes
Link Aggregation: Max 8 aggregation groups, each supports 8 ports
Static aggregation: Yes
Dynamic aggregation: Yes
Port Mirror: Yes (Many-to-one)
Loop Guard: Yes
Port flow control: Half-duplex-based back pressure control, Full-duplex based on PAUSE frames, Port-based input/output bandwidth management
IGMP Snooping: Yes (IGMPv1/2/3 MLDv1/2 Snooping)
DHCP Snooping: Yes
Storm suppression: Yes (Unknown unicast, multicast, Unknown multicast, Storm suppression of broadcast type, Storm suppression based on bandwidth tuning, Storm filtering)
Warranty: 3 Year Warranty

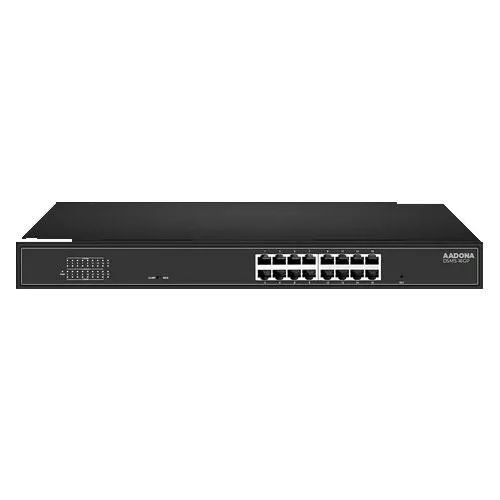

AADONA DSMS 16GP WEB SMART POE SWITCH

Brand: Aadona
Product: DIANA DSMS-16GP 16 Port Web Smart POE Switch
Port: 16 Port
Model Name: DSMS-16GP
Product Family: Diana
10M/100M/1G RJ45 Port: 16
100M/1G SFP Port: NA
Total Ports: 16
Switching Bandwidth: 32 Gbps (Nonblocking)
Forwarding Performance: 23.8 Mpps
MAC Address: 8K
Jumbo Frames: 9216 Bytes
Operating Temperature: -10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~70?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 300W
VLAN: 4k VLANs
Port-based VLANs: Yes
Spanning Tree: Yes
Link Aggregation: Max 8 aggregation groups, each supports 8 ports
Static aggregation: Yes
Dynamic aggregation: Yes
Port Mirror: Yes (Many-to-one)
Loop Guard: Yes
Port flow control: Half-duplex-based back pressure control, Full-duplex based on PAUSE frames, Port-based input/output bandwidth management
IGMP Snooping: Yes (IGMPv1/2/3 MLDv1/2 Snooping)
DHCP Snooping: Yes
Storm suppression: Yes(Unknown unicast, multicast, Unknown multicast, Storm suppression of broadcast type, Storm suppression based on bandwidth tuning, Storm filtering)
Warranty: 3 Year Warranty

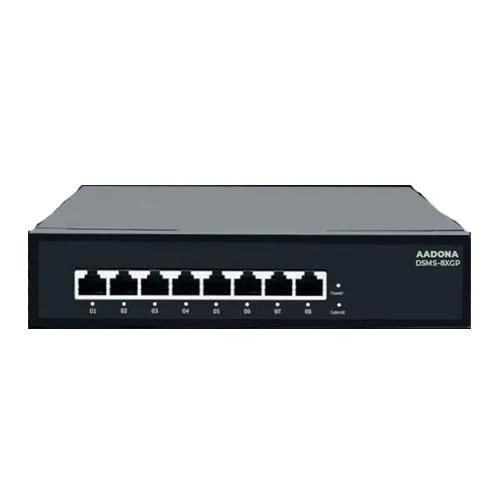

AADONA DSMS 8XGP NETWORK SWITCH

Brand: Aadona
Product: DIANA DSMS-8XGP 8 Port Web Smart POE Switch
Port: 8 Port
Model Name: DSMS-8XGP
Product Family: Diana
10M/100M/1G RJ45 Port: 8
100M/1G SFP Port: NA
Total Ports: 8
Switching Bandwidth: 160 Gbps (Nonblocking)
Forwarding Performance: 115.8 Mpps
MAC Address: 16K
Jumbo Frames: 9216 Bytes
Operating Temperature: -10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~70?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 150W
Max PoE Power Per Port: 30W
PoE Standard: 802.3af & 802.3at
Link Aggregation: Max 8 aggregation groups, each supports 8 ports
Port flow control: Half-duplex-based back pressure control, Full-duplex based on PAUSE frames, Port-based input/output bandwidth management
IGMP Snooping: Yes (IGMPv1/2/3 MLDv1/2 Snooping)
Storm suppression: Yes (Unknown unicast, multicast, Unknown multicast, Storm suppression of broadcast type, Storm suppression based on bandwidth tuning, Storm filtering)
Port: Auto-MDIX; Auto-negotiation
Warranty: 3 Year Warranty

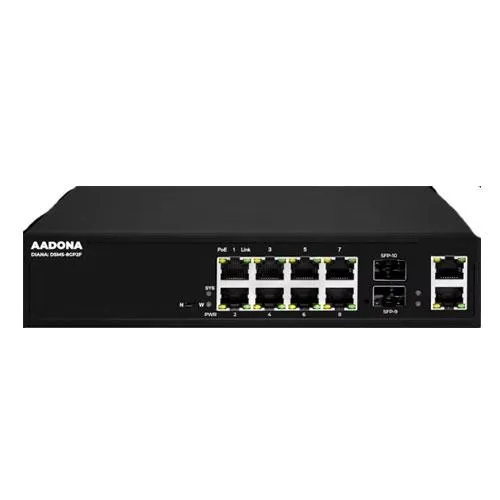

AADONA DSMS 8GP 2F WEB SMART SWITCH

Brand: Aadona
Product: DIANA DSMS-8GP-2F Web Smart POE Switch
Port: 8G + 2G SFP Web Managed L2 Switch
Model Name: DSMS-8GP-2F
Product Family: Diana
10M/100M/1G RJ45 Port: 8
100M/1G SFP Port: 2
Total Ports: 10
Switching Bandwidth: 20Gbps
Forwarding Performance: 14.44Mpps
MAC Address: 8K
Jumbo Frames: 9216 Bytes
Operating Temperature: -10°C to 55°C
Operating humidity: 10%~90% Non-condensation
Storage Temperature: -40?~70?
Storage humidity: 5%~95% Non-condensation
AC Input: AC Input 100240V 5060Hz (Internal)
Total PoE Budget: 150W
Max PoE Power Per Port: 30W
PoE Standard: 802.3af & 802.3at
Link Aggregation: Max 8 aggregation groups, each supports 8 ports
Port: Auto-MDIX; Auto-negotiation
Warranty: 3 Year Warranty

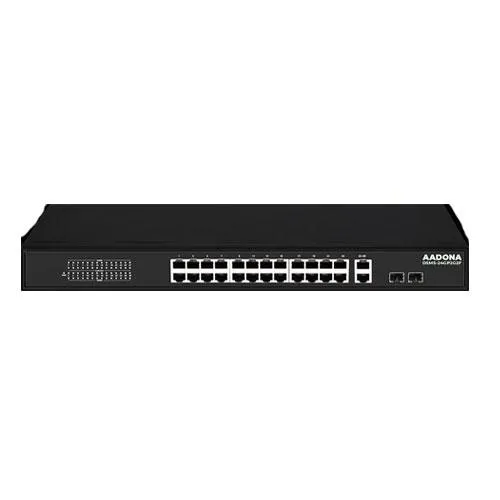

AADONA DUS 24G 2G 2F UNMANAGED NON POE SWITCH

Brand: Aadona
Product: DIANA DUS-24G-2G-2F 24 Port Unmanaged Non POE Switch
Model Name: DUS-24G-2G-2F
Product Family: Diana
Port: 24 Port 10/100/1000 + 2G + 2SFP Uplink Ports Unmanaged Switch
10M/100M/1000M RJ45 Port: 24
10M/100M/1000M Uplink RJ45 Port: 2
10M/100M/1000M SFP Uplink Port: 2
Total Ports: 28
Switching Bandwidth: 56 Gbps
Packet Forwarding: 40.32 Mpps
Exchange Mechanism: Store & Forward
MAC Address: 8K
Environmental Specification:
Operating Temperature: -10 to +55?
Operating Humidity: 5%?90% RH Non-condensing
Storage Temperature: -40? to +75?
Storage Humidity: 5%?95% RH Non-condensing
FAN Less: Yes
AC Input: AC input 100240V 5060Hz 1A Internal Power Supply
Power Consumption: <30W
IEEE 802.3: Yes
IEEE 802.3X: Yes
IEEE 802.3i 10BASE-TX: Yes
IEEE 802.3u 100BASE-TX: Yes
IEEE 802.3ab 1000BASE-T: Yes
IEEE 802.3z 1000BASE-X: Yes
IEEE 802.3x Flow control: Yes
Normal Mode: 100 meters
Port-Based VLAN/Port Isolation: Yes
Ethernet 10Mbps half-duplex: Yes
Fast Ethernet 100Mbps half-duplex: Yes
Gigabit Ethernet 1000Mbps half-duplex: Yes
Gigabit Ethernet 2000Mbps full-duplex: Yes
10BASE-T: Cat3,4,5 UTP(?250 meters)
100BASE-TX: Cat5 or later UTP(150 meters)
1000BASE-TX: Cat6 or later UTP(150 meters)
Lightning Protection Level: 3KV 8/20us; IP30
Dimensions (H) x (W) x (D) mm: 440mm140mm45mm

AADONA DUS 16G NON POE GIGABIT SWITCH

Brand: Aadona
Product: DIANA DUS-16G 16 Port Unmanaged Non POE Switch
Model Name: DUS-16G
Port: 16 Port 10/100/1000M Unmanaged Switch
Product Family: Diana:
10M/100M/1000M RJ45 Port: 16
10M/100M/1000 Uplink RJ45 Port: NA
10M/100M/1000M SFP Uplink Port: NA
Total Ports: 16
Switching Bandwidth: 56 Gbps
Packet Forwarding: 14.44 Mpps
Exchange Mechanism: Store & Forward
System Buffer: 2.5M
MAC Address: 4K
Jumbo Frames: 9K
DIP Switch: N:(standard normal); V:(port isolation); C:(Flow Control mode)
Port Based Isolation: Yes:
Operating Temperature: -10-55?
Operating Humidity: 10%?90% RH Non-condensing
Storage Temperature: -40??75?
Storage Humidity: 5%?90% RH Non-condensing
FAN Less: Yes:
AC Input: Internal Power Supply AC input 100240V 5060Hz 1A
Power Consumption: ?15W
IEEE 802.3X: Yes
IEEE 802.3i 10BASE-TX: Yes
IEEE 802.3u 100BASE-TX: Yes
IEEE 802.3x Flow control: Yes:
Normal Mode: Up to 100 meters
Ethernet 10Mbps half-duplex: Yes
Fast Ethernet 100Mbps half-duplex: Yes
Gigabit Ethernet 1000Mbps half-duplex: Yes
Gigabit Ethernet 2000Mbps full-duplex: Yes:
10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?250m)
100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?150m)
1000Base-TX: Pair 2 Category 6 and above UTP/STP(?150m)
Lightning Protection: 3KV 8/20us; IP30
Product Dimensions (H) x (W) x (D) mm: 210mm105mm45mm
Weight: 0.6kg
Warranty: 2 Year + 1 Year Extended Warranty (Max 3 Year)

AADONA DUS 8G 2F NON POE GIGABIT SWITCH

Brand: Aadona
Product: DIANA DUS-8G-2F Unmanaged Non POE Switch
Model Name: DUS-8G-2F
Port: 8 Port 10/100/1000M + 2G SFP Uplink Switch
Product Family: Diana:
10M/100M/1000M RJ45 Port: 8
10M/100M/1000 Uplink RJ45 Port: NA
10M/100M/1000M SFP Uplink Port: 2
Total Ports: 10
Switching Bandwidth: 20 Gbps
Packet Forwarding: 14.44 Mpps
Exchange Mechanism: Store & Forward
MAC Address: 54K
System Buffer: 2.5M
Jumbo Frames: 9K
Operating Temperature: -10-55?
Operating Humidity: 10%?90% RH Non-condensing
Storage Temperature: -40??75?
Storage Humidity: 5%?90% RH Non-condensing
Product Dimensions: 220mm105mm32mm
Weight: 1.1 kg
FAN Less: Yes
AC Input: AC input 100240V 5060Hz Internal Power Supply
DC Input: DC Input 48~57V
Power Consumption: ?6W
IEEE 802.3X, IEEE 802.1q VLAN: Yes
IEEE 802.3i 10BASE-TX: Yes
IEEE 802.3u 100BASE-TX: Yes
IEEE 802.3x Flow control: Yes
Normal Mode: Up to 100 meters
Port Based VLAN / Port Isolation: Yes
Ethernet: 10Mbps half-duplex, 20Mbps full duplex
Fast Ethernet: 100Mbps half-duplex, 200Mbps full duplex
Gigabit Ethernet: 1000Mbps half-duplex, 2000Mbps full-duplex
10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?100m)
100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?100m)
1000Base-TX: Pair 2 Category 6 and above UTP/STP(?100m)
Lightning Protection Level: 3KV 8/20us
Warranty: 2 Year + 1 Year Extended Warranty (Max 3 Year)

AADONA DUS 8G 25 NON POE GIGABIT SWITCH

Brand: Aadona
Product: DIANA DUS-8G-25 8 Port Unmanaged Non POE Switch
Model: DUS-8G-25
Port: 8 Port Full 2.5G Switch
Fixed Port: 8*10M/100M/1000M/2.5G RJ45 port
Network Protocol: IEEE 802.3/U, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Port Specification: 10M/100M/1000M/2.5G Auto
Packet Buffer: Up to 12Mbit
Jumbo Frame: Up to 12KB
Bandwidth: 40Gbps
Packet Forwarding: 29.76Mpps
MAC Address: 16K
Transmission Distance: - 10BASE-T: Cat3,4,5 UTP (?250 meter): - 100BASE-TX: Cat5 or later UTP (150 meter): - 2500/1000BASE-TX: Cat6 or later UTP (150 meter)
LED Indicator: - PWR: Power LED: - Port: 10M/100M LED, 1G LED, 2.5G LED
Operating Temperature/Humidity: -10°C to +55°C; 5% to 90% RH Non-condensation
Storage Temperature/Humidity: -40°C to +75°C; 5% to 95% RH Non-condensation
Power: DC 12V
Installation: Desktop (optional wall+ machine hanging kit)
Lightning Protection Level: 6KV 8/20us; IP30
Warranty: Whole device for 2+ years (Accessories not included)
Weight(kg): 0.8kg/1.2kg

AADONA DUS 8G NON POE GIGABIT SWITCH

Brand: Aadona
Product: DIANA DUS-8G 8 Port Unmanaged Non POE Switch
Port:8 Port 10/100/1000M Unmanaged Switch
Model Name:DUS-8G
Product Family:Diana
10M/100M/1000M RJ45 Port:8
10M/100M/1000 Uplink RJ45 Port:—
10M/100M/1000M SFP Uplink Port:—
Total Ports:8
Switching Bandwidth:16 Gbps
Packet Forwarding:11.52 Mpps
Exchange Mechanism:Store & Forward
MAC Address:2K
System Buffer:2.5M
Jumbo Frames:9K
Operating Temperature:-10-55?
Operating Humidity:10%?90% RH Non-condensing
Storage Temperature:-40??75?
Storage Humidity:5%?90% RH Non-condensing
FAN Less:Yes
Power Input:External Power Supply DC 12V, 0.5A
Power Consumption:?6W
Transmission Distance:IEEE 802.3X:Yes
Transmission Distance:IEEE 802.3i 10BASE-TX:Yes
Transmission Distance:IEEE 802.3u 100BASE-TX:Yes
Transmission Distance:IEEE 802.3x Flow control:Yes
Normal Mode:Up to 100 meters
Ethernet 10Mbps half-duplex:Yes
Fast Ethernet 100Mbps half-duplex:Yes
Gigabit Ethernet 1000Mbps half-duplex:Yes
Gigabit Ethernet 2000Mbps full-duplex:Yes
NETWORK MEDIA:
10Base-T:Pair 2 Category 3(cat 3) and above UTP/STP(?250m)
100Base-TX:Pair 2 Category 5(cat 5) and above UTP/STP(?150m)
1000Base-TX:Pair 2 Category 6 and above UTP/STP(?150m)
Lightning Protection Level:3KV 8/20us; IP30
Product Dimensions (H x W x D):175 X 75 X 28mm
Weight:0.4kg
Warranty:2 Year + 1 Year Extended Warranty (Max 3 Year)

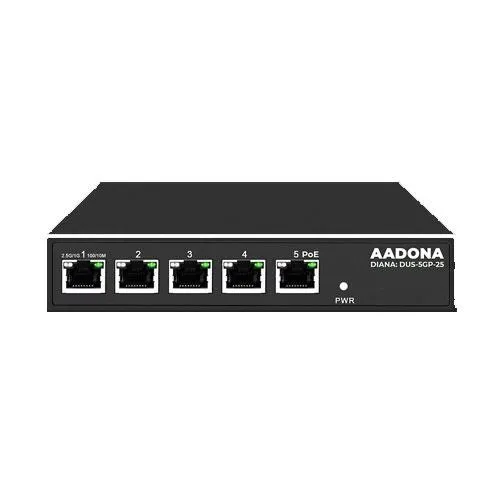

AADONA DUS 5GP 25 NON POE GIGABIT SWITCH

Brand: Aadona
Product: DIANA DUS-5GP-25 Non Unmanaged POE Switch
Model: DUS-5G-25
Product: 5 Port Full 2.5G Switch
Fixed Port: 5*10M/100M/1000M/2.5G RJ45 port
Network protocol: IEEE 802.3/U?IEEE 802.3ab?IEEE 802.3bz?IEEE 802.3x
Port Specification: 10M/100M/1000M/2.5G Auto
Packet Buffer: Up to 12Mbit
Jumbo frame: up to 12KB
Bandwidth: 25 Gbps
Packet Forwarding: 18.7 Mpps
MAC Address: 16K
Transmission Distance: 10BASE-T ? Cat3,4,5 UTP(?250 meter) 100BASE-TX ? Cat5 or later UTP(150 meter) 2500/1000BASE-TX ?Cat6 or later UTP(150 meter)
LED Indicator: PWR:Power LED Port:10M//100 LED; 1G LED; 2.5G LED
Operating Temperature/Humidity: -10?+55°C?5%?90% RH Non condensation
Storage Temperature/Humidity: -40?+75°C?5%?95% RH Non condensation
Power: DC 12V
N.W/G.W?kg?: 0.57kg/0.92kg
Installation: Desktop (optional wall+ machine hanging kit)
Lightning protection level: 6KV 8/20us? IP30
Certificate: CE mark, commercial?CE/LVD EN60950? RoHS?
Warranty: Whole device for 2+ year(Accessories not included)
