Pricelist of Best mimaki plotter Models

Brand: Mimaki

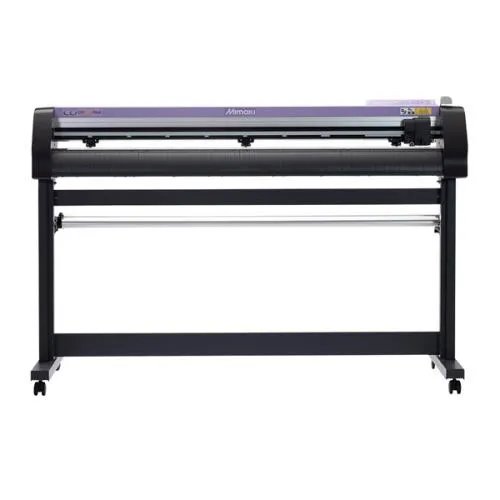

Model No: CG 130FXII Plus Cutting Plotter
Acceptable sheet width: 90mm~1,580mm (3.54"~62.0")
Rolled media weight: 18kg (40 lb) or less
Roll outsied diameter: ?200mm (7.87") or less
Effective cutting area *1: 1,300mm x 51m (51.2" x 167')
Maximum auto cutting width *2: 1,425mm (56.1")
Maximum cutting speed: 100cm/s (39.3"/s)
Maximum moving speed: 140cm/s (55"/s) (In a 45° direction and in a pen-up state)
Mechanical resolution: 5µm (0.0002")
Command resolution: 25?m, 10?m(MGL-IIc), 100?m, 50?m(MGL-Ic1)
Repeatability: ±0.2mm (Excluding shrinkage / expansion caused by the film temperature)
Accuracy assurance range (Repeatability): 1,300mm x 10m (51.2" x 32.8')
Max. pressure: 500g
Acceptable sheet *4: Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet
Acceptable sheet for pouncing *5: Paper thickness: 0.06~0.13mm (0.0024"~0.005")
Applicable tools *6: Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool
Type of command: MGL-II c / I c1
Interface: RS-232C, USB
Receiver buffer size: 30MB Standard (20MB when in sorting)
Operational environment: Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing)
Power requirement: AC100V~240V?1A 50/60Hz
Power consumption: 100W or less
Dimensions (WxDxH): 1,825mm(71.8")x 700mm(27.5")x 1,217mm(47.9")
Weight: 62kg (137 lb)

Brand: Mimaki
Model No: CG 75FXII Plus Cutting Plotter
Acceptable sheet width: 90mm~1,040mm (3.54"~40.9")
Rolled media weight: 18kg (40 lb) or less
Roll outsied diameter: ?200mm (7.87") or less
Effective cutting area *1: 760mm x 51m (29.9" x 167')
Maximum auto cutting width *2: 870mm (34.2")
Maximum cutting speed: 100cm/s (39.3"/s)
Maximum moving speed: 140cm/s (55"/s) (In a 45° direction and in a pen-up state)
Mechanical resolution: 5µm (0.0002")
Command resolution: 25?m, 10?m(MGL-IIc), 100?m, 50?m(MGL-Ic1)
Repeatability: ±0.2mm (Excluding shrinkage / expansion caused by the film temperature)
Accuracy assurance range (Repeatability): 760mm x 10m (29.9" x 32.8')
Max. pressure: 500g
Acceptable sheet *4: Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet
Acceptable sheet for pouncing *5: Paper thickness: 0.06~0.13mm (0.0024"~0.005")
Applicable tools *6: Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool
Type of command: MGL-II c / I c1
Interface: RS-232C, USB
Receiver buffer size: 30MB Standard (20MB when in sorting)
Operational environment: Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing)
Power requirement: AC100V~240V?1A 50/60Hz
Power consumption: 100W or less
Dimensions (WxDxH): 1,285mm(50.5")x 700mm(27.5")x 1,217mm(47.9")
Weight: 47kg (104 lb)

Brand: Mimaki

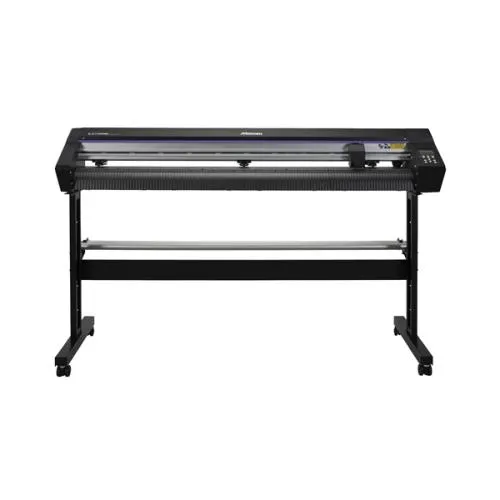

Model No: CG 130AR Cutting Plotter
Acceptable sheet width: 90 - 1,550 mm (3.5 - 61.0")
Effective cutting area *1: 1,370 mm × 51 M (53.9" x 167.3')
Maximum speed: Cutting: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
Adjustable speed range: 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment) 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1)
Repeatability *2: ± 0.2 mm / 2 M
Effective Repeatability: 1,350 mm × 2 M
Maximum pressure: 550g
Type of command: MGL-IIc / MGL-Ic1
Interface: USB, RS-232C, Ethernet
Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
Power supply: AC 100 V - 240 V 1A 50/60Hz
Power consumption: 228W or less
Dimensions: 1,810 × 580 × 1,160 mm (71.3 × 22.8 × 45.7")
Weight: 43kg (94.8 lb)

Brand: Mimaki

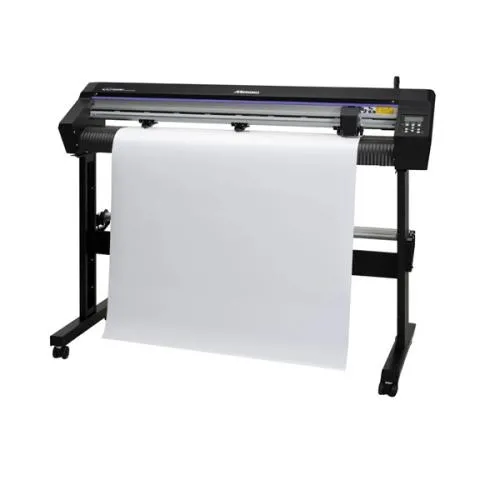

Model No: CG 100AR Cutting Plotter
Acceptable sheet width: 90 - 1,250 mm (3.5 - 49.2 inch)
Effective cutting area *1: 1,070 mm × 51 M (42.1" x 167.3')
Maximum speed: Cutting: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
Adjustable speed range: 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment), 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1
Repeatability *2: ± 0.2 mm / 2 M
Effective Repeatability: 1,050 mm × 2 M
Maximum pressure: 550g
Type of command: MGL-IIc / MGL-Ic1
Interface: USB, RS-232C, Ethernet
Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
Power supply: AC 100 V - 240 V 1A 50/60Hz
Power consumption: 228W or less
Dimensions: 1,510 × 580 × 1,160 mm (59.4 × 22.8 × 45.7")
Weight: 35kg (77.2 lb)

Brand: Mimaki

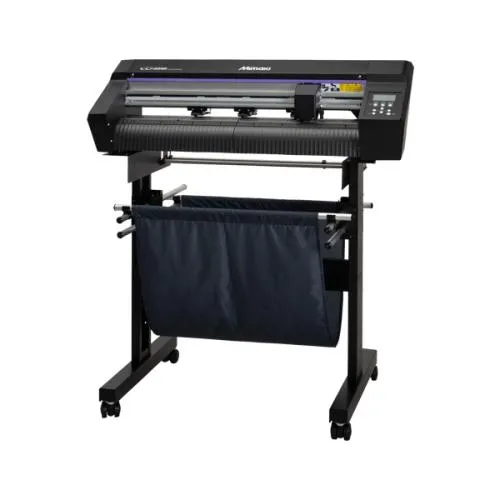

Model No: CG 60AR Cutting Plotter
Acceptable sheet width: 90 - 740 mm (3.5 - 29.1 inch)
Effective cutting area *1: 606 mm × 51 M (23.9 inch x 167.3 inch)
Maximum speed: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
Adjustable speed range: 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment), 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1)
Repeatability *2: ± 0.2 mm / 2 M
Effective Repeatability: 586 mm × 2 M
Maximum pressure: 550g
Type of command: MGL-IIc / MGL-Ic1
Interface: USB, RS-232C, Ethernet
Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
Power supply: AC 100 V - 240 V 1A 50/60Hz
Power consumption: 168W or less
Dimensions: 1,010 × 355 × 355 mm (39.8 × 14.0 × 14.0") 1,010 × 580 × 1,160 mm *6 (39.8 × 22.8 × 45.7") *6
Weight: 17kg (37.5 lb) 27kg (59.5 lb) *6
