Latest ixsystems storage Models Hyderabad, Telangana
iXsystems Storage
Pricelist of Best ixsystems storage Models
- Brand: iXsystems

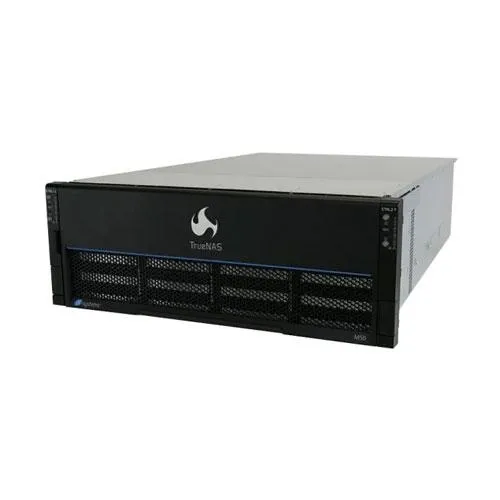

- Model No: iXsystems TrueNAS M60 Storage
- Form Factor: 4U-52U
- Max Read Cache: 4x 3.2 TB NVMe
- Max Capacity: 30 PB
- Max Effective Capacity: 50 PB
- Chassis Depth: 27”, 686mm
- Dual Controllers (HA): Optional
- Controller: 32 Cores (64 Threads)
- RAM (Max): 768 GB
- Write Cache: 2x 16 GB TrueCache NVDIMM
- Networking: 2x 10/25/40/100GbE, 2x 10GBase-T
- Fibre Channel (option): 4x 32 GB
- Max Expansion Shelves: 12
- Max Drives Supported: 1248
- Max Throughput: 23 GB/s
- Warranty: 1 Year Warranty
- Brand: iXsystems
- Model No: iXsystems TrueNAS M50 Storage
- Form Factor: 4U-36U
- Max Read Cache: 4x 1.6 TB NVMe
- Max Capacity: 10 PB
- Max Effective Capacity: 20 PB
- Chassis Depth: 27”, 686mm
- Dual Controllers (HA): Optional
- Controller: 20 Cores (40 Threads)
- RAM (Max): 384 GB
- Write Cache: 16 GB TrueCache® NVDIMM
- Networking: 2x 10/25/40/100GbE, 2x 10GBase-T
- Fibre Channel (option): 4x 16 GB or 2x 32 GB
- Max Expansion Shelves: 8
- Max Drives Supported: 504
- Max Throughput: 11 GB/s
- Warranty: 1 Year Warranty
- Brand: iXsystems

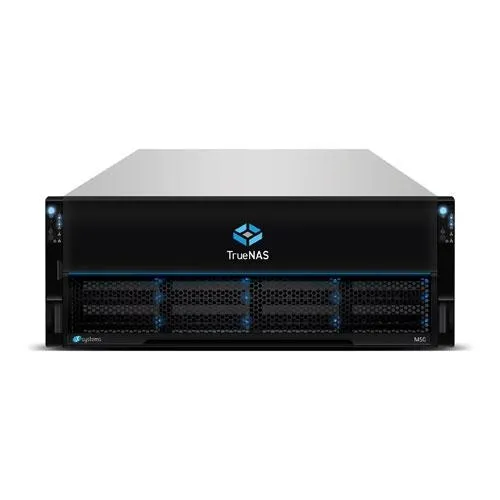

- Model No: iXsystems TrueNAS M40 Storage
- Form Factor: 4U-12U
- Max Read Cache: 3x 800 GB SAS SSD or 2 x 1.6TB NVMe (optional)
- Max Capacity: 3 PB
- Max Effective Capacity: 6 PB
- Chassis Depth: 27”, 686mm
- Dual Controllers (HA): Optional
- Controller: 10 Cores (20 Threads)
- RAM (Max): 192 GB
- Write Cache: 16 GB TrueCache® NVDIMM
- Networking: 2x 10/25/40/100GbE, 2x 10GBase-T
- Fibre Channel (option): 4x 16 GB
- Max Expansion Shelves: 2
- Max Drives Supported: 144
- Max Throughput: 7 GB/s
- Warranty: 1 Year Warranty
- Brand: iXsystems
- Model No: iXsystems TrueNAS M30 Storage
- Form Factor: 4U
- Max Read Cache: 800 GB SAS
- Max Capacity: 500 TB
- Max Effective Capacity: 1 PB
- Chassis Depth: 27”, 686mm
- Dual Controllers (HA): Optional
- Controller: 8 Cores (8 Threads)
- RAM (Max): 96 GB
- Write Cache: Optional 16 GB SAS SSD(s)
- Networking: 2x 10/25/40 GbE, 2x 10GBase-T
- Fibre Channel (option): 2x 16 GB
- Max Expansion Shelves: 2 (ES24),1 (ES60)
- Max Drives Supported: 24
- Max Throughput: 3 GB/s
- Warranty: 1 Year Warranty
- Brand: iXsystems

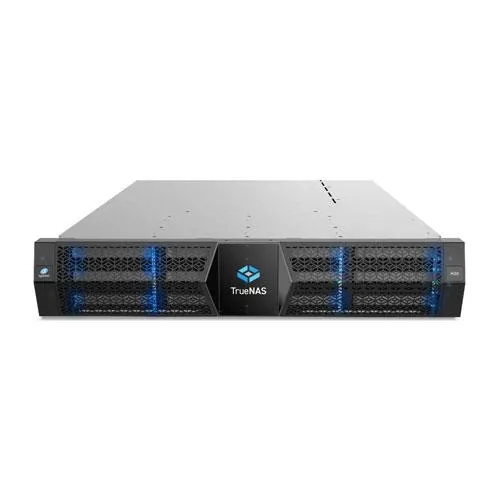

- Model No: iXsystems TrueNAS H30 Storage
- Max Capacity: 2.5 PB
- Max Effective Capacity: 5 PB
- Write Cache: 2x NVMe SSD
- Max Read Cache: 2x 6.4 TB NVMe SSD
- Dual Controllers: Optional
- DRAM Per Controller: 256 GB
- Onboard Networking: 4x 1G Base-T, 2x 10G Base-T
- Additional Networking (Optional): Up to 4x 10/25 GbE or 2x 10/25 GbE + 2x 40/100 GbE
- Fiber Channel: 2 x 32 Gb
- Max Drives Supported: 114
- Max Expansion Shelves: 1x ES24, ES60, or ES102
- Max Throughput: 8 GByte/s
- Dimensions: 26.8” x 19” x 3.5” | 681 x 483 x 89 mm
- Warranty: 1 Year Warranty
- Brand: iXsystems

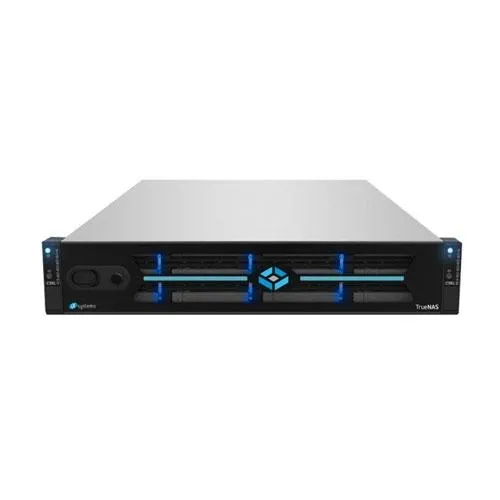

- Model No: iXsystems TrueNAS H20 Storage
- Max Capacity: 2.5 PB
- Max Effective Capacity: 5 PB
- Write Cache: NVMe SSD
- Max Read Cache: 2x 3.2 TB NVMe SSD
- Dual Controllers: Optional
- DRAM Per Controller: 128 GB - 256 GB
- Onboard Networking: 4x 1G Base-T
- Additional Networking (Optional): Up to 4x 10/25 GbE (SFP28) or 2x 10/25 GbE (SFP28) and 2x 40/100 GbE (QSFP28)
- Fiber Channel: 2 x 16 Gb
- Max Drives Supported: 114
- Max Expansion Shelves: 1x ES24, ES60, or ES102
- Max Throughput: 4 GByte/s
- Dimensions: 26.8” x 19” x 3.5” | 681 x 483 x 89 mm
- Warranty: 1 Year Warranty
- Brand: iXsystems
- Model No: iXsystems TrueNAS H10 Storage
- Max Capacity: 1.5 PB
- Max Effective Capacity: 3 PB
- Write Cache: NVMe SSD
- Max Read Cache: 3.2 TB NVMe SSD
- Dual Controllers: Optional
- DRAM Per Controller: 64 GB - 128 GB
- Onboard Networking: 4x 1G Base-T
- Additional Networking (Optional): Up to 4x 10/25 GbE (SFP28)
- Fiber Channel: 2 x 16 Gb
- Max Drives Supported: 72
- Max Expansion Shelves: 1x ES24 or ES60
- Max Throughput: 2 GByte/s
- Dimensions: 26.8” x 19” x 3.5” | 681 x 483 x 89 mm
- Warranty: 1 Year Warranty
- Brand: iXsystems
- Model No: iXsystems TrueNAS R50 Storage
- Controller Form factor: 2U–10U
- Chassis Depth: 39”, 990 mm
- Controllers: Single
- Drive Bays: 48 × 3.5", 4 × 2.5" (NVMe)
- CPU per Controller: 6–16 Cores
- DRAM per Controller: 64 GB–192 GB
- Read & Write Cache: 4 × 3.2 TB NVMe SSD
- Networking: 2 × 10/25/40/100 GbE, 2 or 6 × 10GBase-T or SR
- Fibre Channel (option): 2 × 32 Gb
- Max Expansion Shelves: 2
- Max Drives Supported: 252
- Max Throughput: 10 GB/s
- Storage Type: Hybrid
- Max Raw Capacity: 5 PB
- Max Effective Capacity: 10 PB
- Warranty: 1 Year Warranty
- Brand: iXsystems

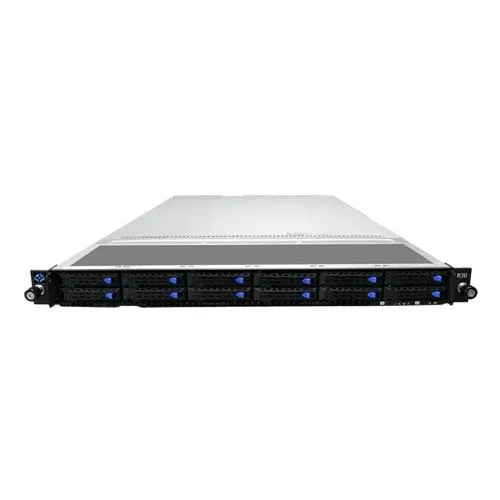

- Model No: iXsystems TrueNAS R30 Storage
- Controller Form factor: 1U
- Chassis Depth: 33”, 840 mm
- Controllers: Single
- Drive Bays: 16 × NVMe
- CPU per Controller: 16–64 Cores
- DRAM per Controller: Up to 1024 GB
- Read & Write Cache: 2 × 960 GB SATA SSDs
- Networking: 2 or 4 × 10/25/40/100 GbE, 2 × 10GBase-T
- Fibre Channel (option): Up to 4 x 32Gb
- Max Expansion Shelves: 0
- Max Drives Supported: 16
- Max Throughput: 20 GB/s
- Storage Type: All-NVMe
- Max Raw Capacity: 240 TB
- Max Effective Capacity: 480 TB
- Warranty: 1 Year Warranty
- Brand: iXsystems

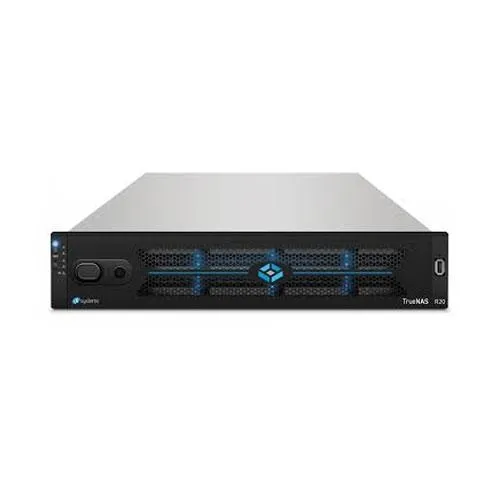

- Model No: iXsystems TrueNAS R20 Storage
- Controller Form factor: 2U–10U
- Chassis Depth: 26”, 660 mm
- Controllers: Single
- Drive Bays: 12 × 3.5", 2 × 2.5"
- CPU per Controller: 6–16 Cores
- DRAM per Controller: 32 GB–192 GB
- Read & Write Cache: 2 × 960 GB SATA SSDs
- Networking: 2 × 10/25/40/100 GbE, 2 or 6 × 10GBase-T or SR
- Fibre Channel (option): 2 × 32 Gb
- Max Expansion Shelves: 2
- Max Drives Supported: 132
- Max Throughput: 8 GB/s
- Storage Type: Hybrid
- Max Raw Capacity: 2.9 PB
- Max Effective Capacity: 6 PB
- Warranty: 1 Year Warranty
- Brand: NetApp

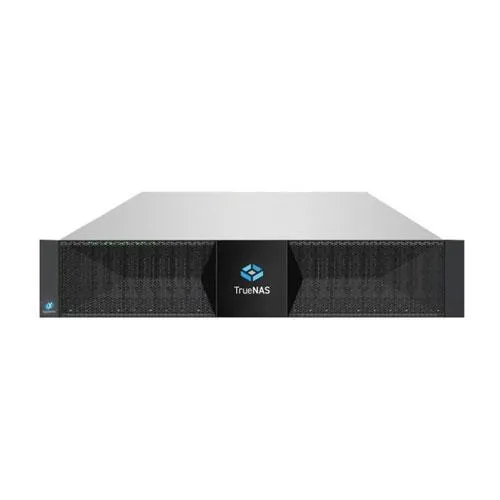

- Model No: iXsystems TrueNAS F100 storage
- Form Factor: 2U
- Features: NVMe Storage/All-Flash
- DRAM Per Controller: 512 GB
- Networking: Up to 6x 40/100 GbE (optical), 2x 10G Base-T
- Fiber Channel: 4 x 32 Gb
- Max Capacity: 10 PB
- Max Effective Capacity: 20 PB
- Max Throughput: 30 GByte/s
- Max Drives Supported: 24
- Max NVMe Expansion Shelves: 6
- Chassis Depth: 27”, 686mm
- Dual Controllers: Yes
- Warranty: 1 Year Warranty
- Brand: NetApp
- Model No: iXsystems TrueNAS F60 storage
- Form Factor: 2U
- Features: NVMe Storage/All-Flash
- DRAM Per Controller: 512 GB
- Networking: Up to 4x 40/100 GbE (optical), 2x 10G Base-T
- Fiber Channel: 4 x 32 Gb
- Max Capacity: 4 PB
- Max Effective Capacity: 8 PB
- Max Throughput: 20 GByte/s
- Max Drives Supported: 24
- Max NVMe Expansion Shelves: 2
- Chassis Depth: 27”, 686mm
- Dual Controllers: Yes
- Warranty: 1 Year Warranty
- Brand: iXsystems

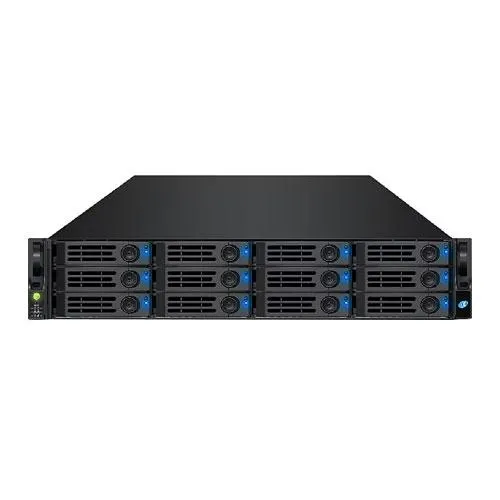

- Model No: iXsystems TrueNAS Mini R Storage
- Chassis: 12 Bay Enclosure – Super Quiet Design
- Drive Bays: 12 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5? to 2.5? adaptors available)
- Maximum Raw Capacity: Up to 216 TB
- CPU: Octa-core C3758 Intel CPU
- Memory: 32 GB DDR4 with ECC (Upgradeable to 64GB)
- RAID: OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
- Disk Management: Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T, ISO Mounting Support, Hardware-Accelerated Disk Encryption
- Network: Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports, Dedicated RJ45 IPMI Port (Remote Hardware Management), 2 x SFP+ 10G Add On Card (Optional)
- USB Ports: 1 x USB 3.0 Port (Rear), 2 x USB 2.0 Ports (Rear)
- Read/Write Cache: (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
- PCIe Expansion: 1 x PCI Express 3.0 x 4
- Power Supply: 100V to 240V AC, 50/60 HZ, Single Phase
- Power Consumption (Maximum): Diskless: 63W With drives & 10G Add-on-card: 167W
- Power Management: Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
- User Control Interface: Web Browser and Remote Hardware Management (IPMI)
- Accessories: Basic Setup Guide, 2 x bezel keys, bag of HDD screws, 2 x 7 ft cat6 copper cable, Bezel, 4 x Adhesive Rubber Feet, Short Rail Kit – 19? to 26.6? rackmount depth, Optional Long Rail Kit available – 26.5? to 36.4? rackmount depth
- Dimensions(W x D x H): 17.2? x 21? x 3.5? / 437 × 533 × 89mm
- Weight: 18.7lbs / 8.5Kg
- Warranty: 1 Year Warranty
- Brand: iXsystems

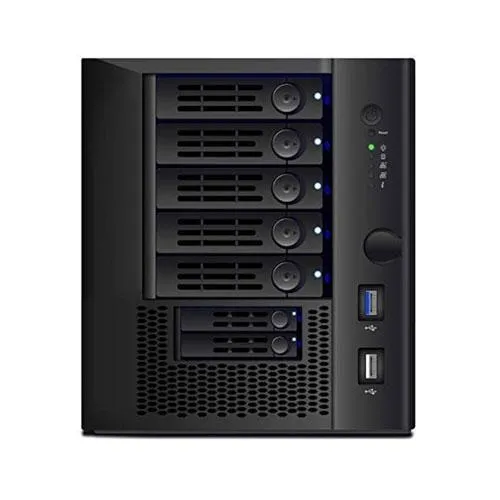

- Model No: iXsystems TrueNAS Mini X Plus Storage
- Chassis: 5+2 Bay Enclosure – Super Quiet Design
- Drive Bays: 5 x SATA 3.5” Hot-Swappable Drive Bays(Optional 3.5? to 2.5? adaptors available), 2 x SATA 2.5” Hot-Swappable SSD Bays
- Maximum Raw Capacity: Up to 105 TB
- CPU: Octa-core C3758 Intel CPU
- Memory: 32 GB DDR4 with ECC (Upgradeable to 64GB)
- RAID: OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
- Disk Management: Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T, ISO Mounting Support, Hardware-Accelerated Disk Encryption
- Network: Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports, Dedicated RJ45 IPMI Port (Remote Hardware Management), 2 x SFP+ 10G Add On Card (Optional)
- USB Ports: 1 x USB 3.0 Port (Front), 1 x USB 2.0 Port (Front), 2 x USB 2.0 Ports (Rear)
- Read/Write Cache: (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
- PCIe Expansion: 1 x PCI Express 3.0 x 4
- Power Supply: 100V to 240V AC, 50/60 HZ, Single Phase
- Power Consumption (Maximum): Diskless: 40W With drives & 10G Add-on-card: 111W
- Power Management: Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
- User Control Interface: Web Browser and Remote Hardware Management (IPMI)
- Accessories: Basic Setup Guide, 2 x Case Door Keys, bag of HDD screws, 2 x 7 ft cat6 copper cable
- Dimensions(W x D x H): 8.25? x 10.5? x 9.5? / 210 x 267 x 241mm
- Weight: 13lbs / 5.9Kg
- Warranty: 1 Year Warranty
- Brand: iXsystems

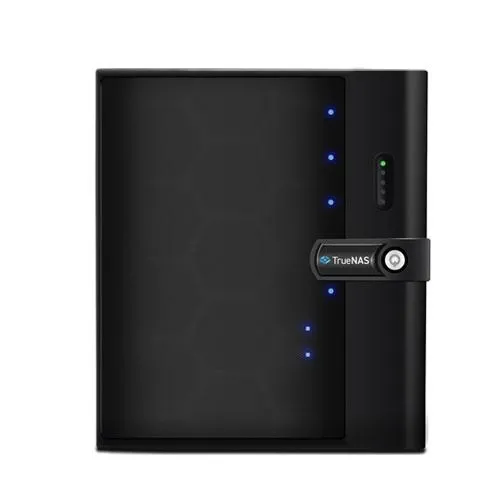

- Model No: iXsystems TrueNAS Mini X Storage
- Chassis: 5+2 Bay Enclosure – Super Quiet Design
- Drive Bays: 5 x SATA 3.5” Hot-Swappable Drive Bays(Optional 3.5? to 2.5? adaptors available), 2 x SATA 2.5” Hot-Swappable SSD Bays
- Maximum Raw Capacity: Up to 90 TB
- CPU: Quad-core C3558 Intel CPU
- Memory: 16 GB DDR4 with ECC (Upgradeable to 32GB)
- RAID: OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
- Disk Management: Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T, ISO Mounting Support, Hardware-Accelerated Disk Encryption
- Network: Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000), Dedicated RJ45 IPMI Port (Remote Hardware Management)
- USB Ports: 2 x USB 2.0 Ports (Front), 1 x USB 3.0 Port (Rear)
- Read/Write Cache: (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
- PCIe Expansion: N/A
- Power Supply: 100V to 240V AC, 50/60 HZ, Single Phase
- Power Consumption (Maximum): Diskless-24W With drives: 84W
- Power Management: Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
- User Control Interface: Web Browser and Remote Hardware Management (IPMI)
- Accessories: Basic Setup Guide, 2 x Case Door Keys, bag of HDD screws, 2 x 7 ft cat6 copper cable
- Dimensions(W x D x H): 8.25? x 10.5? x 9.5? / 210 x 267 x 241mm
- Weight: 13lbs / 5.9Kg
- Warranty: 1 Year Warranty
Your Go-To Source for High-Performance IT Equipment
As leading ixsystems storage dealers in the IT hardware industry, we are committed to delivering reliable, high-performance server solutions that cater to the dynamic needs of modern businesses. Our extensive portfolio includes a wide range of servers—rack servers, tower servers, blade servers, and customized enterprise-grade systems—from globally recognized brands such as Dell, HP, Lenovo, Cisco, and more. Whether you are a small business looking for an entry-level server or a large enterprise seeking powerful, scalable data center infrastructure, we provide tailored solutions that align with your technical requirements and budget.
Our services go beyond just sales—we offer expert consultation to help clients choose the right server configurations based on workload, performance goals, and scalability. Each product we supply is rigorously tested for quality assurance and comes with warranty options and after-sales support, ensuring peace of mind and long-term performance. With a team of knowledgeable professionals, competitive pricing, and a customer-centric approach, we have established ourselves as a trusted partner for businesses, IT integrators, system administrators, and government organizations.
Whether you're upgrading your existing infrastructure, setting up a new data center, or integrating servers into a hybrid IT environment, our goal is to deliver dependable hardware solutions that empower your operations and drive digital transformation.
