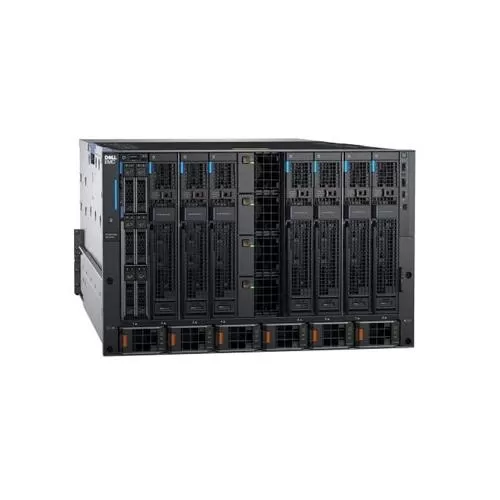

PowerEdge MX Chassis
Weight: 12kg maximum with all 16 HDDs installed
Up to 16 x 2.5” SAS (HDDs/SSDs) in one storage sled.
Up to 112 drives,
7 storage sleds within the PowerEdge
MX chassis (plus 6 internal server storage drives).
HBA330 mini-mezz (MMZ)- (on the connected server)
PERC H745P MX- (on the connected server)
Power supplies and fans are provided by the PowerEdge MX chassis
I/O & Ports
The MX5016s connects to the servers via the MX5000s SAS switch.
FX2s configuration: Up to 8 x PCIe 3.0 I/O expansion slots (low profile/half-length)
PowerEdge MX uses OpenManage Enterprise - Modular Edition to manage all servers,storage, and networking for
multiple chassis in a single web console or RESTful API interface.
• Manage multiple PowerEdge MX groups, rack servers, and legacy modular systems with OpenManage Enterprise.
• Once mapped to servers, the drives are configured, monitored, and updated via the iDRAC with Lifecycle
