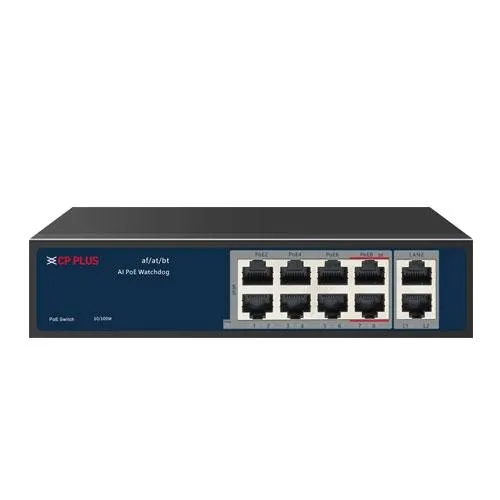

CP Plus CP ANW HPU8H2 N12 8 Port PoE Switch

Brand: CP Plus

Model No: CP Plus CP-ANW-HPU8H2-N12 8 Port POE Plus 2 Uplink Port PoE Switch

Network Port PoE (1-6): 10/100Mbps PoE ports (RJ45), PoE (7~8): 10/100Mbps PoE ports (RJ45),Support bt 60W High Power, LAN: 10/100Mbps uplink ports (RJ45)

Network Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet

Transmission Rate: 200Mbps Full Duplex; 10 or 100Mbps Half Duplex

Transmission Distance: 1-2 ports 250m 10Mbps / 3~8 ports 130m 100Mbps

MAC Address List: 2K

Bandwidth: 2.0 Gbps

Network Latency (10 to 100Mbps): ?16?s (use the 64byte package size)

Frame Filter & Transmission Rate: 14800pps the most for 10Mbps port, 148800pps the most for 100Mbps port

Power Budget: 120W

Power Input: AC 90~240V, Total: ?120W

Power Output PoE 1-6 Port: 1/2(+52V), 3/6 (GND)?30W, PoE 7~8 Port: 1245(+53V), 3678 (GND) compatible 1/2 (+52V), 3/6 (GND)?60W

Watchdog Port 1-8

Lightning Protection 6KV, Per: IEC61000-4-5

ESD Protection 8KV, Per: IEC61000-4-2

Operating Temperature: -30°C ~60°C

Operating Humidity: 10%~90% (Non-condensing)

Storage Temperature: -40°C ~70°C

Storage Humidity: 5%~90% (Non-condensing)

Package Content: AC Power Cable, User Manual

Dimension: 187mm(L) x 139mm(W) x 43mm(H)

Weight: 1 Kg
